INSIGHT DA025 User manual

DA025
LEG CURL/EXTENSION

6
7
8
9
17
18
19

─ 3 ─
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equipment,
basic precautions should always be taken, including the following:
* Read all instructions before using the equipment. These instructions are
written to ensure your safety and to protect the unit.
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended by
the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout----no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
Personal Safety During Assembly
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later that
you have to disassemble components and that you may have damaged
the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate the
unit a few feet from walls or furniture to provide easy access. The
equipment is designed for your enjoyment. By following these precautions
and using common sense, you will have many safe and pleasurable hours
of healthful exercise with the equipment.

Instructions
Before beginning assembly please take the time to read instructions
thoroughly. Please use the various lists in this manual to make sure that all
parts have been included in your shipment. When ordering, use part number
and description from the lists. Use only our replacement part when servicing.
Failure to do so will void your warranty and could result in personal injury.
The equipment is designed to provide the smoothest, most effective
exercise motion possible. After assembly, you should check all functions to
ensure correct operation. If you experience problems, first recheck the
assembly instructions to locate any possible errors made during assembly. If
you are unable to correct the problem, call your authorized dealer. Be sure to
have your serial number and this manual when calling. When all parts have
been accounted for, continue on.

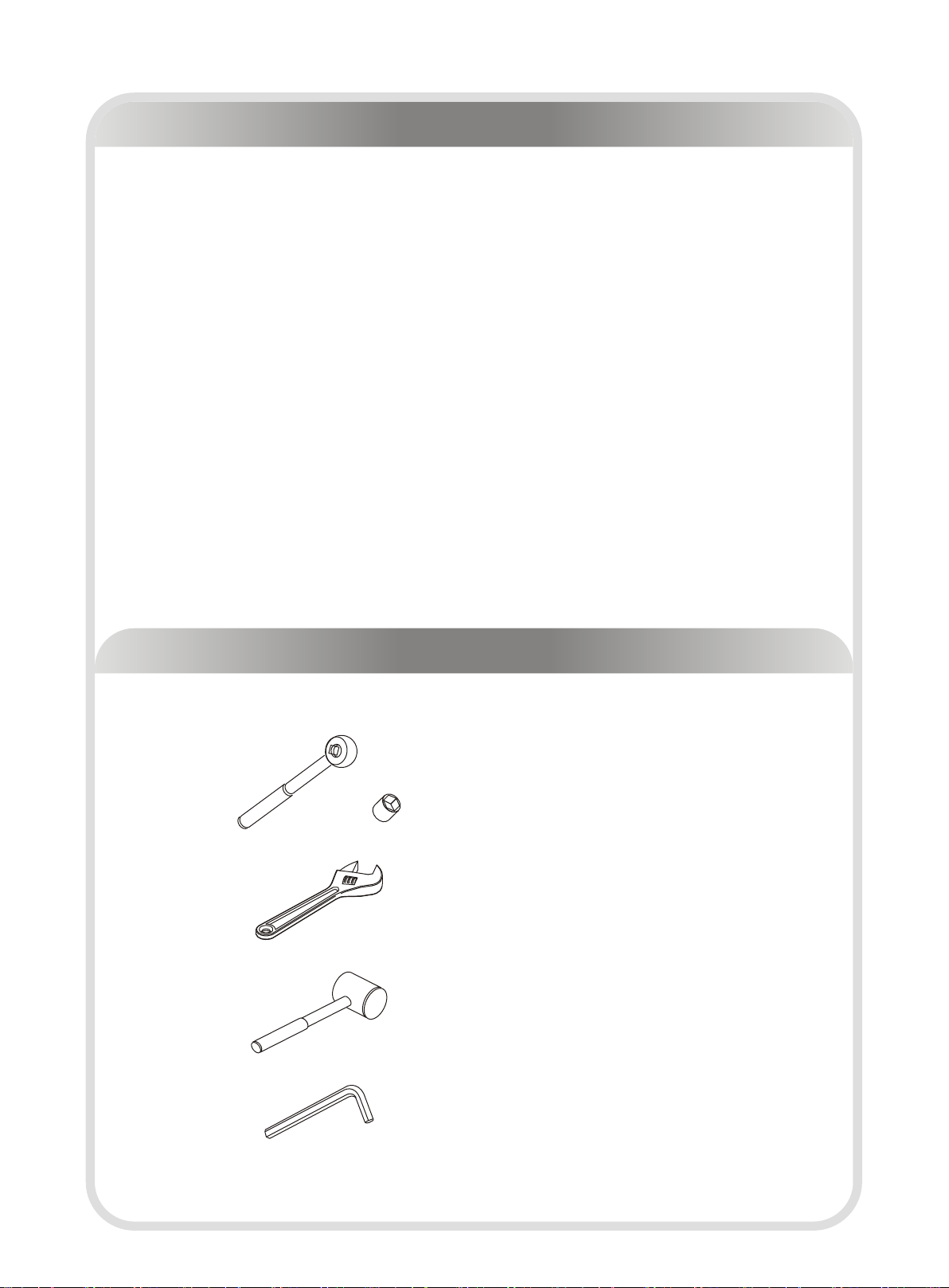

Tools Required
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set

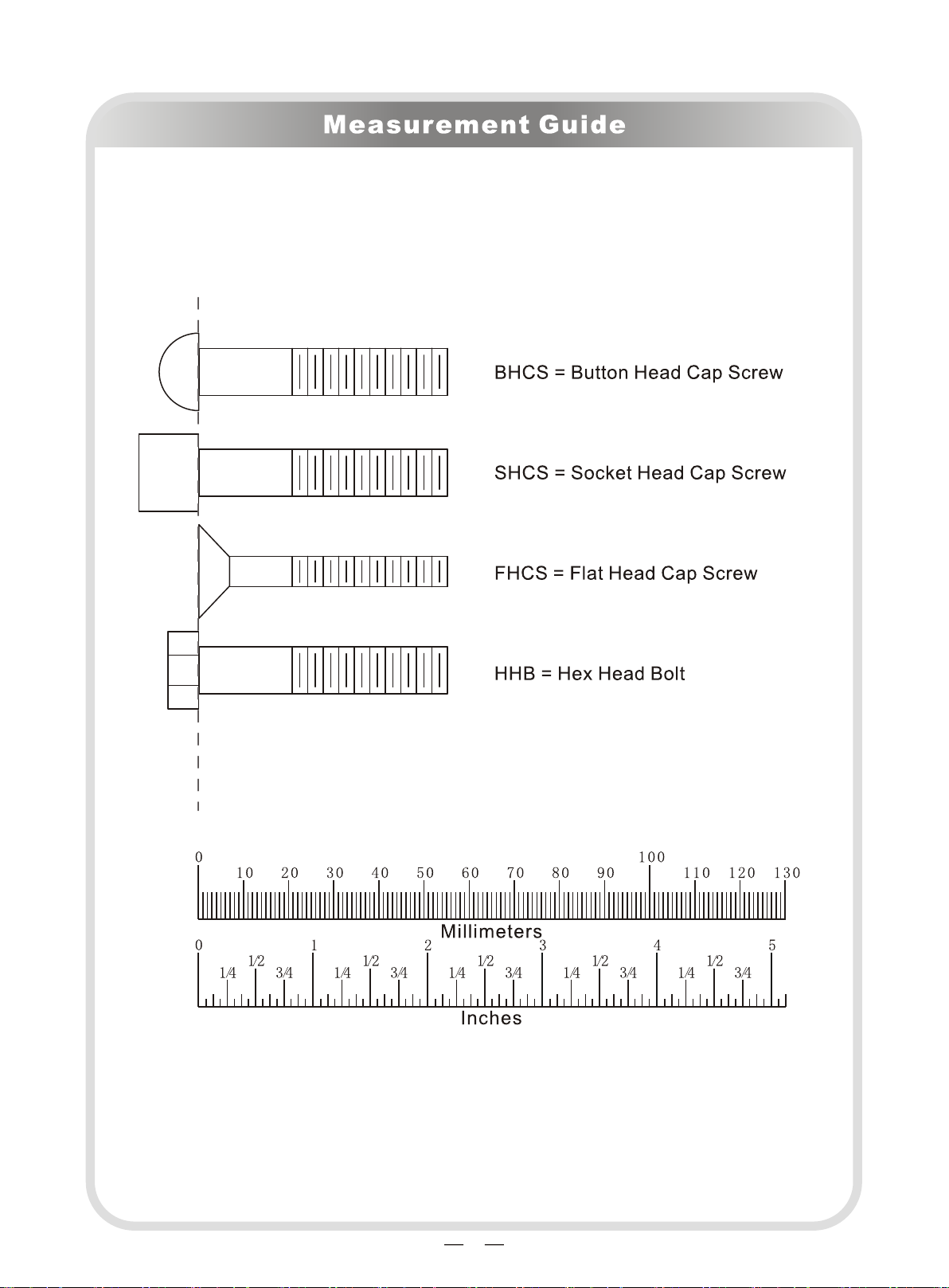

─ 4 ─

ITEM NO DESCRIPTION QTY ITEM NO DESCRIPTION QTY
1 Weight Stack Frame 1 49 Plug φ50 1
2 Standing Main Frame 1 50 Pulley 1
3 Top Frame 1 51 Rubber Foot 4
4 Seat Support 1 52 Handle Ball 1
5 Main Bracket 1 53 Grip 2
6 Movement Arm 1 54 Spacer 2
7 Adjustable Cam 1 55 Cable_1 1
8 Swing Tube 1 56 Flange Bearing 4
9 Back pad support 1 57 Bronze Bushing 2
10 Adjustable tube 1 58 Bronze Bearing 2
11 handle 1 60 Bronze Bearing1 4
12 Cam Support Tube 1 61 Flat Head Cap Screw M10*25 8
13 Flange 2 62 Buon Head Cap Screw M6*12 2
16 Handle Frame 1 63 Buon Head Cap Screw M8*45 1
17 Adjustable Support 1 64 Buon Head Cap Screw M8*60 1
18 Front Shroud 1 65 Socket Head Cap Screw M4*15 1
19 Rear Shroud 1 66 Socket Head Cap Screw M8*20 2
20 Pivot 1 68 Socket Head Cap Screw M8*25 3
21 Adjustment Plate 1 69 Socket Set Screw M5*3 8
22 Counter Poise Block 1 70 Socket Set Screw M8*10 4
23 Sha1 71 Self-tapping screw 4
24 Spring 1 73 Hex Bolt M10*20 8
25 Hex Nut M20 1 74 Hex Bolt M10*70 3
26 Chain 1 75 Hex Bolt M10*30 8
28 Pop Pin 1 76 Hex Bolt M10*50 2
29 Pivot 1 77 Hex Bolt M10*75 1
30 Seat Pad Plate 1 78 Hex Bolt M10*80 1
31 Cable Retainer Bracket 2 79 Hex Bolt M10*95 2
32 Guide Rod 2 80 Hex Bolt M10*125 6
33 Mount Sleeve 2 81 Hex Bolt M10*130 4
34 Pulley Spacer 2 84 Hex Bolt M12*35 4
35 Torsion Spring 1 85 Nut M10 4
36 Cap 4 86 Hex Nut M6 2
37 Aluminium Grip Ring 4 87 Nylon Lock Nut M8 4
38 Aluminium Cap 2 88 Nylon Lock Nut M10 22
39 Aluminium Grip Ring 2 89 Nylon Lock Nut M12 7
40 Aluminium Cap 2 90 Flat Washer 11
41 Seat Pad 1 91 Flat Washer 8
42 Back Pad 1 92 Flat Washer 56
43 Foam 2 93 Weight Stack 15
44 Pulley 3 94 Top Plate 1
45 Plug RT50 5 95 Selector Pin W/Coil 1
46 Plasc Tube Guide 2 96 Weight Rubber Bumper 2
47 Top Shroud 1 97 Spring Washer 2
48 Spacer 3 98 Spring Washer 2

6
18
19
17
16
13
13
12
11
10
9
8
7
6
5
4
3
2
1
20
21
22
23
24
25
26
28
29 30
31
32
33
34
35
36
36
37
37
37
37
38
38
39
40
41
42
43
43
44
44
45
45
45
46
47
48
48
48
49
50
51
52
52
53
54
55
56
56
56
57
58
58
60
61
61
61
61
62
63
6465
66
68
68
70
69
69
69
71
73
30
74
74
30
30
75
76
76
77
78
79
80
80
81
81
84
84
85
85
86
87
87
88
88
88
88
88
88
88
88
88
88
88
89
89
89
90
90
90
90
90
91
91
91
91
91
91
92
92
92
92
92
92
92
92
92
92
92
92
92
92
92 92
92
92
92
92
92
92
92
92
92
92
92
92
92
92
93
94
95
96
97
98
45
73
88
87
61

7

8
125 275

9
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
NOTE: WRENCH TIGHTEN SCREWS.
ITEM NO DESCRIPTION QTY
79
80
81
88
89
92
2
2
2
4
10
18
Hex Bolt M10*95
Hex Bolt M10*125
Hex Bolt M10*130
Nylon Lock Nut M10
Nylon Lock Nut M12
Flat Washer
79
92
92
88
81
81
92
92
92
92
92
92
88 88
88
88
92
80
89
1
4
3
2
1 1
1
1
1
2
3
4
Weight Stack Frame
Standing Main Frame
Top Frame
Seat Support

10
NOTE: WRENCH TIGHTEN SCREWS.

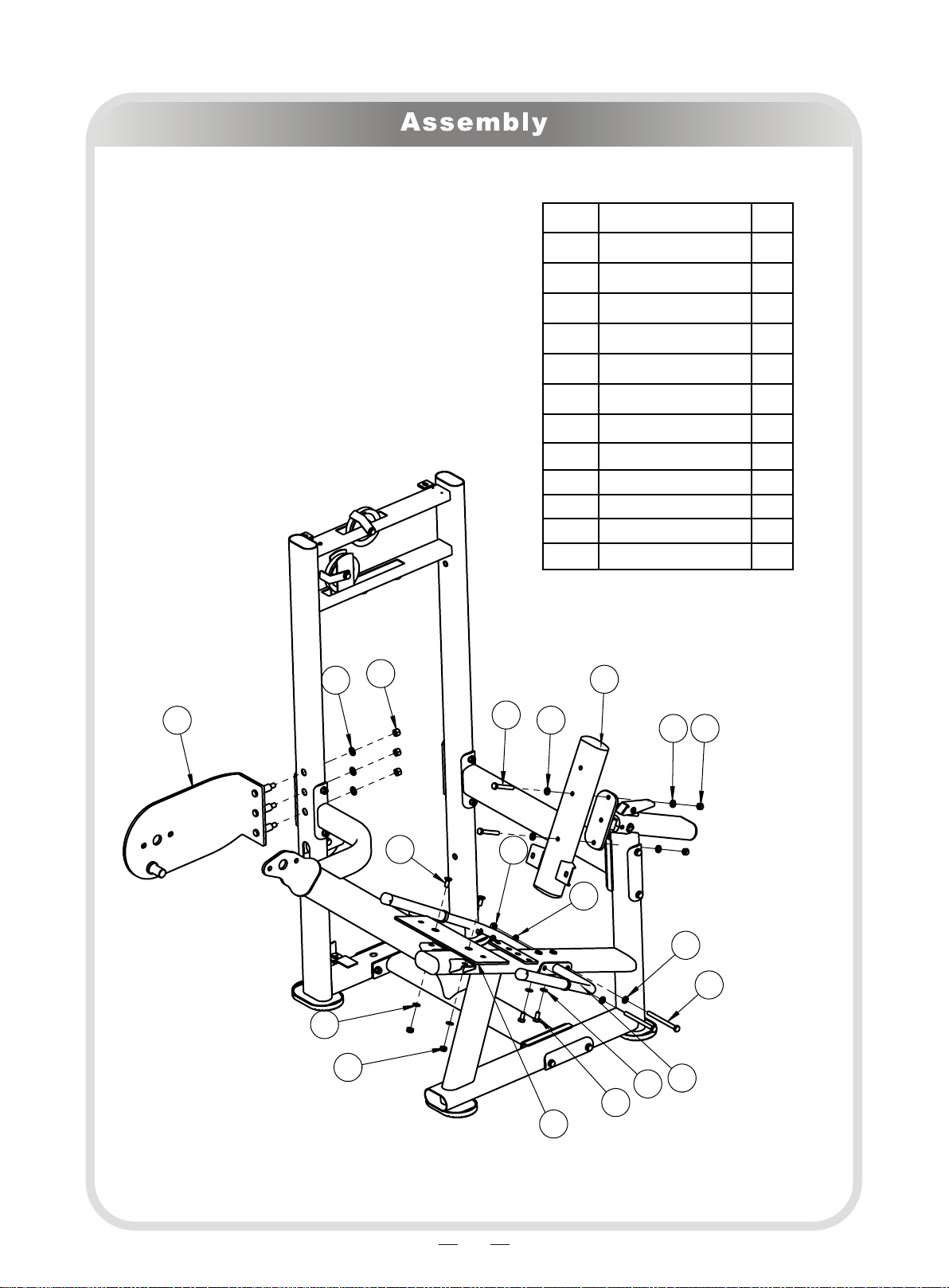

STEP 2 | USER FRAME INSTRUCTIONS & NOTES
89
90
74 92 92
92
92
92
73
80
88
61
88
92
88
11
30
9
5
ITEM NO DESCRIPTION QTY
2
2
1
1
1
1
2
2
3
6
3
12
Hex Bolt M10*125
Nylon Lock Nut M10
Nylon Lock Nut M12
Flat Washer
73
61
11
30
9
5
74
80
88
89
90
92
Hex Bolt M10*20
Hex Bolt M10*70
Flat Washer
Flat Head Cap Screw M10*25
Main Bracket
Back pad support
handle
Seat Pad Plate

11
NOTE: WRENCH TIGHTEN SCREWS.
STEP 3 | USER FRAME INSTRUCTIONS & NOTES
70
13
20 7
12
61 36
6
29
36
61
8
58
22
92
97
75
ITEM NO DESCRIPTION QTY
1
1
1
1
1
1
1
1
4
2
2
4
2
2
2
20
13
8
12
7
6
22
29
36
58
61
92
75
70
97
Movement Arm
Adjustable Cam
Swing Tube
Cam Support Tube
Flange
Pivot
Counter Poise Block
Pivot
Cap
Bronze Bearing
Flat Head Cap Screw M10*25
Socket Set Screw M8*10
Flat Washer
Spring Washer
Hex Bolt M10*30

12
NOTE: WRENCH TIGHTEN SCREWS.
STEP 4 | USER FRAME INSTRUCTIONS & NOTES
61 36 84 90
90
89
ITEM NO DESCRIPTION QTY
8
4
4
2
2
89
90
84
36
61
Movement Arm
Adjustable Cam
Swing Tube
Cam Support Tube
Flat Head Cap Screw M10*25

13
NOTE: WRENCH TIGHTEN SCREWS.
STEP 5 | USER FRAME INSTRUCTIONS & NOTES
68
98
91
33
32
94
93
95
96
ITEM NO DESCRIPTION QTY
2
15/19/24
1
2
1
2
2
2
2
94
95
96
98
93
68
91
33
32
Guide Rod
Mount Sleeve
Socket Head Cap Screw M8*25
Flat Washer
Weight Stack
Top Plate
Selector Pin W/Coil
Weight Rubber Bumper
Spring Washer

14
NOTE: WRENCH TIGHTEN SCREWS.

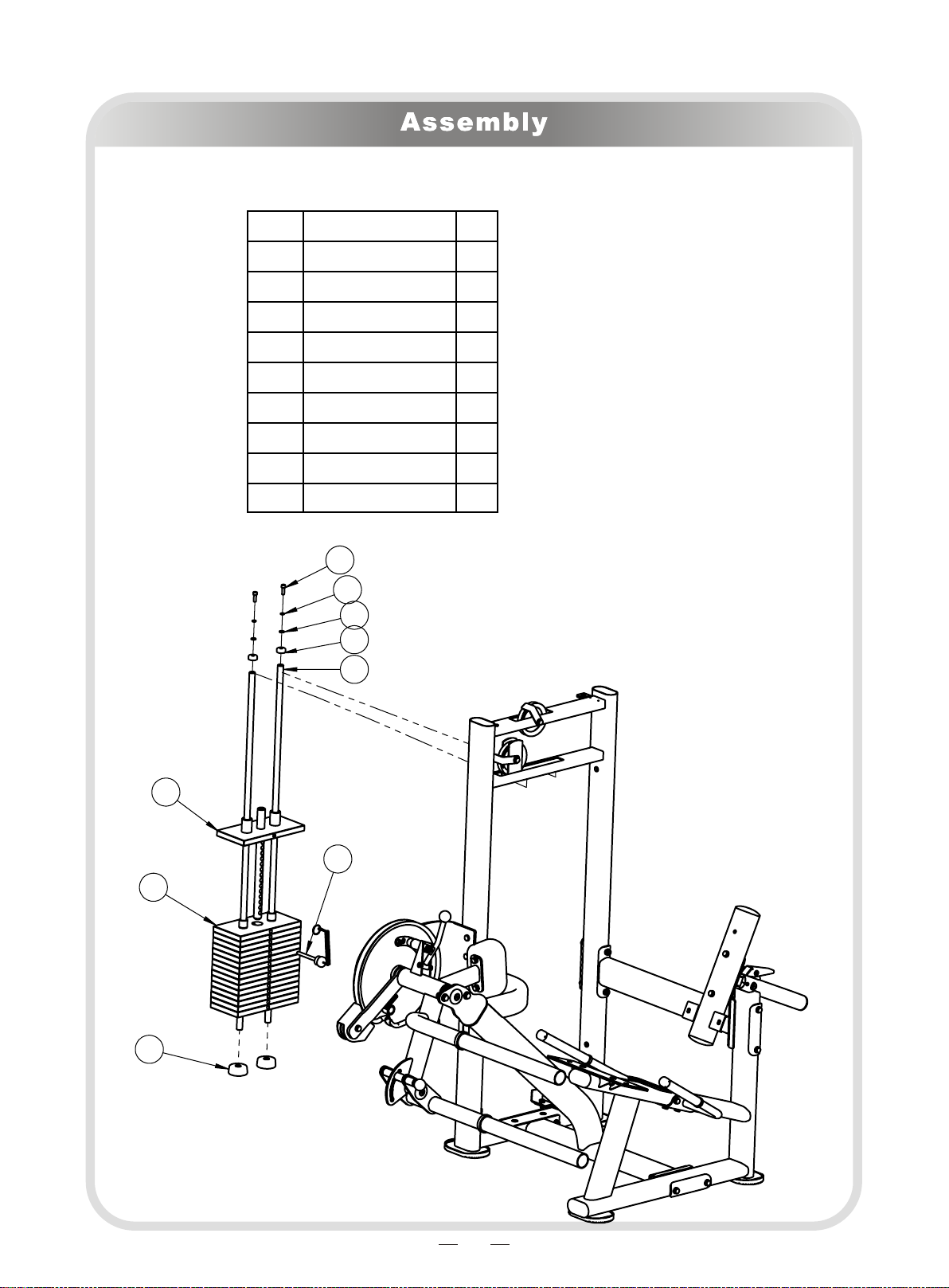

STEP 6 | USER FRAME INSTRUCTIONS & NOTES
55
65
ITEM NO DESCRIPTION QTY
1
1
65
55
Cable_1
Socket Head Cap Screw M4*15

15
NOTE: WRENCH TIGHTEN SCREWS.

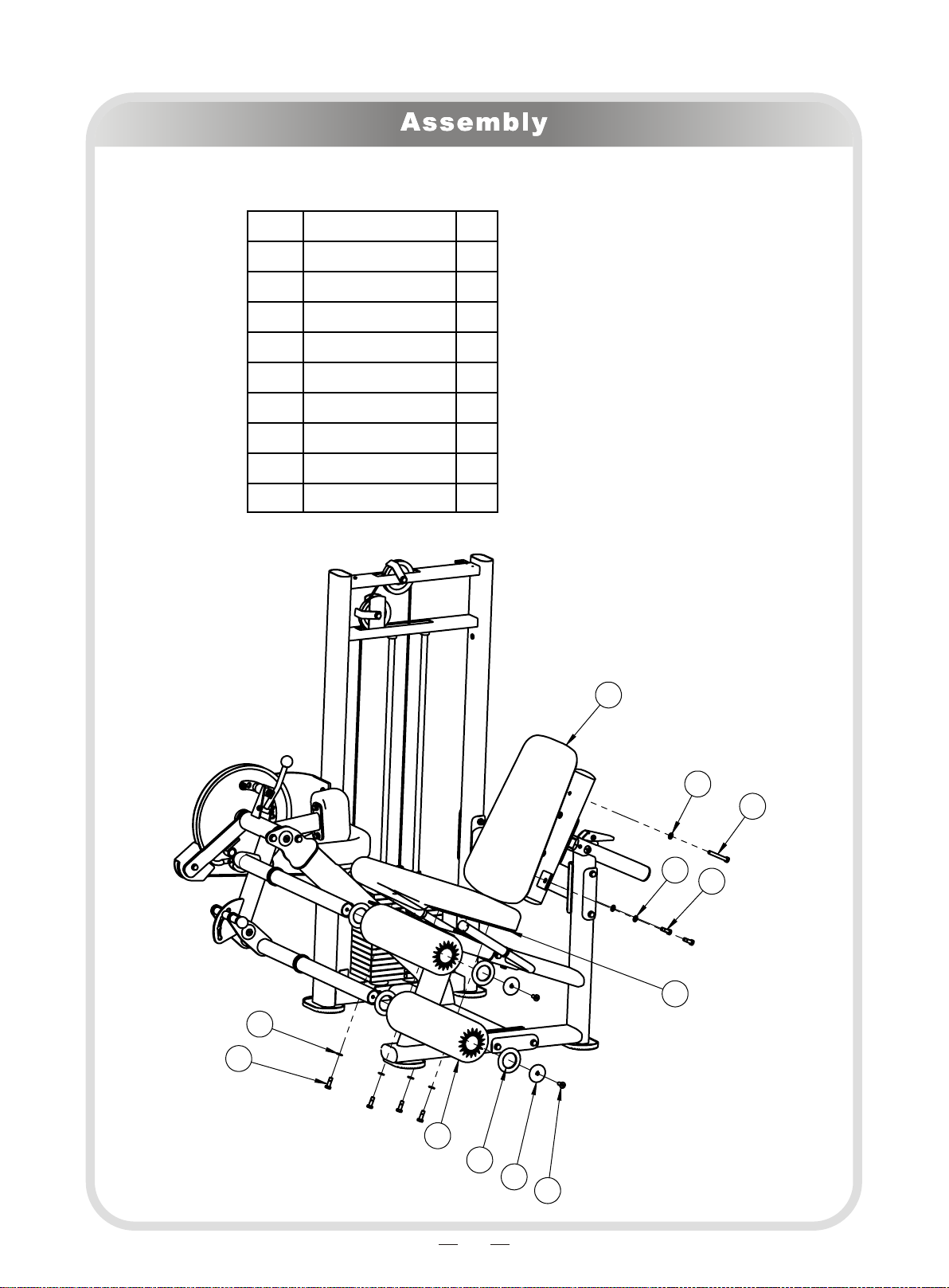

STEP 7 | USER FRAME INSTRUCTIONS & NOTES
ITEM NO DESCRIPTION QTY
1
2
2
6
1
7
1
2
4
61
75
81
92
43
41
42
38
37
81
92
92 75
37
38 61
75
92
42
41
43
Aluminium Grip Ring
Aluminium Cap
Seat Pad
Back Pad
Foam
Flat Head Cap Screw M10*25
Hex Bolt M10*30
Hex Bolt M10*130
Flat Washer

16
NOTE: WRENCH TIGHTEN SCREWS.
STEP 8 | USER FRAME INSTRUCTIONS & NOTES
73
92
19
18
88
92 71
47
75 92
ITEM NO DESCRIPTION QTY
4
2
4
2
6
1
1
1
75
88
92
73
47
71
19
18
Front Shroud
Rear Shroud
Top Shroud
Self-tapping screw
Hex Bolt M10*20
Hex Bolt M10*30
Nylon Lock Nut M10
Flat Washer

17

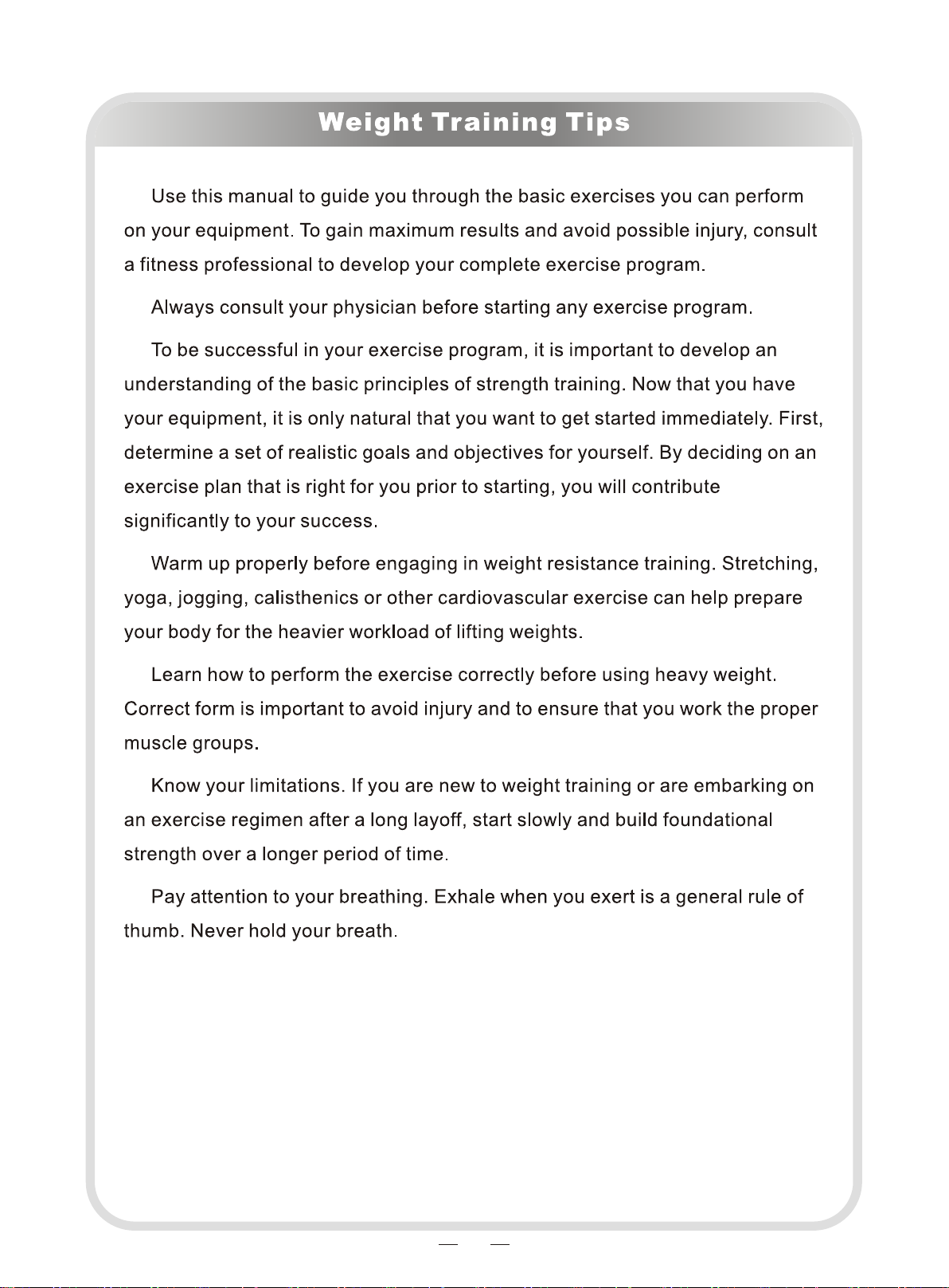

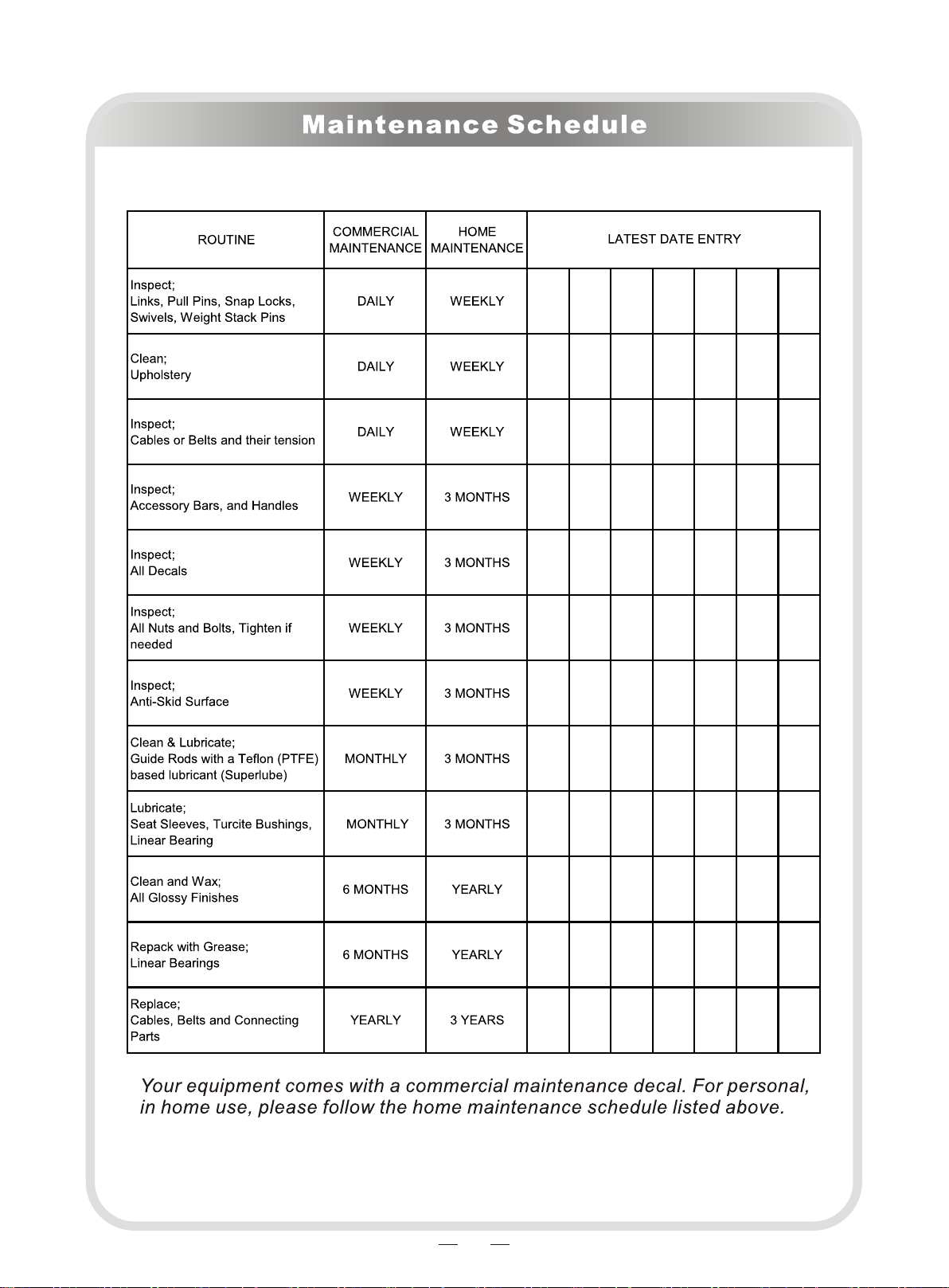

18

19
