Teeter Hang Ups FlexTech Series User manual

FlexTechTM Series
Assembly Instructions
R
EP-550/650, EP-850 & EP-950
Inversion Tables
Pour télécharger et imprimer les instructions de
montage du dossier ComforTrak™ en français,
rendezvous sur teeterinversion.com
Para descargar e imprimir las instrucciones
de montaje de ComforTrak™ en español, visite
teeterinversion.com
T
E
E
T
E
R
H
A
N
G
U
P
S
5
YEAR
W
A
R
R
A
N
T
Y
* Inversion Table images may
vary slightly from your model.
The EP-550 is shown here.

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE.
SAVE THESE INSTRUCTIONS
WARNING - To reduce the risk of injury to persons:
• Read and understand all the instructions, view the instructional video, review all other accompanying documents, and inspect the
equipment before using the inversion table. It is your responsibility to familiarize yourself with the proper use of this equipment and the
inherent risks of inversion, such as falling on your head or neck, pinching, entrapment, or equipment failure. It is the responsibility of
the owner to ensure that all users of the product are fully informed about the proper use of the equipment and all safety precautions.
• Close supervision is necessary when the inversion table is used near children, or by or near invalids or disabled persons.
• Use the inversion table only for its intended use as described in this manual. DO NOT use attachments not recommended by the
manufacturer.
• NEVER drop or insert any object into any opening.
• DO NOT use or store product outdoors.
• DO NOT use if you are over 6 ft 6 in (198 cm) or over 300 lbs. (136 kg). Structural failure could occur or head/neck may impact the
oor during inversion.
• DO NOT allow children to use this machine.
• Keep children, bystanders, and pets away from machine while in use.
• Keep body parts, hair, loose clothing and jewelry clear of all moving parts.
• The inversion table has no user serviceable parts.
• This product is intended for indoor home use only. DO NOT use in any commercial, rental or institutional setting.
FAILURE TO FOLLOW INSTRUCTIONS AND WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.
BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table.
Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity.
1
WARNING
!

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE.
SAVE THESE INSTRUCTIONS
FAILURE TO FOLLOW INSTRUCTIONS AND WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.
BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table.
Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity.
• DO NOT use the equipment without a licensed physician’s approval and a review of the medical contraindications, as noted in the
Owner’s Manual.
• Failure to assemble and/or use the equipment as directed may void the manufacturer’s warranty on this product and could result in
injury or death.
• Choose a level surface for assembling and operating the table.
• Follow each step in sequence. DO NOT skip ahead.
• Make sure that all fasteners are secure.
• ALWAYS test and inspect the table. Make sure the table rotates smoothly to inverted position and back.
• ALWAYS replace defective components immediately and/or keep the equipment out of use until repair.
2
WARNING
!

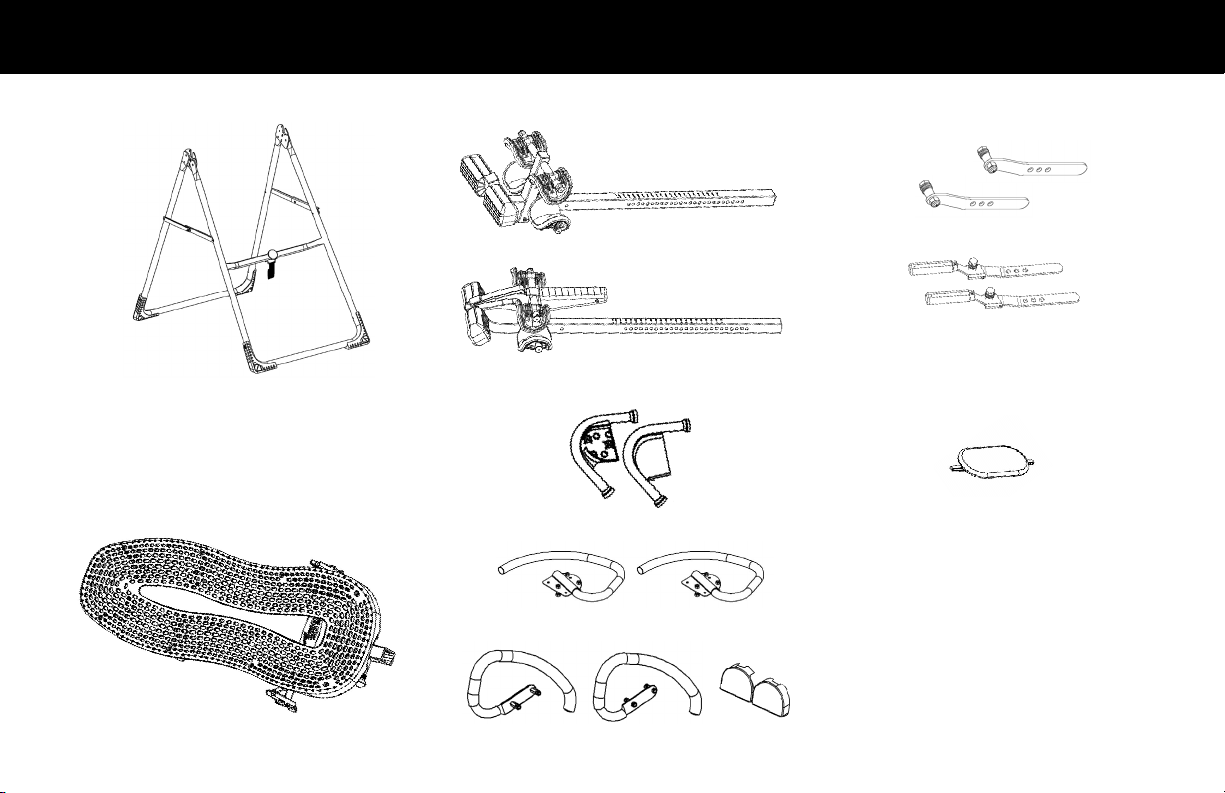

ITEMS FOR ASSEMBLY (Page 1 of 2)
3
EP1128A
F51088
F71002
EP1100
EP1140
HK1010
EP1127
H13008
EP1128
EP1125
NX1630
F51069
HK1021
H11202
ITEM NAME ITEM NUMBER
Tools
6mm Allen Wrench (1)
10/13mm Open-Ended Wrenches (2)
Base Assembly
A-Frame (EP-550/650 & EP-850)
A-Frame (EP-950 Only)
FlexTech™Table Bed Assembly
FlexTech™Table Bed
Table Bed Assembly Hardware Kit
Bolts (2)
Nuts (2)
Washers (2)
Main Shaft (EP-550/650 & EP-850)
with T-Pin Ankle Lock System Assembly
Main Shaft (EP-950 Only)
with EZ-Reach™Ankle Lock System Assembly
Handle Assembly (EP-550/650)
Tri-Grip™Handle (2) (EP-550/650)
Tri-Grip™Handle Assembly Hardware Kit
Hex Bolts (6) Pre-assembled in Handles
F51118
HK1023
F51128
F51129
GL9505
GL9524
H11202
HK1022
GL9523
H13008
F51067
TR1003
Handle Assembly (EP-850)
Over-EZ™Handle, EP-850 (2)
Over-EZ™Handle Assembly Hardware Kit
Double-Threaded Bolts (6)
Nuts (12)
Handle Assembly (EP-950)
Over-EZ™Handle, EP-950 (2)
Over-EZ™Hinge Covers, EP-950 (2)
Hex Bolts (4) Pre-Assembled in Hinge Covers
Over-EZ™Handle Assembly Hardware Kit
Double-Threaded Bolts (4)
Nuts (8)
Roller Hinge Assembly
3-Hole Roller Hinge (2)
(EP-550/650)
3-Hole Roller Hinge/Traction Handle (2)
(EP-550 Sport, EP-850 & EP-950)
ITEM NAME ITEM NUMBER
Head Pillow
Angle Tether Pre-Assembled to A-Frame (EP-550/650)
EZ-Angle Tether Pre-Assembled to A-Frame (EP-850 & EP-950)
EP1105
F51007
F51008

ITEMS FOR ASSEMBLY (Page 2 of 2)
Items not shown to scale.
4
A-Frame(s)
F71002
EP1100
FlexTech™Table Bed
EP1140
Main Shaft(s)
EP1125
NX1630
Handle(s)
F51069
F51118
GL9505 GL9524
Roller Hinges
TR1003
F51067
Head Pillow (optional)
EP1105

EP-550 Models EP-850 Models EP-950 Models
We hope you enjoy your new Teeter Hang Ups Inversion Table!
My Serial Number:
________________________
IDENTIFY THE MODEL OF YOUR TEETER
IMPORTANT: Please identify the model of your Teeter inversion table before beginning assembly.
The model name can be found on the Serial Label, located on the back of the Table Bed.
5

Head Pillow
FlexTech™Table Bed
Pivot Pins
Hinge Plates
Self-Locking Hooks
3-Hole Roller Hinges
Handles
Height-Selector Locking Pin
De-Rattler Knob
1
2
3
4
5
6
7
8
9
Spreader Arms
Angle Tether
Crossbar
A-Frame
Main Shaft
Ankle Lock System
Ankle Comfort Dial™
Stability Feet

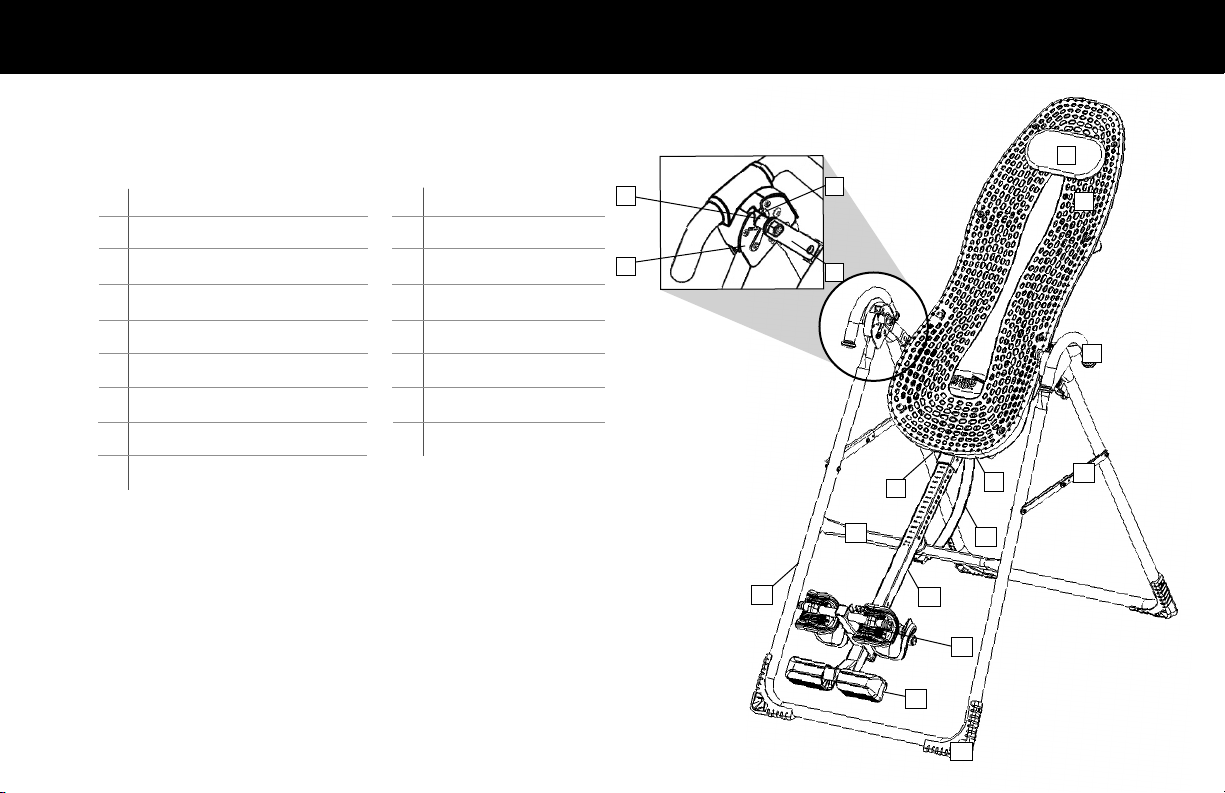

UNDERSTANDING YOUR INVERSION TABLE
Identifying Parts and Components
* Inversion Table images may
vary slightly from your model.
The EP-550 is shown here.
Before reading further, study the drawing below to familiarize yourself with
the important components of your new Teeter Hang Ups®Inversion Table.
10
11
12
13
14
15
16
17
1
2
810
7
12
15
17
3
4
5
6
6
9
11
13 14
16

Important: Please review all labels and supporting materials before using your inversion table.
This drawing indicates the locations of the warning labels found on your product.
If a label is missing, illegible or is removed, contact Customer Service at the phone number
or website found on the last page to request a complimentary replacement label.
Note: Image and labels below not shown at actual size.
WARNING LABEL PLACEMENT DIAGRAM
7
WARNING - To reduce the risk of personal injury or death:
• Read and understand all the instructions before using the inversion table.
It is your responsibility to familiarize yourself with the proper use of the
equipment and the inherent risks of inversion, such as falling on your head
or neck, pinching, entrapment or equipment failure.
• Do not allow children to use the machine.
• Keep children, bystanders, and pets away from the machine while in use.
• Keep body parts, hair, loose clothing and jewelry clear of all moving parts.
• Height/Weight capacity: 4 ft 8 in - 6 ft 6 in (142-198 cm); 300 lbs (136 kgs).
• This product is for consumer, indoor household use only.
Replace Labels and Owner’s Manual if Damaged, Illegible, or Removed.
Teeter, 9902 162nd St. Ct. E., Puyallup, WA 98375
Toll Free (Phone): 800-847-0143 Web: www.teeter-inversion.com
WARNING
!
EP-1737 0911-3
WARNING
!
IA-2007 0611-1
Ankles must be properly
secured before use.
REPLACE LABEL
IF DAMAGED, ILLEGIBLE,
OR REMOVED.
WARNING
!
E6-1740 0711-0
Do not use Setting A
for users over
220 lbs (100 kgs).
REPLACE LABEL
IF DAMAGED, ILLEGIBLE,
OR REMOVED.
!WARNING
TIPPING HAZARD: For upright storage, leave A-Frame open wide enough
to remain stable, or secure to the wall to prevent tipping. In households with
small children, the table should be stored flat on the floor, not upright.
NX-1720 0910-2
REPLACE LABEL IF DAMAGED, ILLEGIBLE, OR REMOVED.

Unpack and Prepare Your Workspace
• If possible, set up the product at or near the space in which you intend to use it to avoid moving it later.
• Unpack all parts and support materials. Set aside packing materials and clear your work area.
• Locate the Hardware Kits, packaged with the manuals. They are labeled to correspond with the assembly process.
• The Assembly & Use DVD provides step-by-step instruction on how to assemble your product. You may find it helpful to follow along
with the DVD by watching it on either your TV or computer.
BEFORE BEGINNING ASSEMBLY
8

Back
Front
2
1
Right Left
FIGURE 1
9
STEP 1 A-Frame Assembly
Spreader Arms
1
• On a level surface, carefully position the A-Frame so that it is standing upright and the
Stability Feet are on the ground.
• Gently push down on the Spreader Arms to ensure they are fully open and in the “locked”
position (Figure 1).
• Familiarize yourself with the Front, Back, Left and Right of the A-Frame. You may want
to refer back to this diagram for reference throughout the assembly process.
RIGHT Indicates right side as you are using the inversion table, not facing it.
LEFT Indicates left side as you are using the inversion table, not facing it.
BACK Indicates the back of the A-Frame / fully assembled inversion table.
FRONT Indicates the front of the A-Frame / fully assembled inversion table.
Crossbar
2

10

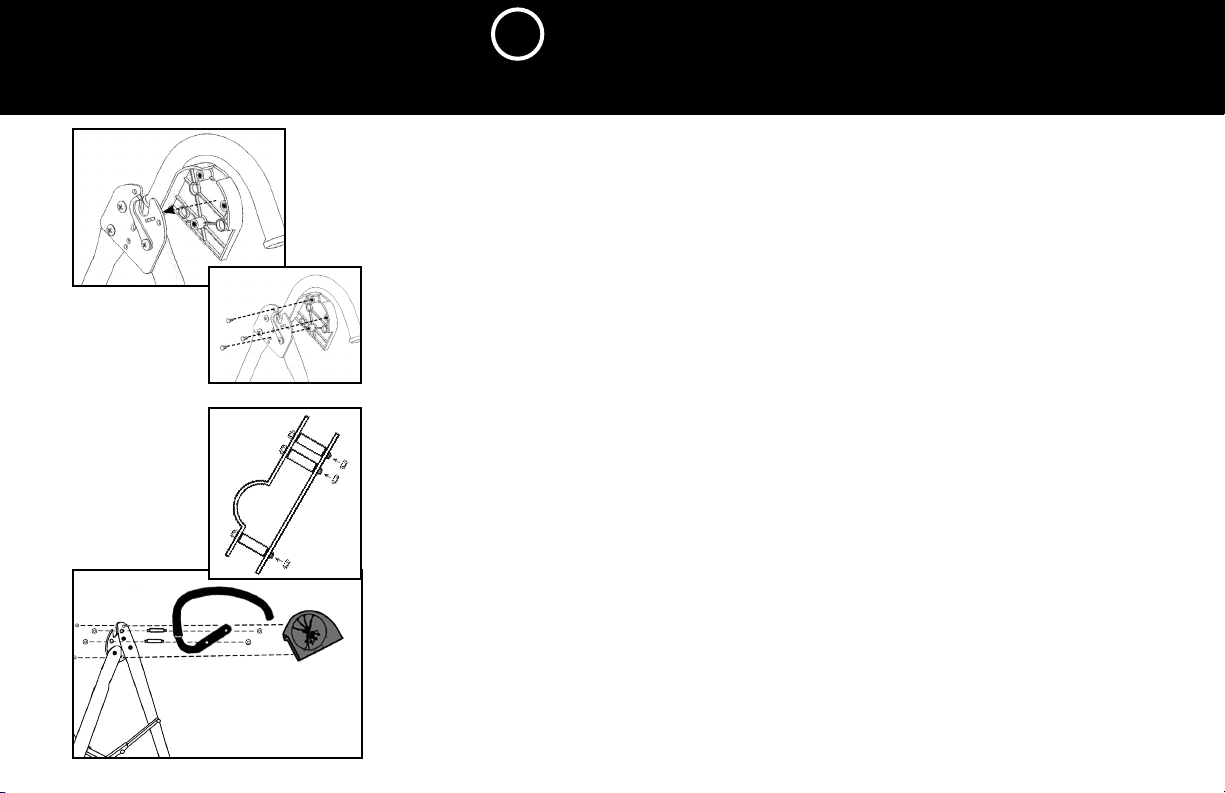

STEP 2 Handle Assembly
Based on your model, the assembly in this step will differ.
For users with the EP-550/650, assemble the Tri-Grip Handles
•Locate the Tri-Grip Handle Assembly Hardware Kit, which contains the hardware that is
required for the assembly detailed in this step.
• Determine the left or right Handles, marked with an embossed L / R on the inside of the
black plastic part of each handle.
• Align the black plastic part of the corresponding handle (left / right) over the outside edge of
the Hinge Plate on the A-Frame (Figure 2).
• Insert and loosely hand-tighten three of the Allen Head Bolts through the Hinge Plate into the
inside of the handle (Figure 3).
• Repeat with other handle. Fully tighten all fasteners, using the tools provided.
For users with EP-850 or EP-950 Models, assemble the Over-EZ™Handles
• Locate the Over-EZ™Handle Assembly Hardware Kit, which contains the hardware that is
required for the assembly detailed in this step. The 10/13mm Open-Ended Wrenches are
located in the Roller Hinge packaging.
• Insert the two Double-Threaded Bolts through the base of the Left Handle (marked with an
“L”) and hand tighten on the outside with the nuts provided (Figure 4).
• Line up and insert the opposite end of the bolts through the corresponding 1/3” holes on
the outside of the hinge plate (Figure 4). Loosely tighten with nuts, then use the wrenches
provided to tighten both sets of nuts, being careful not to over tighten. Repeat with Right
Handle.
• For users with EP-950: Place each Hinge Plate Cover over the outside edge of the
corresponding handle. Line up and insert the Bolts through the smaller 1/4” holes in the
hinge plate (Figure 4A). Use the wrenches provided to tighten the nuts, being careful not
to over tighten.
FIGURE 2
FIGURE 3
FIGURE 4A
FIGURE 4

• Locate the Table Bed Assembly Hardware Kit, which contains the hardware that is required
for the assembly detailed in this step.
• Place the Table Bed face down on the floor and push down on the Support Beam, so the
two holes align evenly with the holes at the base of the Upper Support Arms (Figure 5).
You may have to exert extra pressure to ensure that the Support Beam slides over the
rubber spacers.
• Insert the two Bolts into the open holes (Figure 6).
• Thread a Washer and Nut onto each Bolt and handtighten.
• Using the 6mm Allen Wrench to steady the bolts, tighten the Nuts onto the Bolts with the
10/13mm Open-Ended Wrench.
11
STEP 3 Table Bed Assembly
2
1
FIGURE 5
Support Beam
1
Upper Support Arms
2
FIGURE 6

CBA 1
STEP 4 Roller Hinge Assembly
Based on your model, the item(s) used for this step will differ but the assembly process remains the same.
12
• Familiarize yourself with the Roller Hinge and Cam Lock terms detailed below in Figure 7.
• For ease of assembly, rest the Table Bed against the Crossbar (Figure 8) at the front of the
A-Frame.
• On one side of the Table Bed, lift the Cam Lock up all the way to unlock (Figure 9).
• In your other hand, hold one 3-Hole Roller Hinge at the Pivot Pin. With the Pivot Pin facing out
(away from the Table Bed), slide the bottom of the Roller Hinge between the Cam Lock and the
Bracket.
TIP: Make sure that the Cam Lock is completely open when inserting the Roller Hinge, otherwise
assembly will be more difficult.
• Engage one of the holes in the Roller Hinge over the Bracket Pin. Figure 10 shows the Roller
Hinge installed correctly, with the Bracket Pin engaged in Setting C.
NOTE: Refer to the Owner’s Manual for an explanation of the hole settings. If you are unsure, use
Setting C to start.
• Push down on the Cam Lock to lock it and secure the Roller Hinge.
• Repeat on other side. Make sure the Roller Hinges are in the same hole setting on both sides.
FIGURE 8
FIGURE 10
Unlocked Locked
Bracket Pin Cam LockPivot Pin
Bracket
FIGURE 7
Bracket Pin
1
NEVER disassemble the
Roller Hinge Pivot Pin.
WARNING
!
FIGURE 9

13
STEP 5 Attach the Table Bed to the A-Frame
Failure of the Self-Locking Hooks to close over both Roller Hinge
Pivot Pins is an indication of improper assembly and if not corrected
could result in serious injury or death!
WARNING
!
2
2
1
1
FIGURE 11
FIGURE 12
FIGURE 13
Handle
1
Hinge Plate
2
Self-Locking Hook
1
Roller Hinge
2

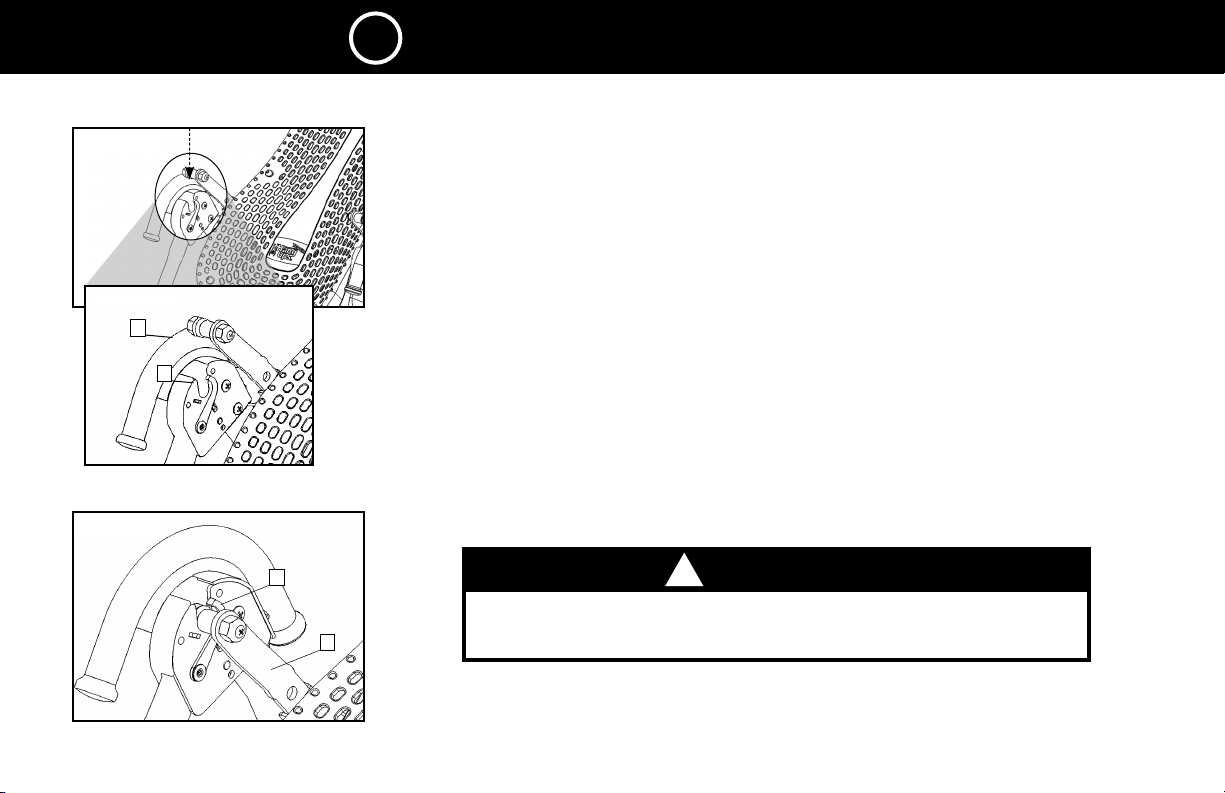

• Pick up the Table Bed, holding each side near the Roller Hinges, and stand in front of the
A-Frame where the Crossbar is located (refer to Figure 3 to determine A-Frame Front).
• Lower each Roller Hinge Pivot Pin into the A-Frame hinge plates, one side at a time
(Figure 11 and 12).
NOTE: You may need to push outward on the A-Frame in order for the 2nd Pivot Pin to
lock in place.
• Make sure that each Pivot Pin is seated at the base of the slot of the Hinge Plate (Figure
13).
• Ensure that the Self-Locking Hooks have closed over both Pivot Pins, and that the Table
Bed rotates smoothly.

STEP 6 Assembling the Main Shaft
Based on your model, the item(s) used for this step will differ but the assembly process remains the same.
• Loosen the De-Rattler Knob.
• Facing the front of the A-Frame, hold the Main Shaft in your left hand with the height
markings facing up. Slide the end of the Main Shaft into the Main Shaft Housing (Figure
14), located at the base of the Table Bed.
• With your right hand, pull out the Height-Selector Locking Pin (Figure 15) to allow the Main
Shaft to slide in further and release in the desired height setting. Refer to the Owner’s
Manual for more information on selecting your height setting.
• The Main Shaft MUST REST against the Crossbar of the A-Frame (Figure 16).
IMPORTANT: The Crossbar prevents the Table Bed from rotating forward when the user
steps on the Ankle Comfort Dial. If the Main Shaft does not rest on the Crossbar as shown
in Figure 16, then the Table Bed has been assembled backwards onto the A-Frame.
This MUST BE CORRECTED before use.
• Test the inversion table by hand for smooth and steady rotation (Figure 17) and ensure that
all fasteners are secure.
• Tighten the De-Rattler Knob.
For users with the EP-550 Sport model, follow the Conversion Bar
Assembly & User Instructions enclosed in this packet.
14
FIGURE 14
FIGURE16
FIGURE 17
FIGURE 15

Image B
Go back to Step 5 for instruction.
Demonstrates that the Table Bed has been assembled
into the A-Frame backwards so the Main Shaft is not resting
on the Crossbar and must be corrected.
Image A
Go back to Step 4 for instruction
Demonstrates that the Roller Hinges have been assembled
upside down into the Table Bed and must be corrected.
If your Teeter Hang Ups Inversion Table looks like either of these images, your inversion table has
been misassembled and is unfit for use. Improper assembly could result in serious injury or death!
MISASSEMBLY CHECK
* Inversion Table images may
vary slightly from your model.
The EP-550 is shown here.
15
WARNING
!

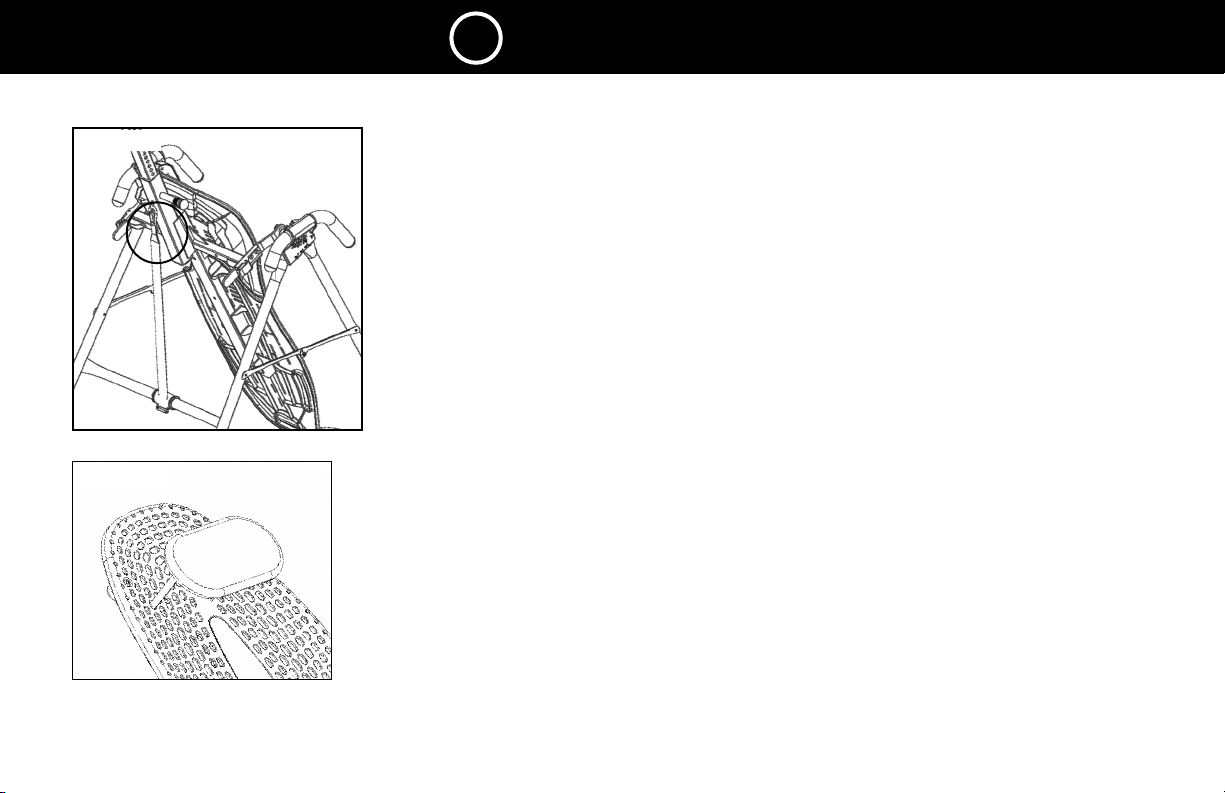

Attach the Angle Tether (OPTIONAL)
• The tether will come pre-assembled to the A-Frame.
• Unfold the adjustable tether and clip it to the U-Bar on the underside of the Table Bed
(Figure 18).
• Refer to the Owner’s Manual for guidance with pre-setting your angle of rotation.
Attach the Head Pillow (OPTIONAL)
• Attach the Head Pillow by securing the Velcro Straps through the holes in the Table Bed
(Figure 19). The position of the pillow can be adjusted depending on the user.
STEP 9 Attach the Accessories
16
FIGURE 18
FIGURE 19

Attach the Owner’s Manual
The Owner’s Manual contains important information on how to use your Teeter Hang Ups
Inversion Table, including how to personalize the user settings, properly secure and release
the Ankle Lock System, and test and adjust the rotation control.
• If not already attached, thread the provided metal chain through the pre-punched hole in the
upper corner of the Owner’s Manual.
• Secure the chain to the A-Frame through the designated hole in the Hinge Plate
(Figure 20 & 20a). Allow the Owner’s Manual to hang freely on the outside of the A-Frame
Spreader Arms so it doesn’t interfere with the rotation of the Table Bed.
IMPORTANT: Once attached to the A-Frame, do not remove the Owner’s Manual. It should
remain permanently attached to your inversion table to serve as a reference for all users in
regards to proper adjustment and use of the equipment.
Review the Use Instruction section of your DVD
• The Use Instruction section of your DVD provides guidance on how to properly adjust, use
and become acclimated to inversion.

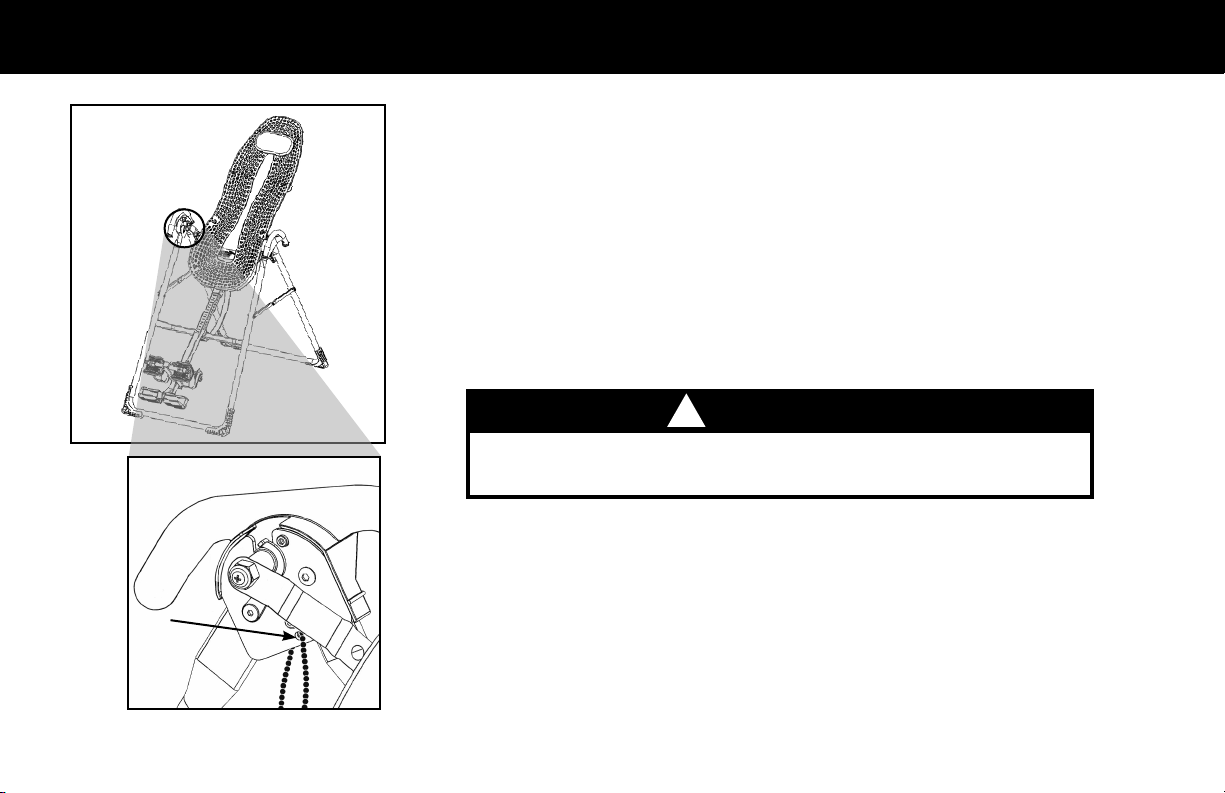

WARNING
!
Read the Owner’s Manual thoroughly before using your Teeter Hang Ups
Inversion Table. Improper settings could result in serious injury or death!
BEFORE INVERTING
17
FIGURE 20
FIGURE 20a

Adjustments: Changing the Roller Hinge Setting
To adjust the Roller Hinge setting, you’ll need to fully remove the Table Bed from the
A-Frame.
• Remove the Angle Tether from the U-Bar located on the underside of the Table Bed.
• Loosen the De-Rattler Knob.
• Pull the Height-Selector Locking Pin and slide the Main Shaft in all the way to the last hole
setting.
• Release and engage the Pin in the storage setting.
• Rotate the Table Bed opposite from use until it has turned 180 degrees and rests against
the Crossbar of the A-Frame (Figure 21).
• With palms up, reach under and around each Roller Hinge, using your thumbs to release
the locks over the Pivot Pin (Figure 22).
• Lift both sides of the Table Bed out of the A-Frame at the same time. TIP: Rest the head of
the Table Bed on the floor for quick adjustment.
• Unlock the Cam Locks for each Roller Hinge. Change the Roller Hinges to the desired
setting (A, B or C).
NOTE: Refer to the Owner’s Manual for more information on finding your Roller Hinge
Setting.
• Re-lock the Cam Locks (Figure 23). Replace the Roller Hinges into the hinge plates of the
A-Frame.
• Rotate the Table Bed back to the use position and re-adjust the Main Shaft height settings
for use.
18

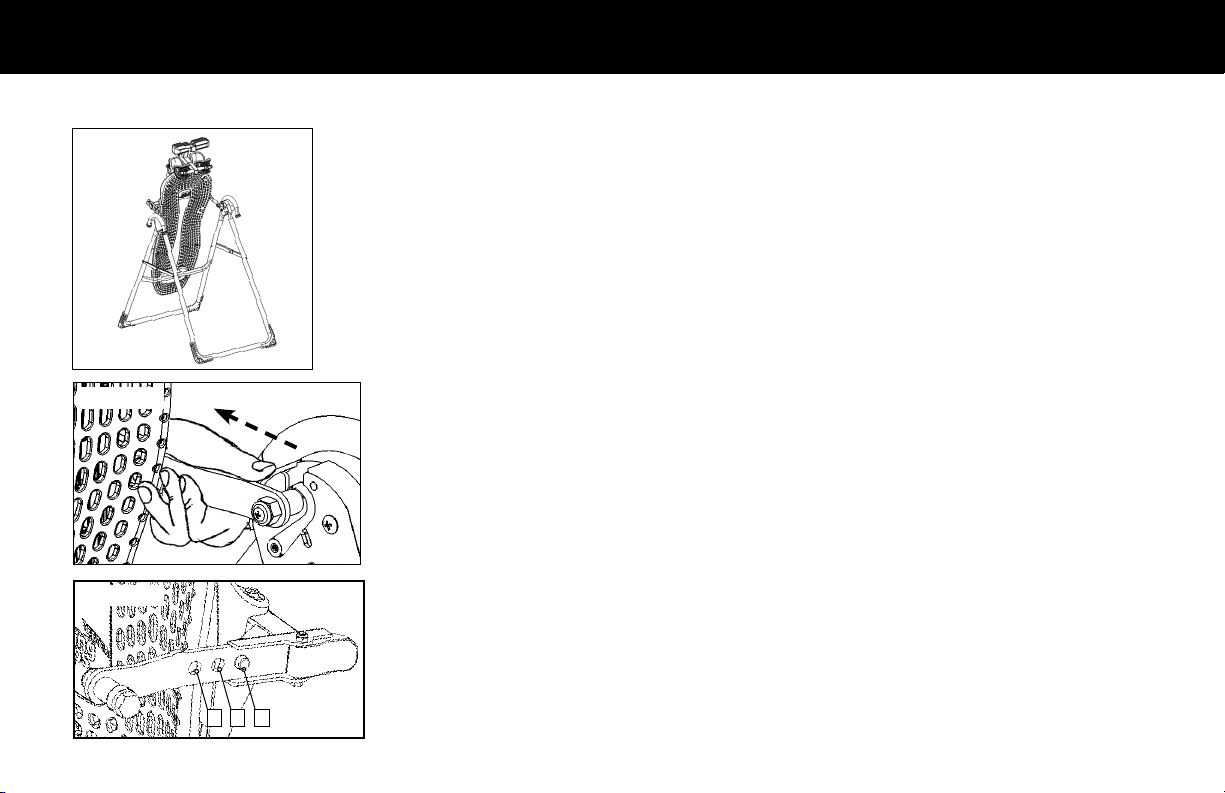

Adjusting the Roller Hinge Setting
CBA
FIGURE 23
FIGURE 22
FIGURE 21

Maintenance
• To clean the Inversion Table, wipe down with a damp cloth. Do not use abrasive cleaners
or solvents.
Storage
• Remove the Angle Tether from the U-Bar located on the underside of the Table Bed.
• Pull the Height-Selector Locking Pin and slide the Main Shaft in all the way to the last hole
setting.
• Release and engage the Pin in the storage setting.
• Rotate the Table Bed opposite from use until it has turned 180°and rests against the
Crossbar of the A-Frame.
• Pull up on the Spreader Arms to fold the A-Frame (Figure 24), leaving the A-Frame legs
open to a width of 12” for stability.
NOTE: This operation may pinch fingers if not done slowly and carefully.
19
Maintenance & Storage

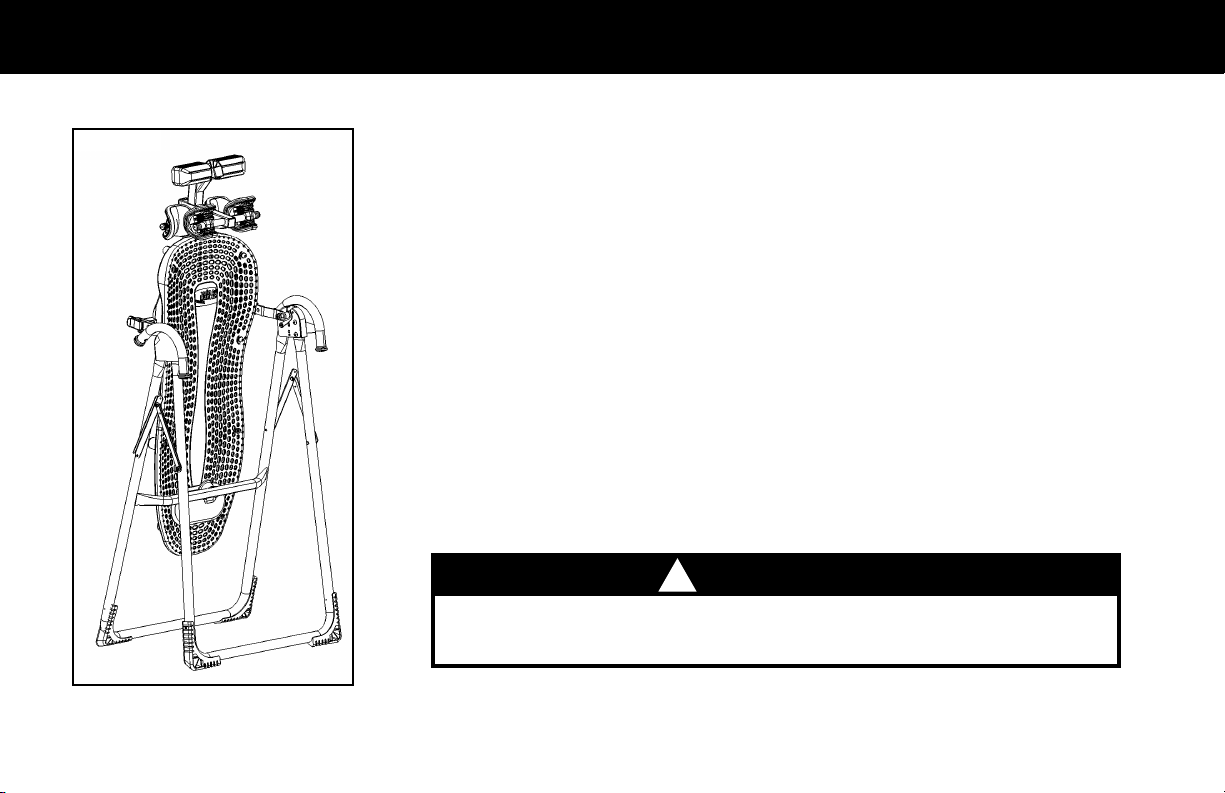

FIGURE 24
Tipping Hazard: For upright storage, leave A-Frame open wide enough to remain
stable, or secure to the wall to prevent tipping. In households with small children,
the inversion table should be stored at on the oor, not upright.
WARNING
!
