1. Introduction

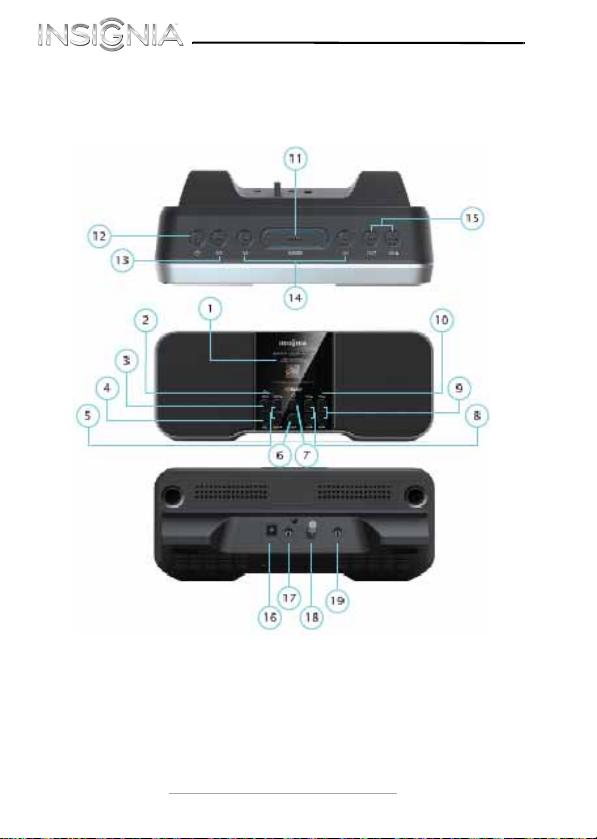

The ITR/IAAIS HD Radio Reference Receiver is illustrated in
Figure 1: the components are numbered.
Table 1 showcases the explanations for each of the components
that are numbered in Figure 1.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 4 Monday, June 18, 2012 12:31 PM

5
www.insigniaproducts.com
Table 1: Explanations for the
Components
# Component Description
1 LCD Radio display screen.
2 Headphone
jack
Plug headphones into this jack.
3 MENU Press to open or close the menu system. In the
menu system, press to open or close a sub-menu.
4 SEL Press to select menu options.
5SEEK/
SEEK
In radio mode, press SEEK to go to the next lower
or higher station. For more information, see your
User Guide.
In menu mode, press to scroll down or up.
6 DISP Press to display the radio program guide.
7 B) In radio mode, press to bookmark the current
audio selection.
In menu mode, press to delete a bookmark.
8 CH /CH Press to tune to the next lower or higher
frequency.
9 PS /PS Press to go to the next lower or higher preset
station.
Press and hold to save the current station to the
displayed preset number.
If you save a station to a preset number that is
already in use, the new station overwrites the old
station.
For more information, see your User Guide.
10 Reset If your radio stops responding to button presses,
press this button to reset your radio.
11 SNOOZE Press to turn off the alarm temporarily for a
designated interval.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 5 Monday, June 18, 2012 12:31 PM

6
NS-CLHD01
www.insigniaproducts.com
The ITR/IAAIS HD Radio Reference Receiver operates in two
modes:
• ITR Mode: International Table Radio mode
• IAAIS Mode: International Association of Audio
Information Services mode which is an accessible and
specially designed mode for visually impaired users
By default, the ITR/IAAIS HD Radio Reference Receiver powers up
in the IAAIS Mode, but, both modes can be configured by users.
"Insignia is delighted to provide this uniquely designed, talking
receiver with the Accessible (IAAIS) Mode for your enjoyment.
This receiver was designed to accommodate the needs of radio
listeners regardless of ability to view the display. IAAIS, the
International Association of Audio Information Services, was a
contributing designer of this product and it bears their logo.
IAAIS is a membership of reading services in the US, Canada, and
around the globe: all provide audible readings of current print
for people who cannot use the printed page due to disability or
age. Please visit them on line at www.iaais.org or contact them
by phone at 1-800-280-5325."
12 (power) Press to turn your radio on or off.
Press (power) + SEL together to switch between
normal mode and accessible mode for the
hearing impaired.
13 SRC Press repeatedly to cycle through the available
sound sources (AM>FM>AUX-IN).
14 AL1/AL2 Press to set Alarm 1 or 2.
15 VOL /
VOL
Press to lower or raise the volume.
16 12V DC Connect the AC adapter (provided) to this jack.
17 AUX IN Connect an external sound source to this jack.
18 FM Ant. Connect an FM dipole antenna to this jack.
19 AM Ant. Connect an AM loop antenna to this jack.
#ComponentDescription
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 6 Monday, June 18, 2012 12:31 PM

7
www.insigniaproducts.com
1.1. ITR Mode
In ITR Mode, the receiver features:
• International Tuning
• Artist Experience (Album Art and Station Logo images)
• Bookmarking (automatic and user-initiated)
• HD Radio Program Guide
• Basic HD Radio information such as Program Service
Data, Station Name, Station Slogan, and Station
Message
• RBDS call sign, program service name, and radio text
messages
1.2. IAAIS Mode (Accessible Mode)
In IAAIS Mode, the receiver provides audio-assisted prompts and
feedback for visually-impaired users.
In this mode, some ITR Mode features are disabled.
2. ITR / IAAIS Configuration
While the receiver is off, first press and hold the “Select” button.
While still holding the “Select” button, press the “Power” button
to change the receiver’s operation between ITR Mode and IAAIS
Mode.
3. IAAIS Mode (Accessible Mode)
When power is first applied to the receiver, an HD Radio logo
splash screen is briefly displayed before the receiver enters clock
mode.
The IAAIS configuration is observed as a black background and
orange text display.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 7 Monday, June 18, 2012 12:31 PM

8
NS-CLHD01
www.insigniaproducts.com
3.1. “Power” Button
Press the power button to turn the receiver on.
IAAIS Prompt/Feedback
• Prompt: “Power On” when “Power” button is pressed
• Feedback: “Frequency” + <tuner frequency> +
<band>
• Feedback: Battery State If battery charge is low, the
feedback is “Low Battery.” If batteries are discharged
or not inserted, the feedback is “No Battery”
Press the power button again to turn the receiver off.
IAAIS Prompt/Feedback
•Prompt:“PowerOff”
•Feedback:None
3.2. “Snooze” Button
The “Snooze” button has two functions.
When the alarm is active, the “Snooze” is used to disable the
active alarm for a specified time interval. The “Snooze” button
also allows the user to hear the current time.
This function is available when the receiver is on or off.
IAAIS Prompt/Feedback
• Prompt: “Snooze”
• Feedback: <current time in am/pm or 24-hour
format>
3.3. “Display” Button
The “Display” button is used when the receiver in on.
Pressing the “Display” button will read back the status of the
display.
When the source is AM or FM, pressing the “Display” button will
read back the current frequency.
When the source is AUX input, pressing the display button will
say “auxiliary”.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 8 Monday, June 18, 2012 12:31 PM

9
www.insigniaproducts.com
IAAIS Prompt/Feedback --- Source: AM or FM
• Prompt: “Display” when the button is pressed
• Feedback: <current tuner frequency> when the
button is released
IAAIS Prompt/Feedback --- Source: AUX
• Prompt: “Auxiliary”
3.4. “Seek Up” Button
The “Seek Up” button is used to seek to the next HD Radio audio
program on the same frequency if available, otherwise tune up
to the next AM or FM frequency.
IAAIS Prompt/Feedback
• Prompt: “Seek Up” when the button is pressed
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band>
3.5. “Seek Down” Button
The “Seek Down” button is used to seek to the previous HD Radio
audio program on the same frequency if available, otherwise
tune down to the previous AM or FM frequency.
IAAIS Prompt/Feedback
• Prompt: “Seek Down” when the button is pressed
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band>
3.6. “Channel Up” Button
The “Channel Up” button is used to tune to the next HD Radio
audio program on the same frequency if available, otherwise
tune up to the next AM or FM frequency.
IAAIS Prompt/Feedback
• Prompt: “Tune Up” when the button is pressed
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 9 Monday, June 18, 2012 12:31 PM

10
NS-CLHD01
www.insigniaproducts.com
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
3.7. “Channel Down” Button
The “Channel Down” button is used to tune to the previous HD
Radio audio program on the same frequency if available,
otherwise tune down to the previous AM or FM frequency.
IAAIS Prompt/Feedback
• Prompt: “Tune Down” when the button is pressed
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released.
3.8. “Preset Up” Button
A quick press and release of the “Preset Up” button is used to
select the next user preset. Press and hold the “Preset Up” button
to save the current audio program to the preset list.
IAAIS Prompt/Feedback --- Select Next Stored Preset
• Prompt: “Preset Up” when the button is pressed
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
IAAIS Prompt/Feedback
• Prompt: “Preset Up” when button is pressed. A
double-beep tone is played after two seconds to
indicate the preset was saved
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
3.9. “Preset Down” Button
A quick press and release of the “Preset Down” button is used to
select the previous user preset. Press and hold the “Preset Down”
button to delete the current preset program from the preset list.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 10 Monday, June 18, 2012 12:31 PM

11
www.insigniaproducts.com
IAAIS Prompt/Feedback --- Select Next Stored Preset
• Prompt: “Preset Down” when the button is pressed
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
IAAIS Prompt/Feedback
• Prompt: “Preset Down” when button is pressed. A
single-beep tone is played after two seconds to indicate
the preset was deleted
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
3.10. “Bookmark” Button
The “Bookmark” is inactive in IAAIS Mode.
IAAIS Prompt/Feedback
• Prompt: A single-beep tone is played to indicate an
invalid button press
• Feedback: None
3.11. “Menu” Button
The “Menu” button is inactive in IAAIS Mode.
IAAIS Prompt/Feedback
• Prompt: A single-beep tone is played to indicate an
invalid button press
• Feedback: None
3.12. “Select” Button
The “Select” button is inactive in IAAIS Mode.
IAAIS Prompt/Feedback
• Prompt: A single-beep tone is played to indicate an
invalid button press
• Feedback: None
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 11 Monday, June 18, 2012 12:31 PM

12
NS-CLHD01
www.insigniaproducts.com
3.13. “Source” Button
The “Source” button is used to switch the receiver between AM,
FM, and auxiliary-input mode.
This button is only active when the receiver is powered on.
IAAIS Prompt/Feedback --- AM Mode
•Prompt:“Source”
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
IAAIS Prompt/Feedback --- FM Mode
•Prompt:“Source”
• Feedback: “Frequency” + <current frequency> +
<HD Radio multicast audio program (if available)> +
<band> when the button is released
IAAIS Prompt/Feedback --- AUX Mode
•Prompt:“Source”
• Feedback: “Auxiliary”
3.14. “Volume Up” Button
The “Volume Up” button is used to increase the speaker and
headphone audio levels.
IAAIS Prompt/Feedback
•Prompt:“UP”
•Feedback:None
3.15. “Volume Down” Button
The “Volume Down” button is used to decrease the speaker and
headphone audio levels.
IAAIS Prompt/Feedback
•Prompt:“DOWN”
• Feedback: If the volume is set to the minimum
value, a single beep will sound to indicate that the
audio is muted.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 12 Monday, June 18, 2012 12:31 PM

13
www.insigniaproducts.com
4. ITR Mode
This section explains the buttons unique to ITR Mode.
Buttons which have the same functionality in IAAIS Mode are not
included in this section.
4.1. “Menu” Button
The “Menu” button is used to enter and exit the ITR menu
system.
4.2. “Select” Button
The “Select” button is used to enter sub-menu options, accept/
cancel message prompts, and view stored bookmarks.
4.3. “Bookmark” Button
The “Bookmark” button has two functions:
• When in radio mode, the “Bookmark” button allows the
user to save PSD information related to the current HD
Radio audio program.
• When viewing bookmarks, the “Bookmark” button is
used to delete stored bookmarks.
4.4. “Display” Button
The “Display” button is used to switch the receiver’s user
interface from “AE” mode and “HD Radio Program Guide” mode.
• “AE” mode allows resizing of the current album art or
station logo to the maximum 200 x 200 dimension.
• “HD Radio Program Guide” will display up to three HD
Radio audio programs as well as the album art or station
logo associated with the current HD Radio audio
program. In “HD Radio Program Guide” mode, the image
size is limited to the 100x100 dimension.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 13 Monday, June 18, 2012 12:31 PM

14
NS-CLHD01
www.insigniaproducts.com
5. ITR Menus
When in the ITR menu system, the “Seek Up” and “Seek Down”
buttons are used to scroll up and scroll down the menu items.
5.1. Main Menu
The “Main” menu page contains two sub-menu options:
• “Bookmarks”
•“Settings”
Highlight an option and press the “Select” button to enter the
desired sub-menu.
5.2. Bookmark Menu
The “Bookmark” menu page contains two sub-menu options:
•“MyBookmarks”
• “Bookmark History”
Highlight an option and press the “Select” button to enter the
desired sub-menu.
5.2.1. “My Bookmarks” Sub-Menu
Highlight a stored bookmark and press the “Select” button.
Depending on the PSD contents, a QR code, UPC, or ISBN bar
code will be displayed.
UPC and ISBN bar codes require information from the PSD
commercial field.
If the PSD commercial field is not present, the QR code will be
displayed.
5.2.2. “Bookmark History” Sub-Menu
The “Bookmark History” menu contains a list of the last 10 “auto”
bookmarks.
These bookmarks are stored automatically as the user listens to
HD Radio audio programs.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 14 Monday, June 18, 2012 12:31 PM

15
www.insigniaproducts.com
When the queue is full, the oldest bookmark is overwritten with
the newest bookmark.
5.3. Settings Menu
The “Settings” menu page contains three sub-menu options:
•“TuningRegion”
• “Set Brightness”
• “HW/SW Version”
Highlight an option and press the “Select” button to enter the
desired sub-menu.
5.3.1. “Tuning Region” Sub-Menu
The “Tuning Region” sub-menu option allows the user to
configure the receiver to one of three tuning modes. The three
tuning modes have different minimum and maximum AM/FM
frequencies and channel spacing.
• Mode A: FM 87.5 MHz to 108 MHz @ 100-kHz spacing;
AM 522 kHz to 1620 kHz @ 9-kHz spacing
• Mode B: FM 87.5 MHz to 107.9 MHz @ 200-kHz spacing;
AM 530 kHz to 1710 kHz @ 10-kHz spacing
• Mode C: FM 87.5 MHz to 108 MHz @ 50-khz spacing; AM
522 kHz to 1620 kHz @ 9-kHz spacing
The default mode is “Mode B” for US AM/FM radio broadcasts.
To change modes, highlight the desired mode and press the
“Select” button.
An OK/Cancel message box will be displayed prompting the user
to continue or cancel the operation.
Use the “Seek Up”/”Seek Down” buttons to toggle between “OK”
or “Cancel” and press the “Select” button to proceed.
5.3.2. “Set Brightness” Sub-Menu
The “Set Brightness” sub-menu option allows the user to adjust
the brightness of the LCD display.
Use the “Preset Up”/”Preset Down” buttons to increase/decrease
the brightness level, then press “Select” to save the new setting.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 15 Monday, June 18, 2012 12:31 PM

16
NS-CLHD01
www.insigniaproducts.com
5.3.3. “HW/SW Version” Sub-Menu
The “HW/SW Version” sub-menu option displays the current
hardware and software version information.
6. Clock / Alarm Time Adjustment
6.1. Clock Time
Clock time adjustment can only be done when the receiver is off.
6.1.1. Press and hold the “DISP” button for two
seconds to enter “clock set” mode
IAAIS Prompt/Feedback
• Prompt: “Display” when the “DISP” button is pressed
• Feedback: “Set Time” when two seconds have
elapsed and “clock set” mode is entered
6.1.2. Press “CH UP” to increment clock hour
IAAIS Prompt/Feedback
• Prompt: “Up” when “CH UP” is pressed
• Feedback [AM/PM Format]: <hour><minute> +
“AMPM” when “CH UP” is released
• Feedback [24-hour Format]: <hour><minute>
when “CH UP” is released
6.1.3. Press “CH DN” to decrement clock hour
IAAIS Prompt/Feedback
• Prompt: “Down” when “CH DN” is pressed
• Feedback [AM/PM Format]: <hour><minute> +
“AMPM” when “CH DN” is released
• Feedback [24-hour Format]: <hour><minute>
when “CH DN” is released
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 16 Monday, June 18, 2012 12:31 PM

17
www.insigniaproducts.com
6.1.4. Press “PS UP” to increment clock minute
IAAIS Prompt/Feedback
• Prompt: “Up” when “PS UP” is pressed
• Feedback [AM/PM Format]: <hour><minute> +
“AMPM” when “PS UP” is released
• Feedback [24-hour Format]: <hour><minute>
when “PS UP” is released
6.1.5. Press “PS DN” to decrement clock minute
IAAIS Prompt/Feedback
• Prompt: “Down” when “PS DN” is pressed
• Feedback [AM/PM Format]: <hour><minute> +
“AMPM” when “PS DN” is released
• Feedback [24-hour Format]: <hour><minute>
when “PS DN” is released
6.1.6. Press “Bookmark” button to switch
between “AM/PM” and “24 Hour” time formats
IAAIS Prompt/Feedback
• Prompt: “Set 24” when switched to 24-hour time format
or “AMPM” when switched to AM/PM time format
• Feedback: None
6.1.7. Press “DISP” button to save settings and
exit “clock set” mode
IAAIS Prompt/Feedback
• Prompt: “Display” when the “DISP” button is pressed
• Feedback [AM/PM Format]: “Time” +
<hour><minute> + “AMPM”
• Feedback [24-hour Format]: “Time” +
<hour><minute>
Note: If 10 seconds has elapsed since the last valid key press, “clock set” mode exits without
saving changes and the last set clock is announced.
IAAIS Prompt/Feedback
• Prompt: Play tone for invalid buttons
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 17 Monday, June 18, 2012 12:31 PM

18
NS-CLHD01
www.insigniaproducts.com
• Feedback [AM/PM format]: “Time” <hour>
<minute> “AMPM”
• Feedback [24-hour format]: “Time” <hour>
<minute>
6.2. Alarm Time
Alarm time adjustment can only be done when the receiver is off.
6.2.1. Press and hold “AL1” or “AL2” for two
seconds to enter “alarm set” mode
IAAIS Prompt/Feedback
• Prompt: “Alarm” <number> when “AL1” or “AL2” is
pressed
• Feedback: “Set Alarm” when “alarm set” mode is
entered
6.2.2. Press “CH UP” button to increment alarm
hour
IAAIS Prompt/Feedback
• Prompt: “Up” when “CH UP” is pressed
• Feedback [AM/PM format]: <hour> <minute>
“AMPM” when “CH UP” is released
• Feedback [24-hour format]: <hour> <minute>
when “CH UP” is released
6.2.3. Press “CH DN” button to decrement
alarm hour
IAAIS Prompt/Feedback
• Prompt: “Down” when “CH DN” is pressed
• Feedback [AM/PM format]: <hour> <minute>
“AMPM” when “CH DN” is released
• Feedback [24-hour format]: <hour> <minute>
when “CH DN” is released
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 18 Monday, June 18, 2012 12:31 PM

19
www.insigniaproducts.com
6.2.4. Press “PS UP” button to increment alarm
minute
IAAIS Prompt/Feedback
• Prompt: “Up” when “PS UP” is pressed
• Feedback [AM/PM format]: <hour> <minute>
“AMPM” when “PS UP” is released
• Feedback [24-hour format]: <hour> <minute> when
“PS UP” is released
6.2.5. Press “PS DN” button to decrement alarm
minute
IAAIS Prompt/Feedback
• Prompt: “Down” when “PS DN” is pressed
• Feedback [AM/PM format]: <hour> <minute>
“AMPM” when “PS DN” is released
• Feedback [24-hour format]: <hour> <minute> when
“PS DN” is released
6.2.6. Press “SRC” button to select alarm sound
type (radio or tone)
IAAIS Prompt/Feedback
• Prompt: “Alarm” when SRC is pressed
• Feedback: “AMFM” if toggled to alarm type radio;
<tone> if toggled to alarm type tone
6.2.7. Press “AL1” or “AL2” to save settings and
exit “alarm set” mode
IAAIS Prompt/Feedback
•Prompt:“Alarm”<number>
• Feedback: <time> “Saved”
Note: If 10 seconds has elapsed since the last valid key press, “alarm set” mode exits without
saving changes. See note regarding canceled clock setting due to time out.
IAAIS Prompt/Feedback
• Prompt: Play tone for invalid buttons.
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 19 Monday, June 18, 2012 12:31 PM

20
NS-CLHD01
www.insigniaproducts.com
• Feedback [AM/PM format]: “Time” <hour>
<minute> “AMPM”
• Feedback [24-hour format]: “Time” <hour>
<minute>
6.3. Alarm On / Off
A quick press and release of “AL1” or “AL2” is used to toggle the
alarms on and off.
IAAIS Prompt --- Alarm On
• Prompt: “Alarm” <number> when “AL1” or “AL2” is
pressed
• Feedback: “Time” <time> “Set On”
IAAIS Prompt --- Alarm Off
• Prompt: “Alarm” <number> when “AL1” or “AL2” is
pressed
• Feedback: “Set Off”
NS-CLHD01_12-0497_MAN_V1a_EN.fm Page 20 Monday, June 18, 2012 12:31 PM
