Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-S4000 represents the state of the art in clock radio with iPod
dock design and is designed for reliable and trouble-free
performance.
Compatible iPod models
To determine the model and capacity of your iPod, refer to the
number on the back of your iPod.
• 3G iPod: 10 GB, 15 GB, 20 GB, 30 GB, 40 GB
• 4G iPod: 20 GB, 40 GB
• iPod mini: 4 GB, 6 GB
• iPod photo: 20 GB, 30 GB, 40 GB, 60GB
• iPod with video: 30 GB, 60 GB, 80 GB
• 1G iPod nano: 1 GB, 2 GB, 4 GB
• 2G iPod nano: 2 GB, 4 GB, 8 GB

4
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Safety information
Read instructions
Read all safety and operating instructions before you use your clock
radio with iPod dock.
Retain instructions
Retain safety and operating instructions for future reference.
Follow warnings and instructions
Follow all warnings on your clock radio with iPod dock and in the
operating instructions. Follow all operating and use instructions.
This symbol indicates that dangerous
voltage constituting a risk of electric shock
is present within your clock radio with iPod
dock.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
your clock radio with iPod dock.
Warning
To reduce the risk of fire or electric shock, do not expose
your clock radio with iPod dock to rain or moisture.
Warning
Any use of the controls or an adjustment to the procedures
other than those specified herein may result in hazardous
radiation.
Warning
To reduce the risk of electric shock, do not remove the cover
or back. There are no user-serviceable parts inside. Refer
any servicing to qualified service personnel.

5
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Grounding or polarization
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades, with one wider than the other.
A grounding type plug has two blades and a grounding prong. The
wide blade or grounding prong are provided for your safety. If the plug
does not fit, contact an electrician to replace the obsolete outlet.
Placement
When placing your clock radio with iPod dock on a lacquered or
natural finish, protect your furniture with a cloth or other protective
material.
Avoid exposure to direct sunlight, temperature extremes, and
moisture.
Ventilation
Slots and openings in the cabinet and the back or bottom are
provided for ventilation, reliable operation, and protection from
overheating. These openings must not be blocked or covered. Do not
block the openings by placing your clock radio with iPod dock on a
bed, sofa, rug, or other similar surface.
Water and moisture
Do not use your clock radio with iPod dock near water. For example,
do not use it near a bath tub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, or near a swimming pool.
Do not let water splash or drip onto your clock radio with iPod dock.
Do not place objects containing liquids, such as a vase, on top of your
clock radio with iPod dock.
Batteries
• Store batteries in a place where children cannot reach. If a
child accidentally swallows a battery, consult a doctor
immediately.
• Do not recharge, short, disassemble, or heat batteries or
dispose of them in a fire. Doing any of these things may cause
the batteries to give off heat, crack, or start a fire.
• Do not store the batteries with other metallic materials. Doing
this may cause the batteries to give off heat, crack, or start a
fire.
• When throwing away or saving the batteries, wrap them in tape
or other insulation, or the batteries may start to give off heat,
crack, or start a fire.

6
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
• Do not poke the batteries with tweezers or similar tools. Doing
so may cause the batteries to give off heat, crack, or start a
fire.
• Dispose of batteries in the correct manner, according to
federal, state, and local regulations.
• Do not expose batteries (battery pack or batteries installed) to
excessive heat source such as direct sunshine or fire.
Caring for your iPod
• The connector plug is protected during shipping with a cover.
Remove the cover before operating the clock radio with iPod
dock.
• Do not carry the clock radio with iPod dock with the iPod
connected.
• Do not touch or hit the iPod terminal’s pins or the connector
pins directly because doing so may damage the connector.
• If the iPod does not play correctly, try updating your iPod
software to the latest version. For details about updating your
iPod, visit the Apple Web site www.apple.com.
• iPod is a trademark of Apple Inc., registered in the U.S. and
other countries.
• We are not responsible for any loss of or damage to the iPod
that might result from the use of this product.
• Sound distortion may occur when playing back audio sources
with high recording levels. When distortion occurs, you should
turn off the iPod equalizer. For information on operating the
iPod, see your iPod instruction manual.
Note: For USA-California Only:
This product contains a CR coin cell lithium battery that contains
Perchlorate Material. Special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.

7
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Features
Top panel
No. Feature Description
1°C/°F Press to switch between Celsius and
Fahrenheit.
2 / Press to set the clock.
3 Set Press to toggle between current time,
alarm 1, or alarm 2.
4 Off/Buzzer/Timer Play Slide to set the desired alarm clock
mode. TIMER PLAY plays from the
iPod or the FM tuner.
5 -/+ Press to increase or decrease volume.
6 U-Pro Press to activate the U-Pro sound
effect.
7 Snooze/Sleep/ Press to delay the alarm sound in five-
minute intervals.
Press and hold to set the sleep timer.
Press to turn on backlight for five
seconds.
Press to adjust the backlight.
8 Alarm/Sleep Off Press to turn off the alarm sound.
Press to cancel the sleep timer.
9 Source Press to set your clock radio with iPod
dock to the mode you want: iPod, FM
tuner, or Aux.
10 POWER Press to turn on and off.
ST
CF
SET
TIMER PLAY
BUZZER
OFF
SNOOZE/SLEEP/
OFF

8
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com

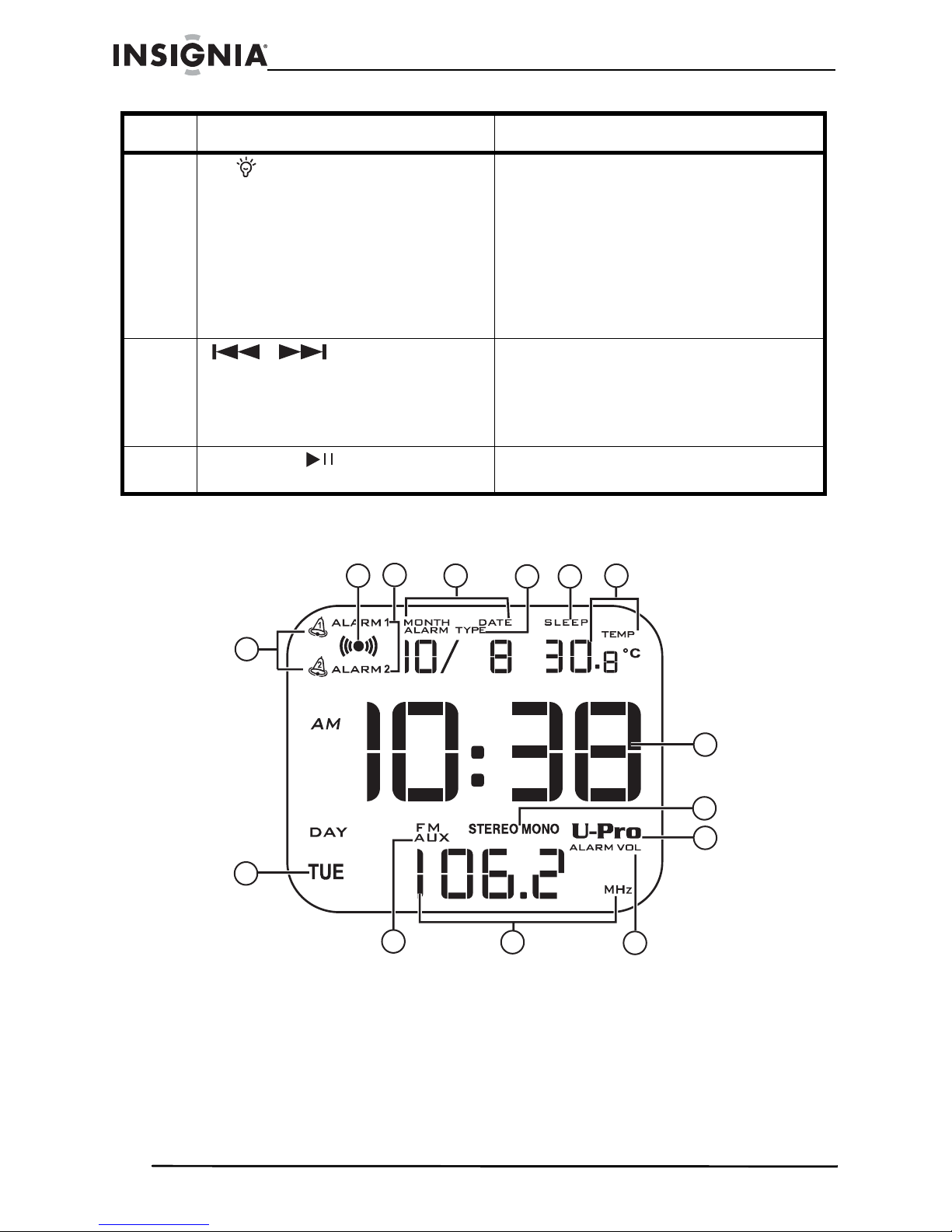

Front panel display
11 ST/ Tuner mode: press to switch between
Stereo and Monaural modes when
there is too much static in the FM
broadcast.
iPod mode: press five times quickly to
switch between USB and Firewire
charging modes.
All modes: press and hold to turn the
backlight on and off.
12 / iPod mode: Press to skip to a previous
or next track. Press and hold to move
quickly through a track.
FM Tuner mode: Press to increase or
decrease frequency.
13 Play/Pause Press to play or pause iPod playback.
Press and hold to turn off the iPod.
No. Feature Description
2347
8
9
1
14
13 12 11
10
65

9
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
No. Component Description
1 Displayed when the alarm is on.
Flashes when the alarm is
sounding.
2 Blinks while snoozing.
3 Alarm 1/Alarm 2 Displayed when alarm 1 or alarm 2
time is shown.
4 Month/Date Displays the current month and
date.
5 Alarm Type Displayed when setting the alarm
type.
5/7 Mode: The alarm is set for
Monday through Friday.
7/7 Mode: The alarm is set for
Monday through Sunday.
2/7 Mode: The alarm is set for
Saturday through Sunday.
6 Sleep Displayed when the sleep timer is
set.
7 Temp Displays the current temperature.
8 Time Displays the current time or alarm
time.
9 Stereo/Mono Identifies the audio setting when in
FM Tuner mode.
10 U-Pro Displayed when the U-Pro sound
effect is activated.
11 Alarm Vol Displayed when setting the alarm
volume.
12 Multi-function display Displays various information
depending on the function. See
the table, “Multi-function display”
on page 10, for a detailed
explanation.
13 Aux Displayed when an Aux source is
selected.
14 Day Displays the day of the week.

10
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Multi-function display

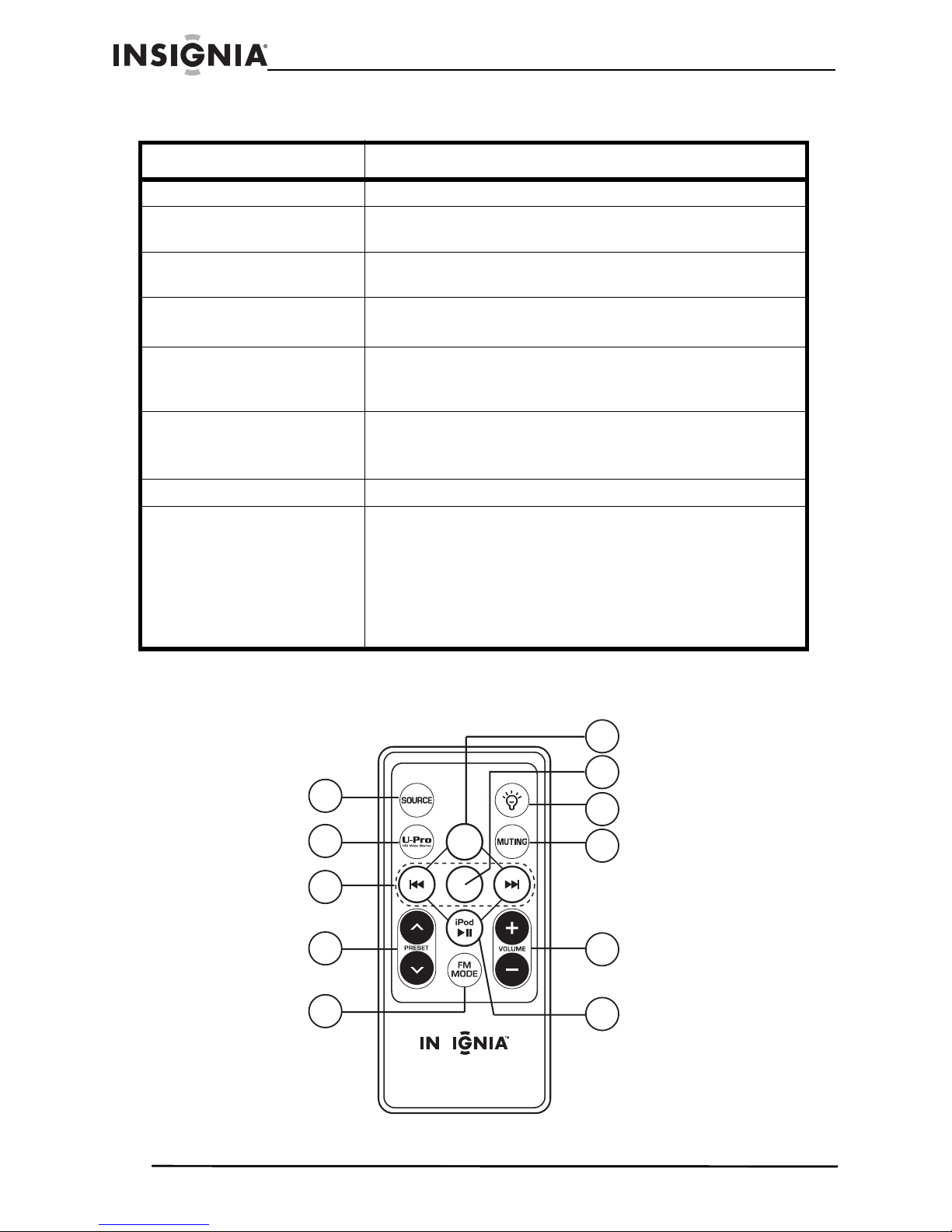

Remote control
Function Displayed
Sound source indicator iPod/FM/AUX blinks while muting
Charging mode indicator UC/FC (UC indicates USB is charging and FC
indicates Firewire is charging.)
When adjusting the
volume 00-20
When FM tuner is
selected P01-P20 (channel) 87.5-108.0 MHz (frequency)
When the source is set to
iPod and the alarm is set
to Timer Play
iPod (blinking)
When the source is set to
FM tuner and the alarm is
set to Timer Play
87.5-108.0 MHz (frequency) and P01-P20 (channel)
are blinking alternately.
When battery power is low ---
When trying to set alarm
to Timer Play while
selecting AUX as the
source.
When the alarm is
sounding while playing
AUX sound source.
Err
S
MENU
MENU
1
6
7
8
9
3
2
4
5
10
11

11
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
No. Button Description
1 Source Press to set your clock radio with
iPod dock to the mode you want:
iPod, FM Tuner, or Aux.
2 U-Pro Press to activate the U-Pro sound
effect.
3/ iPod mode: Press to skip to a
previous or next track. Press and
hold to move quickly through a
track.
FM Tuner mode: Press to increase
or decrease frequency.
4 Preset / Menu iPod mode: Press to move the
cursor up or down in the iPod
display. Press and hold to move
quickly.
FM Tuner mode: Press to select
one of the 20 preset channels.
5 FM Mode Press to switch between Stereo
and Mono modes. Switch to
monaural reception when there is
too much static in the FM
broadcast.
6 Menu (iPod only) Press to return to the previous
menu.
7 Confirm (iPod only) Press to select the highlighted
item.
8 Press to turn the backlight on and
off.
9 Muting Press to mute the sound.
10 Volume +/- Press to increase or decrease
volume from 00 to 20.
If the volume level is higher than
14 before power is disconnected,
the level returns to 14 when power
is restored.
11 iPod Press to play or pause iPod
playback. Press and hold to turn
off the iPod.

12
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Setting up your clock radio with iPod dock

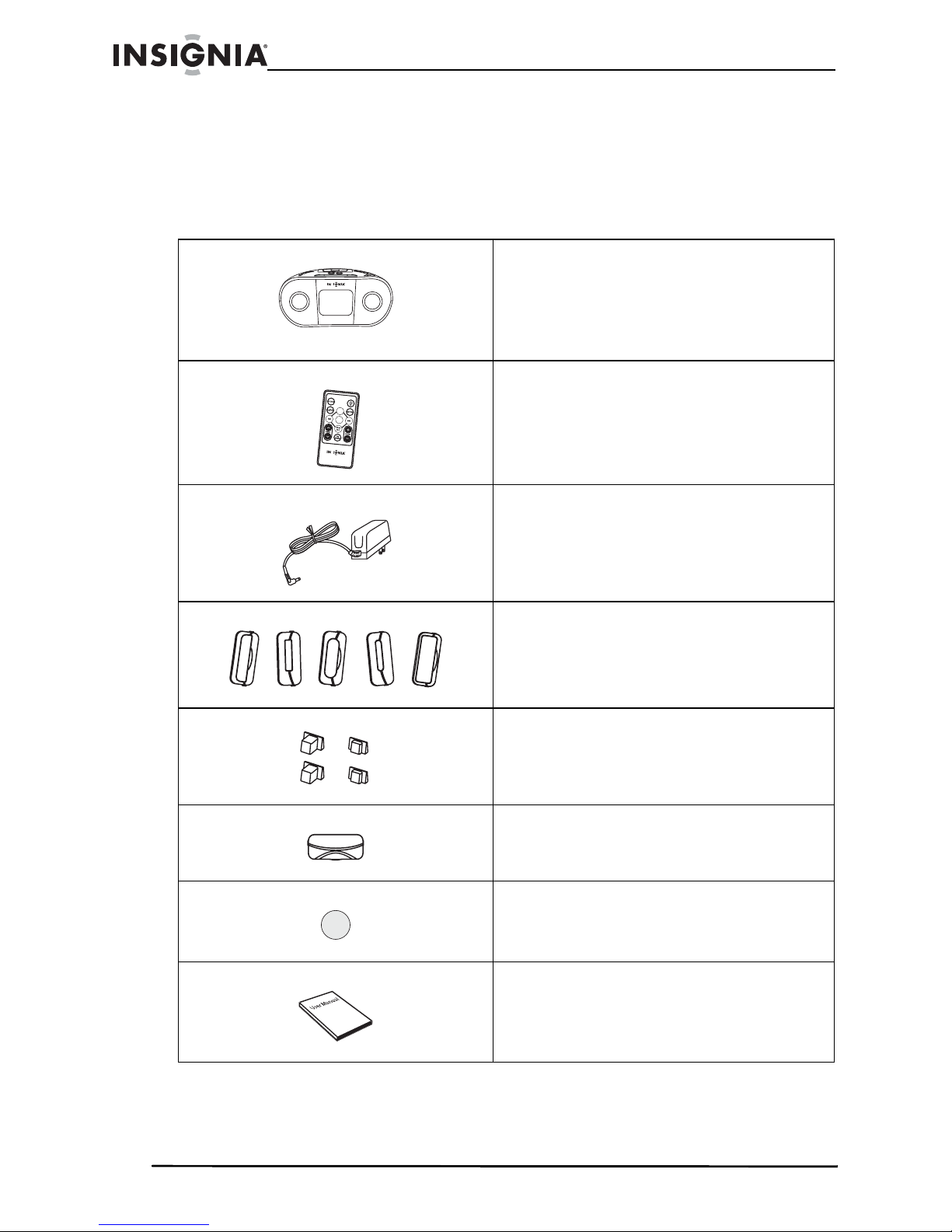

Package contents
Clock radio with iPod dock
Remote control
AC power adapter
Dock cradles (5)
Rubber pads (2 pairs)
Terminal cover
Lithium coin batteries (2)
Already loaded: One in clock radio and
one in remote.
This user guide
S
S
MENU
MENU
+
C 2025
3V
R

13
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Connecting the AC power adapter
To connect the AC power adapter:
1Plug the power cord into the DC jack on the back of your clock
radio with iPod dock.
2Plug the other end of the AC power adapter into a 120V AC 60 Hz
power outlet.
Installing batteries

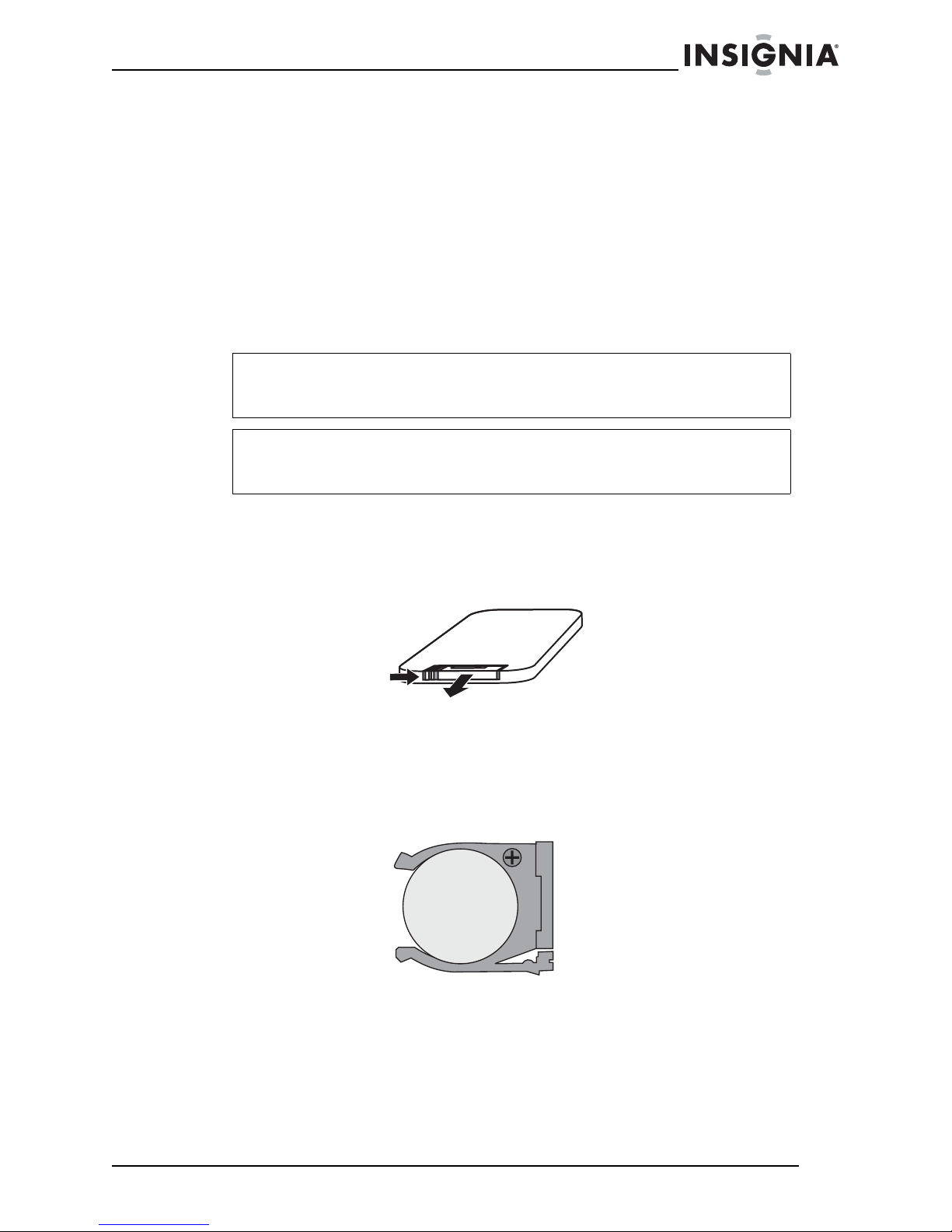

To replace the battery in the remote control:
1Slide and pull to release the battery cover latch.
2Match the polarity on the lithium cell (CR2025-3V) with the plus
sign (+) on the battery tray.
3Slide the tray with new battery into the battery compartment until it
clicks into place.
To replace the battery for the clock:
1Open the battery compartment by pressing the small tab of the
battery cover.
Note:
Lithium coin batteries are installed in the remote control and the clock
radio with iPod dock at the factory.
Warning:
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
Slide
Pull
+
C 2025
3V
R

14
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
2Match the polarity on the lithium cell (CR2025-3V) with the plus
sign (+) on the battery tray.
3Replace the battery compartment cover.
To install batteries in the clock radio with iPod dock:
1Make sure that the power cord is unplugged.
2Remove the battery compartment cover.
3Insert six AA batteries (not included) into the battery compartment.
Make sure that you align the + and - symbols on the batteries with
the + and - symbols inside the battery compartment.
x 6

15
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
4Replace the battery compartment cover.
Connecting an iPod
You can connect an iPod (not included) to your clock radio with iPod
dock so you can listen to the songs or view pictures or videos stored
on your iPod.
Connecting an iPod Mini, iPod Nano, and Video 30 GB
To connect an iPod Mini, iPod Nano, and Video 30 GB:
1Make sure that your clock radio with iPod dock is turned off.
2Select the dock cradle compatible to your iPod (see “iPod
compatibility chart” on page 16).
3Match the dock cradle tabs to the left and right holes and slide the
dock cradle into the iPod slot.

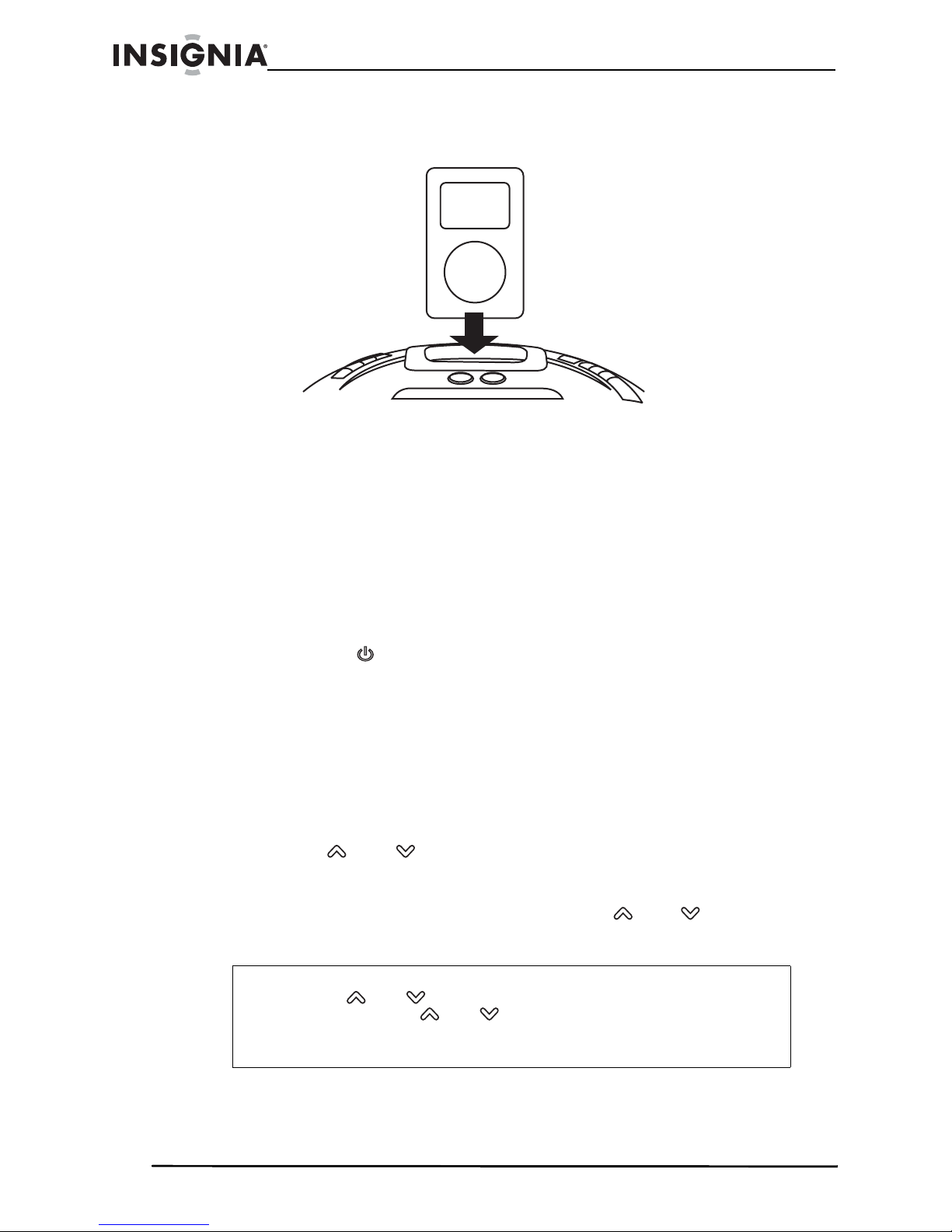

4Insert the iPod into the iPod dock cradle, with the display facing
out.

16
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
iPod compatibility chart
iPod models Dock cradle names
iPod mini 1st generation
4 GB/6 GB mini
iPod nano 1st generation
1 GB/2 GB/4 GB nano
iPod nano 2nd generation 2 GB/4 GB/8 GB nano G2
iPod video 5th generation 30 GB Video 30 G
iPod model
iPod 3rd generation
10 GB/15 GB/20 GB
iPod 4th generation 20 GB
iPod photo 4th generation
20 GB/30 GB
iPod video 5th generation
60 GB/80 GB
iPod 3rd generation
30 GB/40 GB
iPod 4th generation 40 GB
iPod photo 4th generation
40 GB/60 GB
Rubber pad L-size S-size
Dock cradle name iPod (combine this dock cradle with the rubber pads)

17
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Connecting all other iPods, including video and
To connect the iPod:
1Make sure that your clock radio with iPod dock is turned off.
2Select the correct rubber pads for your iPod model (see “iPod
compatibility chart” on page 16).
3Select the iPod dock cradle.
4Identify the two notches on the iPod dock cradle that match the
width of your iPod model.
5Insert the rubber pads into the notches on the iPod dock cradle.
Insert the narrow ends of rubber pads first. Make sure that the
rubber pads are inserted into the notches securely.

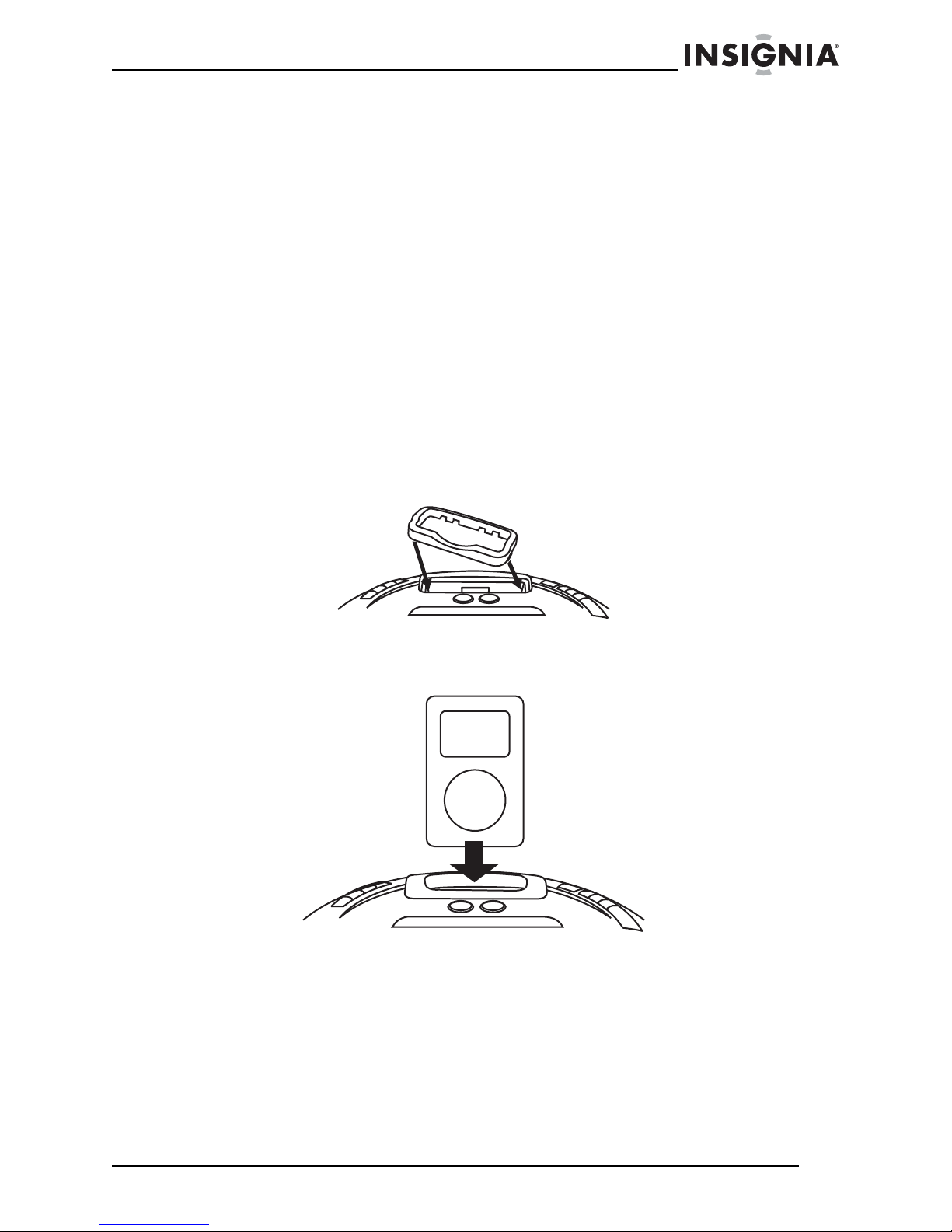

6Match the dock cradle tabs to the left and right holes and slide the
dock cradle into the iPod slot.
S-size
L-size

18
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
7Insert the iPod into the iPod dock cradle, with the display facing
out.
8For information about listening to the iPod, “Listening to all other
iPods” on page 23.
Using your clock radio with iPod dock
Turning your docking station on and off
To turn your clock radio with iPod dock on and off:
• Press the button on your clock radio with iPod dock.
Setting the time
To set the time:
1Press the SET button to display the current time.
2Press and hold the SET button. The year begins blinking.
3Press the and buttons to set the year.
4Press the SET button to confirm the setting.
5Repeatedly press the SET button and the and buttons to set
the month, date, 12/24 hour format, hour, and minute.
Note:
Press the and buttons to stop displaying the day of the week
and date. Press the and buttons again to display the two
indicators.

19
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
Setting the alarm (buzzer)
To set the alarm (buzzer):
1Press the SET button repeatedly until ALARM1 or ALARM2 is
displayed.
2Press and hold the SET button.
3Press the and buttons to switch between ON and OFF.
4Press the SET button to confirm the setting.
5Repeatedly press the SET button and the and buttons to set
the hour, minute, alarm type, auto mode timing, and alarm volume.
6Slide the alarm switch to BUZZER.
Setting the alarm (iPod or FM tuner playback)
To set the alarm (iPod or FM tuner):
1Press the SOURCE button to choose iPod or FM tuner mode.
AUX cannot be selected as a source.
2Press the SET button repeatedly until ALARM1 or ALARM2 is
displayed.
3Press and hold the SET button.
" " " "
Clock display
Clock
display Alarm 1 display
Alarm 2
display
OR
" " " "
Clock display
Clock
display Alarm 1 display
Alarm 2
display

20
Insignia NS-S4000 Clock Radio with iPod Dock
www.insignia-products.com
4Press the and buttons to switch between ON and OFF.
5Press the SET button to confirm the setting.
6Repeatedly press the SET button and the and buttons to set
the hour, minute, alarm type, auto mode timing, and alarm volume.
Auto Mode Timing is the duration of the alarm, from 10-30
minutes.
7Confirm that you can hear the iPod or FM tuner.
8Press the and buttons to set the volume.
9Slide the alarm switch to TIMER PLAY. The bell icon is displayed.
If the power is off and the lithium coin battery is installed, the alarm
will sound with the buzzer instead of the iPod or FM Tuner.
Stopping the alarm sound
To stop the alarm:
•PresstheALARM SLEEP/OFF button briefly to stop the alarm
sound. The alarm is still set and will sound at the set time the
next day.
OR
1Press and hold the SET button.
2Press the and buttons to switch from ON to OFF. The set
alarm will be cancelled.
OR
• Slide the alarm switch to OFF to stop all alarms. No alarm will
be activated the following day, and the alarm icons are no
longer displayed.
Note:
When the alarm is sounding, the playback of iPod, FM tuner, or AUX is
automatically stopped. Playback resumes after the alarm stops.
OR
