Insignia NS-BRDVD Technical manual

Firmware update download/burn instructions
System requirements: a computer with writable disc drive and image burning software, a blank,
recordable CD-R, DVD-R, or DVD+R, and broadband Internet access. This option is not recommended
with dial-up or DSL service with a bit rate lower than 256kbps.
First: download the update file

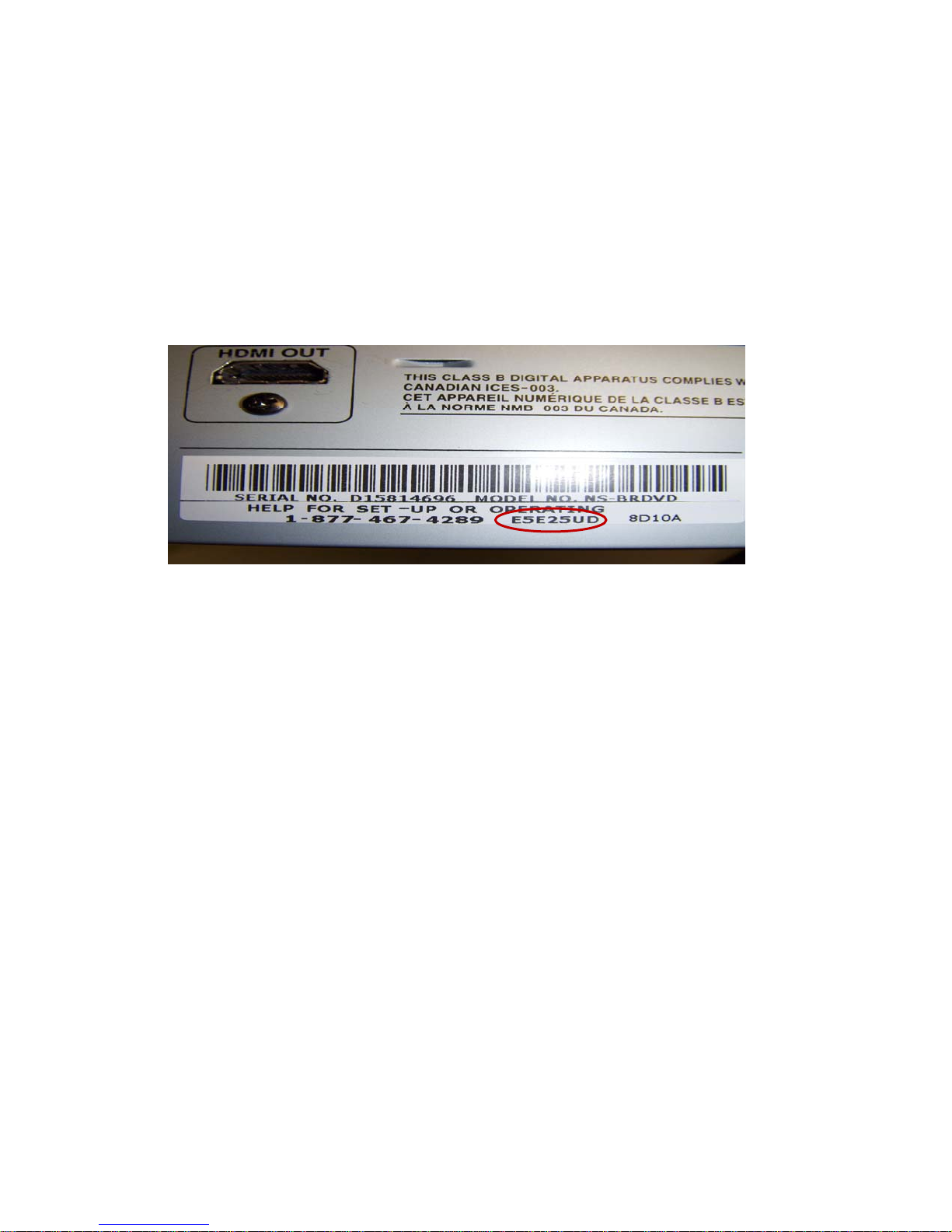

1. On the back of your unit look for a bar code (see photo). On the bottom of the sticker locate the
code that starts with E5E, then download firmware version E5E25UD1108FA1.iso. If the code
starts with E5H, then download firmware version E5H25UD1108FA1.iso. If a pop-up window
opens telling you to open, save or cancel, click Save and save the file to your desktop. If you
save it to another location, make note of where that is.
Note: File size is approximately 32 MB. Estimated download time is 3-4 minutes (with a 1.5 Mbps
broadband connection).
2. Insert a blank, recordable CD-R, DVD-R, or DVD+R into your computer’s writable disc drive. If a
CD pop-up window opens, close it.
Second: burn a CD or DVD from the update file
1. Click on the file located on your desktop or open a file manager (such as Windows Explorer) and
find the file you downloaded.
2. Double-click the update file, then follow the on-screen instructions to finish the burning process.
Note: This step works only on computers that have appropriate image burning software installed.
Note: This step requires that you burn, create or copy an image (not data) file but your image
burning software may call it something else. Refer to your software’s online help for information
on how to burn an ISO file.
- OR – (if double-click method above does not work)
If you run Windows and have Cyberlink’s Power 2 Go installed on your computer:
1. Open Power 2 Go and click Copy Disc under the list of burning options.
2. Follow the on-screen instructions to burn the image to a CD.
If you run Windows and have Roxio’s Easy Media Creator® installed on your computer:
1. Open Easy Media Creator and click Copy CD under the list of options.
2. Follow the on-screen instructions to burn the image to a CD.
If you run Windows and have Nero 9 CD/DVD Burner installed on your computer:
1. Open CD/DVD Burner and click File, then Burn Image.
2. Follow the on-screen instructions to burn the image to a CD.
If you run Windows and have Sonic RecordNow! 7 installed on your computer:

1. From the main menu, click the Backup Projects tab, and click Burn Image.
2. Click Browse, find the file you downloaded and click Add, then click Burn.
If you have any other image burning software installed on your computer, follow the software’s online
help instructions to create a disc from the downloaded update file.
Note: Instructions will vary with operating system and software version. 

1-7-3 E5E20FW
FIRMWARE RENEWAL MODE (for User)
1. Turn off the power of BD-Player.
2. Press [OPEN/CLOSE] to turn on the power of BD-
Player. The tray will open automatically.
3. Load the disc for version up. Fig. A appears on the
screen and Fig. B appears on the VFD.
4. Press [OK] to carry out “YES”. The display will be
replaced by Fig. C and Fig. D.
5. Load the disc for version up. The display will be
replaced by Fig. E when it finishes reading the
data of the disc.
6. Please remove the update disc, and press [OK].
The tray will close automatically.
7. When the tray has closed, it will renew data
automatically. Then the display is replaced by Fig.
F. Progress degree is displayed like Fig. G on VFD.
8. After programming isfinished,Fig. H appearson
the VFD.
9. Unplug the AC cord from the AC outlet. Then plug
it again. The player menu language is maintained,
and the other items are set by default.
Software Upgrade
Select 'Yes' and press 'OK' button to start upgrading.
Press 'No' to exit software upgrade.
Yes No
Fig. A
Fig. B
Software Upgrade
Loading Software ...
Fig. C
Fi
g
. D
Software Upgrade
New upgrade data verified.
Please remove the disc and close tray to continue
OK
Fig. E
Software Upgrade
Do not turn off the power or interrupt upgrading process.
Front display will indicate FINISH upon successful upgrade.
Please turn off and on mains to restart.
---Upgrading in process---
Fi
g
. F
Fi
g
. G
Fig. H
