Introduction
Congratulations on your purchase of a high-quality Insignia product. Your
NS-HTMS1 represents the state of the TV stand design and is designed for reliable
and trouble-free performance.
IMPORTANT SAFETY
INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable
with this easy install process. Also check your TV owner’s manual to see if there are
any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly, or use of this product, contact Customer Service.
•CAUTION: Avoid potential personal injuries and property damage!
Manufacturer is not responsible for damage or injury caused by incorrect
assembly or use.
•WARNING: Exceeding the weight capacity can result in serious personal injury
or damage to equipment! It is the installer’s responsibility to make sure the
combined weight of the display (including accessories) does not exceed 60 lbs.
(27.2 kg). Use with heavier televisions may result in instability causing tip over
resulting in death or serious injury!
•WARNING: Use this mounting system only for its intended use as described in
these instructions. Do not use attachments not recommended by the
manufacturer.
•WARNING: Death or serious injury may occur when children climb on audio
and/or video equipment furniture. A remote control or toys placed on the
furnishing may encourage a child to climb on the furnishing and as a result the
furnishing may tip over onto the child.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 2 Thursday, October 24, 2019 10:34 AM

3
Universal Swivel TV Base
www.insigniaproducts.com
•WARNING: Relocating audio and/or video equipment to furniture not
specifically designed to support audio and/or video equipment may result in
death or serious injury due to the furnishing collapsing or overturning onto a
child.
SAVE THESE INSTRUCTIONS
Features
• Supports TVs 32–65" (81–165 cm) and up to 60 lbs (27.2 kg)
• Side-to-side swivel and 8" (20 cm) height adjustment to position your TV at the
perfect viewing angle
• Extra space below your TV to place a soundbar or other devices
• Integrated cable management keeps cords organized
• Compatible with VESA patterns from 75 × 75 up to 600 × 400 with all common
sizes in between
• Full assortment of mounting hardware included to mount a wide range of TVs
Note: This product has no user serviceable parts.
Note: This TV base cannot be used to mount a TV on a wall.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 3 Thursday, October 24, 2019 10:34 AM

4
NS-HTMS1
www.insigniaproducts.com

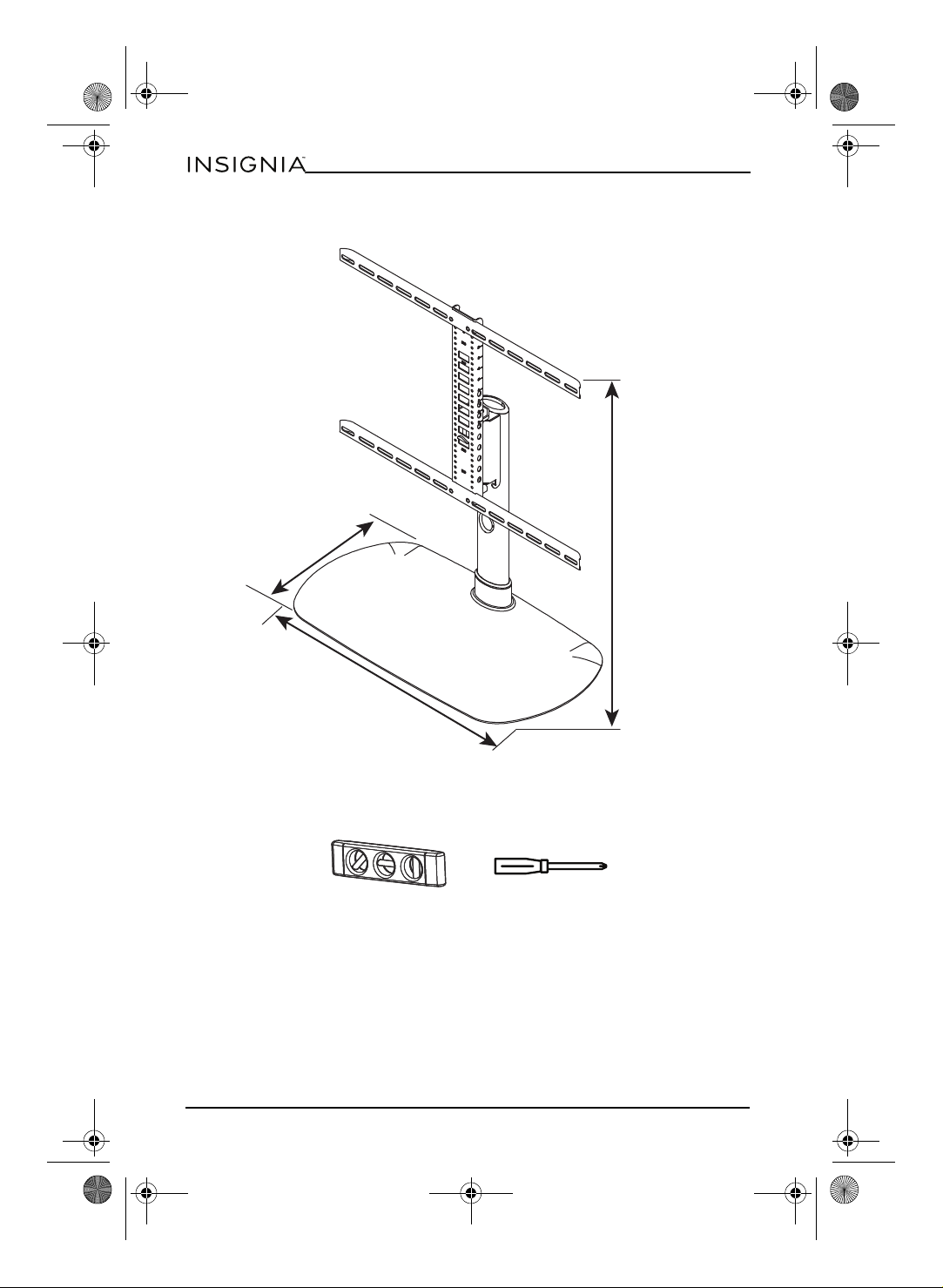

Dimensions
Tools needed
You need the following tools to assemble your new TV stand:
25.4in.(64.4cm)
28.6 in. (72.6 cm)
13.2in.(33.5cm)
Level
Phillips screwdriver
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 4 Thursday, October 24, 2019 10:34 AM

5
Universal Swivel TV Base
www.insigniaproducts.com
Package contents
Make sure that you have all the parts and hardware needed to assemble your new
TV stand.
Parts
01 Horizontal brackets (2)
14 Vertical bracket (1) 16 Post (1)
17 Base (1)
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 5 Thursday, October 24, 2019 10:34 AM

6
NS-HTMS1
www.insigniaproducts.com
Hardware
LBL. HARDWARE # LBL. HARDWARE #
02 8 09 4
03 4 10 4
04 4 11 4
05 4 12 4
06 4 13 4
07 4 15 4
08 4 18 4
Spacer (2.5 mm)
M8 × 25 mm screw
Spacer (22 mm)
M4 × 35 mm screw
M4 washer
M6 × 35 mm screw
M6/M8 washer
M8 × 35 mm screw
M4 × 12 mm screw
M8 × 50 mm screw
M6 × 12 mm screw
Interface screw (10-32 × 3/8 in.)
M8 × 16 mm screw
Lock screw (1/4-20 x 3/8 in.)
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 6 Thursday, October 24, 2019 10:34 AM

7
Universal Swivel TV Base
www.insigniaproducts.com
Assembly instructions
Step 1 – Determine whether your TV has a flat back or an irregular or
obstructed back
1Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2Temporarily lay the horizontal brackets (01) on the back of your TV.
3Align the screw holes in the brackets with the mounting screw holes on your
TV.
4Identify which type of back your TV has:
•Flat back: The brackets lay flush against the back of your TV and do not
block any jacks. You do not need spacers when assembling your stand.
•Obstructed back: The brackets block any of the jacks on the back of your
TV. You need the spacers (02 or 03) when assembling your stand.
•Irregularly-shaped back: There is a gap between the brackets and some
part of the back of your TV. You need the spacers (02 or 03) when
assembling your stand.
5Remove the brackets.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 7 Thursday, October 24, 2019 10:34 AM

8
NS-HTMS1
www.insigniaproducts.com
Step 2 – Select screws, washers, and spacers
1Select the hardware for your TV (screws, washers, and spacers). A limited
number of TVs come with mounting hardware included. (If screws came with
your TV, they are almost always in the holes on the back of your TV.) If you
don't know the correct length of the mounting screws your TV requires, test
various sizes by hand threading the screws.
Select the screws that fit:
Use the M4 washers (04) with the M4 screws. Use the M6/M8 washers (05)
with the M6 or M8 screws.
For an irregular or obstructed TV back, also use the 2.5 mm spacers (02),
22 mm spacers (03) or a combination of the 2.5 mm and 22 mm spacers. You
can combine spacers 02 and 03 for extra length.
2Remove the screws.
3For a flat back TV, go to Step 3 – Option 1: Attach the horizontal brackets to a
flat-back TV on page 9.
-OR-
For an irregular or obstructed back, go to Step 3 – Option 2: Attach the
horizontal brackets to an obstructed or irregularly-shaped TV back on
page 10.
M4 × 12 mm screw (06) M4 × 35 mm screw (10)
M6 × 12 mm screw (07) M6 × 35 mm screw (11)
M8 × 16 mm screw (08) M8 × 35 mm screw (12)
M8 × 25 mm screw (09) M8 × 50 mm screw (13)
CAUTION: To avoid potential personal injuries and property damage, make sure
that the screws have adequate threads to secure the brackets to your TV. If you
encounter resistance, stop immediately and contact customer service. Use the
shortest screw and spacer combination to accommodate your TV. Using
hardware that is too long may damage your TV. However, using a screw that is
too short may cause your TV to fall from the stand.
Screw is
too long
Screw fits
correctly
Screw is
too short
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 8 Thursday, October 24, 2019 10:34 AM

9
Universal Swivel TV Base
www.insigniaproducts.com

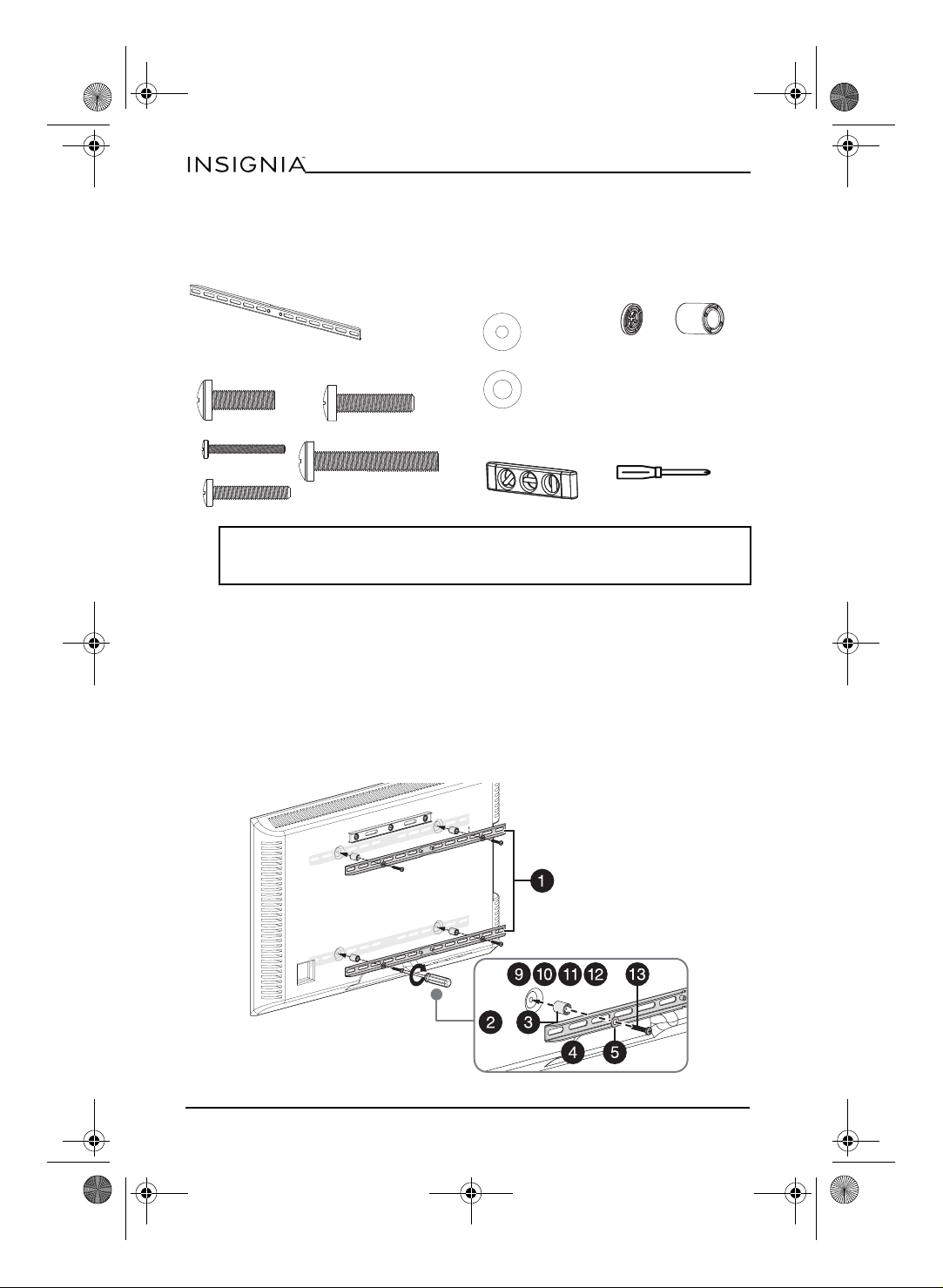

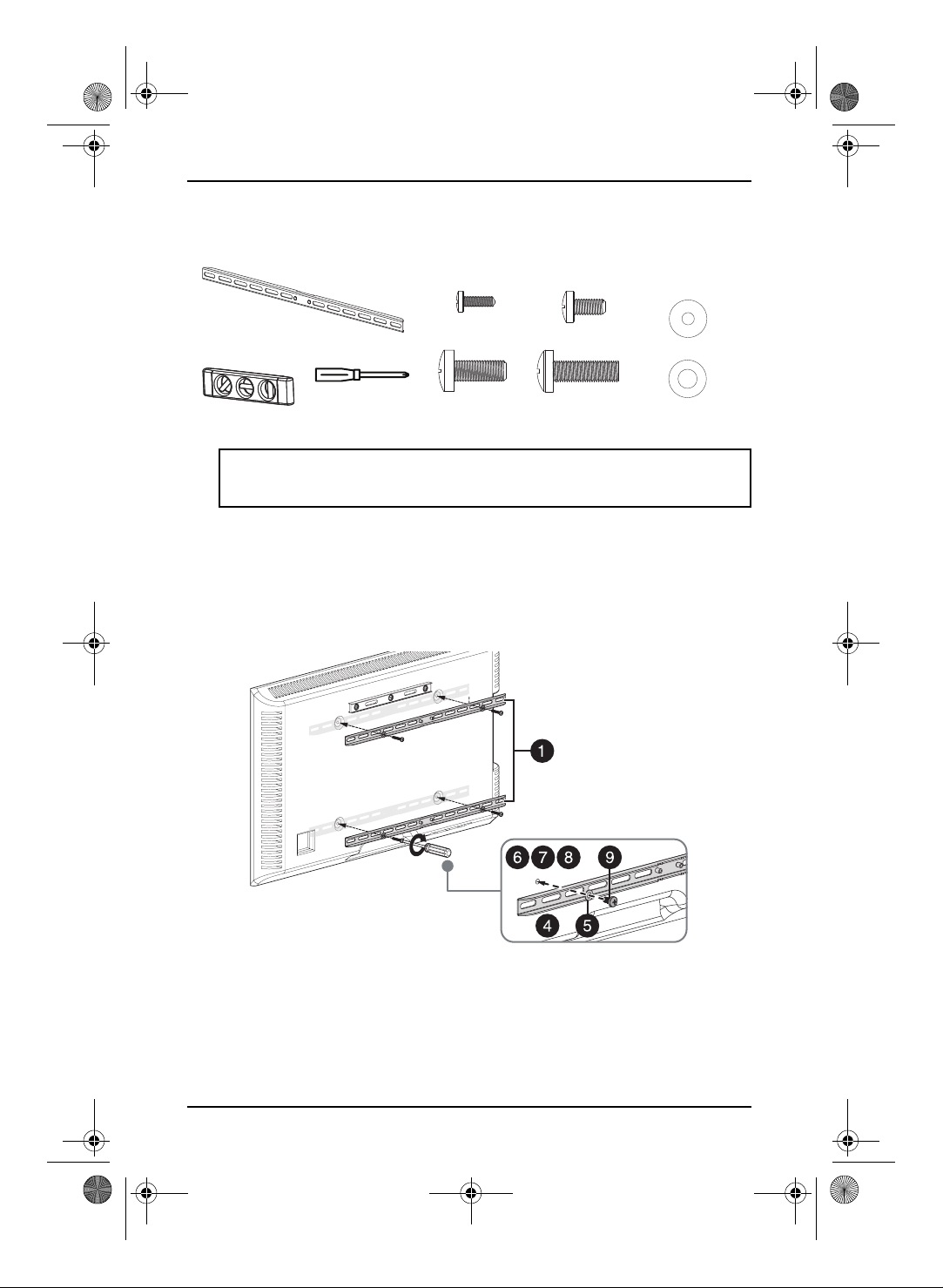

Step 3 – Option 1: Attach the horizontal brackets to a flat-back TV
You’ll need
1Align the holes on the horizontal brackets (01) with the screw holes on the
back of your TV. Make sure that the brackets are centered horizontally.
2Place the washers you selected in STEP 2 over the holes in the brackets that
align with the screw holes on the back of your TV, then insert the screws you
selected in STEP 2 through the washers. Make sure that the brackets are level.
3Tighten the screws until they are snug against the brackets. Make sure that the
horizontal brackets are securely fastened before moving on to the next step.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use
power tools for this step. Tighten the screws only enough to secure the TV
bracket to your TV. DO NOT over tighten the screws.
01 Horizontal bracket (2)
Screws (select 1 set) Washers
(select 1 set)
04 M4 (4)
05 M6/M8 (4)
Level
Phillips screwdriver
06 M4 × 12 mm (4) 07 M6 × 12 mm (4)
08 M8 × 16 mm (4) 09 M8 × 25 mm (4)
or
or
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 9 Thursday, October 24, 2019 10:34 AM

10
NS-HTMS1
www.insigniaproducts.com
Step 3 – Option 2: Attach the horizontal brackets to an obstructed or
irregularly-shaped TV back
You’ll need
1Place the spacers you selected in STEP 2 over the screw holes on the back of
your TV.
2Align the holes on the horizontal brackets (01) with the holes in the spacers.
Make sure that the brackets are centered horizontally.
3Place the washers you selected in STEP 2 over the holes in the brackets that
align with the screw holes on the back of your TV, then insert the screws you
selected in STEP 2 through the washers and spacers. Make sure that the
brackets are level.
4Tighten the screws until they are snug against the brackets. Make sure that the
horizontal brackets are securely fastened before moving on to the next step.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use
power tools for this step. Tighten the screws only enough to secure the TV
bracket to your TV. DO NOT over-tighten the screws.
Screws (select 1 set)
10 M4 × 35 mm (4)
11 M6 × 35 mm (4)
12 M8 × 35 mm (4)
Washers
(select 1 set)
04 M4 (4)
05 M6/M8 (4)
01 Horizontal bracket (2)
Level
Phillips screwdriver
Spacers
03 Spacer
(22 mm)
(4)
02 Spacer
(2.5 mm)
(8)
09 M8 × 25 mm (4)
13 M8 × 50 mm (4)
Note: You can combine
spacers 02 and 03 for extra
length.
or
or
or
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 10 Thursday, October 24, 2019 10:34 AM

11
Universal Swivel TV Base
www.insigniaproducts.com

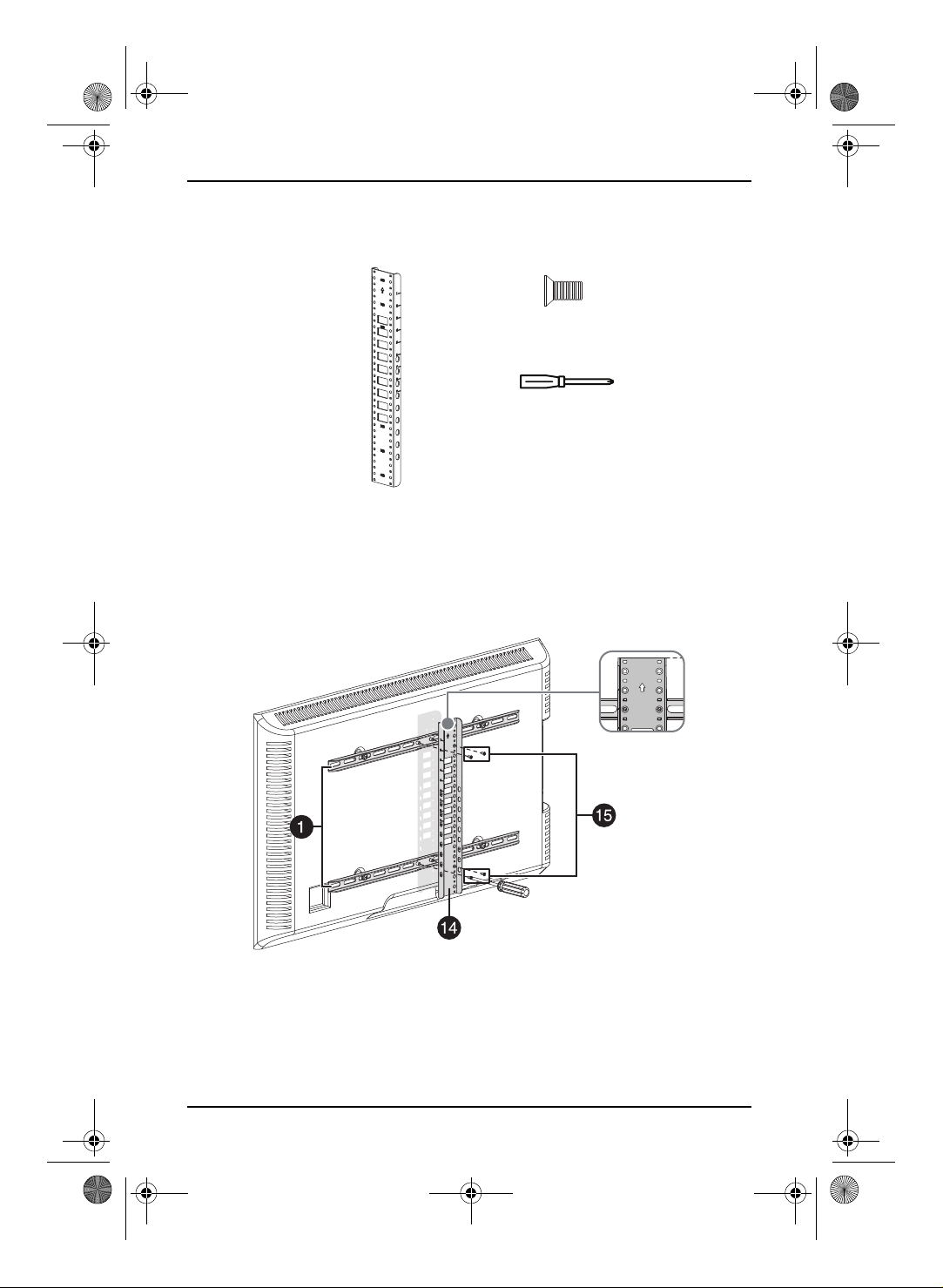

Step 4 – Attach the vertical bracket
You’ll need
1Center the vertical bracket (14) on the back of your TV.
2Secure the vertical bracket to the horizontal brackets (1) with four interface
screws (15).
3Tighten the screws until they are snug against the vertical bracket. Make sure
that all the brackets are securely fastened before moving on to the next step.
Phillips screwdriver
14 Vertical bracket (1)
15 Interface screw
(4)
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 11 Thursday, October 24, 2019 10:34 AM

12
NS-HTMS1
www.insigniaproducts.com

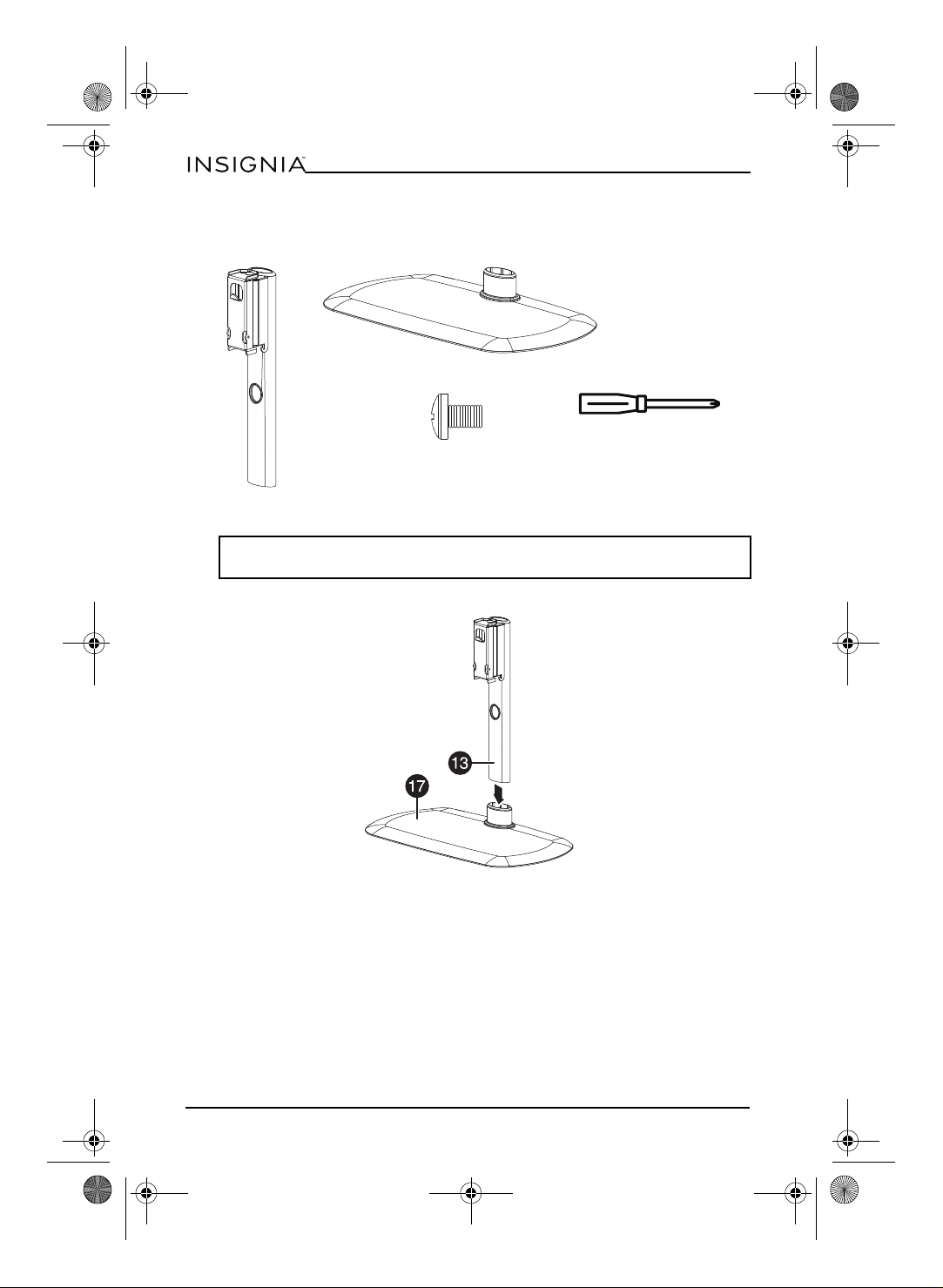

Step 5 – Attach the post to the base
You’ll need
1Insert the post (16) into the hole on the base (17).
Note: The base (17) is made of plastic with steel structuring underneath. It has
rubber feet which prevent it from sliding.
16 Post (1)
17 Base (1)
18 Lock screw (2)
Phillips screwdriver
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 12 Thursday, October 24, 2019 10:34 AM

13
Universal Swivel TV Base
www.insigniaproducts.com
2Secure the post to the base with two lock screws (18). Make sure that the post
is securely fastened before moving on to the next step. Do not over-tighten
the screws.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 13 Thursday, October 24, 2019 10:34 AM

14
NS-HTMS1
www.insigniaproducts.com

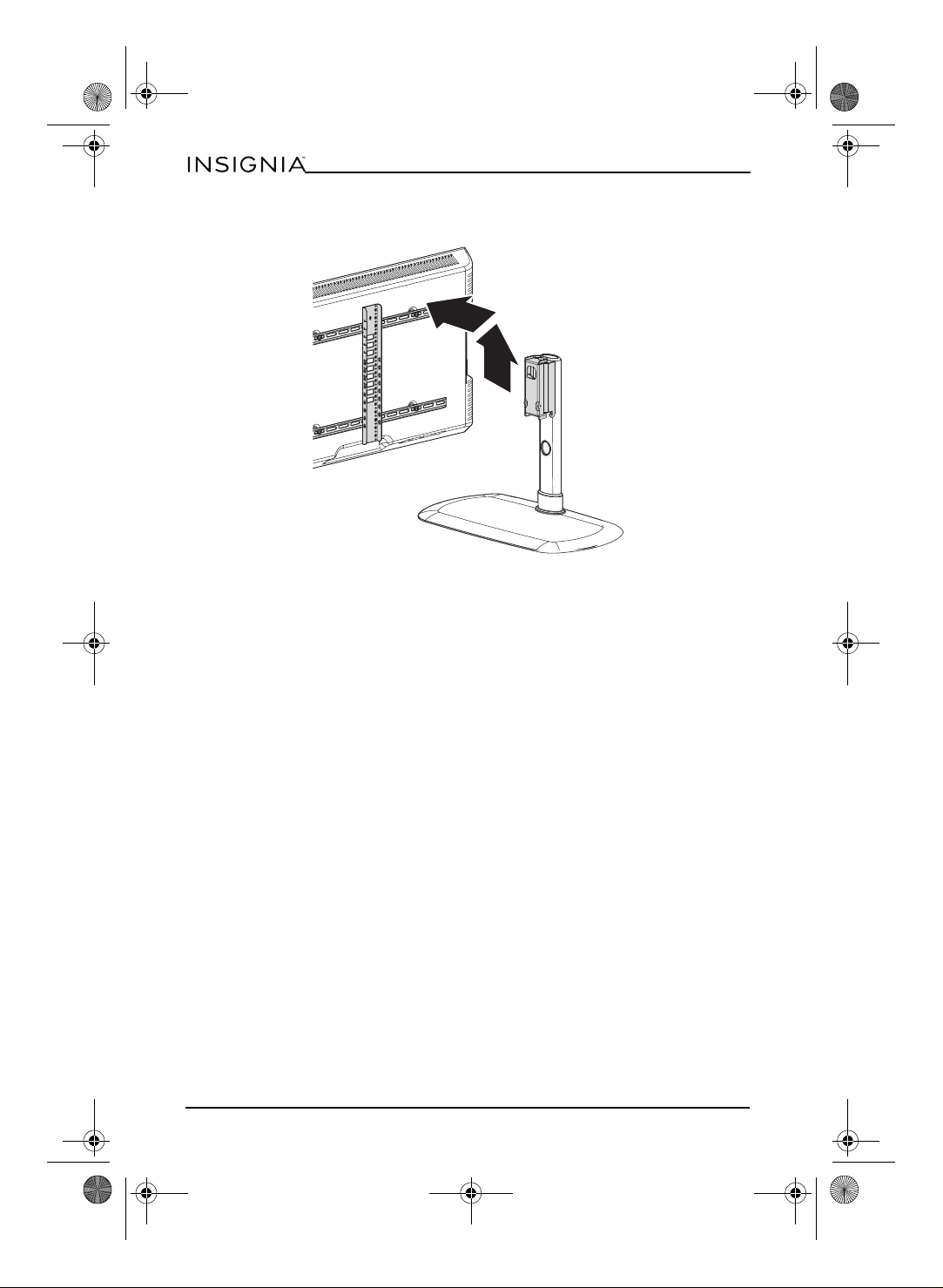

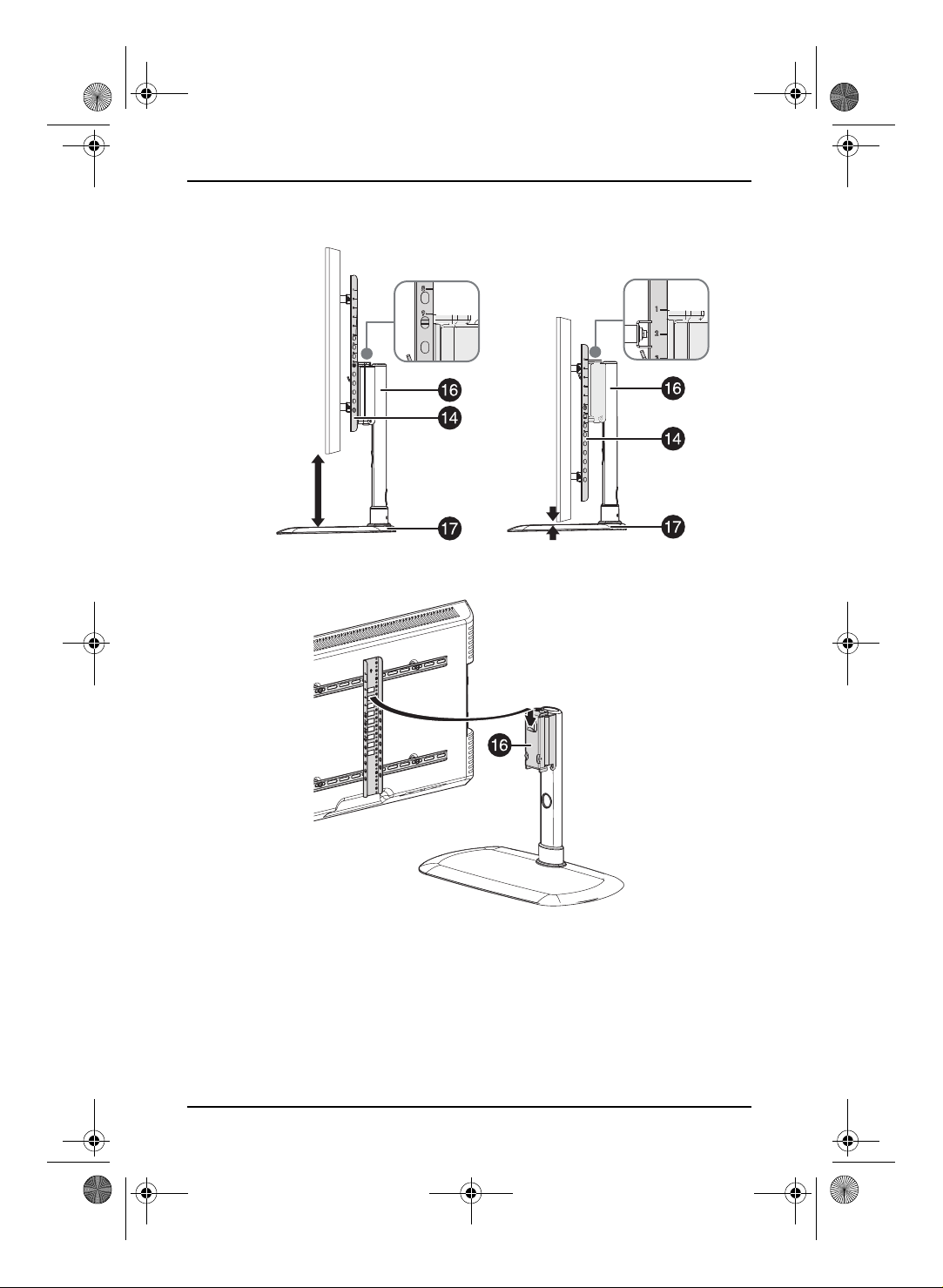

Step 6 – Attach your TV to the post
You’ll need
1Determine the height where you want to hang your TV.
Note: If you have a soundbar attached to the bottom of your TV, make sure that
you select a height on the stand that allows room for the soundbar.
18 Lock screw (2)
Phillips screwdriver
HEAVY! You may need
assistance with this step.
Highest position
Lowest position
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 14 Thursday, October 24, 2019 10:34 AM

15
Universal Swivel TV Base
www.insigniaproducts.com
Examples of the highest and lowest hanging positions:
2Carefully hang the TV/bracket assembly on the post.
Highest position Lowest position
11 in. (27.8 cm)
2.8 in. (7.2 cm)
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 15 Thursday, October 24, 2019 10:34 AM

16
NS-HTMS1
www.insigniaproducts.com
3Secure the TV/bracket assembly to the post with two lock screws (18). Make
sure that the assembly is securely fastened before moving on to the next step.
Do not over-tighten the screws.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 16 Thursday, October 24, 2019 10:34 AM

17
Universal Swivel TV Base
www.insigniaproducts.com
Step 7 – Manage cables
• Route your cables through the front or top opening in the post (16), then out
the back.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 17 Thursday, October 24, 2019 10:34 AM

18
NS-HTMS1
www.insigniaproducts.com
Step 8 – Adjust the TV viewing angle
• Hold the sides of the TV and swivel the TV left or right.
Top of your stand
35° 35°
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 18 Thursday, October 24, 2019 10:34 AM

19
Universal Swivel TV Base
www.insigniaproducts.com
If you ever need to remove your TV from the post
You’ll need
1Remove the two lock screws (15) that secure the TV/bracket assembly to the
post.
Phillips screwdriver
HEAVY! You may need
assistance with this step.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 19 Thursday, October 24, 2019 10:34 AM

20
NS-HTMS1
www.insigniaproducts.com
2Carefully lift the assembly up and off the post.
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 20 Thursday, October 24, 2019 10:34 AM
