Insinger DEFENDER 17 User manual

STANDARD EQUIPMENT
Item #_____________
CSI - 11400
DEFENDER
AUTOMATIC DOUBLE TANK
RACKLESS CONVEYOR
6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
www.insingermachine.com
DESIGN
Automatic conveyor, flight type two tank dishwasher with
recirculating prewash and wash zones and fresh hot water final
rinse. Capacity is 8,861 dishes per hour with a conveyor speed of
7.1ft. per minute. Designed for left or right hand conveyor travel,
as specified.
●
Exclusive CrossFire® Wash
System (patented)
●
Wash tank heat: 40KW
electric immersion heaters or
steam injectors
●
Capillary thermometers for
prewash and wash tanks and
final rinse
●
Final rinse pressure gauge
●
Vacuum breakers on all
incoming water lines
● Manifold cleanout brush
● Inspection and cleanout doors
● Polypropylene belt with
removable rack sections
● SureFireTM Start-Up and
Check-Out Service
● Simplified scrap screen design
●
Exhaust connections with
adjustable dampers
● Steam booster
● Interior work lights
● S/S frame, legs and feet
● S/S front enclosure panel
●
Provision for detergent dispenser
and rinse agent injector
connection
●
Top mounted NEMA 12
control panel
●
Automatic tank fill with
low water protection
● Door safety switches
●
Energy saver override switch
for deliming
● Conveyor reversing switch
● Conveyor safety stop bar
● Standard frame, drip proof motors
● Color-coded curtains
OPTIONAL ACCESSORY EQUIPMENT
❏ Stainless steel steam coil
tank heat
❏ Pressure reduction valve
and line strainer
❏ Electric booster
❏ Stainless steel belt with
removable rack sections
❏ Single electrical connection:
motors, controls, and heaters
❏ Security package
❏ S/S panels all sides
❏ Insulated hood and doors
❏ Totally enclosed motors
❏ Totally enclosed motors
3M 09/06 PRINTED IN USA
Information and specifications subject to change without notice

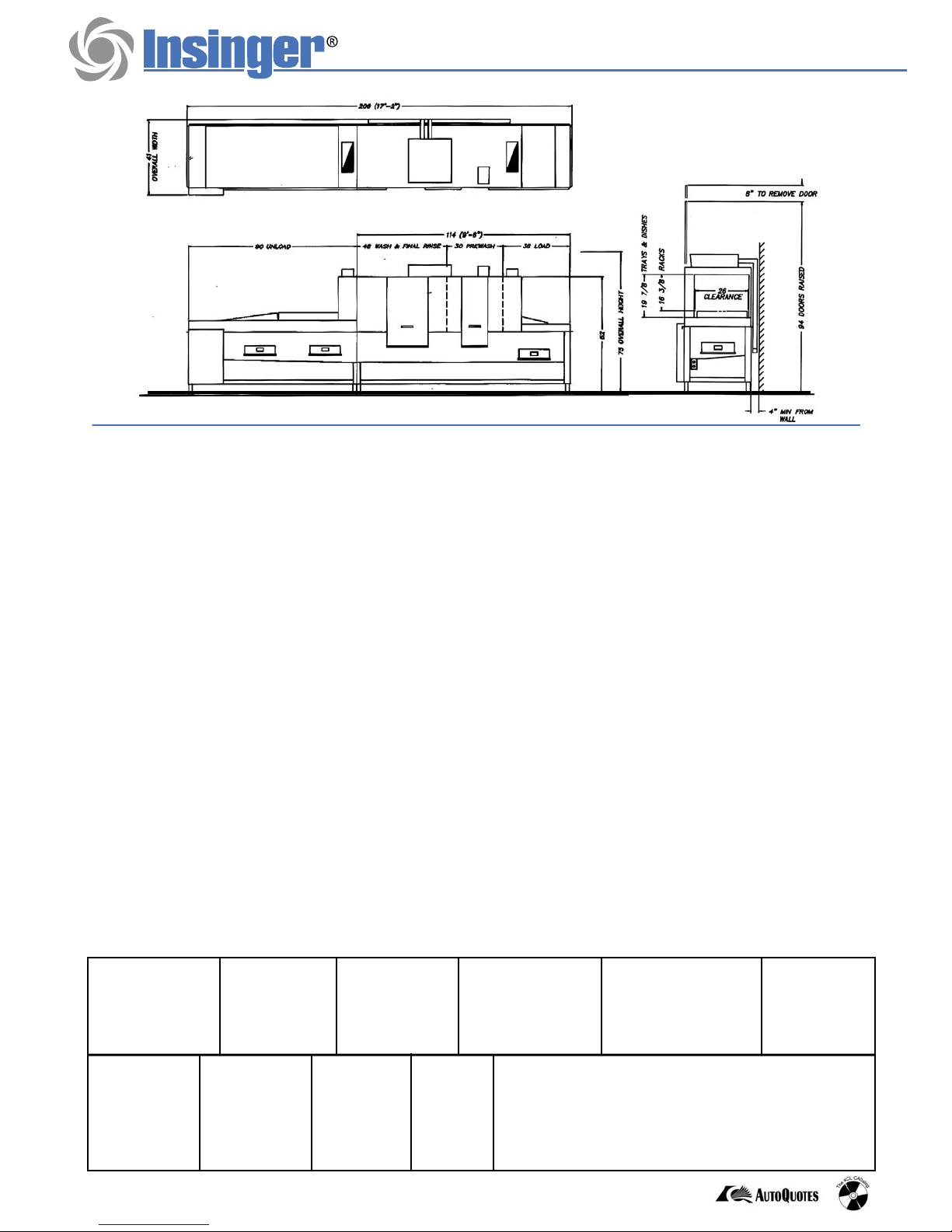

Note: For all rough in connections see Installation and Layout Detail Drawing.
SPECIFICATIONS
CONSTRUCTION - Hood and tank constructed of 16 gauge 18-8 type 304 S/S. Hood unit of all welded seamless construction. S/S
frame, legs and feet. All internal castings are non-corrosive nickel alloy, bronze or S/S investment.
DOORS-Two extra large die formed 18-8 type 304 S/S front inspection doors riding in all S/S channels. A triple ply leading edge on the
door channels made of S/S with no plastic or nylon sleeves or liners used. Two intermediate S/S door-safety stops on each door.
CONVEYOR - Removable polypropylene or S/S rack sections on S/S belt with Hi-D rollers. Conveyor drive system includes large speed
reducer with cut gears operating in oil bath and frictionless, trouble-free overload release system. Dishware conveyed automatically
through all washing and rinsing systems and is driven by an independent 1/2 HP motor. A stop bar sits at the end of the unload section.
This will shut off the conveyor if any ware reaches the bar. A reversing switch is provided to assist in removing jams in the belt.
PUMPS - Centrifugal type “packless” pump with a brass petcock drain. Construction includes ceramic seal and a balanced cast impeller
on a precision ground stainless steel shaft. All working parts mounted as an assembly and removable as a unit without disturbing pump
housing. 2HP prewash pump and 3HP wash pump, standard horizontal C-face frame, drip proof, internally cooled with ball-bearing
construction.
CONTROLS - Top-mounted control cabinet, NEMA 12 rated with heat insulation provided between hood and control cabinet, housing
motor controls and overload protection, transformer, contactors and all dishwasher integral controls. All controls safe low voltage 24 VAC.
ENERGY SAVER - Electric photo-eye automatically operates the final rinse solenoid only when ware passes, saving water and
energy. The photo eye also activates an adjustable timer control. If no ware passes during the set time, the machine shuts down.
SPRAY SYSTEM - Spray arms are made of 18-8 type 304 stainless steel pipe. Spray assemblies removable without the use of tools.
PREWASH - Upper and lower manifolds. One manifold above with 3 power wash arms, designed with 6, 5 & 6 high pressure action
cleansing slots and one manifold below with 4 power wash arms, each designed with 5 high pressure action cleansing slots. The slots are
precision milled for water control, producing a fan spray. Prewash arms are fillet welded to the S/S manifold.
WASH - Upper and lower manifolds & the CrossFire® Wash System (patented). One manifold above with 3 power wash arms designed
with 7, 6 & 7 high pressure action cleansing slots and one manifold below with 4 power wash arms, each designed with 7 high pressure
action cleansing slots. The slots are precision milled for water control producing a fan spray. Wash arms are fillet welded to the S/S
manifold. The CrossFire® system provides 2 horizontally spraying high pressure nozzles.
FINAL RINSE - Four nozzles above and five nozzles below threaded into S/S pipes. Nozzles produce a fan spray reducing water
consumption, maximizing heat retention.
DRAIN - Drain valves externally controlled. Overflow assembly with skimmer cap is removable without use of tools for drain line
inspection. Heaters protected by low water level control.
15 gals./min. 2500 lbs.
DEFENDER
CSI - 11400
Capacity
per hour
Final rinse
consumption
at 20 psi min.
Exhaust hood
requirement Peak rate
drain flow Shipping
weight
Current draw
amps Steam Electric w/o booster
Tank capacity Motor size Electric usage Final rinse
peak flow
at 20 psi min.
8861 dishes
600-1000 meals
306 gals./hr.
500 CFM load
1000 CFM unload
20 gals. (prewash)
39 gals. (wash)
2 hp (prewash)
3 hp (wash)
1/2 hp (conveyor)
40 kw wash tank
36 kw booster 40
°
rise
54 kw booster 70
°
rise
145 lbs./hr tank
109 lbs./hr booster 40° rise
190 lbs./hr booster 70° rise 5.1 gals./min.
Steam consumption
at 20 psi min.
208/3/60 .............. 21.5 ............................. 132.9
240/3/60 .............. 19.5 ............................. 116.1
380/3/50 .............. 11.9 ............................... 72.7
480/3/60 ................ 9.8 ............................... 57.8
