Inspired by drive Ultima Access BCUA-8626M User manual

Ultima™Access™Instructions
Stainless Steel Bath Chair with multiple seat, back and leg adjustments
Model Numbers:
BCUA-8626M (up to 130 lb/59 kg weight capacity)
BCUA-8726L (up to 160 lb/73 kg weight capacity)
BCUA-8926XL (up to 180 lb/82 kg weight capacity)
These products covered by U.S. patent # 7,328,953; D507,904; D503,556; D508,175

2January 2017
Your UltimaAccess Stainless Steel Bath Chair has been built to the
highest standards of quality to ensure years of superior service. Please
take the time to read this informative instruction guide and pay particular
attention to the safety information provided.
Here are some additional precautions you can take to prevent the risk of
injury:
1. Read and understand ALL instructions.
2. Determine, with a physician or therapist, the suitability of this product
for the intended user.
3. To reduce the risk of injury or drowning, NEVER leave the user
unsupervised or unattended while using this product.
4. Check regularly that all tubing, bolts, buckles, and other parts are
tight at ALL times.
5. When occupied, make sure the user is buckled in at all times.
6. Chair legs should NEVER be in complete vertical positions.
7. SAVE THESE INSTRUCTIONS.
If you require additional assistance, please contact Inspired by Drive
Customer Service at [phone], or email [e-mail].
Thank you for choosing lnspired by Drive.
To order accessories for your UltimaAccess bath chair, please contact
customer service at [phone], or send an email to
[e-mail].
ATTENTION
ACCESSORIES

3Ultima Access Bath Chair
ACCESSORIES (CONTINUED)

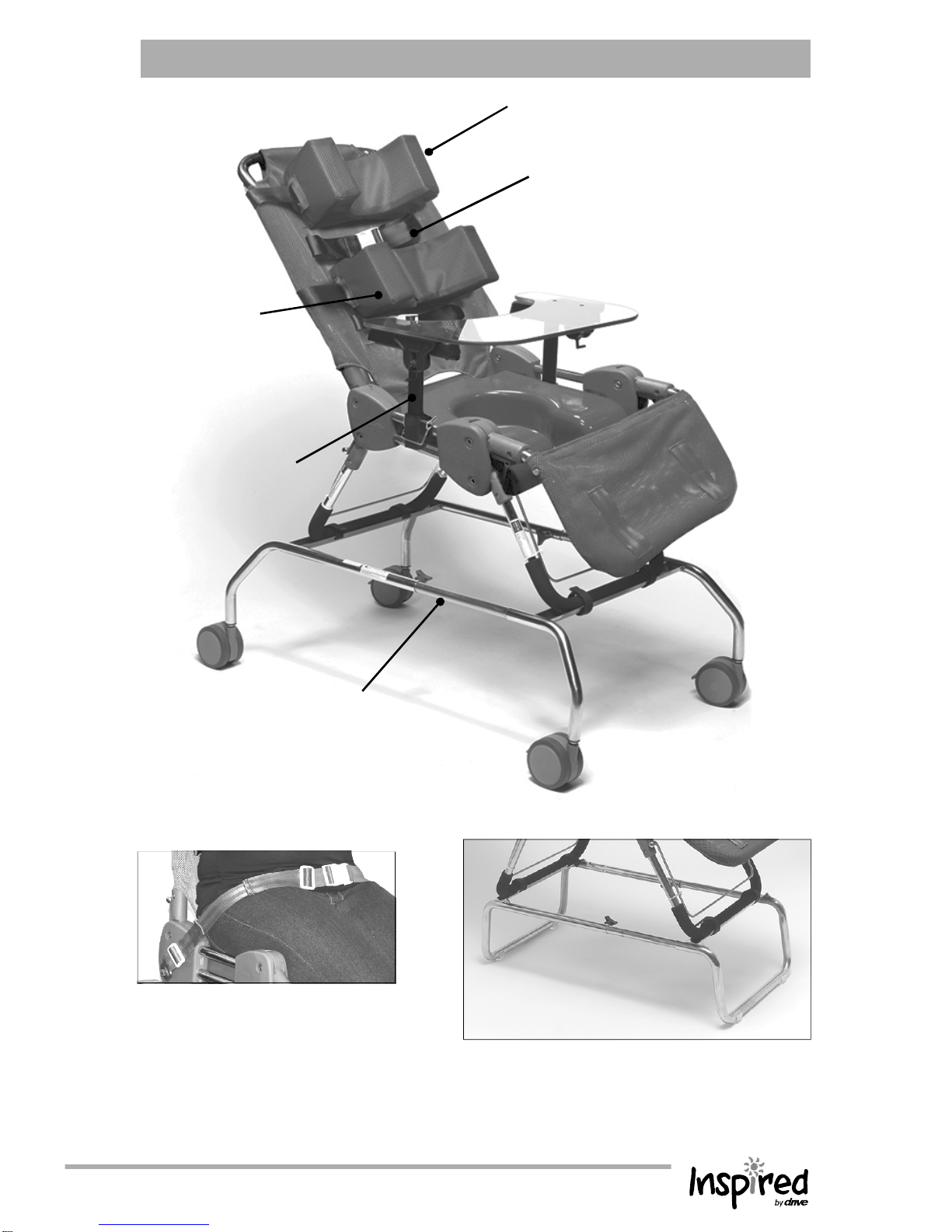

Head Support Pad
Designed for better head positioning
Positioning Belt
Quick release strap for various
loops on chair allowing for multiple
positions. Two belts are included.
Lateral Support
Pad
Designed for better
torso positioning
Detachable Armrest
Offer four height
positions
Detachable Rolling Base
Stainless steel base with casters,
ideal for roll-in showers. Raise
height by 13” (330.2 mm). Maximum
weight capacity 180 lbs (82 kg).
Detachable Extension Base
Raise height by 9.5” (241.3 mm). Max. weight
capacity 180 lbs (82 kg). Ideal for tubs.
Pelvic Positioning Belt

4January 2017
ASSEMBLY OF CHAIR
Assembling the Back Support:

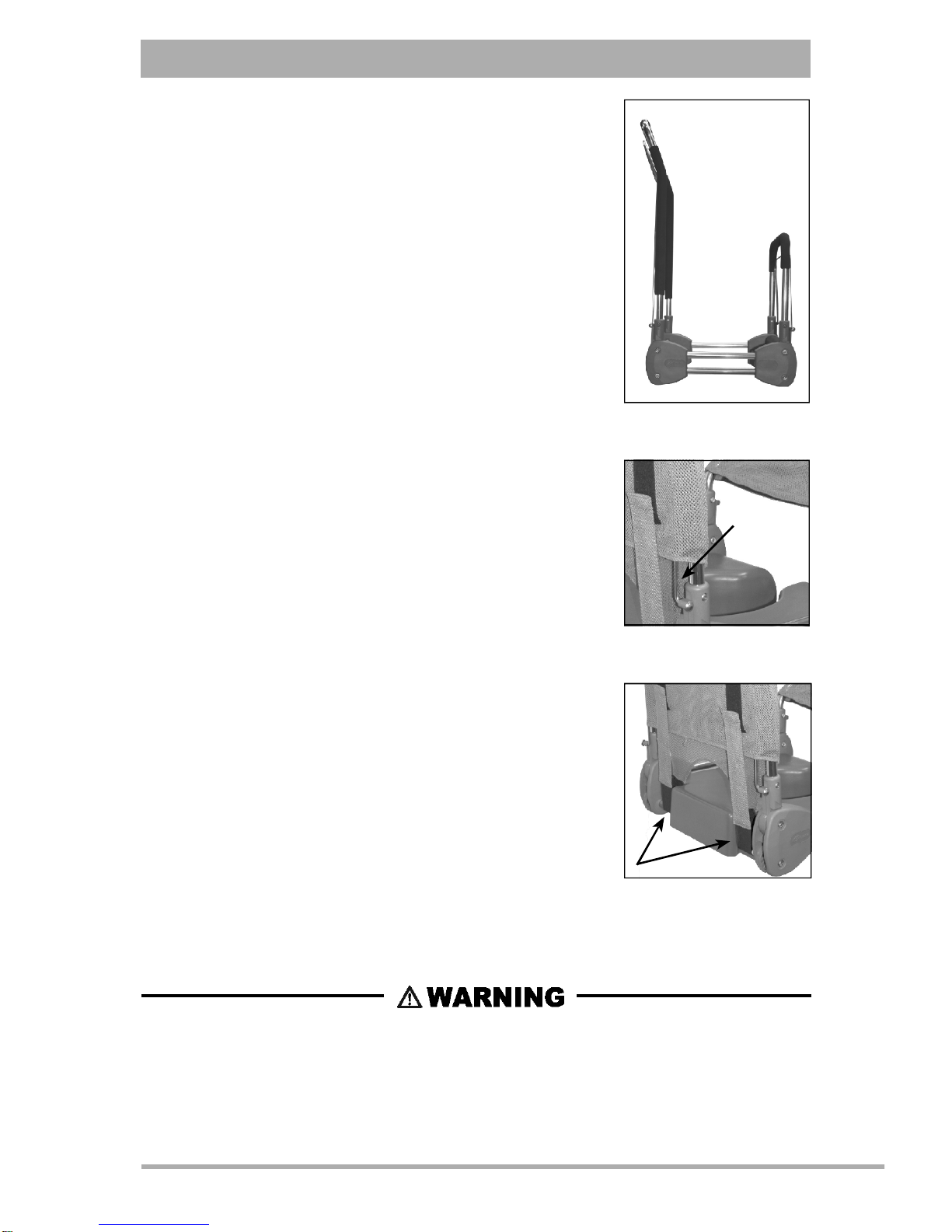

1. One by one, pull on each of the pull tabs and
change the pivot angle to vertical (Fig. 1).
Insert the U-shaped stainless steel back and
calf frames into the pivots and fasten with
bolts and nuts provided.
2. Insert the ends of the angle adjustment pull
handles into the small holes located on the
pull tab on each side of the frame (Fig. 2).
Firmly press the stainless steel caps
over the ends of the pull handle. Please
ensure that the end cap fi ts tightly over
the groove on the pull handle. Test it by
tugging at the cap. If it comes off, then
reinstall.
Figure 2
Figure 1
A - Back angle adjustment pull handle
B - U-shaped back support frame
C - Insertion point for back frame
D - Back angle adjustment pull tab
E - U-shaped calf support frame
F - Calf angle adjustment pull handle
G - Leg frame (can be positioned at
0°, 30°, 60° angles, relative to seat’s
horizontal plane)
H - Leg frame adjustment pull handle
Back
Frame
Pull Tab
Bolt

5Ultima Access Bath Chair
Before each use of your bath chair, please verify that the back and calf
supports are properly installed and locked into position. When correctly
installed, the pull tab should click into place and completely engaged into
the slot. There should not be a gap between the pull tab and connector.
See the fi gures below.
Adjustments to the Ultima™Access™SHOULD NOT be
made while the product is in use or occupied.
PROPER ASSEMBLY CHECK
INCORRECT (NOT LOCKED)
No Gap
Connector
Pull Tab
Gap
CORRECT (LOCKED)
ATTENTION

6January 2017
Cover Installation: (refer to chair diagram on page 4)
• Pull on the back angle adjustment pull handle (A)
to set the backrest support to the most upright
position (Fig. 3). Slip cover over the back rest
and adjustment pull handle (Fig. 4). Wrap the
velcro straps around the seat frame and secure
underneath the seating (Fig. 5).
Adjusting Back Angle:
1. Locate the adjustment pull handle (A) on the back
of the chair under the cover (it is not necessary
to remove the cover to operate the lever). Using
both hands, grip the lever and back frame and
squeeze together.
2. With a lifting motion, adjust the back angle up or
down.
NOTE: Back angle should not be adjusted
when the chair is occupied.
Adjusting Calf Support Angle:
1. On the calf support frame, under the cover,
locate the adjustment pull handle (F). It is not
necessary to remove the cover. Using both
hands, grip the pull handle and calf support
frame and squeeze together.
2. With a lifting motion, adjust the angle up or down.
Note: The legs can be positioned at 0°
(horizontal), 30°, and 60° angles (relative to the
seat’s horizontal plane).
The legs SHOULD NEVER be in a complete 90° angle (perpendicular
to the seat’s horizontal plane). Leg angles greater than 60° will
cause the chair to be unstable.
COVER INSTALLATION AND ANGLE SETTINGS
Figure 3
Figure 4
Pull
handles
Figure 5

7Ultima Access Bath Chair
SEAT INSTALLATION
Push the rear of seat cushion on the back support frame, pull the front of
the cushion forward and push down to snap on the front frame.
Soapy water or mild cleansers may be used on all parts of your Ultima
Access Bath Chair. Harsh abrasive cleansers may dull the fi nish.
The fabric cover for Ultima Access Bath Chair is made of polyester that is
durable, antimicrobial, resilient, quick drying, fade resistant, and machine
washable.
Cleaning Instructions:
1. Remove the chair cover by following these steps below:
• Adjust the back and calf support frames to horizontal. Turn the
chair up-side down and remove velcro strap.
• Slip the cover over the back and calf supports.
2. Using warm water (100°F/38°C) and household laundry detergent,
wash the cover in the washing machine using gentle cycle.
3. Air dry.
To ensure the occupant’s safety, DO NOT exceed the following maximum weight
limits:
MODEL NO. MAXIMUM WEIGHT CAPACITY
8626 130 lb. (59 kg)
8726 160 lb. (73 kg)
8926 180 lb. (82 kg)
FABRIC CARE
MAXIMUM WEIGHT CAPACITY
CLEANING INSTRUCTIONS

January 2017 (Rev C) C0000-10-55
