Intel NUC 13 Pro Kit NUC13ANHv7 User manual

1
NUC13ANH
User Guide –March 2023
Intel® NUC 13 Pro Kit NUC13ANHv7
Intel® NUC 13 Pro Kit NUC13ANHi7
Intel® NUC 13 Pro Kit NUC13ANHv5
Intel® NUC 13 Pro Kit NUC13ANHi5
Intel® NUC 13 Pro Kit NUC13ANHi3
User Guide
March 2023

2
NUC13ANH
User Guide –March 2023
You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products
described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject
matter disclosed herein.
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product
specifications and roadmaps.
The products described may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by
visiting: http://www.intel.com/design/literature.htm.
Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation.
Performance varies depending on system configuration. No computer system can be absolutely secure.
Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2023, Intel Corporation. All rights reserved.

3
NUC13ANH
User Guide –March 2023
Contents
1.0 Introduction.......................................................................................................................................................5
1.1 Before You Begin ...........................................................................................................................................5
1.2 Installation Precautions.............................................................................................................................6
1.3 Observe Safety and Regulatory Requirements.........................................................................6
2.0 Open the Chassis...........................................................................................................................................7
3.0 Install and Remove System Memory...............................................................................................8
3.1 Install SO-DIMMs...........................................................................................................................................8
3.2 Remove SO-DIMMs ......................................................................................................................................9
4.0 Install an M.2 SSD..................................................................................................................................... 10
5.0 Install a 2.5-inch SSD or Hard Drive............................................................................................ 12
6.0 Close the Chassis........................................................................................................................................ 13
7.0 Use the VESA Bracket (Optional) .................................................................................................... 14
8.0 Connect Power.............................................................................................................................................. 16
9.0 Install an Operating System............................................................................................................... 17
10.0 Install the Latest Device Drivers and Software..................................................................... 18

4
NUC13ANH
User Guide –March 2023
Revision History
Date
Revision
Description
March 2023
1.0
Initial release.

5
NUC13ANH
User Guide –March 2023
1.0 Introduction
This User Guide provides step-by-step installation instructions for these products:
•Intel® NUC 13 Pro Kit NUC13ANHv7
•Intel® NUC 13 Pro Kit NUC13ANHi7
•Intel® NUC 13 Pro Kit NUC13ANHv5
•Intel® NUC 13 Pro Kit NUC13ANHi5
•Intel® NUC 13 Pro Kit NUC13ANHi3
1.1 Before You Begin
CAUTIONS
The steps in this guide assume you’re familiar with computer terminology and
with the safety practices and regulatory compliance required for using and
modifying computer equipment.
Disconnect the computer from its power source and from any network before
performing any of the steps described in this guide.
Failure to disconnect power, telecommunications links, or networks before you open
the computer or perform any procedures can result in personal injury or equipment
damage. Some circuitry on the board can continue to operate even though the front
panel power button is off.
Follow these guidelines before you begin:
•Always follow the steps in each procedure in the correct order.
•Create a log to record information about your computer, such as model,
serial numbers, installed options, and configuration information.
•Electrostatic discharge (ESD) can damage components. Perform the
procedures described in this chapter only at an ESD workstation using an
antistatic wrist strap and a conductive foam pad. If such a station isn’t
available, you can provide some ESD protection by wearing an antistatic wrist
strap and attaching it to a metal part of the computer chassis.

6
NUC13ANH
User Guide –March 2023
1.2 Installation Precautions
When you install and test the Intel NUC, observe all warnings and cautions in the
installation instructions.
To avoid injury, be careful of:
•Sharp pins on connectors
•Sharp pins on circuit boards
•Rough edges and sharp corners on the chassis
•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
•Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing
to qualified technical personnel.
1.3 Observe Safety and Regulatory Requirements
If you don’t follow these instructions, you increase your safety risk and the possibility
of noncompliance with regional laws and regulations.

7
NUC13ANH
User Guide –March 2023
2.0 Open the Chassis
Unscrew the four corner screws on the bottom of the chassis and lift the cover.

8
NUC13ANH
User Guide –March 2023
3.0 Install and Remove System Memory
Intel® NUC 13 Pro Kit NUC13ANH has two 260-pin DDR4 SO-DIMM memory slots
Memory requirements:
•1.2V low voltage memory
•2400/2666/3200 MHz SO-DIMMs
•Non-ECC
•Up to 64GB of system memory supported with 2 SO-DIMMs using 32GB
memory modules
Find compatible system memory modules at the Intel® Product Compatibility Tool:
•Intel® NUC 13 Pro Kit NUC13ANHv7
•Intel® NUC 13 Pro Kit NUC13ANHi7
•Intel® NUC 13 Pro Kit NUC13ANHv5
•Intel® NUC 13 Pro Kit NUC13ANHi5
•Intel® NUC 13 Pro Kit NUC13ANHi3
3.1 Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" in Section 1.1.
2. Turn off all peripheral devices connected to the computer. Turn off the
computer and disconnect the AC power cord.
3. Align the small notch at the bottom edge of the SO-DIMM with the key in
the socket.
4. Insert the bottom edge of the SO-DIMM into the socket.
5. When the SO-DIMM is inserted, push down on the outer edge of the

9
NUC13ANH
User Guide –March 2023
SO-DIMM until the retaining clips snap into place. Make sure the clips
are firmly in place.
3.2 Remove SO-DIMMs
To remove a SO-DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" in Section 1.1.
2. Turn off all peripheral devices connected to the computer. Turn off the
computer.
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Gently spread the retaining clips at each end of the SO-DIMM socket. The
SO-DIMM pops out of the socket.
6. Hold the SO-DIMM by the edges, lift it away from the socket, and
store it in an anti-static package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the
SO-DIMM sockets.
8. Replace the computer’s cover and reconnect the AC power cord.

10
NUC13ANH
User Guide –March 2023
4.0 Install an M.2 SSD
Intel® NUC 13 Pro Kit NUC13ANH contains
•one 80mm connector supporting NVMe and
•one 42mm connector supporting SATA SSD
Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:
•Intel® NUC 13 Pro Kit NUC13ANHv7
•Intel® NUC 13 Pro Kit NUC13ANHi7
•Intel® NUC 13 Pro Kit NUC13ANHv5
•Intel® NUC 13 Pro Kit NUC13ANHi5
•Intel® NUC 13 Pro Kit NUC13ANHi3
If you’re installing an 80mm M.2 SSD:
1. Remove the small silver screw from the 80mm metal standoff on the
motherboard (A).
2. Align the small notch at the bottom edge of the M.2 card with the key in the
connector.
3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).

11
NUC13ANH
User Guide –March 2023
If you’re installing a 42mm M.2 SSD:
1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Move the standoff (B) from the 80mm position to the 42mm position (C).
3. Align the small notch at the bottom edge of the M.2 card with the key in the
connector.
4. Insert the bottom edge of the M.2 card into the connector (D).
5. Secure the card to the standoff with the small silver screw (E).

12
NUC13ANH
User Guide –March 2023
5.0 Install a 2.5-inch SSD or Hard Drive
Intel® NUC 13 Pro Kit NUC13ANH supports an additional 2.5” SATA Solid State Drive
(SSD) or Hard Disk Drive (HDD).
Find compatible 2.5-inch SSDs at the Intel® Product Compatibility Tool:
•Intel® NUC 13 Pro Kit NUC13ANHv7
•Intel® NUC 13 Pro Kit NUC13ANHi7
•Intel® NUC 13 Pro Kit NUC13ANHv5
•Intel® NUC 13 Pro Kit NUC13ANHi5
•Intel® NUC 13 Pro Kit NUC13ANHi3

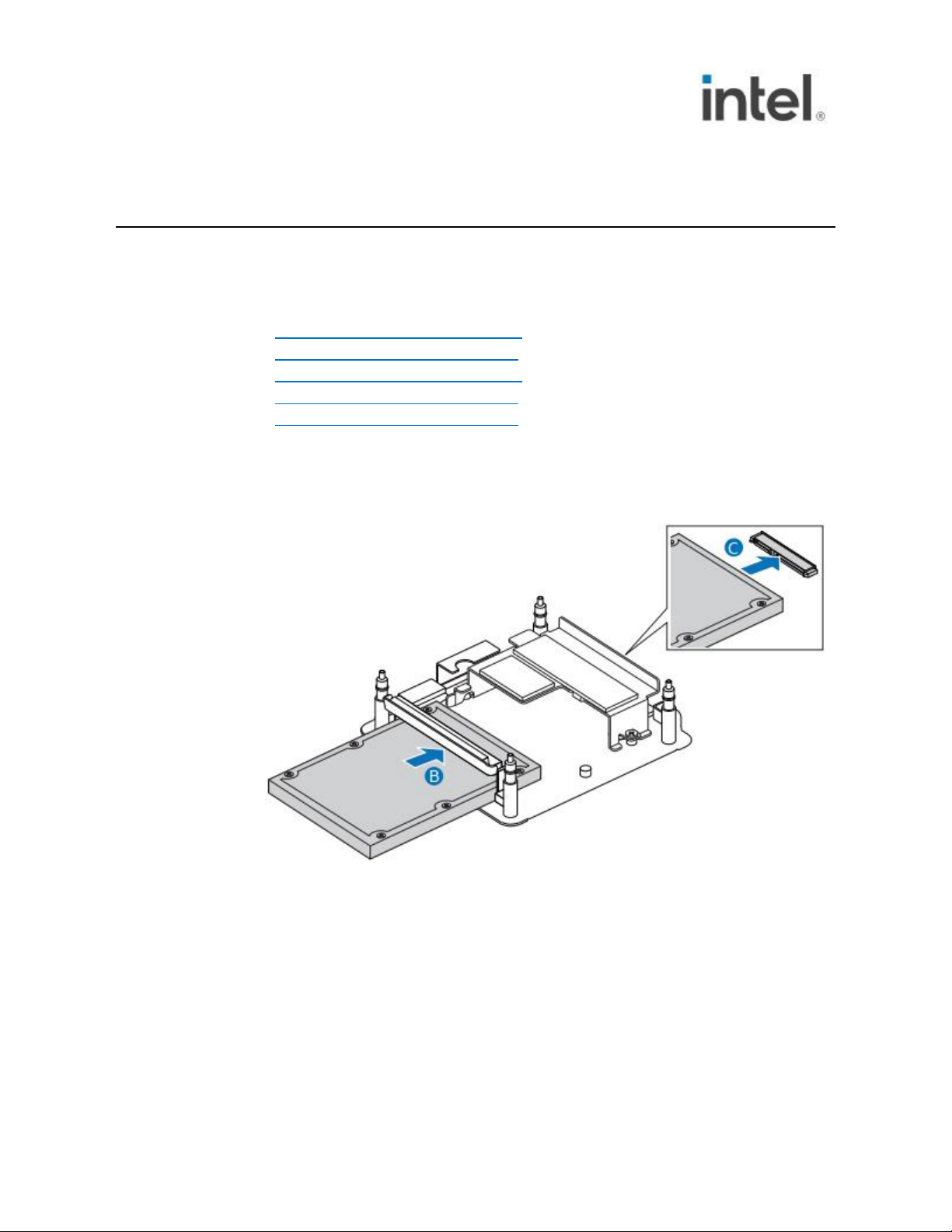

1. Slide the new 2.5” drive (B) into the drive bay, ensuring the SATA connectors are
fully seated into the connectors of the SATA daughter card (C).
2. Secure the drive into the drive bay with the two small silver screws that were
included in the box. Set the drive bay bracket down inside the chassis.

13
NUC13ANH
User Guide –March 2023
6.0 Close the Chassis
After all components have been installed, close the Intel NUC chassis. Intel
recommends this be done by hand with a screwdriver to avoid over-tightening and
possibly damaging the screws.

14
NUC13ANH
User Guide –March 2023
7.0 Use the VESA Bracket (Optional)
Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that were included in the box, attach the
VESA bracket to the back of the monitor or TV.
2. Attach the two slightly larger black screws to the bottom chassis cover of the
Intel NUC.

15
NUC13ANH
User Guide –March 2023
3. Slide the Intel NUC onto the VESA mount bracket.

16
NUC13ANH
User Guide –March 2023
8.0 Connect Power
Each Intel NUC model includes either a region-specific AC power cord or no AC power
cord (only the power adapter).
Product codes
Power cord type
RNUC13ANHV70000
RNUC13ANHI70000
RNUC13ANHV50000
RNUC13ANHI50000
RNUC13ANHI30000
No power cord included. An AC power cord
needs to be purchased separately. Power cords
are available at many Internet sites for use in
multiple countries. The connector on the
power adapter is a C5 type connector.
RNUC13ANHV70001
RNUC13ANHI70001
RNUC13ANHV50001
RNUC13ANHI50001
RNUC13ANHI30001
US power cord included.
RNUC13ANHV70002
RNUC13ANHI70002
RNUC13ANHV50002
RNUC13ANHI50002
RNUC13ANHI30002
EU power cord included.
RNUC13ANHV70003
RNUC13ANHI70003
RNUC13ANHV50003
RNUC13ANHI50003
RNUC13ANHI30003
UK power cord included.
RNUC13ANHI70006
RNUC13ANHI50006
RNUC13ANHI30006
China power cord included.

17
NUC13ANH
User Guide –March 2023
9.0 Install an Operating System
See Supported Operating Systems for a list of Intel-validated operating systems.
Refer to Operating System Installation for system requirements and installation steps.

18
NUC13ANH
User Guide –March 2023
10.0 Install the Latest Device Drivers and Software
Here are the options for keeping device drivers current:
•Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-
date drivers
•Manually download drivers, BIOS, and software from Download Center:
oIntel® NUC 13 Pro Kit NUC13ANHv7
oIntel® NUC 13 Pro Kit NUC13ANHi7
oIntel® NUC 13 Pro Kit NUC13ANHv5
oIntel® NUC 13 Pro Kit NUC13ANHi5
oIntel® NUC 13 Pro Kit NUC13ANHi3
