Intenda Box Tunnel Quick start guide

INSTALLATION, USE AND
MAINTENANCE
BOX TUNNEL
BOX TUNNEL ECO
STADIO BOX
INTENDA S.r.l.
Via V. Pareto, 3
37045 S. Pietro di Legnago (VR)
Tel [phone] – 600270
Fax [phone]
http://www.intenda.it - e-mail: [email protected]

2
TABLE OF CONTENTS
1. GENERAL INFORMATION…………………………………………………………………..3
1.1 Introduction………………………………………………………………………………........3
1.2 General precautions regarding the use of the product…………………………………….4
1.3 Structure of the manual……………………………………………………………………….4
1.4 Product identification…………………………………………………………………………..5
1.5 Warranty………………………………………………………………………………………..5
2. BOX DESCRIPTION AND TECHNICAL SHEET…………………………………………..6
2.1 General description………………………………………………………………………….…6
2.2 Components…………………………………………………………………………………….7
2.3 Fabric’s characteristics……………………………………………………………………….10
3. INSTALLATION………………………………………………………………………….........12
3.1 Handling and transport…………………………………………….....................................12
3.2 Place and requirements for the installation………………………………………….….…12
3.3 Installation………………………………………………………………………………..……12
3.3.1 Package opening……………………………………………………………………..…….12
3.3.2 Box installation……………………………………………………………………………...13
4. GENERAL SAFETY PRINCIPLES…………………………………………………………....16
5. BOX USAGE……..…………………………………………………………………………….17
5.1 Mobile Version…………………………………………………………………………………17
6. CHECKS AND MAINTENANCE……………………………………………………….........19
6.1. Ordinary maintenance………………………………………………………………………..19
7. DISASSEMBLY………………………………………………………………………………..20

3
1. GENERAL INFORMATION
1.1. Introduction
This manual is an integral part of the product; it is addressed to the installer and to the final user of the box,
and enables a correct installation and use. For this reason, it must be hold with the box until proper
disposal.
In this manual you will find the instructions to:
•correctly install the box
•understand the functions of the box and of the whole thereof
•correctly do the box scheduled maintenance processes
•take care of the basic safety rules
ATTENTION: the installer and the final user must read the whole manual in each part of it. Keep
this manual in a safe and accessible place.
Before using the box, please read carefully the technical information contained in this manual and
follow them strictly.
The manual must be kept with care, disseminated and made available to all interested persons. In harmony
with the overall design of the structure, the manual was created in full compliance with the directives of
the European Community.
This manual contains the main information indicated in the index, it is an integral part of the Box and must
be kept with care until the final dismantling of the structure itself in order to allow reference for future
updates. In the event of damage that makes the copy of the manual in its possession unusable, the user can
request a copy from Intenda S.r.l., specifying the type of structure, the serial number or order shown on the
nameplate of the structure itself.
No responsibility is assumed for translations into other languages which do not conform to the original
meaning.
This manual reflects the state of the product at the time of supply and cannot be considered inadequate
only because it is subsequently updated on the basis of new studies or experiences. You will receive, in the
future, revisions or updates to integrate and consider. Intenda S.r.l. reserves the right to update production
and manuals without the obligation to update the production and previous manuals and without the
obligation to inform users of the equipment previously supplied. The notification of proposals for updating
the manual and / or the machines are in any case to be considered a courtesy. The customer assistance
service is however available to provide, upon request, information on the updates that Intenda S.r.l. made
to the products.
This manual has been created in order to provide the user with a general knowledge of the product and the
maintenance instructions deemed necessary for its proper functioning. Before proceeding with functional
operations, maintenance and repairs, carefully read the Manual. It contains all the information necessary
for the correct use of the product and to avoid accidents. The control and maintenance frequencies
prescribed by the manual are always intended as the minimum necessary to ensure the efficiency, safety
and durability of the product in normal working conditions. The surveillance must in any case be constant
and prompt action must be taken in the event of anomalies.
WARNING: Any modification or tampering, not authorized by the manufacturer, to the product and to the
safety or structural systems, cancels any responsibility of the manufacturer with regard to CE conformity.

4
1.2. General precautions regarding the use of the product
These indications are part of the normal behavior that workers must have towards the product and
therefore in the design and construction of the product, the manufacturer considered them known to the
tenant. It is the user's task to inform (by delivering this manual) and train the employees (users and
maintenance technicians) so that these indications are brought to the attention of the staff who will work
with the structure.
- Always use anti-cut gloves when closing or opening the structure, during adjustments or maintenance
(described in the following chapters). When finished, wash your hands with soap and water.
- Immediately clean any accidental contacts of corrosive products that come into contact with the structure
to avoid rapid deterioration.
- Do not allow unauthorized personnel to work with the equipment.
- Before using the equipment, make sure that any dangerous to safety conditions have been properly
eliminated.
- Make sure that all the guards and other protections as well as the structural fixings are in place and that
all the safety devices are present and efficient.
- Make sure that there are no foreign objects in the sliding area of the structure.
- Individual protection devices must be used such as:
o Safety clothing
o Safety shoes
o Cut resistant gloves
The protection systems must be used in the following phases:
- Structure maintenance operations (cleaning, checking or adjustment)
- Operating operations (closing and opening)
1.3. Structure of the manual
This manual consists of eight parts which contain:
• 1. GENERAL RULES AND WARNINGS, useful premises for using and understanding the manual;
• 2. GENERAL INFORMATION, useful premises for identifying the box;
• 3. TECHNICAL DATA, information on the characteristics of the box;
• 4. OPERATING INSTRUCTIONS, interface for the safe use of the box;
• 5. MAINTENANCE, advices and recommendations;
• 6. DEMOLITION AND DISMANTLING OF THE STRUCTURE, instructions and recommendations;
• 7. SPARE PARTS, detailed list of the parts that make up the box.
The user manual makes use of the following typographical conventions:

5
Symbol Indicates
Note
WARNING 
ATTENTION

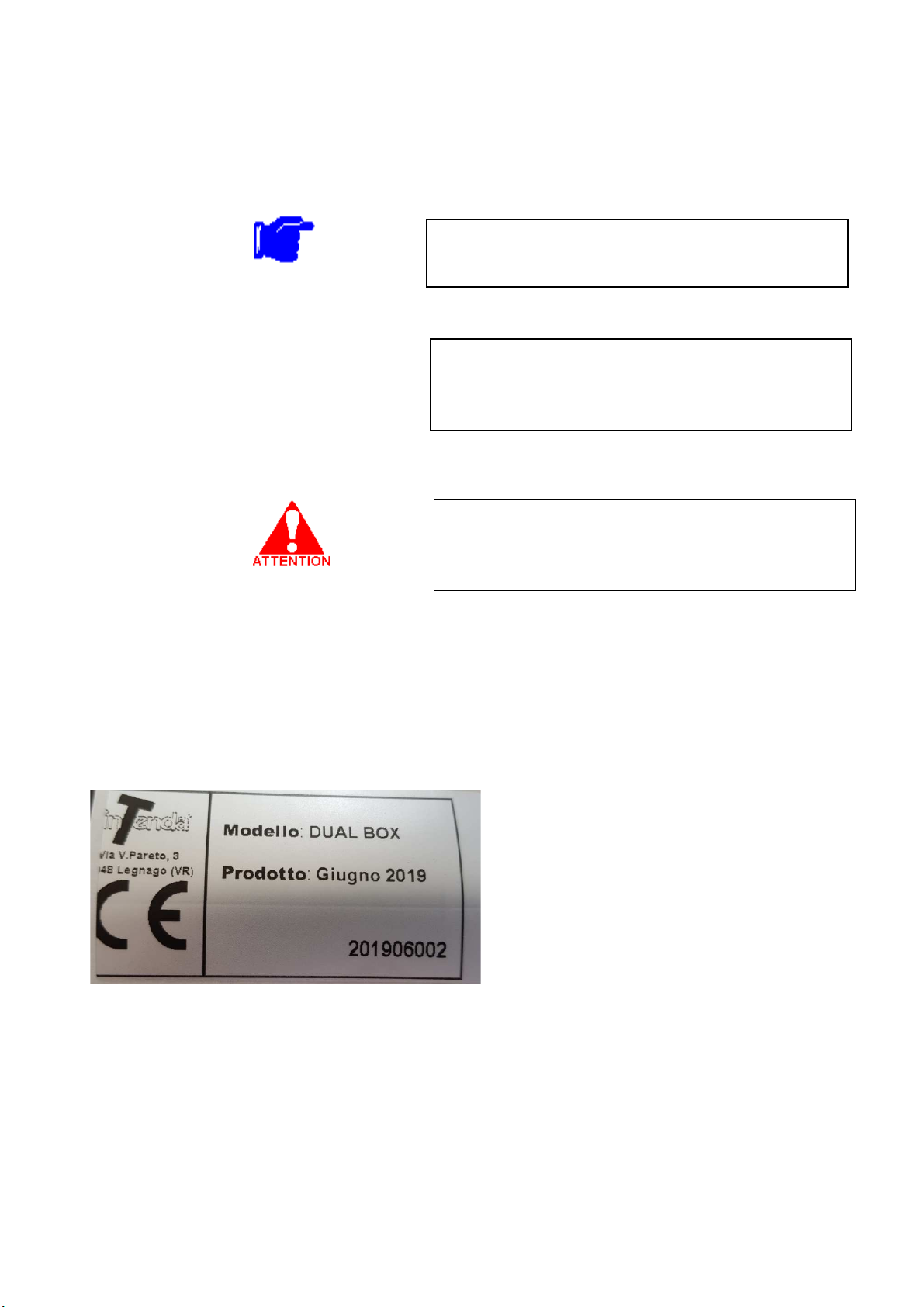

1.4. Product identification
The physical identification record is the silk-screened and stamped plate which contains the details to be
cited, in case of need, to the company Intenda S.r.l . This plate is the only one recognized by the
manufacturer as a means of product identification. For no reason the data shown on the product can be
altered. A reproduction of the plate is shown in the following drawing.
1.5. Warranty
Intenda’s products are guaranteed as by law, with effect from the date stated on the invoice.
During this period INTENDA S.r.l. will remove in an appropriate time all vices and defects of the materials
and/or of the building process, only if the box:
•has been installed by qualified workers
•has been used correctly, following the conduct and maintenance indications contained in this manual
•has not been subjected to natural disasters
Notes contain important information highlighted outside
the text. Pay close attention.
Warning messages contain procedures, indicated in the
manual, that failure to observe can result in equipment
damage.
The ATTENTION messages indicate the particular
procedures whose failure to comply can damage the
operator.

6
To remove the defects found out during the warranty time:
•the costs of working time and transport are at the expense of the dealer
•the costs of spare parts are at the expense of INTENDA S.r.l.
Warranty is meant to be ex works Legnago (VR). All the tools and optional parts eventually supplied by the
dealer are not subject to the warranty.
In the box building process INTENDA S.r.l. uses materials and mechanisms of suitable type, state and quality,
at its own discretion; even after the receipt of the order, INTENDA S.r.l. can make substantial changes or
appropriate improvements at its own discretion.
Slight colour differences, folds or “partridge’s eyes” in the PVC clothes should not be considered defects, but
features of the article.
2. BOX DESCRIPTION AND TECHNICAL SHEET
2.1. General description
The box must be used only as an ordinary protection cover, for purely temporary use. In case of bad weather
conditions (wind, snow), the box must be removed. Given that the box can not be fixed to the ground - but
only bound to it - its use in these conditions can cause damages to people and things.
It is particularly important for safety not to hang or apply any type of load at the structure or at the top cover
of the box.
In particular, children must not handle the structure. The failure to respect the conditions of use and warnings
immediately voids the warranty.
BOX TUNNEL / BOX TUNNEL €CO
A(cm): 412/515/618/721/824/…
B (cm): 250/280/300
C (cm): 185/200/205

7
STADIO BOX

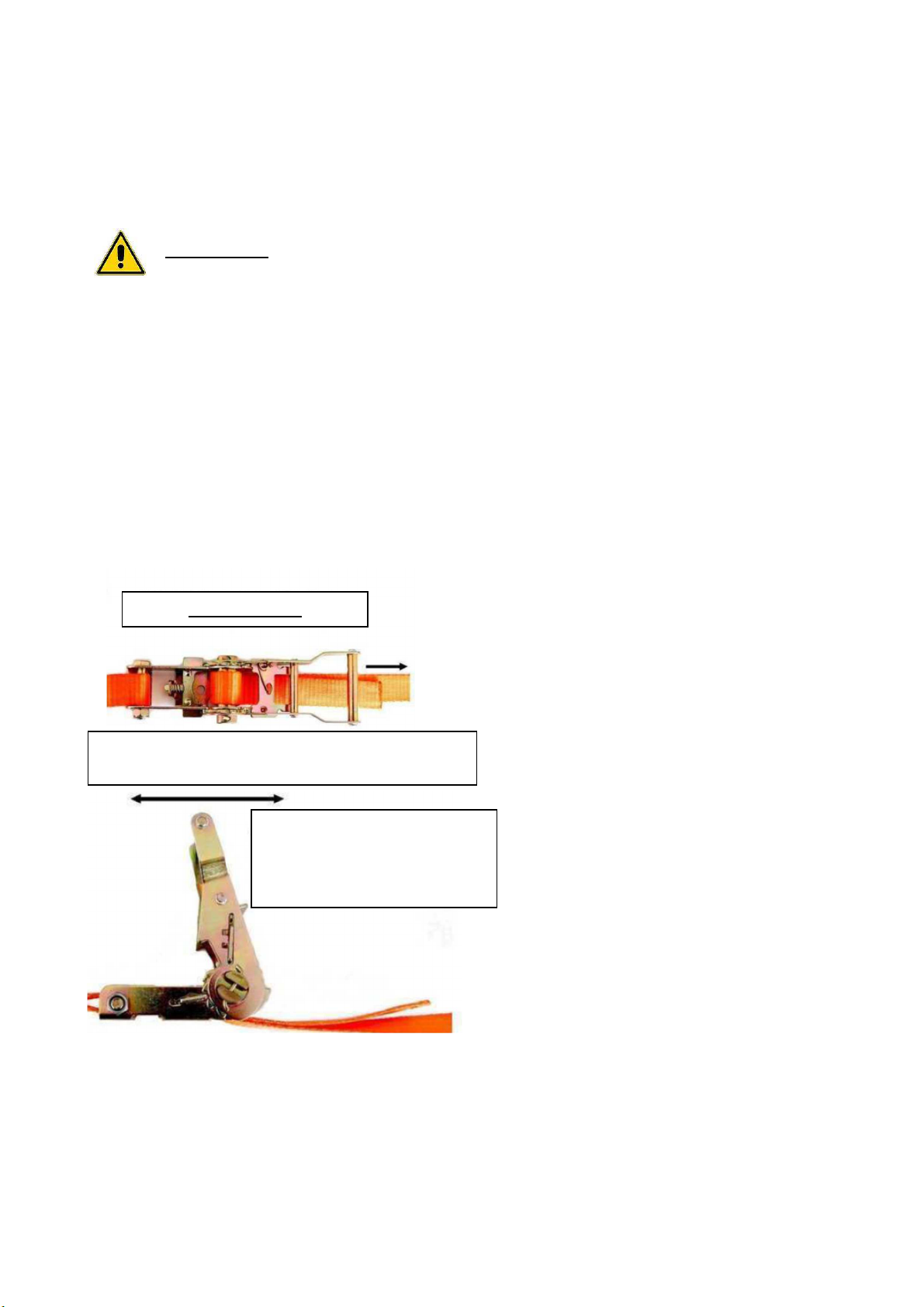

NB. Starting from the length (A) of cm 700 (only for mobile version): eyelets placed on the
lateral profile for ground-fixation through straps and stakes/ballasts (not supplied by Intenda)
2.2. Components
N. DESCRIPTION
1 ALUMINIUM PROFILE MM 40x35
2 PVC LG 550/STARPOL ECO TOP COVER
3** WINDOW IN MICRO-PERFORATED MATERIAL
4** PVC GABLE END WITH WINDOW IN MICRO-PERFORATED MATERIAL
5* PVC BUCKLE
6* STRING FASTENER HANDLE IN PVC
7* NYLON STRING DIAM. MM 5
8* GROUND-FIXING BRACKETS (base v.)
9 CROSSES CM 120X120 (in the mobile v. includes also tension bar)
10* TENSION BARS
A (cm): 412/515/618/721/824/…
B (cm): da 150 a 300
D (cm): da 180 a 240

8
11* PVC SLIDING CURTAIN
12* PVC WALL WITH WINDOW IN MICRO-PERFORATED MATERIAL
13* ALUMINIUM CROSSBEAM
14* GROUND-FIXING BRACKETS* (base v.), NYLON WHEELS (mobile v.)
*Only for Box Tunnel and Box Tunnel Eco
*Only for Box Tunnel

9

10
2.3. Fabric’s characteristics
POLY LG 550/LAC 2L FLAME-RETARDANT
BOX TUNNEL – STADIO BOX
Yarn Warp: 100% PES 1100 Dtex
Weft: 100% PES 1100 Dtex
Fabric’s weight 550 gr/m
2
Characteristics ABUV
Finishing gloss lacquered
Breaking strength Warp: ca 250 DaN/5 cm
(DIN 53354) Weft: ca 180 DaN/5 cm
Tear strength Warp: 25 DaN
(DIN 53363) Weft: 20 DaN
Grip (IVK/PKT 14) 10 DaN/5 cm
Temperature resistance +70° C/- 30° C
Light resistance (DIN 53388) Level: 7/8
Fire-proofing ADR cl. II

11
STARPOL 650 LAC
BOX TUNNEL ECO
Yarn Warp:100% PES/1100 Dtex
Weft:100% PES/1100 Dtex
Fabric’s weight Ca 650 gr/m
2
Finishing PVC coated 2 sides
Breaking strength Warp: ca. 250 DaN/5 cm
(DIN 53354) Weft: ca. 230 DaN/5 cm
Tear strength Warp: ca. 25 DaN
(DIN 53363) Weft: ca. 30 DaN
Grip (DIN 53357) 8 DaN/5 cm
Temperature resistance +70° C /- 30° C

12
3.INSTALLATION
ATTENTION: Intenda S.r.l. recommends a preventive investigation by a competent technician, for
a detailed analysis of the urban planning regulations in force in the installation area of the box.
The manufacturer assumes no responsibility for installations in areas (floors) not suitable for
supporting the static and dynamic loads of the structure or in areas where the stresses deriving
from atmospheric phenomena can cause permanent damage to the structure. The manufacturer
assumes no responsibility for installations in areas regulated by specific urban planning
regulations.
3.1. Handling and transport
The box installation should only be done by qualified staff.
The products must be unloaded through appropriate lifting equipment, which must be used only by
authorized staff.
If the unloading operation is made by hand, it is important to consider that the weight limit that each male
person can handle is 25 Kg; moreover, the operators should be equipped with gloves and safety shoes.
3.2. Place and requirements for the installation
Before the arrival of the installers the user must arrange:
•any permits required by local regulations
•appropriate ground
3.3. Installation
Before starting the installation, if electrical equipment utilization is needed:
•make sure you do not work in wet areas
•use only intact extension cords, according to the place of use
•use shoes with rubber soles
ATTENTION: It is necessary for the operators to use appropriate personal protective equipment
such as safety shoes and gloves, in order to avoid injuries caused by the fall of the packaging or
of components that it contains, perforation and cutting due to cutting or hanging parts
3.3.1. Package opening

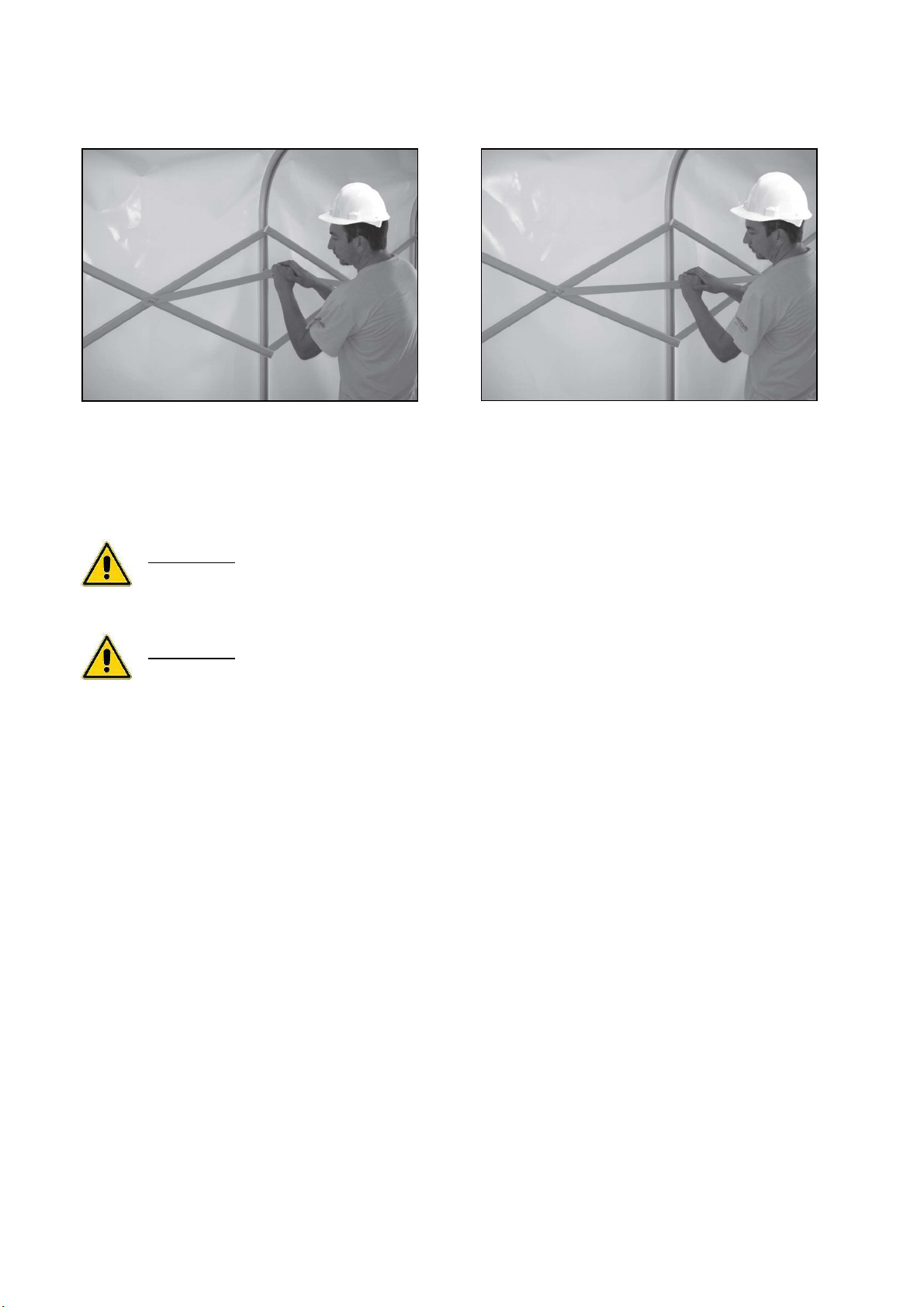

Packaging must be opened only with scissors with rounded tips, using the best care not to cut the cloth of
the article (Photo 1).

13
NOTE: The packaging material disposal is at user’s charge, who will perform it in accordance with
existing environmental norms.
3.3.2 Box installation
The sliding door must be opened (photo 2) and only the screws of the lower part of the crosses must be
released with an Allen key (photo 3).
ATTENTION: if the screws in the crosses top are released, it can cause serious damages to the
structure and to the cloth of the box. Intenda S.r.l. is not responsible for this kind of damages.
P
H
O
T
O
1
P
H
O
T
O
3
P
H
O
T
O
2

14
Subsequently, the box must be opened by pushing the crosses from the bottom to the top (photo 4/a and
4/b).
The top cover must be stretched:
•BASE VERSION: using the stretching device (not included) and tightening the screws of the lower part
of the crosses (photo 5/a, 5/b and 5/c)
•MOBILE VERSION: putting the tension bars in regular position, at 180° (photo 6/a and 6/b); through
the regulation of the tensor screws, there will be a better top cover tensioning
P
H
O
T
O
4/A
P
H
O
T
O
5/A
P
H
O
T
O
5/B
P
H
O
T
O
5/C
P
H
O
T
O
4/B

15
Finally, the box can be fixed to the basement through appropriate anchorage systems.
ATTENTION: other installation ways which are not contained in this manual are not allowed, if not
previously authorized by INTENDA S.r.l.
ATTENTION: the box must be fixed to the ground and/or to a wall. The installer must verify the
ground type and conditions and choose the appropriate anchoring system, also considering the
typical meteorological conditions of that particular place (strong wind,).
P
H
O
T
O
6/A
P
H
O
T
O
6/B

16
4. GENERAL SAFETY PRINCIPLES
It is recommended to follow the safety requirements indicated on the structure and into the
installation manual. Do not remove or modify the safety devices. The utilization of the product
should be in accordance with the producer indications.
The safety indications does not refers only to new products, but also to already used products.
It is strictly recommended to follow the safety principles descripted in this
installation manual, in order to prevent faults in the fuctioning of the product.
It is strictly recommended to follow the maintenance and
inspection programs as decribed in this manual.
It is useful to explain the correct meaning of some terms used it this manual:
“Dangerous areas”: any part of the box which can damage a person during handling of the
structure.
“Exposed person”: any person who stands entirely or partially near a dangerous
area of the box.
“Operator”: the person in charge of the handle and maintenance of the box.
The box should be only used by trained staff. These people should know the features
of the product, and should be informed about the indications contained in this manual.
INSTALLATION AREA
The structure can be opened and closed by manual handling, by pushing it to the
back. The handling operations should be always done on the ground. Any folding
operation from a raised position it is strictly forbidden.
WARNING 
NOTE

17
5. BOX USAGE
Before using the box, it is necessary to check that the installation has been done properly.
ATTENTION: check that the structure is not damaged or deformed, and that no one of the
component is broken.
5.1 Mobile version
•OPENING OF THE STRUCTURE:
-Pull the frame until the structure will be fully stretched
-Move the tension bar placed between the crosses in horizontal position
-Link the internal streching devices to the pegs with eyelet placed on the ground;
then, put in tension the structure through the stretching device.
The structure should be tensioned at the same degree on both sides
To avoid damages or structural instability, it will be necessary to close the structure on itself in
case of important atmospheric events (rain, wind and snow).
OPEN POSITION
For disasse bly, pull the belt in the direction
indicated by the arrow
Move the stretching lever to
tension the belt

18
•CLOSURE OF THE STRUCTURE:
-Unlock the tension bar placed between the crosses
-Push the frame until its complete closure
a. Not allowed uses
The product should be used for the purposes declared by the constructor.
In particular, the box must not be used:
- without PVC awnings
- with missing/broken safety and fixing devices
- in explosive atmosphere, or in place with potential fire hazard
- to contain materials with non-conforming measures, or materials which protude from the
structure
- in adverse weather conditions; in these situations (strong wind, rain, snow), it is necessary
to fold up the box
- in dangerous conditions, if the structure appears damaged or not functioning
- for unproper uses and/or by unskilled people
- for purposes which are contrary to the norms
- in case of severe maintenance deficiencies
- in case of unauthorized modifications of the product
- with total or partial non-compliance with the instructions
It is not possible to use the box in conditions of strong wind and/or snow.
In order to use the product during these adverse conditions, a written declarations by
Intenda is needed.
Every modification of the product which changes the functionalities of the box and
subsequently modify the risks, have not been authorized by the constructor.
These kind of changes, if not authorized by the constuctor, will cause the decay the warranty
and will invalid the declaration of conformity of the product.
b. Residual risks
According to its own knowledge of the product, the constructor declares that the following dangers
may occur:
- Unusual vibrations of the structure
- Cutting, shearing, hitting of the operator by the mobile components during the handling
of the box
- Slipping or trippling of the operator during the installation process
- Breaking of the restraining elements during unfavourable wind; in this case, there is the
risk for every exposed person to get hit by the structure
- Structural loss of stability, if the prescription previosly indicated will not be respected

19
6. CHECKS AND MAINTENANCE
It is necessary to periodically check the general state of the structure, of the connections between
the various components, of the and the PVC awnings.
The PVC awning can be washed with mild soap and then rinsed with water only. After the cleaning,
the PVC shall be well dried before fold, in order to avoid the creation of moulds,
The checks and maintenance frequency indicated below is to be considered as the minimun interval
to grant efficiency, security and durability of the product of the product in normal use situations.
A constant supervision is recommended, in order to act promptly in case of anomalies.
Ordinary maintenance, checks and lubrication operations must be done after the frame has been
uninstalled.
ATTENTION: Every modification or manomission which has not been previosly authorized by the
constructor, will cause the dacay of every responsibility of the constructor on the product conformity.
The constructor suggest to constantly control the box, making the scheduled checks, and prompt act
in case of anomalies, unusual damages or breaks.
6.1. ORDINARY MAINTENANCE
CAUTION
The aintenance deadlines indicated here below are to be considered indicative, and refers to nor al
usage conditions. The product conditions can vary in relation to the type of usage, the usage frequecy and
to the environ ental features (presence of dust,..). In case of heavy duty conditions, the aintenance
checks should be increased.
CAUTION
It is advisable to use the sa e kind of lubricant during all the interventions. The greasing points ust be
cleaned accurately with co pressed air before the lubrification; in this way, dust, ud and other foreign
atters will not ix with the lubricant.
Scrupulously perform the following operations:
EVERY DAY:
Before the use, visually inspect the box, paying particular attention to eventual breakages

20
Check the PVC awning integrity
EVERY WEEK:
Lubricate the sliders (mobile version)
EVERY 6 MONTHS:
Check the general condition of the structure; if necessary, substitute the usured or damaged
components. Always use original spare parts.
Check all the screws
Check the ground-fixing systems.
EVERY 24 MONTHS:
General inspection of the constructor, with report of the most stressed components.
7. DISASSEMBLY
Disassembling operations are done backward to the assembly.
The eventual disposal of the box must be made in accordance with the existing environmental norms.
ATTENTION
Respect laws about use and disposal of the cleaning and handling products in force in the country where the
structure is used. Respect also the manufacturer’s provisions.
We evaluate a product life duration of 10 years. After this period of time, it is necessary to have a check from
an Intenda S.r.l. technician, who will analyze the remaining life period.
