Intenza 550 ETe User manual

Owners Manual.
550 ETeElliptical Trainer
550 ETiElliptical Trainer

1

2
Thank you for purchasing Intenza product. Before installing or using the equipment, please read all
instructions carefully to ensure that you have the knowledge to safely and properly operate all of this
product’s features. The following will provide guidelines for quick set up and the correct way to use the
equipment. We hope you achieve the product experience that you expect.
Intenza 550 series elliptical has been tested and designed to comply with the regulations for Class A
digital device and for class S, studio use. Intenza 550 series elliptical is designed to provide you with
safe, intuitive, comfortable, reliable experience, guiding you to a healthy lifestyle.
CAUTION
Any changes or modications to this equipment will affect the product warranty.

3
SECTION DESCRIPTION....................................................................................................... PAGES
TABLE OF CONTENTS
1. IMPORTANT SAFETY PRECAUTIONS...........................................................................4
2. ASSEMBLY.......................................................................................................................5
2.1 550ETe Part List................................................................................................................5
2.2 Assembly Instruction- 550ETe...........................................................................................6
2.3 550ETi Part List ...............................................................................................................10
2.4 Assembly Instruction- 550ETi..........................................................................................11
3. HOW TO USE THE ELLIPTICAL TRAINER? ................................................................15
3.1 550ETe Entertainment Console Overview ......................................................................15
3.2 How To Operate Multimedia............................................................................................16
3.3 550ETi Display Console Overview ..................................................................................17
3.4 How To Effectively Workout At Your Own Level? ...........................................................19
3.5 How To Personalize Your Workout? ...............................................................................20
3.6 Save The Workout Prole................................................................................................21
3.7 How To Track Your Workout Record?.............................................................................21
3.8 Setting Of 550ETe ...........................................................................................................22
3.9 Settings ETi .....................................................................................................................22
3.10 Begin The Workout..........................................................................................................24
3.11 Total Body Training .........................................................................................................24
4. WORKOUT OPTIONS ....................................................................................................25
4.1 Quick Start.......................................................................................................................25
4.2 Preset Program ...............................................................................................................26
4.3 Target Program ...............................................................................................................28
4.4 HRC Program ..................................................................................................................29
4.5 Custom Program .............................................................................................................31
4.6 Race Program .................................................................................................................32
4.7 Fitness Test .....................................................................................................................33
5. MAINTENANCE ..............................................................................................................35
5.1 Preventative Maintenance Tips .......................................................................................35
5.2 Self Diagnosis..................................................................................................................35
5.3 How To Charge The Battery............................................................................................36
5.4 Recycling The Battery .....................................................................................................36
6. TROUBLE SHOOTING ...................................................................................................37
6.1 When To Call For Help ....................................................................................................37
6.2 Error Message .................................................................................................................37
7. EXPLODED DRAWING & PART LIST ...........................................................................38
7.1 550ETe EXPLODED DRAWING & PART LIST ..............................................................38
7.2 550ETi EXPLODED DRAWING & PART LIST................................................................39

4
1. IMPORTANT SAFETY PRECAUTIONS
Warning
• 550 series elliptical trainer is designed for aerobic exercise in commercial environment.
• Please check with your physician prior to begin any exercise program.
• Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death.
• Stop exercising immediately and consult a physician if you feel any abnormal symptoms such as faint,
dizziness, chest pain, nausea or shortness of breath.
Safety Precautions
• Make sure all users see a physician for a complete physical examination before they begin any tness
program.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by children or other persons without assistance or supervision if
their physical, sensory or mental capabilities prevent them from using it safely.
• Assemble and operate the equipment on a solid level surface.
• Set the equipment a few feet from walls or furniture, and away from sources of heat, such as radiators,
heat registers, and stoves. Avoid extreme temperature changes.
• Do not place outdoor or in an enclosed swimming pool environment.
• Keep hands and loose clothing away from moving parts.
• Keep equipment away from water and moisture. Avoid dropping or spilling anything on / inside the
equipment to prevent electric shock or damage to the equipment.
• Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power
source when it is not in use for a long time.
• The optional power adapter is considered a power source for self-powered equipment. Always unplug
this equipment from the electrical outlet immediately after use or before cleaning.
• Keep the optional power adapter and plug away from heated surfaces.
• Do not insert any object into any opening, or underneath the equipment.
• Do not attempt to remove the cover or modify the equipment. Service should only be done by an
authorized service technician.
• Wear shoes with rubber or high-traction soles. Do not wear shoes with heels, leather soles, cleats, or
spikes.
• Make sure no stones are embedded in the soles.
• Do not use the equipment with bare feet.
• Stop operating the equipment until the defective components are repaired.

5
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
2.1 550ETe Part List
Open the shipping carton box, remove all parts from the carton and styrofoam inserts. Before you begin the
assembly, verify that the following hardware items are packed with the equipment.
2. ASSEMBLY
NO Part description Image QTY
1 Right bug 1
2 Left bug 1
3 Front post 1
4 Front post cover 1
5 Console 1
6 Console cover 1
7Left cup holder
bracket 1
8Right cup holder
bracket 1
NO. Part description Image QTY
9 Cup holder 2
10 Dome screw, M8 x
15L 5
11 Hex bolt, M8 x 10L 3
12 Dome screw, M6 x
15L 8
13 Tapping screw, M4 x
15L 3
14 Washer, M8 2
15 Star washer (Black),
M8 3
16 Star washer (White),
M8 3
Required tools
Hex wrench (3mm, 5mm 6mm)
Open wrench (13mm)

6

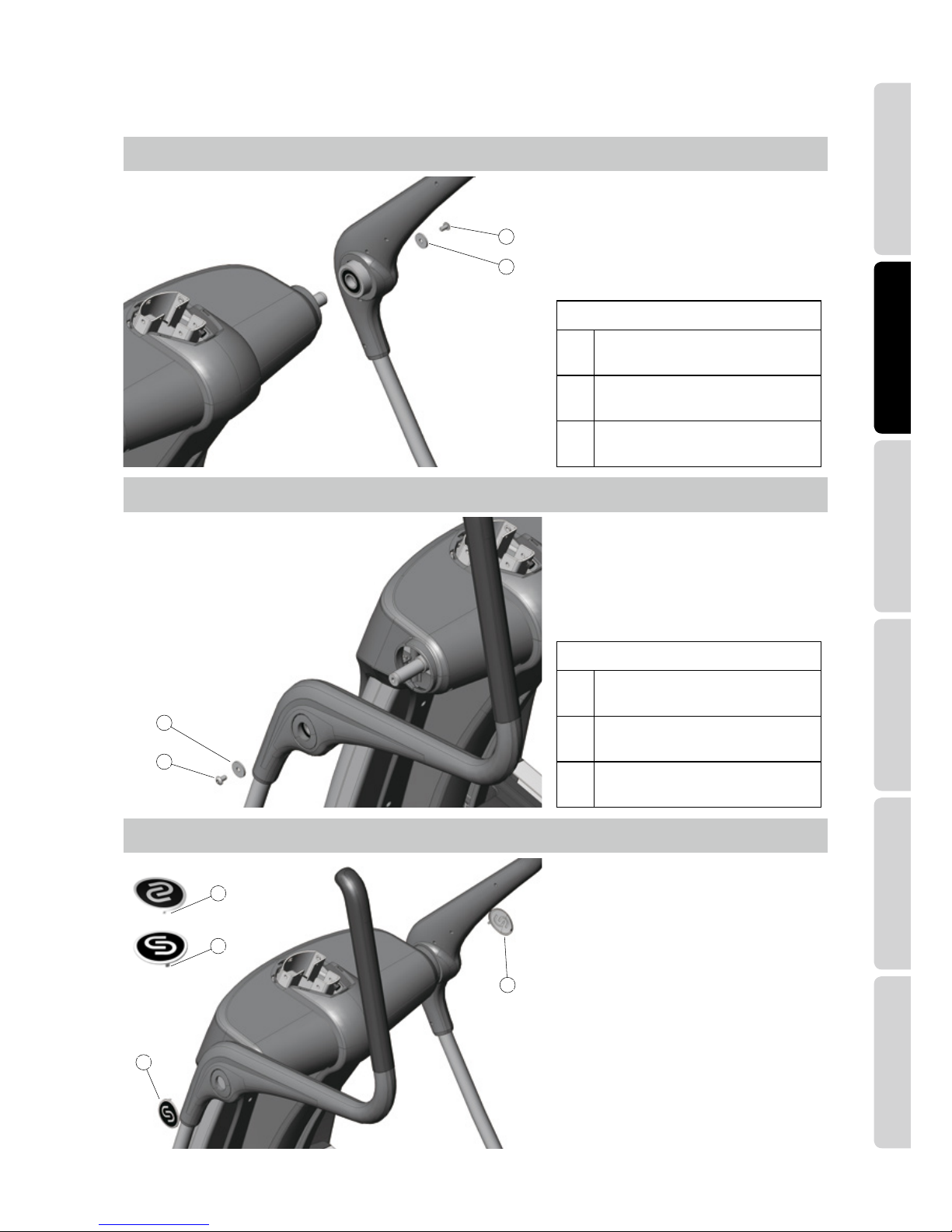

2.2 Assembly Instruction- 550ETe
STEP 1 Assemble the right handle bar
STEP 2 Assemble the left handle bar
STEP 3 Assemble the bug cap
TOOL
10 M8 x 15 x 1
14 M8 x 1
Hex wrench- 6mm
TOOL
10 M8 x 15 x 1
14 M8 x 1
Hex wrench- 6mm
NOTE:
Align the handle bar to the pivot point.
NOTE:
Align the handle bar to the pivot point.
NOTE:
1. Distinguish the R and L side of the
bug cap as shown below.
2. Tear out the adhesive theme and
stick the bug cap on the handlebar.
2
1
14
10
10
14
R
L

7
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
STEP 4.1 Assemble the front post
STEP 4.2 Assemble the front post
STEP 5 Assemble the front post cover
TOOL
Open wrench- 13mm
TOOL
11 M8 x 10 x 3
15 Star washer (Black), M8 x 3
Open wrench- 13mm
NOTE:
1. Make sure cable is not pinched and
insert the front post.
2. Tighten the inside screw.
NOTE:
1. Tighten the front screw rst.
2. Make sure all three screws are
tightened.
15
15
11
11
3
3
4

8
STEP 6 Assemble the console
STEP 7 Assemble the console
STEP 8 Assemble the console cover
TOOL
10 M8 x 15 x 3
16 Star washer (White) x 3
Hex wrench- 6mm
NOTE:
1. Connect the console cable, TV cable and carefully
insert the cable into the front post.
NOTE:
1. Tighten the front screw rst then make sure the
post is well positioned.
2. Tighten the other three screws of the front post.
TOOL
13 M4 x 15 x 3
Hex wrench- 3mm
NOTE:
Make sure three screws are tightened.
10
5
6
13
16

9
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
STEP 9 Assemble the bracket of the cup holder
STEP 10 Assemble the cup holders
- Assemble nished -
TOOL
12 M6 x 15 x 4
Hex wrench- 5mm
TOOL
12 M6 x 15 x 4
Hex wrench- 5mm
NOTE:
Make sure the direction(R, L) of the
bracket is correct before assembly.
7
12
8
12
9
R
L

10
2.3 550ETi Part List
Open the shipping carton box, remove all parts from the carton and styrofoam inserts. Before you begin the
assembly, verify that the following hardware items are packed with the equipment.
NO Part description Image QTY
1 Right bug 1
2 Left bug 1
3 Front post 1
4 Front post cover 1
5 Console 1
6 Console cover 1
7Left cup holder
bracket 1
8Right cup holder
bracket 1
9 Cup holder 2
NO. Part description Image QTY
10 i-Pad rack 1
11 Dome screw, M8 x
15L 5
12 Hex bolt, M8 x 10L 3
13 Dome screw, M6 x
15L 8
14 Tapping screw, M4 x
15L 3
15 Washer, M8 2
16 Star washer (Black),
M8 3
17 Star washer (White),
M8 3
Required tools
Hex wrench (3mm, 5mm 6mm)
Open wrench (13mm)

11
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
2.4 Assembly Instruction- 550ETi
STEP 1 Assemble the right handle bar
STEP 2 Assemble the left handle bar
STEP 3 Assemble the bug cap
TOOL
11 M8 x 15 x 1
15 M8 x 1
Hex wrench- 6mm
TOOL
11 M8 x 15 x 1
15 M8 x 1
Hex wrench- 6mm
NOTE:
Align the handle bar to the pivot point.
NOTE:
Align the handle bar to the pivot point.
NOTE:
1. Distinguish the R and L side of the
bug cap as shown below.
2. Tear out the adhesive theme and
stick the bug cap on the handlebar.
2
1
15
11
11
15
R
L

12
STEP 4.1 Assemble the front post
STEP 4.2 Assemble the front post
STEP 5 Assemble the front post cover
TOOL
Open wrench- 13mm
TOOL
12 M8 x 10 x 3
16 Star washer (Black), M8 x 3
Open wrench- 13mm
NOTE:
1. Make sure cable is not pinched and
insert the front post.
2. Tighten the inside screw.
NOTE:
1. Tighten the front screw rst.
2. Make sure all three screws are
tightened.
16
16
12
12
3
3
4

13
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
STEP 6 Assemble the console
STEP 7 Assemble the console
STEP 8 Assemble the console cover
TOOL
11 M8 x 15 x 3
17 Star washer (White) x 3
Hex wrench- 6mm
NOTE:
1. Connect the console cable and carefully insert the
cable into the front post.
NOTE:
1. Tighten the front screw rst then make sure the
post is well positioned.
2. Tighten the other three screws of the front post.
TOOL
14 M4 x 15 x 3
Hex wrench- 3mm
NOTE:
Make sure three screws are tightened.
11
5
6
14
17

14
7
13
8
R
L
10
STEP 9 Assemble the iPad rack
STEP 10 Assemble the bracket of the cup holder
STEP 11 Assemble the cup holders
TOOL
13 M6 x 15 x 4
Hex wrench- 5mm
TOOL
13 M6 x 15 x 4
Hex wrench- 5mm
NOTE:
Make sure the direction(R, L) of the
bracket is correct before assembly.
13
9
- Assemble nished -

15
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
3. HOW TO USE THE ELLIPTICAL TRAINER?
Operating Intenza 550 series Elliptical trainer is very easy. Just simply step on and start pedaling. Learning
the features and incorporating Intenza elliptical trainer into your member’s tness program is just as easy.
In this chapter, you will learn the display function and how to get the most workouts from each Intenza 550
series elliptical trainer.
3.1 550ETe Entertainment Console Overview
1. Energy saver : The energy saver mode is used to minimize the power being used from the wall when
Intenza 550ETe are not in use. Press this button to put Intenza 550ETe into energy saver mode after
ending a workout. Press this button to either “wake up” Intenza 550ETe.
2. iPod dock: Allows an iPod to be docked and controlled by the display while charging battery.
3. Headphone jack: Allows you to plug in headphone.
4. USB port: Allows for data download, read and play MP3 les.
5. Home screen:
Language
Simplied Chinese, English, Spanish, German, Japanese, Korean. Six kinds of
language offered for your choice.
Eco
To minimize the power being used from the wall when the treadmill is not in use.
USB setting
Allows you to customize your personal information, name, age, weight. (Please
refer to Section 3.8 Setting Of 550ETe)
Scene change
Allows you to change the scene between multimedia and workout scenes.
Quick start
Allows the user to start a workout immediately, by passing any setup or goal
setting.
Programs
Preset / Target / HRC / Custom / Race / Fitness Test
Allows the user to select programs to setup the goal or customize programs.
(Please refer to Section 4 Workout Option.)
1. Energy saver
2. iPod dock 4. USB port
3. Headphone jack

16
6. Multimedia Bar:
Previous
In the now playing screen, press Previous skips to the previous song/ video in
the list.
Play
Press this button can play the selected song/video; while playing, press this
button to pause the song/video being played.
Next
In the now playing screen, press Next to skip to the next song in the list.
Audio/Video- iPod
Allows you to control your iPod playlist from the display, listen to iPod music and
watch iPod video.
Audio/Video-USB
Allows you to enjoy the entertainment songs or videos from your personal USB
device.
Play list
Sort the contents of iPod, USB and TV by play list.
Scene change
Allows you to change the scene between multimedia and workout scenes.
Volume
Tap on the Volume in the display and slide the volume bar up/down increase/
decrease volume intensity. Press the Mute to turn off the volume.
Zoom
Press this button to zoom in/out the scene of video or movie.
3.2 How To Operate Multimedia
USB device
7. Insert the USB device to USB port.
8. Press the USB setting icon in the Multimedia bar of the current screen.
9. Follow the onscreen prompts.
iPod
1. Connect your iPod to the built-in iPod connector.
2. Press the iPod icon in the Multimedia bar shown on the screen.
3. Follow the onscreen instructions.

17
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
3.3 550ETi Display Console Overview
Your Intenza 550ETi is equipped to provide you and your users unlimited exercise opportunities. Engage
in each feature to nd the right combination for your tness regimen. The Display console provides the
operating controls and display elements outlined in the following paragraphs.
1. Prole Window
2. Message Center
3. Resistance Scale
4. Back / SCAN
5. USB icon
6. Programs
7. Quick start / Enter
8. Home / Stop
9. Smart workrate

18
1. Prole Window: This window displays columns of light, which represent the levels of workout intensity. It
also displays the information for setting up a workout.
2. Message Bar:
During program set up, operating instructions will be displayed in the message bar.
During the workout, below exercise data will be displayed for your reference.
yHR: heart rate can be detected if the user is wearing Polar® heart rate chest strap or hold onto the
contact heart rate grips consistently.
yLevel: intensity of resistance level.
yTime: the number of time elapsed since beginning the workout.
ySPM (Stride Minute): the speed at which you are currently pedaling in stride-per-minute.
yCalories: the number of calories burned since pedaling the workout.
yWatts: effort level in Watts. The Watt is a unit of power output or the expression of the mechanical rate
of work.
yDistance: the total number of miles or kilometers you have traveled.
yIncline: the incline level of the workout you are using
3. Resistance Scale: This scale displays the resistance. Increase/decrease the resistance level from 1 (least
difcult) to 40 (greatest difcult) can be adjusted by Uni-jog during the workout.
4. Back key and :
During program set up, press this key to go back to previous selection for correction.
During the name setting, press this key to correct the wrong input.
During the workout, the display information is toggling between both exercises
parameter in each message bar. Press to display that statistic continuously
throughout the workout.
5. USB icon: This icon lights up when Intenza console detects the USB device.
6. Programs: Please refer to section 4 Exercise Workout Option
7. Quick start and Enter key:
Press this key to enter the workout mode, without having to select a workout program.
During program set up, press this key to conrm selection or value.
8. Home and Stop key:
Press this key to go back to the rst layer if necessary.
During the setting of saving conrmation, press this key to double conrm. (Please
refer to section 4 Exercise Workout Option.)
This key is only effective while a selected program is running. Press STOP key once
will end the workout program and the message bar will show the workout summary.
Press STOP key twice will exit the workout program promptly.
9. Smart Workrate: The skirting light of Uni jog lights indicate the workout intensity. (Please refer to section 3.4
How To Workout Effectively.)
NOTE
Incline changes occur only when the foot pedals are in motion. The number on the display indicates the
selected range, not the degree of incline. There is not a one-to-one ratio between the degree of incline and
the incline level.
Model Incline level Degree of incline
550ETi 1 through 16 13° through 40°

19
Assembly Introduction Workout Option Maintenance Trouble ShootingSafety precaution
3.4 How To Effectively Workout At Your Own Level?
Smart Workrate system provides visual color feedback of skirting light. Skirting light at the Uni jog switch
enhances users to optimize their workout efforts for maximum result based on heart rate level. This system
also helps users to stay in their target heart rate zones. Smart workrate system will detect heart rate by
holding on to contact heart rate plates or by wearing a telemetry heart rate sensor chest strap. You are
recommended to wear telemetry heart rate chest strap for this function. During workout there are 4 different
colors as following which represent your workout intensity.
Green - The Energy Efcient or Recovery Zone - 55% to 65%
Training within this zone develops basic endurance and aerobic capacity. All easy recovery running should
be completed at a maximum of 65%. Another advantage to exercise in this zone is that while you are happily
fat burning you may lose weight and allow your muscles to re-energize with glycogen, which has been
consumed during those faster pace workouts.
Yellow - The Aerobic Zone - 65% to 75%
Training in this zone will improve your cardiovascular system. Your body is able to improve transport of
oxygen and carbon dioxide to and away from the working muscles. As you become tter and stronger from
training in this zone, you may engage in some of your long weekend running at up to 75% aerobic training
zone, so as to get the benets of fat burning and improvement of aerobic capacity.
Orange - The Anaerobic Zone - 75% to 85%
Training in this zone will develop your lactic acid system. In this zone, your individual anaerobic threshold
(AT) is found - sometimes referred to the point of deection (POD). At these heart rates zone, the amount
of fat being utilized as the main source of energy is greatly reduced and glycogen stored in the muscle is
predominantly used. One of the by-products of burning this glycogen is lactic acid. There is a point at which
the body can no longer quickly remove the lactic acid from the working muscles. This is your anaerobic
threshold (AT). Through the correct training, it is possible to delay the AT by being able to increase your
ability to deal with the lactic acid for a longer period of time or by improving your AT level.
Red - The extreme Zone - 85% to 100%
Training in this zone will only be possible for a short period. It can effectively train your fast twitch muscle
bers and help you to improve your speed. You need to be quite t in order to train effectively within this
zone.
NOTE
The heart rate monitoring system of Intenza 550 series elliptical trainer is intended only for use as an
exercise tool. Various factors can affect the accuracy of your heart rate reading. The heart rate readings of
the Intenza elliptical trainer should not be considered or used as a medical device.
