Intenza 550ETXe2 User manual

Intenza Elliptical 550ETXe2
Intenza Elliptical 550ETXi
Designed to inspire. ©Intenza 2018. All rights reserved.
Elliptical
Owner’s Manual
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Since Intenza Fitness first launched its line in 2012, our compelling designs, innovation and energy efficiency have garnered multiple
awards. Designed to inspire, your future is bright. Exciting, and full of promise. It is our pleasure to join you on your fitness journey.
Before installing or using the equipment, please read all instructions in the documentation provided with this equipment. Always
follow basic safety precautions when installing and using this equipment. This manual will provide guidelines for quick set up and the
correct way to use the equipment. We hope your experience with this product allows you to achieve your fitness goals and meets your
expectations.
The individual human power which is required to carry out an exercise can be different than the mechanical power displayed.
A warning notice to the effect that the safety level of the equipment can be maintained only if it is examined regularly for damage and
wear, e.g. ropes, pulleys, connection points.
The Intenza 550 Series Elliptical has been tested and designed to comply with the regulations for a Class A digital device and for Class
S studio use pursuant to part 15 of the FCC rules and UL regulations. This equipment is in compliance with European Directives, ie.
Machinery Directive 2006/42/EC and Low Voltage Directive 2006/95/EC. The Intenza 550 Series Elliptical is designed to provide you
with a safe, intuitive, comfortable and reliable experience, guiding you to a healthy lifestyle.
FCC Warning Possible Radio/Television Interference
CAUTION Any changes or modifications to this equipment will affect the product warranty.
Intenza 550 Series Elliptical Handbook: Welcome To Intenza
Thank you for purchasing our Intenza 550 Series Elliptical.
Welcome To Intenza
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: Table of Contents
Table of Contents
4
6
8
9
10
13
18
19
20
21
22
23
25
26
27
28
29
30
32
33
34
35
38
40
41
41
42
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
INTENZA 550 SERIES ELLIPTICAL OVERVIEW AND ASSEMBLY
550ETXe2 overview
550 ETXi overview
550ETXe2 &550 ETXi Part List
550ETXe2 &550 ETXi Assembly Instructions
Safety Space
HOW TO USE INTENZA 550 SERIES ELLIPTICAL
550ETXe2 Entertainment Console Overview
550ETXe2 Entertainment and Media Operation
550ETXe2 Entertainment And Media Operation: TV
550ETXe2 Entertainment And Media Operation: Intenzacast
550ETXe2 Entertainment And Media Operation: Internet
550ETXe2 Entertainment And Media Operation: Audio/Video
550ETXe2 Entertainment And Media Operation: Virtual Scenery
550ETXe2 Entertainment And Media Operation: YouTube
550ETXe2 Entertainment And Media Operation: HDMI Input
550ETXi Interactive Console Overview
How To Effectively Workout At Your Own Level
How to Personalize Your Workout
Save the Workout Profile
How To Track Your Workout Record
Setting of 550 Elliptical
Begin The Workout
WORKOUT OPTIONS
Quick Start
Preset Program
1
2
2.1
2.2
2.3
2.4
2.5
3
3.1
3.2
3.2.1
3.2.2
3.2.3
3.2.4
3.2.5
3.2.6
3.2.7
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4
4.1
4.2
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: Table of Contents
45
48
52
54
58
62
62
63
63
63
64
64
64
65
65
67
Target Program
HRC Program
Custom Program
Race Program
Fitness Test
MAINTENANCE
Preventative Maintenance Tips
Self Diagnosis
How to Charge The Battery
Recycling The Battery
TROUBLESHOOTING
When To Call For Help
Error Message
EXPLODED DRAWING & PART LIST AND SPECIFICATIONS
550ETXe2 Exploded Drawing and Parts List
550ETXi Exploded Drawing and Parts List
4.3
4.4
4.5
5.6
4.7
5
5.1
5.2
5.3
5.4
6
6.1
6.2
7
7.1
7.2
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: Important Safety Instructions And Precautions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before operation.
WARNING
· The 550 Series Elliptical is designed for aerobic exercise in a commercial or consumer environment.
· Please check with your physician prior to begining any exercise program.
· Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you
feel faint stop exercising immediately.
· Stop exercising immediately and consult a physician if you feel any abnormal symptoms such as fainting,
dizziness, chest pain, nausea or shortness of breath.
DANGER
· Make sure all users see a physician for a complete physical examination before they begin any fitness
program.
· Unsupervised children must be kept away from this equipment.
· Assemble and operate the equipment on a solid level surface.
· Set the equipment a few feet away from walls or furniture, and away from sources of heat, such as radiators,
heat registers and stoves. Avoid extreme temperature changes.
· Do not place outdoors or in an enclosed swimming pool environment.
· Keep hands and loose clothing away from moving parts.
· Keep equipment away from water and moisture. Avoid dropping or spilling anything on/inside the
equipment to prevent electric shock, or damage to the equipment.
· Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power
source when it is not in use.
· The optional power adapter is considered a power source for self—powered equipment. Always unplug
this equipment from the electrical outlet immediately after use or before cleaning.
· Keep the optional power adapter and plug away from heated surfaces.
· Do not insert any object into any opening, or underneath the equipment.
· Do not attempt to remove the cover or modify the equipment. Service should only be conducted by an
authorized service technician.
· Wear shoes with rubber or high—traction soles. Do not wear shoes with heels, leather soles, cleats or
spikes.
Make sure no stones are embedded in the soles.
· Do not use the equipment with bare feet.
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: Important Safety Instructions And Precautions
SAVE THESE INSTRUCTIONS
WARNING
Connect this appliance to a properly grounded outlet only.
See Grounding Instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord with
an equipment—grounding conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is connected to 12V 80W adaptor which is 6.67A and is for use on a circuit having a nominal
rating of 100—240 V and is factory—equipped with a specific electric cord and plug to permit connection to
a proper electric circuit. Make sure that the product is connected to an outlet having the same configuration
as the plug. If the product must be reconnected for use on a different type of electric circuit, reconnection
must be made by qualified service personnel.
DANGER
Improper connection of the equipment—grounding conductor can result in risk of electric shock. Check
with a qualified electrician if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product— if it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: Intenza 550 Series Elliptical Overview And Assembly
2. Intenza 550 Series Elliptical Overview And Assembly
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Important Safety Precautions
Intenza 550 Series Elliptical Handbook: Intenza 550 Series Elliptical Overview And Assembly
SAFETY PRECAUTIONS
· Unsupervised children must be kept away from this equipment.
· Assemble and operate the equipment on a stable base which is properly leveled.
· Keep an open area of 3 feet by 3 feet (1000 mm x 1000 mm) behind the Elliptical clear of any obstructions
including walls, furniture and other equipment.
·Keep away from sources of heat such as radiators, heat registers and stoves. Avoid extreme temperature
changes.
· Do not use outdoors or in an enclosed swimming pool environment.
· Keep equipment away from water and moisture. Avoid dropping anything on or spilling anything inside the
equipment to prevent electric shock or damage the electronics.
· Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power source
when it is not in use for a long time.
· Do not drop or insert any object, hands, or feet into any opening, or underneath the equipment.
· Do not attempt to remove the cover or modify the equipment. Service should only be done by an
authorized service technician.
· Do not use the equipment with bare feet. Wear shoes with rubber or high—traction soles. Do not use
shoes with heels, leather soles, cleats or spikes. Make sure no stones are embedded in shoe soles.
· Do not operate the equipment until the defective components are repaired.
· Use the handrails whenever additional stability is required. In case of emergency, such as tripping, the user
should grab the handrails.
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: 550ETXe2 Overview

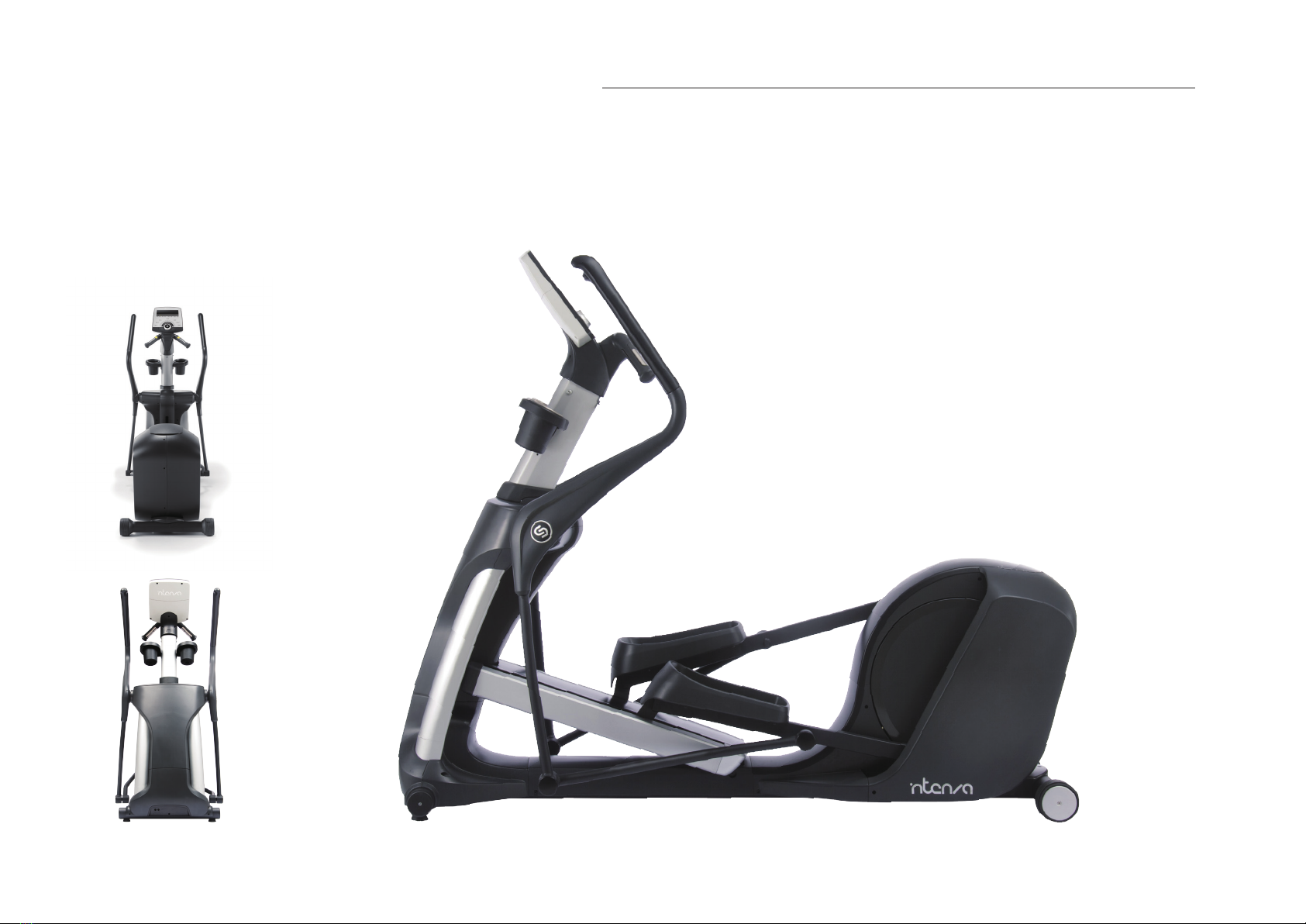

2.1 550ETXe2 Overview
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: 550ETXi Overview
2.2 550ETXi Overview
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Open the shipping carton. Remove all parts from the carton and cardboard inserts.
Before beginning assembly, verify that the following hardware items are packed with the equipment. Do not attempt to move the
equipment off the pallet by yourself. At least two people are required for safe moving or lifting. Please use safe lifting techniques.

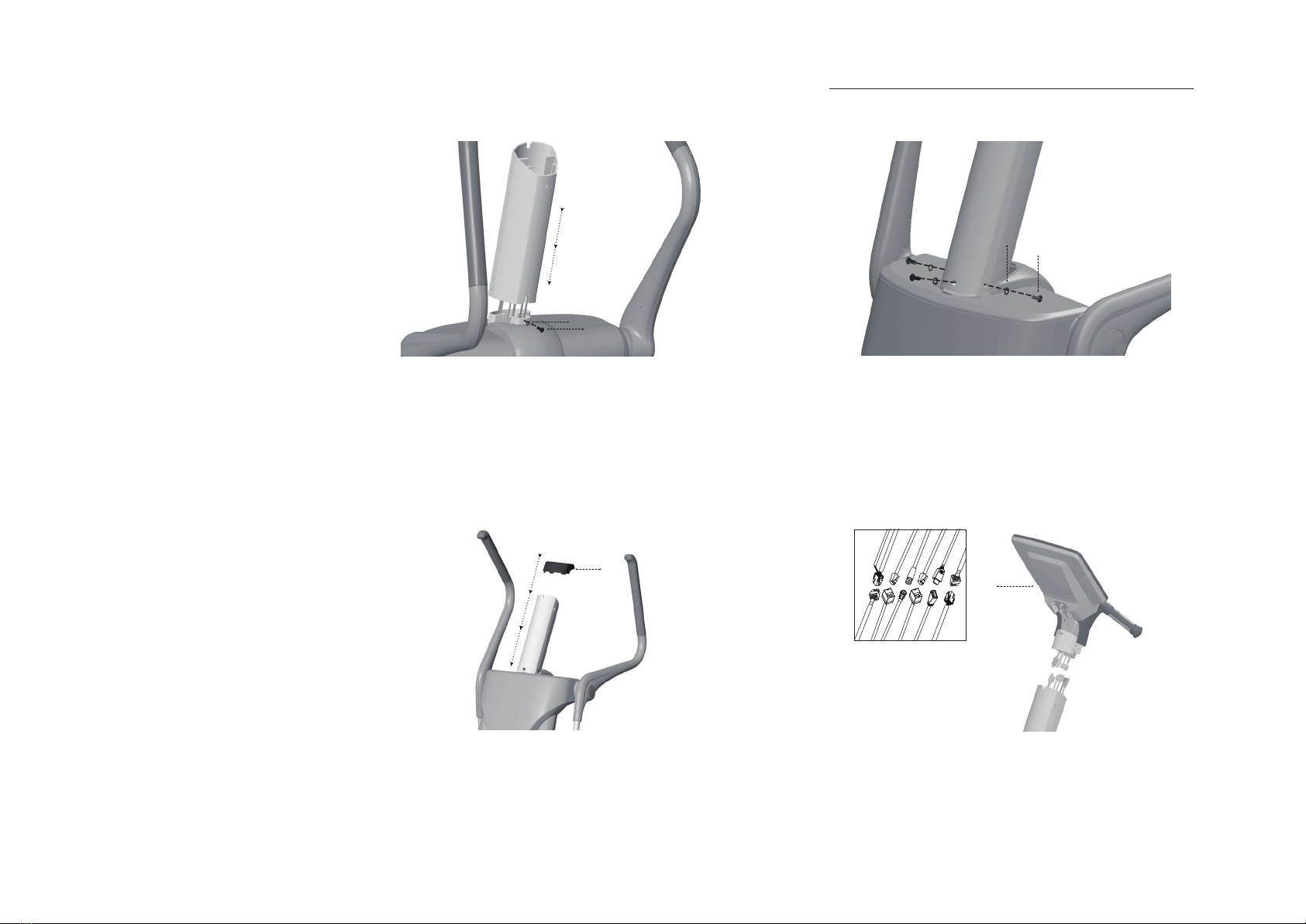

Please use hex wrench (3mm, 5mm, 6mm) and open wrench (13mm) to assemble the Elliptical.
Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Parts List
1. Right bug
QTY 1
...............................................................
...............................................................
2. Left bug
QTY 1
...............................................................
...............................................................
3. Front post
QTY1
.............................................................. .
.............................................................. .
4. Front post cover
QTY1
...............................................................
...............................................................

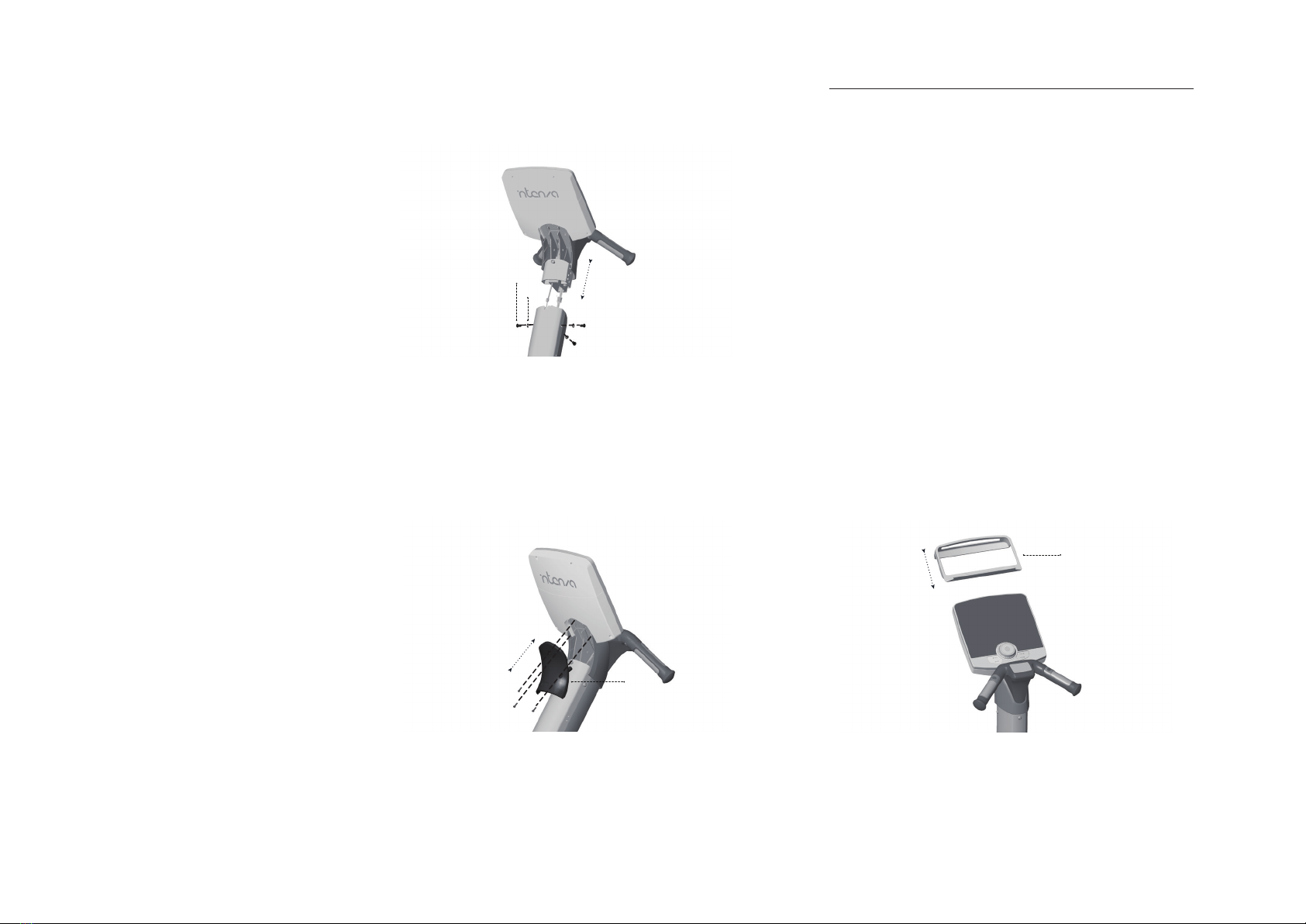

5. Console for 550 ETXe2
QTY1
...............................................................
...............................................................
6. Console for 550 ETXi
QTY1
.............................................................. .
.............................................................. .
1
.............................................................. .
.............................................................. .
8. Console cover for ETXi
QTY1
7. Console cover for ETXe2
QTY1
...............................................................
...............................................................
9. Left cup holder bracket
QTY
...............................................................
.............................................................
2.3 550ETXe2 &550ETXi Parts List
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Parts List
10. Right cup holder bracket
QTY
2.3 550ETXe2 &550ETXi Parts List

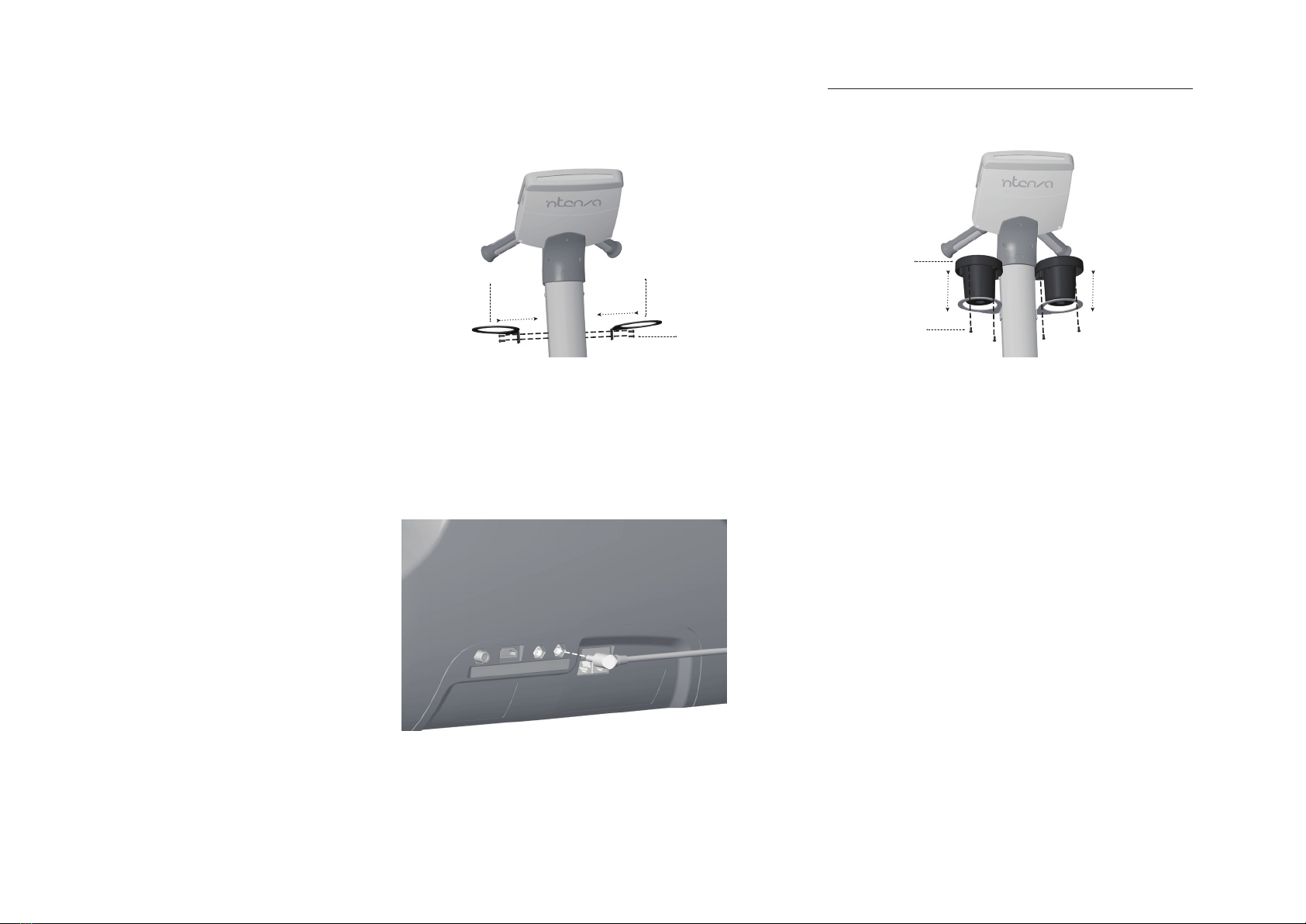

11. Cup holder
QTY2
...............................................................
...............................................................
12. iPad rack for ETXi
QTY11
...............................................................
...............................................................
13. Dome screw, M8 x 15L
QTY5
.............................................................. .
.............................................................. .
14. Hex bolt, M8 x 10L
QTY3
...............................................................
...............................................................
15. Dome screw, M6 x 15L
QTY8
...............................................................
...............................................................
16. Tapping screw, M4 x 15L
QTY3
.............................................................. .
.............................................................. .
.............................................................. .
.............................................................. .
17. Washer, M8
QTY2
...............................................................
...............................................................
18. Star washer, Black, M8
QTY3
...............................................................
.............................................................
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

19. Star washer, White, M8
QTY3
Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Parts List
2.3 550ETXe2 &550ETXi Parts List
...............................................................
...............................................................
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Assembly Instructions
STEP 1
Assemble the right handle bar.
STEP 2
Assemble the left handle bar.
PLEASE NOTE
Identify the Right and Left side bug caps as shown above.
Remove adhesive protective cover from the back of the
bug cap. Attach the cap to the handlebar.
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
STEP 3
Assemble the bug cap.
STEP 4
Assemble the front post.
PLEASE NOTE
Make sure the cables are not pinched during front post
installation.
.........................................................................................
.........................................................................................
.........................................................................................
2.4 550ETXe2 &550ETXi Assembly Instructions
PLEASE NOTE
Align the handle bar to the pivot point.
Dome screw, M8 x 15L(13), Washer, M8(17)
Hex wrench— 6mm
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
COMPONENTS ANDTOOLS
PLEASE NOTE
Align the handle bar to the pivot point.
Dome screw, M8 x 15L(13), Washer, M8(17)
Hex wrench— 6mm
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
COMPONENTS ANDTOOLS
17
1
3
2
1713
13
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Assembly Instructions
STEP 5 STEP 6
Assemble the front post.
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
PLEASE NOTE
Tighten the front screw first. Make sure all 3 screws are tightened.
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
Assemble the front post.
PLEASE NOTE
Screw #14 and washer #18 as shown, are pre-assembled and will need
to be properly tightened during the front post installation. Refer to step 6.
2.4 550ETXe2 &550ETXi Assembly Instructions
STEP 7
Assemble the front post cover.
COMPONENTS ANDTOOLS Star washer, Black, M8(18), Hex bolt, M8 x 10L(14),
Open wrench— 13mm
Star washer, Black, M8(18), Hex bolt, M8 x 10L(14), Open wrench— 13mm
COMPONENTS ANDTOOLS
STEP 8—1—1
Installing the 550ETXe2 console— Assemble the console.
PLEASE NOTE
Connect the console cable, TV coax cable, TV power,
RJ45 cable and HDMI cable, and carefully insert the cable
into the front post.
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
18
4
5
18
14
14
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

PLEASE NOTE
Make sure the post is properly aligned. Install and tighten the front screw
first, then tighten the remaining 2 screws.
This screw is pre— assembled on the machine but not locked tight.
Please ensure it is locked tightly during installation.
.......................... . .................. . ...........................................................................
.......................................................................................... ...............................
.......................... . .................. . ...........................................................................
.......................................................................................... ...............................
.......................................................................................... ...............................
Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Assembly Instructions
COMPONENTS ANDTOOLS
Dome screw, M8 x 15L(13), Star washer, White, M8(19)
. . .......................................................................................
.........................................................................................
PLEASE NOTE
Install 3 screws and tighten.
Tapping screw, M4 x 15L (16), Hex wrench— 3mm
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
STEP 8—1—3
Installing the 550ETXe2 console— Console Cover.
STEP 8—2—1
Installing the 550ETXi console— Assemble the console.
COMPONENTS ANDTOOLS
PLEASE NOTE
Connect the console cable, cable and carefully insert the
cable into the front post.
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
2.4 550ETXe2 &550ETXi Assembly Instructions
STEP 8—1—2
Installing the 550ETXe2 console— Assemble the console.
13 19
7
6
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

2.4 550ETXe2 &550ETXi Assembly Instructions
PLEASE NOTE
Make sure the post is properly aligned. Install and tighten the front screw first,
then tighten the remaining 2 screws.
This screw is pre— assembled on the machine but not locked tight.
Please ensure it is locked tightly during installation.
.......................... . .................. . ...........................................................................
.......................................................................................... ...............................
.......................... . .................. . ...........................................................................
.......................................................................................... ...............................
.......................................................................................... ...............................
Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Assembly Instructions
COMPONENTS ANDTOOLS
Dome screw, M8 x 15L(13), Star washer, White, M8(19)
.........................................................................................
.........................................................................................
PLEASE NOTE
Install 3 screws and tighten.
Tapping screw, M4 x 15L (16), Hex wrench— 3mm
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
STEP 8—2—3
Installing the 550ETXi console— Console Cover. Install the iPad rack.
COMPONENTS ANDTOOLS
STEP 8—2—2
Installing the 550ETXi console— Assemble the console.
STEP 8—2—4
13
12
19
8
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

2.4 550ETXe2 &550ETXi Assembly Instructions
Intenza 550 Series Elliptical Handbook: 550ETXe2 &550ETXi Assembly Instructions
PLEASE NOTE
Identify the Right and Left bracket as shown above.
Attach the brackets using 4 dome screws as shown.
Please use 12V 80W adaptor and insert adaptor's DC plug
into DC power jack on the Elliptical cardio equipment.
Dome screw, M6 x 15L(15), Hex wrench— 5mm
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
PLEASE NOTE
Install the cup holders and secure with 4 dome screws as shown.
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
........................................................................................ .
COMPONENTS ANDTOOLS
STEP 9
Assemble the cup holder brackets.
STEP 11
Connect the adaptor.
COMPONENTS ANDTOOLS
Dome screw, M6 x 15L(15), Hex wrench— 5mm
.........................................................................................
COMPONENTS ANDTOOLS
.........................................................................................
.........................................................................................
.........................................................................................
STEP 10
Assemble the cup holders.
14 15
11
9
10
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Make sure that the proper safety space, as shown below, around the equipment is maintained.
Intenza 550 Series Elliptical Handbook: Setup: Safety Space
2.5 Safety Space
100cm/40inches
100cm/40inches
100cm/40inches
100cm/40inches
100cm/40inches
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69

Intenza 550 Series Elliptical Handbook: How To Use Intenza 550 Series Elliptical
Operating The Intenza 550 Series Elliptical is very easy.
Learning the features and incorporating the Intenza 550 Series Elliptical into your member’s fitness program is just as easy.
In this chapter, you will learn the display function and how to get the most from workouts using the Intenza 550 Series Elliptical.
3. How To Use Intenza 550 Series Elliptical
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69
