Inter-m HDMC-01 User manual

Operation Manual
HD Multiplexer & Converter
HDMC-01

!
!
"#$! (!%!)!&#!%  % "!)$! %#
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently
good value, and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAutION
CA TION: TO RED CE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO SER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO Q ALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YO R PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOIST RE: nit should not be used near
water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so than objects do not fall and liquids are not spilled into the enclosure through openings.
*CLASS 2 WIRING (Adjacent to speaker terminal): The speaker output of this apparatus can exceed 10 Watts and could be a shock injury.
Connection to speakers should be performed by a skilled person.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
CAutION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOtE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug
with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de
courant on une autre sortie de courant, sauf si les lames
peuvent étre insérées à fond sans en laisser aucune
partie à découvert.

 " 
Although your HDMC-01 is neither complicated nor difficult to operate, we recommend you take a few
minutes to read this brief manual and familiarize yourself with the important information regarding product
features, setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely
event the product must be returned for servicing, the original packaging (or reasonable equivalent) is
required.
 $%%!
 '#!  %
Never place this product in an environment which could alter its performance or reduce its service life.
Such environments usually include high levels of heat, dust, moisture, and vibration.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ-
ing amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
S3125A
S3125A

5
CONTENTS OF PACKAGE
Installation of the camera must be performed by qualified service personnel in accordance with all local and national
electrical and mechanical codes.
Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment.
The content of the package includes:
1. HD SDI Converter
2. Adapter
3. Screw (4EA)
4. This manual
INTRODUCTION
Converter HD-SDI to HDMI in real Time
HD-SDI to HDMI OUT
Features:
SDI/HD-SDI to HDMI
SDI/HD-SDI Looping through out
Supports high definition HD-SDI digital video at 720p50/60, 1080i 50/60, 1080p24/25//30, 1080p 50/60
formats at all frame rates
HD-SDI standard SMPTE 292M, 296M at 3.0Gb/s data rate
HDMI 1.3 OUTPUT : 720p50/60, 1080i50/60,1080p 24/25/30/50/60
RS-485 used Camera Control
Protocol Baud Rate 9600, 40K
HD SDI CONVERTER ADAPTER SCREW(4EA) MANUAL
COMPONENT

6

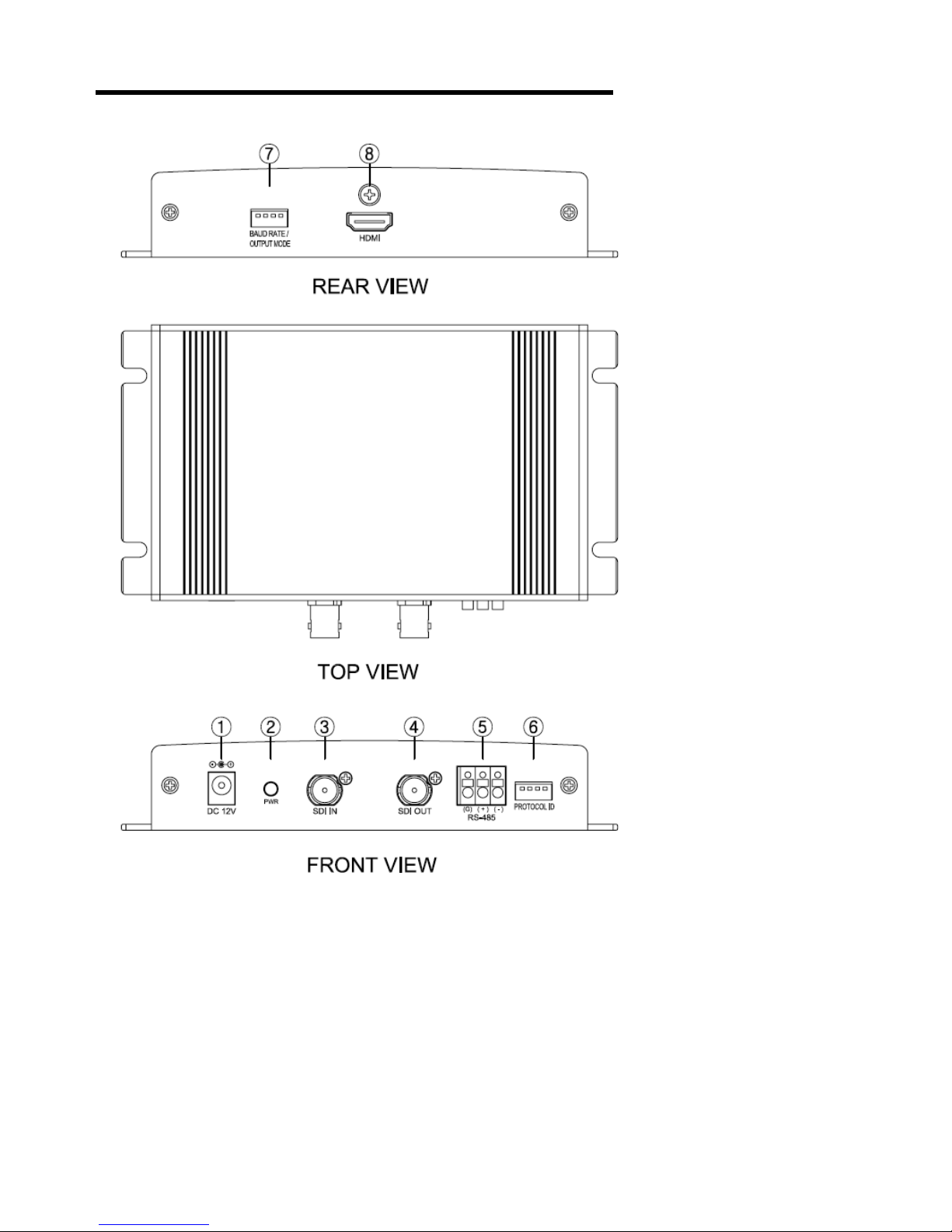

CONVERTER OVERVIEW
①DC12V INPUT
②POWER LED (HD-SDI Signal Detector Light)
③HD-SDI INPUT
④HD-SDI OUTPUT (HD-SDI IN Looping Through Out)
⑤RS-485
⑥PROTOCOL ID Configuration
⑦BAUD RATE / OUTPUT MODE Control
⑧HDMI OUTPUT

7
CONVERTER INSTALLATION

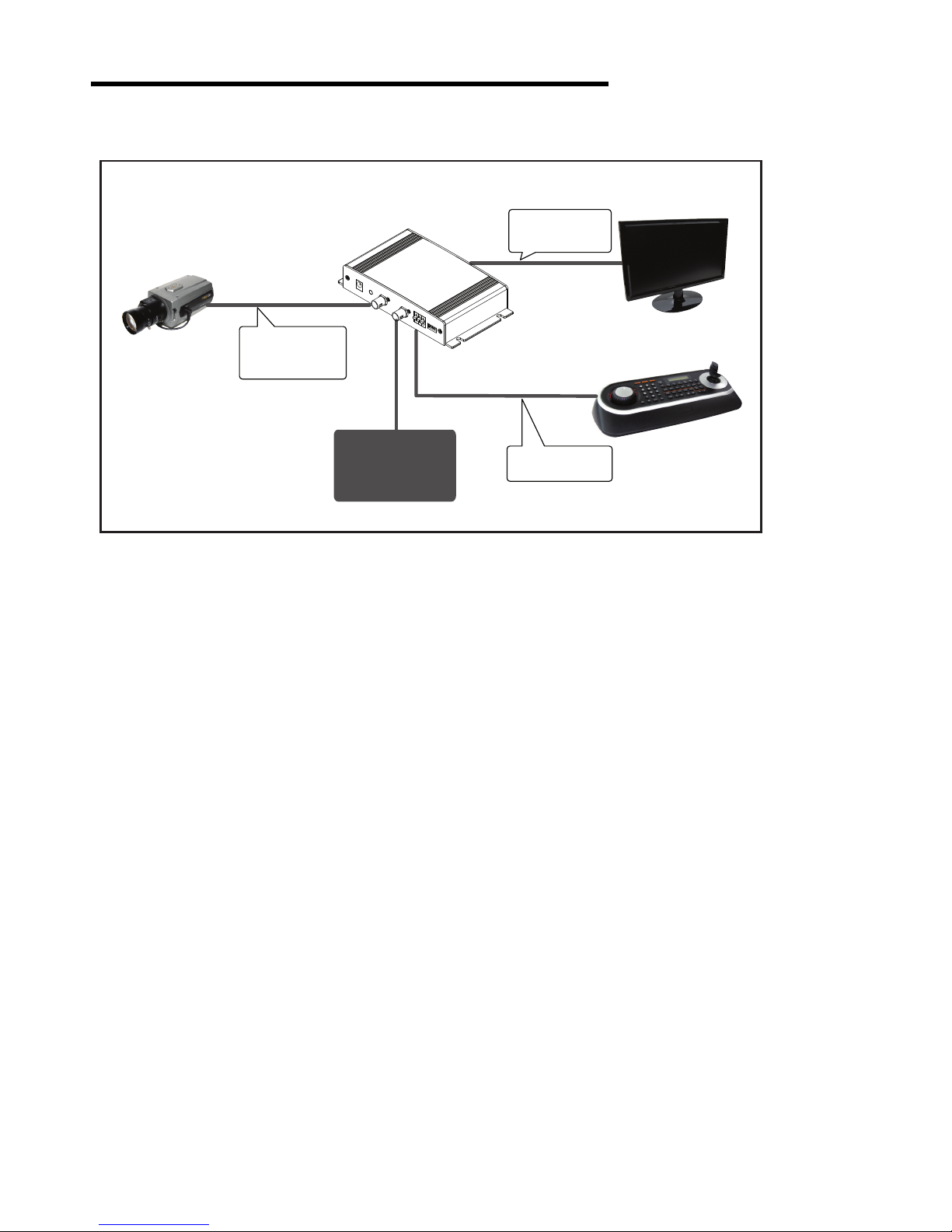

Connection Overview
Starting Installation
The Converter most be installed by several condition.
- HD-SDI Camera / HDMI Input Monitor or TV / 75ΩBNC & HDMI Cable
a. Select an appropriate location for the camera.
b. Install camera to be connected (75ΩBNC Cable) to the converter.
c. Install Converter to be connected( HDMI Cable) to the HD Monitor.
d. Plug the dc power into the Converter DC INPUT Jake.
e. The converter LED is lit when the HD-SDI signal is IN
F. The camera viewing area should be displayed on the monitor Screen.
*NOTES
- Use Monitor for FULL HD monitor or TV.(1920x1080 Resolution)
HD-SDI
through
Coaxial Cable
RS-485
HDMI Cable
HD-SDI DVR
or
HD-SDI Monitor

8
KEYBOARD CONNECTION
RS-485 Connection
XXXX
PROTOCOL ID Setting
XXXX
ID 4 3 2 1
0001 Up Up Up Up
0002 Down Up Up Up
0003 Up Down Up Up
0004 Down Down Up Up
0005 Up Up Down Up
0006 Down Up Down Up
0007 Up Down Down Up
0008 Down Down Down Up
0009 Up Up Up Down
0010 Down Up Up Down
0011 Up Down Up Down
0012 Down Down Up Down
0013 Up Up Down Down
0014 Down Up Down Down
0015 Up Down Down Down
0016 Down Down Down Down
KEYBOARD CONTROLLER
G+G
__
+
DOME2 DOME1
REAR
RS-485
(G) ( + ) ( - )

9
Sample: PROTOCOL ID Setting
BAUD RATE / OUTPUT MODE Setting
XXXX
Baud Rate 1 2 3 4 Remarks
Baud Rate 40K UP UP
UP UP 1080p60
UP DOWN 1080p50
DOWN UP 720p60
DOWN DOWN 720p50
Baud Rate 9600 DOWN DOWN
*Baud Rate / Output Mode Setting Condition
1) Switch No. 1 Baud Rate Control
2) Switch No. 2 Output Bypass Mode Control
KEYBOARD CONTROLLER
ID : 0001
11 2 3 4
ID : 0003
ID : 0013
ID : 0016
ID : 0002
.
.
.
.
11 2 3 4
11 2 3 4

10
SPECIFICATIONS
Item
HDMC-01
Input signal
BNC
HD-CCTV /HD-SDI: SMPTE 292M, 296M
Output signal
BNC/HDMI
HD-SDI/HDMI
Input connector
BNC
1 x BNC (HD-SDI) 3G 75Ωinter-locked socket
Output connector
BNC
1 x BNC (HD-SDI) 3G 75Ωinter-locked socket
HDMI
19 pin HDMI(Digital)
RS-485
Connector
RS-485 interface
Camera control
Fastrax, Pelco D, Pelco P, Vistar
Video
Bandwidth
3.0Gbps
Support
HD-CCTV/HD-SDI, format:
720p 50/60
1080p 24/25/30/50/60
1080i 50/60
Power
Adapter
AC110 ~ 230V, 50/60Hz ± 1Hz, 4W max
consumption
DC12V 0.25A max
Operating Temperature
0℃to + 40℃(14℉~ 113℉)
Housing
Metal case
Dimensions
(WxHxD)
166 x 30 x 92.2 mm
Weight
0.6Kg

#'
#'
#!&#$
Take steps to insure the problem is not related to operator error or other products within the system.
Information provided in the troubleshooting portion of this manual may help with this process. Once it is
certain that the problem is related to the product contact your warranty provider as described in the warranty
section of this manual.
%
A Schematic is available by contacting your warranty provider.
#%$$%
A Parts List is available by contacting your warranty provider.
#%! $ "%! $
#%! $ "%! $
#%! $
Products supplied through legitimate sources are compatible with local AC power requirements.
"%! $
No optional items are available for this product.
## %)
## %)
Warranty terms and conditions vary by country and may not be the same for all products. Terms and
conditions of warranty for a given product may be determined first by locating the appropriate country
which the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
