Inter-m NC-S01 User manual

Operation Manual
Network Converter
NC-S01
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 표1

NETWORK CONVERTER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO UALIFIED SERVICE PERSONNEL.
ATTENTION : RIS UE DE CHOC ELECTRI UE
NE PAS UVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near
water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so
than objects do not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as
vases, should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
* The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
This symbol is intended to alert the user to the pres-
ence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the pres-
ence of important operation and maintenance (ser-
vicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug
with an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à dé-
couvert.
Pour deconnecter completement l’appareil du reseau d’al-
imentation. deconnecter le cordon d’alimentation de la
prise murale.
La prise du reseau d’alimentation doit demeurer aisement
accessible.
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 표2

NETWORK CONVERTER
1
NC-S01
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Overview.........................................................................................................................................3
Features ...........................................................................................................................................3
ackage and accessory includes.................................................................................................3
Front anel ......................................................................................................................................4
Rear anel .......................................................................................................................................5
System Connection.........................................................................................................................7
Block Diagram ................................................................................................................................8
Specifications ..................................................................................................................................9
Service
Procedures....................................................................................................................................11
Schematic.....................................................................................................................................11
Parts List .......................................................................................................................................11
Variations and Options ...............................................................................................................11
Warranty .......................................................................................................................................11
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 1

NETWORK CONVERTER
2NC-S01
Installation
Unpacking
Unpacking
Although your NC-S01 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely
event the product must be returned for servicing, the original packaging (or reasonable equivalent) is
required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IM ORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appa-
ratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the appa-
ratus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped. S3125A
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 2

NETWORK CONVERTER
3
NC-S01
Features
Features
- RM-6024 INTERFACE THROUGH THE NETWORK
- CONTROLLING RS-232C THROUGH THE NETWORK (REMOTE CONTROLLING SOURCE DEVICE,
CD-6208/TU-6200)
- TRANSMITTING AUDIO THROUGH THE NETWORK (M 3, CM)
- SU ORTING 10/100/1000 MB S
- SU ORTING DHC , STATIC I
- SU ORTING NETWORK BONDING
Overview
Overview
The NC-S01 acts as a converter in network systems that provide an integrated transmission solution via network infra-
structure. It provides integrated control software for voice reproduction and BGM control by interworking between
complex and wide systems (PA, SR, AV) and provides ideal solution for various spaces such as large industrial complex,
hospital, restaurant, and school.
ackage and accessory includes
ackage and accessory includes
1. DC Power Adapter x 1EA
2. 2P Terminal Block x 2EA
3. User Manual x 1EA
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 3

NETWORK CONVERTER
4NC-S01
Front anel
Front anel
1. NETWORK STATUS LED
The status of network Primary/Secondary operation is displayed. If connected to the network, green LED
blinks.
2. OWER LED
If the device is powered on, green LED is turned on.
1
2
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 4

NETWORK CONVERTER
5
NC-S01
Rear anel
Rear anel
1. DC OWER IN UT TERMINAL
It supplies power to this unit. Power supply is DC 24V.
2. DC 24V IN UT TERMINAL
It supplies power to this unit. If it is difficult to use the DC adapter, you can use the terminal block to
supply power. Power supply is DC 24V.
3. DC 24V OUT UT TERMINAL
It is DC 24V output terminal. You can use it for RM-6024 power supply.
4. AUDIO IN UT TERMINAL
It is a terminal to input audio to be transmitted to the network. Use a balanced cable. If using unbalanced
cable, refer to the following image to connect the cable.
1 2 3
87654
XLR
1
2
3
XLR ACK
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 5

NETWORK CONVERTER
6NC-S01

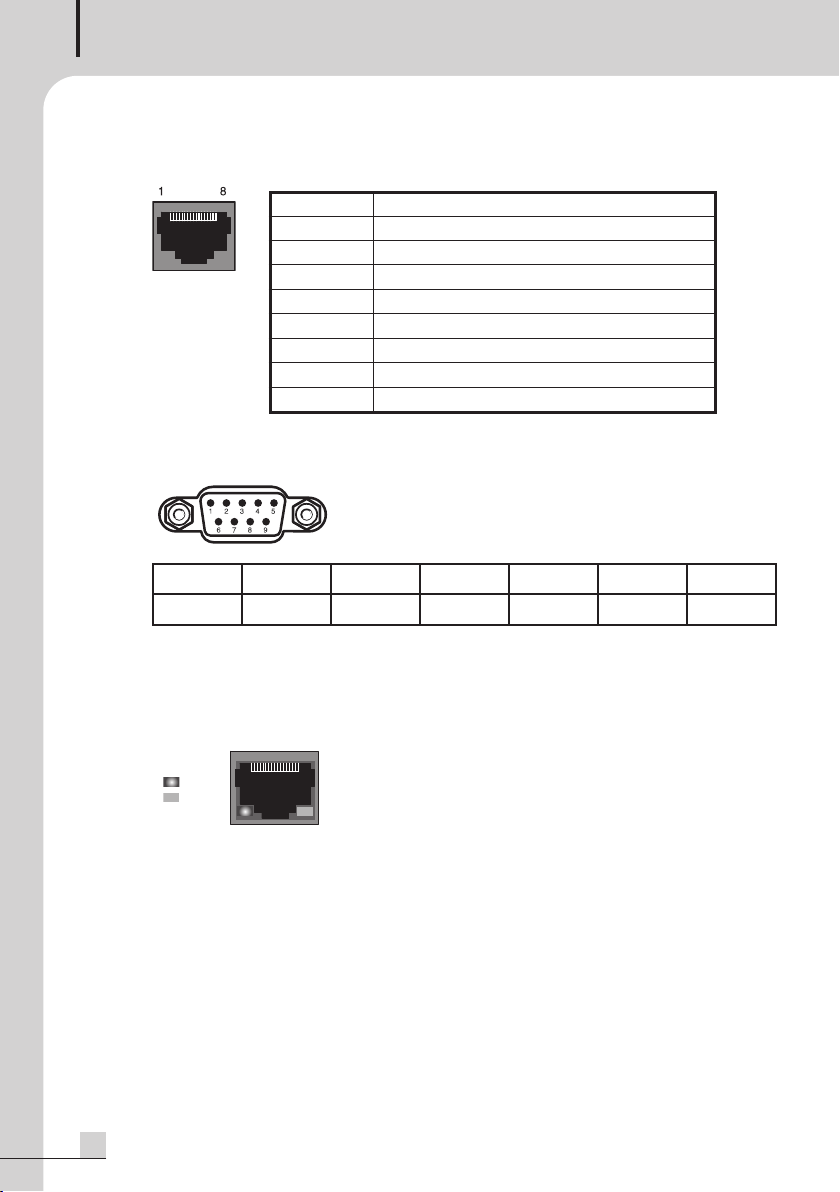

5. RS-422 CONNECTING TERMINAL
It connects to RM-6024.
6. RS-232 CONNECTING TERMINAL
It controls the CD-6208, TU-6200. For more information on how to connect, refer to the following.
7. NETWORK (SECONDARY & RIMARY) CONNECTING TERMINAL
It is a terminal to connect the device to the network. You can control the broadcasting by using integration
software.
※For more information on how to set up, refer to the integration software manual. Download the manual
at home page. (www.inter-m.net)
8. RESET SWITCH
Press the switch for more than 10 seconds to reset the settings of the device.
ACT
LINK
PIN NO. Function
1 RS-422 Data - TX+
2 RS-422 Data - TX-
3 RS-422 Data - RX-
4 Live Date
5 GND
6 RS-422 Data - RX+
7 Balanced Audio Output – HOT
8 Balanced Audio Output - COLD
Pin 1 2 3 4 5 6-9
Functions N.C RX TX N.C GND N.C
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 6

NETWORK CONVERTER
7
NC-S01
CD-6208 NC-S01
NC-M01
NC-900
NC-900
NC-900
NC-900
NC-900
6000 AnalogBroadcasting Room #1Broadcasting Room #2RM-6016
EP-6216
ES-6116
PS-6116I
ES-6116
PS-6116I
AMPLIFIER
RG-6116
RG-6116 6000 AnalogBroadcasting Room #3CD-6208
RM-6016
NC
NC-
900900
C
NC-
NC-
900900
NC-NC
900
900
NC
NC-
900
900
NC
NC
90
900
NC
N
900900
6
NC-
M01
NC
NC-
900
900
Network
Audio(MIC/Line)Audio(Network)ContactNetwork
RS-232, 422, 485, USB
PRI. SEC.
NETWORK
POWER
NC M01
NETWORK CONVERTER
PRI. SEC. POWER
NC S01 NETWORK CONVERTER
NETWORK
NC-S01
NC-M01
PRI. SEC.
NETWORK
POWER
NC M01
NETWORK CONVERTER
PRI. SEC. POWER
NC S01 NETWORK CONVERTER
NETWORK
NCS-1000
NCS-
10
00
MS-N300
System Connection
System Connection
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 7

NETWORK CONVERTER
8NC-S01
+5VD
+15V
REG
REG
+3V3
REG
-15V
Euro Terminal
REG
+3V3_FPGA
REG
+1V8_FPGA
FPGA Module
PHY
Ethernet Primary
Ethernet Secondary
RS-232(D-sub 9P) RM-6024(Modular 8P)
Audio
CODEC
Audio Input
XLR
Factory Switch
Link LED
+24V Input REG
+12V
DC FAN
REG
Transceiver Transceiver
PWR LED

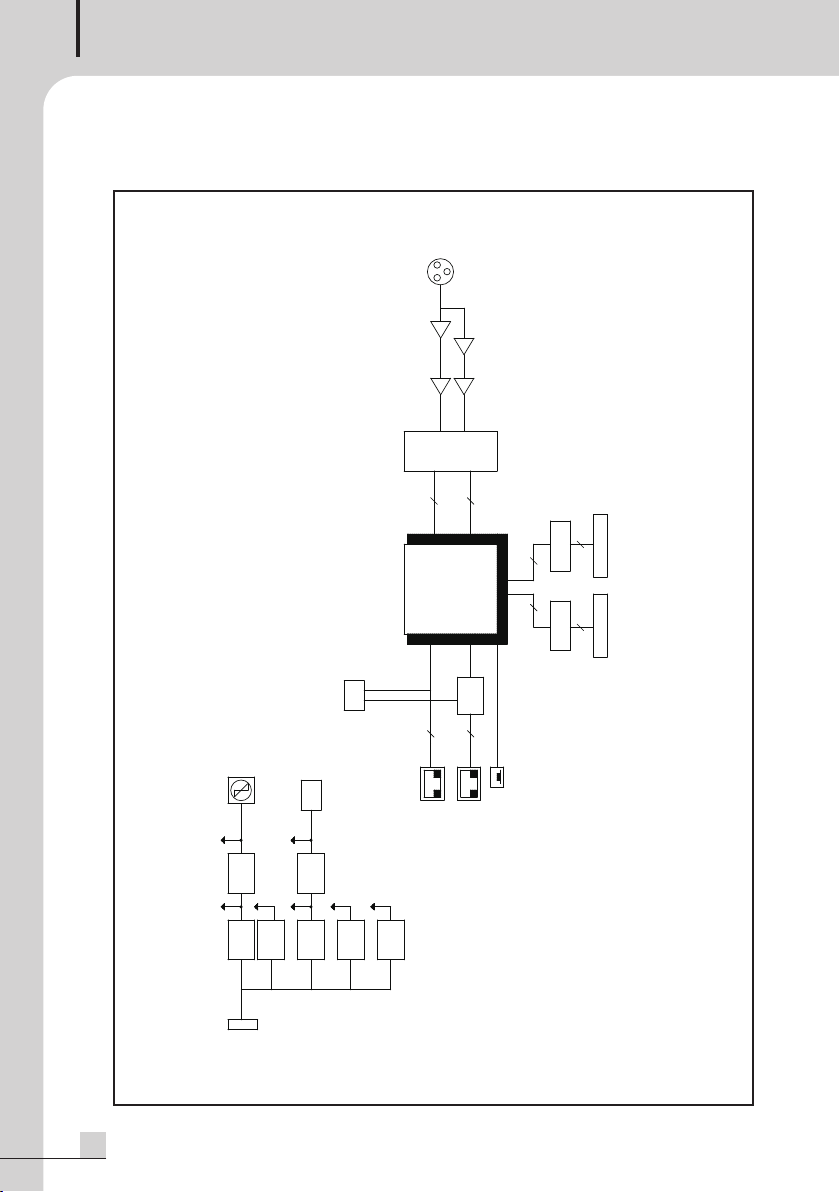

Block Diagram
Block Diagram
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 8

NETWORK CONVERTER
9
NC-S01
Specifications
Specifications
※Design and specification are subject to be changed for the improvement of product
quality without pre notice.
NC-S01
RM-6024 Converter
AUDIO
Audio Input 1 Channel
Input Sensitivity CD Input 6±3dBu
RM-6024 0±3dBu
Frequency Response (0dBu Input, ±3dB) 20Hz~20kHz
THD+N Ratio (20kHz LPF, 0dBu, 1kHz) Less than 0.1%
S/N (20kHz LPF, 0dBu, 1kHz) More than 80dB
Sampling Frequency 44.1, 48kHz
Communication Serial Communications RS-232, RS-422
Network Communications 10/100/1000 Base-t (R -45)
Operating Temperature 0℃~+40℃
Power Source Input: DC 24V, 800mA
Output: DC 24V, 500mA
Weight(SET) 1kg/2.2lb
Dimensions(SET) 210(W) x 44(H) x 180(D)mm/
8.3(W) x 1.7(H) x 7.1(D)in
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 9

NETWORK CONVERTER
10 NC-S01
※DIMENSIONS
18044
209.6
210
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 10

NETWORK CONVERTER
11
NC-S01
Service
Service
rocedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
arts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 11

NOTE
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 12

NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 13

MADE IN KOREA
May 2018 145759
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in apan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
NC-S01_MANUAL_145759_FOR.qxp_레이아웃 1 2018. 5. 23. 오전 10:45 페이지 14
