Inter-m PO-9106 User manual

PO-9106
Program Distributor
Copyright 2004 Inter-M Corporation

PO-9106 Program Distributor
Contents
Welcome ..................................................................................................................................... 3
Unpacking ............................................................................................................................... 3
Warnings .................................................................................................................................. 3
Operation................................................................................................................................. 5
Program Distributor.................................................................................................................. 6
Features ....................................................................................................................................... 6
Front Panel Controls.................................................................................................................... 7
Rear Panel Controls .................................................................................................................... 8
Connections................................................................................................................................ 9
Specifications............................................................................................................................ 10
2

PO-9106 Program Distributor
Welcome
A personal welcome to you from the management and employees of Inter-M
Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated
to providing you with the highest quality products and the best value.
We sincerely trust this product will provide you with years of satisfactory service, but if
anything is not to your complete satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming a part of our worldwide extended
family!
Unpacking
Although your PO-9106 is neither complicated nor difficult to operate, we recommend
you take a few minutes to read this brief manual and familiarize yourself with the
important information regarding product features, setup and operation.
As with most electronic devices, we strongly recommend you retain the original
packaging. In the unlikely event the product must be returned for servicing, the original
packaging (or reasonable equivalent) is required.

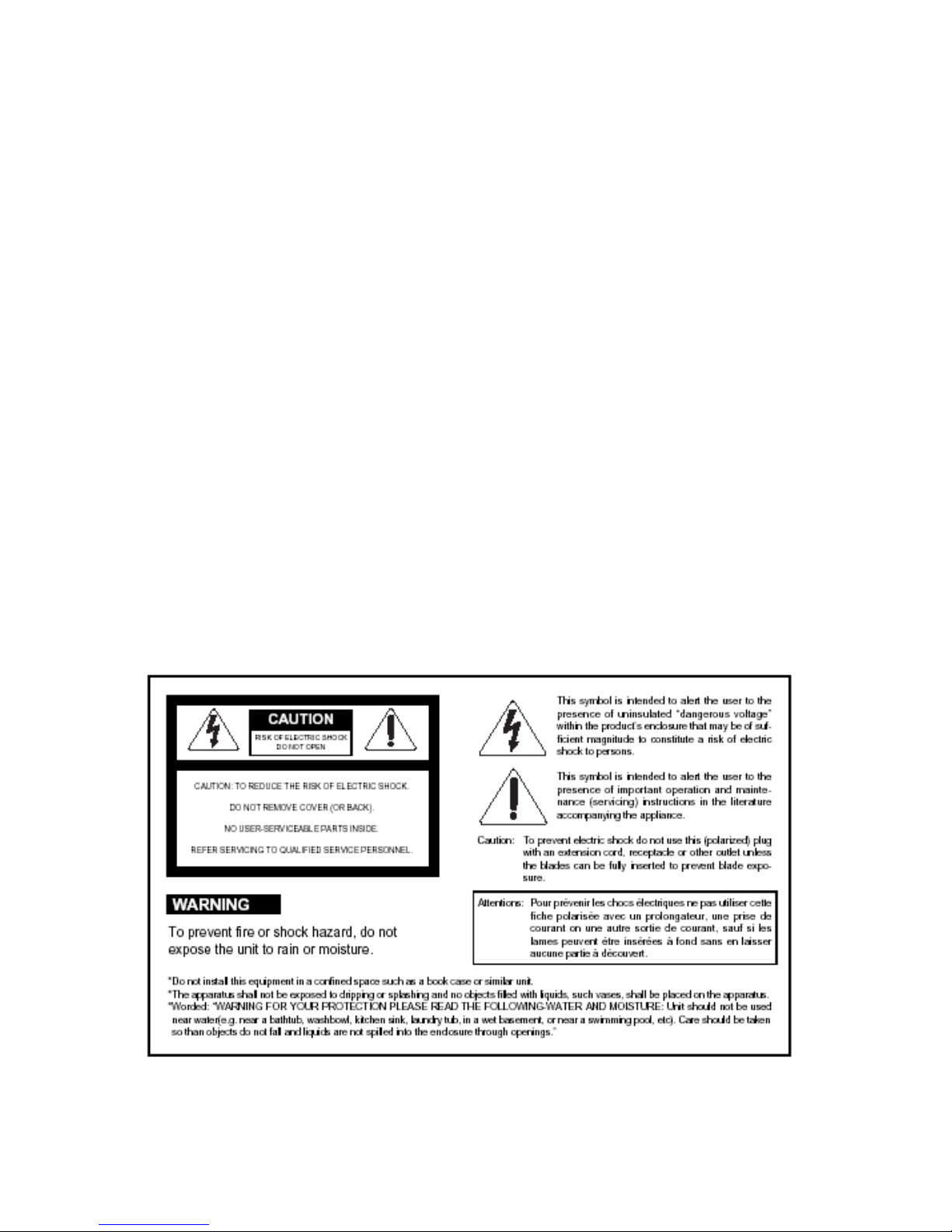

Warnings
Environment
Never place this product in an environment that could alter its performance or reduce its
service life. Such environments are usually characterized by high levels of heat, dust,
moisture, or vibration.
Safety
1. Read these instructions carefully.
2. Follow all instructions.
3. Keep all warnings.
4. Do not operate this apparatus near water.
5. Clean only with a damp cloth.
6. Do not block any of the ventilation openings.
7. Install only in accordance with the instructions in this manual.
3

PO-9106 Program Distributor
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades, with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where it is attached to the apparatus.
11. Use only the attachments/accessories specified.
12. Use only with a cart, stand, tripod, bracket, or table specified, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid overturning.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
4

PO-9106 Program Distributor
Operation
Make certain that speakers and input sources are properly connected before switching
on.
Keep volume levels at minimum gain before switching on.
NOTE: The system’s operation is delayed by approximately three seconds after pressing
the power switch. This is due to the built-in protection circuitry, designed to protect
speakers and other system components.
5

PO-9106 Program Distributor
PO-9106
Program Distributor
Features
Convenient and Easy to Operate
• Distributes a single channel input to six outputs for signal transmission.
Easy Level Adjustment
• Front-panel input and output level adjustment.
Input Monitoring
• Input Peak LED monitoring.
6

PO-9106 Program Distributor

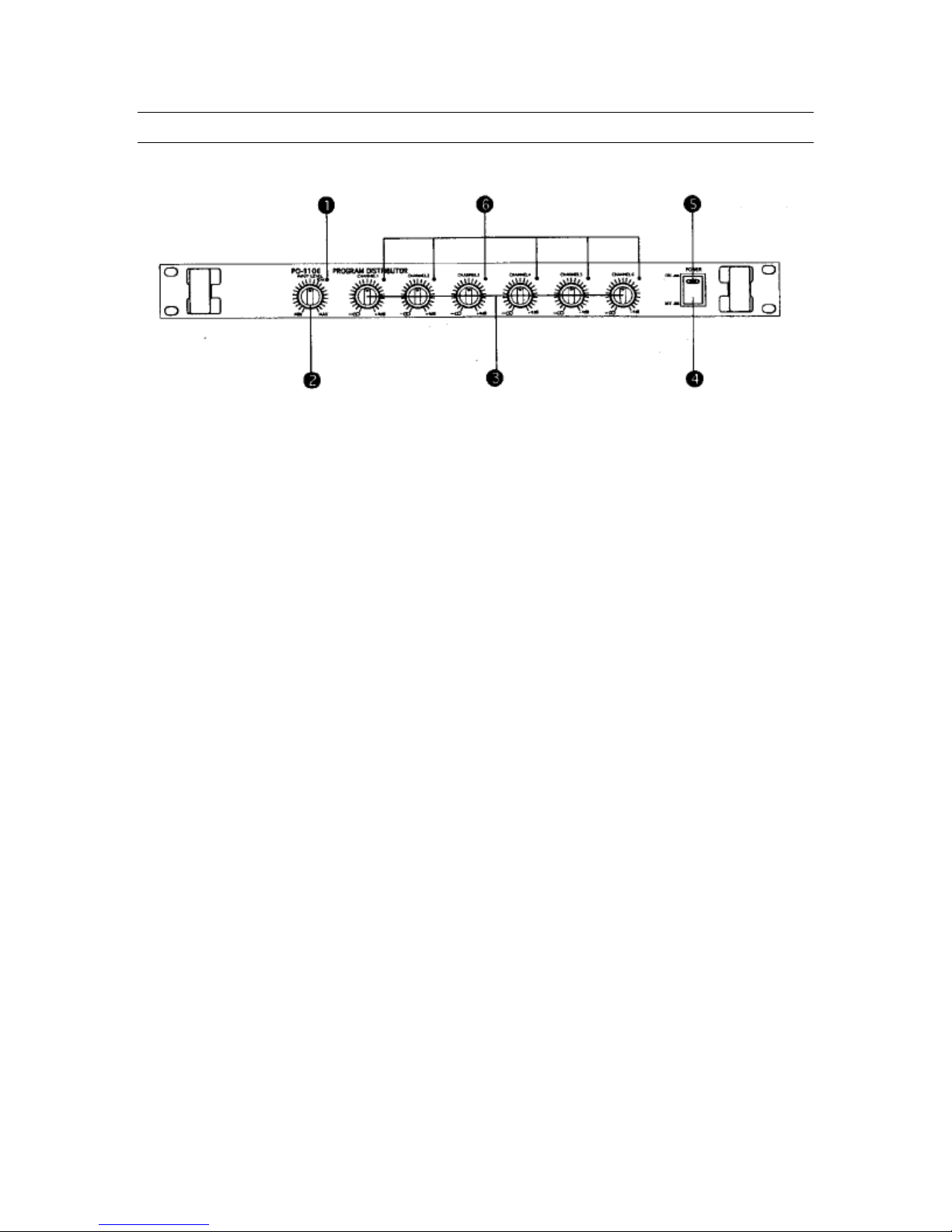

Front Panel Controls
1. Input Peak Indicator
This LED lights to indicate too hot an input level.
2. Input Level Control
This knob controls the input level.
3. Output Level Control
This knob controls the output level for each of the six outputs.
4. Power Switch
This switch is used to switch the unit on and off. When the unit is on, the Power
Indicator LED (5) is lit.
5. Power Indicator
When the unit is on, this Power Indicator LED is lit.
6. Output Indicators
These LEDs indicate signal on their associated outputs.
7

PO-9106 Program Distributor
Rear Panel Controls
7. Line Input
Line-level input on balanced XLR connector.
8. Line Outputs 1-6
Line-level outputs on balanced XLR connectors.
9. DC Power Input
These terminals are provided for the connection of DC battery power. Connect a
24VDC battery source to these terminals. Make certain the red terminal is
connected to the battery’s positive (+) side, and the black terminal to the
battery’s negative (-) side.
10. AC Power Input
Connect a standard three-pin AC cable to this connector.
8

PO-9106 Program Distributor
Connections
• Connect a signal source such as the Inter-M EQ-9232 to the Line Inputs.
• Connect multiple outputs such as Inter-M PA-9312 and PA-9324 amplifiers to the Line
Outputs.
• Connect a DC power source such as the Inter-M PD-9212 to the DC Power Inputs.
9

PO-9106 Program Distributor
Specifications
ELECTRICAL
Channels 1Input,6Outputs
Frequency Response 20Hz-20kHz
T.H.D at 1kHz, Rated Output Less than 0.1%
Input Sensitivity/Impedance 1V/600ΩBalanced
Output Level/Impedance 1V/600ΩBalanced
Signal to Noise Ratio >75dB
GENERAL
PowerSource 100 –240VAC, 50/60Hz, 24VDC
Power Consumption 8W
Weight 4kg(8.8lbs)
Dimensions 482(W) x 44(H) x280(D) mm
19(W) x 1.75(H) x 11(D) in.
Specifications and design subject to change without notice for improvements.
