Inter-m PO-6106 User manual

Operation Manual
Program Distributor
PO-6106
* Rack mount products in the Western emisphere(North America, South America,
and the Caribbean) do not have handles installed due to customer preference.
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 1

PROGRAM DISTRIBUTOR
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!

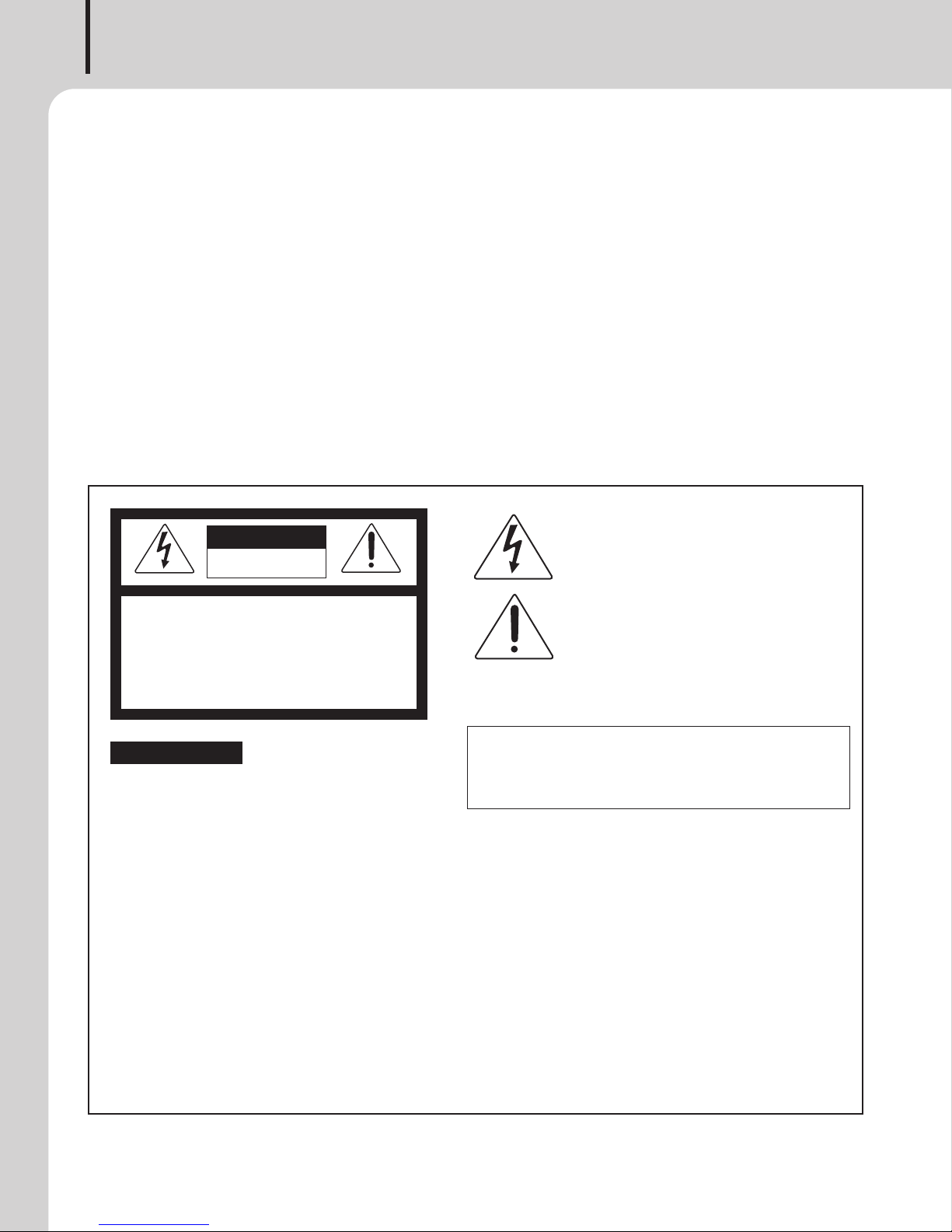

RISK OF ELEC RIC SHOCK
DO NO OPEN
CAUTION
CAU ION: O REDUCE HE RISK OF ELEC RIC SHOCK.
DO NO REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PAR S INSIDE.
REFER SERVICING O QUALIFIED SERVICE PERSONNEL.
WARNING
o prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PRO EC ION PLEASE READ HE FOLLOWING-WA ER AND MOIS URE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
* his apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
* his apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. o disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
* he socket-outlet shall be installed near the equipment and shall be easily accessible.
CAUTION
* hese servicing instructions are for use by qualified service personnel only. o reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*his equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. hese limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. his equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
his symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
his symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: o prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 2

PROGRAM DISTRIBUTOR
1
PO-6106
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features ...........................................................................................................................................3
Operation ........................................................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................5
Applications ....................................................................................................................................6
Block Diagram ................................................................................................................................7
Specifications ..................................................................................................................................8
Service............................................................................................................................................10
Procedures....................................................................................................................................10
Schematic.....................................................................................................................................10
Parts List .......................................................................................................................................10
Variations and Options...............................................................................................................10
Warranty .......................................................................................................................................10
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 3

PROGRAM DISTRIBUTOR
2PO-6106
Installation
Unpacking
Unpacking
Although your PO-6106 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPOR AN SAFE Y INS RUC IONS
1. Read these instructions.
2. Keep these instructions.
3. eed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A
S3125A
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 4

PROGRAM DISTRIBUTOR
3
PO-6106
Features
Features
- EASY O OPERA E
Distributes a single channel input to six outputs.
- EASY LEVEL ADJUS MEN
Front-panel input and output level adjustment.
- INPU MONI ORING
Input peak LED monitoring.
Operation
Operation
1. Make certain that speakers and input sources are properly connected before turns on.
2. Keep volume levels turned down before switching on.
※NOTE : The system’s operation is delayed by approximately three seconds after pressing the power switch.
This is due to the built-in protection circuitry, designed to protect the speakers and other system
components.
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 5

PROGRAM DISTRIBUTOR
4PO-6106
Front Panel
Front Panel
1. INPU PEAK INDICA OR
This LED lights to indicate the input level is too high.
2. OU PU INDICA ORS
These LEDs indicate signal on their associated outputs.
3. POWER INDICA OR
When the unit is on, this power indicator LED is lit.
4. INPU LEVEL CON ROL
This knob provides continuous control of the input level.
5. OU PU LEVEL CON ROL
This knob provides continuous control of the output level for each of the six outputs.
6. POWER SWI CH
This switch is used to turn the unit ON/OFF.
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 6

PROGRAM DISTRIBUTOR
5
PO-6106

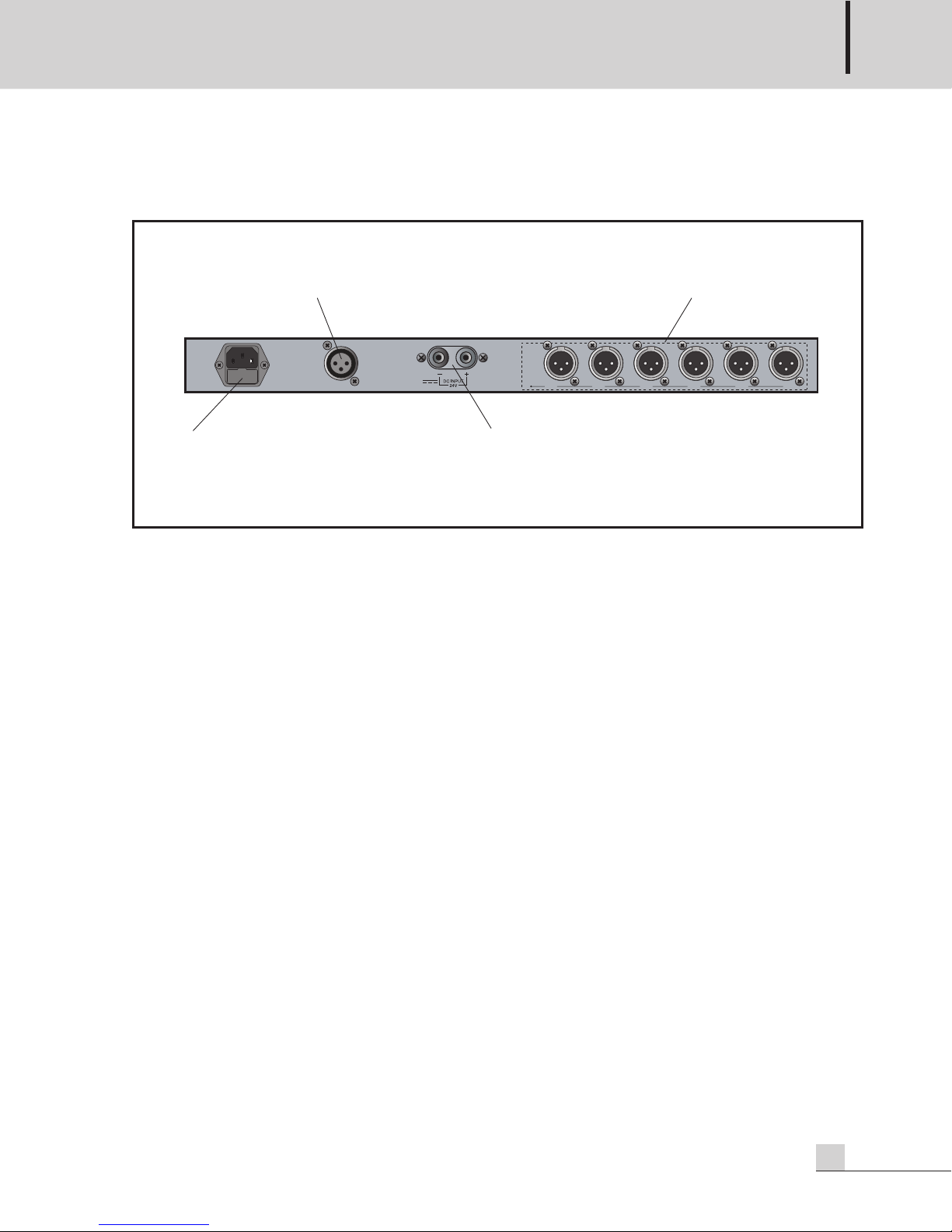

Rear Panel
Rear Panel
1. LINE INPU
Line-level input on balanced XLR connector.
2. LINE OU PU S 1-6
Line-level outputs on balanced XLR connector.
3. AC POWER INPU
Connect a standard three-pin AC cable to this connector.
4. DC POWER INPU
These terminals are provided for the connection of DC battery power. Connect a 24V DC battery source to
these terminals. Make certain the red terminal is connected to the battery’s positive (+) side, and the black
terminal to the battery’s negative (-) side.
INPUT
12
CH 1
OUTPUT CH 2CH 3CH 4CH 5CH 6
43
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 7

PROGRAM DISTRIBUTOR
6PO-6106
Applications
Applications
INPUT CH 1
OUTPUT CH 2CH 3CH 4CH 5CH 6
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 8

PROGRAM DISTRIBUTOR
7
PO-6106
Block Diagram
Block Diagram
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 9

PROGRAM DISTRIBUTOR
8PO-6106
PO-6106
Channels 1 Input, 6 Outputs
Frequency Response 20 z-20k z (±3dB)
T D at 1k z, Rated Output Less than 0.1%
Input Sensitivity 1V ±0.2V Balanced
Output Level 3V ±0.5V Balanced
S/N Better than 70dB
Residual Noise Less than -95dB
Operating Temperature -10°C ~ +40°C / 14°F ~ 104°F
Power Source 100–120VAC or 220–240VAC; 50/60 z, DC 24V
(Supplied AC main transformer depends on country requirements)
Power Consumption 8W
Weight (SET) 4kg/8.8lb
Dimensions (SET) 482(W)x44( )x280(D)mm/19(W)x1.7( )x11(D)in
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
Specifications
Specifications
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 10

PROGRAM DISTRIBUTOR
9
PO-6106

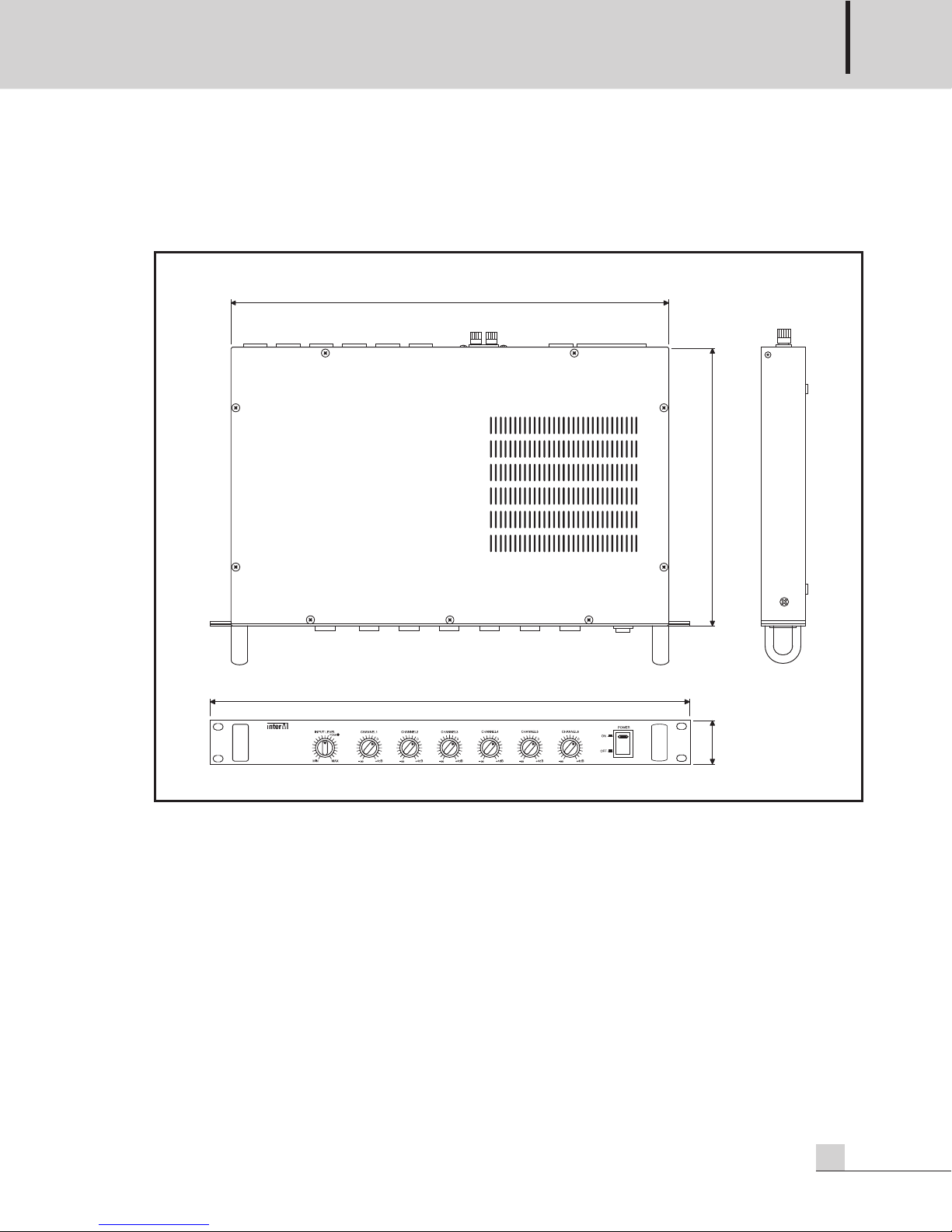

※ DIMENSIONS
440
482
28044
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 11

PROGRAM DISTRIBUTOR
10 PO-6106
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
Variations and Options
Variations and Options
Variations
Variations of this product exist to reflect the variations in AC power requirements throughout the world. Product
supplied through local sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 12

13
PO-6106
NOTE
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 13

2PO-6106
NOTE
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 14

3
PO-6106
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 15

MADE IN KOREA
November 2017
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
ome Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
ome Page : http://www.inter-m.com, E-mail : [email protected]
PO-6106_MANUAL_FOR.qxp_PO-6106_E 2017. 11. 13. 오후 1:39 페이지 16
