Inter-m IP-1000AB User manual

Operation
Manual
IP-1000AB IP AUDIO BRIDGE

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of elec-
tric shock to persons.
This symbol is intended to alert the user to the presence of im-
portant operation and maintenance (servicing) instructions in
the literature accompanying the appliance.
Caution: These servicing instructions are for use by qualified service person-
nel only. To reduce the risk of electric shock, do not any perform
any servicing other than that contained in the operating instructions
unless you are qualified to do so.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette fiche
polarisée avec un prolongateur, une prise de courant on une
autre sortie de courant, sauf si les lames peuvent étre insérées
à fond sans en laisser aucune partie à découvert.
Warning
*Do not install this equipment in a confined space such as a book case or
similar unit.
*The apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such vases, shall be placed on the apparatus.
*Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE
FOLLOWING-WATER AND MOISTURE: Unit should not be used near
water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc). Care should be taken so than
objects do not fall and liquids are not spilled into the enclosure through
openings.”
NOTE : This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a com-
mercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in ac-
cordance with the instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
* It can be heated up if you use this product in closed box or ill-ventilated place.

Contents
Welcome .............................................................................2
Unpacking ...........................................................................2
Installation
Environment.........................................................................3
Important Safety Instructions ...............................................3
Features ..............................................................................5
Contents and Accessories ..................................................5
Part Names and Function ...................................................6
Connection ........................................................................10
Specification......................................................................11
Service
Procedures ........................................................................12
Schematic ..........................................................................12
Parts List............................................................................12
Warranty ...............................................................................12

2
IP-1000AB (IP AUDIO BRIDGE)
2
Unpacking
Please take a few minutes to read this manual to famil-
iarize yourself with important information regarding in-
stallation, product features, and operation.
As with most electronic devices, ORIGINAL PACKAG-
ING (OR EQUAL) IS REQUIRED in the unlikely event
that the product needs to be returned for servicing.
Welcome
A personal welcome to you from the management
and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to
providing excellent products with inherently good
value, and we are delighted you have purchased
one of our products.
We sincerely trust this product will provide years
of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make
things right.
Welcome to Inter-M, and thank you for becoming
part of our worldwide extended family!

3
IP-1000AB (IP AUDIO BRIDGE)
3
Installation
Environment
Never place this product in an environment which
could alter its performance or reduce its service life.
Such environments usually include high levels of heat,
dust, moisture, and vibration.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radia-
tors, heat registers, stoves, or other apparatus (in-
cluding amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replace-
ment of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recep-
tacles, and the point where they exit from the ap-
paratus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the ap-
paratus. When a cart is used, use
caution when moving the cart/ap-
S3125A

4
IP-1000AB (IP AUDIO BRIDGE)
4
paratus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
- AVOID EXCESSIVE HEAT, HUMIDITY, DUST AND VI-
BRATION
Keep the unit away from locations where it is likely to
be exposed to high temperatures or humidity-such as
near radiators, stoves, etc. Also avoid locations which
are subject to excessive dust accumulation, or to vi-
bration that could cause mechanical damage.
- AVOID PHYSICAL SHOCKS
Strong physical shocks to the unit may cause damage.
Handle the unit with care.
- DO NOT OPEN THE CASE OR ATTEMPT REPAIRS
OR MODIFICATIONS YOURSELF
This product contains no user-serviceable parts. Refer
all maintenance to qualified Inter-M service personnel.
Opening the case and/or tampering with internal cir-
cuitry voids the warranty.
- ALWAYS POWER OFF BEFORE MAKING CONNECTIONS
Always turn the AC mains OFF before connecting or
disconnecting cables. This is important to prevent dam-
age to the unit itself as well as other connected equip-
ment.
- HANDLE CABLES CAREFULLY
Always plug and unplug cables (including the AC
mains power cord) by gripping the connector, not the
cord.
- CLEAN WITH A SOFT DRY CLOTH
Never use solvents such as benzine or paint thinner to
clean the unit. Wipe clean with a soft, dry cloth.

5
IP-1000AB (IP AUDIO BRIDGE)
5
Features
■
■POE (IEEE 802.3AF TYPE1 CLASS0)
■
■DC POWER INPUT (MIN: 8V, MAX: 28V)
■
■1CH BALANCED LINE INPUT
■
■WAV, MP3 FILE STREAMING
■
■CONTACT I/O
■
■10/100 BASE-T ETHERNET (DEFAULT IP : 192.168.1.99)
■
■MICRO SD MAX. 32GB
■
■1GB USER INTERNAL MEMORY
■
■DEVICE CONTROL THROUGH WEB GUI
1. IP-1000AB x 1EA
2. Product manual x 1EA
3. 3.5mm 4P Euro Block x 1EA
4. 3.5mm 3P Euro Block x 1EA
5. 5.08mm 2P Euro Block x 1EA
Contents and Accessories

6
IP-1000AB (IP AUDIO BRIDGE)
6

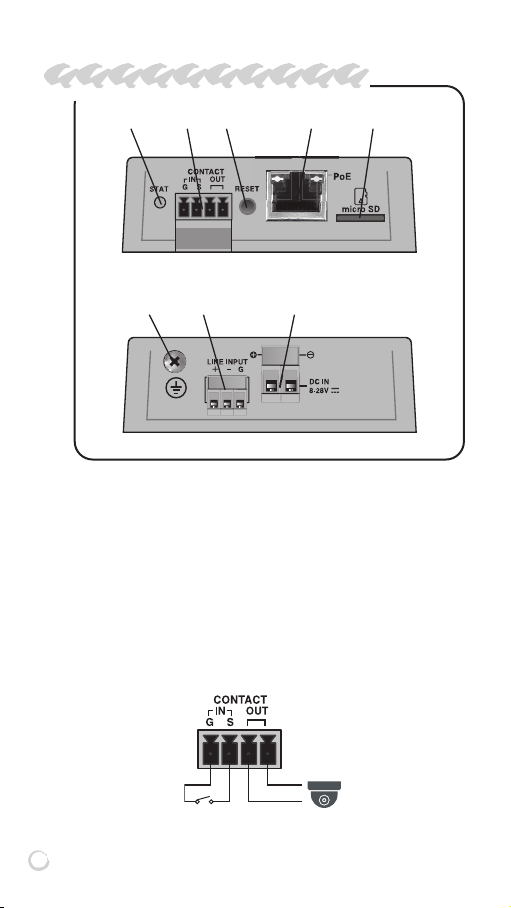

1 2 3 45
867
1. Status LED
This is the LED to indicate the operating status of the device.
When the device is operating normally, the green LED flickers
at about 0.5 second intervals, and flickers rapidly when factory
reset is in progress.
2. Contact I/O Terminal
Contact input: This is the DRY CONTACT input terminal.
Contact output : DRY CONTACT output terminal.
(N.O : Normally Open)
Part Names and Function
GND SIG IP CAM, ect.

7
IP-1000AB (IP AUDIO BRIDGE)
7
3. Factory Reset Switch
This is the factory reset switch for your equipment.
If you hold down the switch for more than 20 seconds, the
STATUS LED blinks rapidly and initialization proceeds.
※Keep the power on until normal operation (blinking at 0.5
second intervals). If the power is removed before initializa-
tion is complete, it may cause a malfunction.
4. Ethernet Connection Terminal (RJ-45, PoE)
Connect with a network equipment that supports Power over
Ethernet (PoE).
Default IP address (static): 192.168.1.99
※When connecting equipment that does not support PoE, a
separate DC power must be connected to operate the
equipment.
※The specification of the LAN cable is 0.15Ω/m cable, and the
maximum length is 100m. The total DC resistance value of
the LAN cable must be 15Ωor less.
※It is recommended to use STP Cable.
- GREEN LED : Lights up when operating at 100Mbps.
- YELLOW LED : Lights up when Ethernet is normally con-
nected and flickers during data communication.
GREEN
18
YELLOW

8
IP-1000AB (IP AUDIO BRIDGE)
5. Micro SD Slot
This is the terminal to mount the Micro SD memory.
(MAX: 32GB)
6.Ground Terminal
This terminal is used for equipment grounding.
※Make the ground connection as short as possible.
7. Audio Input Terminal
This is the terminal to receive balanced audio signals.
(Max. input level: +6dBV, 2Vrms)
8. DC Power input terminal
This is the terminal to receive DC power. (Min: 8V, Max: 28V)
8
PIN NO DATA POWER
MODE A MODE B
1 TX+ DC+ -
2 TX- DC+ -
3 RX+ DC- -
4 NC - DC+
5 NC - DC+
6 RX- DC- -
7 NC - DC-
8 NC - DC-
UTP
8181
[ TOP VIEW ]
DIRECT
[ CABLE COLOR ORDER ]
[ FRONT VIEW ]
8.Brown
7.W/Brown
6.Green
5.W/Blue
4.Blue
3.W
/
Green3.W/Green
2.Orange
1.W/Orange

9
IP-1000AB (IP AUDIO BRIDGE)
9
※Please connect correctly after checking (+) and (-).
※In case of using a power supply that does not meet the prod-
uct specifications, it may cause malfunction or breakdown.
※If PoE and DC power are applied at the same time, DC power
is cut off and operates by PoE.

10
IP-1000AB (IP AUDIO BRIDGE)
PC(WEB)
AUDIO SOURCE
PoE SWITCH
IP-1000AB
IP-1015BX
SPEAKER
IP CAM, etc.
IP-1000AB
Audio(Line)
Audio(Amp Out)
Contact
Network
Connection

IP-1000AB
Audio Input
Maximum Input Level
(Balanced) +6dBV (2Vrms)
Frequency Response 20Hz ~ 20kHz (±3dB)
THD (@ +0dBV 1kHz Sine
Wave In, IP-1015BX LINE
OUTPUT, AES17 20kHz LPF)
≤0.05%
S/N (@ +6dBV 1kHz Sine
WaveIn, IP-1015BX LINE
OUTPUT, AES17 20kHz LPF,
A-WTD)
≥92dB
Contact I/O
Contact Input (1CH) Dry Contact
Contact Output (1CH) Dry Contact(N.O : Normally Open)
Storage
Internal Storage 1GB
Micro SD Up to 32GB (SDHC)
Network
Ethernet 10/100 BASE-TX PoE
Connectors Ethernet Jack (RJ-45)
Power PoE (IEEE 802.3af) or
DC Min: 8V, Max: 28V
Operating temperature -20℃~ +50℃
Power consumption
PoE (IEEE 802.3af): 44~57 VDC,
Max 90mA, DC: 8~28V,
Max 320mA
Weight(Set) 0.24kg
Dimensions(Set) 123(W) x 80(H) x 30.6(D) mm
11
IP-1000AB (IP AUDIO BRIDGE)
Specification
* Design and specification are subject to be changed for the improvement
of product quality without pre notice.

12
IP-1000AB (IP AUDIO BRIDGE)
Service
Procedures
Ensure the problem is not related to operator error, or ex-
ternal system devices, Once it is certain that the problem
is related to the product contact your warranty provider as
described in the warranty section of this manual.
Schematic
A Schematic is available by contacting your warranty
provider.
Parts List
A Parts List is available by contacting your warranty
provider.
Warranty
Warranty terms and conditions vary by country and may not
be the same for all products. Terms and conditions of war-
ranty for a given product may be determined first by locating
the appropriate country which the product was purchased
in, then by locating the product type.
To obtain specific warranty information and available serv-
ice locations contact Inter-M directly or the authorized Inter-
M Distributor for your specific country or region.

MADE IN KOREA
August 2023 158418
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
INTER-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
