Operation Manual
Set-top Box
SB-300HD

SET-TOP BOX
Welcome
Welcome
A personal welcome to you rom the management and employees o Inter-M
All of the co-workers here at Inter-M are e icate to provi ing excellent pro ucts with inherently goo value,
an we are elighte you have purchase one of our pro ucts.
We sincerely trust this pro uct will provi e years of satisfactory service, but if anything is not to your complete
satisfaction, we will en eavor to make things right.
Welcome to Inter-M, an thank you for becoming part of our worl wi e exten e family!
RISK OF ELEC RIC SHOCK
DO NO OPEN
CAutION
CAU ION: O REDUCE HE RISK OF ELEC RIC SHOCK.
DO NO REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PAR S INSIDE.
REFER SERVICING O QUALIFIED SERVICE PERSONNEL.
WARNING
o prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PRO EC ION PLEASE READ HE FOLLOWING-WA ER AND MOIS URE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
* his apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
* his apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. o disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
CAutION
* hese servicing instructions are for use by qualified service personnel only. o reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOtE
*his equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. hese limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. his equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
his symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
his symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: o prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.

SET-TOP BOX
1
SB-300HD
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................5
Applications ....................................................................................................................................6
How to Use the Remote Controller..............................................................................................7
Block Diagram ................................................................................................................................8
Speci ications ..................................................................................................................................9
Service............................................................................................................................................11
Variations and Options ...............................................................................................................11
Warranty .......................................................................................................................................11

SET-TOP BOX
2SB-300HD
Installation
Unpacking
Unpacking
Although your SB-300HD is neither complicate nor ifficult to operate, we recommen you take a few minutes
to rea this brief manual an familiarize yourself with the important information regar ing pro uct features,
setup an operation.
As with most electronic evices, we strongly recommen you to retain the original packaging. In the unlikely
event the pro uct must be returne for servicing, the original packaging (or reasonable equivalent) is require .
Installation
Environment
Never place this pro uct in an environment which coul alter its performance or re uce its service life. Such
environments usually inclu e high levels of heat, ust, moisture, an vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Rea these instructions.
2. Keep these instructions.
3. Hee all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with ry cloth.
7. Do not block any ventilation openings. Install in accor ance with the manufacturer’s instructions.
8. Do not install near any heat sources such as ra iators, heat registers, stoves, or other apparatus (inclu ing
amplifiers) that pro uce heat.
9. Do not efeat the safety purpose of the polarize or groun ing-type plug. A polarize plug has two bla es
with one wi er than the other. A groun ing type plug has two bla es an a thir groun ing prong. The wi e
bla e or the thir prong are provi e for your safety. If the provi e plug oes not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cor from being walke on or pinche particularly at plugs, convenience receptacles, an
the point where they exit from the apparatus.
11. Only use attachments/accessories specifie by the manufacturer.
12. Use only with the cart, stan , tripo , bracket, or table specifie by the manufacturer, or sol with the apparatus.
When a cart is use , use caution when moving the cart/apparatus combination to avoi injury from tip-over.
13. Unplug this apparatus uring lightning storms or when unuse for long perio s of time.
14. Refer all servicing to qualifie service personnel. Servicing is require when the apparatus has been
amage in any way, such as power-supply cor or plug is amage , liqui has
been spille or objects have fallen into the apparatus, the apparatus has been
expose to rain or moisture, oes not operate normally, or has been roppe .
S3125A

SET-TOP BOX
3
SB-300HD
Features
Features
It is the device which decodes the A/V HD and SD streams through network.
- Built-In 30W Ampli ier (Le t: 15W, Right: 15W)
- Equipped with 1G Switching Hub
1G 8 ports switching hub is installed to provide the LAN services o other devices
- Provide A/V Decoding Function
With A/V decoding unction, it provides SD and HD class audio and video
- Provide MIC Input
One MIC Input can be installed
- Equipped with A/V encoding unction or the up-broadcasting services
It receives the A/V in the client zone and sends the streams

SET-TOP BOX
4SB-300HD
Front Panel
Front Panel
1. LED DISPLAY
Display the set power, broa casting status an network transferring status.
※NETWORK LED
Single LED : 1Gbps
Double LED : 100Mbps
※VIDEO LED
LED ON : status which up-broa casting is available
LED OFF : status which up-broa casting is unavailable
2. MIC INPUT
XLR Jack which connects the ynamic MIC.
3. MIC VOLUME
Controls the MIC volume.
4. USB INPUT
Insert the USB memory to play the vi eo an MP3 files.
5. VIDEO INPUT
RCA Jack which receives the vi eo signal, stereo au io signal of the component.
(It is connecte to DVD, blue ray an camcor er, etc.)
1
23 4 5

SET-TOP BOX
5
SB-300HD
Rear Panel
Rear Panel
1. INSERT THE DC 15V/4.A POWER
Terminal which power is supplie from DC +15V/4A a apters.
2. EXTERNAL AMP INPUT
Use when connecting 100V common PA speaker lines (Emergency broa casting is available even power is OFF)
3. SPEAKER OUT TERMINAL
It is total 30W amp output terminal for each of 15W as stereo output.
※ CAUTION : please connect it that impe ance of speaker terminal is not lower than 666Ω.
4. SPEAKER OUTPUT VOLUME
Speaker output volume control is possible.
5. LINE OUT
Connects to external power AMP with 0 B output.
6. S-VIDEO OUT
S-vi eo output terminal.
7. A/V OUTPUT TERMINAL
Vi eo component output an au io stereo output terminals.
8. COMPONENT OUTPUT TERMINAL
It is connecte to component input of TV by using Y/Pb/Pr an can be connecte to the monitor which supports
the other components.
9. RJ-45 ETHERNET PORT
8 ports supports 10M/100M/1G through category 5/6 cables an consist of one WAN port an 7 LAN
ports. LAN port can be connecte to Ethernet interface evice such as notebook an IP-phone.
12 3 4 5 6 7
98

SET-TOP BOX
6SB-300HD
Applications
Applications

SET-TOP BOX
7
SB-300HD
How to Use the Remote Controller
How to Use the Remote Controller
1. PLAYING VIDEOS
2. PLAYING MP3S
3. CONTROLLING VOLUMES
※Passwor : 1111 (Volume can be controlle only if passwor is applie .)
Possible to play the USB vi eo an control the volume
STOP
Change the Channels
1~8ch, Stop : 0
Select Key
Use this button when
playing MP3/Vi eo
Volume UP/Down Key
MENU KEY : If USB memory
is inserte , the list will be
isplaye on the screen.
➞➞➞
➞
➞
➞➞ ➞
Volume up
Volume Down Insert the passwor : cancel typing passwor

SET-TOP BOX
8SB-300HD

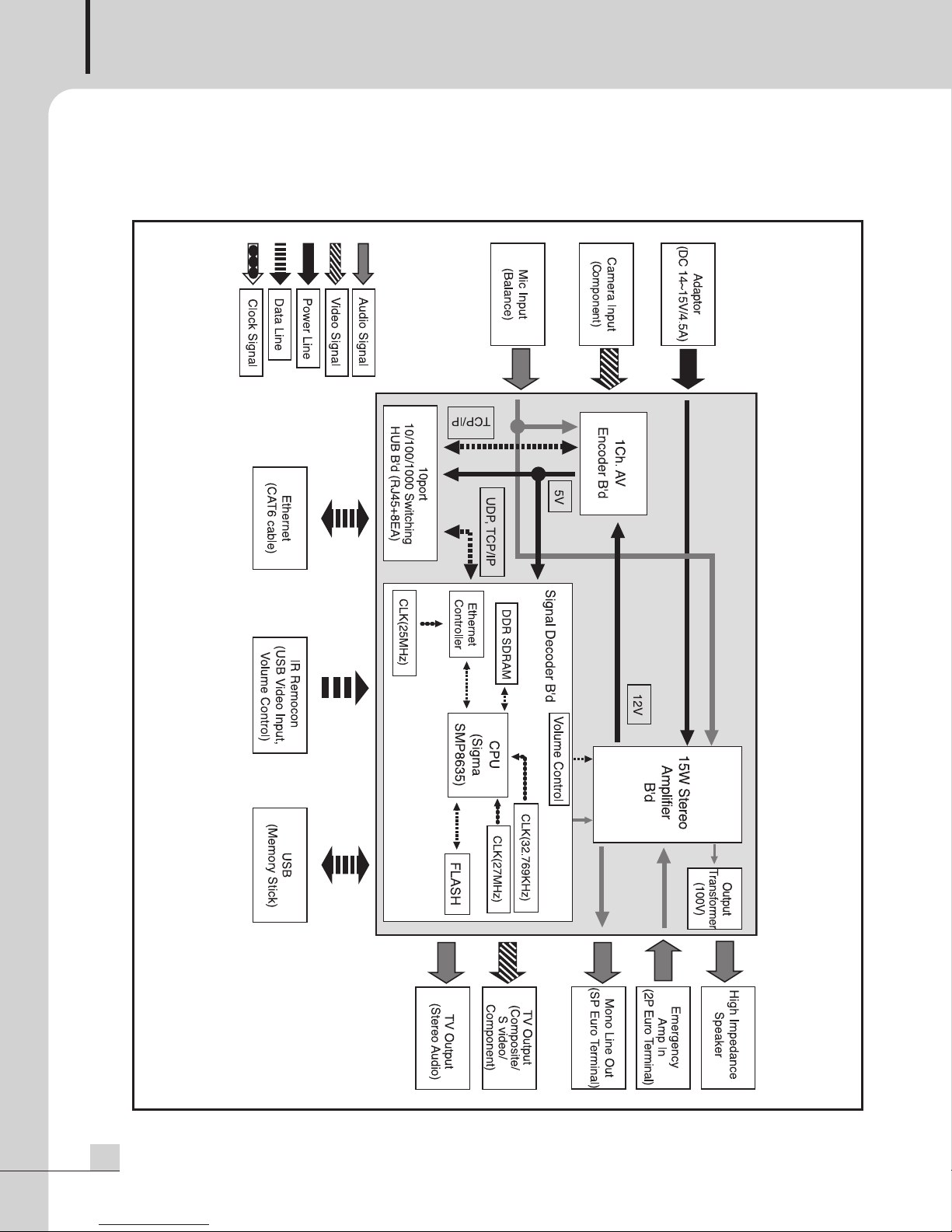

Block Diagram
Block Diagram

SET-TOP BOX
9
SB-300HD
Speci ications
Speci ications
SB-300HD
Network Interface
Control format UDP
Cable Type CAT5 or CAT6
1GigaBit HUB 8Port 10/100/1000Mbps
Vi eo
Vi eo Output CVBS, Component(Y,Pb,Pr), S-Vi eo
Vi eo Input Component(Y,Pb,Pr)
USB Input 1EA(USB 2.0)
Au io
MIC input (XLR @1kHz, 660Ω, Loa Output) Left : 15W, Right : 15W
Signal to Noise Ratio (-55 B, 20kHz, LPF, A-WTD) > 55 B
Line OUT (Euro 3p terminal) 0 B±3 B
Operating Temperature -10°C ~ +40°C
Power Source DC 15V, 4A
Weight (SET) 5.8kg / 12.8lb
Dimensions (SET) 406(W) x 483(H) x 52(D)mm / 16(W) x 19(H) x 2(D)in
* Specifications an esign subject to change without notice.

SET-TOP BOX
10 SB-300HD
※ DIMENSIONS
52406
406
483

SET-TOP BOX
11
SB-300HD
Service
Service
Procedures
Take steps to insure the problem is not relate to operator error or other pro ucts within the system. Once it is
certain that the problem is relate to the pro uct, contact your warranty provi er as escribe in the warranty
section of this manual.
Warranty
Warranty
Warranty terms an con itions vary by country an may not be the same for all pro ucts. Terms an con itions
of warranty for a given pro uct may be etermine first by locating the appropriate country which the pro uct
was purchase in, then by locating the pro uct type.
To obtain specific warranty information an available service locations, contact Inter-M irectly or the
authorize Inter-M Distributor for your specific country or region.
Variations and Options
Variations and Options
Variations
Variations of this pro uct exist to reflect the variations in AC power requirements throughout the worl . Pro uct
supplie through local sources are compatible with local AC power requirements.
Options
No optional items are available for this pro uct.

NOTE

MADE IN KOREA
March 2012 130713
