700 Series Monochrome Mobile Computer Quick Start Guide
2
Thank you for purchasing Inter-
mec’s 700 Series Monochrome Mobile
Computer. This Mobile Compuer is useful
in a variety of applications. Its integrated
peripherals and rugged design ensure re-
liable service for years to come.
This guide provides information needed to
get started using your 700 Monochrome.
For details on application development
and software configuration of the 700
Monochrome, consult the 700 Mono-
chrome Software Tools CD--ROM (p/n:
235-045-001) or the Intermec web site
http://www.intermec.com/developersup-
port.
The hardware configuration of your 700
Mobile Computer may differ from the de-
scriptions in this guide. Depending on op-
tions selected, your unit might not be
equipped with a radio or scanner.
The software operation descriptions are
based on factory defaults. Your 700 Mobile
Computer might be shipped pre-pro-
grammed with application software that
causes your 700 Monochrome to operate
differently than described in this docu-
ment.

700 Series Monochrome Mobile Computer Quick Start Guide
3
Table of Contents
700 Series Monochrome Mobile
Computer Description 4.....
700 Monochrome Features 6.................
Learning About the Keypad
Functions 6.................
Gold Plane Keys 6..........................
Alpha (Blue) Plane Keys 7....................
Scanning/Keypad Shift and
Notification Light 7.......................
Battery Status Light 8........................
Setting up your 700 Monochrome
Mobile Computer 9..........
Model 720 Mobile Computer with WWAN 10....
About Microsoft Pocket PC 2002 12.
The Today Screen 13...............
Navigation Bar and Command Bar 14..........
Pop-up Menus 14...........................
Entering Information 15............
Setting the Time and Date 16.......
Ownership Registration 17.........
Battery Management 18............
Synchronizing with Your Desktop 19
Checking Your Scanning Options 20
Checking Your Network Options 22.
Cleaning Your Mobile Computer 23..
Case and Display 23.........................
If Your Mobile Computer Gets Wet 23..........
Troubleshooting 24................
Cold Booting your 700 Monochrome 25.........
Warm Booting your 700 Monochrome 26.......
Where to Find More Information 27..
End User License Agreement 28....
Intermec Technologies Corporation
End User License
Agreement 32...............
Product Warranty 33...............
Conditions of warranty 33.....................

700 Series Monochrome Mobile Computer Quick Start Guide
4
700 Series Monochrome
Mobile Computer Description
Front View
Backlight
(Gold + 3)
Gold plane
key
ON/OFF
Contrast
(Gold + 1 or 2)
Navigational
key
Scanning/
Alpha LED
Power
Status
Alpha (Blue)
plane key
Battery
compartment
Speaker
Stylus
IrDA
Back View

700 Series Monochrome Mobile Computer Quick Start Guide
5

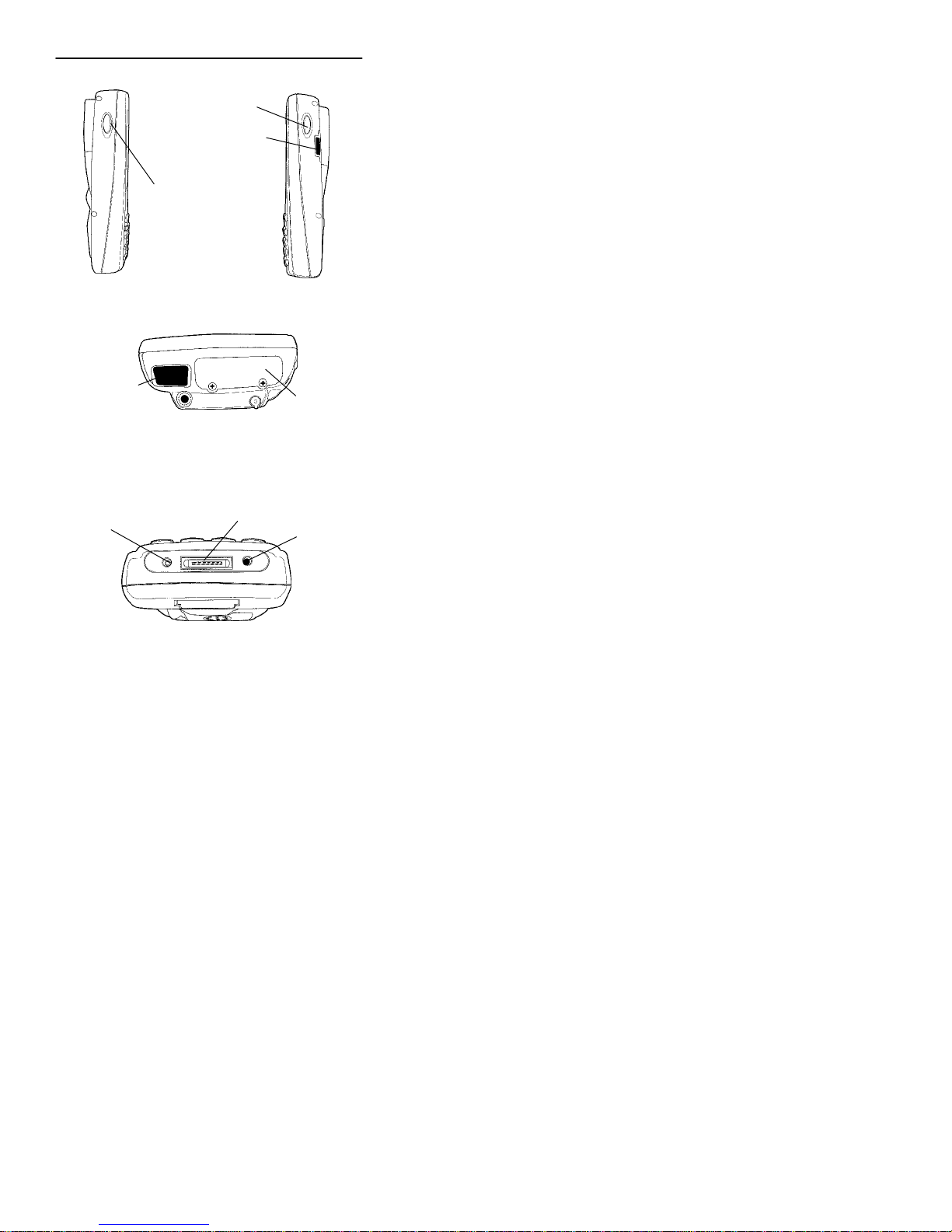

Right Side View
Top View
Bottom View
Charger jack Headset
jack
Left Side View
Scanner trigger
Scanner trigger or
Recorder button left
side of unit
IrDA
Scanner lens CompactFlash
card slot
Docking connector

700 Series Monochrome Mobile Computer Quick Start Guide
6

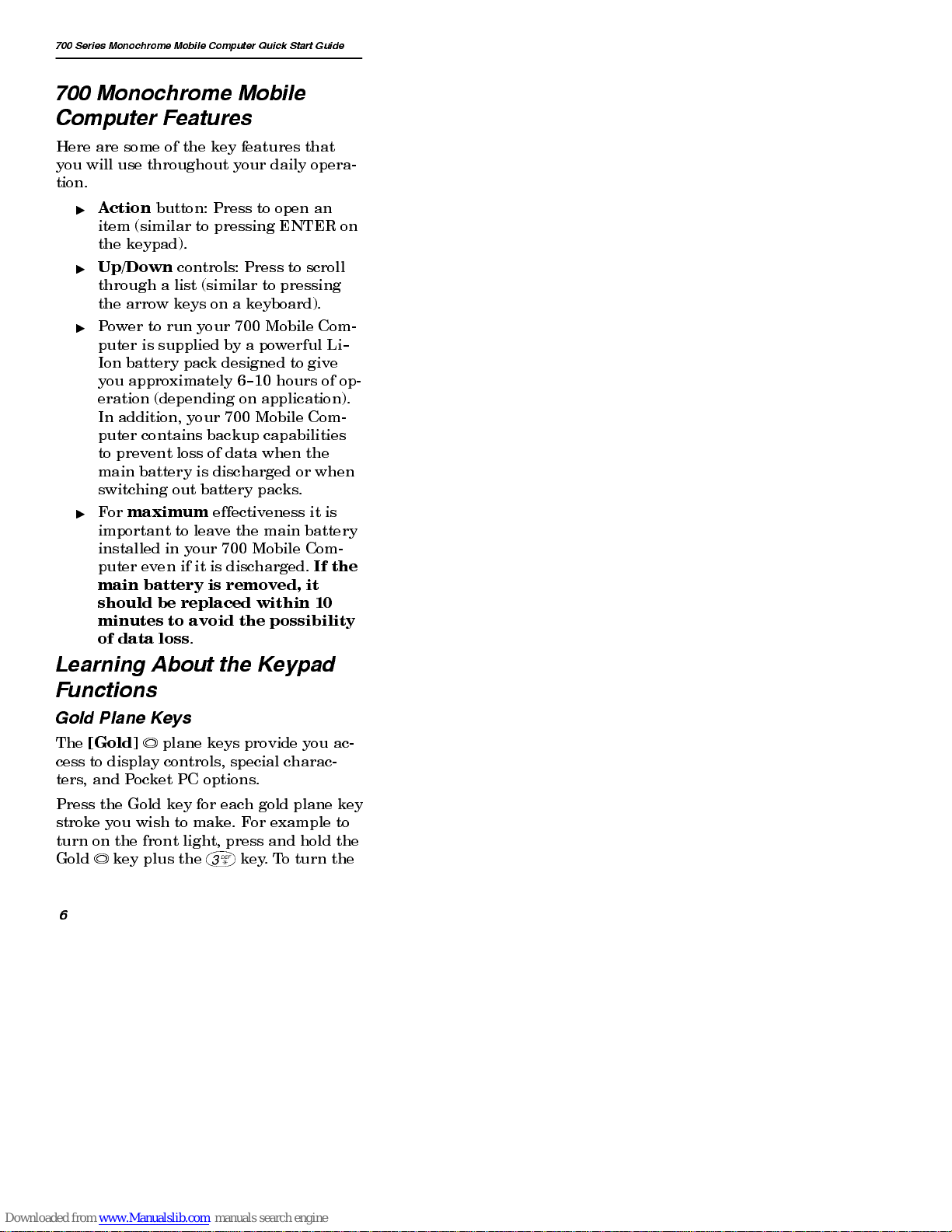

700 Monochrome Mobile
Computer Features
Here are some of the key features that
you will use throughout your daily opera-
tion.
" Action button: Press to open an
item (similar to pressing ENTER on
the keypad).
" Up/Down controls: Press to scroll
through a list (similar to pressing
the arrow keys on a keyboard).
" Power to run your 700 Mobile Com-
puter is supplied by a powerful Li--
Ion battery pack designed to give
you approximately 6--10 hours of op-
eration (depending on application).
In addition, your 700 Mobile Com-
puter contains backup capabilities
to prevent loss of data when the
main battery is discharged or when
switching out battery packs.
" For maximum effectiveness it is
important to leave the main battery
installed in your 700 Mobile Com-
puter even if it is discharged. If the
main battery is removed, it
should be replaced within 10
minutes to avoid the possibility
of data loss .
Learning About the Keypad
Functions
Gold Plane Keys
The [Gold] b plane keys provide you ac-
cess to display controls, special charac-
ters, and Pocket PC options.
Press the Gold key for each gold plane key
stroke you wish to make. For example to
turn on the front light, press and hold the
Gold b key plus the 3 key. To turn the

700 Series Monochrome Mobile Computer Quick Start Guide
7
front light off press the Gold b and the
3 key again.

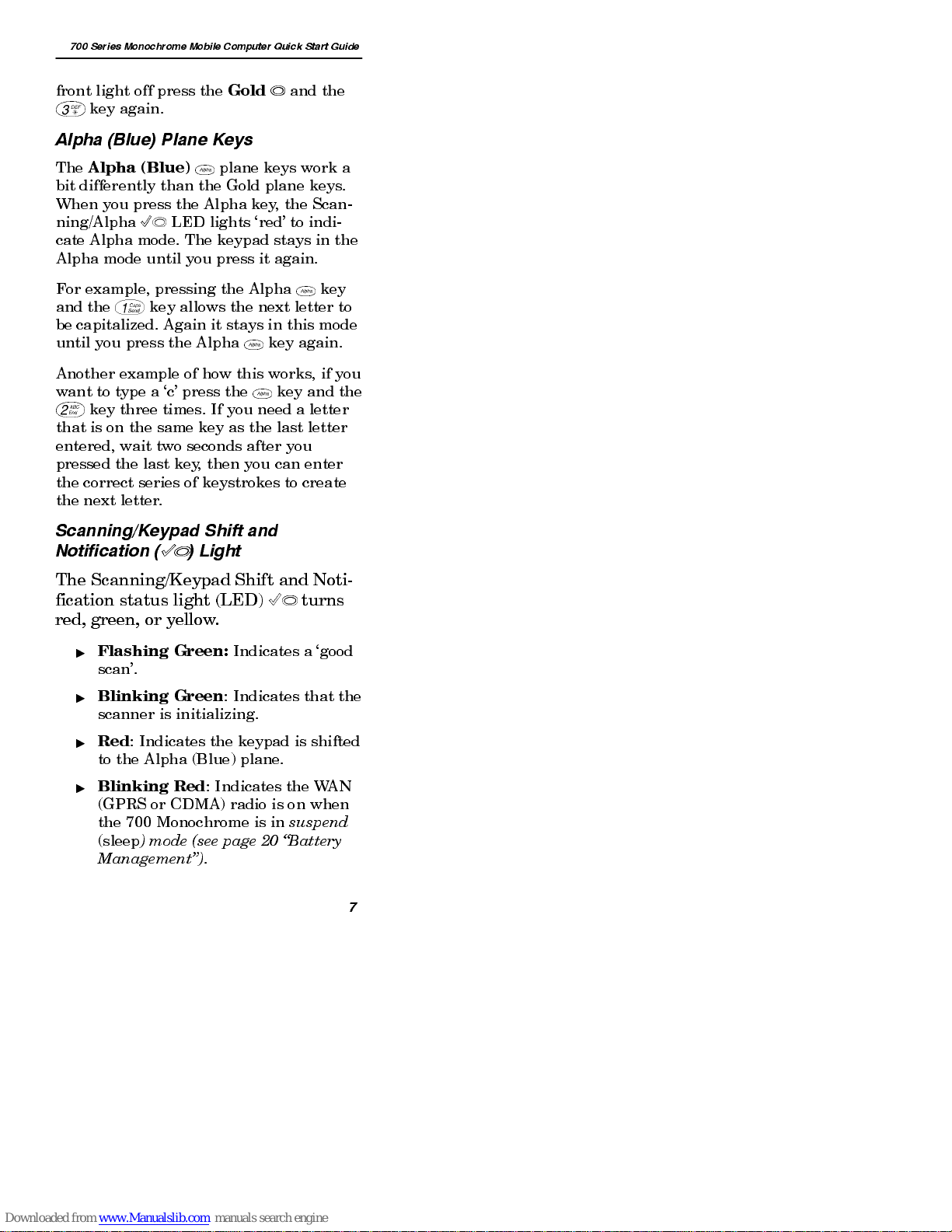

Alpha (Blue) Plane Keys
The Alpha (Blue) F plane keys work a
bit differently than the Gold plane keys.
When you press the Alpha key, the Scan-
ning/Alpha C LED lights ‘red’ to indi-
cate Alpha mode. The keypad stays in the
Alpha mode until you press it again.
For example, pressing the Alpha F key
and the 1 key allows the next letter to
be capitalized. Again it stays in this mode
until you press the Alpha F key again.
Another example of how this works, if you
want to type a ‘c’ press the F key and the
2 key three times. If you need a letter
that is on the same key as the last letter
entered, wait two seconds after you
pressed the last key, then you can enter
the correct series of keystrokes to create
the next letter.
Scanning/Keypad Shift and
Notification ( C ) Light
The Scanning/Keypad Shift and Noti-
fication status light (LED) C turns
red, green, or yellow.
" Flashing Green: Indicates a ‘good
scan’.
" Blinking Green : Indicates that the
scanner is initializing.
" Red : Indicates the keypad is shifted
to the Alpha (Blue) plane.
" Blinking Red : Indicates the WAN
(GPRS or CDMA) radio is on when
the 700 Monochrome is in suspend
(sleep ) mode (see page 20 “Battery
Management”) .

700 Series Monochrome Mobile Computer Quick Start Guide
8
"Yellow: When the keypad is put
into the Alpha mode, the LED mo-
mentarily changes from red to yel-
low to indicate a ‘good scan’.
This LED is also the Pocket PC No-
tification signal. It blinks yellow at
regular intervals to indicate that a
Calendar or Task activity occurred.
Battery Status Light
The Battery status light (LED) Bturns
red, green, or yellow.
"Green: When connected to an ex-
ternal power source and the battery
is more than 95% charged.
"Blinking Red: Battery is low. The
speed of the blinking increases as
the battery’s power gets increasing-
ly lower.
"Red: Remains red until the battery
reaches 95% charge level.
"Yellow: No battery pack in your 700
Monochrome. Can also mean that
your 700 Monochrome is out of
charging range 32°to 122°F(0°to
50°C). Once your 700 Monochrome
gets back in range, charging re-
sumes.
"Alternating between Red and
Yellow: The battery pack needs re-
placing.

700 Series Monochrome Mobile Computer Quick Start Guide
9
Setting up your 700
Monochrome Mobile
Computer
1. Remove 700 Monochrome Mobile
Computer from the packaging.
2. Release hand strap.
Hand strap clip-in slot
Battery pack
1Unclip Hand Strap and move
Hand Strap out of the way.
Remove Battery Pack and insert new
or fresh pack. Replace Hand Strap
when done.
2
3. Install battery and reattach hand
strap.

700 Series Monochrome Mobile Computer Quick Start Guide
10

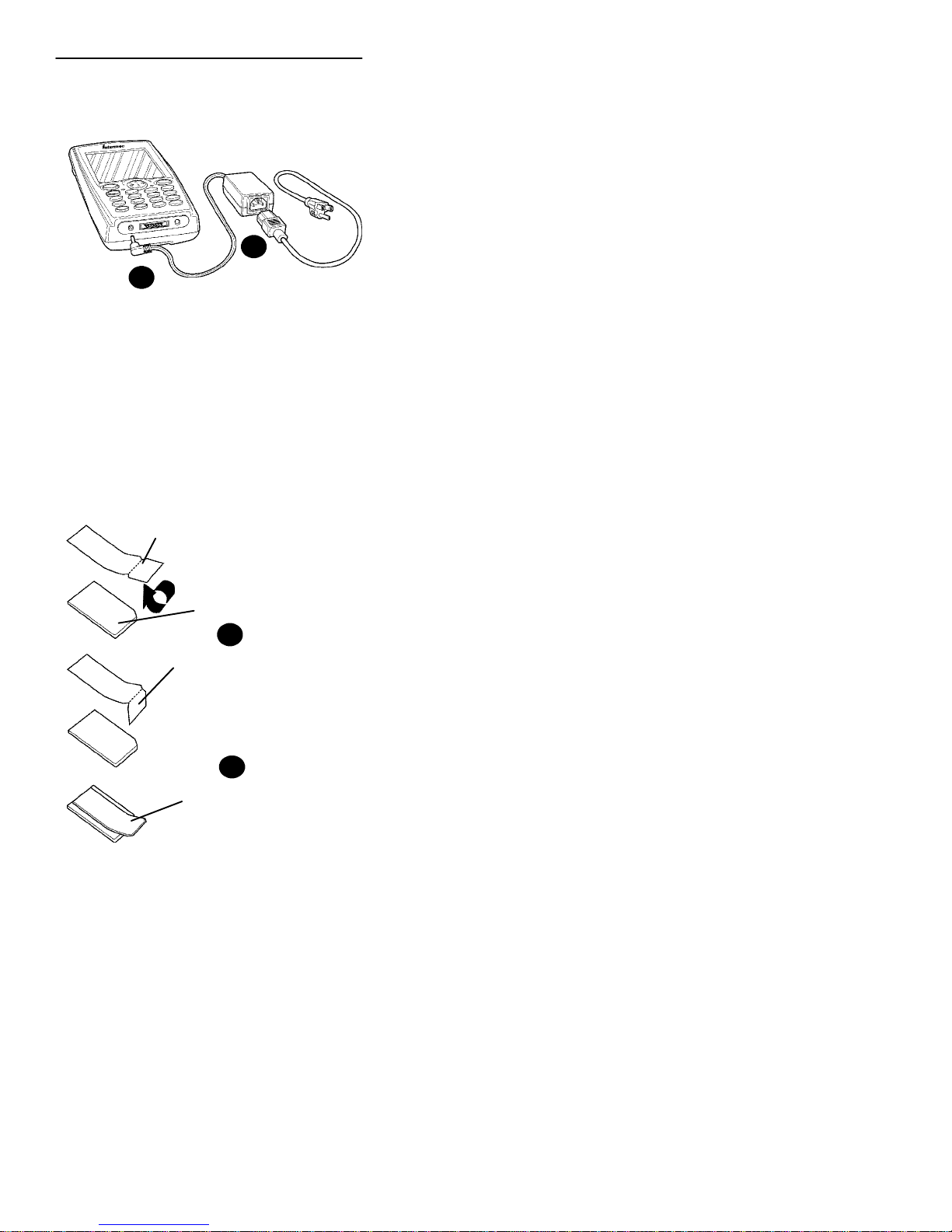

4. Connect to AC adapter or 700 Single
Dock.
4a
4b
5. Charge battery pack (4 hours) be-
fore using.
Steps 6, 7, and 8 are for 720 Mobile
Computers with WWAN (Wireless
Wide Area Networking) Radios. If this
doesn’t apply to you, skip to Step 9.
6. Install acrylic adhesive pull tabs on
SIM cards.
Split paper adhesive backing
Pull Tab p/n 806-918-001
Peel and stick to card
Card
6a
6b

700 Series Monochrome Mobile Computer Quick Start Guide
11
7. Insert SIM cards.
Remove SIM Cover
Slide SIM all the way
in to the slot
7b
Reinstall SIM cover
7a
7c
8. Install antenna (if applicable).
Remove the antenna
from packaging
Install by turning in
a clockwise motion
8a
8b
9. Thefirsttimeyouturnonyour700
Monochrome you are introduced to
the Intermec 700 Monochrome
screen. After a few seconds you pro-
ceed to the Welcome Pocket PC
screen. Tap your stylus to advance
to the next screen.

700 Series Monochrome Mobile Computer Quick Start Guide
1 2
10. You are then prompted through the
Align Screen process. Read the dis-
play messages and follow the in-
structions.
11. The Stylus screen prompts you
through the two ways to use your
stylus.
12. The Pop-up Menu screen walks you
through an exercise using pop--up
menu screens. Follow the prompts
and press Next when done.
13. The Location screen allows you to
select your time zone. Enter your
time zone then press Next and the
Complete screen appears.
14. Tap the screen to complete your ini-
tial set up.
About Microsoft Pocket PC
2002
Your 700 Monochrome Mobile Computer
comes with Microsoft Pocket PC 2002 pre-
loaded. For more information regarding:
" Programs on your device: See the
700 Series Monochrome Mobile
Computer User’s Manual (p/n:
961-054-032) or access the Help
screen from the Start Menu. To view
Help, tap or press Gold
b
+[Win] and then tap Help .
" Additional programs that can be
installed on the device: The Pocket
PC Companion CD
(p/n: 474-004-902) .
" Connecting to and synchronizing
with a desktop computer: Active-
Sync Help on your desktop comput-
er. To view click Help and then
Microsoft ActiveSync Help .

700 Series Monochrome Mobile Computer Quick Start Guide
1 3
" Last-minute updates and detailed
technical information: The Readme
files, located in the Microsoft Active-
Sync folder on the desktop computer
and on the Pocket PC Companion
CD.
" Up-to-date information on Pocket
PC: Go to http://www.microsoft.com/
mobile/pocketpc
The Today Screen

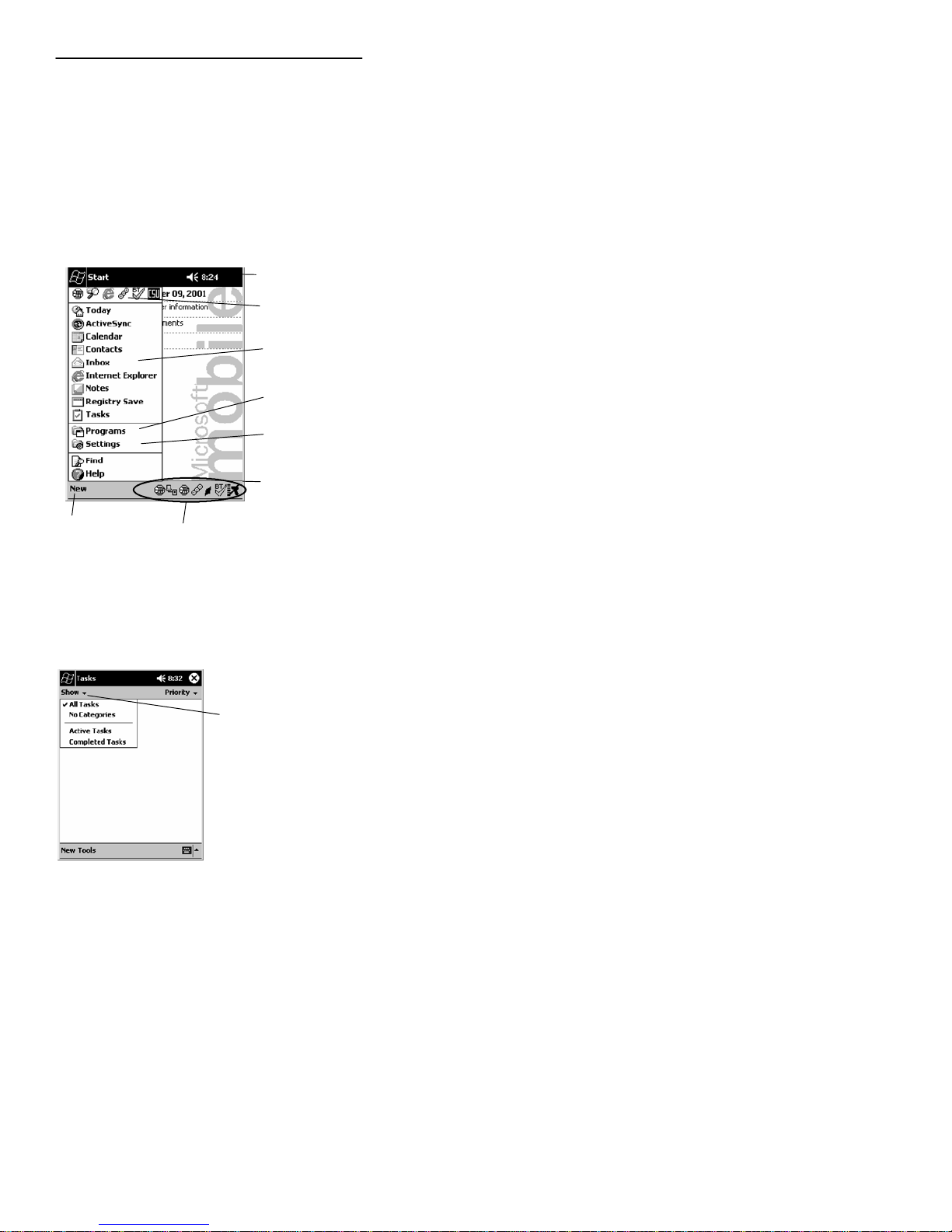

When you turn on your 700 Monochrome
Mobile Computer for the first time each
day you’ll see the Today screen. You can
also display it by tapping or pressing
Gold b +[Win] , then tapping Today .On
the Today screen, you can see at a glance
the information you need for the day.
T
ap to switch
to a program Tap to change
date and time
Taptoopen
an item
Taptoswitch
to a program Taptoview connection sta-
tus
Your day at a
glance

700 Series Monochrome Mobile Computer Quick Start Guide
14
Navigation Bar and Command Bar
The Navigation Bar is located at the top of
the screen. It displays the active program
and current time, and allows you to
switch to programs and close screens. The
Command Bar is displayed at the bottom
of the screen. Use the menus and buttons
to perform tasks in programs.
Na
v
igational
bar
Command bar
New button
Tap to select
an active
program
Tap to select a
program option
Tap to see
additional
programs
Tap to
customize
Active
buttons

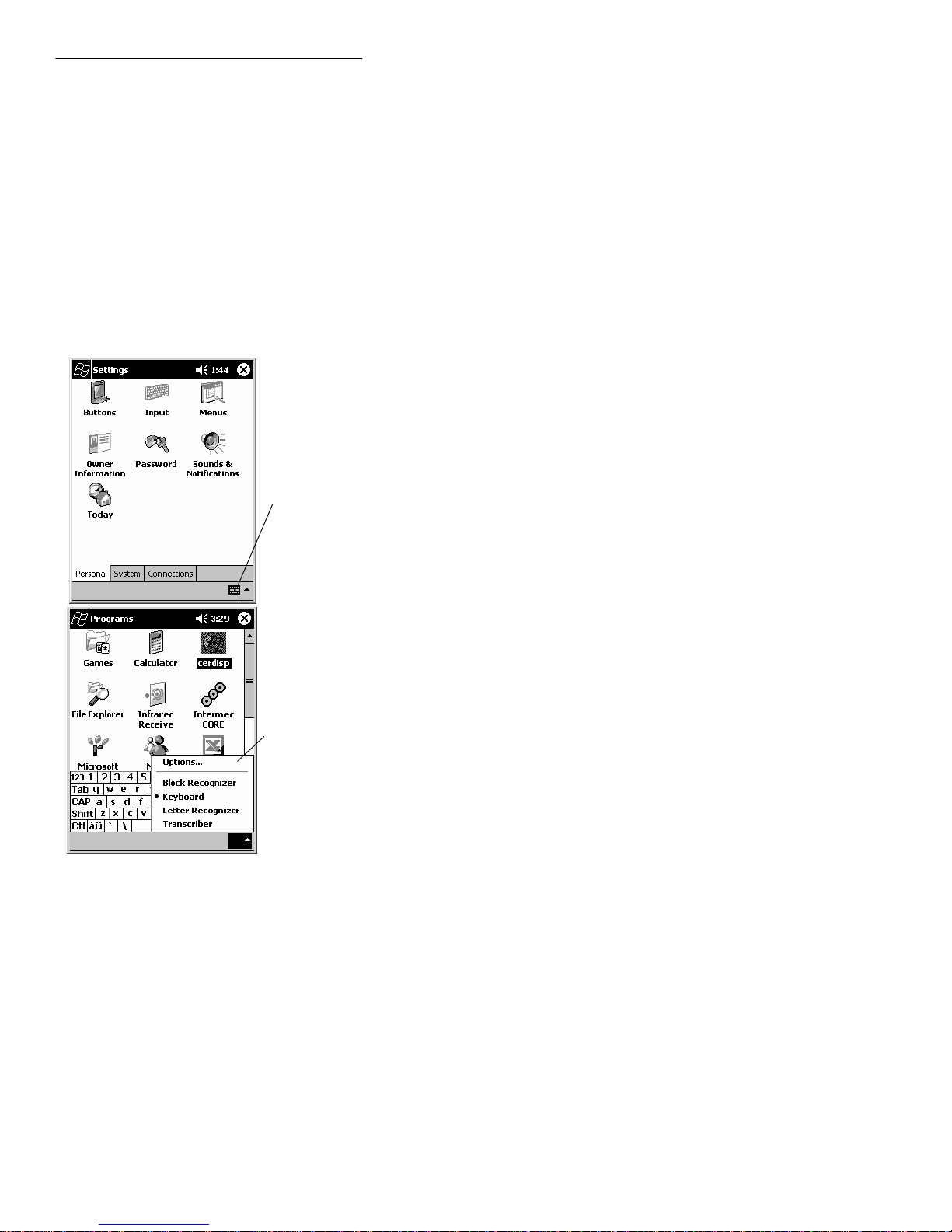

Pop-up Menus
With pop-up menus, you can quickly
choose an action for an item.
Tap and hold to
display pop-up
options.
Tap outside the box
to close it without
preforming an ac-
tion.

700 Series Monochrome Mobile Computer Quick Start Guide
15
Entering Information into
Your 700 Monochrome Mobile
Computer
You can enter information in any program
on your 700 Monochrome Mobile Comput-
er by typing with the soft keyboard, or
writing using Block Recognizer. For more
information regarding the options shown
in the following pop-up menu, refer to the
700 Series Monochrome User’s Manual or
access http://www.intermec.com and
search for 700 Monochrome.
Taponthe
keyboard
icon at the
bottom of
the Com-
mand bar
To change
your option,
tap on the
preferred
choice. The
default is
Keyboard

700 Series Monochrome Mobile Computer Quick Start Guide
16
Setting the Time and Date
Tap on the date
line
Select time zone
from the pop-up
menu
OR Tap on Settings
the Today
screen
Either use your
stylus and turn the
hands on the clock
or use the up and
down arrows to
make your
changes.
Using your stylus
and tap on the
down arrow to
display a calen-
dar. Tap the left or
right arrow to get
to the desired
month.
Tap ok when
done with
settings.

700 Series Monochrome Mobile Computer Quick Start Guide
17
Ownership Registration

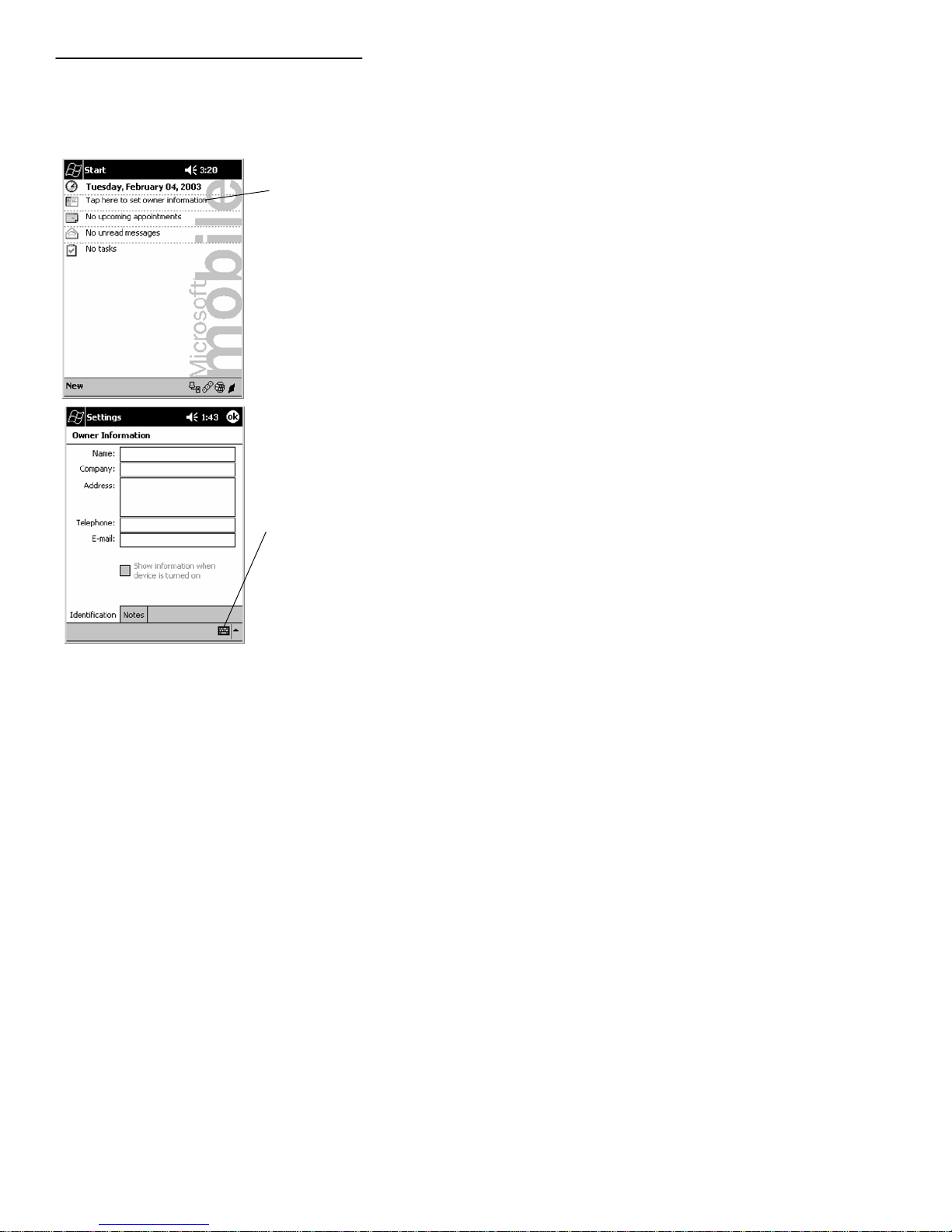

Taponthe
ownership
line
Taponthe
soft key-
board then-
select and
fill out each
ownership
field
Tap ok when
done with
settings.

700 Series Monochrome Mobile Computer Quick Start Guide
18
Battery Management
To maximize the life of your batteries,
your mobile computer can be set to auto-
matically suspend. This is done through
the Setting/System/Power menu. Options
are 1--5 minutes with the default being 3
minutes.
Tap on
Settings
Tap on the
Power
icon
Observe the re-
maining battery
capacity
Change op-
tions to con-
serve bat-
tery use
Observe the
backup battery
capacity
If your Mobile Computer has an inte-
grated 802.11b or WWAN radio (see page
24 “Checking Your Network Options”)the
network drivers are factory loaded. Once
you power up your Mobile Computer, the
network drivers are “up and running”.
This means that your mobile computer
will not automatically suspend. Therefore,

700 Series Monochrome Mobile Computer Quick Start Guide
1 9
you must manually suspend by pressing
and holding the I button for a second
or two. To ‘wake it back up’, press the but-
ton again.
Synchronizing With Your
Desktop Computer
Using Microsoft ActiveSync, you can syn-
chronize the information on your desktop
computer with the information on your
700 Monochrome Mobile Computer. Syn-
chronization compares the data on your
mobile computer with your desktop com-
puter and updates both units with the
most recent information.
Before you begin synchronization, install
ActiveSync on your desktop computer
from the Pocket PC Companion CD. Acti-
veSync is already installed on your mobile
computer. To install ActiveSync:
" Insert the Pocket PC Companion
CD into the CD-ROM drive of your
desktop computer. Follow the direc-
tions on your screen.
If Setup doesn’t start when you insert the
CD, tap Start and then Run . Type
d:\setup ,where’ d ’ is your CD-ROM
drive.
After installation is complete, the Setup
Wizard tells you to connect your mobile
computer to your desktop computer. Setup
Wizard helps you to set up a partnership
between devices, and steps you through
your first synchronization.

700 Series Monochrome Mobile Computer Quick Start Guide
20
Checking Your Scanning
Options
1. Your 700 Monochrome Mobile Com-
puter comes to you with all scanner
and bar code drivers loaded into
ROM. To check out what bar code
options your 705 Mobile Computer
reads follow these screens.
2. To change any customize settings
refer to the 700 Monochrome Soft-
ware Tools CD-ROM
(p/n: 235-045-001) or the Intermec
web site http://www.intermec.com.
Tap Start
Tap
Settings
