InterTest Xtend-a camhd User manual
303 State Route 94 |Columbia, NJ 07832 |www.intertest.com
QS
Quick Start
Leg Assembly Attaching Display Cable
Battery Assembly
PRECAUTIONS
The following actions will void The warranty:
DO NOT TWIST THE CARBON TUBES when
adjusting the length of the pole. This will effect the
internal communications cabling and destroy the
mechanism.
Do not remove the bottom cover from the battery
base.
The camera head on the MOTORIZED TILT
XtendaCam IS WATERPROOF, HOWEVER, the
control pad and the battery are NOT waterproof,
they are “splashproof” only. Do not submerge the
control pad, display and battery.
1. Remove the 2 legs from the
storage case.
2. Thread in one of the legs into
the collar at the working end of
the pole.
3. Thread the other leg into the
remaining hole.
4. Adjust position- use locking
screw to secure in place.
1. Remove the “ACC” plug cap.
2. Insert and thread the plug on the
video cable until it seats rmly in
place.
3. Attach the mini DIN connector plug
from the video cable to the monitor/
display/recorder
1. Remove the battery from the case.
2. Charge the battery. Charging the
battery takes 3-4 hours for a complete
charge. Note the battery is fully
charged upon initial delivery.
3. Align the internal plugs.
4. Thread the base completely onto the
pole.
5. When assembling the battery section,
apply a light coating of synthetic grease
to the “O” Ring. If “O” Ring appears
worn replace immediately.
Buna O-Ring -131
6. When the battery is low a warning
will be displayed on the monitor, 15
minutes of battery life remain.
Read the following precautions
before operating the
XtendaCam HD™
Inspection Pole.
Contact with power
lines can result in death
or serious injury.
303 State Route 94 |Columbia, NJ 07832 |www.intertest.com
QS
Quick Start
1. Remove the charging system
from the case.
2. Remove the battery base from
the pole.
3. Plug the charging cable into
the battery base.
4. Plug the AC power adapter
into a wall socket.
5. DO NOT remove the bottom
cover from the battery base.
This will void the warranty.
1. Remove the charging system from
the case.
2. Remove the battery base from the
pole.
3. Plug the charging cable into the
battery base.
4. Plug the AC power adapter into a
wall socket.
5. DO NOT remove the bottom cover
from the battery base. This will
void the warranty.
Note:
The collet at the camera head
is NOT adjustable. Turning the
collet will void the warranty. If the
collet is rotated, the camera head
will turn and shear the internal
communication cable.

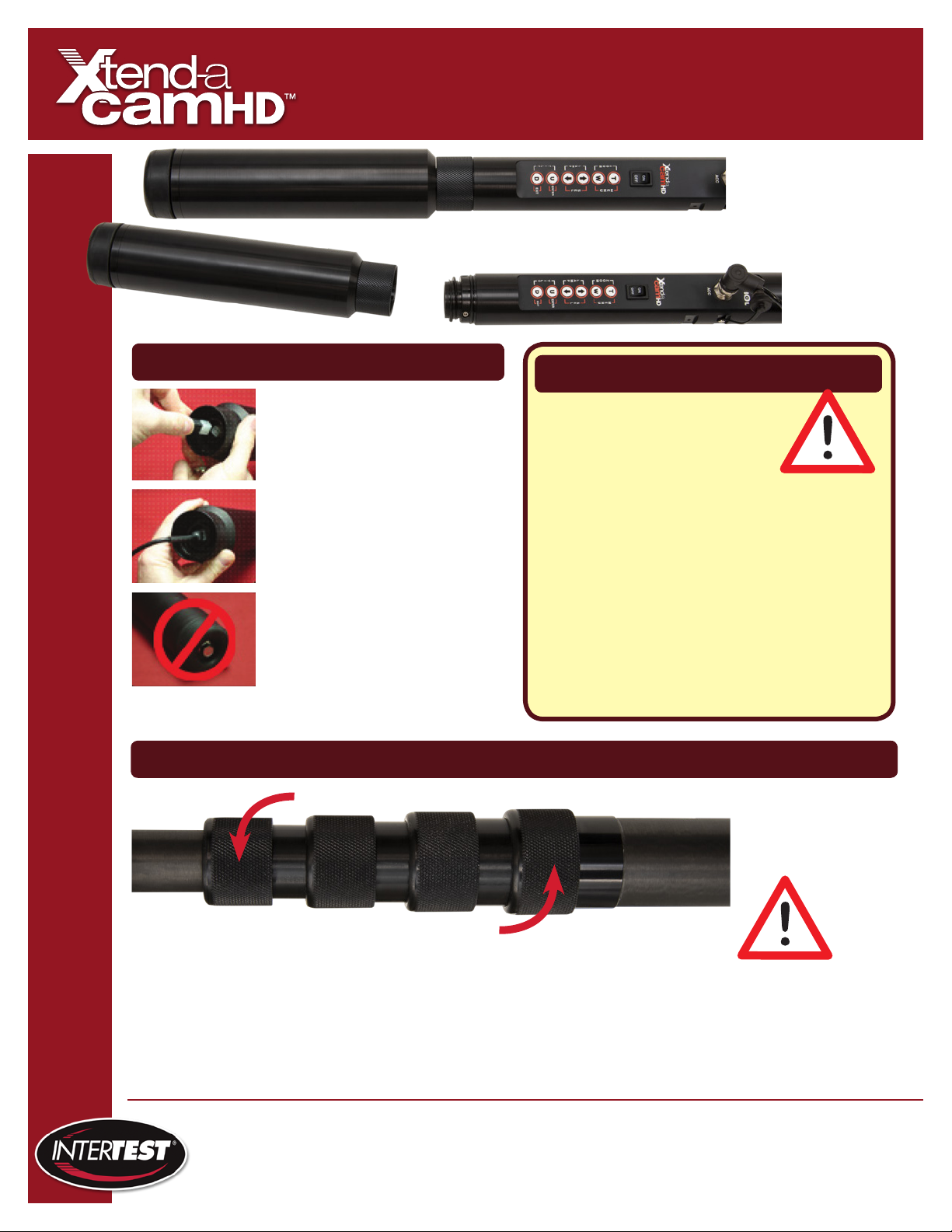

CAUTION: NiMh BATTERYCAUTION: NiMh BATTERY
RECHARGING BATTERY
EXTENDING AND COLLAPSING THE XTENDACAM POLE LENGTH
There are 2 distinctly different types of
batteries used:
Nickel Cadmium and Nickel Metal Hydride.
The different types are based upon the
applications of the products’ use.
When ordering look at the bottom of the
battery pack for the part number “EM43050,
NiMh” for Nickel Metal Hydride.
If there is not an engraved part number then
the battery pack is Nickel Cadmium.
There are 2 distinctly different types of
batteries used:
Nickel Cadmium and Nickel Metal Hydride.
The different types are based upon the
applications of the products’ use.
When ordering look at the bottom of the
battery pack for the part number “EM43050,
NiMh” for Nickel Metal Hydride.
If there is not an engraved part number then
the battery pack is Nickel Cadmium.
When ordering replacement
battery packs, please notice the
marking on the bottom of the
battery pack holder.
When ordering replacement
battery packs, please notice the
marking on the bottom of the
battery pack holder.
Display Cable “ACC”
Power - “ON/OFF”

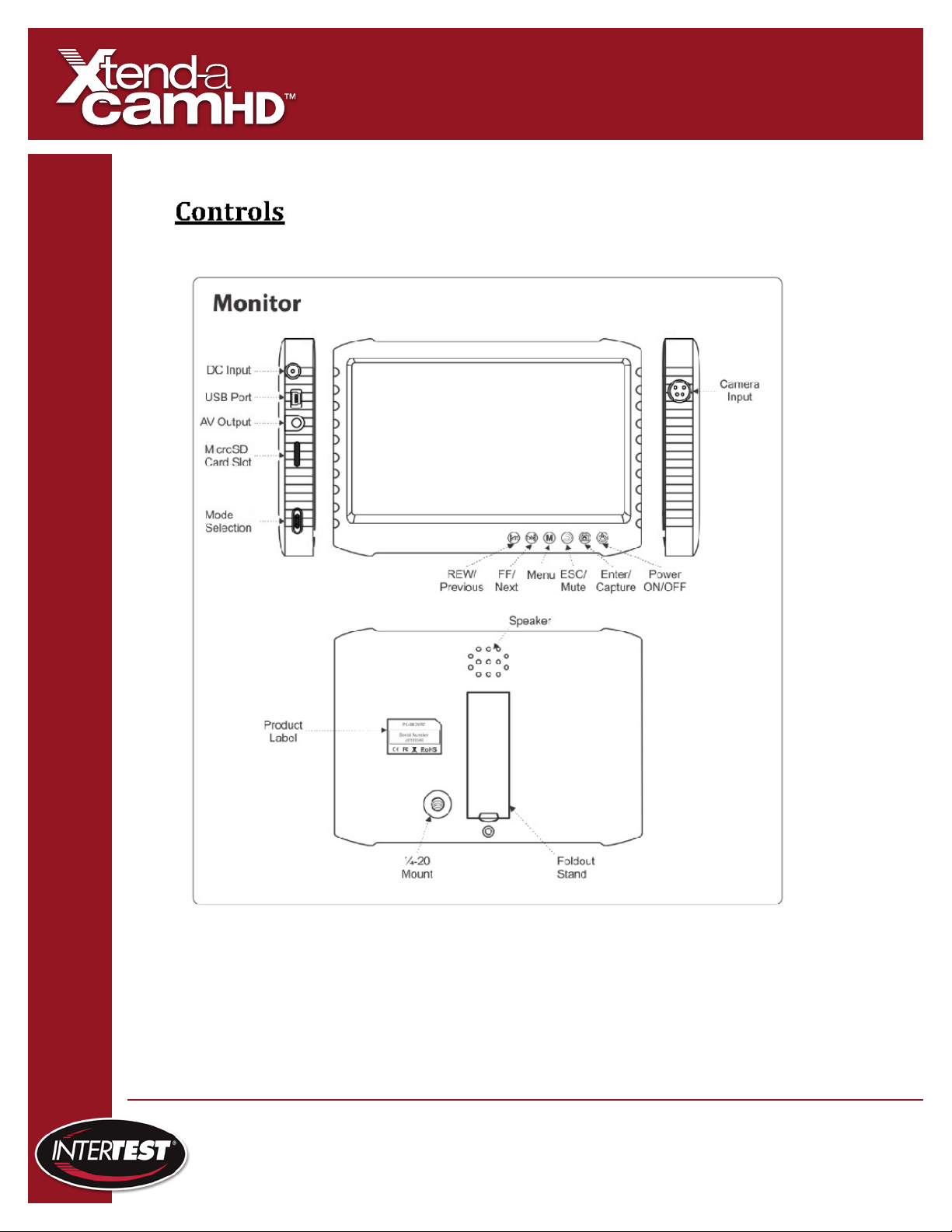

PAD FUNCTIONS
