• POOL AND POOL ACCESSORIES ARE TO BE ASSEMBLED AND DISASSEMBLED BY ADULTS ONLY.
• USE ONLY UNDER COMPETENT SUPERVISION.
• WHEN NOT IN USE REMOVE FROM THE POOL AND STORE IN A SAFE PLACE INDOORS.
• DO NOT USE DURING WINDY AND GUSTY DAYS.
• FOLLOW THESE RULES TO AVOID SERIOUS INJURY OR PROPERTY DAMAGE.
• USE ONLY MANUFACTURER SUPPLIED BALLS. PROFESSIONAL ATHLETIC BALLS ARE NOT
RECOMMENDED.
• YOU MUST FIRST SET UP AND FILL THE POOL WITH WATER FOLLOWING THE POOL OWNER'S
MANUAL BEFORE INSTALLING.
• DO NOT CLIMB, HANG, PULL, PUSH OR GRAB ANY PART OF THE STRUCTURE. THE STRUCTURE
IS NOT DESIGNED TO SUPPORT USER BODY WEIGHT.
• REMOVE THE STRUCTURE BEFORE PLACING A POOL COVER OVER THE POOL.
ALWAYS FOLLOW ALL SAFETY RULES. CARELESSNESS, OR LACK OF ATTENTION, CAN HAVE
SERIOUS CONSEQUENCES, SUCH AS PARALYSIS OR OTHER PERMANENT INJURIES.
WARNING
INTEX®OWNER’S MANUAL
Pool Volleyball Set for Intex®Round Metal Frame Pools
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
PARTS LIST
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents and
become familiar with all the parts.
REF. NO. DESCRIPTION QTY. SPARE PARTS NO.
1LONG PIN (WITH 2 EXTRA) 610312
2X-LONG PIN (WITH 2 EXTRA) 610902
3DOVETAIL SCREW 410907
4RUBBER FENDER 410537
5
POLE BRACKET (DOVETAIL SCREWS & RUBBER FENDERS INCLUD ED)
210906
6POLE 211173
7VOLLEYBALL POLE END PLUG 210539
8VOLLEYBALL NET FASTENER 410535
9
VOLLEYBALL NET (FOR 16' (488 CM) & BELOW AGP) OR 110867
VOLLEYBALL NET (FOR 17' (518 CM) & ABOVE AGP) 110540
10 VOLLEYBALL 110541
1234
5678
910
1
3
2
4
8
9
6
7
5
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
For illustrative purposes only.

51IO
(51IO) ENGLISH POOL VOLLEYBALL SET MANUAL (FOR ROUND METAL FRAME POOL) SIZE: 4.875” X 7.25” 07/09/2008 (51IO) ENGLISH POOL VOLLEYBALL SET MANUAL (FOR ROUND METAL FRAME POOL) SIZE: 4.875” X 7.25” 07/09/2008
51IO
SAVE THESE INSTRUCTIONS
Page 3
SAVE THESE INSTRUCTIONS
Page 4

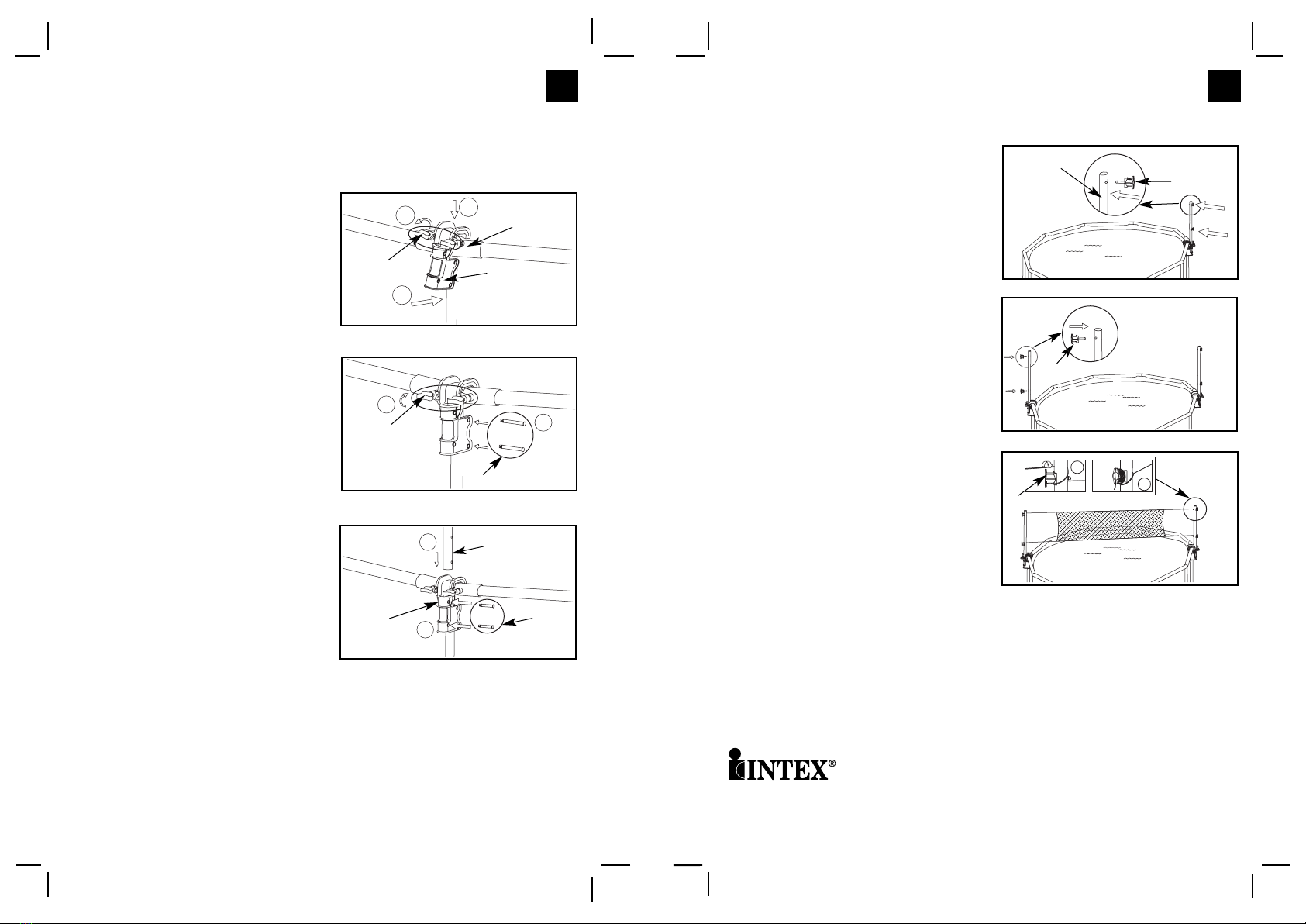

1. Fully open the two dovetail screws (3) and attach a
pole bracket (5) to a circular metal frame pool "T
JOINT". Make sure the pole bracket (5) is securely
attached to the "T JOINT".
2. Secure the pole bracket (5) with two X-long
pins (2) and tighten the twodovetail screws back
using your fingers only. NOTE: Do not over tighten
or use tool such as pliers.
3. Insert the assembled volleyball pole into the pole
bracket (5). Secure the pole to the bracket with
long pins (1).
IMPORTANT: Before proceeding to the next step ensure the pool is fully set up and filled with water
following the pool owner's manual.
Set Up Instructions
Fig (3)
Fig (1)
Fig (2)
35
1
6
Frame pool
“T” joint
3
2
3
12
2
1
2
1
5
2
1
4. Attach two volleyball net fasteners (8) to the
volleyball pole. Ensure the volleyball net
fasteners (8) are facing outward.
5. Locate the opposite "T JOINT" of the circular
metal frame pool and attach the second pole
bracket (5) to the "T JOINT", repeat steps #1
to #4.
6. Attach one side of the Volleyball Net (9) starting
from the top Volleyball Net Fastener (8) and then
the bottom fastener. Loop the rope around the
fastener (8) several times and secure the end of
the rope to the two notches in the fastener.
NOTE: Adjust the length of the rope to be looped
around the fasteners depending on the size of
the pool. Repeat this procedure for the other pole.
Set Up Instructions (cont.)
Fig (4)
8
6
Fig (5)
Fig (6)
8
8
