Krystal Clear™
Model 634T Filter Pump
220 - 240 V~, 50 Hz, 360 W
Hmax 5.0 m, Hmin 0.19 m, IPX4
Max. Water Temperature 35 °C
110-*A*-R0-1706

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 2
Warnings.......................................................................... 3
Parts List & Reference.................................................... 4-5
Setup Instructions........................................................... 6-9
Operating Instructions.................................................... 10
Operating Time Table...................................................... 11
Maintenance..................................................................... 12-13
Pool Care and Chemicals............................................... 13
Long Term Storage.......................................................... 13
Troubleshooting Guide................................................... 14
Common Pool Problems................................................. 15
General Aquatic Safety................................................... 15
Limited Warranty.............................................................. 16
TABLE OF CONTENTS

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING
These product warnings, instructions and safety rules provided with the product represent some
common risks of water recreation devices and do not cover all instances of risk and danger.
Please use common sense and good judgement when enjoying any water activity.
• Always supervise children and those with disabilities.
• Children must stay away from this product and electrical cord(s).
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Assembly and disassembly by adults only.
• Risk of electric shock. Connect this product only to a grounding type receptacle protected by
a ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified
electrician if you cannot verify that the receptacle is protected by a GFCI/RCD. Use a qualified
electrician to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a portable
residual current device (PRCD).
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or
making any adjustment to the product.
• The plug must be accessible after produc t is installed.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers,
hedge trimmers and other equipment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or
converter plugs to connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands
are wet.
• Keep this product more than 2m away from the pool.
• Keep this product more than 3.5m away from the pool (for France only).
• Keep the plug of this product more than 3.5m away from the pool.
• Position this product away from the pool, so as to prevent children from climbing on it and
accessing the pool.
• Do not operate this product when pool is occupied.
• This product is for use with storable pools only. Do not use with permanently installed pools.
A storable pool is constructed so that it may be readily disassembled for storage and
reassembled to its original configuration.
• The appliance is intended only for household use.
• This product is intended to be used only for the purposes described in the manual!
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE,
ELECTRIC SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 4

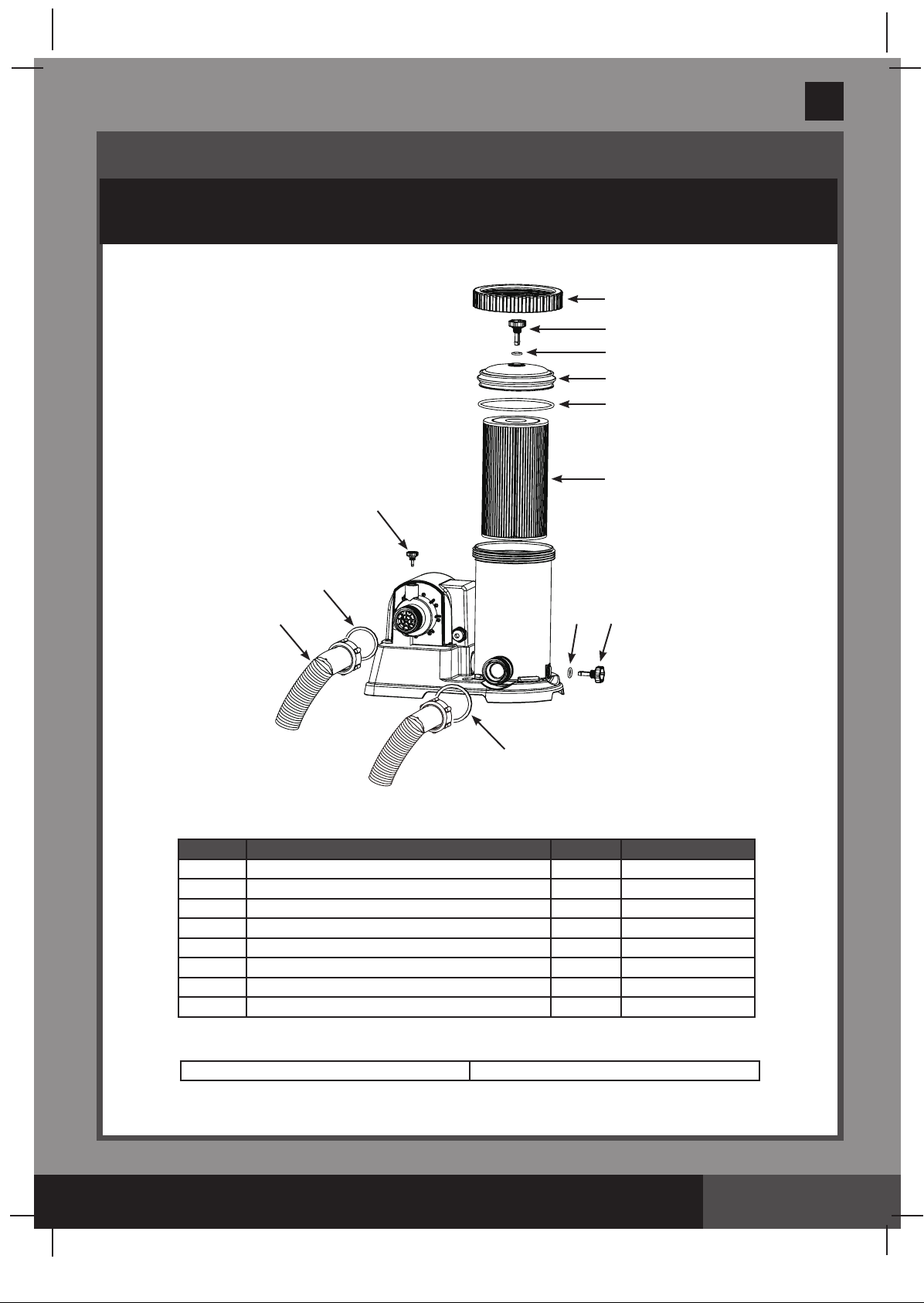

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 THREADED FILTER HOUSING COLLAR 1 10491
2 AIR RELEASE VALVE/SEDIMENT RELEASE VALVE 210460
3 VALVE O-RING 2 10264
4 FILTER HOUSING COVER 1 10490
5 FILTER HOUSING O-RING 110492
6 FILTER CARTRIDGE (29005) 1
7 AIR RELEASE VALVE B (WITH O-RING) 110725
8 PUMP HOSE WITH NUTS 2 11010
Type of lter medium Synthetic cartridge #29005
2
3
4
5
1
6
8
7
32
16
16
No tools are required for the assembly.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 5
PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
9*
10*
11*
12*
13*
14*
15*
16
17*
18*
19*
20*
REF. NO. DESCRIPTION QTY. SPARE PART NO.
2
2
2
1
1
2
1
1
1
1
10747
10262
10745
10256
10255
11235
12369
10712
12198
12363
12371
12373
PLUNGER VALVE (HOSE O-RING & STEP WASHER INCLUDED)
HOSE O-RING
STEP WASHER
STRAINER NUT
FLAT STRAINER RUBBER WASHER
THREADED STRAINER CONNECTOR
ADJUSTABLE POOL INLET JET NOZZLE
HOSE O-RING
STRAINER GRID
AIR JET VALVE
INLET THREADED AIR CONNECTOR
AIR JET VALVE CAP (NOT SHOWN)
9
10
11 12 13 14
*
17
" * ": Optional.
When ordering parts, be sure to quote the model number and part numbers.
9
10
11
12
13 15
*
19
18

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 6

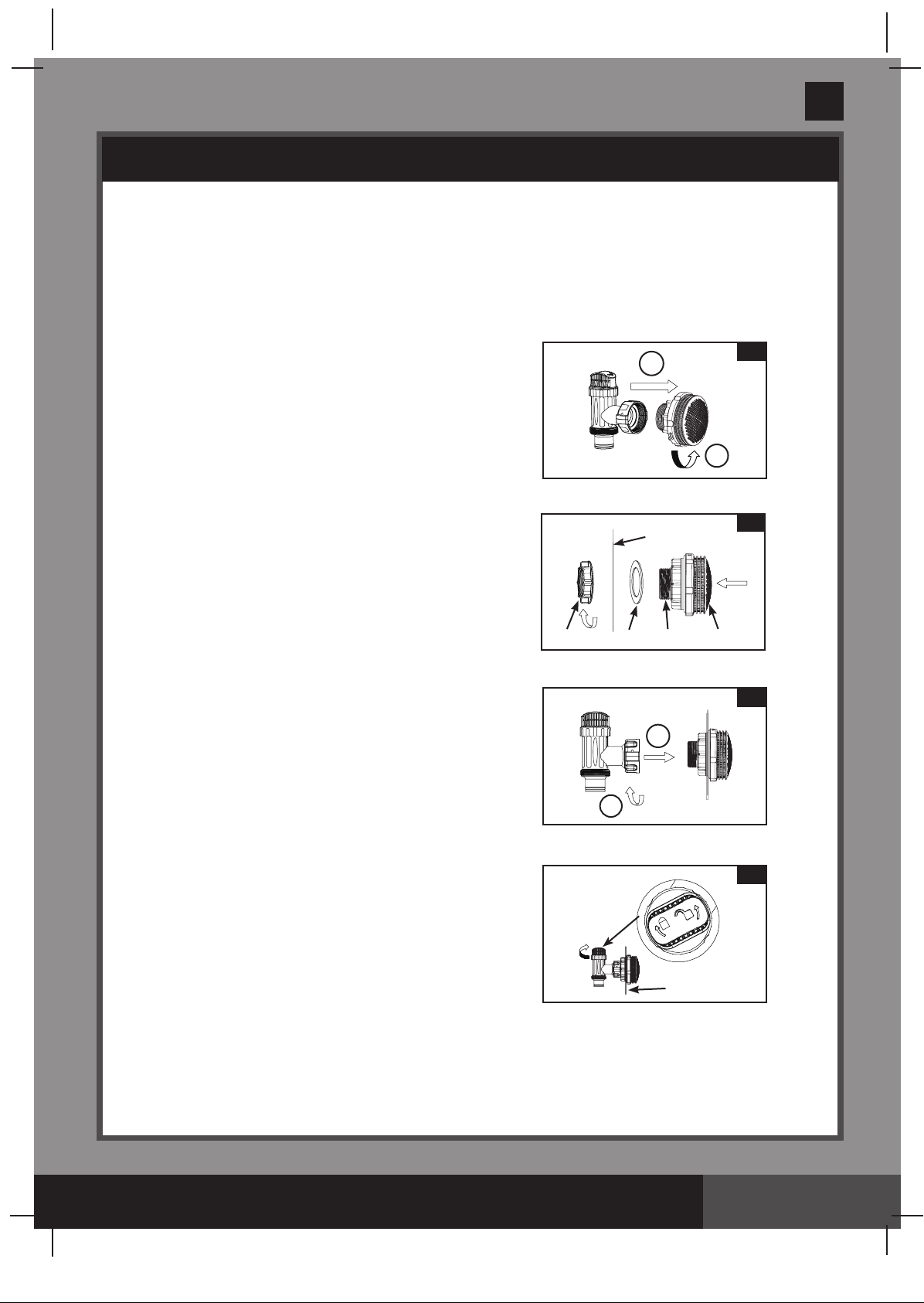

1. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector (14) (see drawing 1). Be
careful not to lose the step rubber
washer
(11). Place the plunger valve on the
ground in a safe place.
2. In a counter-clockwise motion unscrew
the strainer nut (12) from the threaded
connector
(14). Leave the flat washer (13)
on the connector (14).
3. Install the strainer and plunger valve at the
lower position of pool outlet (marked"+").
From the inside of the pool liner insert
the connector (14) into one of the pre-cut
holes with the washer remaining on the
connector to be placed against the inside
of the liner wall.
4. Before assembly, lubricate the threads with
a petroleum jelly. Then, with the flat side of
the strainer nut (12) facing the outside wall
of the liner in a clockwise motion screw the
strainer nut (12) back onto the threaded
connector
(14) (see drawing 2).
5. Finger tighten the strainer nut (12) onto the
threaded connector (14).
6. Grasp the plunger valve assembly. Make
sure the step washer (11) is in place.
7. In a clockwise motion screw the plunger
valve union back onto the threaded
connector
(14) (see drawing 3).
8. In a clockwise motion turn the plunger
valve handle to close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during
filling of the pool (see drawing 4).
The strainer grid prevents large objects from jamming and/or damaging the filter pump.
The plunger valve assembly prevents water from flowing into the filter pump while the
filter cartridge is being placed or cleaned. If your pool has inflatable top ring, install the
strainer, nozzle and plunger valve before inflating the pool liner top ring. The parts
numbers here onward, refer to the parts depicted in the Parts List section of this manual.
To install, do the following:
POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (optional)
2
INSIDE
LINER WALL
1
2
1
3
1
2
4
INSIDE
LINER WALL
13 1412 17

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 7
POOL INLET - NOZZLE & PLUNGER VALVE SETUP (optional)
1. In a counter-clockwise motion unscrew plunger valve
union from the inlet threaded air connector (19) (see
drawing 5). Be careful not to lose the step rubber
washer
(11). Place the plunger valve on the ground
in a safe place.
2. In a counter-clockwise motion unscrew the strainer
nut
(12) from the inlet threaded air connector (19).
Leave the flat washer (13) on the connector (19).
3. Install the nozzle and plunger valve at the upper
position of the pool inlet. From the inside of the pool
liner insert the nozzle union (15 & 19) into one of the
pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4. Before assembly, lubricate the threads with a
petroleum jelly. Then, with the flat side of the strainer
nut
(12) facing the outside wall of the liner in a
clockwise motion screw the strainer nut (12) back
onto the inlet threaded air connector (19) (see
drawing 6).
5. Finger tighten the adjustable pool inlet jet nozzle (15)
and the strainer nut (12) onto the inlet threaded air
connector
(19).
6. Grasp the plunger valve assembly. Make sure the
step washer (11) is in place.
7. Screw the air jet valve (18) over the inlet threaded air
connector
(19). NOTE: Make sure the air jet valve is
securely tighten and facing up. In a clockwise motion
screw the plunger valve union back onto the inlet
threaded air connector (19) (see drawing 7).
8. In a clockwise motion turn the plunger valve handle
to close position. Ensure the plunger valve is
securely closed. This will prevent water from flowing
out during filling of the pool (see drawing 8).
9. Adjust the direction of the nozzle head pointing away
from the pool outlet for a better circulation result (see
drawing 9).
10. The pool liner is now ready to be filled with water.
Consult the above-ground-pool owner’s manual for
the filling instructions.
5
2
1
7
1
2
8
INSIDE
LINER WALL
9
WATER
FLOW
POOL
6
13 19 15
INSIDE LINER
WALL
12
18

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 8
FILTER PUMP HOSE CONNECTION SETUP
1. Remove the Krystal Clear™ filter pump and hoses from the packaging.
2. Place the filter pump in such a manner, that you can easily assemble the hose (8)
connections to the plunger valve. Ensure the filter pump is accessible at all time for service
and maintenance.
Note: Some regional regulations may require the filter pump to be mounted on a
stationary platform. There are two mounting holes located in the pump base for this
reason. Consult your local authorities for filter-pump mounting requirements.
3. Grasp the two pump hoses (8) and connect the hose nuts to the filter pump.
4. In a counter-clockwise motion unscrew the threaded filter housing collar (1) from the filter
housing. Place it in a safe place.
5. The Filter Pump is an airtight system. In a counter-clockwise motion turn both air release
valves
(2 & 7) 1 - 2 turns to open. DO NOT remove air release valves as water will expel
with force if the motor is turned on and injury may occur.
6. Grasp and remove the filter housing cover (4). Check to see if a cartridge is i
nside the
housing. If yes, replace the cover, finger tighten the housing collar (1)
back onto the filter
housing.
7. Gently finger tighten the sediment release valve located at the bottom of the
housing to be
sure that water does not leak out.
8. When the pool is filled connect the hose from the bottom of the filter housing to the highest
strainer assembly. You will find the hose connection at the bottom of the plunger valve
assembly. Use the hose nut to attach the hose.
9. Connect the second hose which is fixed to the middle of the motor housing to the remaining
liner connection.
It is essential to change any damaged element or set of elements as soon as possible.
Use only parts approved by the manufacturer.
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
The installation instruction shall provide information on requirements specified for the electrical
installation and shall include reference to national wiring rules.
WATER LEVEL
ADJUSTABLE POOL
INLET JET NOZZLE
PLUNGER VALVE
ASSEMBLY
HOSE NUT
OUTLET HOSE
INSIDE LINER
WALL
THREADED
STRAINER
CONNECTOR
FILTER HOUSING
COLLAR
FILTER CARTRIDGE
INSIDE
FILTER HOUSING
COVER
AIR RELEASE
VALVE
MOTOR
HOUSING
HOSE O-RING
POWER CORD
INLET HOSE OUTSIDE
LINER WALL
(ILLUSTRATION NOT TO SCALE)
W
A
T
E
R
F
L
O
W
W
A
T
E
R
F
L
O
W
HOSE O-RING
AIR JET VALVE
INLET THREADED AIR
CONNECTOR

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 9
FILTER PUMP STATIONARY MOUNTING
165 mm
1. The mounting holes are 6.4 mm in diameter and spaced 165 mm apart.
2. Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
FILTER PUMP INSTALLATION DISTANCE
(Generic layout of an electrical device relative to a swimming pool. Illustration not to scale)
According to the International Standard, IEC 60364-7-702, on electrical installation of swimming
pools and other basins equipment, the following installation distances must be respected:
• The filter pump must be positioned more than 2m away from the pool walls.
• The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5 m away from the pool walls.
Check your local authorities to determine the appropriate standard and requirements for “electrical
installation of swimming pools and basins equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
>2m
>3.5m
POOL
hoses Electrical
device
Some countries, especially in the European community, require the filter-pump to be secured to
the ground or to a base in a permanent upright position. Check your local authorities to determine
if there is a regulation in your area regarding above-the-ground swimming pool filter-pumps. If yes,
then the filter-pump can be mounted to a platform using the two holes located in the base. See
drawing below.
The filter-pump can be mounted on a cement base or onto a wooden platform to prevent accidental
falling over. Total assembly must exceed 18kg.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 10
1. Make sure the filter pump is switched off. The switch is located on the motor housing.
2. Connect the power cord to a GFCI protected electrical outlet.
3.Turn both plunger valve handles fully counter-clockwise until they stop. This opens the
valve, allowing water to flow into the filter pump.
4. With water flowing into filter pump, the water pressure will allow the air trapped inside to
escape from the air release valves (2 & 7). When all the air has escaped water will flow
out of the valves (2 & 7). When this occurs gently finger tighten the valves (2 & 7) in a
clockwise direction.
5. To operate the filter pump on “TIMER” mode:
A. Set the timer dial to the desired operating hours. See operation time table.
See Fig. 10
B. Turn on the pump by pressing the switch to “ ” position, the filter pump is now
filtering the water and will stop after the operating hours are completed. The built-in
timer will now operate for the number of hours selected at the same time each day.
C. Operating hours can be re-adjusted if necessary. Follow step A – B.
To operate the filter pump manually (without the “TIMER” mode):
A. Turn on the pump by pressing the switch to “I” position, the filter pump is now filtering
the water.
B. To turn off the pump, press the switch to “O” position.
To prevent air lock, open the lower plunger valve (connected inlet hose) first and
then the upper plunger valve (connected outlet hose). Open the air release valves,
wait until water starts to flow out of the air release valves, close air release valves.
IMPORTANT
OPERATING INSTRUCTIONS
Risk of electric shock. Connect this product only to a grounding type
receptacle protected by a ground-fault circuit interrupter (GFCI) or residual
current device (RCD). Contact a qualified electrician if you cannot verify
that the receptacle is protected by a GFCI/RCD. Use a qualified electrician
to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a
portable residual current device (PRCD).
WARNING
FIG 10
ON
OFF
TIMER
TIMER DIAL (HOURS)
6.Never put pool chemicals directly into the filter pump. This may damage the pump and void
the warranty.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 11
OPERATING TIME TABLE
This table shows the required operating time for average use of the filter pump with AGP's.
The filter pump running time should be 1 hour longer than the required operating time of the
Saltwater System.
Pool Size
Water Capacity (Calculated at 90% for Frame
Pool and 80% for Easy Set & Oval Pool)
Recommend
operating hours
per day
(Gals) (Liters) (Hours)
INTEX ABOVE GROUND POOLS (AGP’s)
EASY SET®
POOL
18’ x 42” (549cm x 107cm)
4,786 18,115 4
18’ x 48” (549cm x 122cm)
5,455 20,647 4
CIRCULAR
METAL FRAME
POOL
18’ x 48” (549cm x 122cm)
6,423 24,311 4
24’ x 52” (732cm x 132cm)
12,481 47,241 6
ULTRA FRAME
POOL
16' x 48" (488cm x 122cm)
5,061 19,156 4
18’ x 48” (549cm x 122cm)
6,423 24,311 4
18’ x 52” (549cm x 132cm)
6,981 26,423 4
20’ x 48”
7,947 30,079 4
22’ x 52” (671cm x 132cm)
10,472 39,637 6
24'x52"
12,481 47,241 6
26’ x 52” (792cm x 132cm)
14,667 55,515 8
GRAPHITE GRAY
PANEL POOL SET™
15’8” x 49”
4,440 16,805 4
16'8" x 49" (508cm x 124cm)
5,061 19,156 4
18'8" x 53" (569cm x 135cm)
6,981 26,423 4
OVAL FRAME
POOL
20’ x 12’ x 48” (610cm x 366cm x 122cm)
4,393 16,628 4
RECT. ULTRA
FRAME POOL
15’ x 9’ x 48”
3,484 13,187 2
18’ x 9’ x 52” (549cm x 274cm x 132cm)
4,545 17,203 4
20’ x 10 x 52”
5,611 21,238 4
24’ x 12’ x 52” (732cm x 366cm x 132cm)
8,403 31,805 4
32’ x 16’ x 52” (975cm x 488cm x 132cm)
14,364 54,368 8

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 12
CLEANING OR REPLACING FILTER CARTRIDGES
It is recommended that the filter cartridge be replaced at least every 2
weeks. Regularly monitor the filter clogging level.
1. Make sure the filter pump is turned off, then disconnect the power cord from the electrical
outlet.
2. Turn both plunger valve handles fully clockwise until they stop. This closes the valve,
prevents the water from flowing out of the pool.
3. Gently turn the top air release valve once or twice in a counter-clockwise direction. The
housing cover can now be easily removed.
4. In a counter-clockwise direction remove the filter housing collar (1). Place it in a safe
location.
5. Remove the housing cover (4).
6. Now remove the used filter cartridge.
7. Examine the inside of the filter housing.
8. If dirt or sediment is located on the bottom of the housing then:
A. In a counter-clockwise motion gently unscrew and remove the sediment valve (2) located
at the bottom of the housing. Place it in a safe place.
B. With a bucket of water or a garden hose pour water into the housing flushing out the
sediment.
C. Screw back the sediment valve (2) in a gentle clockwise motion. Do not over-tighten.
9. Place a new cartridge filter in the housing. Only use the original Intex cartridge for
replacement. See “Parts Reference” section for detail.
10. Return the housing cover (4) to its position and in a clockwise direction rescrew the housing
collar
(1) onto the filter housing.
11. Turn both plunger valve handles fully counter-clockwise until they stop. This opens the valve,
allowing water to flow into the filter pump.
12. When the trapped air has escaped through the air release valve gently retighten the valve (2)
in a clockwise direction.
13. Reconnect the power cord.
14. Turn on the pump.
15. Check the inlet and outlet openings regularly to ensure they are not obstructed thus
preventing a good filtration.
16. The disposal of any used filter media should be in accordance with applicable local regulation
and legislation.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 13
1. Before emptying your pool for long term storage, or relocation, be sure the water is directed
towards an acceptable drain water receptacle away from the house. Check local regulations
for specific directions regarding disposal of swimming pool water.
2. Disconnect power cord from electrical outlet.
3. Now, drain the pool.
4. When the pool is empty, disconnect all hoses from pump and plunger valves and remove
the strainers from the pool wall.
5. Drain all water from the filter pump.
6. Leave filter pump pieces & hoses outside to thoroughly air dry.
7. Remove both plunger valves from the connectors (14 & 19). Be careful not to lose the
step rubber washer (11).
8. Coat the following O-rings and washers with petroleum jelly for long term storage:
• Air release valve & sediment O-rings (3).
• Filter housing cover O-ring (5).
• Pump hose O-rings (10).
• Strainer valve assembly step washers (11).
• Flat strainer rubber washers (13).
9. Discard the used filter cartridge. Put aside 1 or 2 new cartridges for next season’s use.
10. It is best to place all dry pieces in the original packaging for storage or place them in an
airtight plastic bag.
11. Store the unit and accessories in a dry place. The storage's temperature should be
controlled, between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit
(40 degrees Celsius) storage location.
LONG TERM STORAGE & WINTERIZATION
POOL CARE AND CHEMICALS
• All pools require care to keep the water clear and hygienically clean. With proper chemical
control, your filter will help attain this objective. Consult your pool supply dealer for
instructions regarding the proper use of chlorine, algaecide and other chemical agents
required for sparkling clear water.
• Keep pool chemicals away from children.
• Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could
occur.
• Daily pH checking and chemical treatment of the water is very important and can not be
overemphasized. Chlorine, algaecide and maintenance of proper pH levels are required
when filling the pool as well as during the season. Consult your local swimming pool supply
store for instructions.
• The season's first filling of the pool may have brackish water requiring extra water
additives and extra filter changes. Do not allow swimming in pool until the pH level is
balanced. Consult your local swimming pool supply store for instructions.
• Keep spare filter cartridges on hand. Replace cartridges every two weeks.
• Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool
and splash water outside the pool. Lawn areas underneath the pool liner will be destroyed.
Note that some types of grass may grow through the liner.
• Filter run time depends on pool size, weather and usage level. Experiment with various run
times so as to produce clean clear water.
• European standard EN16713-3 lists some additional pool water quality and water treatment
information that can be found at www.intexcorp.com/support.
CAUTION
Concentrated chlorine solutions may damage the pool liner. Always follow
the chemical manufacturer’s directions, and the health and hazard warnings.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 14
TROUBLESHOOTING GUIDE
FILTER MOTOR
FAILS TO START
FILTER DOESN’T
CLEAN POOL
FILTER DOESN’T
PUMP WATER OR
THE WATER FLOW
IS VERY SLOW
PUMP DOESN’T
WORK
TOP COVER
LEAKING
HOSE LEAKING
AIR LOCK
INLET THREADED
AIR CONNECTOR / AIR
JET VALVE LEAKING
• The motor is not plugged in.
• The GFCI/RCD circuit breaker
is tripped.
• Motor too hot and overload
protection is shut off.
• Improper chlorine or pH
levels.
• Filter cartridge is dirty.
• Damaged cartridge.
• Excessively dirty pool.
• The strainer screen is
restricting the water flow.
• Clogged inlet or discharge.
• An air leak on the intake line.
• Scale or buildup on cartridge.
• Excessively dirty pool.
• Dirty filter cartridge.
• The nozzle and strainer
connection are reversed.
• Inlet threaded air connector
connected to the wrong hole on
the liner.
• Low water level.
• Strainer screen plugged up.
• An air leak on the intake hose.
• Faulty motor or the impeller
is jammed.
• An air lock inside the cartridge
chamber.
• O-ring missing.
• Cover or air release valve are not tight.
• Hose nuts are not well-fitted.
• Hose o-ring dislodged when
connecting the hose.
• Hose broken.
• There’s air trapped in the
pump housing and inlet hose.
• The inlet and outlet hoses
connection are reversed.
• Plunger valve not well-fitted.
• Air jet valve is not tight and
facing up.
• Air jet valve internal seal blocked.
• Air jet valve internal seal dirty.
• Air jet valve broken.
TROUBLE CAUSE SOLUTION
• Filter cord must be plugged into a 3 wire outlet
that is protected by a Class A Ground Fault
Circuit Interrupter, or RCD.
• Reset circuit breaker. If circuit breaker trips
repeatedly, your electrical system may have a
defect. Turn off circuit breaker and call an
electrician to correct the problem.
• Let the motor cool down.
• Adjust the chlorine and pH level. Consult
your local swimming pool supply stores.
• Clean or replace cartridge.
• Check the cartridge for holes. Replace
if damaged.
• Operate the filter for longer periods.
• Clean the strainer screen at the inlet.
• Clear any obstructions in the intake
hose by discharging it inside pool wall.
• Tighten hose nuts, check hoses for
damage, check pool water level.
• Replace cartridge.
• Clean cartridge more often.
• Clean inside the plunger valve.
• Pull valve handle to full upright position.
• Install the nozzle at the upper position
of pool inlet, and the strainer at the
lower position of pool outlet.
• Make sure the inlet threaded air connector is
connected to the pool inlet upper hole.
• Fill pool to correct water level.
• Clean strainer screens at pool inlet.
• Tighten hose nuts, check hose for damage.
• Clear any sticks or leaves in the
intake hose.
• Turn and pull valve handle to full upright
position.
• Remove cover & check for O-ring.
• Tighten cover or valve (Manually).
• Tighten or reinstall hose nut.
• Put the o-ring back into the groove.
• Replace a new hose.
• Open air release valves, wait until water starts
to flow out of the valves, then close it.
• The lower position of pool outlet connects to
filter pump water inlet. The upper position of
pool inlet connects to filter pump water outlet.
• Tighten or reinstall plunger valve.
• Tighten air jet valve and make sure it’s
facing up.
• Turn pump ON and run for few seconds,
then turn OFF, repeat 3 times.
• Remove air jet valve, flush dirt out with water
and replace valve back.
• Replace a new air jet valve.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 15
COMMON POOL PROBLEMS
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC LOW
WATER LEVEL
SEDIMENT ON
POOL BOTTOM
SURFACE DEBRIS
• Chlorine and pH levels
need adjustment.
• Copper, iron or manganese
in water being oxidized by
the added chlorine.
This is Common.
• "Hard water" caused by a
too high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Rip or hole in pool liner or hoses.
• The drain valves are loose.
• Heavy use, getting in
and out of pool.
• Pool too close to trees.
• Super chlorinate with shock
treatment. Correct pH to your
pool store's recommended level.
• Vacuum pool bottom.
• Maintain proper chlorine level.
• Adjust pH level to the
recommended level.
• Run filter until water is clear.
• Clean cartridge frequently.
• Correct the pH level. Check with
your pool dealer for advice.
• Adjust the chlorine level.
• Clean or replace your filter.
• Repair with a patch kit.
• Finger tighten all caps.
• Use Intex pool vacuum to
clean bottom of pool.
• Use Intex pool skimmer.
• Greenish water.
• Green or black
spots on pool liner.
• Pool liner is slippery
and/or has a bad odor.
• Water turns blue,
brown, or black
when first treated
with chlorine.
• Water is cloudy or
milky.
• Level is lower than
on previous day.
• Dirt or sand on
pool floor.
• Leaves, insects etc.
IMPORTANT
If you continue to experience difficulty, please contact our Consumer Service Department
for assistance. See separate “Authorized Service Centers” sheet.
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death.
To reduce your risk of injury, read and follow all product, package and package insert warnings and
instructions. Remember, however, that product warnings, instructions and safety guidelines cover
some common risks of water recreation, but do not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following general guidelines as well as
guidelines provided by nationally recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard” or water watcher,
especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about the use of protective
devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.

(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 16
Your Krystal Clear™ Filter-Pump has been manufactured using the highest quality materials
and workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This limited warranty applies only to the Krystal Clear™ Filter-Pump and
accessories listed below.
This limited warranty is in addition to, and not a substitute for, your legal rights and
remedies. To the extent that this warranty is inconsistent with any of your legal rights, they
take priority. For example, consumer laws across the European Union provide statutory
warranty rights in addition to the coverage you receive from this limited warranty: for
information on EU-wide consumer laws, please visit the European Consumer Center website
at http://ec.europa.eu/consumers/ecc/contact_en/htm.
The provisions of this limited warranty apply only to the original purchaser and are not
transferable. This limited warranty is valid for the period noted below from the date of the
initial retail purchase. Keep your original sales receipt with this document, as proof of
purchase will be required and must accompany warranty claims or the Limited Warranty
is invalid.
Krystal Clear™ Filter-Pump Warranty – 2 Years
Hoses, Plunger Valves & Fittings Warranty – 180 days
If you find a manufacturing defect in the Krystal Clear™ Filter-Pump during the warranty
periods noted above, please contact the appropriate Intex Service Center listed in the
separate “Authorized Service Centers” sheet. If the item is returned as directed by the Intex
Service Center, the Service Center will inspect the item and determine the validity of the
claim. If the item is covered by the provisions of the warranty, the item will be repaired or
replaced, with the same or comparable item (at Intex’s choice) at no charge to you.
Other than this warranty, and other legal rights in your country, no further warranties are
implied. To the extent possibly in your country, in no event shall Intex be liable to you or any
third party for direct or consequential damages arising out of the use of your Krystal Clear™
Filter-Pump, or Intex or its agents’ and employees’ actions (including the manufacture of the
product). If your country does not allow the exclusion or limitation of incidental or
consequential damages, this limitation or exclusion does not apply to you.
You should note that this limited warranty does not apply in the following circumstances:
• If the Krystal Clear™ Filter-Pump is subject to negligence, abnormal use or application,
accident, improper operation, improper voltage or current contrary to operating
instructions, improper maintenance or storage;
• If the Krystal Clear™ Filter-Pump is subject to damage by circumstances beyond Intex’s
control, including but not limited to, ordinary wear and tear and damage caused by
exposure to fire, flood, freezing, rain, or other external environmental forces;
• To parts and components not sold by Intex; and/or
• To unauthorized alterations, repairs or disassembly to the Krystal Clear™ Filter-Pump by
anyone other than Intex Service Center personnel.
The costs associated with the loss of pool water, chemicals or water damage are not
covered by this warranty. Injury or damage to any property or person is not covered by this
warranty.
Read the owner’s manual carefully and follow all instructions regarding proper operation and
maintenance of your Krystal Clear™ Filter-Pump. Always inspect your product prior to use.
This limited warranty will be void if use instructions are not followed.
LIMITED WARRANTY

110B
(110) MODEL 634 FILTER PUMP DANISH 7.5” X 10.3” PANTONE 295U 06/06/2016
Dansk 110B
Dansk
BETJENINGSVEJLEDNING
Prøv også disse andre fine Intex produkter: pools, pool tilbehør,
oppustelige pools og indendørs legetøj, luftmadrasser og både kan
findes hos store forhandlere eller besøg vores hjemmeside.
Som led i vores politik om hele tiden at forbedre vores produkter,
forbeholder Intex sig retten til uden varsel at ændre specifikationer
og design, hvilket kan resultere i opdateringer af denne vejledning.
Krystal Clear™
Model 634T Filterpumpe
220 - 240 V~, 50 Hz, 360 W
Hmax 5.0 m, Hmin 0.19 m, IPX4
Maks. Vandtemperatur: 35 °C
Kun til illustration.
©2016 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte
vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/
Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in
Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex
Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne
par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR
Roosendaal – The Netherlands
www.intexcorp.com
VIGTIGT
SIKKERHEDSREGLER
Sørg for at læse, forstå og følge alle
instruktionerne nøje, før du installerer
produktet og tager det i brug.
Opbevares til senere brug.

(110) MODEL 634 FILTER PUMP DANISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110B
GEM DENNE VEJLEDNING
Dansk
Side 2
Advarsel........................................................................... 3
Indholdsliste
..................................................................... 4-5
Opstillingsvejledning...................................................... 6-9
Betjeningsvejledning...................................................... 10
Driftstidstabel.................................................................. 11
Vedligeholdelse............................................................... 12-13
Pleje af poolen og kemikalier......................................... 13
Vinteropbevaring............................................................. 13
Fejlfindingsvejledning.................................................... 14
Almindelige poolproblemer............................................ 15
Generelle sikkerhedsregler............................................ 15
Begrænset garanti........................................................... 16
INDHOLDSFORTEGNELSE

(110) MODEL 634 FILTER PUMP DANISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110B
GEM DENNE VEJLEDNING
Dansk
Side 3

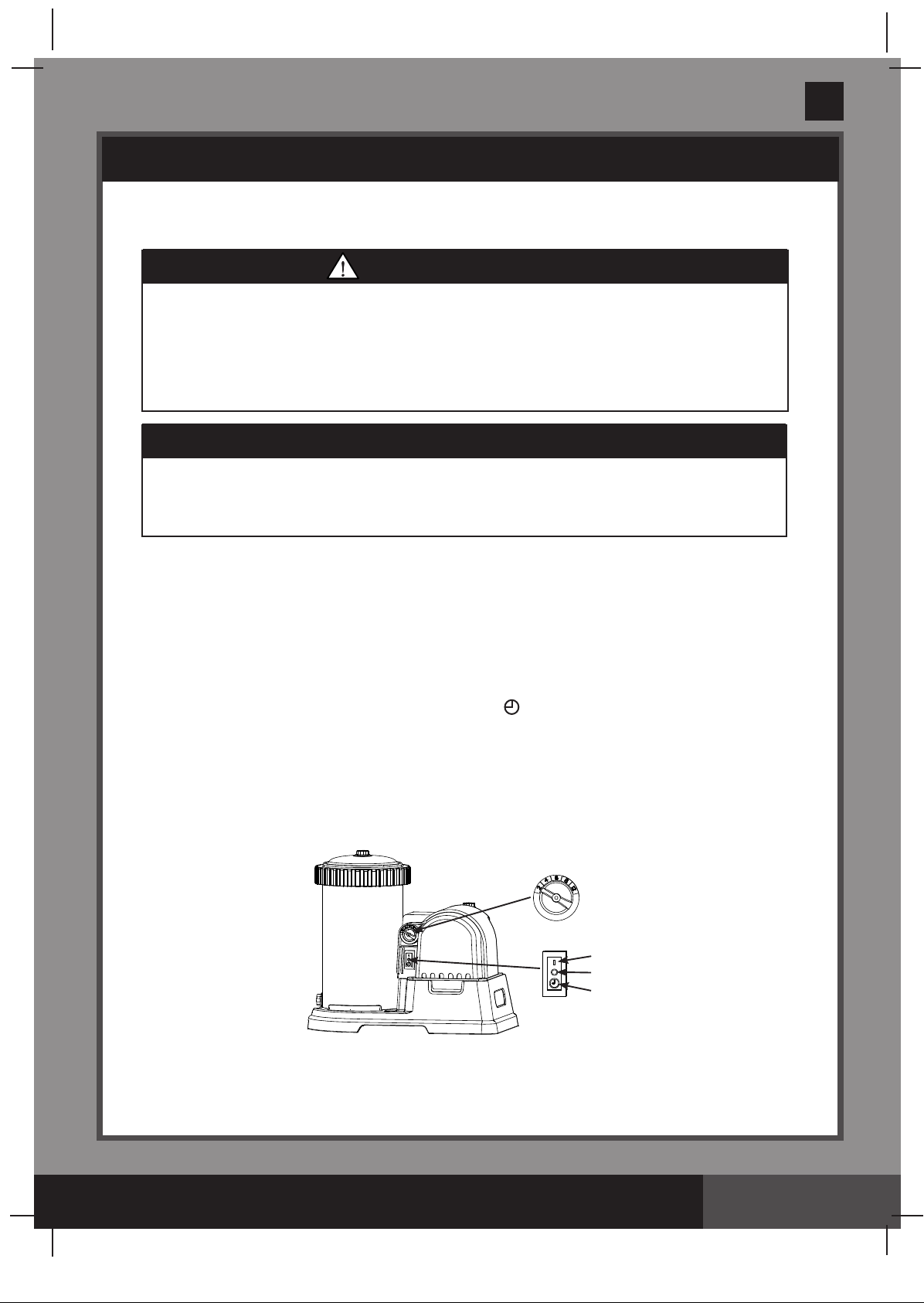

VIGTIGT SIKKERHEDSREGLER
Sørg for at læse, forstå og følge alle instruktionerne nøje, før du installerer produktet og tager det i brug.
LÆS OG FØLG ALLE ANVISNINGERNE
ADVARSEL
Disse produktadvarsler, anvisninger og sikkerhedsregler, der følger med produktet, dækker nogle
almindeligt forekommende risici ved vandsportsudstyr og omfatter ikke alle fare- og risicimomenter.
Brug din sunde fornuft og almindelige dømmekraft i forbindelse med vandaktiviteter.
• Hold altid opsyn med børn og handicappede personer.
• Hold produktet og ledningen/ledningerne utilgængelige for børn.
•Børn må ikke lege med apparatet. Børn må ikke rengøre eller vedligeholde apparatet uden
opsyn af en voksen.
•Dette apparat må kun anvendes af børn fra 8 år og opefter og af personer med nedsatte fysiske
og metale evner, nedsat følelse eller mangel på erfaring og viden, hvis de er under opsyn eller
har fået vejledning i sikker brug af apparatet og forstår risikoen ved at bruge det.
• Samling og demontering må kun foretages af voksne.
• Fare for elektrisk stød. Dette produkt må kun sluttes til et jordstik, der er beskyttet med en
jordfejlsafbryder (HFI) eller fejlstrømsafbryder. Kontakt en elektriker, hvis du ikke er sikker på, at
stikket er beskyttet med HFI. Få en elektriker til at installere HFI, som udløses ved maks. 30 mA.
Undlad at bruge en transportabel fejlstrømsafbryder.
• Tag altid stikket ud af stikkontakten, før du flytter produktet, gør det rent, udfører service på det
eller foretager justeringer af det.
• Der skal være adgang til stikket, efter at produktet er blevet installeret.
• Undgå at nedgrave ledningen. Placer ledningen et sted, hvor den ikke bliver beskadiget af
plæneklippere, hækkesakse og andet udstyr.
• Hvis ledningen er defekt, skal den udskiftes af producenten, serviceværkstedet eller en elektriker,
så der ikke opstår farlige situationer.
• For at reducere risikoen for elektrisk stød skal du undgå at anvende forlængerledninger, timere,
stikadaptere eller stikomformere for at slutte enheden til strømforsyningen. Brug en fastmonteret
stikkontakt.
• Undgå at slutte stikket til eller at trække det ud, hvis du står i vand eller har våde hænder.
• Dette produkt skal placeres minimum 2 m fra poolen.
• Stikket til produktet skal som minimum placeres 3,5 m fra poolen.
• Anbring produktet væk fra poolen for at forhindre, at børn kravler op på pumpen for at komme i
poolen.
• Undgå at bruge dette produkt, mens poolen er i brug.
• Dette produkt er kun beregnet til brug med pools, der kan gemmes væk efter brug. Det må ikke
bruges til pools, der er fast installeret. En flytbar pool, der kan gemmes væk for vinteren, er
konstrueret, så den er nem at skille ad og samle igen.
•
Kun beregnet til privat brug.
• Dette produkt er kun beregnet til brug til de formål, der er beskrevet ibrugsanvisningen!
MANGLENDE OVERHOLDELSE AF DISSE ADVARSLER KAN MEDFØRE TINGSSKADE,
ELEKTRISK STØD, SAMMENFILTRING, ANDEN ALVORLIG PERSONSKADE ELLER
DØDSFALD.

(110) MODEL 634 FILTER PUMP DANISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110B
GEM DENNE VEJLEDNING
Dansk
Side 4
INDHOLDSLISTE
Før du installerer produktet, skal du bruge et par minutter på at kontrollere
indholdet og gør dig fortrolig med delene.
Oplys modelnummer og reservedelsnummer i forbindelse med bestilling af reservedele.
1
2
3
4
5
6
7
8
N° DE PIÈCE
BESKRIVELSE
ANTAL
RESERVEDEL NUMMER
1
2
2
1
1
1
1
2
GEVINDSKÅRET RING TIL FILTERHUS
LUFTVENTIL/BUNDFALDSVENTIL
O-RING TIL VENTIL
DÆKSEL TIL FILTERHUS
O-RING TIL FILTERHUS
FILTERINDSATS (29005)
LUFTVENTIL/BUNDFALDSVENTIL B
PUMPESLANGE MED MØTRIKKER
10491
10460
10264
10490
10492
10725
11010
BEMÆRK: Tegningerne er kun til illustration. Viser ikke det korrekte produkt. Er ikke i skala.
2
3
4
5
1
6
8
7
32
16
16
Type af ltermedie: Syntetisk indsats #29005
Der skal ikke bruges værktøjer til montering.
