Invacare Arrow FWD Instruction Manual

Yes, you can. ™
Arrow® FWD
Power Wheelchair
Parts Catalog Issued: Apr 25, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 99-149. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design and Arrow are registered trademarks and Junior and Ranger
X are trademarks of Invacare Corporation.
Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie GMBH & Co.. Tash is a registered trademark of Tash International Inc.. Therafin is
a registered trademark of W/R/ Medical Electronics Co.. Bussman is a registered trademark of Cooper Industries. MIDI is a registered trademark of Littelfuse
Inc.. Dynamic is a registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 99-149
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Miscellaneous .................................................................................................... 175
Accessories - Oxygen Holder Assembly Kit - ASBA Seats ...................................................... 171
Accessories - Oxygen Holder Assembly Kit - Captain Seat (After 4/14/03) ............................. 169
Accessories - Oxygen Holder Assembly Kit - Captain Seat (Before 4/15/03) .......................... 167
Accessories - Power Wheelchair Tool Kit ................................................................................ 173
Arms - Adjustable Height .......................................................................................................... 57
Arms - Captain Seat & Hardware (18" W) ................................................................................ 48
Arms - Captain Seat & Hardware (20" & 22" W) ...................................................................... 50
Arms - Fixed Height .................................................................................................................. 54
Arms - Junior Adjustable Height ............................................................................................... 52
Back - Recliner Assembly ........................................................................................................ 39
Battery Box - Front ................................................................................................................... 129
Battery Box - Rear .................................................................................................................... 131
Battery Box Attaching Hardware .............................................................................................. 127
Battery Chargers - Harnesses & Cables .................................................................................. 125
Canes - Back - Spreader Bars & Attaching Hardware ............................................................. 30
Casters & Forks (6" & 8") ......................................................................................................... 117
Casters & Forks (9") ................................................................................................................. 119
Counterweight & Sensor Attaching Hardware .......................................................................... 105
Electronics - MKIV Controller - Programmer & Attaching Hardware ........................................ 149
Electronics - MKIV Displays ..................................................................................................... 155
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Electronics - MKIV Joystick Mounting Hardware & Joystick Accessories ................................ 137
Electronics - MKIV Joystick Options ......................................................................................... 162
Electronics - MKIV Joysticks - PSF & PSR .............................................................................. 135
Electronics - MKIV Joysticks - RX - A - A+ - TCHJOY ............................................................. 133
Electronics - MKIV Mid-Line Swing Bracket Assembly ............................................................ 141
Electronics - MKIV R.I.M. Head Control Assembly .................................................................. 159
Electronics - MKIV R.I.M. Head Control Attaching Hardware .................................................. 157
Electronics - MKIV Recliner Control & Recliner Cable ............................................................. 153
Electronics - MKIV Sip-N-Puf/ Digital Interface - COM12 & COM34 ........................................ 151
Electronics - MKIV Swivel Joystick Hardware .......................................................................... 139
Electronics - Quad Link - QLA - ASBA & QL - Captain Seat (After 4/06/06) ............................ 146
Electronics - Quad Link Assembly (Before 4/07/06) ................................................................. 143
Electronics - Tash & Therafin Accessories ............................................................................... 165
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 6
Frames - Base .......................................................................................................................... 103
Frames - Seat - Adult (16" - 24" W) .......................................................................................... 14
Frames - Seat - Captain & Actuator Hardware ( Before 11/1/01) ............................................. 24
Frames - Seat - Captain & Actuator Hardware (After 10/31/01) ............................................... 26
Frames - Seat - Junior (12" - 16" W) ........................................................................................ 12
Frames - Seat Attaching Hardware - Adult (16" - 24" W) ......................................................... 18
Frames - Seat Attaching Hardware - Junior (12" - 16" W) ....................................................... 16
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Front Riggings - 90 Degree One Piece Footboard Assembly .................................................. 98
Front Riggings - Calf Pads and Attaching Hardware ................................................................ 79
Front Riggings - Flip-Up Footplates - AT5043 .......................................................................... 93
Front Riggings - Footrest & Legrest Accessories ..................................................................... 100
Front Riggings - Footrest Supports .......................................................................................... 68
Front Riggings - Footrest Supports - P93M .............................................................................. 87
Front Riggings - Footrest Supports - PW93 ............................................................................. 81
Front Riggings - Footrest Supports - PW93E ........................................................................... 85
Front Riggings - Footrest Supports - PW93ST ......................................................................... 83
Front Riggings - Front Rigging Hanger Assembly - Pin & Sector Style .................................... 66
Front Riggings - Legrest Release Handles & Ratchets ............................................................ 77
Front Riggings - Legrest Supports - P904A ............................................................................. 73
Front Riggings - Legrests - Articulating - PAS4A - PAL4A ....................................................... 75
Front Riggings - Legrests Supports - AT5544 .......................................................................... 71
Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates .............................. 95
Front Riggings - Pivot/Slide Tube & Composite Footplates ..................................................... 89
Front Riggings - Pivot/Slide Tube & Standard Aluminum - 1450 - 1350 Footplates ................ 91
Front Riggings - Reference Chart ............................................................................................ 60
Motors - 4-Pole & Gearboxes ................................................................................................... 114
Packaging - Literature & Decals ............................................................................................... 10
Seat Pans & Mounting Hardware ............................................................................................. 28
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seats - Captain (After 10/31/01) ............................................................................................... 22
Seats - Captain (Before 11/1/01) .............................................................................................. 20
Shock Absorbers ...................................................................................................................... 110
Shroud & Frame Color Package Reference Chart ................................................................... 8
Shroud Covers ......................................................................................................................... 107
Swing Arms & Suspension Attaching Hardware ...................................................................... 112
Upholstery - Back - Non-Recliner - Nylon ................................................................................ 35
Upholstery - Back - Non-Recliner - Vinyl .................................................................................. 37
Upholstery - Back - Recliner - Nylon ........................................................................................ 42
Upholstery - Back - Recliner - Vinyl .......................................................................................... 44
Upholstery - Headrest & Pillows ............................................................................................... 46
Warranty Replacement Parts ................................................................................................... 176
Wheels - Drive & Attaching Hardware ...................................................................................... 121
Wheels - Drive Wheel Hub Mounts .......................................................................................... 123
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Finishes and Touch-Up Paint
Color
Number Part Number Bottle Size Color
Anthracite.6 oz.103337622P Deep Purple.6 oz.103145608P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Wet Black.6 oz.103145024P White.6 oz.103144729P Sunny Yellow.6 oz.103144830P Flat Black.6 oz.104632734P Teflon Black.6 oz.1101320-NLA69P Dark Olive w/ Copper.6 oz.107389381P Royal Blue w/ Grape.6 oz.107389583P Jewel Green.6 oz.1101325101P Mocha Frost.6 oz.1101324103P Electric Teal.6 oz.1101316104P Midnight Blue.6 oz.1101326105P
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Frame Finishes, Touch-Up Paints and Upholstery Options
Sparkle Frame Finishes
Color Number Color
Twilight Sparkle72P Gold Sparkle73P Black w/ Twilight Sparkle88P
Upholstery Options - Vinyl
Color
Number Color
BlackU67 Dove GreyU75 Dark BlueU85 RubyU86 Sky BlueU97 CamelU88
Upholstery Options - Nylon
Color Number Color
BlackU240
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Shroud and Frame Color Package
Reference Chart
Before 2/18/2000
Model Code Shroud Color Frame Color Description
Red w/ Black AccentWet BlackCandy Apple RedRBLK Red w/ Antharcite AccentAnthraciteCandy Apple RedRATH Red w/ Black/Gold SparkleBlack w/ Gold SparkleCandy Apple RedRBGD Green w/
Dark Olive/Copper
Dark Olive w/ Copper
Blue Green
Chameleon
GOLV
Green w/ Black/Twilight
Sparkle
Black w/ Twilight Sparkle
Blue Green
Chameleon
GBTW
Green w/ Black AccentWet Black
Blue Green
Chameleon
GBLK
Green w/
Royal Blue/Grape
Royal Blue w/ Grape
Blue Green
Chameleon
GBLG
Blue w/ Yellow
Accent
Sunny Yellow
Bright Blue
Metallic
BYLW
Blue w/ Black
Accent
Wet Black
Bright Blue
Metallic
BBLK
Blue w/ White
Accent
White
Bright Blue
Metallic
BWHT
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Shroud and Frame Color Package
Reference Chart
After 2/17/2000
Model Code Shroud Color Frame Color Description
Red w/ Black AccentWet BlackCandy Apple RedRBLK Red w/ Anthracite AccentAnthraciteCandy Apple RedRATH Red w/ Black/Twilight
Sparkle
Black w/ Twilight SparkleCandy Apple RedRBTW
Emerald Green
w/ Mocha Frost
Mocha FrostEmerald GreenGMOC
Emerald Green w/
Black/Twilight Sparkle
Black w/ Twilight SparkleEmerald GreenGBTW
Emerald Green
w/ Black Accent
Wet BlackEmerald GreenGBLK
Ocean Blue w/
Yellow Accent
Sunny YellowOcean BlueBYLW
Ocean Blue
w/ Black Accent
Wet BlackOcean BlueBBLK
Ocean Blue
w/ White Accent
WhiteOcean BlueBWHT
Black w/ Mocha
Frost Accent
Mocha FrostLiquid BlackBKMO
Black w/ Jewel
Green Accent
Jewel GreenLiquid BlackBKGR
Black w/
Teal Accent
Electric TealLiquid BlackBKTL
Black w/ Midnight Blue
Accent
Midnight BlueLiquid BlackBKMB
Black w/ Electric
Red Accent
Electric RedLiquid BlackBKRD
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

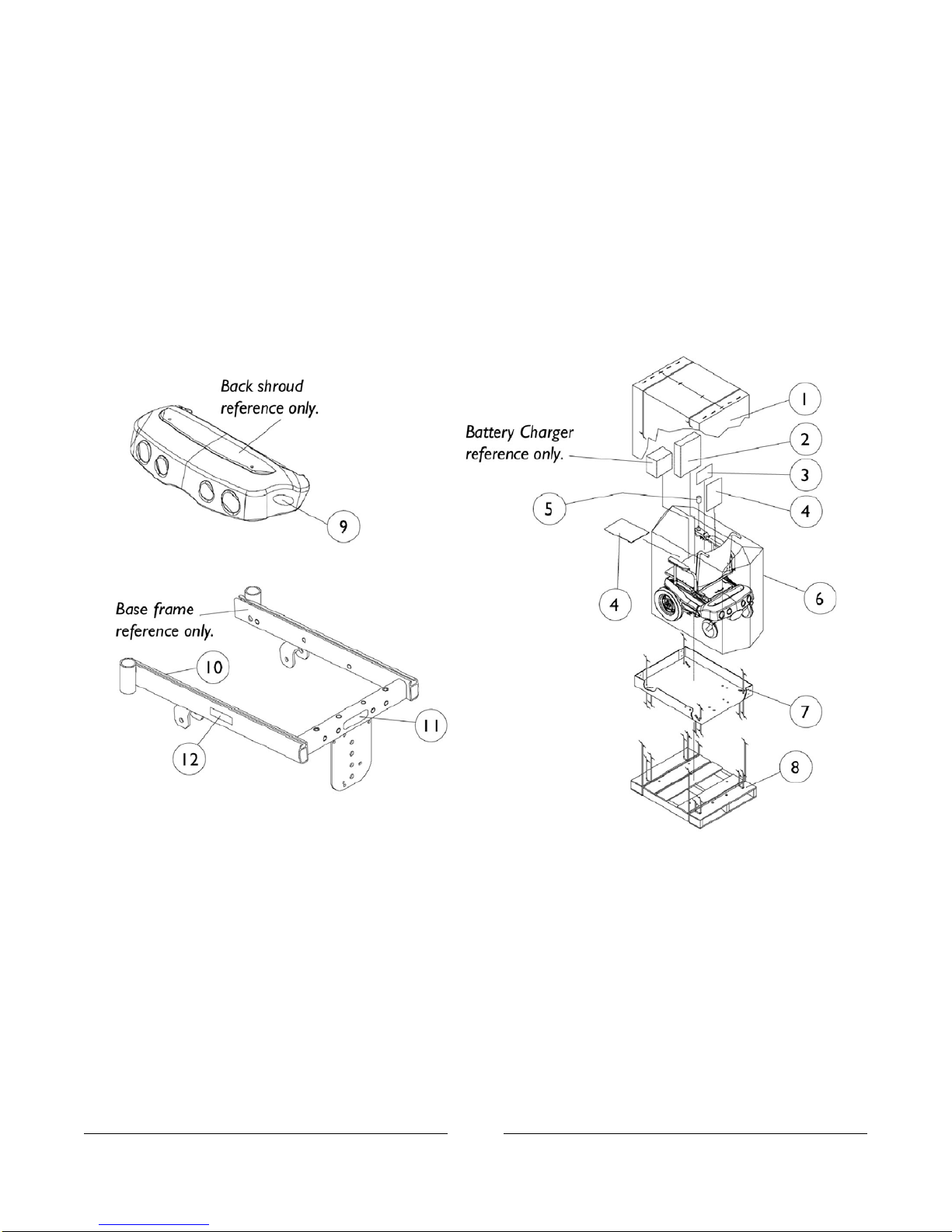

Packaging, Literature and Decals
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Packaging, Literature and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 E 1031682 Carton, Cover 1 11 F 1036028 Carton, Cover 1 11 G 1030365 Carton, Cover 1 11 H 40131X011 Carton, Front Riggings 1 12 1081227-NLA NLA - Owner's Manual - Storm Series 1 13 40131X161 Insert, Plain Pad 1 24 1043198-NLA NLA - Tube, Paper 1 15 A 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 16 1030362 Carton, Tray 1 17 See Note See Footnote -- --8 I 1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 29 1119281 Plate, Name, Patent Numbers 1 110 1035900 Decal, Transportation 1 111 1095228-NLA NLA - Decal, Model, Black - Arrow 1 212 B 1095229-NLA NLA - Decal, Model, White - Arrow 1 212 1094013-NLA NLA - Package, Decal, Black - Arrow 1 1C,D 1095494 Package, Decal, White - Arrow 1 1C,D 1012001 Carton, Joystick 1 1D 1079515 Kit, T-Nut with Instruction Sheet 1 1A,D 50000X121 Strap, Battery Lift 1 1D 00077X031-NLA NLA - Warranty Card 1 1D
A - Used with Storm Base Only.
B - Used for chairs with 29P and 30P frame color.
C - Decal package includes model, transportation and patent numbers.
D - Not Shown
E - 12"W - 20"W Non-Recliner, Extended, & H.B. Captain Seats 18"W
F - 16"W - 20"W Recliner & 16"W - 20"W Non-Recliner w/ Medium/Tall Seat-to-Floor
G - 21"W - 24"W Non-Recliner & Recliner, H.B. Captain Seat 22"W
H - Base only and all A.S.B.A. seat only models.
I - Wooden skid not supplied
NOTE: When
adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

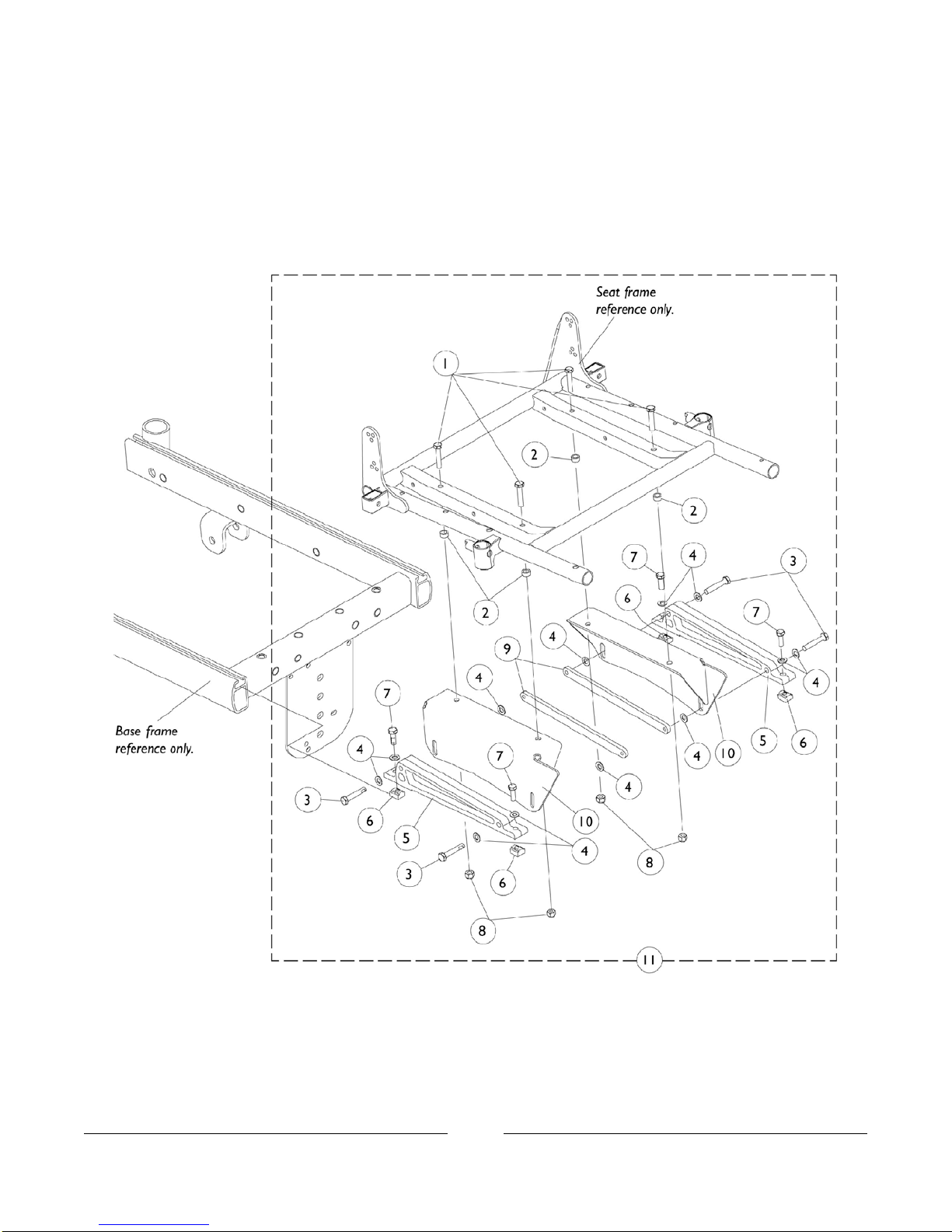

Seat Frame Assembly
Junior 12"-16" Wide
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

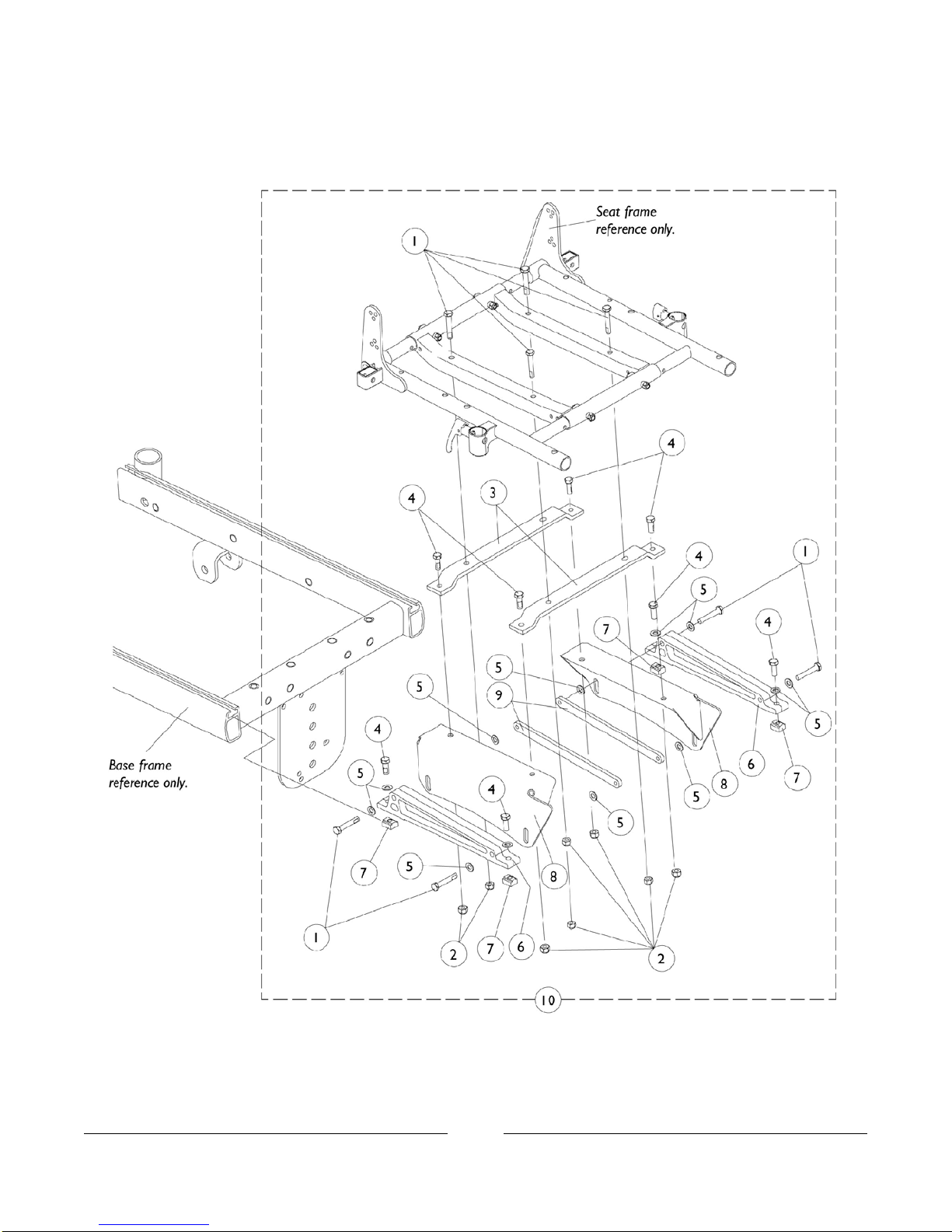

Seat Frame Assembly
Junior 12"-16" Wide
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 41 1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 42 1047449 Spacer (1/4 x 3/8 x 3/16") 1 43 1025736 Locknut (1/4-20) 1 44 47471X074 Spring, Arm Lock 1 15 1028594 Pin, Arm Lock, Black 1 15 1090768 Kit, Lock Handle w/Rivets (Pair) 2 15 1070473-NLA NLA - Frame Seat, Adult/Junior, Black - Right 1 16 A,B 1070474 Frame Seat, Adult/Junior, Black - Left 1 16 A,B 1070476 Frame, Seat, Adult/ Junior, Center, Black 1 17 A 1070469 Frame Assembly Seat, Adult/Junior, Black (14-15"
W x 16-17" D) 1 18 C
A - Junior 12-16" Wide and 12-16" Deep
B - Includes seat frame and item 5 arm lock assembly
C - Includes items 1-7
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seat Frame and Hardware
(Adult 16-24" Wide)
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seat Frame and Hardware
(Adult 16-24" Wide)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Seat Frame Non-Recliner 1 11 A See Chart #1 Seat Frame Recliner 1 11 A 1029501 Plug Button, Black (1") 1 22 1090768 Kit, Lock Handle w/Rivets (Pair) 2 13 47471X074 Spring, Arm Lock 1 24 1028594 Pin, Arm Lock, Black 1 25 A - Includes seat frame and items 2-5
NOTE:
#1 - Seat Frame with Hardware
Non-Recliner
Seat Width 16-17" Depth 18-19" Depth 20-21" Depth 22" Depth
107069910706901070681107067216" Width 107070010706911070682107067317" Width 107070110706921070683107067418" Width 107070210706931070684107067519" Width 107070310706941070685107067620" Width 107070410706951070686107067721" Width 107070510706961070687107067822" Width 107070610706971070688107067923" Width 107070710706981070689107068024" Width
#1 - Seat Frame with Hardware
Recliner
Seat Width 16-17" Depth 18-19" Depth 20-21" Depth 22" Depth
107073510707261070717107070816" Width 107073610707271070718107070917" Width 107073710707281070719107071018" Width 107073810707291070720107071119" Width 107073910707301070721107071220" Width 107074010707311070722107071321" Width 107074110707321070723107071422" Width 107074210707331070724107071523" Width 107074310707341070725107071624" Width
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seat Frame Attaching Hardware
Junior 12"- 16" Wide
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seat Frame Attaching Hardware
Junior 12"- 16" Wide
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1043627 Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") 1 81 1026158 Locknut (5/16-18) 1 82 1070465 Bracket, Mounting, Black - Junior 1 23 1070462 Screw, Hex Head w/ Patch (5/16-18 x 7/8") 1 84 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 125 1070388 Support, Seat, Black 1 26 1069724 T-Nut (5/16-18) 1 57 1070343 Plate, Seat Mounting Low, Right 1 28 B 1070344 Plate, Seat Mounting Low, Left 1 28 B 1070345 Plate, Seat Mounting Medium, Right 1 28 C 1070346 Plate, Seat Mounting Medium, Left 1 28 C 1070347-NLA NLA - Plate, Seat Mounting Tall, Right 1 28 D 1070348-NLA NLA - Plate, Seat Mounting Tall, Left 1 28 D 1070396 Strap, Bolt, Black 1 29 1093313 Hardware, Seat Mounting, Junior (12-16" Wide) 1 110 A
A - Item number 8 not included in seat frame attaching hardware.
B - 18-1/4" Seat to Floor
C - 20-1/2" Seat to Floor
D - 21-3/4" Seat to Floor
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seat Frame Attaching Hardware
Adult 16"- 24" Wide
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149

Seat Frame Attaching Hardware
Adult 16"- 24" Wide
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1043627 Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") 1 41 A 1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 41 B 1070413 Spacer (21/64 x 1/2 x 17/64") 1 42 A 1043627 Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") 1 43 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 124 1070388 Support, Seat, Black 1 25 1069724 T-Nut (5/16-18) 1 56 1070462 Screw, Hex Head w/ Patch (5/16-18 x 7/8") 1 47 1026158 Locknut (5/16-18) 1 48 1070396 Strap, Bolt, Black 1 29 1070343 Plate, Seat Mounting Low, Right 1 210 D 1070344 Plate, Seat Mounting Low, Left 1 210 D 1070345 Plate, Seat Mounting Medium, Right 1 210 E 1070346 Plate, Seat Mounting Medium, Left 1 210 E 1070347-NLA NLA - Plate, Seat Mounting Tall, Right 1 210 F 1070348-NLA NLA - Plate, Seat Mounting Tall, Left 1 210 F 1093314 Hardware, Attaching, Seat Frame (16" W) 1 111 C 1093311 Hardware, Attaching, Seat Frame (17" and Wider) 1 111 C
A - Part # 1043627 and 1070413 are used on the 16" wide chairs only.
B - Part # 1070398 is used on 17" and wider chairs only.
C - Item number 10 not included in seat frame attaching hardware.
D - 18-1/4" Seat to Floor
E - 20-1/2" Seat to Floor
F - 21-3/4" Seat to Floor
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-149
