Invengo XC2600 User manual

User’s Manual
XC2600 Handheld Reader
Invengo Information Technology Co., Ltd.

Welcome to be a user of the Invengo RFID products.
We appreciate that you choose the XC2600 handheld reader, hope our
devices will facilitate your experience!

Foreword
XC2600 Handheld Reader
This manual provides information on product application, maintenance,
repair and other features for users and maintenance personnel of the
products.
All introduction and descriptions written in this manual, in respect of
the product’s features, functions and other relevant information, are the
latest. All information provided is accurate during the time of printing.
The company retains all rights to make any correction or amendment
to this manual without prior notice and shall bear no responsibility for
these actions.
Some of the product functions may vary due to different conguration
upon special requests from client.
Safety Instructions
Warning sign
If operate improperly, it may result in damage to your equipment(s).
Attention
If ignored, it may result in unsuccessful operation
If ignored, it may cause undesirable effect

Content
1. Product overview.........................................................................1
1.1 Product introduction......................................................................................... 1
1.1 Introduction to XC2600 ..................................................................................... 1
1.2 Main usage and applications............................................................................ 1
1.3 Operating conditions ........................................................................................ 2
1.4 Safety and protective measures ...................................................................... 2
2. Performance parameters ............................................................3
2.1 Main functions ................................................................................................... 3
2.2 Technical parameter.......................................................................................... 3
3. Dimension and weight ................................................................6
3.1 Dimension .......................................................................................................... 6
3.1 Weight................................................................................................................. 6
4. Structural features and functions..............................................7
4.1 Appearance description.................................................................................... 7
4.2 Indicator lights................................................................................................... 9
4.3 Battery installation and removal...................................................................... 9
4.4 Power button operation .................................................................................. 10
5. Operating mode......................................................................... 11
5.1 Online mode......................................................................................................11
5.2 Ofine mode......................................................................................................11

6. Demo software functions and settings ................................... 13
6.1 Equipment connection.................................................................................... 13
6.2 Instructions on rd function........................................................................... 14
6.2.1 Start rd ................................................................................................................... 14
6.2.2 Tag reading operation............................................................................................. 15
6.2.3 Scan settings........................................................................................................... 17
6.2.4 Power settings......................................................................................................... 18
6.2.5 Tag ltering conguration...................................................................................... 19
6.2.6 Tag searching .......................................................................................................... 19
6.2.7 Session conguration ............................................................................................ 20
6.2.8 Q-value conguration............................................................................................. 21
6.3 Barcode function operation demonstration.................................................. 21
6.4 Other functions................................................................................................ 22
6.5 About ................................................................................................................ 23
6.6 Description on api interface program............................................................ 24
7. Routine maintenance, FAQs and troubleshooting ................. 25
7.1 Routine maintenance ...................................................................................... 25
7.2 FAQs and troubleshooting ............................................................................. 26
7.3 RF communication optimization.................................................................... 26
7.3.1 Signal interference.................................................................................................. 27
7.3.2 Signal attenuation/reection.................................................................................. 27
8. Transportation and storage...................................................... 29
8.1 Transport requirements .................................................................................. 29
8.2 Storage requirements ..................................................................................... 29
9. Packaging and unpacking ........................................................30

9.1 Packaging......................................................................................................... 30
9.2 Unpacking ........................................................................................................ 30
10. After-sales ................................................................................31
10.1 After-sales service......................................................................................... 31
10.2 Other matters................................................................................................. 31
11. Safety instructions .................................................................. 32

User Manual
XC2600 Handheld Reader
1
1. Product overview
1. Product overview
1.1 Introduction to XC2600
Thank you for using XC2600, our company’s latest model of handheld reader.
XC2600 is legerity in shape, easy to use and suitable for various applications.
XC2600 can coordinate with terminal devices which are equipped with Bluetooth
module. Terminal types such as Android mobile, Android tablet and other types
of equipment can be flexible according to the specific application of choice.
XC2600 supports RFID and barcode functions.

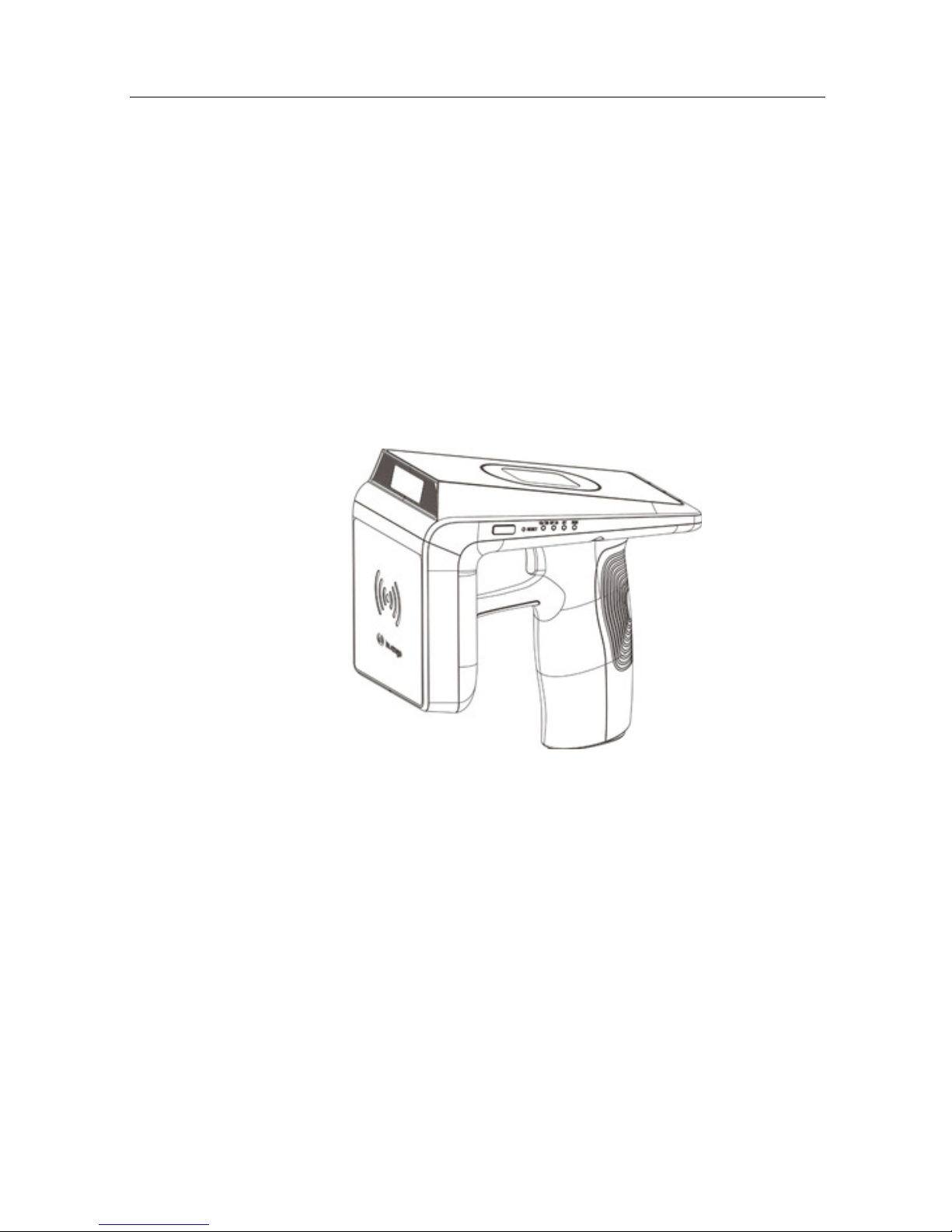

Figure 1 XC2600 Handheld Reader
1.2 Main Usage and Applications
XC2600 has exible usages and can be operated in various elds, such as retail
management, assets management, warehouse management, transportation
management and commodity anti-counterfeiting, etc.

User Manual
XC2600 Handheld Reader
2
1.3 Operating Conditions
XC2600 needs the following operating conditions:
Temperature range: -10℃– 60℃
Storage temperature: -20℃- +70℃
Operating humidity: 5% RH – 95% RH, non-condensing
Storage humidity: 5% RH – 95% RH, non-condensing
1.4 Safety and Protective Measures
Please refer to the following important statement before use!
When this reader is operating (emitting microwave), avoid aiming at human or
livestock for a long time.
Any radio transmitting equipment, including this equipment, may cause
interference with medical equipment that is not properly protected. Should any
problem occur, in respect of the aforementioned, please consult your medical
equipment manufacturer. The operation of this equipment may also cause
interference with other electronic devices.
1. Product overview

User Manual
XC2600 Handheld Reader
3
2.Performance Parameters
2.1 Main Functions
 Support UHF RFID tags reading and writing operations
 Support mainstream 1D, 2D barcode reading( Optional)
2.2 Technical Parameter
Table 2-1 Function parameter
Processor Cortex-M3 processer
Memory Flash:64MBit
EEPROM:256Kbit
Power source Lithium battery:
Standard Removable 5200mAh/3.7 V rechargeable lithium battery
AC input: 100V - 240V/50Hz - 60Hz
DC output: DC5V/2A
Working time: Standby - Not less than 200 hours; operating duration
-not less than 8hrs
Work Status: Real-time monitoring of battery voltage, remaining
battery and charging status
2. Performance parameters

User Manual
XC2600 Handheld Reader
4
UHF-RFID
module
Supported protocols: EPC Global UHF Class 1 Gen 2/ISO 18000-
6B/6C
Operating frequency:
840MHz—845MHz(CN2)
920MHz—925MHz (CN1)
865MHz—868MHz (EU)
902MHz—928MHz (FCC)
Output power: 0-30dBm, stepping 3dB
Reading distance:
Tag reading: 0~6m, tag writing: 0~3m (depending on the specic
conguration )
Maximum tag capacity:
 Maximum 496 Bits for EPC
 Maximum 128 Bits for TID
 Maximum 64K Bits for user data
Barcode engine
(Optional)
Support code system:
 1D code: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,
Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/
EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5,
Standard 2 of 5, Plessey, MSI-Plessey, etc.
 2D code: PDF417, QR Code, Data Matrix(ECC200,E
CC000,050,080,100,140, etc.)
BT BT2.0
Status indication Lights:
 Barcode indicator
 RFID module indicator
 Bluetooth indicator
 System/charge indicator
 Buzzer
 Sounds indication of equipment operational condition
External ports USB Type-C power port
5V DC power output port(optional, OFF by default)
2. Performance parameters
