INVISIBLE FENCE 800 Series User manual

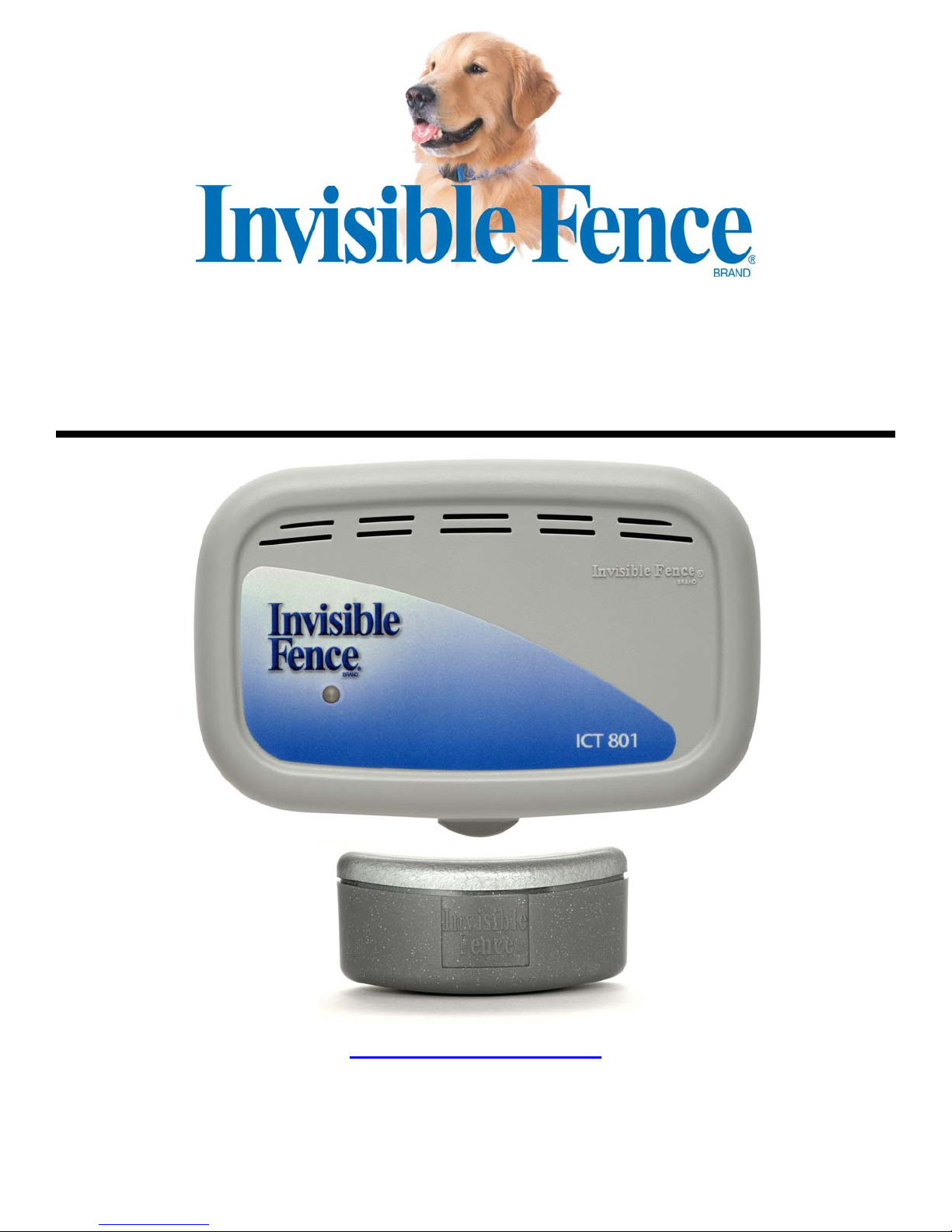

800 Series Transmitters
Titanium Computer Collar® Unit
Owner’s Manual
www.invisiblefence.com
800-578-DOGS

2
Congratulations.
You have just purchased the world’s premier pet containment system, the Invisible Fence®Brand. The
Invisible Fence Brand pet containment system is backed with a one-year, money-back performance
guarantee. The support of your Invisible Fence Brand Dealer gives you peace of mind that your dog
remains safe at home. Refer to your warranty card or the back of your sales contract for complete
details.
Information about your Invisible Fence Brand pet containment system
The 800 Series Transmitters are designed to work with an Invisible Fence Brand Titanium Computer
Collar®unit to contain your pet within areas you choose, or teach your pet to avoid specific areas such
as flowerbeds, gardens, or pools. The transmitter produces a digital signal that travels along the signal
field wire and back to the transmitter to produce an Invisible Boundary®wall.
When your pet approaches the Invisible Boundary wall, the Titanium Computer Collar unit generates a
tone and correction to remind your pet of the boundary. With training and praise, your pet will quickly
learn to avoid the Invisible Boundary wall.
Important Precautions
1. Read and retain manuals: Read the entire Owner’s Manual and training instructions before using your new
Invisible Fence Brand pet containment system.
2. Train your pet: Train your pet according to the instructions in the Invisible Fence Brand training manuals.
Complete all steps before allowing your pet to run free. Do not become overly confident your pet has
become conditioned to the Invisible Fence Brand pet containment system sooner than expected.
3. Obey all cautions and warnings: Adhere to all cautions and warnings contained in any Invisible Fence
Brand manual.
4. Call for service and repair: Do not attempt to service any Invisible Fence Brand equipment. Refer all
service to your authorized Invisible Fence Brand Dealer only. Only your authorized Invisible Fence Brand
Dealer should make adjustments to your pet containment system. Unauthorized service or repair will void
the warranty.
5. Use only on animals: All Invisible Fence Brand pet containment systems are designed for animal use only.
Never attempt to use this product for any purpose not specifically described in this manual.
6. Check the transmitter: Check the Invisible Fence Brand transmitter periodically to make sure it is operating
properly. Please refer to the chart on page 4 for proper operation.
7. Check the tightness of the Titanium Computer Collar unit on a regular basis: When possible, remove your
pet’s Titanium Computer Collar unit each night. This will help prevent the possibility of any irritation the
collar may cause to your pet’s skin. However, if this it not possible, please check the tightness of the collar
each time you feed your pet by removing the collar and then replacing it back on your pet.

3
8. Call your Invisible Fence Brand Dealer: If you have any questions about any aspect of your Invisible Fence
Brand pet containment system, call your Invisible Fence Brand Dealer immediately.
9. Your Invisible Fence Brand pet containment system will only work when:
a. The transformer is connected to the transmitter and to a functional standard electric outlet, via an
approved Lightning Protection Device. All Invisible Fence Brand pet containment systems must
be grounded per the National Electric Code to be protected against lightning.
b. The transmitter is on, connected to the signal field wire, and producing a signal along the entire
length of the wire.
c. The signal field wire is intact, continuous, and the transmitter’s Status Indicator light is blinking
green.
d. The Titanium Computer Collar unit is correctly fitted and worn by your pet. The Titanium
Computer Collar unit must be adjusted so the correction posts touch your pet’s skin.
e. The Power Cap®battery in the Titanium Computer Collar unit is good and correctly installed. See
page 6 for proper Power Cap battery operation.
10. About Thunder or Electrical Storms:
Even though your Invisible Fence Brand pet containment system is equipped with a Lightning Protection
Device, it is still possible that it may be damaged during a thunderstorm, or when an electrical storm is in
the area. After a storm has ended, check the Invisible Boundary Wall. See page 4 for periodic
maintenance checks.
Dealer name: _______________________________________
Dealer phone: ______________________________________

4
SIGNAL FIELD WIDTH
SIGNAL FIELD WIRE
INVISIBLE FENCE BRAND
TITANIUM COMPUTER
COLLAR UNIT
Maintenance
Your Invisible Fence Brand Dealer has professionally installed your pet containment system and
ensured it is working properly. You will want to perform periodic maintenance checks to make sure the
system is properly functioning for your pet’s safe containment.
Monthly Invisible Boundary Wall Test
(Always perform this test after a thunderstorm)
You should always be aware of your system’s signal field width.
Check the width of the signal field from only one place on the
signal field loop wire. Always check the signal field width from the
same place. Take the Titanium Computer Collar unit off your pet to
measure the signal field width.
1. Hold the Invisible Fence Brand Titanium Computer Collar
unit so it is parallel to the signal field wire.
2. Hold the collar so it is about the same height and at the same
angle as it will be when the pet is wearing it.
3. Walk slowly toward the signal field wire. The unit will
activate when you reach the edge of the signal field. Do NOT
touch the correction posts at this time!
If the unit does not sound a warning where the edge of the signal is supposed to be, immediately call your
Invisible Fence Brand Dealer for service. Use a leash or other means to contain your pet until all necessary service
has been completed.
Periodic Maintenance Checks
System Device How often What to look for
Transmitter Daily
•Check the LED Status Indicator Light on
the front of the unit to verify power
•Review chart on page 9 for status
indicators
Titanium Computer Collar
unit
Daily •Check Power Cap battery status light on
top of unit
•Review chart on page 7 for status
indicators
Invisible Boundary wall Monthly and
after a
thunderstorm
•Verify the signal field wire is active
throughout the property, see Monthly
Invisible Boundary wall test below.
Signal Field Width: _____________________

5
The Titanium Computer Collar Unit
The Titanium Computer Collar unit is a microprocessor-controlled device, powered by a special Power
Cap battery.
Fitting the Titanium Computer Collar Unit
To work properly, the correction posts on the Titanium Computer Collar unit must touch your pet’s skin.
1. Position the collar strap high on your pet’s neck with the
Titanium Computer Collar unit under its lower jaw.
2. To avoid having a collar that is too tight on a thick-
haired pet, thin some hair away in order to allow
correction posts to make contact with the skin. Do not
shave the pet’s neck.
3. Tighten the collar strap of the Titanium Computer Collar
unit appropriately. Adjust the collar strap so it is snug enough to slide one finger between the
correction posts and your pet’s neck.
Instructions are continued on the next page.
Correction Post Cover
Collar Strap
Correction Posts
Retaining Strip
Titanium Computer Collar Unit
ONLY use the post tightening tool
to tighten the correction posts. Use of
other tools will void the warranty.
DO NOT secure the correction posts
in the Titanium Computer Collar unit
with any kind of glue or adhesive.
Post Tightening Tool
Titanium
Computer
Collar

6
4. Adjust the fit of the Titanium Computer Collar unit as necessary as your pet’s coat, weight, and
age change. Your pet’s coat may change from season to season.
5. Allow your pet to become accustomed to its new Titanium Computer Collar unit. The collar must
be removed each night during the first month of training. This ensures proper fit and avoids the
possibility of skin irritation.
6. After training is complete, remove your pet’s Titanium Computer Collar unit each night if
possible. This will help prevent irritation. However, if this it not possible, please check the
tightness of the collar each time you feed your pet by removing the collar and then replacing it
back on your pet.
7. The Titanium Computer Collar unit is waterproof. If the nylon collar strap becomes wet, it is
recommended that it be removed from your pet and be allowed to air dry before replacing the
collar on your pet’s neck.
Titanium Computer Collar Power Cap Battery Status:
The Titanium Computer Collar unit used with your Invisible Fence Brand pet containment system
monitors Power Cap battery status. A Power Cap battery test is also performed each time it is inserted
into the Titanium Computer Collar unit.
When the Power Cap battery is inserted, the LED Status Indicator shows a GREEN light for up to 1
second while testing. After that, you will see 4 blinks in one of the following colors, indicating the
Power Cap battery status:
• GREEN = Power Cap battery is good.
• YELLOW = Power Cap battery is low. Replace as soon as possible.
• RED = Power Cap battery is dead. Replace immediately. Do not rely on the Invisible
Fence Brand pet containment system to contain your pet until the Power Cap battery is
replaced.
Please become familiar with the Power Cap battery LED Status Indicator.
LED Status Indicator (Top view of unit)

7

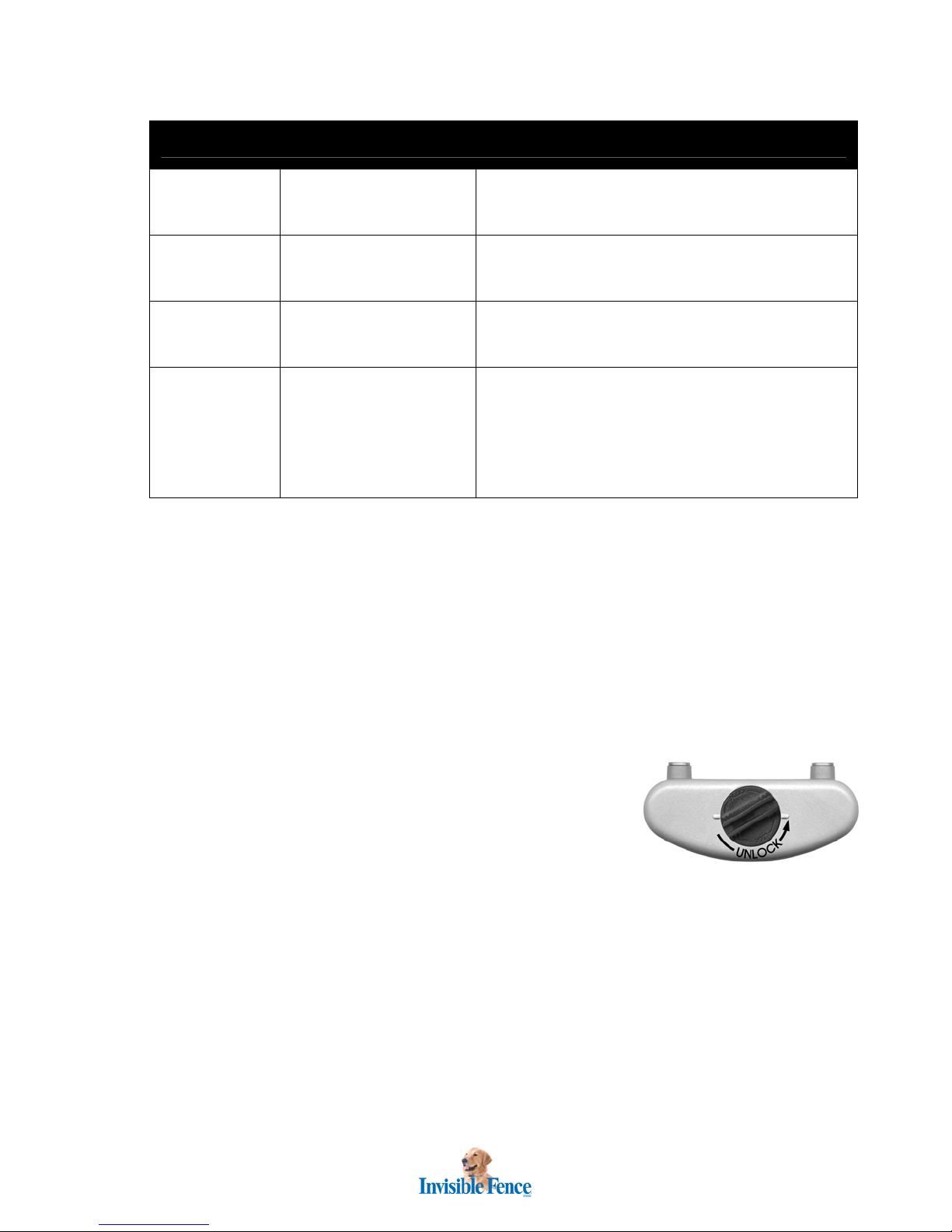

The Power Cap battery in the Titanium Computer Collar unit should be checked daily.
Titanium Computer Collar LED Status Indicator
LED
INDICATOR CONDITION ACTION REQUIRED
No light Power Cap battery is
good.
None
Flashing
Yellow
Power Cap battery is
low.
Replace Power Cap battery as soon as
possible.
Flashing
Red
Power Cap battery is
dead.
Replace Power Cap battery immediately.
DO NOT RELY ON THE INVISIBLE
FENCE BRAND PET CONTAINMENT
SYSTEM TO CONTAIN PET UNTIL THE
POWER CAP BATTERY IS REPLACED.
Replace your existing Power Cap battery with one supplied via your Power Cap battery plan. If a fresh
Power Cap battery is not available, contact your Invisible Fence Brand Dealer for a replacement. Once a
replacement Power Cap battery is installed and the signal field checked (see page 4 for instructions on
checking the signal field), put the Titanium Computer Collar unit on your pet. The Invisible Fence
Brand pet containment system is now ready.
Changing the Power Cap Battery:
1. Use a small, thin coin to remove the Power Cap battery
from the Titanium Computer Collar unit. Insert the coin in
the slot on top of the Power Cap battery and turn it
counter-clockwise. Do not push down while turning.
The Power Cap battery will rotate up and out of the
Titanium Computer Collar unit’s battery chamber.
Instructions are continued on the next page.

8
2. Install a new Power Cap battery using the following steps:
a. Line up the lugs on the bottom of the Power Cap
battery with the grooves in the sides of the
Titanium Computer Collar unit’s battery chamber.
Make sure the metal tabs on the bottom of the
Power Cap battery are not bent.
b. Place the Power Cap battery into the chamber
while gently, but firmly, turning it clockwise with
your fingers.
c. Use a small, thin coin in the slot on top of the Power
Cap battery to turn it clockwise until the slot on the
top of the Power Cap battery is lined up with the
two small raised tabs on the bottom of the receiver.
Do not over tighten by turning the slot past the tabs
on the receiver.
d. When the Power Cap battery is inserted, the LED
Status Indicator shows a GREEN light for up to 1
second while testing. After that, you will see 4 blinks
in one of the following colors, indicating the Power Cap battery status:
• GREEN = Power Cap battery is good.
• YELLOW = Power Cap battery is low. Replace as soon as possible.
• RED = Power Cap battery is dead. Replace immediately. Do not rely on the
Invisible Fence Brand pet containment system to contain your pet until the Power
Cap battery is replaced.
On average, the Power Cap battery should be changed every 3 months. Low temperatures, the number of
times the pet challenges the pet containment system boundary, and improper collar fit can all reduce
Power Cap battery life.
Warning: The use of any power source other than a Power Cap battery will cause a receiver to
operate erratically or fail. Failure of the receiver due to the use of an unauthorized power source
will void the warranty.
The use of unnecessary force may damage the case and render the Power Cap battery inoperable. NEVER
open a Power Cap battery, dispose of it in fire, recharge it, expose it to heat above 212°F (100°C), or expose
its contents to water. Doing so can cause leakage or explosion and may lead to personal injury.

9
Transmitter Status Indicators
Status Indicator Light:This is the only light visible outside the transmitter. The chart below explains
the various Status Indicator Light conditions.
Audible Alarm:There is an audible alarm for certain alert conditions
(see chart below). Pressing either S1 or S2 button on the transmitter
circuit board will silence the alarm. The alarm will re-activate on
power-up if a failure condition still exists. Access S1 and S2 by
gently pulling the tab at the bottom of the cover towards you. Once
released at the bottom, the top will come off the base.
800 Series Transmitter
Status Light and Audible Alarm Troubleshooting
Status LED Color Indicator Audible Alert
System OK Green Slow green flash:
1 second on, 4
seconds off
None
AC failure
(Unit operating via backup battery)
Red Slow red flash
1 second on, 4
seconds off
Chirp every five
seconds
Loop wire break or decrease in
signal field
Red Steady red light Constant beeping
Defective backup battery Red Steady red light Chirp every five
seconds
Status Indicator Light
Tab on bottom of cover
S1 S2

10
Troubleshooting Your System
Symptom Possible Cause Action
Pet is getting out. ▪Power Cap battery in Titanium
Computer Collar unit is dead or weak.
▪Titanium Computer Collar unit is not
fit properly on the pet.
▪Signal field wire has a break.
▪Power is not supplied to transmitter
or power is out.
▪Signal field is too narrow.
▪Pet needs additional training.
▪Replace Power Cap battery.
▪See page 5 for properly fitting the
collar.
▪Contact your Invisible Fence Dealer.
▪Make sure transmitter power supply is
plugged in.
▪Contact your Invisible Fence Dealer.
▪Contact your Invisible Fence Dealer
for additional pet training.
Pet will not enter
the yard.
▪Signal field is too high.
▪Pet needs additional training.
▪Contact your Invisible Fence Dealer
to check signal field.
▪Contact your Invisible Fence Dealer
for additional pet training.
Titanium Computer
Collar unit not
responding to
signal field (loop)
wire.
▪Power Cap battery in Titanium
Computer Collar unit is dead or weak
▪Signal field wire has a break.
▪Power is not supplied to transmitter
or power is out.
▪Replace Power Cap battery.
▪Contact your Invisible Fence Brand
Dealer.
▪Make sure transmitter power supply is
plugged in.

11
Important Warnings
Invisible Fence Brand pet containment systems have contained over one
million pets. However, there are some precautions you should take.
Warning 1:
Not every pet can be trained to avoid the Invisible Boundary wall. Sometimes
even a properly trained pet may cross the boundary. Therefore, Invisible Fence,
Inc., as well as Invisible Fence Distributors and Dealers cannot guarantee the
system will, in all cases, keep a customer’s pet within the established boundary.
Accordingly, if a customer has reason to believe that their pet may pose a danger
to others, or harm itself, the customer should not rely solely upon the Invisible
Fence Brand pet containment system to keep the pet from crossing the
boundary.
Warning 2:
The control panel component of the system includes visual and audible signals to
warn of a system malfunction. The control panel should be installed where such
signals may be easily seen and heard. If the control panel is installed in an
enclosed box, or in a place not readily accessible to the customer, the customer
will not benefit from the system’s warning functions, for which Invisible Fence,
Inc., as well as Invisible Fence Distributors and Dealers assume no
responsibility.
Warning 3:
Some persons claim the correction from an electronic collar can provoke a pet to
become aggressive, and to possibly attack or bite. Customer is hereby warned to
be alert for growling, snarling, biting, or other aggressive behavior by any pet
using the system, especially during training. If any such behavior is observed,
particularly if it appears to be associated in any way with the system, the
customer should immediately stop using the system, unplug the transmitter, and
contact your Invisible Fence Dealer or Invisible Fence, Inc.
Reported incidents have typically involved:
! Pets with pre-existing aggressive tendencies
! Other provocation is present at the time of the incident.
Reports to Invisible Fence, Inc., alleging such incidents are rare, less than
one in 10,000 or 0.01% of the time.

FCC ID# KZ3050261 “This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept
any interference received, including interference that may cause undesirable operation. Changes or
modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.”
INDUSTRY CANADA CERTIFIED
Canada 2430A-050261
©2005 Invisible Fence, Inc., 1000 Fuller Drive, Garrett, IN 46738
0405 2100311-1
Printed in USA. All Rights Reserved.
