invotel SX8800-P2 User manual

Warranty
This product is warranted against defects for a period of Three (3) years from the date of
original invoice. We will repair/replace the product with no charge for parts or labor during this
period. To obtain warranty service the product needs to be returned freight prepaid by the
customer with a copy of original invoice. This warranty does not apply if in the sole opinion of
Innovative Telecommunication Technology LL , the product has been tampered with or
damaged by lightning or any other acts of nature, misuse, neglect or unauthorized service.
EX EPT AS SPE IFI ALLY PROVIDED IN THIS AGREEMENT, THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR OTHERWISE,IN LUDING, BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OR MER HANTIBILITES OR FITNESS FOR A SPE IAL PURPOSE.
IN NO EVENT SHALL INNOVATIVE TELE OMMUNI ATION TE HNOLOGY LL (INVOTEL)
BE LIABLE FOR LOSS OF PROFITS OR BENEFITS , INDIRE T, SPE IAL,
ONSEQUENTIAL OR OTHERWISE ARRISING FROM ANY BREA H OF THIS WARRANTY
OR OTHERWISE.
®
1112 Montana Ave Suite 250 Santa Monica, A 90403 USA
Tel: [phone]
Fax: [phone] http://www.invotel.com
User Manual
SX8800-P2
Rev 05
Professional USB dri e /SD Digital Player

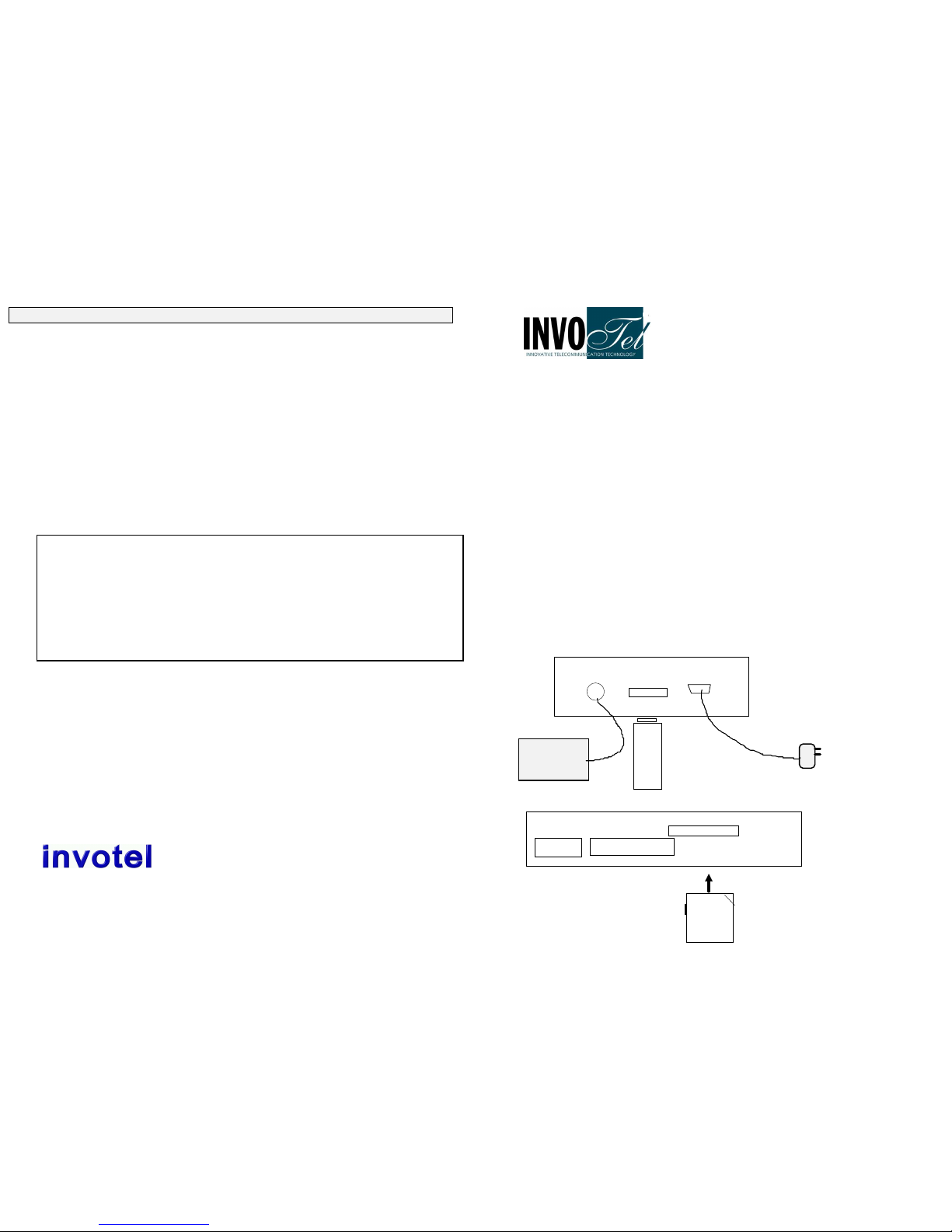

• Install the player near the phone system MOH jack
•
onnect the 600/8 Ω OUTPUT jack to your phone system MOH jack
using the provided Mono/R A cord
(on some MOH ports you may need to
connect via a Mono to Mono or stereo to stereo cord)
•
Insert the SD card into the player and make sure it “snaps in” fully
• Alternatively you may insert a USB Flash drive to “USB drive”
•
onnect the power jack to the A adapter as shown
• Turn ON the Player via the ON-OFF switch
♦
♦ ♦
♦ Adjust Volume level up or down as needed
♦
♦ ♦
♦ You may turn the speaker ON to “test the playback” by un-plugging the
audio cord from the player then re-insert the cord back in when done.
• Unplug the power, press on SD card so it snaps out, wait 30
seconds, re-insert the SD card and make sure it snaps IN , re-
connect the power securely., observe the LED is turning ON
• Some low capacity SD cards are not compatible, in that case
RED LED turns ON but the player does not play, use the provided
SD card or try another correct type SD card and try formatting it.
• heck the audio cord; try re-inserting it again, adjust the volume
Audio Volume is too low
• Verify that the audio cord is plugged in securely all the way IN,
• Turn the Volume Up -press and Hold the V+
annot Transfer files to
SD card
• If you use Windows 98 SE, ensure to use it’s USB driver is
installed properly in your system.
• Ensure the SD card is snapped in, ensure USB adapter is
connected securely to your P USB port, try another USB port
directly, Ensure to observe that the Status LED turns ON solid
on the USB adapter. Make sure SD card is not locked.
Player not working or
stopped working
Problems Possible Cause / Solution
P4
Power
TELEPHONE
SYSTEM
MOH PORT
Specifications:
File Formats: MP3, WMA, MA , etc.
Frequency response: 20Hz to 20 KHz. less than 0.1% THD
Sampling rate: >64kbps Mono ,128kbps recommended
PC Interface: USB 2.0 Hi-Speed(MS ) compatible with USB 1.0
Memory Capacity : SD card 64MB to 4GB (up to 256 hours on 4GB SD card)
Output Power: 1 watts maximum, Volume control
Power supply: 110VA /240VA 50-60 Hz. To 5 VD 500 ma
Size: 4 ” x 2.5 ” x 1” (L x W x H)
Color: Blue Weight: (1.0 pounds with power supply)
R A to R A audio cord
LED
SD CARD
600Ω/ 8Ω USB drive D 5V
Volume SD card slot
ON OFF
UP
DOWN
Optional
110/220V

ii
Package Content:
SX8800-P2 MP3 Digital Player unit
Secure Digital (SD card) 64MB or higher or USB Flash drive
Power adapter 110v/ 240v A to 5V D 200-500 ma
Mono to R A audio cord to connect to MOH port
User’s Manual
Connecting to a Computer:
Remove the SD card and insert it into an “SD card slot” normally found on most P
or laptops (use a USB adapter in case the P has USB port only or use a USB Flash
drive instead of SD card)
This will be detected as “Removable Disk” , when you open “My omputer” or
“Windows Explorer”
Transferring files into SD card:
Select the file you want to transfer to the SD card and drag-and-drop it into the
“Removable Disk” that represents this device (right click on the file, copy, move the
mouse to the “Removable Disk” , right click there and paste)
The player will play all the .mp3 files one by one before it auto repeats from the 1 st
file, You may silence the .mp3 files you do not want to play by renaming them to
“file.ip3” or just keep one .mp3 file in the SD card, i.e. move or delete the extra files
you do not want to play from the SD card. After the file is transferred to SD card
allow 15 seconds for it to finish before removing the SD card.
Disconnecting from Computer:
⇒ Double click on the green arrow in the Taskbar located on the lower -right
side of the computer screen (Safely Remove Hardware)
⇒ Select “USB Mass Storage Device” from the list that appears then click
“Stop” then press “OK”
⇒
⇒ ⇒
⇒ When the “Safe to Remove Hardware” appears click OK and disconnect
the USB adapter or remove the SD card.
OUTPUT:
SX8800P2 has a 3.5 mm output connector, Automatic 8 Ω, 600 Ω . Use a 3.5 mm
stereo output if your MOH has a 3.5 mm stereo or mono jack or cable .
Modes of playback: 1 to 99 tracks, device plays all the tracks one by one
and re-loops automatically, Silence any track by renaming it to filename.ip3 instead
of filename.mp3.
Single track
Multi track
SD CARD:
SX8800 can accept 64MB to 4GB SD cards available on the market.
Up to 256 hours of continuously playing audio time can be obtained using a 4GB SD
card.
Most SD cards have a lock that needs to be in unlock position (toward the edge) in
case the card needs to be accessed by the computer.
To remove the SD card, you may Turn OFF the player 1st , update it from your
P /Laptop then insert it back in or insert a new SD card with files in it or insert a new
Flash drive with files in it. Turn ON the player, make sure the A adapter is
connected for power and the playback automatically resumes in a few seconds.
Volume:
Press & hold the V+ button to Turn the Volume UP.
Press & hold the V- button to Turn the Volume Down.
SPEAKER:
Un-plug the audio cord from player to hear audio from a speaker inside.
This is only for monitoring or testing the audio, the volume levels heard at this time
are not the actual audio levels available to the MOH port, be sure to re-adjust the
volume again after re-inserting the audio cord & when the calls are placed on Hold to
ensure the proper and desired audio volume levels.
STATUS LED light :
The Status LED will blink ON & OFF when the device is powered ON and working.
P2 P3
audio1.mp3
audio1.mp3
Audio2.mp3
------
Audio99.mp3
To test the audio: Remove the Audio cord from the Player
the built-in speaker can be used to hear the audio playback any time.
If you ha e a new SD card with new production in it, simply
“press in” the old SD card so it snaps out, insert the new SD
card and make sure it snaps in, the playback automatically
starts within 15 seconds. If it did not Turn OFF then Turn ON
