IOGear GKMB02 User manual

GKMB02
PART NO. M1256
User Manual
KeyShair – Bluetooth Keyboard/Mouse Sharing

2
Table of Contents
Package Contents .............................................................................................................................3
System Requirements.......................................................................................................................3
Product Overview .............................................................................................................................3
Specifications....................................................................................................................................3
KeyShair Installation (Windows).......................................................................................................4
KeyShair Installation (Mac OS X) ......................................................................................................4
KeyShair Setup and Pairing...............................................................................................................7
Multi-Pairing ...................................................................................................................................11
Unpairing ........................................................................................................................................11
Basic Controls (Windows)...............................................................................................................13
Basic Controls (Mac) .......................................................................................................................14
Special Key Settings ........................................................................................................................16
Disconnecting KeyShair ..................................................................................................................18
Firmware Updates ..........................................................................................................................19
Federal Communications Commission (FCC) Statement................................................................20
CE Compliance ................................................................................................................................20
Need assistance setting up this product?.......................................................................................20
Limited Warranty............................................................................................................................20
Important Product Information......................................................................................................20
Contact............................................................................................................................................20

3
Package Contents
•1 x KeyShair Module
•1 x Quick Start Guide
•1 x Warranty Card
System Requirements
•Bluetooth device with HID keyboard compatibility
•Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1
•Mac OS® X 10.6+
•Mobile devices that require either Android 2.3+ or iOS 4.0+
•USB 2.0 port
Product Overview
The GKMB02 KeyShair device is designed to allow sharing of your computer’s keyboard and mouse
with other Bluetooth devices, such as smartphones, tablets and even other computers with HID
function (keyboard and mouse support) and Bluetooth connectivity.
1. USB Connector
2. LED Indicator
3. 3.5mm Headphone plug loop
Specifications
•Bluetooth: Version 3.0 BDR
•Supports: HID Profile Keyboard / Mouse
•Operating Range: 10M (Class 2)
•Operating Voltage: 5VDC
•Windows OS: Windows Vista, Windows 7, Windows 8, and Windows 8.1
•Mac OS: Mac 10.6+
•Power: USB powered
Some mobile devices do not support mouse function; please consult your mobile device
manufacturers for details.

4

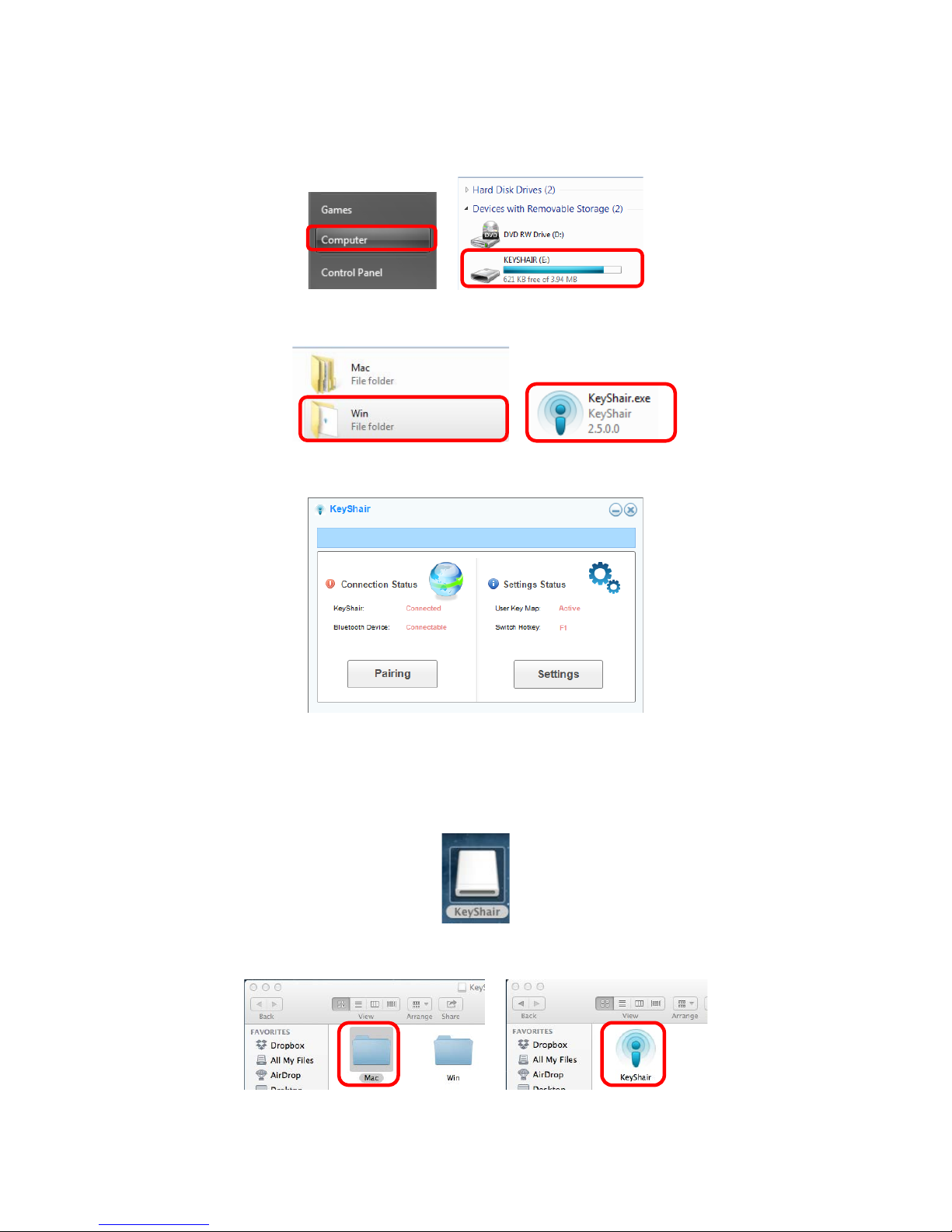

KeyShair Installation (Windows)
Connect the IOGEAR KeyShair to any available USB port on your PC, laptop or Ultrabook®.1. Open Computer from the Start Menu and double click on KeyShair.2.
Open the WIN folder and double click the KeyShair.exe file.3.
The pairing window will appear and is ready to pair to your Bluetooth enabled devices.4.
KeyShair Installation (Mac OS X)
Connect the IOGEAR KeyShair to any available USB port on your Mac. 1. Double click KeyShair icon on the desktop.2.
Open the MAC folder and double click the KeyShair app.3.

5
The pairing window will appear and is ready to pair to your Bluetooth enabled device.4.
Additional Steps for users with OS X 10.9 and 10.10
When connecting KeyShair to a Mac with OS X 10.9 or 10.10 installed, follow these steps:
Open System Preferences.1.
Select Security & Privacy.2.
Click the Privacy tab on top and select Accessibility. If a password is used to unlock your Mac,3.
click the lock icon and type in your password to change your settings.

6
For OS X 10.9 follow Step 4. For OS X 10.10 skip to Step 5.
Click the box next to KeyShair to enable the app to control keyboard and mouse functionality.4.
Click lock to prevent further changes then proceed to KeyShair Setup and Pairing.
Click + to add KeyShair and enable the app to control keyboard and mouse functionality.5.

7
Browse for KeyShair and click Open.6.
KeyShair Setup and Pairing
Note: You will need to re-pair all devices if KeyShair firmware is upgraded.

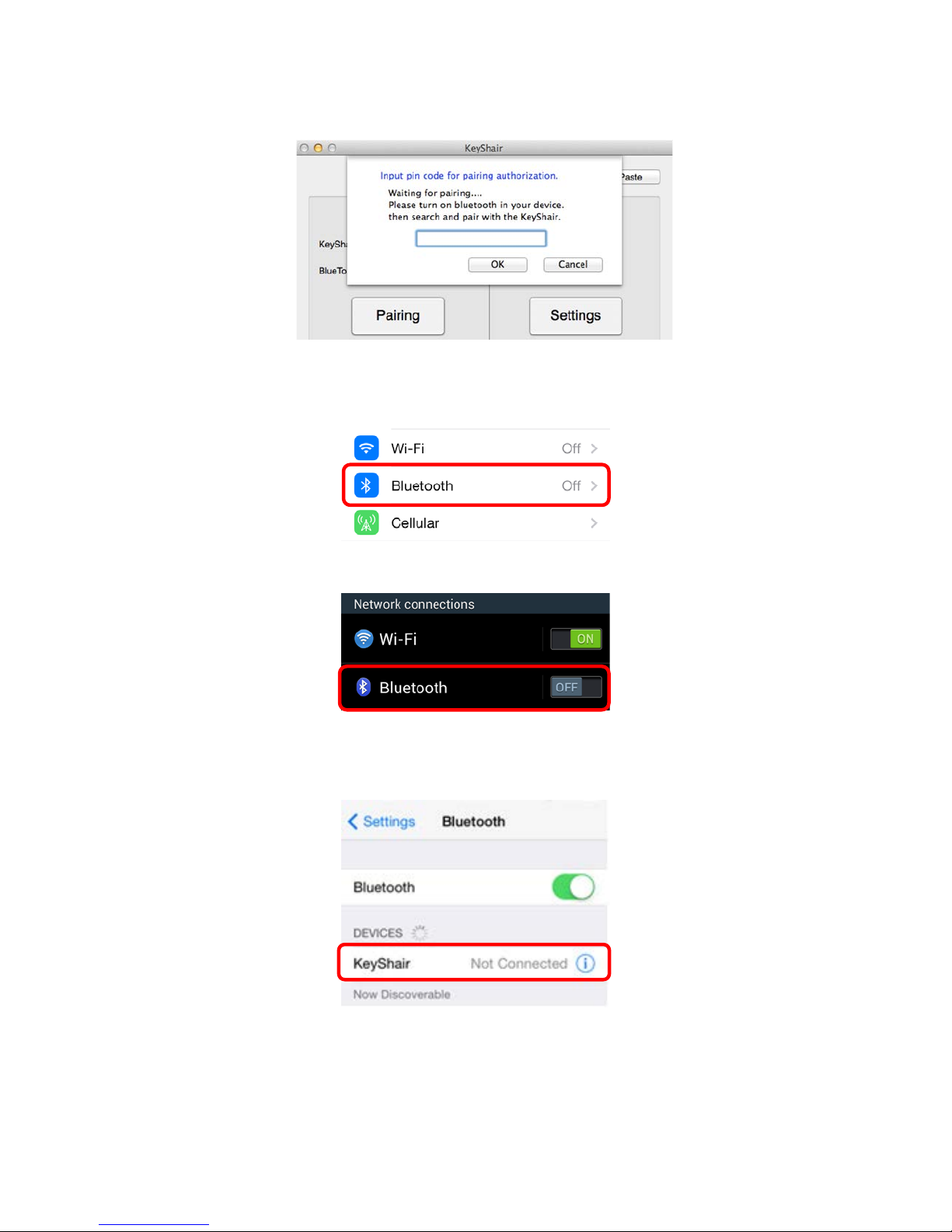

Click on Pairing in the KeyShair setup window.1.

8
A pairing authorization window will appear asking for an input pin from the device attempting2.
to connect.
Open the settings menu on your mobile device and set Bluetooth to ON.3.
iPod®/iPhone®/iPad®Devices
Android™ Devices
Select KeyShair on your device.4.
iPod®/iPhone®/iPad®Devices

9
Android™ Devices
Type in the PIN from your device into the pairing authorization window on your computer, and5.
click OK or click Cancel to abort pairing.
iPod®/iPhone®/iPad®Devices
Android™ Devices
Computer

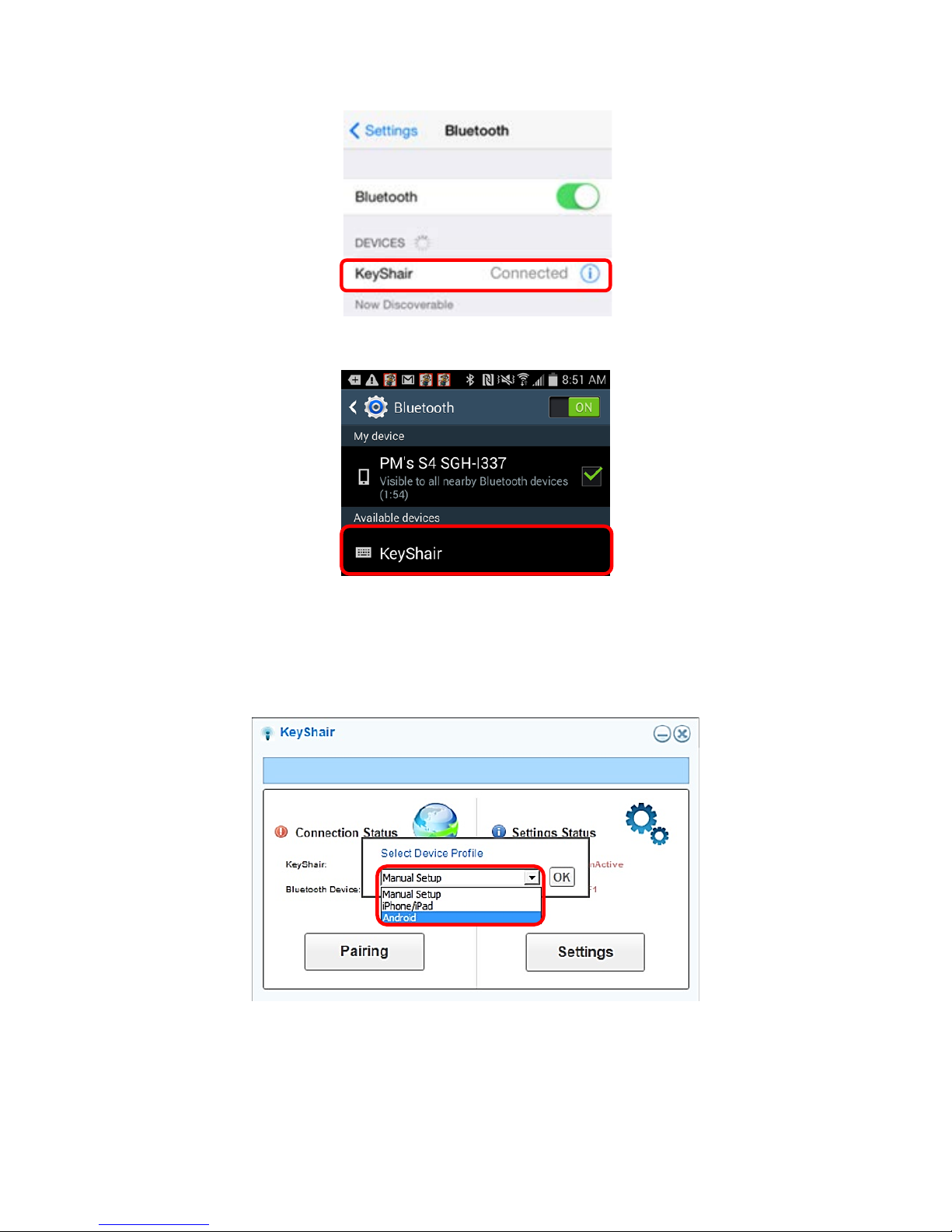

Once paired, your device will show CONNECTED, and pairing information is saved for future6.
use. Note: KeyShair can be paired with up to 4 different devices.

10
iPod®/iPhone®/iPad®Devices
Android™ Devices

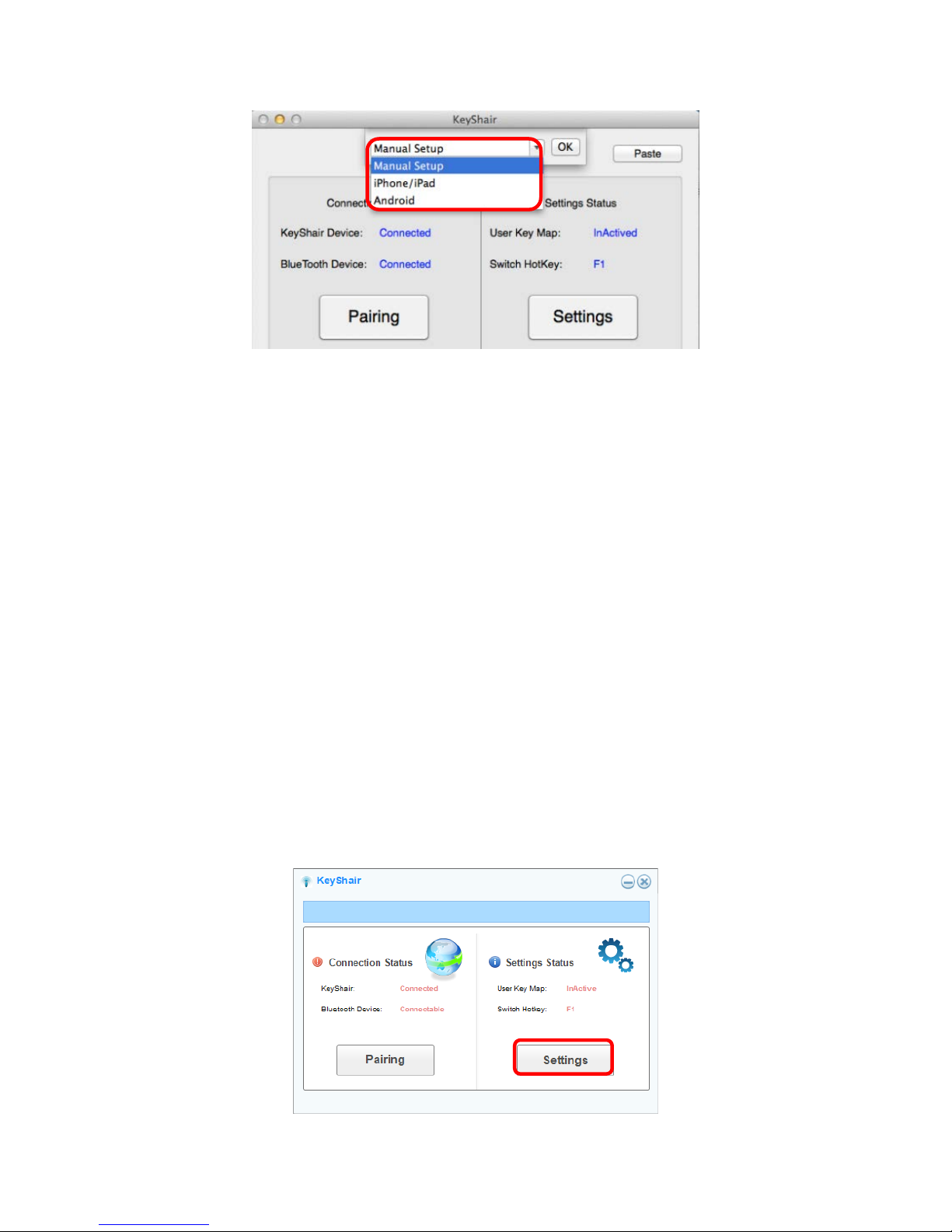

Please select your mobile device profile and click OK to set the Special Key functions, or select7.
Manual setup to program the Special Keys later.Note: this step applies to firmware v2.5 and
up only.
Windows
