IP QZI3000 User manual

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
Page 1 of 8
Drawing : - TPC 359
Issue : - 5
Date : - 24/11/16
QZI3000
INDUSTRIAL HEATER
OWNER’S MANUAL
www.eipl.co.uk

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
Page 2 of 8
Drawing : - TPC 359
Issue : - 5
Date : - 24/11/16
QZI3000
PACKAGE CONTENTS
Item Description Quantity
10961RD-US Heater 1
TPC359 Manual 1

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
Page 3 of 8
Drawing : - TPC 359
Issue : - 5
Date : - 24/11/16

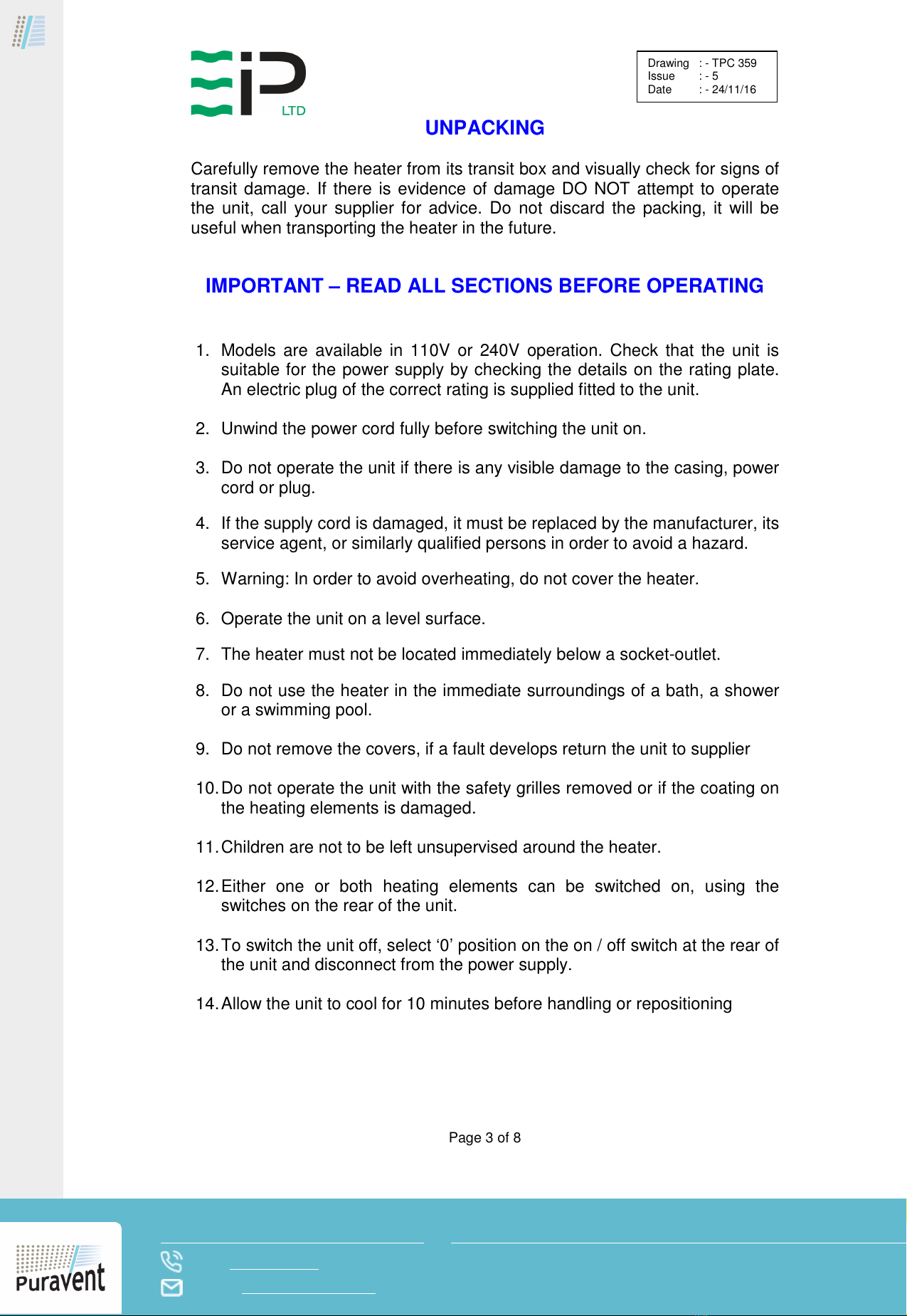

UNPACKING
Carefully remove the heater from its transit box and visually check for signs of
transit damage. If there is evidence of damage DO NOT attempt to operate
the unit, call your supplier for advice. Do not discard the packing, it will be
useful when transporting the heater in the future.
IMPORTANT – READ ALL SECTIONS BEFORE OPERATING
1. Models are available in 110V or 240V operation. Check that the unit is
suitable for the power supply by checking the details on the rating plate.
An electric plug of the correct rating is supplied fitted to the unit.
2. Unwind the power cord fully before switching the unit on.
3. Do not operate the unit if there is any visible damage to the casing, power
cord or plug.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualified persons in order to avoid a hazard.
5. Warning: In order to avoid overheating, do not cover the heater.
6. Operate the unit on a level surface.
7. The heater must not be located immediately below a socket-outlet.
8. Do not use the heater in the immediate surroundings of a bath, a shower
or a swimming pool.
9. Do not remove the covers, if a fault develops return the unit to supplier
10.Do not operate the unit with the safety grilles removed or if the coating on
the heating elements is damaged.
11.Children are not to be left unsupervised around the heater.
12.Either one or both heating elements can be switched on, using the
switches on the rear of the unit.
13.To switch the unit off, select ‘0’ position on the on / off switch at the rear of
the unit and disconnect from the power supply.
14.Allow the unit to cool for 10 minutes before handling or repositioning

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
Page 4 of 8
Drawing : - TPC 359
Issue : - 5
Date : - 24/11/16

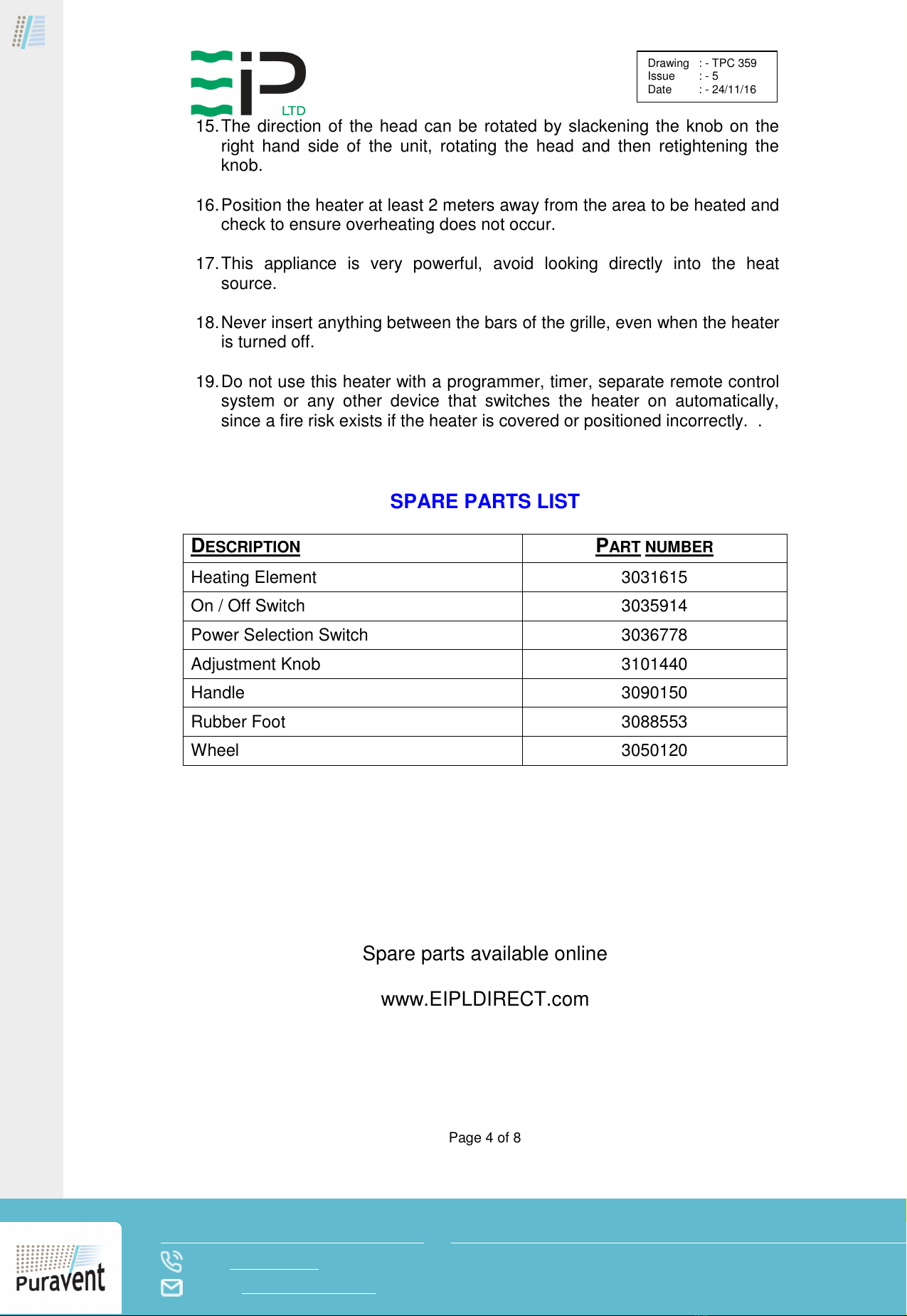

15.The direction of the head can be rotated by slackening the knob on the
right hand side of the unit, rotating the head and then retightening the
knob.
16.Position the heater at least 2 meters away from the area to be heated and
check to ensure overheating does not occur.
17.This appliance is very powerful, avoid looking directly into the heat
source.
18.Never insert anything between the bars of the grille, even when the heater
is turned off.
19.Do not use this heater with a programmer, timer, separate remote control
system or any other device that switches the heater on automatically,
since a fire risk exists if the heater is covered or positioned incorrectly. .
SPARE PARTS LIST
D ESCRIPTION P ART NUMBER
Heating Element 3031615
On / Off Switch 3035914
Power Selection Switch 3036778
Adjustment Knob 3101440
Handle 3090150
Rubber Foot 3088553
Wheel 3050120
Spare parts available online
www.EIPLDIRECT.com

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
Page 5 of 8
Drawing : - TPC 359
Issue : - 5
Date : - 24/11/16

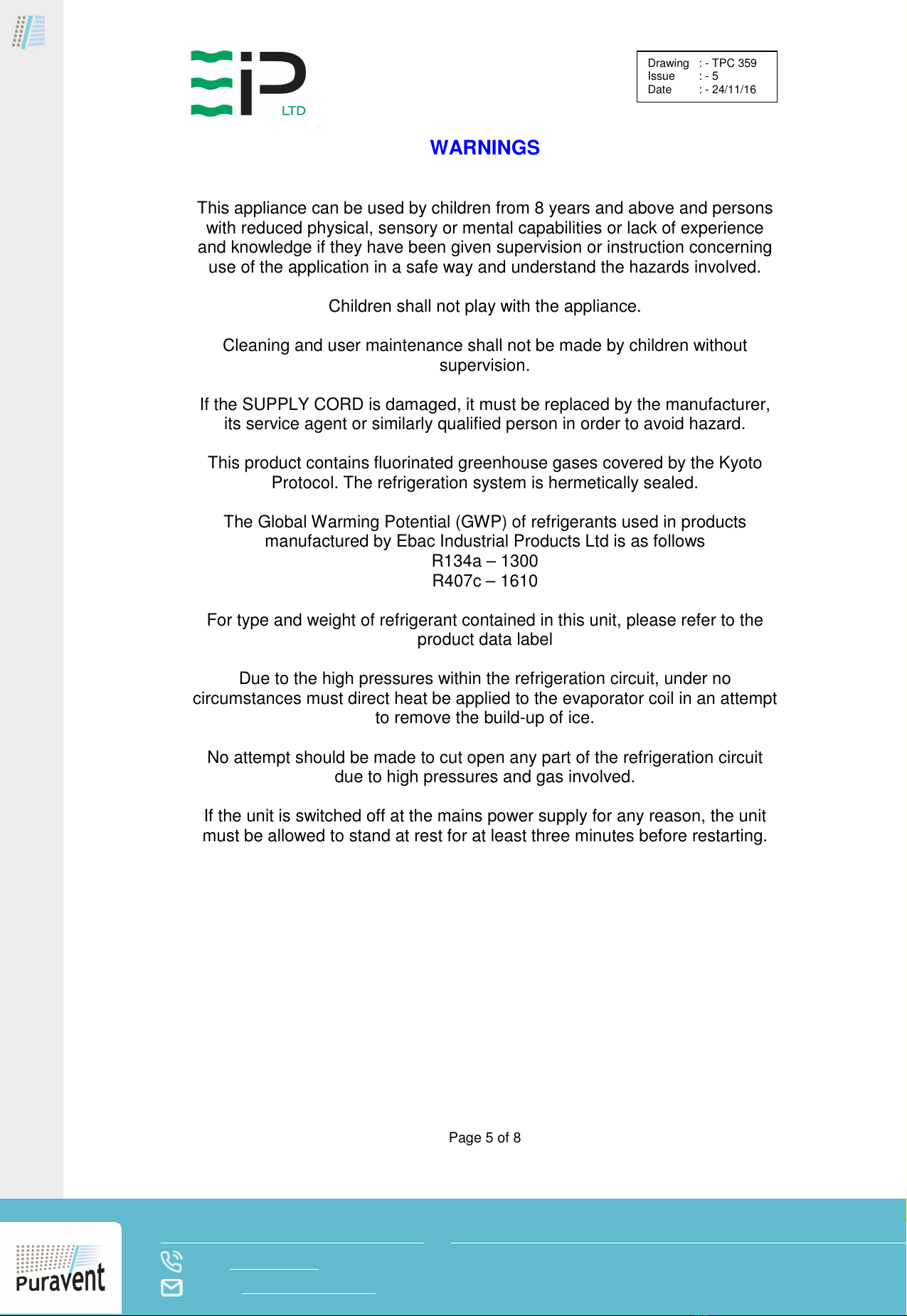

WARNINGS
This appliance can be used by children from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning
use of the application in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
If the SUPPLY CORD is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified person in order to avoid hazard.
This product contains fluorinated greenhouse gases covered by the Kyoto
Protocol. The refrigeration system is hermetically sealed.
The Global Warming Potential (GWP) of refrigerants used in products
manufactured by Ebac Industrial Products Ltd is as follows
R134a – 1300
R407c – 1610
For type and weight of refrigerant contained in this unit, please refer to the
product data label
Due to the high pressures within the refrigeration circuit, under no
circumstances must direct heat be applied to the evaporator coil in an attempt
to remove the build-up of ice.
No attempt should be made to cut open any part of the refrigeration circuit
due to high pressures and gas involved.
If the unit is switched off at the mains power supply for any reason, the unit
must be allowed to stand at rest for at least three minutes before restarting.
