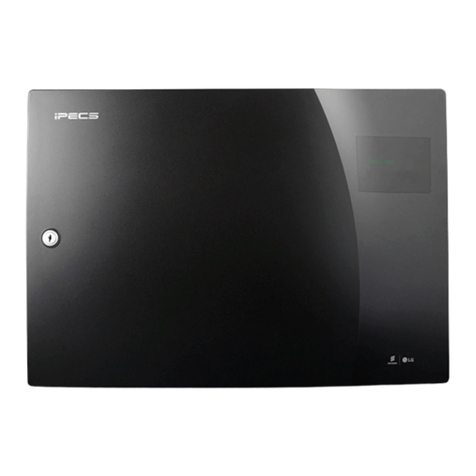

iPECS UCP Operating and installation instructions

iPECS UCP
(Unified Communications Platform)
Hardware Description & Installation Manual
Please read this manual carefully before operating system.
Retain it for future reference.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
Regulatory Information
Before connecting the iPECS UCP to the telephone network, you may be required to notify your local
serving telephone company of your intention to use "customer provided equipment". You may further be
required to provide any or all of the following information:
PSTN line Telephone numbers to be connected to the system
Model name iPECS UCP
Local regulatory agency registration number consult local Ericsson-LG Enterprise representative
Ringer equivalence 0.6B
Registered jack RJ-45 & RJ-11
This equipment complies with the following regulatory standards, that is, the safety requirements of
EN60950-1, and the EMC requirements of EN55022 and EN55024.
If the telephone company determines that customer provided equipment is faulty and may possibly cause
harm or interruption in service to the telephone network, it should be disconnected until repair can be
affected. If this is not done, the telephone company may temporarily disconnect service.
The local telephone company may make changes in its communications facilities or procedures. If these
changes could reasonably be expected to affect the use of the iPECS UCP or compatibility with the
network, the telephone company is required to give advanced written notice to the user, allowing the user
to take appropriate steps to maintain telephone service.
The iPECS UCP complies with rules regarding radiation and radio frequency emission as defined by
local regulatory agencies. In accordance with these agencies, you may be required to provide information
such as the following to the end user.
European Union Declarations of Conformity
Ericsson-LG Enterprise Co., Ltd. declares that the equipment specified in this document bearing the “CE”
mark conforms to the European Union Radio and Telecommunications Terminal Equipment
Directive(R&TTE 1999/5/EC), including the Electromagnetic Compatibility Directive (2004/108/EC) and
Low Voltage Directive (2006/95/EC). Copies of these Declarations of Conformity (DoCs) can be obtained
by contacting your local sales representative.
FCC/CSA Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at their expense.
This device complies with part 15 /RSS-GEN of the FCC/IC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference; and (2) This device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
The use of this device in a system operating either partially or completely outdoors may require the user
to obtain a license for the system according to the Canadian regulations. For further information, contact
your Local Industry Canada office.
CAUTION
Any changes or modifications in construction of this device that are not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
WARNING
This is a class A product. In a residential environment, this product may cause radio interference in which
case the user may be required to take adequate measures.
WARNING
This equipment generates and uses R.F. energy, and if not installed and used in accordance with the
Instruction Manual, it may cause interference to radio communications. It has been tested and found to
comply with the appropriate limits for a telecommunication device. The limits are designed to provide
reasonable protection against such interference, when operated in a commercial environment. Operation
of this equipment in a residential area could cause interference, in which case the user, at their expense,
will be required to take whatever measures may be required to correct the interference.
Disposal of Old Appliance
When the displayed symbol (crossed-out wheeled bin) is adhered to a product, it designates the product
is covered by the European Directive 2012/19/EC.
All electric and electronic products should be disposed of only in
special collection facilities appointed by government or local/municipal
authorities.
The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
For detailed information about disposal of your old appliances, please
contact your city office, waste disposal service or the place of product
purchase.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
Revision History
The contents of this document are subject to revision without notice, due to continued progress in
methodology, design, and manufacturing. Ericsson-LG Enterprise shall have no liability for any error or
damage of any kind resulting from the use of this document.
Copyright© 2014 Ericsson-LG Enterprise Co., Ltd. All Rights Reserved
This material is copyrighted by Ericsson-LG Enterprise Co., Ltd. (Ericsson-LG Enterprise). Any
unauthorized reproductions, use or disclosure of this material, or any part thereof, is strictly prohibited
and is a violation of Copyright Laws. If you are not the intended recipient, you should destroy or return
this material to Ericsson-LG Enterprise.
iPECS is trademark of Ericsson-LG Enterprise Co., Ltd.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
SW version
Issue
Date
DESCRIPTION OF CHANGES
1.0 Mar, 2014 First Release
1.1.x
1.1
June, 2014
Updated the minor content
1.2.x 1.2 Updated the capacity of UCP100 port.
Added Checking power cord.
Added LIP-9000 series.
2.0.x 1.3 Jan., 2016 Added VCIM gateway.
Added GDC-480H, LDP-9200 series, and LIP-9071.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
i
Table of Contents
1. Introduction .........................................................................1
1.1 Important Safety Instructions......................................................1
1.1.1 Safety Requirements ..................................................................................1
1.1.2 Precaution...................................................................................................2
1.2 About This Manual........................................................................3
2. System Overview.................................................................4
2.1 iPECS UCP Introduction.................................................................4
2.2 iPECS UCP Network Connection...................................................6
2.3 Hardware Components Chart ........................................................7
2.4 System Specifications....................................................................8
2.4.1 System Capacity..........................................................................................8
2.4.2 Dimension and Weight ...............................................................................10
2.4.3 Environment specification...........................................................................11
2.4.4 Electrical specification................................................................................11
2.4.4.1 System Electrical specification......................................................................11
2.4.4.2 Module & Phone Power Requirements .........................................................12
2.4.5 Maximum Station Wiring.............................................................................14
2.4.6 Analog CO Loop specification ....................................................................14
3. iPECS UCP Hardware Description....................................15
3.1 iPECS Modules..............................................................................15
3.1.1 UCP Server Module (UCP100/600/2400)................................................... 15
3.1.2 VOIM8 & 24 (Voice Over IP gateway Modules)..........................................18
3.1.3 VCIM (VoIP and Conference Interface gateway Module)............................19
3.1.4 LGCMs (Loop Start CO gateway Module) .................................................. 20
3.1.4.1 LGCM4 ........................................................................................................20
3.1.4.2 LGCM8 ........................................................................................................21
3.1.5 BRIMs (BRI gateway Module).................................................................... 22
3.1.5.1 BRIM2..........................................................................................................22
3.1.5.2 BRIM4..........................................................................................................23
3.1.6 PRIM (PRI gateway Module)...................................................................... 24

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
ii
3.1.7 DTIMs (Digital Terminal Interface gateway Module)....................................25
3.1.7.1 DTIM8..........................................................................................................25
3.1.7.2 DTIM24........................................................................................................26
3.1.8 SLTMs (Single Line Telephone gateway Module)....................................... 27
3.1.8.1 SLTM4.........................................................................................................27
3.1.8.2 SLTM8.........................................................................................................28
3.1.8.3 SLTM32.......................................................................................................29
3.1.9 UVM (Unified Voice Mail Interface gateway Module) ..................................30
3.1.10 MCIM (Multi-Media Conference Interface gateway Module)......................31
3.1.11 ES8GP (Ethernet Switch, 8-Port Gigabit PoE)..........................................32
3.1.12 ES8G (Ethernet Switch, 8-Port Gigabit)....................................................33
3.1.13 WTIM (Wireless Telephone Interface Module)..........................................34
3.1.13.1 WTIM4.......................................................................................................34
3.1.13.2 WTIM8.......................................................................................................35
3.1.14 PSU (Power Supply Unit).........................................................................36
3.1.15 AD/DC adapter –G................................................................................... 37
3.2 Module Mounting Hardware.........................................................38
3.2.1 DHLD (Desk Mount Holder) / DHE (Desk Mount Holder Extender)............. 38
3.2.2 WHLD (Wall Mount Holder)........................................................................39
3.2.3 1U-RMB (1U Rack Mount Bracket).............................................................39
3.2.4 MCKTE (Main Cabinet Kit Enhanced) ........................................................39
3.3 LIP Phones & Terminals...............................................................42
3.3.1 AC/DC Adapter –K- for LIP-Phones & Console .......................................... 43
3.4 Software Components..................................................................44
4. Installation overview .........................................................45
4.1 Pre-Installation Guidelines .........................................................45
4.1.1 Safety Installation Instructions..................................................................45
4.1.2 Installation precautions .............................................................................45
4.1.3 Wiring Precautions....................................................................................45
4.1.4 Checking Power cord................................................................................. 46
4.2 Installation Overview...................................................................47
4.3 Site Preparation.............................................................................47
4.3.1 General Site Considerations.......................................................................47
4.3.2 Verify Equipment On-site............................................................................48

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
iii
5. Module Mounting Hardware Installation...........................49
5.1 Enhanced Main Cabinet Installation............................................49
5.1.1 Cover Close/Open...................................................................................... 49
5.1.2 Cabinet 19” Rack Installation......................................................................51
5.1.3 Cabinet Wall Mount Kit Installation ............................................................. 52
5.2 Main Cabinet Grounding ..............................................................54
5.3 Main Cabinet PSU Installation .....................................................55
5.4 Module Desk Mount Holder Kit....................................................59
5.5 Module Wall Mount Holder Kit.....................................................60
5.6 1U-Rack Mount Bracket Installation............................................61
6. Module Installation and Wiring .........................................64
6.1 Module Handling and General Installation..................................64
6.1.1 Module Installation Sequence.....................................................................64
6.1.2 Module Insertion/Removal..........................................................................65
6.1.3 Common Module Switches.........................................................................65
6.1.4 Module Grounding...................................................................................... 66
6.1.5 Telephony Connections..............................................................................67
6.1.6 LAN Connections.......................................................................................67
6.1.7 LAN Wiring Structures................................................................................ 69
6.1.8 RS-232 Connections ..................................................................................71
6.1.9 Module Power Adapter............................................................................... 72
6.2 UCP server Module Installation...................................................73
6.2.1 Using Jack splitters ....................................................................................76
6.2.2 Installation of Optional PSTN Unit .............................................................. 77
6.3 VOIM8/24 Installation....................................................................79
6.4 VCIM Installation...........................................................................80
6.5 LGCM4 & LGCM8 Installation ......................................................81
6.5.1 CMU (Call Metering Unit) Installation.......................................................... 81
6.6 BRIM2 Installation.........................................................................83
6.7 PRIM Installation...........................................................................85
6.8 DTIM8 Installation .........................................................................86

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
iv
6.9 DTIM24 Installation .......................................................................87
6.10 SLTM4 & SLTM8 Installation......................................................90
6.11 SLTM32 Installation ....................................................................91
6.12 UVM Installation..........................................................................93
6.13 MCIM Installation.........................................................................94
6.14 ES8GP Installation......................................................................95
6.15 ES8G Installation.........................................................................96
6.16 WTIM4/8 Installation....................................................................97
6.17 Main Cabinet Wiring..................................................................100
7. Terminal Installation and Wiring.....................................102
7.1 IP Phone & DSS Installation.......................................................102
7.1.1 LIP Phone Wiring..................................................................................... 102
7.1.2 LIP-8000 Serial Console Installation and Wiring....................................... 104
7.1.3 LIP-8000/8000E Wall Mount..................................................................... 106
7.1.4 LIP-9000 Console Installation................................................................... 106
7.1.5 LIP-9000 Wall Mount................................................................................ 110
7.2 Digital Key Telephone and DSS Installation.............................111
7.2.1 DKTU Wiring............................................................................................ 111
7.2.2 LDP-7000/LDP-9000/LDP-9200 series Wall Mount .................................. 111
7.3 SLT Installation ...........................................................................112
7.3.1 SLT Wiring............................................................................................... 112
8. Open Source Software Notice.........................................113

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
1
1. Introduction
1.1 Important Safety Instructions
1.1.1 Safety Requirements
When using your telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electric shock and other personal injury, including the
following:
Please read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. A slightly damp cloth should be
used for cleaning; do not use liquid or aerosol cleaners.
Do not use this product near water, such as bathtub, washbowl, kitchen sink or laundry tub,
a wet basement, or near a swimming pool.
Do not place this product on an unstable stand or table. The product may fall, causing
serious damage to the product or serious injury.
Slots and openings in the Cabinet or Module and the back or bottom are provided for
ventilation, to protect it from overheating, these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, or other
similar surface. This product should never be placed near or over a radiator or other heat
source. This product should not be placed in a built-in installation without proper ventilation.
This product should be operated only from the type of power source indicated on the
product label. If you are not sure of the type of power supply to your location, consult your
dealer or local power company.
Do not allow anything to rest on the power cord. Do not locate this product where the cord
could be abused by people walking on it.
Do not overload wall outlets and extension cords as this can result in the risk of fire or
electric shock.
Never push objects of any kind into this product through Cabinet or Module slots or
connectors as they may touch dangerous voltage points or short out parts that could result
in a risk of fire, electric shock or product failure. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product. Instead, take it to a
qualified person when service or repair work is required. Opening or removing covers may
expose you to dangerous voltages or other risk. Incorrect reassemble can cause electric
shock when the appliance is subsequently used.
Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
1. When the power supply cord or plug is damaged or frayed.
2. If liquid has been spilled into the product.
3. If the product has been exposed to rain or water.
4. If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions because
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal operation.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
2
5. If the product has been dropped or the Cabinet or Module has been damaged.
6. If the product exhibits a distinct change in performance.
Avoid using a telephone during an electrical storm. There is a remote risk of electric shock
from lightning.
In the event of a gas leak, do not use the telephone near the leak.
1.1.2 Precaution
Keep the system away from heating appliances and electrical noise generating devices
such as florescent lamps, motors and televisions. These noise sources can interfere with
the performance of the iPECS UCP System.
This system should be kept free of dust, moisture, high temperature (more than 40
degrees) and vibration, and should not be exposed to direct sunlight.
Never attempt to insert wires, pins, etc. into the system. If the system does not operate
properly, the equipment should be repaired by an authorized Ericsson-LG Enterprise
service center.
Do not use benzene, paint thinner, or an abrasive powder to clean the Cabinet or Module.
Wipe it with a soft cloth only.
This system should only be installed and serviced by qualified service personnel.
When a failure occurs which exposes any internal parts, disconnect the power supply cord
immediately and return this system to your dealer.
To prevent the risk of fire, electric shock or failure of the system, do not expose this
product to rain or any type of moisture.
To protect the internal components from static electricity, discharge body static before
touching connectors and/or components by touching ground or wearing a ground strap.
To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA
Certified Telecommunication Line Cord.
The Power supply cord is used as the main disconnect device. Ensure that the socket-
outlet is located, installed near the equipment and is easily accessible.
A supplementary equipment-earthing conductor is to be installed between the product or
system and earth, that is, in addition to the equipment-earthing conductor in the power
supply cord.
Disconnect the Telecom connection before disconnecting the power connection prior to
relocating the equipment, and reconnect the power first.
This system is equipped with an earthing contact plug. For safety reasons this plug must
only be connected to an earthing contact socket that has been installed according to
regulations.
WARNING
Replace batteries only with the same or equivalent type recommended by the manufacturer.
There is a risk of explosion if batteries are replaced with an incorrect type. Dispose of used
batteries according to the manufacturer’s instructions and local disposal requirements.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
3
1.2 About This Manual
This document provides general information covering the description and installation of the
iPECS UCP System hardware. While every effort has been taken to ensure the accuracy of this
information, Ericsson-LG Enterprise makes no warranty of accuracy or interpretations thereof.
The document is divided into eight (8) sections as described in the following.
Section 1 Introduction
This section introduces important safety information and the manual.
Section 2 System Overview
This section provides general information on the iPECS UCP System, including the system
specifications and capacity
Section 3 iPECS UCP Hardware Description
This section describes the hardware components of the iPECS UCP.
Section 4 Installation overview
This section gives detailed instructions for planning the installation site and procedures to
install the iPECS UCP System.
Section 5 Module Mounting Hardware Installation
This section describes installation of the Module mounting hardware with step-by-step
instructions.
Section 6 Module Installation and Wiring
This section provides instructions on wiring the individual Modules, installing Module option
boards, and wiring for the Main Cabinet, as well as Miscellaneous connections, Earth
Grounding and Battery Backup.
Section 7 Terminal Installation and Wiring
This section describes the various terminals, maximum wiring distance, and other device
connection information for the terminals.
Section 8 Open Source Software Notice
This section provides information on open source software

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
4
2. System Overview
2.1 iPECS UCP Introduction
iPECS UCP is Ericsson-LG Enterprise’s Internet Protocol (IP) Enterprise Communications
Solution Unified Communication Platform designed to meet the telecommunication needs of the
small to medium sized business. iPECS UCP uses advanced packet voice and IP switching
technology, which is combined with a rich feature content, to set a new standard in Voice over IP
(VoIP) systems.
iPECS UCP consists of a family of intelligent modules, which are interconnected over an Ethernet
LAN, easing the installation process and eliminating the need for an expensive back plane. A
variety of modules are available including analog and digital network access gateways, which
connect to the Public Switched Telephone Network (PSTN), ISDN or public and private VoIP
networks. iPECS Ethernet switches (ES8G/ES8GP) provide the LAN connections for other
iPECS UCP modules in the same form factor as the standard iPECS UCP modules for a clean
consistent in-cabinet installation. The ES8GP incorporates Power over Ethernet (PoE) to support
“power-feed” to connected LIP Phones. LIP Phones provide the user simple access to the many
features and functions of the iPECS UCP.
The modules, which make up the iPECS, can be installed in a Main Cabinet. The cabinet can be
desk, 19” rack, or wall mounted, as best fits the user needs and equipment room. Each of the
system’s modules is powered from a PSU, which converts 100-240 VAC to 48 VDC. In lieu of the
cabinet installation, the modules can be shelf (bookend) mounted, in which case, each module is
separately powered from an AC/DC adapter, which converts 100-240 VAC to 48 DC for use by
the module.
iPECS supports a variety of iPECS LIP Phones Ericsson-LG Enterprise digital terminals, standard
VoIP phones (SIP and H.323 V3) and analog single line devices. With the LIP and LDP digital
Phones, commonly used features are activated by selection of a single button. Additionally, most
functions can be accessed from any telephone by dialing specific codes. For LIP and LDP digital
Phone users, these “dial codes” may be assigned to Flexible buttons for easy access. In addition
to the LIP Phones, optional LIP DSS Consoles are available to expand the number of Flexible
buttons available to the user.
iPECS UCP provides an environment rich in features beyond today’s traditional circuit switched
telephone systems. In addition to a fully featured voice intercom, the iPECS UCP incorporates
enhanced messaging, basic Auto Attendant/Voice Mail, Least Cost Routing, and Automatic Call
Distribution, as well as Web based Admin, and VoIP network interface. iPECS UCP incorporates
an interface to the iPECS Applications Service Provider, a TAPI 3.1 TSP/MSP. The Application
Service Provider links the iPECS UCP to advanced Computer-Telephony iPECS and third party
applications. In addition to the iPECS Auto Attendant/Voice Mail and iPECS Unified Messaging
applications developed by Ericsson-LG Enterprise, third party TAPI 3.1 application support is

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
5
provided. Standard Unified Communications Services (UCS) are supported through the UCS
Client providing enhanced communications, presence and collaborative services. Premium UC
services are supported through the installation of the optional UC server. An optional Network
Management Server (NMS) software package is available allowing monitoring and management
of environments encompassing multiple iPECS installations.
By employing packet voice and IP switching, the iPECS infrastructure can be employed for or can
share the enterprise data network. Further, since all modules and terminals have a unique IP
address, they can be moved anywhere with access to a broadband network that can connect to
iPECS and function without the need for “re-programming”. The use of the single common
infrastructure and ability to easily install or relocate modules and telephones results in significant
savings at installation and over the life of the system.
The reliability, extensive feature content, the ability to support present and future iPECS
applications and the capability to use an array of modules and instruments, permit the iPECS to
be tailored to meet the short and long-term needs of the most demanding customer requirements.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
6
2.2 iPECS UCP Network Connection
Figure 2.2-1 below is a diagram of the various modules and terminals available for integration into
an iPECS UCP controlled network.
Figure 2.2-1 iPECS UCP Network diagram

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
7
2.3 Hardware Components Chart
Table 2.3-1 provides a description of the hardware components that make-up iPECS UCP. All of
the Modules are connected over standard Ethernet LANs. Multiple options permit module
installation in a cabinet, bookshelf mount, or individual mounting.
Table 2.3-1 iPECS Modules
ITEM
DESCRIPTION
1 UCP100 Unified Communications Platform Server 100, Basic 50, Up to 199 ports
UCP600 Unified Communications Platform Server 600, Basic 100, Up to 600 ports
UCP2400
Unified Communications Platform Server 2400, Basic 600, Up to 2400 ports
UCP-COIU4 4 ports Central Office Interface Unit daughter board for UCP100
UCP-BRIU2
2-port Basic Rate Interface Unit daughter board for UCP100
UCP-BRIU4 4-port Basic Rate Interface Unit daughter board for UCP100
2
VOIM8
Voice Over IP Gateway Module, 8 channels
3 VOIM24 Voice Over IP Gateway Module, 24 channels
4 VCIM VoIP and Conference Interface Gateway Module, Basic 64 DSP channels,
Up to 128 DSP channels with software license.
(Default 31 VoIP or 62 Conference, Maximum 63 VoIP or 126 Conference)
5 LGCM4 Loop Start CO gateway Module, 4 ports
6 LGCM8 Loop Start CO gateway Module, 8 ports
CMU1216 4-channel Call Metering Unit for LGCM, 12 or 16KHz, Polarity Reversal
CMU50PR 4-channel Call Metering Unit for LGCM, 50Hz, Polarity Reversal
7 BRIM2 BRI gateway Module, 2 port ISDN “T” Interface (2B+D)
8
BRIM4
BRI gateway Module, 4 port ISDN “T” Interface (2B+D)
9 PRIM PRI gateway Module, 1 port, 24 (23+1) or 32 (30+2) channels
10
DTIM8
Digital Terminal Interface gateway Module, 8 ports
11 DTIM24 Digital Terminal Interface gateway Module, 24 ports
12
SLTM4
Single Line Telephone gateway Module, 4 ports
13 SLTM8 Single Line Telephone gateway Module, 8 ports
14 SLTM32 Single Line Telephone gateway Module, 32 ports
15 UVM Unified Voice Mail Interface Module, Up to 16 Channels/200 Hours
16 MCIM Multi-Media Conference Module (up to 32-party voice)
17 WTIM4 Wireless Terminal Interface gateway Module, 4 ports
18 WTIM8 Wireless Terminal Interface gateway Module, 8 ports
19 ES8G 8 +1 Port switch, 10/100/1000 Base-T Ethernet interface
20
ES8GP
PoE Switch, 8 +1 Ports, 10/100/1000 Base-T Ethernet interface
21 AC/DC Adapter –G- AC/DC Adapter for standard iPECS gateways & modules, (48VDC, 0.8A)
22
DHLD
Desk mount Holder for module
23 DHE Desk mount Holder Extender, one (1) required for each Module
24
WHLD
Wall mount Holder for module
25 MCKTE Main Cabinet Kit Enhanced
26 WBRKE Wall mount Bracket Kit for Enhanced Main Cabinet
27 1U-RMB 1U Rack mount Bracket for gateway Modules

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
8
2.4 System Specifications
2.4.1 System Capacity
Table 2.4.1-1 System Capacities
ITEM
UCP100
UCP600
UCP2400
Remark
Main Cabinet
10 Slots 1 slot used by the PSU
System channels, basic
maximum
50 100 600
199 600 2400 w/License
Stations 199 600 2400 Total stations and Lines
cannot exceed the
available System channels
CO/IP Lines (external network
channels incl. VoIP) 199 600 998
UCS Standard Clients
Registrations
Simultaneous
UCS Premium Clients
Registrations
100
100
199
200
200
600
400
400
2400
Server Redundancy No Yes Yes Supports local and remote
redundancy
Cabinet Power Redundancy
Yes
Integrated Telephony ports
*1
None None
Two FXS ports are
equipped as standard in
the UCP100 module; an
optional CO/BRI line unit
may be equipped or
installed.
standard 2 FXS (SLT)
optional
4 CO, or 2 BRI
or 4 BRI Lines
WTIM4/8 modules (Max.) 132
Max DECT phones 100 255 255
VoIP Switch channels,
*2&3
Built-in basic
Built-in maximum
System Maximum
8
16
100
8
24
600
0
0
998
w/License
w/VOIM and VCIM
VoIP DSP channels,
Built-in max
6 6 0 VoIP DSP channels can be
assigned to the MCIU, 2
VoIP = 4 Conf channels.
For UCP100 see Note 1.
Multi-party Conference Unit
(MCIU) channels 6/10/14/18 6/18 0
Maximum MCIMs 30
Max SIP channels 100 600 1200
VSF*4 8-Ch./4 Hrs. 8-Ch./6Hrs. NA
14 Hours 16 Hours NA w/License
UVM capacity, basic
maximum
8 Channels at 50 hours
16 Channels at 200 hours w/License
UVM per system 30
Attendants 50
Serial Port (RS-232C) 1

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
9
Table 2.4.1-1 System Capacities
ITEM
UCP100
UCP600
UCP2400
Remark
USB Host port 1
Alarm/Doorbell input
1 2
External Control Relays 1 4
Music Source Inputs (Ext)
1 2
Power Fail Circuit 1 4
External Page zones
1 2
Internal Page Zones 100
System Speed Dial
12,000
System Speed Dial Zones
(Groups) 50
Station Speed Dial, per Station
100
Total Station Speed Dial 24,000
Call park
200
Last Number Redial 10 (23 digits)
Save Number Redial
1 (23 digits)
Standard DSS Consoles/Station 9
Serial DSS - System 500
Serial DSS - Station (LIP-8000) 4
Serial DSS – Station (LIP-9000)
1
SMDR buffer 30,000
CO Line Groups
200
Station & Hunt Groups 200
Station & Hunt Group Members
200
Pickup Groups 200
Pickup Group Member
2,4000
Personal Groups 1200
Conference Group - System
160
Conference Group - Station 100
Executive/Secretary pairs 100
Authorization Codes 5200 (Station:2400/System:2800)
Transparent Networking Table
100
CLI Msg Wait (Missed calls) 4,000
Redundancy
N/A Yes
Flex DID Table 10,000
MSN table
2,400
DID Digits Analysis 4
Tenancy (ICM) Groups
100
ICLID table 500
NOTE
1. The iPECS UCP100 is equipped with two (2) FXS ports, and one of several built-in CO
Line units may be factory or field installed.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
10
4 analog CO Lines (UCP-COIU4), uses two (2) VoIP DSP channels
2 BRI Lines, 2B+D each, (UCP-BRIU2) , uses two (2) VoIP DSP channels
4 BRI Lines, each 2B+D, (UCP-BRIU4) , uses four (4) VoIP DSP channels
Note the built-in PSTN interfaces require dedicated DSP resources. These DSP
resources reduce the maximum VoIP DSP resources available shown in the above chart.
2. The eight (8) built-in VoIP Switching channels implement agent and packet relay
functions. Remote device and network interfaces send IP traffic and signaling to the VoIP
channel, which forwards traffic to the appropriate local iPECS device. The VoIP
Switching channel also forwards multi-cast packets to the remote end-points and local
non-iPECS devices. Only g.711 codec is allowed unless there is an available VoIP DSP
channel.
3. The number of VoIP Switching channels can be increased to the maximum with license
installation.
4. Approximately 35 minutes (16 Mbytes) of the VSF and UVM memories are used to
provide basic system prompts, the remaining memory can be used for announcements
and voice message storage. Note the built-in VSF supports the g.711 Codec only; the
UVM supports g.711, g.729, g.723, and g.722 Codecs.
5. With PFT enable within the equipment the system will route to the assigned SLT port
allowing for emergency access if not provisioned the equipment will be inoperable when
mains power fails.
2.4.2 Dimension and Weight
Table 2.4.2-1 Dimensions and Weight
ITEM HEIGHT
(mm/in)
WIDTH
(mm/in)
DEPTH
(mm/in)
WEIGHT
(Kg/lbs.)
Standard Gateway Module 230/9.1 38.8/1.5 194.5/7.7 1.5/3.3
19” Rack Mount modules
(SLTM32, DTIM24)
53/2.1 436.6/17.2 318/12.5 4.32/9.5
4.02/8.9
Main Cabinet, Enhanced
(MCKTE) 265.6/10.5 440/17.3 318.2/12.5 7.78/17.2
w/PSU module
9.32/20.3
1U RMB 38.3/1.5 482.6/19 183.27.2 2/4.4
DHLD
*1
146/5.7 111.5/4.4
*1
128/5 0.4/0.9
WHLD 280/11.0 60/2.4 188.3/7.4 0.2/0.4
NOTE 1. The width of the Desk Holder bookend mount does not include approximately
40mm (3.2 inches) for each installed module.

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
11
2.4.3 Environment specification
Table 2.4.3-1 Environmental Specifications
ITEM
TEMPERATURE
Operation Temperature 0~40
0
C 32~104
0
F
Optimum Operation Temperature 20~26
0
C 68~78
0
F
Storage Temperature -20~60
0
C -4~140
0
F
Relative Humidity
0~80% non-condensing
2.4.4 Electrical specification
2.4.4.1 System Electrical specification
Table 2.4.4.1-1 System Electrical Specifications
ITEM
SPECIFICATIONS
Module AC/DC Adapter
AC Voltage Input 100-240 VAC, +/-10% @ 50/60 Hz
AC Current Input
1.0 amps
DC Output 48 VDC at 0.8 amps
Keyset AC/DC Adapter
AC Voltage Input
100-240 VAC, +/-10% @ 50/60 Hz
AC Current Input 0.2 amps
DC Output 48 VDC at 0.3 amps
PSU
AC Voltage Input 100-240 VAC, +/-10% @ 50/60 Hz
Fuse
T6.3, AC250V
DC Output 48VDC, 5.3 amps
5VDC at 1 amps
SLTM32 PSU
AC Voltage Input 187~265 VAC @ 47~63 Hz
Fuse
T1, AC250V
DC Output 30VDC at 1.2 amps
5VDC at 2.5 amps
5VDC at 0.1 amps
External Relay Contact
2 amp @ 30 VDC
Music Source Input 0 dBm @ 600 ohm
External Paging Port
0 dBm @ 600 ohm
LAN Power Feed 0.3 amps max

iPECS UCP
Hardware Description and Installation Manual Issue 1.3
12
2.4.4.2 Module & Phone Power Requirements
Table 2.4.4.2-1 Module Power Requirements
Module Maximum
Current (mA)
Maximum
Power (Watts)
UCP100/ 600/ 2400 150 7.2
VOIM8/24
100 4.8
UVM 100 4.8
VCIM
100 4.8
MCIM 100 4.8
SLTM4
280 13.4
SLTM8 440 21.1
LGCM4/8
100 4.8
BRIM2/4 100 4.8
PRIM
100 4.8
WTIM4 440 20.7
WTIM8 740 34.9
DTIM8 640 30.7
ES8G/ES8GP w/o connecting
a Powered Device (PD)
100 4.8
NOTE 1. Table 2.4.4.2-1 above provides the maximum power required by each module with
the exception of the ES8GP. The ES8GP power values shown are for the switch
itself, and do not include the current draw of any connected devices. The Table
may be used to assure the PSU can supply power to the modules in a cabinet.
2. To determine the power needs of a cabinet, add the maximum current for each
module including the current for any Powered Device attached to an ES8GP
switch. Use Table 2.4.4.2-2 below to determine the current requirements of LIP
Phones attached to the ES8GP. The resulting current must be less than the PSU
capability, 5.3 amps.
3. When using an ES8GP, assure the power needs of the ES8GP and all connected
Powered Devices does not exceed the rating of the power source. The AC/DC
adaptor is capable of providing 0.8 Amps. When the ES8GP is powered by a PSU,
use Note 2 above to assure the PSU ratings are not exceeded. The maximum
current and classification signature of each LIP-8000E series phone is shown in
the following Table 2.4.4.2-2. The maximum current for the older 8000 series LIP
phones is provided in the lower Table 2.4.4.2-3 for sites that may have been
previously installed.
