IQ IQTouch HC900Pro User manual

IQTouch
HC900Pro
——User Manual——

Content
Safety Instruction................................................................................................................................... 1
1.Product Overview................................................................................................................................ 5
1.1 Appearance Introduction........................................................................................................... 5
1.2 Front Control Panel................................................................................................................... 6
1.3 Rear Port....................................................................................................................................6
1.4 Remote Control......................................................................................................................... 9
2.Installation......................................................................................................................................... 11
2.1 Safety Precautions................................................................................................................... 11

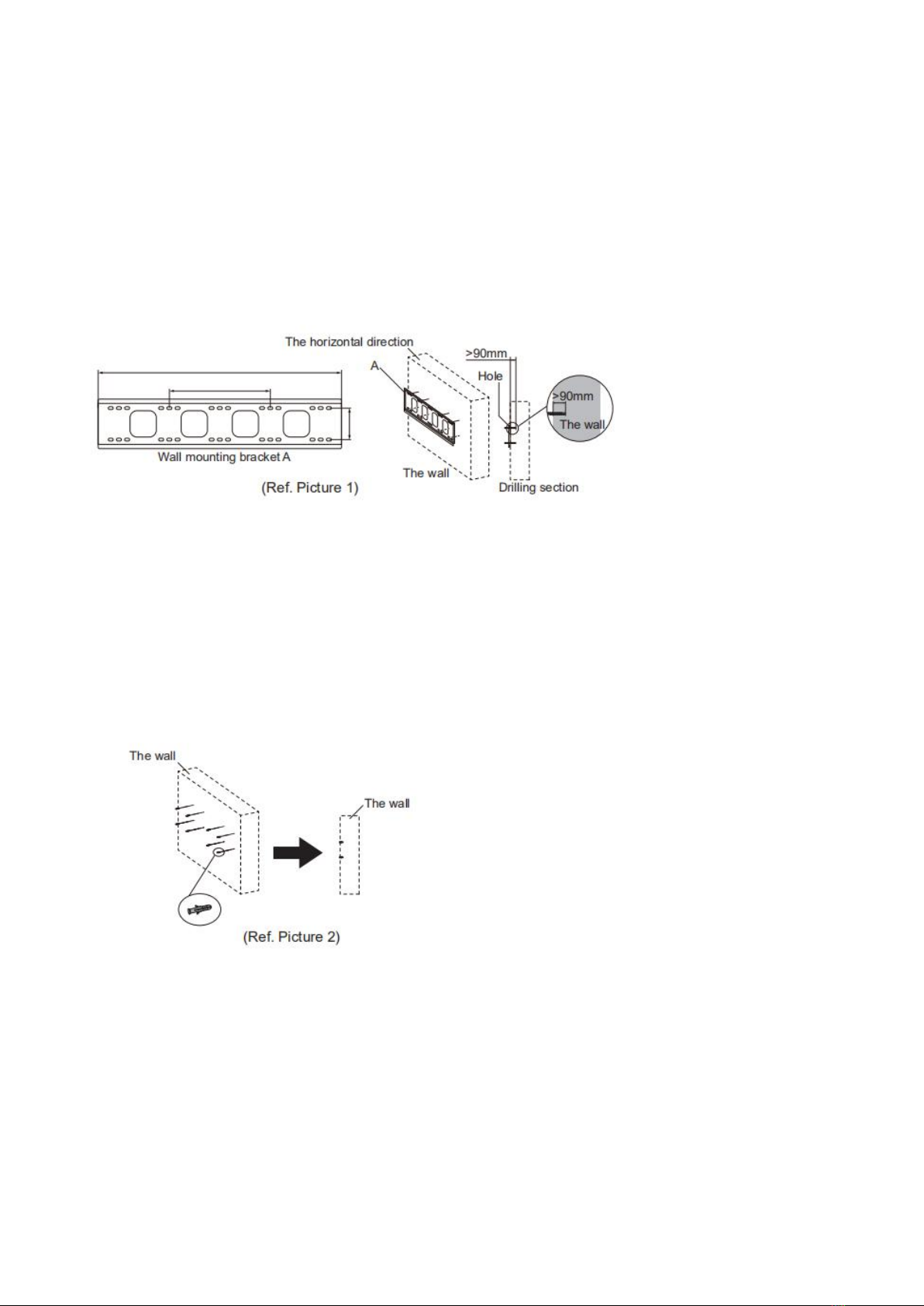

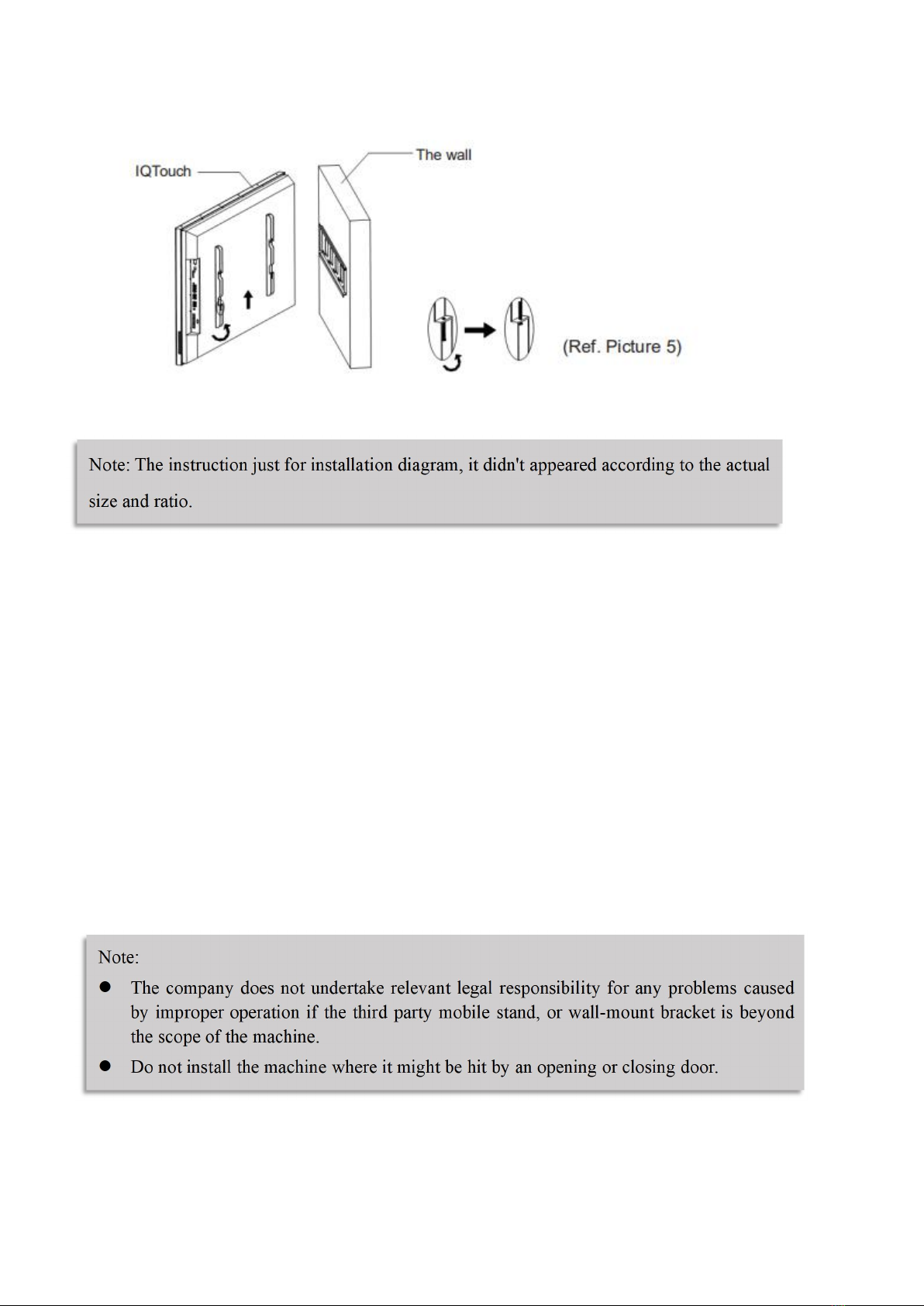

2.2 Installation Step.......................................................................................................................11
2.3 Weight Loading....................................................................................................................... 14
2.4 OPS Installation.......................................................................................................................16
3.Connecting and Setting..................................................................................................................... 18
3.1 External Computer and Touch Connecting............................................................................. 18
3.2 AV Connecting.........................................................................................................................19
3.3 Video-OUT..............................................................................................................................20
3.4 RS232...................................................................................................................................... 20
4.Turning on/off....................................................................................................................................24
4.1 Power On.................................................................................................................................24
4.2 Power Off................................................................................................................................ 25
5.IQ OS.................................................................................................................................................26
5.1 Android Home Page................................................................................................................ 26
5.1.1 Status Bar.............................................................................................................................27
5.1.2 Sidebar................................................................................................................................ 28
5.1.3 Floating Bar..........................................................................................................................40
5.1.4 Bottom Bar...........................................................................................................................40
5.2 Android Settings...................................................................................................................... 41
5.2.1 Network...............................................................................................................................42
5.2.2 Application Notification......................................................................................................... 44
5.2.3 Display................................................................................................................................ 45
5.2.4 Volume................................................................................................................................ 45
5.2.5 Power on/off Schedule........................................................................................................... 16
5.2.6 Personal Settings...................................................................................................................47
5.2.7 System Space........................................................................................................................49
5.2.8 System Settings.....................................................................................................................49
5.2.9 Restore To Factory Settings.................................................................................................... 51
5.3 Application.............................................................................................................................. 52
5.3.1 Whiteboard...........................................................................................................................52
5.3.2 File Commander................................................................................................................... 58
5.3.3 Eshare Pro............................................................................................................................61
6.Built-in PC Operation........................................................................................................................66
7.Packing Lists..................................................................................................................................... 67
8.Troubleshooting.................................................................................................................................68

1
Safety Instruction
For your safety, please read the following instruction before you use the machine. Serious injury or
property damage may be caused by improper operations. Do not try to repair the machine by your
own.
Disconnect the machine from power supply immediately if major failures
occur.
Major failures include the following:
Smoke, peculiar smell or abnormal sound is discharged from the machine.
No image or sound is displayed, or the image error occurs.
Where the mains plug or an appliance coupler is used as the disconnect device
the disconnect device shall remain readily operable.
In the preceding scenarios, do not continue to use the machine. Disconnect power
supply immediately and contact professional staff for troubleshooting.
Do not drop liquid, metal or anything combustible into the machine.
If any liquid or metal is dropped into the machine, power off the machine and
disconnect power supply, then contact professional staff for solutions.
Pay attention to children when they are close to the machine.
Put the machine on a stable surface.
An unstable surface includes and does not limited to an inclined plane, a shaky
stand, desk or platform, which might cause turnover and damage.
Do not open the cover or change the machine on your own.
High voltage components are installed in the machine. When you open the cover,
high voltage, electric shock, or other dangerous situations may occur.
If inspection, adjustment, or maintenance is required, contact the local distributor
for help.
Use the specified power supply.
To prevent the machine from being damaged, do not use any cables other than
the one provided with the machine.
Use a three-wire socket and ensure that it is properly grounded.
Pull out the power plug from the socket if the machine is not used for a long
period.

2
Clean the power plug regularly.
Continued use of this machine may cause fire or electric shock if the plug is not
clean for a long time.
Pull out the power plug before cleaning it with a dried cloth
Do not put items on the top of the machine.
Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics, or
liquid medicine) on the top of the machine.
If any water or liquid is spilled on the machine, the machine may short circuit
and cause fire or electric shock.
Do not walk on or hang any items on the machine.
Do not install the machine in an improper place
Do not install the machine in humid places, such as the bathroom, the shower
room, near windows, or outdoor environments that experience rain, snow, or
other harsh weather. Avoid installation near hot spring vapor. The preceding
environments may cause faults in the machine or electric shock under extreme
conditions.
Do not put an exposed fire source, such as a lit candle, on the machine.
Pull out the power supply during thunderstorms.
Do not touch the machine during a lighting storm, you may experience an
electric shock.
Install or place components that supply high enough voltage to cause personal
injury out of the reach of children.
Do not touch the power cable with wet hands.
Do not install the machine in high temperature environments.
Do not install the machine near a heat source, such as a radiator, a heat
reservoir, a stove, or other heating machines.
Do not expose the machine to direct sunlight, which may cause high
temperatures and subsequent faults in the machine.
When transporting the machine:
Pack the machine for transport or maintenance by using the cartons and
cushioning material provided with the machine.
Move the machine vertically during transport. The screen or other

3
components are easily broken if the machine is moved in an improper way.
Before you move the machine, disconnect all external connections and
separate all topple preventing machines. Move the machine carefully to
prevent it from being hit or squeezed, especially the screen, which may
cause injury if broken
Do not cover or block up any vents on the machine.
Any overheated components may cause fire, damage the machine, and
shorten the service life.
Do not lay the machine down in a way where the venting surface will be
covered.
Do not install the machine on carpet or cloth.
Do not use a cloth, such as table cloth, to cover the machine
Keep the machine away from the radio.
The machine complies with the international EMI standard to pervent radio
interference. However, interference may still exists and causes noise in the
radio. If noise occurs in the radio, try the following solutions.
Adjust the direction of the radio antenna to avoid the interference from the
machine.
Keep the radio away from the machine.
Do not damage the power cable.
Do not damage, change, twist, bend, or forcibly drag the power cable.
Do not put weights (such as the machine itself) on the power cable.
Do not forcibly drag the cable when you pull out the power plug. If the
power cable is damaged, please contact the local distributor to repair or
replace it.
The power cable in the accessory box is for this machine only, do
not use it on other machines.
Use the battery correctly.
Galvanic corrosion, electric leakage, and even fire may be caused by
improper battery usage.
It is recommended to use the designated type of battery and install the
battery by the correct electrodes (positive and negative).
Do not install and use a new battery with a used one.
Take out the battery if the remote control is not used for a long period.
Do not expose the battery to overheated environments, such as sunlight or
heat sources.
Dispose of the used battery based on your local regulations.

4
Additional advice：
Use the machine in an environment with comfortable lighting. It is harmful
to your eyes to watch in a too bright or too dark environment.
Relax your eyes watching for a period of time.
Keep sufficient distance from the machine to protect your eyes and prevent
eyestrain.
Adjust the volume to an appropriate level, especially at night.
Use amplifier equipment as the audio input source with caution. If you
must use amplifier equipment, the input power should not exceed the
maximum of speaker power. Otherwise, the speaker can become
overpowered and damaged.
special remarks：
The machine can only achieve zero energy consumption when no external
input power supply is connected. Therefore, it is recommended to
shutdown state when not using to reduce energy consumption.
On the premise of ensuring the viewing quality, energy consumption can
be reduced by reducing the brightness of the display.
This machine can be used with all kinds of built-in computers, which can
be upgraded or replaced according to your needs.

5
1. Product Overview
1.1 Appearance Introduction
Front View
Rear View

6
1
Power Button
8
Screen
2
Light Sensor
9
Power socket
3
IR Receiver
10
Power switch
4
Microphone Array
11
Rear connecting port 1
5
Built-in Camera
12
Rear connecting port 2
6
Document Camera
13
Built-in computer ports(ops)
7
Touch Border
1.2 Front Control Panel
Front Button
1.3 Rear Port
Button
Function
on/off：
If the power is on, press it to enter sleep mode. Press and hold for 2
seconds to shut down.
If the power is off, press it to turn on the power.

7

8

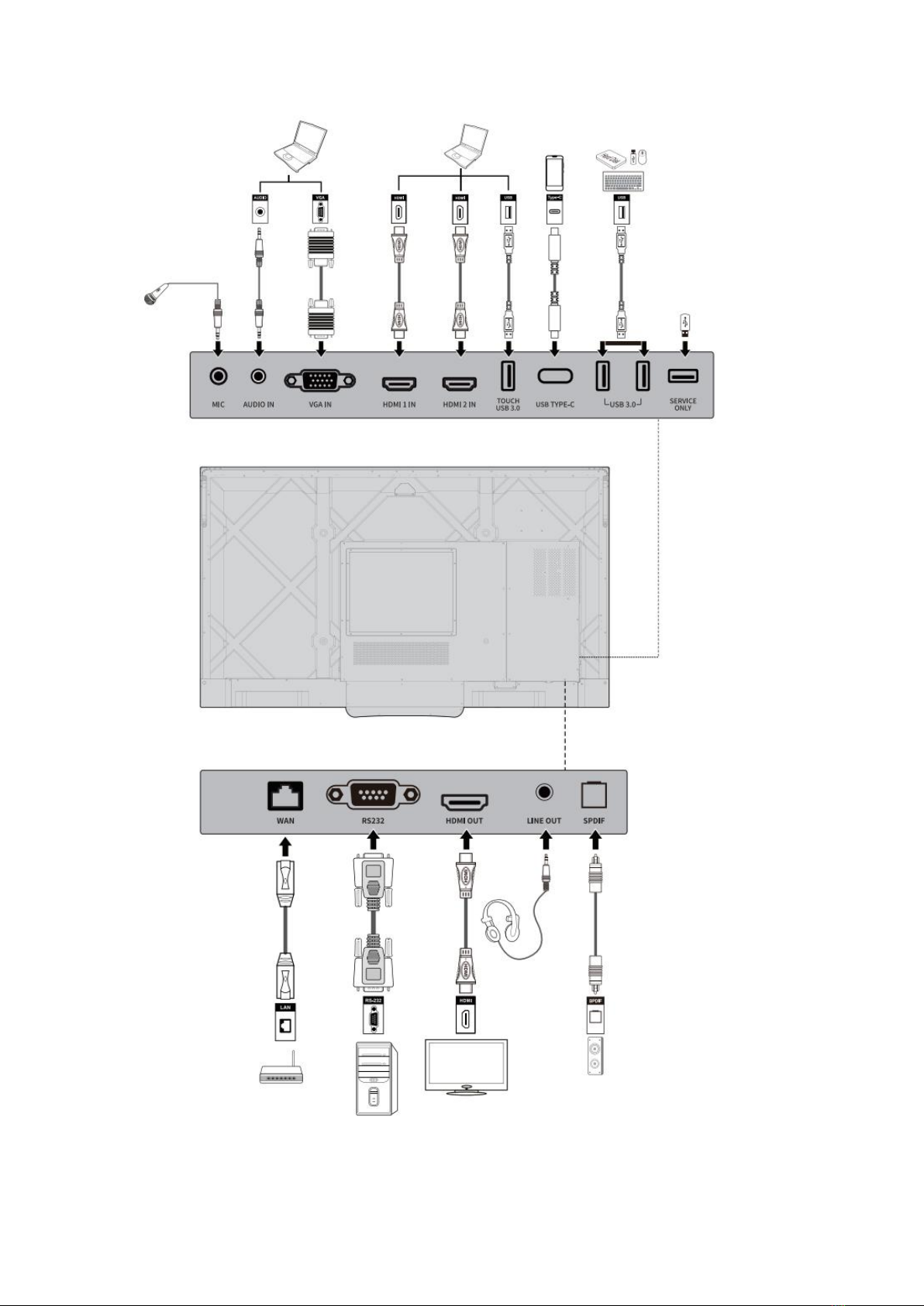

Rear Ports Introduction：
Name
Function
MIC
Microphone input port
Audio In
Audio input port, used in combination with “VGA IN”
VGA In
VGA signal input port.
Used in combination with “Touch USB 3.0” to operate the PC in touch mode.
HDMI 1 In
HD signal input port 1.
Used in combination with “Touch USB 3.0” to operate the PC in touch mode.
HDMI 2 In
HD signal input port 2.
Used in combination with “Touch USB 3.0” to operate the PC in touch mode.
Touch USB 3.0
Connect to operate the PC in touch mode
Type-C
Connect devices with Type C interface, such as OTG USB flash drive, MAC, PC,
mobile phone, etc. Output 5V 3A power supply. It also supports data, audio, video
and charging. The transmission rate is 5Gbps. Maximum resolution for video
transmission 3840 x 2160@60Hz.
USB 3.0
Connect the USB device. Such as mobile hard disk, U disk, USB keyboard,
mouse. When the display screen is on android, the device on USB is used by
android. When switching to OPS channel, the USB device is connected to OPS.
Service only
USB 2.0 Embedded for System upgrade.
WAN
Network port, connect to RJ45 terminal.
Network reset button
Press the reset button for 5 seconds with a pinhole object to reset the network
settings of the machine to default.
RS232
Serial port signal input port, which allows inputting serial port settings through a
specific serial port control device to control the machine.
HDMI Out
Connect to an electronic video device with HDMI In.
Line Out
Connect to audio output device such as headphone and speaker.
SPDIF
Digital audio port. Connected audio equipment with fiber optic input; Such as
power amplifier, stereo, speakers.

9
1.4 Remote Control
Buttons
Functions
Turn on/off.
Standby
Enter/exit the screen off mode.
Mute or unmute.
Microphone switch.
Up/Down/Left/Right selection button.
OK
Confirmation button.
Press once to return to the previous page;
Press twice to exit the current program.
Note: In the settings page, press once to exit.
Return to homepage.
Open the task management sidebar.
Decrease the volume.
Increase the volume.
Opens the bottom toolbar (no function on the
homepage and the app list page).
Open the app list page.
Turn the brightness bar on/off (drag the slider to
adjust the brightness).
Enter the Settings page.
HDMI
Switch to front HDMI source（Reserved）.
TYPE-C
Switch to Type-C source.
Lock/unlock screen touch function.
HDMI1
Switch to HDMI1 source.
HDMI2
Switch to HDMI2 source.
Screen Capture
Enable screenshot function.
VGA
Switch to VGA source.
PC
Switch to the built-in computer source.

10

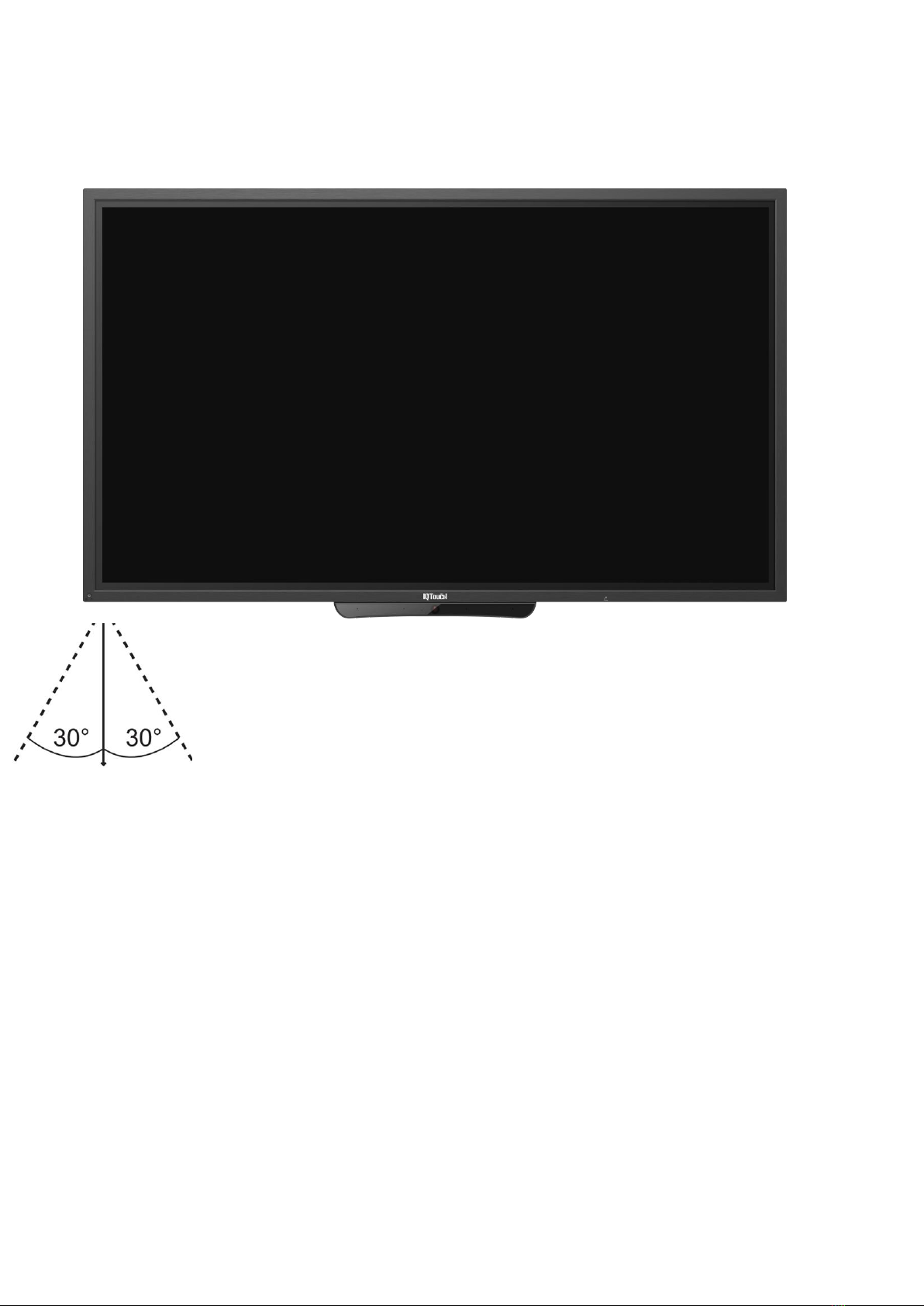

Remote Control Area
The effective receiving area is about 3 meters with 30° angle from vertical point to the left and right.
And the effective receiving area is about 5 meters from the front of device. Note that the remote
control signal receiver locates at the position of power indicator.
5M

11
2.Installation
2.1 Safety Precautions
Installation Environment
Installation Direction
2.2 Installation Step

12
Step1: Punching holes in the wall
Mark 8 holes location on the wall according to wall mounting bracket A and use the drill bit drilling
the 8 holes. Depth of holes not less than 90mm (Ref. Picture 1)
Step2: Expansion bolt installation
Press the expansion bolt into 8 holes. (Ref. Picture 2)
Step3:Wall mounting bracket A installation
Install the wall mounting bracket A with 8pcs screws and gaskets. Please ensure that the wall
mounting bracket A is installed horizontally. (Ref. Picture3)

13
Step4: Install the left& right hang bracket B to IQTouch.
Use screws fix the hang bracket B at the back of IQTouch. Please check the direction of hang bracket
B before installation. (Ref. Picture 4)
Step5: Hang IQTouch on the wall mounting bracket A
Hanging the left &right hang bracket B to the wall mounting bracket A, please ensure two hang
brackets B total hang on wall mounting bracket A, then tighten the screws of hang bracket B to
prevent it slide. (Ref. Picture5)

14
2.3 Weight Loading
Net weight of the machine(65",75",86"): 40kg(±2kg), 50kg(±2kg), 61kg(±2kg).
When using a mobile stand, ensure that the weight of the machine is less than the loading
capacity of the mobile stand.
When using the wall-mount bracket, ensure that the wall can support the weight of the machine.
We recommend that the wall surface be reinforced and have a loading capacity 4 times of the
weight of the machine. Consult a professional installer for wall-mount installation.

15
Vertical Installation
When installing, try to keep the machine vertical. The vertical tilt range allowed for wall-mount
installation is ±3 degrees. An excessive tilt angle may cause the screen glass to fall off or the
machine to collapse.

16
2.4 OPS Installation
The built-in computer does not support hot plugging. Therefore, you must insert or remove the built-in computer
when the display is powered off. Otherwise, the display or built-in computer may be damaged.
Perform the following steps to install the built-in computer：
Step1
Unscrew the screws by hand to remove OPS shielding cover.
Step2
Push OPS into the port at the rear of the machine from right to left.

17
Step3
Secure OPS to the machine by using the screws.

18
3.Connecting and Setting
For safety, please do not connect any power supply before the external devices setup.
3.1 External Computer and Touch Connecting
1) Connect a VGA cable (15 pin) between the VGA and external PC. Connect an earphone
cable between the PC and audio at the same time.
2) Connect a USB cable between the external PC and USB terminal.
3) Plug the POWER cord and switch it on from the rear panel.
4) Start up the external computer.
5) Press to turn on the panel.
6) Select Signal source to VGA source according to the one you connected.
Note: The panel can connect with the external PC via HDMI.
