iQOS ILUMA PRIME User manual

User Guide
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11

IQOS ILUMA PRIME™ POCKET CHARGER
IQOS ILUMA™ HOLDER
IQOS ILUMA™ is compatible only with SPECIFICALLY DESIGNED TOBACCO STICKS
Ring
Holder Button
Holder Status Lights
Holder Status Lights Wrap
Pocket Charger Button
Charging
Port
Pocket Charger
Status Lights
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11

Charging
FEATURES
AND SETTINGS
Can be turned on or off
with the IQOS app*.
Please register by scanning
QR code or log in on
www.iqos.com/iluma
and follow the instructions.
* IQOS app may not be available in
your country.
Power AdaptorCharging Cable
For the full user guide,
Customer Care and
Extended support
services for IQOS users,
visit
www.iqos.com/myiqos
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
P3115
PCool Gray 11

Getting Started
TURN ON
Press and hold Pocket
Charger Button for
4 seconds, then release;
Pocket Charger Status Lights
and Holder Status Lights will
turn on slowly.
CHARGE HOLDER
Insert Holder into the
Pocket Charger, then close
Wrap to charge.
Holder Status Light will
show Holder battery level.
CHARGE POCKET CHARGER
Before first use, fully charge
your device with Power
Adaptor and Charging Cable.
(approx. 135 min)
4"
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11
PCool Gray 6

How to use your IQOS ILUMA PRIME™
1. INSERT SPECIFICALLY
DESIGNED TOBACCO STICK
Insert the specifically
designed tobacco stick to
the line on filter until Holder
vibrates and Light(s) pulse(s).
Heating starts automatically,
or by pressing Button for
1 second.
2. BEGIN USE
Start using once Holder
vibrates and Lights stay fixed.
3. NEARLY COMPLETE
To signal the last 30 seconds
or last 2 puffs, Holder will
vibrate with Light(s) pulsing
white.
4. REMOVE SPECIFICALLY
DESIGNED TOBACCO STICK
Remove used specifically
designed tobacco stick
and dispose as per Safety
Warnings and Instructions.
20"
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11
PCool Gray 6

How to use your IQOS ILUMA PRIME™

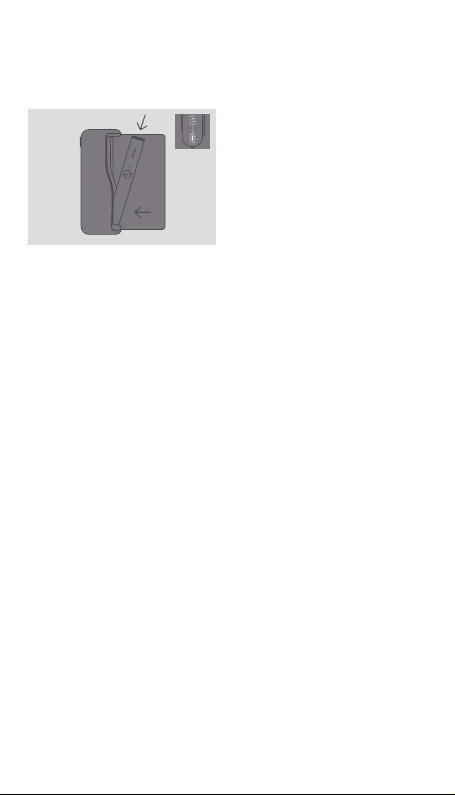

5. RECHARGE HOLDER
Insert the Holder in the
Charger for recharging.
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11
PCool Gray 6

Quick Tips
CHECK HOLDER STATUS
Tilt Holder towards you or
short press Button, Holder
Lights indicate Holder
battery level.
CHECK HOLDER STATUS
ON THE POCKET CHARGER
Short press Pocket Charger
Button. Holder Status Light
will turn on.
CHECK POCKET
CHARGER STATUS
Short press Pocket Charger
Button. Pocket Charger
Status Lights will turn on to
indicate battery level.
AUTOSTOP
During use, the experience
will stop if the specifically
designed tobacco stick is
moved, or removed from the
Holder.
2 lights
ready for 2 uses
1 light
ready for 1 use
2 lights
ready for 2 uses
1 light
ready for 1 use
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11
PCool Gray 6

Quick Tips
LIGHT BLINKS YELLOW
Battery depleted, need to
charge.
LIGHTS BLINK WHITE TWICE
IQOS ILUMA PRIME™
is outside operating
temperature range
(0°C~40°C).
LIGHT BLINKS RED
Reset Pocket Charger.
If red light blinking persists,
contact Customer Care.
TO RESET
Place Holder in Pocket
Charger and press Button for
10 seconds then release. All
Status Lights will turn OFF,
and turn ON, to confirm a
RESET.
10"
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Yellow
Black
New Color Swatch
PCool Gray 11
PCool Gray 6

PLEASE READ ALL SAFETY WARNINGS AND INSTRUCTIONS BEFORE
USE TO AVOID INJURY.
These safety warnings and instructions cannot cover all possible
conditions that could occur and users should exercise care and
caution.
KEEP THESE SAFETY WARNINGS AND
INSTRUCTIONS FOR FUTURE REFERENCE AS THEY
CONTAIN IMPORTANT INFORMATION.
These Safety Warnings and Instructions are applicable to IQOS ILUMA™ and IQOS
ILUMA PRIME™
Intended Users
•IQOS ILUMA™, IQOS ILUMA PRIME™ and specically designed tobacco sticks are for adult
use only (18 years old and above).
•IQOS ILUMA™, IQOS ILUMA PRIME™ and specically designed tobacco sticks are for
adults who would otherwise continue to use tobacco or nicotine-containing products.
•Children and adolescents should never use IQOS ILUMA™, IQOS ILUMA PRIME™ or
specically designed tobacco sticks under any circumstances.
•This product should not be used by persons with reduced physical, sensory or mental
capabilities or lack of knowledge unless they have been given supervision or instruction
to use the product in a safe way and understand the hazards involved.
Tobacco and Nicotine
•Specically designed tobacco sticks contain nicotine, which is addictive.
•IQOS ILUMA™, IQOS ILUMA PRIME™ and specically designed tobacco sticks are not risk-
free. The best way to reduce tobacco-related health risks is to quit tobacco and nicotine
use altogether.
•Some users may experience abdominal pain, chest pain, choking sensation, cough,
diiculty breathing, dizziness, dry mouth, dry throat, gingivitis, headache, malaise, nasal
stuiness, nausea, mouth irritation, palpitations, throat irritation, and vomiting.
•Nicotine-containing products should not be used by people who have or are at risk of
heart diseases, are diabetic, or are epileptic or are experiencing seizures.
•Nicotine-containing products should not be used during pregnancy or while breast-
feeding. If you are pregnant, breast-feeding or think you may be pregnant, you should
quit tobacco and nicotine use altogether.
•Stopping smoking or switching to IQOS ILUMA™ or IQOS ILUMA PRIME™
and specically designed tobacco sticks or other nicotine-containing
products may require the adjustment of the dosing of certain medicines
(e.g. theophylline, clozapine, ropinirole).
SAFETY WARNINGS AND INSTRUCTIONS
This is the safety alert
symbol. It is used to alert
you to potential physical
injury hazards.
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
GREY
PCool Gray 11

•If you have questions about whether you should use IQOS ILUMA™,
IQOS ILUMA PRIME™ or specically designed tobacco sticks given an existing
health condition, you should consult a health care professional.
IMPORTANT SAFETY INFORMATION
WARNING Choking, Ingestion and Handling Hazard
•Keep IQOS ILUMA™, IQOS ILUMA PRIME™ and specically designed tobacco sticks out of
reach of children and pets at all times.
•CHOKING HAZARD — specically designed tobacco sticks contain small metal parts with
sharp edges.
•INGESTION HAZARD
•
Swallowed specically designed tobacco sticks can cause serious injury to internal
organs due to small metal parts with sharp edges.
•
Swallowed specically designed tobacco sticks can pose a risk of nicotine intoxication.
•
If specically designed tobacco sticks are swallowed, seek medical attention
immediately.
•HANDLING HAZARD — Do not take apart specically designed tobacco
sticks as they contain small metal parts with sharp edges. Always dispose of
specically designed tobacco sticks immediately aer use according to local
waste disposal regulations.
WARNING Electronic and Battery Hazards
Electrical Risks
Failure to follow these Safety Warnings and Instructions could
result in fire, explosion, electric shock, injury, or damage to the
product or other property:
•Only Intended Users should use IQOS ILUMA™and
IQOS ILUMA PRIME™.
•Do not use IQOS ILUMA™or IQOS ILUMA PRIME™
where the use of electronic devices is prohibited.
•Do not charge or use IQOS ILUMA™,
IQOS ILUMA PRIME™ or accessories if damaged, tampered
with or broken.
•Do not use IQOS ILUMA™ or IQOS ILUMA PRIME™ if the
battery appears to be leaking.
•Only charge IQOS ILUMA™and IQOS ILUMA
PRIME™ indoors, as indicated by symbol
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
GREY
PCool Gray 11

, using a manufacturer-approved Charging
Cable (supplied in the box) and Power Adaptor
(supplied in the box), for charging purposes.
Do not use accessories not approved by manufacturer.
Refer to ’Technical Data’ section and www.iqos.com for
details applicable to the mobility kit you purchased.
•This product must only be charged using Safety Extra Low
Voltage. Refer to the Technical Data section of this User
Guide for details.
•Do not use, charge, or store IQOS ILUMA™ or
IQOS ILUMA PRIME™ in places with high temperatures
(such as inside a car in summer, or near heat sources such
as radiators or fires).
•Do not use IQOS ILUMA™ or IQOS ILUMA PRIME™ where
flammable materials, liquids and gases are present.
•IQOS ILUMA™, IQOS ILUMA PRIME™, Power Adaptor and
Charging Cable should not be exposed to any liquid. Do not
touch them if they become wet or have been immersed in
any liquid.
•Do not clean the device with any cleaning agent.
•Clean the USB charging port of the IQOS ILUMA™ and
IQOS ILUMA PRIME™ periodically to avoid accumulation of
foreign matters (such as dust particles), and inspect USB
port for foreign materials before using USB connector.
•Handle with care. Do not drop IQOS ILUMA™ or IQOS ILUMA
PRIME™ or subject them to strong shock.
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
GREY
PCool Gray 11

•This product contains no user-serviceable parts. Do
not attempt to open, modify, service, disassemble
or repair any component of IQOS ILUMA™ or
IQOS ILUMA PRIME™ or to replace any of the components
or batteries.
•IQOS ILUMA™ and IQOS ILUMA PRIME™
Pocket Charger and Holder are not
compatible with previous IQOS generations
(IQOS 2.4, IQOS 2.4 PLUS, IQOS 3, IQOS 3 DUO).
Do not attempt charging IQOS ILUMA™ or IQOS ILUMA
PRIME™ Holder in any previous IQOS generation Pocket
Charger. Do not attempt to charge any previous IQOS
generation Holder in IQOS ILUMA™ or IQOS ILUMA PRIME™
Pocket Charger.
•Do not use this product if it has been exposed to excessive
cold, heat or moisture.
•Do not touch IQOS ILUMA™ or IQOS ILUMA PRIME™ and/
or their accessories if they overheat, spark, fume, ignite, or
burn. If applicable and possible, use caution to shut off or
disconnect power supply.
•Do not attempt to insert any object in the heating chamber
other than SPECIFICALLY DESIGNED TOBACCO STICKS.
•Device can only be operated >0°C/<40°C.
•SPECIFICALLY DESIGNED TOBACCO STICKS are single use
only and should never be re-used, lit with a match, lighter or
any other flame source.
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
PCool Gray 11

Battery Risks
IQOS ILUMA™and IQOS ILUMA PRIME™ are powered with sealed Lithium-ion (Li-ion)
batteries. Under normal conditions of use, the battery is sealed. If you notice that battery
uid leaks, follow these precautions:
•If uid from leaked battery is swallowed, seek medical attention
immediately. Do not induce vomiting or ingest food or drink.
•If vapor from leaked battery is inhaled, get fresh air and seek medical attention.
•If uid from battery is in contact with skin, wash the aected area, including hands and
do not touch eyes.
•If uid from leaked battery is in contact with eyes, immediately ush with clean running
water for at least 15 minutes and seek medical attention.
CAUTION Thermal Burn Risk
Failure to follow these Safety Warnings and Instructions could result in
thermal burns:
•Store IQOS ILUMA™ or IQOS ILUMA PRIME™ and specically designed tobacco sticks in a
clean, dry, and cool place.
•Do not expose IQOS ILUMA™ or IQOS ILUMA PRIME™ and specically designed tobacco
sticks to high humidity conditions or direct sunlight.
•Do not use specically designed tobacco sticks that have been exposed to excessive
heat or moisture.
•Do not remove specically designed tobacco sticks while in use.
CAUTION Allergic Reaction Risk
•Using IQOS ILUMA™ or IQOS ILUMA PRIME™ and specically designed tobacco sticks
could cause an allergic reaction, such as swelling of the face, lips, tongue, gums, throat, or
body, diiculty breathing, or wheezing.
•Stop using IQOS ILUMA™ or IQOS ILUMA PRIME™ and specically designed
tobacco sticks and seek medical attention immediately if you experience any
of the symptoms above as they may indicate a serious allergic reaction.
Use of specically designed tobacco sticks
•Only use IQOS ILUMA™and IQOS ILUMA PRIME™ with tobacco sticks, specically
designed for IQOS ILUMA™ and IQOS ILUMA PRIME™ devices.
•Never use IQOS ILUMA™ or IQOS ILUMA PRIME™ with a cigarette or similar products.
•Do not use specically designed tobacco sticks with previous IQOS device generations
(IQOS 3 DUO™ or earlier).
•Do not modify specically designed tobacco sticks in any way or add any substance to
specically designed tobacco sticks. Doing so may cause injury.
Storage
•Device must be stored in a clean, dry, and cool place. Do not store in temperatures
above 60⁰C.
•Store in a place inaccessible to children.
Reporting of adverse events or incidents
•If you experience any unwanted health eect when using IQOS ILUMA™, IQOS ILUMA
PRIME™ and/or specically designed tobacco sticks, consult a health care professional.
•You can report any adverse event or incident directly by contacting your local Customer
Care (details can be found in the Customer Care & Warranty booklet). By reporting side
eects, you can help provide more information on the safety of this product.
•For more information please go to www.iqos.com
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Cyan
Magenta
Yellow
Black
GREY
PCool Gray 11

TECHNICAL DATA
Holder:
IQOS ILUMA™ and IQOS ILUMA PRIME™
Model C1402
Battery type: Li-ion
rechargeable battery
Input: 5 V 1.6 A
Pocket Charger:
IQOS ILUMA PRIME™
Model C1502
Battery type: Li-ion
rechargeable battery
Input: 5 V 2 A
Bluetooth® 5.0
The IQOS ILUMA™ and IQOS ILUMA PRIME™ Pocket Chargers are marked with the symbol
followed by “SxxAxx,” which indicates the IQOS ILUMA™ and IQOS ILUMA PRIME™
Pocket Chargers can only be charged using one of the approved Power Adaptor models
listed below.
Power Adaptor:
Model: S52A21, S21A20, S21A22, S21A23, S21A25, S21A27, S82A40, S82A41, S82A42,
S82A43, S82A45, S82A46
Input: 100 V-240 V~50-60 Hz 0.3 A
Output: 5 V 2 A
Output power: 10.0 W
Average active eiciency: 79.0%
No load power consumption: <0.09 W
Use with Charging Cable
INFORMATION FOR DISPOSING OF IQOS ILUMA™ AND IQOS ILUMA
PRIME™
Valid across European Union and EFTA
This symbol on the product or on its packaging indicates that this product and its individual
parts (including batteries) must not be disposed of with your other household waste. Instead,
it is your responsibility to dispose of your waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic equipment. Batteries that
are not encased in the waste equipment must be separated from it and disposed of separately before
being handed in at a collection point. In addition, waste batteries can be returned free of charge at the
point of sale. The deletion of any personal data on the waste equipment is your responsibility.
Reuse, recycling and other forms of recovery
The separate collection and recycling of your waste equipment (including batteries) at the time
of disposal will help to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment. Disposing of waste equipment as unsorted municipal
waste (e.g. destined for waste incineration or landlling) can have negative eects on the environment
and human health. Owners of waste equipment can hand them in, within the framework of the
possibilities, for the return or collection of waste equipment provided by public waste management
authorities, so that a correct disposal of the old devices is ensured. For more information about where
you can drop o your waste equipment for recycling, please contact your local household waste
disposal service or the shop where you purchased the product.
Pocket Charger:
IQOS ILUMA™
Model M0001
Battery type: Li-ion
rechargeable battery
Input: 5 V 2 A
Bluetooth® 5.0
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
GREY
PCool Gray 11

For Switzerland:
Owners of waste equipment and batteries purchased from Philip Morris Switzerland Sàrl
may return them free of charge to any IQOS Boutique in Switzerland.
BATTERY REMOVAL INSTRUCTIONS (FOR DISPOSAL AND
RECYCLING)
Batteries must not be removed by the consumer. At end of product life, only an
authorized recycler may safely remove batteries by following the steps below.
IQOS ILUMA PRIME™ Pocket Charger (Model C1502):
Step 1: The device should be fully discharged before disassembling it.
Step 2: Remove/peel o the rubber pad from the Pocket Charger Wrap Cover.
Step 3: Remove the 2 screws.
Step 4: Remove Wrap Cover by sliding and wiggling vertically slowly away from Metal
Housing, then remove the 2 screws of the frame.
Step 5: Detach all Flexible Printed Circuits and connector to remove the charger Printed
Circuit Board.
Step 6: Remove battery by tilting it up and dispose of according to local regulations.
IQOS ILUMA™ Pocket Charger (Model M0001):
Step 1: The device should be fully discharged before disassembling it.
Step 2: Remove Door Cover with ngers.
Step 3: Open door and unscrew bottom and top screw.
Step 4: Remove Charger Housing.
Step 5: Unscrew the electronic circuit board (1 screw only).
Step 6: Unplug battery connector on the circuit board. Do not cut battery wires.
Step 7: Remove battery by tilting it up and dispose of according to local regulations.
IQOS ILUMA™ and IQOS ILUMA PRIME™ Holder (Model C1402):
Step 1: The device should be fully discharged before disassembling it.
Step 2: Open the Ring.
Step 3: Open the retainer cap, slide out the assembly out from housing.
Step 4: De-solder the battery tab and lied it up.
Step 5: Remove battery and dispose of according to local regulations.
Conrmation of Compliance
Hereby, Philip Morris Products S.A. declares that IQOS ILUMA™and
IQOS ILUMA PRIME™ are in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU. The oicial Declaration of Conformity may be found at:
www.pmi.com/declarationofconformity.
IQOS ILUMA™and IQOS ILUMA PRIME™ operate within 2.402 – 2.480GHz frequency band
with a maximum RF output power below 10.0 dBm.
This device complies with the RF exposure limits and has been evaluated in compliance
with portable exposure condition according to the EN 62311:2008.
Designed and manufactured under the authority of Philip Morris Products S.A., Quai
Jeanrenaud 3, 2000 Neuchâtel, Switzerland.
Switzerland:
Imported by Philip Morris Products S.A.,
Quai Jeanrenaud 3, 2000 Neuchâtel (Switzerland)
Hogarth Worldwide
CR13082_H197235_P413202
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
13/08/2021 15:11
Black
GREY
PCool Gray 11

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by Philip Morris Products S.A. and its ailiates is under
license. Other trademarks and trade names are those of their respective owners.
Further information regarding the rmware license for IQOS ILUMA™and
IQOS ILUMA PRIME™ is available at www.iqos.com.
Not all devices listed in these Safety Warnings and Instructions are included in this mobility kit.
© 2021 Copyright Philip Morris Products S.A.
