IC-FDC1U USER MANUAL
Rechargeable Mattress Cleaner
CONTENT PAGE
Safety and Usage Precautions...................1
Parts .........................................................3
Usage Instructions
Charging....................................................4
Operation Instructions...............................5
Cleaning Bedding ......................................6
About the Sensors.....................................6
Clear Dust (Clean Dust Mesh Filter) ...........7
Cleaning and Maintenance ........................8

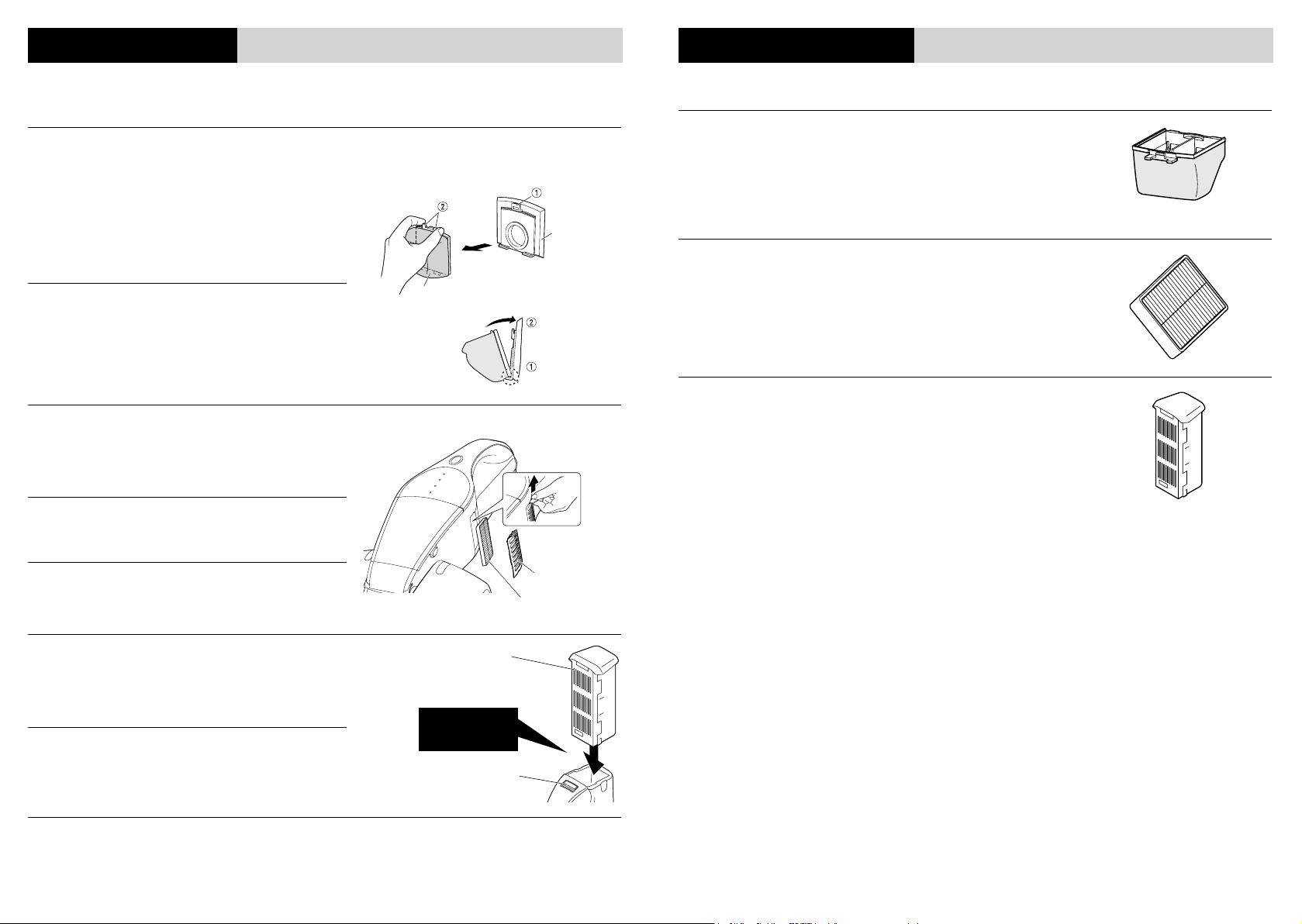

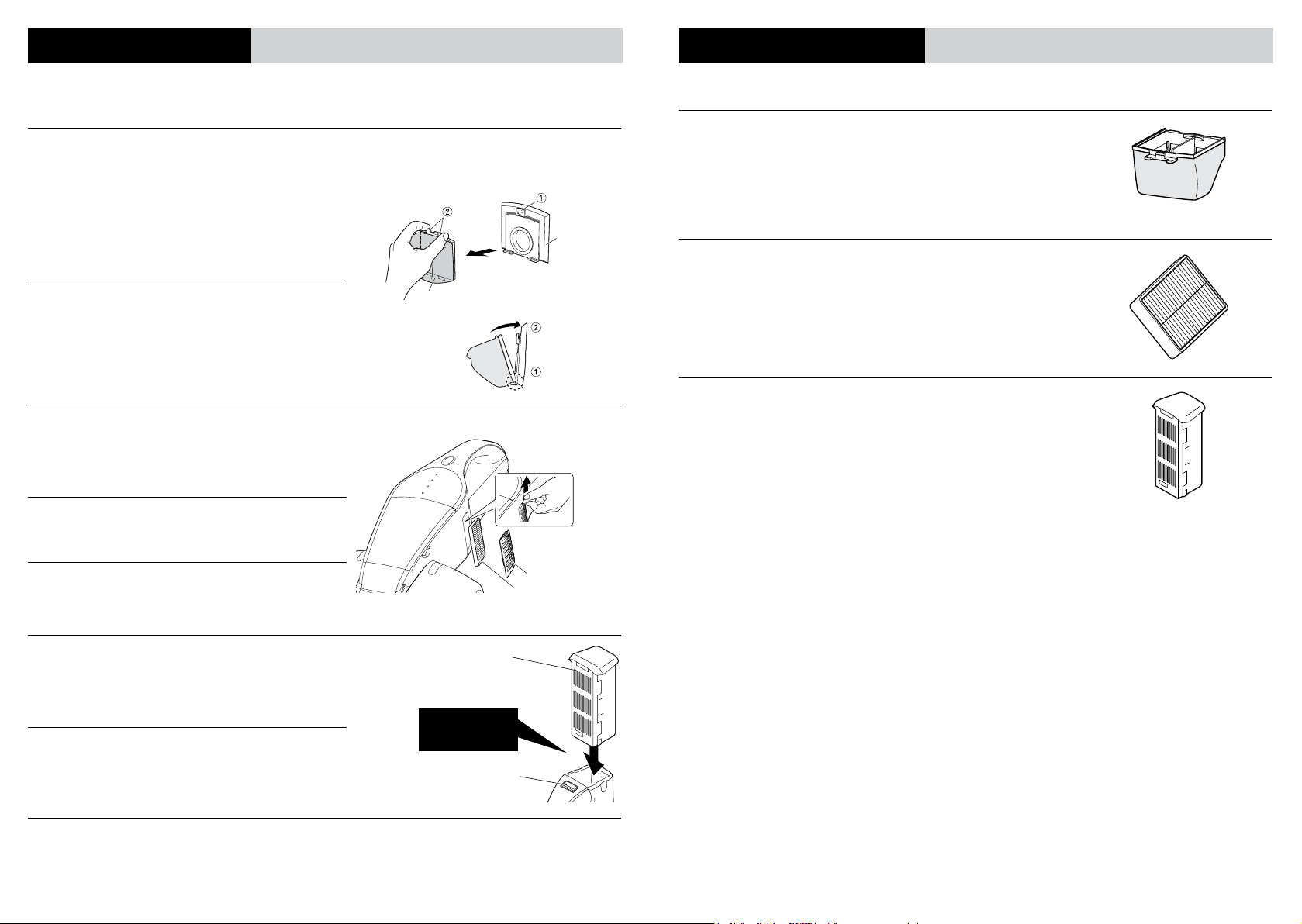

Replaceable Components ..........................9
Spare Parts ..............................................10
Other
Troubleshooting........................................11
Specifications...........................................12
Limited Lifetime Warranty ........................13

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
WARNING - To reduce the risk of fire, electric shock, or injury:
a) Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
b) Do not allow to be used as a toy. Close attention is necessary when used by or near children.
c) Use only as described in this manual. Use only manufacturer's recommended attachments.
d) Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to a service center.
e) Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not
run appliance over cord. Keep cord away from heated surfaces.
f) Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
g) Do not handle plug or appliance with wet hands.
h) Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce air flow.
i) Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
j) Turn off all controls before unplugging.
k) Use extra care when cleaning on stairs.
l) Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
m) Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
n) Do not use without dust bag and/or filters in place.
o) Do not use outdoors or on wet surfaces.
SAVE THESE INSTRUCTIONS
Battery
• Placing the battery into water to avoid overheating may result in leakage or fire.
• Please use only the manufacturer recommended battery. Use of any other battery may cause risk of fire.
• Only use the manufacturer recommended charger. Using another device to charge the battery may cause leakage,
overheating or other damage.
• Dropping or pressing firmly on the battery may cause leakage, overheating or other damage.
• Battery may leak if misused, dropped, or damaged. Avoid contact, as this can cause irritation or burns. Flush with water.
If battery liquid comes into contact with eyes, do not use your hands to wipe or rub. Flush eyes thoroughly with water and
seek medical help.
• Do not use if battery or vacuum is damaged or modified as this may result in fire, explosion, or injury.
• Please do not connect the power terminals to any other pieces of metal. (Do not connect batteries together using metal
chains, hairpins, etc. as this may cause leakage, overheating, breakage or fire.)
• Please do not splash or immerse the battery in water as this could cause a short circuit resulting from overheating.
• To ensure that the safety of the product is maintained, please do not disassemble, repair or reassemble the battery on
your own as this may cause leakage, overheating or breakage. If an issue occurs, please contact IRIS USA, Inc. Customer
Service.
• Do not expose the vacuum and battery to fire or temperatures above 265°F/130°C as this can cause the product to
explode.
• Please follow charging instruction carefully and within the optimal temperature range (41°F/5°C to 95°F/35°C) to reduce
the risk of fire or damage.
• Be careful not to hold the menu button down when picking up or carrying the vacuum as this can cause the product to
accidentally start and cause accidents.
When using an electrical appliance, basic precautions should always be followed. Please read the manual before
use and carefully follow all safety precautions to avoid injury or property damage and to reduce the risk of fire or
electrical shock. Save the instructions in a safe place for later use.
SAFETY PRECAUTIONS
1 2
Please do not splash or immerse the vacuum and battery in water.
Do not use near water or in spaces with high humidity levels, such as bathrooms.
Do not use to clean liquid or damp materials as this may cause a short circuit, electrical shock or breakage.
Please do not use while unit is charging. Unplug unit prior to use. (Improper uses could cause injury, property damage,
deformation, etc.)
Please do not disassemble, repair or reassemble the product or the battery on your own to avoid fire, injury or improper
functionality. (Please change any replaceable parts per manual directions.)
Please remove the plug from the outlet and remove dust or dirt regularly to avoid electrical shock or injury.
Please charge the battery in a 120V AC outlet. Do not charge in a DC outlet or with an electric generator as this may cause fire
or electrical shock.
Please clean dust off the device regularly to avoid buildup resulting in poor insulation.
Please be sure that the plug is tightly inserted into the power base to avoid electrical shock, short circuits or fire.
To avoid electrical shock or accidentally starting the unit, please remove the battery before changing replaceable pieces,
making adjustments, or storing vacuum.
Please remove the battery when unit is not in use.
When issues occur, please stop use immediately to avoid smoking, fire or electrical shock. (Please cut off the power, unplug
the device, and contact IRIS USA, Inc. customer service to determine the issue and make any repairs.)
Examples of issues:
• The device doesn't work when the switch is "ON."
• The device consistently stops while running.
• The charging or power cord does not function properly.
• The device is damaged or overheats when it shouldn't.
• The device smells like it is burning.
• The device makes an abnormal noise while running
Please keep away from heat as this may damage the vacuum and can result in a short circuit or fire.
Do not run the vacuum for extended periods of time.
Using the vacuum with a buildup of dust may result in overheating, product damage, breakage or fire.
Do not drag the device as this may damage the floor.
Do not use or store the product in areas of high heat with temperatures reaching 104°F/40°C (car sitting in the sun, near
heaters, etc.) in case the vacuum becomes damaged, resulting in short circuits or fire.
Do not drop, break, hit against other objects or put pressure on the vacuum.
Please clean the contents out of the dust cup, and avoid collected dust splattering. (Parts of the mesh filter should be cleaned
in water.)
Do not use without the dust cup and/or filters in place.
Please properly assemble the dust cup and place it into the device to avoid injury or product damage.
Pick up the device by the handle to avoid risk of dropping and property damage.
Do not attempt to repair or modify the unit or battery except as indicated in the instructions for use and care. Any other
servicing should be performed by an authorized service representative.
Usage Cautions
Use only on cloth products such as mattresses, futons, pillows, carpet, sofa, car seats, etc.
For household use only.
Do not use to clean the following:
• Liquid
• Wet litter/debris
• Powder
• Broken glass
• Sharp or pin type objects
• Do not use on floors, walls, or unupholstered furniture. Do not pull on the main body and avoid hitting walls or furniture.
• Before use, make sure that the filter is installed correctly.

3 4

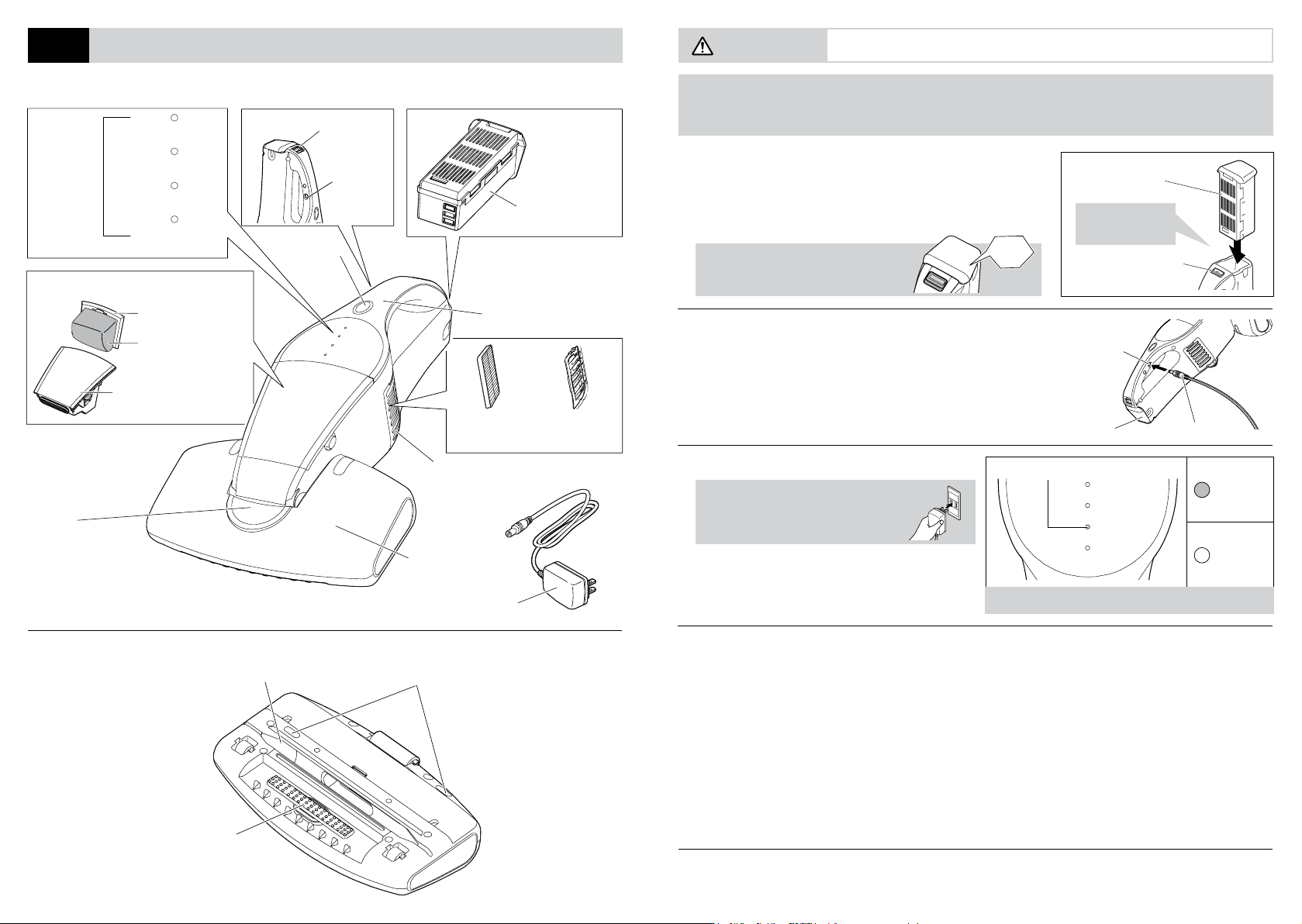

USING AND CHARGING PRODUCT
Cleaner Body
Collection Head
DO NOT CHARGE BATTERY WITH OTHER CHARGER EXCEPT THE ORIGINAL BRAND.
WARNING
• Battery does not come fully charged. Please charge to full power before first use. Full charge will take approximately
3.5 hours.
• Please do not use the device while charging.
2. Plug the charger plug into the power outlet.
Power outlet
Battery Charger plug
1. Please put the battery into the vacuum cleaner.
Place the battery into the vacuum. Press battery into the socket
until you hear a clicking sound.
*Failure to fully insert the battery into the socket will affect
operation and can result in injury or damage.
Clicking
Sound
Please insert the battery tightly and
firmly into the socket until there is a
clicking sound.
Battery
Battery release
button
Insert until clicking
sound is heard
4. Finished.
The indicator light will shut off when done charging.
• For first time use or non-use for more than 6 months, please charge 2 or 3 times before use to achieve
full charge.
• If more than 10 days since last use, charge before next use.
• Continual charging will decrease charge hold time.
• Charging and running time will vary due to temperature and operating conditions.
• Charge between temperatures of 41°F/5°C and 95°F/35°C. Charging in too low or too high temperatures
can cause decreases in working time or lengthening in charging time.
• Charger will be warm. This is normal.
3. Insert the charger into power socket.
ON
Charging
OFF
Finished
Standard charging time about 3.5 hours
Power indicator light
High
Low
Battery Level
Safety Lock
(hold for 3 seconds)
Please insert the charger into the power
socket tightly and firmly.
* Power indicator red color light means starting charging.
5. Removing the battery.
• Press the battery release button and take out the battery.
Indicator
light
High
Low
Battery Level
Safety Lock
(hold for 3 sec) Menu Button
Handle
Battery release button
Power port
Battery
(replaceable)
DUST CUP
Mesh filter set
Mesh filter frame
Mesh filter
(replaceable)
Dust cup
Charger
Collection head
Exhaust outlet (left and right)
Exhaust filter
(replaceable) Exhaust filter cover
Sensors
Dust intake port
Agitator
Dust indicator light

5 6

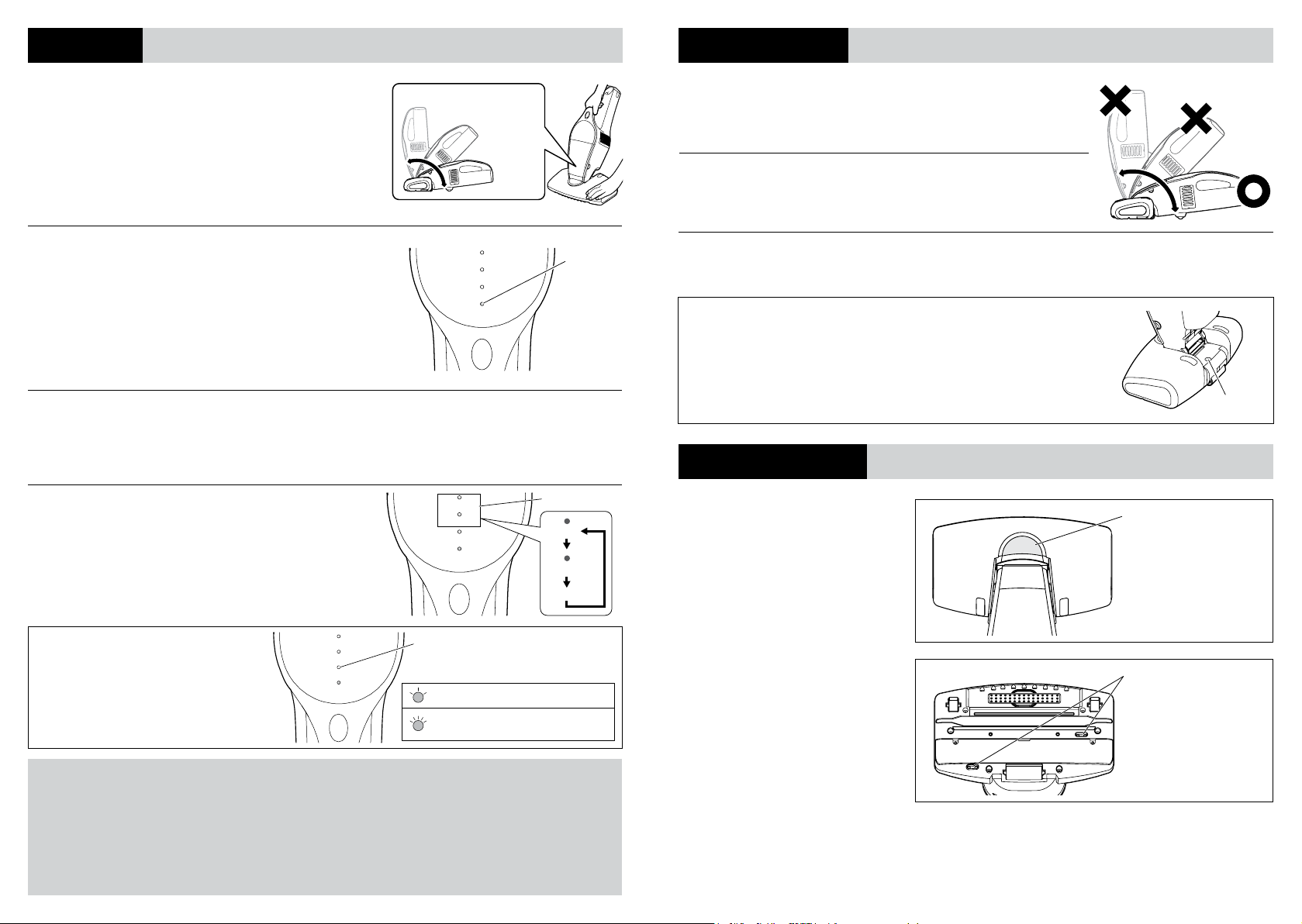

USAGE INSTRUCTIONS (OPERATION INSTRUCTIONS)
3. Insert the battery into power socket.
Pressing the menu button changes the mode.
• Press the menu button to change to high mode.
• Press the menu button again to change to low mode.
Notice:
• Do not use this vacuum cleaner to clean the following objects:
· Liquid · Wet litter/debris · Powder · Broken Glass · Sharp or pin type objects
• Please do not clean large amounts of litter/debris in one pass to avoid blocking the intake port and decreasing suction.
• Do not use on floors, walls or furniture. Do not pull on the main body and avoid hitting walls or furniture.
• Empty the dust cup after use to avoid decreased suction or issues with the sensor.
Storage status
1. Adjust the collection head angle.
Please place the vacuum on the floor, then adjust the angle
up and down by hand.
• Please adjust the vacuum body to the horizontal
position, which should be used for soft surfaces such
as bedding.
• The collection head is fastened in horizontal position
by a magnet to keep it in place during use.
Carpet or car cushion
material angle.
Bedding
appliance
angel
Indicator Light
High
Low
Battery Level
Safety Lock
(hold for 3 seconds)
Menu
ON/OFF
• Battery level indicator light will blink
when battery power is low.
• When battery runs out of power,
battery level indicator light will blink
rapidly before shutting off, and motor
will stop. Please recharge.
Blinking: Low power
Blinking rapidly (then off): No power
USAGE INSTRUCTIONS (CLEANING BEDDING)
1. Please spread out the bedding or mattress pad to lay flat (no folds).
2. Adjust the vacuum to the horizontal position.
Adjusted to 90°, the device will not work.
• Adjusted to the horizontal position, the collection head is fastened in
place by a magnet.
• When cleaning furniture, cushions, carpets, etc. with the collection
head in between, the head is not locked in place and may be unstable. Magnet
3. When the device is in high mode, move back and forth every 10 seconds.
Please do not forcefully press down the collection head.
ABOUT THE SENSORS
Dust Sensor:
Dust and dust mite sensor works during use, and
light indicates the amount of dust on the surface
area.
*When cleaning carpets or other items with high
dust levels, indicator light will not turn green.
Bedding Sensor:
Device will conserve power and decrease speed
when both sensors lose contact with the object
being cleaned.
Bedding sensors
Bottom
Dust indicator light
Red: Not clean
Yellow: Almost clean
Green: Clean
Top
2. Unlock.
Hold the menu button for 3 seconds, wait for the safety lock
indicator to light up, then start cleaning as directed below.
• Safety lock will automatically lock again after one
minute of non-use.
• Device will not work when locked. Pressing the menu
button to start when it is locked will cause the safety
light to blink.
Safety lock
High
Low
Battery Level
Safety Lock
(hold for 3 seconds)
Menu
ON/OFF
4. Finish.
Press the menu button to change the mode until the vacuum
stops and the indicator light shuts off.
• Device will automatically lock after one minute of
non-use.
• Please follow step 2 to restart.
High
Low
Battery Level
Safety Lock
(hold for 3 seconds)
High
Low
Stop
Indicator light
Menu
ON/OFF

7 8

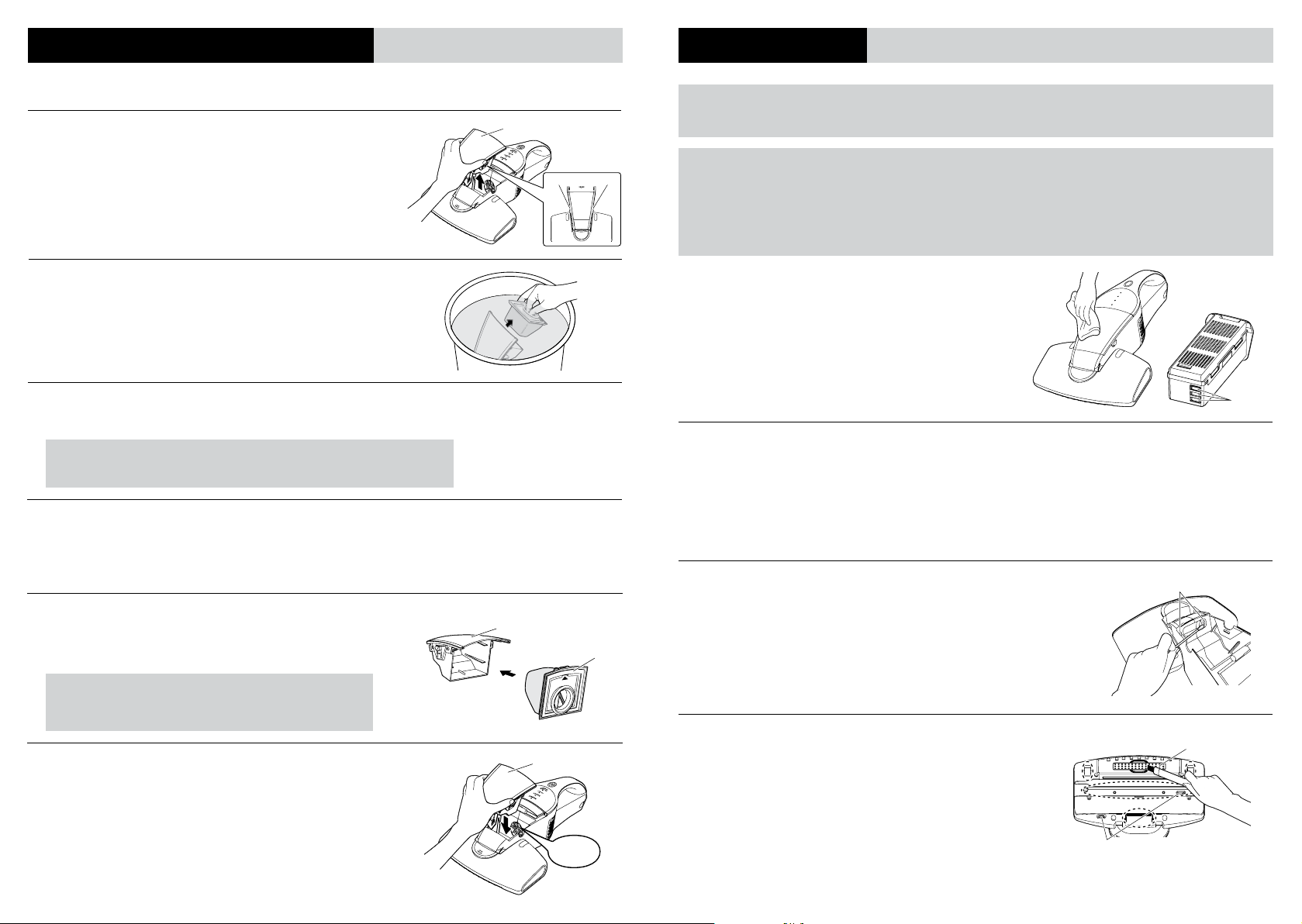

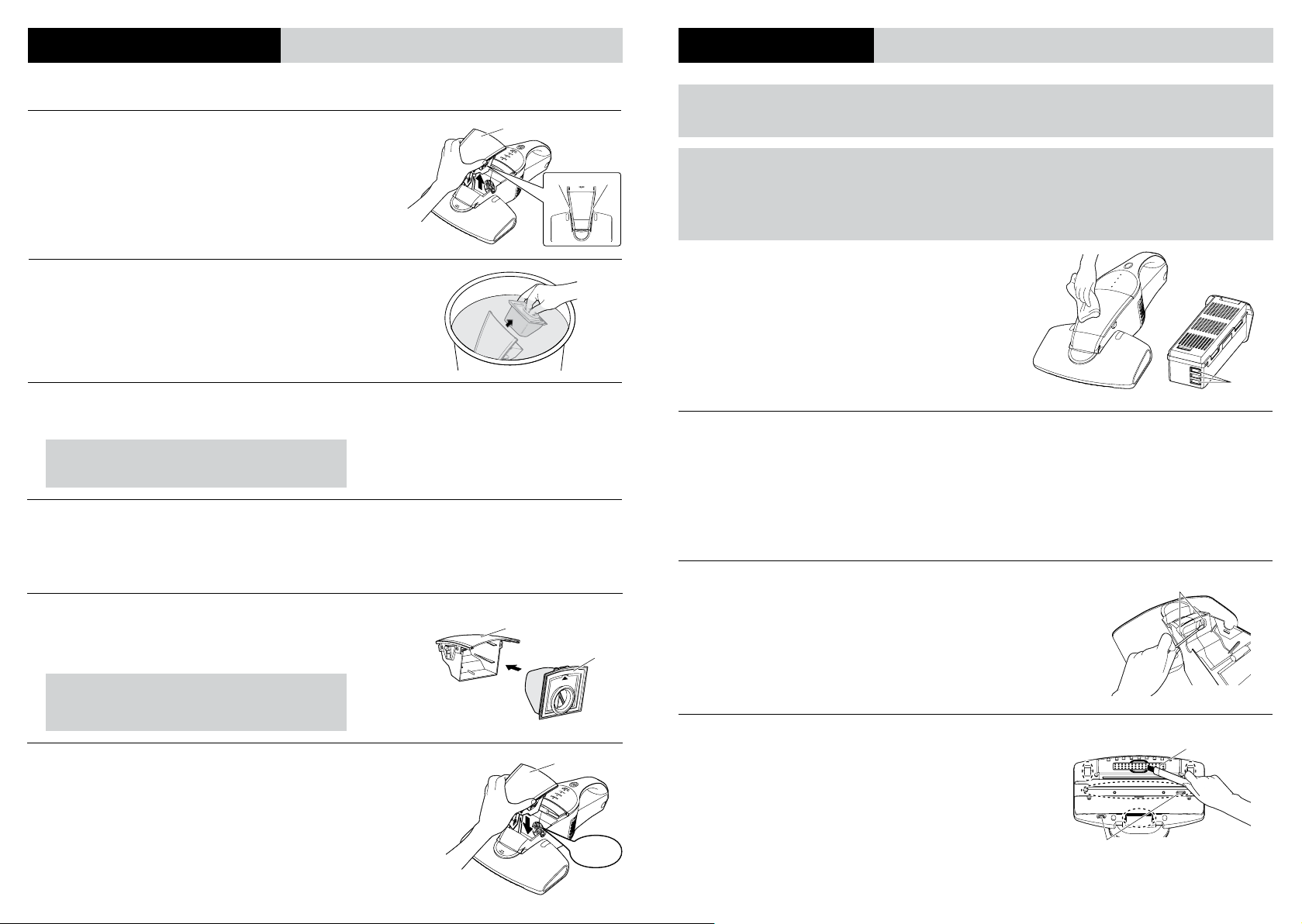

CLEAR DUST (CLEAN DUST MESH FILTER) CLEANING AND MAINTENANCE
Please clear and clean regularly to maintain higher suction capabilities.
3. Clean the mesh filter.
Remove the dust stuck to the filter, then rinse the filter with running water.
Soak the dust cup in water with a diluted cleaning agent for
several minutes for easy removal of accumulated dust.
4. Dry.
Place the dust cup and filter in a well ventilated area until fully dry.
*When cleaning the mesh filter set, please do not use washing machine
or other heated device as this may cause product deformation.
2. Remove the mesh filter in water.
To avoid splattering of dust, please remove the mesh filter from the dust
cup in water.
1. Remove the dust cup.
Press the buttons on either side of the dust cup to remove it.
Dust cup
Button Button
5. Reassemble the mesh filter.
Place the mesh filter set back into the dust cup.
*Pay attention to the direction.
Notice:
Please reassemble correctly to avoid damaging the product.
上
Dust cup
Mesh filter set
6. Reattach the dust cup.
Place the mesh filter in the dust cup, and then place the dust cup back
into the vacuum body until you hear it click into place.
Please verify that both buttons are clicked firmly in place.
Dust cup
Clicking
sound
Warning:
Cleaning and maintenance must be done after removing the battery.
Notice:
Please do not splash water on the vacuum body as this could cause damage.
Use a diluted neutral cleaning agent.
Use of strong cleaning agents such as amyl acetic ester, alcohol, oil, etc. can cause fading, deformation or breakdown.
Vacuum Body:
Fully wring out a rag and use it to wipe down the body and any
remaining cleaner.
Terminal
Dust indicator
Battery:
Please use a dry rag on the terminal parts of the battery to clear
out accumulated dirt which can disrupt product use.
• Incorrect assembly of the mesh filter and dust cup can
allow dust and dirt inside which can damage the terminals.
Agitator
Bedding sensor
Dust Indicator:
Remove the dust cup and clean both sides of the sensors with a
cotton swab.
• Please clean regularly to avoid dust buildup, causing sensor
to function poorly.
Collection Head:
• Clean hair, string and other small objects from the dust
intake port using tweezers to prevent dust buildup and
decreased suction. Please clean it regularly.
• Please clean dirt on the agitator with a brush.
• Please clean bedding sensors with a cotton swab.
• Clean regularly to prevent dust buildup causing sensors to
function poorly.
