iRobot Braava jet User manual

Owner’s Guide

Safety and Compliance Information
THIS APPLIANCE CAN BE USED BY CHILDREN AGED 8 YEARS AND
ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY, OR
MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE
IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION
CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND
UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT
PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE
SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.
CAUTION: DO NOT EXPOSE THE ELECTRONICS OF BRAAVA JET,
ITS BATTERY, OR ITS BATTERY CHARGER. THERE ARE NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL. PLEASE ENSURE VOLTAGE RATING FOR
ENCLOSED BATTERY CHARGER MATCHES STANDARD OUTLET
VOLTAGE.
EN
Braava jet™ Owner’s Guide i

General Safety Instructions
• Retain the safety and operating
instructions for future reference.
• Read all safety and operating
instructions before operating your
robot.
• Heed all warnings about your robot,
battery, battery charger, and in the
owner’s guide.
• Follow all instructions for the operation
and use of your robot.
• Be aware that floors may be slippery
after wet cleaning with Braava jet.
• Braava jet operates quietly. Take care
when walking in the area the robot is
cleaning to avoid stepping or it and
tripping.
• Refer all non-routine servicing to
iRobot.
EN
Restrictions of Use
• Your robot is for indoor use on hard
surface floors only.
• Your robot is not a toy. Do not sit or
stand on this device. Small children
and pets should be supervised when
your robot is operating.
• Braava jet has electrical parts. Do not
submerge it in water. Clean with a cloth
dampened with water only.
• Do not use this device to pick up
anything that is burning or smoking.
• Do not use this device to pick up
large debris, bleach, paint, or other
chemicals.
• Before using Braava jet, remove
fragile objects from the cleaning area,
including objects on furniture that may
fall if the furniture is pushed or bumped.
• Move any power cords as well as cords
for blinds and curtains out of the way
to reduce the risk of objects being
pulled down.
TO REDUCE THE RISK OF INJURY OR DAMAGE, KEEP THESE
SAFETY PRECAUTIONS IN MIND WHEN SETTING UP, USING, AND
MAINTAINING YOUR ROBOT:
EN
ii For more information, visit www.irobot.com/braavajet200

The symbol on the product or its packaging indicates:
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities. Contact your local authority for information
regarding the collection systems available. If electrical appliances are
disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-
being. When replacing old batteries, please contact your local or regional
waste authority for more information on collection, reuse, and recycling
programs.
Battery and Charging
• Before every use, check the battery
pack for any sign of damage or
leakage. Do not charge damaged or
leaking battery packs.
• Charge indoors only.
• Only use the included battery charger
to charge the iRobot Braava jet battery.
• Charge using a standard outlet only.
Product may not be used with any type
of power converter. Use of other power
converters will immediately void the
warranty.
• Please ensure voltage rating for
enclosed battery charger matches
standard outlet voltage.
• Never handle the battery charger with
wet hands.
• Only use rechargeable battery packs
with the correct specifications supplied
with your robot by iRobot (model
number 4446040).
• For replacement battery pack, visit
www.irobot.com.
• Always charge and remove the battery
from your robot before long-term
storage or transportation.
• Always remove battery pack before
cleaning your robot.
• Keep battery pack clean and dry. Wipe
the cell or battery terminals with a
clean dry cloth if they become dirty.
• Do not crush, dismantle, or shred
battery packs.
• Do not subject cells or batteries to
mechanical shock.
EN
Braava jet™ Owner’s Guide iii

• Do not heat the battery pack or place
the battery pack near any heat source.
• Do not store in direct sunlight.
• Do not incinerate the battery pack.
• Do not short-circuit the battery pack.
• Do not submerge the battery pack in
any liquid.
• The battery pack must be removed
from the robot before disposal.
• When disposing of the battery pack,
contact your local or regional waste
authority for more information on
collection, reuse, and recycling
programs.
• In the event of cell leaking, do not allow
the liquid to come in contact with the
skin or eyes. If contact has been made,
wash the aected area with copious
amounts of water and seek medical
advice.
• If you need to ship your Braava jet™
lithium ion battery for any reason,
contact Customer Care for shipping
instructions and appropriate labels.
Never ship a leaking or physically
damaged lithium ion battery.
For Chile:
• Only use the included battery charger
(model number 4467630) to charge
the iRobot Braava jet battery
• Battery Charger model 4467630:
- Input AC 100-240V, 50-60Hz, 0.15A
- Output DC 4,15V, 1.0A
EN
iv For more information, visit www.irobot.com/braavajet200

FCC and Industry Canada (ISED)
Compliance Information:
• This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
• This device complies with Industry
Canada license-exempt RSS
standard(s). Operation is subject to the
following two conditions: 1) This device
may not cause interference, and 2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
• Changes or modifications not expressly
approved by iRobot Corporation could
void the user’s authority to operate the
equipment.
• This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to part
15 of the FCC Rules as well as ICES-
For EU Declaration of Conformity information, visit www.irobot.com/
compliance.
003 Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference to radio
communication will not occur in a
particular installation. If this equipment
does cause harmful interference to
radio or television reception, which
can be determined by turning the
equipment o and on, the user is
encouraged to try to correct the
interference by taking one or more of
the following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
Braava jet™ Owner’s Guide v
EN

- Connect the equipment into an outlet
on a circuit dierent from that to
which the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
• Under Industry Canada regulations,
this radio transmitter may only operate
using an antenna of a type and
maximum (or lesser) gain approved
for the transmitter by Industry Canada.
To reduce potential radio interference
to other users, the antenna type and
its gain should be so chosen that the
equivalent isotropically radiated power
(e.i.r.p.) is not more than the necessary
for successful communication.
• FCC Radiation Exposure Statement:
This product complies with FCC
§2.1093(b) for portable RF exposure
limits, set forth for an uncontrolled
environment and is safe for the
intended operation as described in this
manual.
• ISED Radiation Exposure Statement:
This product complies with the
Canadian Standard RSS-102 for
portable RF exposure limits, set forth
for an uncontrolled environment and
is safe for the intended operation as
described in this manual.
EN
vi For more information, visit www.irobot.com/braavajet200

Braava jet™ Owner’s Guide 1
EN
Table of Contents
Safety and Compliance Information
About Your Braava jet™
Using Your Braava jet™

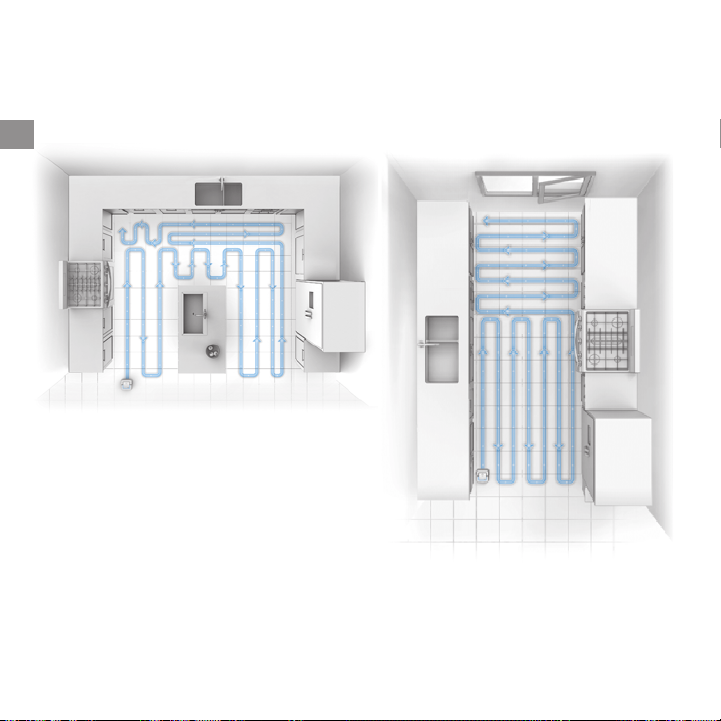

How Braava jet™Navigates
Tips for Best Performance
Troubleshooting
Regular Robot Care
i
2
4
11
15
16
17
Braava jet™ Owner’s Guide 1
EN

About your Braava jet™
Top View - Back
Top View - Front
Handle
CLEAN Button
Precision Jet
Spray Nozzle
Braava jet
Cleaning Pad
Pad Eject
Button
Tank Cap
Battery
EN
2 For more information, visit www.irobot.com/braavajet200

About your Braava jet™
Bottom View
Front Cli Sensors
Pad Reader
Pad Tracks
Wheels
Rear Cli Sensors
Braava jet™ Owner’s Guide 3
EN

Charge Insert
=
2h
=
2h
Using your Braava jet™
Charge & Insert the Battery
• Place the battery into the battery charger and plug the charger into an
electrical outlet.
• The indicator light will blink amber while the battery is charging. The light will
switch to solid green when the battery is fully charged.
• The wall charger automatically goes into low-power mode when the battery is
fully charged to maintain the life of the battery and limit power usage.
• The battery will fully charge within 2 hours. Battery should always be charged
for the full 2 hours in between every cleaning cycle for optimal performance.
• Insert the fully charged battery into the robot.
• iRobot also oers additional batteries and chargers as accessories for
purchase, so you can always have a charged battery ready to go.
1
EN
4 For more information, visit www.irobot.com/braavajet200

Using your Braava jet™
2b Slide in a Cleaning Pad
• Slide a Braava jet pad into the
track on the bottom of the robot
until it clicks into place.
• You can attach a Braava jet pad
from either side of the robot.
Select a Braava jet
Cleaning Pad
• Choose a cleaning pad that
matches how you want to clean
your floor. Refer to next page for
details.
• Your robot comes with a sample
pack of Wet Mopping, Damp
Sweeping, and Dry Sweeping
Braava jet cleaning pads.
2a
Cleaning Tip: Before using a Wet
Mopping or Damp Sweeping
pad, use a Dry Sweeping pad or
vacuum to clean loose debris.
• Braava jet will automatically recognise
the pad and adjust its cleaning
behaviour based on the pad you
choose.
Braava jet™ Owner’s Guide 5
EN

OVERVIEW
Pad Type Cleaning Behavior Cleaning Motion and Wetness
Level
Cleaning
Agent Fresh
Scent Dust Hair Dirt Stains*
Wet Wet Mopping
(Blue) Triple-pass coverage is similar to how
you would mop yourself. The robot drives
forward a short distance to one side, backs
up slightly, then moves forward to the other
side, alternating as it cleans the area.
Washable Wet
Mopping
(Blue)
Damp Damp Sweeping
(Orange) Gentle yet thorough cleaning. The robot
drives forward a short distance, then backs
up in a straight line, continuing this back
and forth pattern as it cleans the area.
Washable Damp
Sweeping
(Orange)
Dry Dry Sweeping
(White)
The robot swiftly moves forward in a straight
line for single-pass coverage of the area.
Washable Dry
Sweeping
(White)
Braava jet™Cleaning
Pad Information
EN
6 For more information, visit www.irobot.com/braavajet200

OVERVIEW RECOMMENDED FOR
Pad Type Cleaning Behavior Cleaning Motion and Wetness
Level
Cleaning
Agent Fresh
Scent Dust Hair Dirt Stains*
Wet Wet Mopping
(Blue) Triple-pass coverage is similar to how
you would mop yourself. The robot drives
forward a short distance to one side, backs
up slightly, then moves forward to the other
side, alternating as it cleans the area.
Washable Wet
Mopping
(Blue)
Damp Damp Sweeping
(Orange) Gentle yet thorough cleaning. The robot
drives forward a short distance, then backs
up in a straight line, continuing this back
and forth pattern as it cleans the area.
Washable Damp
Sweeping
(Orange)
Dry Dry Sweeping
(White)
The robot swiftly moves forward in a straight
line for single-pass coverage of the area.
Washable Dry
Sweeping
(White)
*Tested on dried coee and soda.
Braava jet™ Owner’s Guide 7
EN

Fill the Robot with Water
• If you choose Wet Mop or Damp Sweep, fill the robot with water.
• Lift the robot handle to find the tank cap, then lift and swivel it open.
• To help allow the tank to fill completely, tilt the robot so that the front left
corner is pointed downward and the tank opening is highest. Fill slowly
with warm water.
• Turn the cap back and close it. Lower the robot handle before starting
the robot.
• Do not use any other cleaning solution with your robot other than water.
3
Note: If you are using a
Dry Sweeping Pad, skip
to Step 4.
EN
8 For more information, visit www.irobot.com/braavajet200

4Just Press CLEAN
• Place your robot in the lower left corner of the area you want to clean,
about a foot away from any walls.
• Press CLEAN once to wake up the robot. Press CLEAN again to start the
cleaning cycle.
• The robot will clean rooms up to 200 ft2(20 m2) while mopping and rooms up to
250 ft2(25 m2) while damp or dry sweeping.*
• Braava jet will finish by cleaning the edges and perimeters of your
room, furniture, and fixtures.
Note: When it has finished
cleaning, Braava jet returns
to where it started, powers
o, and plays a tone.
*Tested in iRobot’s Home Test Lab
on hard floors.
Braava jet™ Owner’s Guide 9
EN

Eject the Cleaning Pad
and Prepare Braava jet™
for Next Use
• To eject the cleaning pad without
touching the dirt, lift the handle
and pull back on the Pad Eject
Button.
• Remove the battery and put it in
the charger so it can charge for
the next cleaning.
• Empty the water tank before
storing the robot.
• Braava jet can be stored wheels-
down or on its side with the
battery side down.
Download the iRobot®
HOME App
Gain access to exclusive features,
software updates, and supporting
information.
5
6
iRobot HOME
EN
10 For more information, visit www.irobot.com/braavajet200

How Braava jet™Navigates
*Tested in iRobot’s Home Test Lab on
hard floors.
Braava jet is designed to intelligently
navigate and clean rooms up to
200 ft2(20 m2) while wet mopping and
up to 250 ft (25 m) while damp and
dry sweeping.*
• The robot starts by cleaning to the
right until it encounters a wall or other
barrier.
• When wet mopping or damp sweeping,
Braava jet repeats the first line twice to
achieve the optimal wetness of the pad
before it cleans the rest of the room.
• When the robot has cleaned as far as it
can to the right, the robot will continue
to the area in front and to the right of
where it started.
• The robot will stop cleaning and will
return to where it started when the
cleaning job is done.
- Braava jet does not spray furniture or
walls. Before the robot sprays, it will
back up to ensure it’s only spraying a
portion of the floor it knows is clear.
Lift up floor-length curtains before
running Braava jet.
• As Braava jet finds edges, chair legs,
and other obstacles, it will clean
around them and then return to its
original path and resume cleaning.
• Braava jet creates a new map every
time it cleans.
Braava jet™ Owner’s Guide 11
EN

EN
12 For more information, visit www.irobot.com/braavajet200
