Iron & Oak SB-05 Instruction Manual

Owner / Operator
and Safety Manual
See
initial set-up
instructions on page one
LLooggSSkkiiddddeerr
3-Point Hitch
MMooddeellSSBB--0055

Initial Set-up Instructions
❏❏Read all assembly, operating, and safety instructions.
❏❏Complete and return the warranty card to register your log skidder.
❏❏Write the serial number and date-of-purchase in this manual.
❏❏Assemble the log skidder.
❏❏Obtain and hookup the proper high-pressure hoses that work with your
particular utility/garden tractor.
❏❏Obtain and hookup the proper high-pressure hoses that work with your
particular utility/garden tractor.
❏❏Make sure the tractor's hydraulic pressure dose not exceed 3,000 PSI.
If it does, contact Iron and Oak before attempting to install or operate
the log skidder.
815-672-8596 1Iron & Oak Commercial Products, Inc.
Serial Number ______________
Date-of-Purchase ___________
Please enter the serial number and purchase
date of your log skidder in the space provided.
Keep this manual for future reference.
NOTE: Iron and Oak Commercial Products reserves the right to make technical changes
for product improvement. This manual may contain illustrations and photo-
graphs, for demonstration purposes, which slightly deviate from the actual prod-
uct design.

Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Personal Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Worksite Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Log Handling Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Shipping List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unpacking the Crate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Assembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Start-Up Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Locking the Grapple into Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inspection and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General Maintenance Check (before operating) . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Hydraulic Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Parts Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Iron & Oak Commercial Products, Inc. 2815-672-8596 815-672-8596 3Iron & Oak Commercial Products, Inc.
Accidents can often be avoided by being alert and recognizing potentially haz-
ardous situations. Any individuals operating, maintaining, or repairing prod-
ucts manufactured by Iron & Oak should have the necessary training, skills,
and tools required to perform these functions properly and safely. The safety
information in this manual serves as a basic guide in an attempt to prevent
injury or death.
Iron & Oak cannot anticipate every possible circumstance that might involve a
potential hazard. The warnings in this manual and on the product itself are,
therefore, not all inclusive. If tools, procedures, work methods, or operating
techniques that are not specifically mentioned by Iron & Oak are used, you
must satisfy yourself that they are safe for you and for others. Make sure the
log skidder will not be damaged or made unsafe by any operation, lubrication,
maintenance, or repair procedures that you choose.
DO NOT proceed, if any doubt arises about the correct or safe method of per-
forming anything found in this or other Iron & Oak manuals. Seek out expert
assistance from a qualified person before continuing.
WARNING
To avoid personal injury or death, carefully read and understand all
instructions pertaining to the Iron & Oak log skidder.
Do not attempt to assemble, operate, or maintain our product without
fully understanding all our instructions and safety precautions. Do
not operate the log skidder unless you read and understand the
instructions and warnings in this manual. If any doubt or question
arises about the correct or safe method of performing anything found
in this or other Iron & Oak manuals, contact your Iron & Oak dealer
or call the Sales and Service representatives at our main headquar-
ters. Proper care is your responsibility.
WARNING

Safety
The following is a list of safety rules you must follow in order to use your log skid-
der safely.
Personal Protection
✔To avoid personal injury or death, carefully read and understand all instruc-
tions pertaining to the log skidder.
✔Always wear protective gear, such as safety
goggles, tight-fitting gloves without draw
strings or loose cuffs, steel-toed shoes, and
a protective hearing device.
✔To prevent injury, make sure all decals are attached to the log skidder and
are legible at all times.
Worksite Safety
✔To avoid tripping, do not leave tools, logs, or other components laying around
the work area.
✔Lower the tubular legs and place the log skidder in a safe position before dis-
engaging the 3-point hitch. Serious injury or death may result from disen-
gaging the log skidder when it is in an unstable position.
✔Sudden movement or accidental starting of the tractor can cause personal
injury or death to persons on or near the tractor. When working on or near
the tractor, park the tractor on a smooth level surface, stop the engine, and
engage the parking brake.
✘NEVER operate your log skidder on slippery, wet, muddy, or icy surfaces.
✘NEVER operate the engine of the tractor in an enclosed area. Exhaust
fumes contain carbon monoxide that can be deadly when inhaled. Make sure
the area is well ventilated.
N
I
NG
AR
Introduction
The SB-05 Log Skidder attachment is designed for use with small (20 to 60 HP) utility
sized tractors with hydraulic operating pressures up to 3,000 psi. With up to 2,000
pounds of lifting capacity, depending on the size of the tractor, this attachment will meet
the needs of most small operations requiring a log skidder. The log skidder pivots up to
135° in both directions for easy maneuvering and the grapple locks in a 90° position for
convenient pick-and-place loading. A heavy-duty, torsion spring always returns the grap-
ple to a center position when the load is released. An attractive powder-coated finish pro-
vides the finest protection available, and Iron & Oak’s rigid, quality-control and compo-
nent testing help ensure years of productive, reliable service. Since 1982, the name Iron
& Oak has stood for quality and reliability when it comes to wood processing products.
Iron & Oak offers the finest log skidder attachment on the market today!
✔ Recommended for tractor size (20 to 60 HP range) with front weights advised for
smaller tractors.
✔ Designed to operate with hydraulic operating pressure up to 3,000 PSI. If your
tractor-supplied pressure exceeds 3,000 PSI, contact Iron & Oak.
✔ Fits category 1, 2, and 3 tractor hitches.
✔Rugged, heavy-duty construction for years of exceptional service.
✔All pivot points have composite bearings that never need lubrication.
✔Rigid, quality-control during manufacturing ensures greater reliability.
✔Factory testing of all major components.
✔Powder-coated finish for the best appearance and weather protection.
✔Year-round manufacturing, parts, and support.
For additional information, contact us at:
Iron & Oak Commercial Products, Inc.
410 W. Broadway Ave.
Streator, Illinois 61364-0577
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Web Site: www. logsplitters-ironoak.com
Iron & Oak Commercial Products, Inc. 4815-672-8596 815-672-8596 5Iron & Oak Commercial Products, Inc.

✘Do not, under any circumstances, alter your log skidder. This equipment was
designed and engineered to be used in accordance with the operating instruc-
tions. Altering the equipment, or using the equipment in such a way as to cir-
cumvent its design capabilities and capacities, could result in serious or fatal
injury and WILL VOID THE WARRANTY.
✘Never operate, or allow anyone else to operate, this equipment while under the
influence of medication, drugs, or alcohol.
✘Never wear loose clothing or jewelry that may get caught or become entan-
gled in the log skidder.
✘NEVER place hands or feet between the log and the grapple.
✘DO NOT ALLOW SOMEONE TO STRADDLE OR REACH ACROSS THE LOG
WHEN OPERATING THE LOG SKIDDER.
✘Only use your hands to operate the tractor’s control lever. NEVER use your
foot, knee, a rope, or any other extension device.
✘Improper skidder operation can cause personal injury or death.
✘Personal injury can result from turning on a steep grade.
Log Handling Safety
✔When maneuvering a log, ALWAYS position the tractor so that the jaws of the
grapple are directly over the log.
✔ALWAYS allow sufficient clearance between the front end of the log (nearest
the tractor) and the skidder frame/tractor to prevent any contact while pivoting.
✔ALWAYS get a firm grip on the log you plan to carry.
✔Use extra caution when crossing side hills, ridges, other logs, and/or ditches.
Never make quick directional shifts or fast stops.
✔Pulling logs at a sharp angle can cause the tractor to tip. To avoid injury,
always pull in a straight line behind the tractor.
✔Be sure all personnel are clear of the log when it is being lowered or trans-
ported. Failure to stay clear of the log may result in personal injury.
Operating Safety
✔ALLOW ONLY ONE (1) PERSON TO OPERATE THE LOG SKIDDER.
✔Allow only adults to operate the log skidder. No one under the age of 18
should be allowed to operate the log skidder.
✔Always keep bystanders, including children and pets, at least twenty-five (25)
feet away from the work area.
✔Personal injury or death can result from not engaging the tractor’s parking
brake while attaching the log skidder. If the parking brake is not engaged, the
tractor may roll while you are on or near the tractor. Always engage the park-
ing brake before leaving the tractor.
✔Personal injury could result from improperly coupled attachments. Be certain
draft links, top link, and hitch pins are fully engaged on both sides before using
the attachment.
✔An improperly installed attachment could become dislodged from the tractor
during operation. This could cause injury or death. Do not operate the tractor
until you are sure the log skidder attachment is properly connected.
✔For tractors equipped with quick disconnect couplings, improper attachment of
the hoses could result in injury or death. Do not operate this tractor until you
are sure that the quick disconnect couplings are fully engaged.
✔Heavy 3-point hitch mounted equipment reduces road stability, regardless of
the amount of front counterweight added. Insufficient roading stability can lead
to an accident, causing personal injury and property damage. Reduce speed
when encountering rough terrain or whenever the tractor’s directional stability
is reduced.
✘Do not allow any person to operate the log skidder until they have read and
understood the safe operating instructions contained in this manual and the
tractor’s manuals.
✘Never exceed the rated load. This can cause possible personal injury or
attachment damage. Do not exceed the maximum 2000 pound rated load of
this attachment while performing any operation. Make adjustments to the rated
load as necessary, depending on the size of the tractor.
✘Machine instability can result in injury or death. To ensure stability during oper-
ation do not overload the tractor and follow all the tractor’s manufacturers safe-
ty recommendations.
Iron & Oak Commercial Products, Inc. 6815-672-8596 815-672-8596 7Iron & Oak Commercial Products, Inc.

815-672-8596 9Iron & Oak Commercial Products, Inc.
Assembly Instructions
Required Materials
Purchase or manufacture two high-pressure hydraulic hoses (3000 psi minimum). These
hoses must be long enough to connect from the tractor’s hydraulic connections to the 1/2
inch NPT fittings on the log skidder. The type, size, and pressure rating of the owner sup-
plied hydraulic hoses must be determined by the owner using the tractor’s specifications.
The hoses can be fitted with quick disconnect fittings, if desired.
Shipping List
The following chart contains the list of parts that should be shipped as part of the SB-05
Log Skidder.
Unpacking the Crate
1. Cut the metal banding around the packing crate and remove the top, sides, ends, and
protective plastic covering. Do not unband or remove the log skidder from the bottom
pallet at this time.
2. Carefully check the log skidder on the crate for shipping damage. If the parts are
damaged call Iron & Oak at [phone].
Assembly Procedure
The log skidder is very heavy and can be damaged if mishandled. Also,
to help prevent personal injury, it is strongly recommended that two (2)
people work together to uncrate the log skidder.
1. Read all instructions and safety recommendations in this booklet before assem-
bling or operating this log skidder attachment.
2. Cut the bands holding the log skidder onto the pallet.
CAUTION
✔Carry the load as low as possible. Do not exceed the rated 2,000 pound load.
Load, unload, and turn on level ground. Travel up and down slopes with the
heaviest end of the load uphill. Failure to follow the instructions or heed the
warnings could result in injury or death.
✘NEVER swivel the grapple beyond the 135° pivot angle in either direction when
making sharp turns. Pivoting beyond this limit could damage the torsion spring
and hydraulic lines and put undue stress on the tractor components.
✘NEVER back up while holding a log. This practice could cause damage to the
skidder or the tractor.
✔ALWAYS raise the log sufficiently off the ground so it can be skidded easily
without digging into the ground. Note, the height will depend largely on the size
of the tractor.
✘Injury to persons can result from logs being moved by the log skidder. Make
sure all persons are clear of the logs before moving the tractor. The tail end of
the tree length logs can throw objects at bystanders.
WARNING: To avoid bodily injury, do NOT allow anyone to stand near the
log skidder at any time the unit is in operation or while it is holding a log.
Maintenance and Repair
✔Follow all safety rules, because most accidents involving the operation, main-
tenance, or repair of products occur because the assembler/owner/operator
failed to observe basic safety rules or operating instructions.
✔ALWAYS inspect your log skidder before each use. Make sure all nuts, bolts,
screws, hydraulic fittings, hose clamps, etc. are securely tightened.
✔ALWAYS check the oil level in the hydraulic oil tank of the tractor.
✘NEVER operate your log skidder when it is in need of repair or is in poor
mechanical condition.
✘NEVER make alterations to your log skidder in any manner. Such alterations
may cause the log skidder to become unsafe and WILL VOID THE
WARRANTY.
✘NEVER attach a rope or extension to the tractor’s control levers. Such ALTER-
ATIONS may cause the log skidder to become UNSAFE.
✘ALWAYS clean the unit after each use. If possible, store the unit inside or cover
it completely, if stored outside.
Iron & Oak Commercial Products, Inc. 8815-672-8596
Qty Description
1 Log Skidder
2 Legs with Hitch Pins
2 Lift Arm Pin Assemblies

Start-up Procedure
1. Start the tractor. Make sure the parking
brake is engaged and the tractor is in
Neutral.
2. Raise the log skidder and place the round
tubular legs in the upper storage position.
3. Lower and raise the log skidder slowly and
check for any point(s) of interference.
4. Operate the tractor’s control lever(s) to
slowly open and close the grapple, making
sure it operates properly.
5. Check all hydraulic connections for leaks.
Tighten as needed.
3. Using a lifting device, lift the log skidder off
the pallet and install the two pipe legs.
Secure the legs in the standing position
with the clevis pins and hairpin clips.
4. Remove the lift arm pins from the parts box
and install them, as shown.
NOTE: Attach the log skidder to the three-
point hitch of your tractor using the instruc-
tions in your tractor manual and/or follow these general instructions.
5. Position the tractor in front of the log skidder so the hitch points align. Place the trans-
mission in neutral (N) position, stop the engine, and engage the brakes BEFORE
leaving the tractor seat.
6. Be sure the drawbar does not interfere. If necessary, move the drawbar ahead, or
remove it. Check for any other potential interference.
7. Slide the lift arms over the log skidder lift arm pins. Lock the lift arms in position using
the hairpin clip.
8. Attach the center link bar to the center link pin. Adjust the center link and lift arms as
necessary.
9. Remove the factory installed pipe plugs
and hook up the owner-supplied hydraulic
hoses (1). Refer to the Assembly Instruc-
tions, Required Materials section in this
manual for hose specifications.
To avoid personal injury or damage to the
hydraulic components, do not use the
SB-05 Log Skidder with tractor-supplied
pressures that exceed 3,000 PSI.
To avoid bodily injury or machine damage whenever an attachment is
connected to the tractor’s 3-point hitch, check the full range of operation
for interference or binding.
WARNING
SB-1000
1
Iron & Oak Commercial Products, Inc. 10 815-672-8596 815-672-8596 11 Iron & Oak Commercial Products, Inc.
CAUTION

Locking the Grapple into Position
This procedure allows the grapple to be locked in the 90° position for pick-and-place loading.
The 90° locking feature is intended for pick-and-place loading only. The lock plate
is held in position with 5/16" bolts, designed to shear when excessive torque loads
occur. This safety feature is intended to prevent damage to the grapple. Replace-
ment bolts must be Grade 5.
1. Turn off the engine and apply the parking brake on the tractor.
2. Pull out on the spring-loaded lock pin and remove the hairpin clip.
3. With the grapple open or closed, rotate it
90° until the lock pin snaps into the lock
plate.
4. Insert the hairpin clip into the spring pin on
the end of the lock pin (stored position), as
shown.
5. When operating the Skidder-Loader with
the grapple locked in the 90° position, bal-
ance the load evenly from side-to-side to
make sure you are operating in a safe man-
ner. An unbalanced load may cause the
skid steer loader to lean or tip.
6. During normal use of the log skidder, pull
the lock pin out and insert the hairpin clip,
as shown. This will prevent the lock pin
from engaging with the lock plate.
When releasing the lock pin, hold grapple
in 90 degree position before pulling the
lock pin. This will prevent injury from
uncontrolled rotation of grapple.
7. Follow all other operating instructions in the
“Operation” section of this manual.
WARNING
WARNING
Operation
Do not attempt to operate the log skidder without fully understanding
all our instructions, safety precautions, and/or warnings and those of
the tractor. If any doubt or question arises about the correct or safe
method of performing anything found in this or other Iron & Oak man-
uals, contact your Iron & Oak’s dealer or call the Sales and Service representa-
tives at our main headquarters. Proper care is your responsibility.
1. Use the tractor’s operation manual to
determine the levers that open and close
the grapple.
2. Position the grapple over the log and close
the grapple. Do not try to pick up or skid
logs heavier than the capacity of the trac-
tor being used.
3. Pull the log to the desired location. Do
not back up while holding a log. This may
cause damage to the log skidder attach-
ment and/or the tractor.
The grapple is designed to rotate up to 135
degrees right or left. Over rotation will
cause damage to the spring and other
components.
4. Allow 4 to 5 inches of clearance under the
log when opening the grapple. If the grap-
ple is on the ground when it is opened the
grapple fingers may dig into the ground,
causing them not to open.
WARNING
WARNING
Iron & Oak Commercial Products, Inc. 12 815-672-8596 815-672-8596 13 Iron & Oak Commercial Products, Inc.

Inspection and Maintenance
General Maintenance Check (before operating)
The hydraulic system (hoses, hose connection, rotating unit, etc.) should be carefully
inspected before each use. Also, inspect the mechanical parts at the same time. Make
sure all clamps, nuts, bolts, fittings, etc. are properly installed and tightened.
Do not check for leaks with your hand. Leaks can be located by pass-
ing a piece of cardboard or wood around the suspected leak and look-
ing for discoloration. High-pressure fluid escaping from a very small
hole can be almost invisible. Escaping fluid under pressure can have
sufficient force to penetrate skin, causing serious injury or even death.
If fluid is injected into your skin, it must be treated immediately by a doc-
tor familiar with this type of injury.
Always replace frayed, kinked, or cracked hoses and/or other damaged hydraulic com-
ponents with Iron & Oak authorized parts and components specified in the “Parts” sec-
tion of this manual. Replacement parts from secondary suppliers (not original Iron & Oak
replacement parts) can lead to product damage and/or personal injury, and will void the
warranty.
Should it become necessary to loosen or remove any hydraulic fitting or hose, be sure to
relieve all hydraulic pressure (see tractor’s owner/operator manual).
Specifications
Mechanical Specifications
Maximum grapple opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 inches
Maximum log diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 inches
Maximum lifting capacity . . . . . . . . . . . . . . . . . . 2000 lbs. (depends on size of tractor)
Hydraulic Specifications
Hook up fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 inch NPT
Recommended tractor size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 to 60 HP
Hydraulic operating pressure . . . . . . . . . . . . . . . . . . . . . . . . not to exceed 3,000 PSI
Note: If your tractor's hydraulic pressure exceeds 3,000 PSI, contact Iron and Oak
before attempting to install or operate the log skidder.
3-Point hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Category 1, 2, or 3
Pivot (swing) angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135° in each direction
Unit weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650 lbs.
Overall shipping size (H x W x L) . . . . . . . . . . . . . . . . . . . . . 34.5 x 31.5 x 81.0 inches
WARNING
Decals
Iron & Oak Commercial Products, Inc. 14 815-672-8596 815-672-8596 15 Iron & Oak Commercial Products, Inc.
Item Part No. Description Qty.
1 BR002521 Decal, Serial Number 1
2 BR002621 Decal, Flag 1
3 BR002667 Decal, Log Skidder 2
4 BR002666 Decal, Keep Back 1
5 BR002654 Decal, PSI Warning 1
(1) (2)
(3)
(4)
WARNING
(5)
To avoid personal injury or damage to
the hydraulic components, do not use
the Skidder with tractor supplied
hydraulics that are above 3,000 PSI.
BR002654

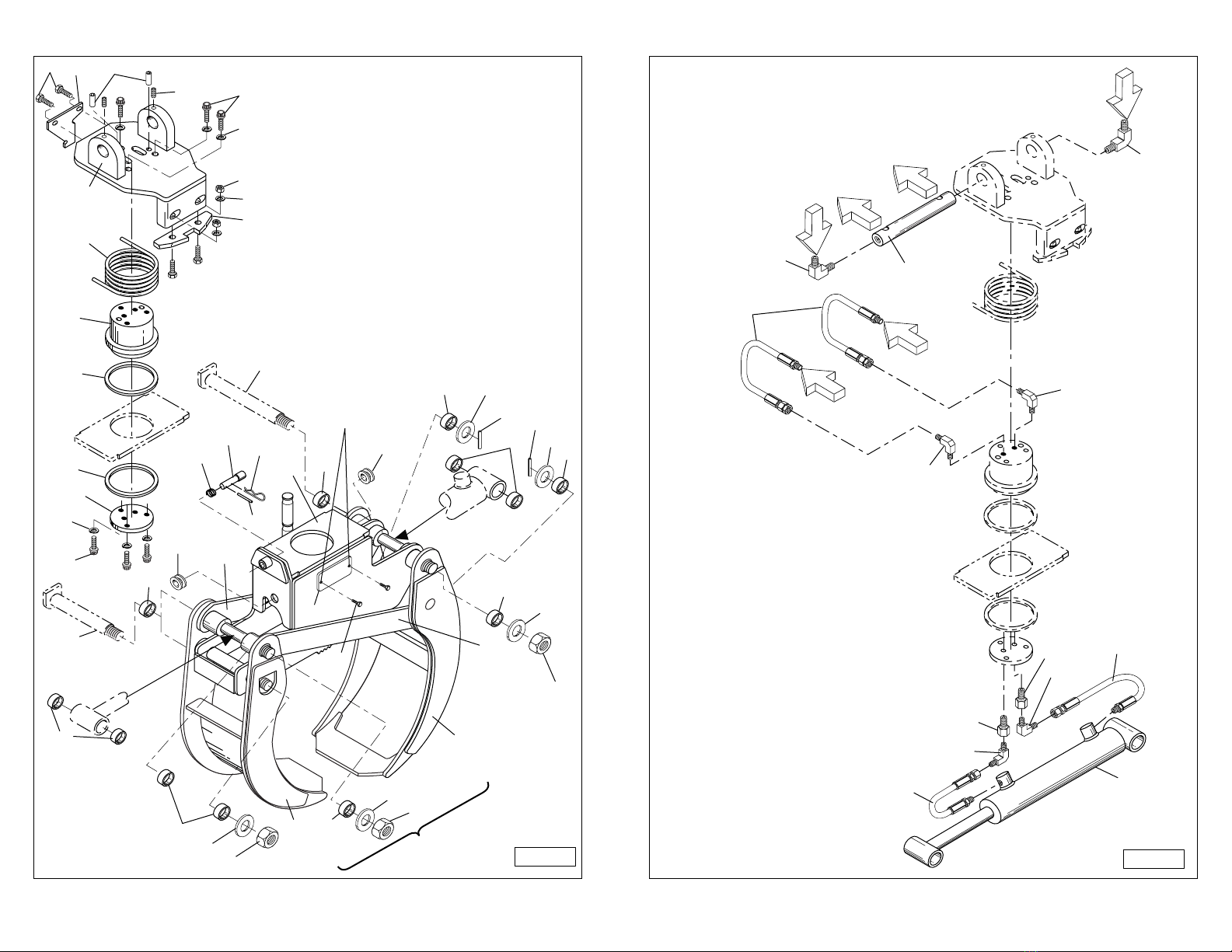

Parts Section
Iron & Oak Commercial Products, Inc. 16 815-672-8596 815-672-8596 17 Iron & Oak Commercial Products, Inc.
SB-1008
1
2
5
4
6
5
7
8
9
3
11
12
10
A
C
B
D
Item Part No. Description Qty
1 BR001703 Pin Assembly, Lift Arm 2 2 BR001032 Grommet 4 3 BR005050 High-Pressure Hose, 47” long 2 4 BR017029 Thrust Washer 2 5 BR001047 Bushing, Phenolic 18 6 BR04000F-03 Frame Weldment 1 7 BR001761 Clip, Hairpin (Legs) 2 8 BR04000F-LA Support Leg 2 9 BR001493 Pin, Clevis (Legs) 2 10 BR001251 Bolt, 3/8-16 x 1.5 long 2 11 BR04000-BP-03 Plate Assembly, Bolt-on 1 12 BR001301 Locknut, 3/8-16 2 13 BR001325 Locknut, 5/16-18 2 14 BR040099 Rear Plate 1 15 BR001211 Screw (12-Point Flange Head, 6
5/8”-18 x 1 3/4
16 BR001398 Washer Bev. Ser. Lock 5/8” 6 17 BR001385 Setscrew, 1/2-13 x 0.5 long 2 18 BR04000C-CM-05 Mount, Assembly (Claw) 1 19 BR001298 Roll Pin 2 20 BR008153 Spring, Torsion 1 21 BR040096 Hub Bearing 2 22 BR040123 Hub 1 23 BR040122 Lock Plate, Hub 1 24 BR040098 Access Cover 1 25 BR001202 Bolt, 5/16-18 x 1” long 2 26 BR040093 Latch Plate 1 27 BR001402 Lockwasher, 5/16” Zinc 2
Item Part No. Description Qty
28 BR001303 Nut-Hex, 5/16”-18 Zinc 2 29 BR001406 Flat Washer, 7/8” SAE 3 30 BR04000C-SP-03 Hinge Pin Assembly, Short 2 31 BR04000C-03 Claw Assembly 1 31a BR04000C-HF-03 Housing Frame 1 31b BR04000C-LA-03 Left Arm Assembly (Link Arm) 1 31c BR04000C-NF-03 Narrow Finger Assembly 1 31d BR04000C-WF-03 Wide Finger Assembly 1 31e BR04000C-RA-03 Right Arm Assembly (Link Arm) 1 32 BR04000C-LP-03 Hinge Pin Assembly, Long 1 33 BR001284 Nut, Lock Thread, 7/8-9 3 34 BR001408 Flat Washer, 1 3/8” SAE 2 35 BR001281 Roll Pin, Split, 0.25 x 2.0” long 2 36 BR001040 Fitting, Elbow 2 37 BR040112 Pin, Pivot 1 38 BR001038 Fitting, Swivel 4 39 BR005052 High-Pressure Hose,17” long 2 40 BR001043 Fitting, Straight 2 41 BR005053 High-Pressure Hose, 19.5” long 1 42 BR004064 Double Acting Cylinder, (1.125 1
rod dia. x 18 ret. and 27 ext.)
43 BR005054 High-Pressure Hose, 15” long 1 44 BR040104 Plunger Pin 1 45 BR001091 Roll Pin 1 46 BR001764 Hairpin Clip 1 47 BR001092 Spring 1 48 BR001220 Bolt-HH 5/16”-18 x 1 1/4” G5 2 49 BR001198 Bolt-HH 3/8”-16 x 1 G5 Zinc 2 50 BR001403 Lockwasher, 3/8” Zinc 2
