IRONRIDGE BX SYSTEM User manual

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - I
BX SYSTEM
INSTALLATION MANUAL

CONTENTS
©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 1
DISCLAIMER 1
RATINGS 2
MARKINGS 2
CHECKLIST 3
OVERVIEW 4
INSTALLATION STEPS (QUICK GUIDE) 5
1. MARK LAYOUT 6
2. PLACE CHASSIS 6
3. MOUNT MLPE (OPTIONAL) 6
4. LAY BALLAST 7
5. ANCHOR SYSTEM (OPTIONAL) 7
6. INSTALL MODULES 8
7. COMPLETE BONDING 8
8. PV MODULE GROUNDING LUGS 9
STRING INVERTER MOUNTING KIT (OPTIONAL) 9
ELECTRICAL DIAGRAM 10
MODULE COMPATIBILITY 11
MODULE COMPATIBILITY 12
MODULE COMPATIBILITY 13
MODULE COMPATIBILITY 14
MODULE COMPATIBILITY 15
DISCLAIMER
This manual describes proper installation procedures and provides necessary standards required for product reliability.
Warranty details are available at IronRidge.com. All installers must thoroughly read this manual and have a clear
understanding of the installation procedures prior to installation. Failure to follow these guidelines may result in property
damage, bodily injury or even death.
IT IS THE INSTALLER’S RESPONSIBILITY TO:
• Ensure safe installation of all electrical aspects of the array. All electrical installation and procedures should be
conducted by a licensed and bonded electrician or solar contractor. Routine maintenance of a module or panel shall
not involve breaking or disturbing the bonding path of the system. All work must comply with national, state and local
installation procedures, product and safety standards.
• Comply with all applicable local or national building and re codes, including any that may supersede this manual.
• Ensure all products are appropriate for the installation, environment, and array under the site’s loading conditions.
• Use only IronRidge parts or parts recommended by IronRidge; substituting parts may void any applicable warranty.
• Review the Design Assistant to conrm design specications.
• Ensure provided information is accurate. Issues resulting from inaccurate information are the installer’s responsibility.
• Ensure bare copper grounding wire does not contact aluminum and zinc-plated steel components, to prevent risk of
galvanic corrosion.
• If loose components or loose fasteners are found during periodic inspection, re-tighten immediately. If corrosion is
found, replace a󰀨ected components immediately.
• Provide an appropriate method of direct-to-earth grounding according to the latest edition of the National Electrical
Code, including NEC 250: Grounding and Bonding, and NEC 690: Solar Photovoltaic Systems.
• Disconnect AC power before servicing or removing modules, AC modules, microinverters and power optimizers.
• Review module manufacturer’s documentation for compatibility and compliance with warranty terms and conditions.

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 2
RATINGS
Product markings are located on the top surface of the BX
Chassis.
MARKINGS
UL 2703 LISTED
• Conforms to STD UL 2703 (2015) Standard for Safety First Edition: Mounting Systems, Mounting Devices, Clamping/
Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels.
• Max Overcurrent Protective Device (OCPD) Rating: 25A
• Max Module Size: 25.6ft²
• Module Orientation: Landscape
• System Level Allowable Design Load Rating: 30 PSF downward, 20 PSF upward, 5 PSF lateral. Actual system
structural capacity is dened by PE stamped project designs.
CLASS A SYSTEM FIRE RATING PER UL 2703
• Any System Tilt with Modules Types 1, 2, 3, 13, 19, 25 & 29 on Low Slope Roofs (< 9.5 degrees)
• Any module-to-roof gap is permitted with no perimeter guarding required. This rating is applicable with any IronRidge
or 3rd party roof attachment and with or without concrete blocks in the Chassis.
• Class A rated PV systems can be installed on Class A, B, and C roofs without a󰀨ecting the roof re rating.
STRUCTURAL CERTIFICATION
• Designed and Certied for Compliance with the International Building Code & ASCE/SEI-7
• Wind Tunnel Testing by I.F.I.
• Approved for use on roof pitches up to 7 degrees (<7 degrees)
#5014158

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 3
CHECKLIST
PRE-INSTALLATION
☐Verify module compatibility. See Page 11 for info.
TOOLS REQUIRED
☐Cordless Drill (optional)
☐Torque Wrench (0-250 in-lbs)
☐9/16" Socket
☐7/16” Socket
☐1/2" Socket
☐String Chalk Line
TORQUE VALUES
☐Top Clamp Nuts (1/2” Socket): 120 in-lbs
☐5/16” MLPE Flange Bolts (1/2” Socket): 60 in-lbs
☐5/16” String Inverter Mount Bolts (1/2” Socket): 80 in-lbs
☐5/16” L-Foot to Chassis Nuts (1/2” Socket): 120 in-lbs
☐3/8” T-Bolt Bonding Hardware (7/16” Socket): 250 in-lbs
☐1/4” String Inverter Mount Hdw (7/16” Socket): 80 in-lbs
☐#10-24 PV Grounding Lug Hdw (7/16” Socket): 60 in-lbs
☐Flat Roof Attach to L-Foot Hdw (9/16” Socket): 250 in-lbs
☐Grounding Lug Terminal Screws (7/16" Socket): 20 in-lbs
COMPONENTS
5° BX Chassis 10° BX Chassis
8" Module Bonding Jumper 38" Row Bonding Jumper
Bottom Clamp Top Clamp (Height Varies)
PV Module Grounding Lug MLPE Mounting Hardware
UNLESS OTHERWISE SPECIFIED:
1. PACKAGE PER: "BX-CMA-MI-M1-PCK"
(BX MIPO MOUNTING ASSEMBLY 20 PCK INST.)
REVISIONS
REV. DESCRIPTION DATE APPROVED
A RELEASE FOR PRODUCTION (ECR ---)
--------
--
ITEM NO. PART NUMBER DESCRIPTION QTY. REV.
1 23-3118FB-075 FLANGE HEAD CAP SCREW 5/16''-18 X 3/4'' SS 1 A
2 BX-31CN-015 CAGENUT 1 A
0.04 LBS
A
BX MIPO MOUNTING
ASSEMBLY
WEIGHT:
SHEET 1 OF 1
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
REV.
A
DWG. NO. SIZE
SCALE:1:1
BX-CMA-MI-M1
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF
IRONRIDGE INC. ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF IRONRIDGE INC. IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DO NOT SCALE DRAWING
BL
04/17/19
-- --
--
--
--
--
-- --
THIRD ANGLE PROJECTION
A
B
C
D
A
C
D
B
1
2
3
4
5
26 31
54
6
DIMENSIONS TOLERANCES ARE IN:
.X: +/- .75
.XX: +/- .25
INCHES.
.XX: +/- .030
.XXX: +/- .010
ANGLES: +/- 1°
[MILLIMETERS]
INTERPRET DIM AND TOLERANCE
PER ASME Y14.5[M]-2009
DRAFT 5.8.19
Cable Tie Edge Clip Cable Tie
String Inverter Mounting Kit Flat Roof Attachment Kit

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 4
OVERVIEW
BX CHASSIS (5° & 10°)
BX Chassis is designed to clamp PV modules and secure
them in place. Reference tabs are integrated to aid
with aligning modules according to system layout. The
Chassis is available in two SKUs: 5 and 10 degree tilt
congurations. The Chassis is designed to accommodate
4 full size (16” x 8” x 4”) or 8 half-size concrete ballast
blocks (16” x 8” x 2”) nominal dimensions.
Concrete ballast block must meet the following
requirements:
• Manufactured per ASTM C 1491 (Standard
specication for concrete pavers)
• Manufactured to resist freeze-thaw as required per
local conditions
• Weight: 14-17 lbs +/- 2 lbs for half size and 28-34
lbs +/- 2 lbs for full size
• Compressive Strength requirement: 3000 PSI min
MODULE CLAMPING
Top Clamps are module frame height specic and
accommodate most common module sizes: 30mm, 32mm,
33mm, 35mm, 38mm, 40mm, 46mm.
ARRAY GROUNDING
Only one PV Module Grounding Lug is required per
continuous array, regardless of array size. Use the
IronRidge PV Module Grounding Lug (PV-LUG-01-A1).
Alternately, the following grounding lugs have been tested
or evaluated for use with the BX system:
• Ilsco GBL-4DBT
• Amphenol HGLUI
• Burndy CL501TN, BGBS4
MLPE DEVICES (OPTIONAL)
The following MLPE module mounting brackets have been
tested or evaluated for use with the BX system:
• EcoFasten Frame MLPE Mount
• QMPV Accessory Frame Bracket
➢Refer to respective installation instructions of MLPE module
mounting brackets.
WIRE MANAGEMENT
Optional Edge Clips and wire ties can be used to aid with
wire management.
FLANGE NUT
GROUNDING LUG
BOLT

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 5
INSTALLATION STEPS (QUICK GUIDE)
1. Mark out all re setbacks on the roong plane.
2. Measure and mark out footprint of array according to the approved planset location.
3. Starting at the south edge of the approved planset, chalk the South Array Edge, making sure that this line is at
least 8" away from the South Fire Setback.
4. Measure Chassis spacing (refer to chart below) and chalk out 3 rows, 25’ each.
5. Measure out the Chassis locations by marking along each row, module width plus 3/8”.
6. Place Chassis on cross hairs. Align cross hairs with alignment marks on Chassis.
7. Install MLPE as needed.
8. Load Chassis with blocks as per the plan set.
9. Install xed attachment points as required by the plan set for anchored hybrid systems, seal/ash in accordance with
the roong manufacturer’s guidelines.
10. Module Installation
a. Place all Bottom Clamps on Chassis.
b. Land all panels on Chassis.
c. Place all Top Clamps and ensure proper alignment and engagement of the Bottom Clamp.
d. Make sure that all Clamps are fully engaged and square to the module and torqued appropriately.
11. Complete Array Bonding
a. Install 8” Module Bonding Jumpers between all modules along the rows.
b. Install 38” Row Bonding Jumpers between all rows.
12. Install PV Module Grounding Lug to ground each array.
It can be helpful on constrained arrays to chalk line every row, but it is not required.
e illustration below shows the order of chalk operations for marking out the starter array, as well as a corresponding Chassis spacing
table which can be used to easily nd the approx. Chassis spacing within 1/8". For more precise measurements use the formulas
provided at the bottom of the table.
Module Width 5° Chassis Spacing 10° Chassis Spacing
38.5" - 39" 48.5" 51"
39" - 39.5" 49" 51.5"
39.5" - 40" 49.5" 52"
40" - 40.5" 50" 52.5"
40.5" - 41" 50.5" 53"
41" - 41.5" 51" 53.5"
41.5" - 42" 51.5" 54"
42" - 42.5" 52" 54.5"
42.5"+ 52.5" 55"
Spacing Formulas: Width Cos(5°) + 10" Width Cos(10°) + 13”

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 6

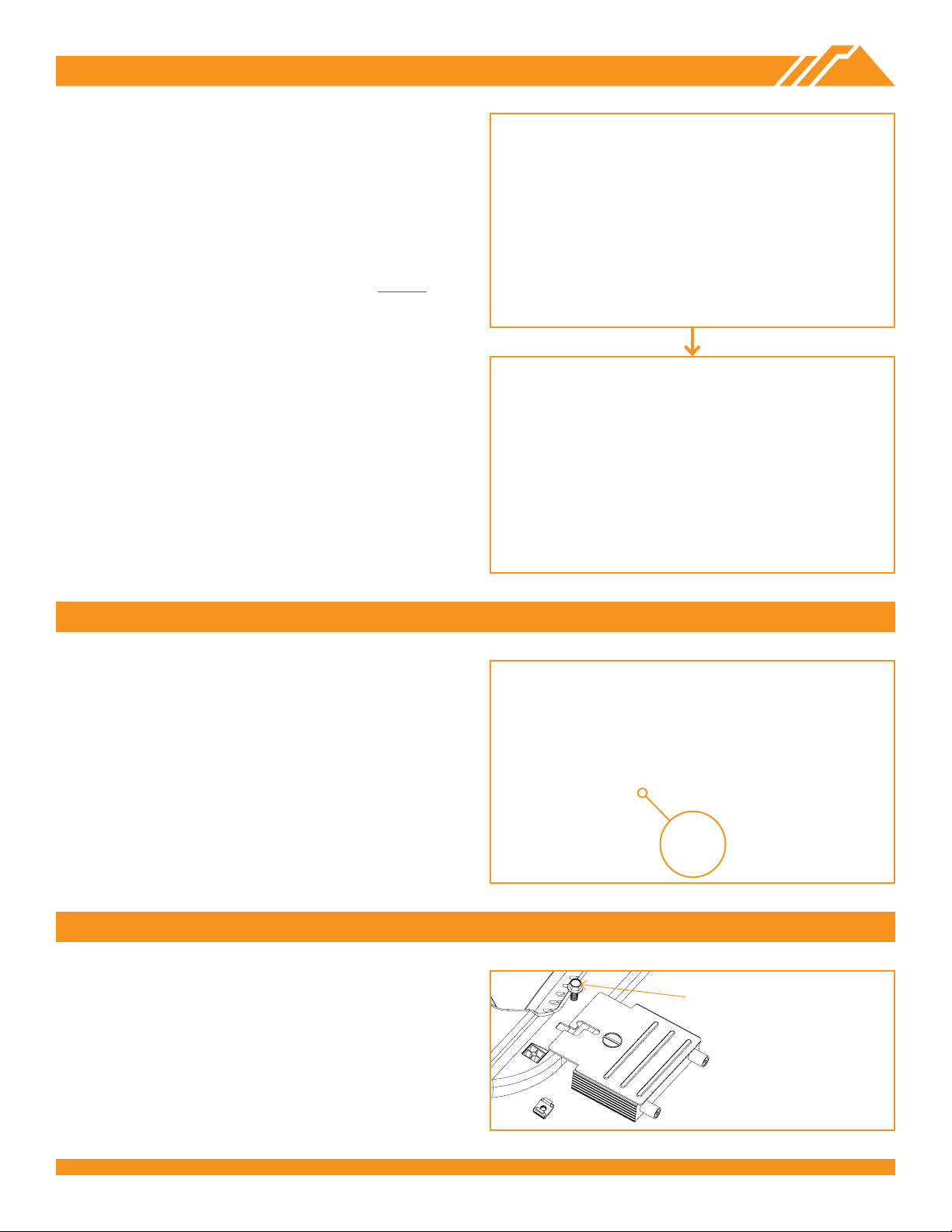

1. MARK LAYOUT
Place rst Chassis at Southwest corner of the array,
aligning the center reference hole with the cross hair
marker. Repeat for each additional Chassis in the array.
➢After the array has been installed, the Chassis at the East and
West edges of the array should be moved inward from the
perimeter reference lines so that they are fully underneath the
modules.
2. PLACE CHASSIS
Using the approved planset, mark out all re setbacks and
the array foot print on the roof(s).
Mark the South Array Edge with a 25' line (for example).
If the southern edge of the array is against the South Fire
Setback, mark the South Array Edge at least 8" away from
the setback. This will ensure that no part of the Chassis is
in the setback.
Measure Chassis spacing (refering to table on Page 5)
and chalk out 3x 25' rows. Then measure out the Chassis
locations by marking along each row (module width plus
3/8").
➢These layouts are useful for maintaining a straight line at the start
of the array. Once started the rest of the system is build as you
go.
Mount microinverters and power optimizers directly to
the Chassis using the MLPE Mounting Hardware Kit.
Alternatively, you can use a third party module mounting
bracket (following manufacturer instructions).
To install the MLPE Mounting Hardware Kit, place the
Cage Nut into either of the square cut-outs on the lower
edge of a Chassis. Secure your MLPE device with a 5/16"
Flange Bolt torqued to 60 in-lbs.
3. MOUNT MLPE (OPTIONAL)
60 in-lbs

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 7
4. LAY BALLAST
Place ballast blocks in BX Chassis as indicated on site
layout.
A. SECURE L-FEET
The Attachment Kit uses an 8' minimum Galvanized Strut
Channel with slotted holes to span across two Chassis and
a Flat Roof Attachment(FRA) Anchor in order to anchor
the Chassis to the roof. Secure L-Feet onto the Chassis
by installing the Carriage Bolt and Square Washer from
the underside of each Chassis through the reference hole.
Torque Flange Nut to 120 in-lbs.
➢Refer to Flat Roof Attachment installation instructions for details,
where applicable.
➢Flat Roof Attachment Kit is not part of the grounding path.
B. ATTACH STRUT CHANNEL
Secure, at minimum, an 8’ x 1-5/8" Galvanized Strut
Channel with slotted holes, through the two Chassis onto
the L-Feet using the provided 3/8" Bolt with 1-1/4" washer
to a Channel Nut (not provided). Torque Nut to 250 in-lbs.
C. FINISH ANCHORS
Assemble an L-Foot onto the FRA Anchor and ashing
membrane (where applicable) using the 3/8” Bolt and Flat
Washer torqued to 250 in-lbs. Then, install L-Foot and Flat
Roof Attachment assembly at the Strut Channel midpoint
using the provided 3/8" Bolt with a 1-1/4" Washer to a
Channel Nut (as before) torqued to 250 in-lbs.
➢After anchor assembly is installed seal/ash per roong
manufacturer’s guidelines.
➢Anchors shall not be located on a perimeter south row.
➢The following 3rd party roof attachment has been tested or
evaluated for use with BX:
• Anchor Products U-Anchors
5. ANCHOR SYSTEM (OPTIONAL)
A
B
C
Flange Nut
L-Foot
Square
Washer Carriage
Bolt 120 in-lbs
250 in-lbs
120 in-lbs

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 8
6. INSTALL MODULES
A. PLACE CLAMPS
Place Bottom Clamp over the Chassis' corner bolt, then
pull clamp towards the outer edge.
➢The north end of the North Row and south end of the South Row
do not need bottom clamps.
B. LAY MODULES
Starting in the South-West corner and working east, lay
modules in a row onto edge of Bottom Clamps. Double-
check panel spacing along each row.
➢You can use reference tabs located in the middle of the Chassis to
properly space modules.
C. SECURE MODULES
To secure a module, rst pull the Bottom Clamp until it is
snug against the inner ange of the module. Then place
the Top Clamp and Flange Nut over the bolt and torque to
120 in-lbs.
A. MODULE-TO-MODULE BONDING
The 8” Bonding Jumper is an electrial bonding jumper that
can be used for module to module bonding.
➢New jumpers should be used if re-installation of jumper is
required.
➢Jumpers are installed on the bottom ange of modules.
➢Supports ange thicknesses 1.2mm to 3.1mm.
7. COMPLETE BONDING
A
A
B
C
Reference Tab Properly Gaps Modules
Lay Module onto
Bottom Clamps
120 in-lbs

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 9
7. COMPLETE BONDING (CONTINUED)
B. ROW-TO-ROW BONDING
The 38" Bonding Jumper is an electrial bonding jumper
that should be used for row to row bonding by securing
Clips to inner anges on long side of a module from each
row, as shown. Tapping Clips into place may be required
for modules with thicker anges.
➢The bonding does not need to take place on the same side of the
array, so long as every row is bonded to the next row.
Ground each continuous array by securing a PV Module
Grounding Lug to any module in the array.
➢Only one PV Module Grounding Lug is required per continuous
array, regardless of array size. Reference module manufacturer’s
installation instructions for grounding location.
8. PV MODULE GROUNDING LUGS
FLANGE NUT
GROUNDING LUG
BOLT
B
STRING INVERTER MOUNTING KIT (OPTIONAL)
The String Inverter Mounting Kit creates a mounting
platform for inverters on top of the BX Chassis.
A. CROSS RAILS
Cut provided rails to length, as needed. Install four Cage
Nuts in the square holes on the edges of the Chassis.
Then, install an L-Foot into each Cage Nut location using a
5/16” bolt tightened to 80 in-lbs. Attach rails to L-Feet using
3/8” T-bolt bonding hardware tightened to 250 in-lbs.
B. TOP RAILS
Assemble the top rails using four L-Feet on top of cross
rails. Install four L-Feet on top of the cross rails using
¼” T-bolt and nut tightened to 80 in-lbs. Attach top rails
to L-Feet using 3/8” T-bolt Bonding Hardware tightened
to 250 in-lbs. Space top rails according to the mounting
requirements for the inverter being used.
A
B
60 in-lbs
20 in-lbs
Cross Rail (2x) L-Foot (4x)
Cage Nut (4x)
5/16" Bolt (4x)
3/18" T-Bolt
Hardware (4x)
250 in-lbs (4x)
80 in-lbs (4x)

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 10
ELECTRICAL DIAGRAM

3. SECURE LUGS
©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 11
MODULE COMPATIBILITY
The BX System may be used to ground and/or mount a PV module complying with UL 2703 only when the specic
module has been evaluated for grounding and/or mounting in compliance with the included instructions. Unless otherwise
noted, “xxx” refers to the module power rating and both black and silver frames are included in the certication.
MAKE MODELS
Adani
Adani modules with 35 and 40mm frames
ASX-Y-ZZ-xxx
Where "X" can be B, M or P, "Y" can be 6 or 7, and "ZZ" can be blank, PERC, B-PERC, or AB-PERC
Amerisolar
Amerisolar modules with 35, 40 and 50 mm frames
AS-bYxxxZ
Where "b" can be 5 or 6; "Y" can be M, P, M27, P27, M30, or P30; and "Z" can be blank, W or WB
Aptos Solar
Aptos modules with 35 and 40 mm frames
DNA-yy-zz23-xxx
Where "yy" can be 120 or 144; and "zz" can be MF or BF
Astronergy Solar
Astronergy modules with 30, 35, 40, and 45 mm frames
aaSMbbyyC/zz-xxx
Where “aa” can be CH or A; "bb" can be 60, 66, or 72; “yy” can be blank, 10 or 12; "C" can M, P, M(BL),
M-HC, M(BL)-HC, P-HC, M(DG), or M(DGT); and “zz” can be blank, HV, F-B, or F-BH
ASUN
ASUN modules with 35 and 40 mm frames
ASUN-xxx-YYZZ-aa
Where "YY" can be 60 or 72; "ZZ" can be M,or MH5; and "aa" can be blank or BB
Auxin
Auxin modules with 40 mm frames
AXN6y6zAxxx
Where "y" can be M or P; "z" can be 08, 09, 10, 11, or 12; and "A" can be F or T
Axitec
Axitec Modules with 35 and 40 mm frames
AC-xxxY/aaZZb
Where "Y" can be M, P or MH; "aa" can be blank, 125- or 156-; "ZZ" can be 54, 60, 72, 120, or 144; "b" can
be S
Boviet
Boviet modules with 35 and 40mm frames
BVM66aaYY-xxxBcc
Where "aa" can be 9, 10 or 12; "YY" is M or P; and "B" can be blank, L or S; and "cc" can be blank, H, H-BF,
H-BF-DG, H-HC, H-HC-BF, H-HC-BF-DG, HC-BF or HC-BF-DG
BYD
BYD modules with 35 mm frames
BYDxxxAY-ZZ
Where "A" can be M6, P6, MH or PH; "Y" can be C or K; and "ZZ" can be 30 or 36
Canadian Solar
Canadian Solar modules with 30, 35 and 40 mm frames
CSbY-xxxZ
Where "b" can be 1, 3 or 6; "Y" can be H, K, L, P, U, V, W, or X; and "Z" can be M, P, MS, PX , M-SD, P-AG,
P-SD, MB-AG, PB-AG, MS-AG, or MS-SD
CertainTeed
CertainTeed modules with 35 and 40 frames
CTxxxYZZ-AA
Where "Y" can be M, P, or HC; "ZZ" can be 00,01, 10, or 11; and "AA" can be 01, 02, 03, or 04
CSUN
Csun modules with 35 and 40 mm frames
YYxxx-zzAbb
Where "YY" is CSUN or SST; "zz" is blank, 60, or 72; and "A" is blank, P or M; "bb" is blank, BB, BW, or
ROOF

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 12
MODULE COMPATIBILITY
Dehui
Dehui modules with 30, 35 and 40mm frames
DH-MYYYZ-xxx
Where “YYY” can be 760, 772, 860, 872; and “Z” can be B, F or W
Ecosolargy
Ecosolargy modules with 35, 40, and 50 mm frames
ECOxxxYzzA-bbD
Where “Y” can be A, H, S, or T; “zz” can be 125 or 156; “A” can be M or P; “bb” can be 60 or 72; and “D” can
be blank or B
ET Solar
ET Solar modules with 30, 35, 40, and 50 mm frames
ET-Y6ZZxxxAA
Where “Y” can be P, L, or M; “ZZ” can be 60, 72 or 72BH; and “AA” can be GL, WB, WW, BB, WBG, WWG,
WBAC, WBCO, WWCO, WWBCO or BBAC
Flex
Flex modules with 35, 40, and 50 mm frames
FXS-xxxYY-ZZ;
Where “YY” can be BB or BC; and “ZZ” can be MAA1B, MAA1W, MAB1W, SAA1B, SAA1W, SAC1B,
SAC1W, SAD1W, SBA1B, SBA1W, SBC1B, or SBC1W
GCL
GCL modules with 35 mm and 40 mm frames
GCL-ab/YY xxx
Where “a” can be M or P; “b” can be 3 or 6; and “YY” can be 60, 72, 72H, or 72DH
GigaWatt Solar
Gigawatt modules with 40 mm frames
GWxxxYY
Where “YY” can be either PB or MB
Hansol
Hansol modules with 35 and 40 frames
HSxxxYY-zz
Where “YY” can be PB, PD, PE, TB, TD, UB, UD, or UE; and “zz” can be AH2, AN1, AN3, AN4, HH2, HV1,
or JH2
Hanwa Solar
Hanwha Solar modules with 40, 45, and 50 mm frames
HSLaaP6-YY-1-xxxZ
Where “aa” can be either 60 or 72; “YY” can be PA or PB; and “Z” can be blank or B
Hanwha Q CELL
Hanwha Q CELLS Modules with 32, 35, 40, and 42mm frames
aaYY-ZZ-xxx
where “aa” can be Q. or B.; “YY” can be PLUS, PRO, PEAK, LINE PRO, LINE PLUS, PLUS DUO or PEAK
DUO; and “ZZ” can be G3, G3.1, G4, G4.1, L-G2, L-G2.3, L-G3, L-G3.1, L-G3y, L-G4, L-G4.2, L-G4y, LG4.2/
TAA, BFR-G3, BLK-G3, BFR-G3.1, BLK-G3.1, BFR-G4, BFR-G4.1, BFR G4.3, BLK-G4.1, G4/SC, G4.1/SC,
G4.1/TAA, G4.1/MAX, BFR G4.1/TAA, BFR G4.1/MAX, BLK G4.1/TAA, BLK G4.1/SC, EC-G4.4, G5, G5/
SC, G5/TS, BLK-G5, BLK-G5/SC, BLK-G5/TS, L-G5, L-G5.1, L-G5.2, L-G5.2/H, L-G5.3, G6, G6/SC, G6/TS,
G6+/TS, G6+, BLK-G6, L-G6, L-G6.1, L-G6.2, L-G6.3, G7, BLK-G6+, BLK-G6+/AC, BLK-G6+/SC, BLK-G6/
TS, BLK-G6+/TS, BLK-G7, G7.2, G8, BLK-G8, G8+, BLK-G8+ L-G7, L-G7.1, L-G7.2, L-G7.3, L-G8, L-G8.1,
L-G8.2, L-G8.3, L-G8.3/BFF, L-G8.3/BFG, ML-G9, BLK ML-G9, ML-G9+, BLK ML-G9+, XL-G9, XL-G9.2 or
XL-G9.3
Heliene
Heliene modules with 40 mm frames
YYZZxxxA
Where “YY” can be 36, 60, 72, or 96; “ZZ” can be M, P, or MBLK; and “A” can be blank, HomePV, or Bifacial
HT-SAAE
HT-SAAE modules with 35 and 40 mm frames
HTyy-156Z-xxx
Where “yy” can be 60 or 72, “Z” can be M, P, M-C, P-C, M(S), M(VS), M(V), P(V), M(V)-C, P(V)-C
Hyundai
Hyundai modules with 33, 35, 40 and 50 mm frames
HiY-SxxxZZ
Where “Y” can be A, D, M or S; and “ZZ” can be GI, HG, HI, KI, MI, MF, MG, PI, RI, RG, RG(BF), RG(BK),
SG, TI, or TG

©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 13
MODULE COMPATIBILITY
Itek
Itek Modules with 40 and 50 mm frames
IT-xxx-YY
Where “YY” can be blank, HE, or SE, or SE72
JA Solar
JA Solar modules with 30, 35, 40 and 45 mm frames
JAyyzz-bbww-xxx/aa
Where “yy” can be M, P, M6 or P6; “zz” can be blank, (K), (L), (R), (V), (BK), (FA), (TG), (FA)(R), (L)(BK), (L)
(TG), (R)(BK), (R)(TG), (V)(BK), (BK)(TG), or (L)(BK)(TG); “bb” can be 48, 60, or 72; “ww” can be D09, S01,
S02, S03, S06, S09, S10, or S12; and “aa” can be BP, MR, SI, SC, PR, 3BB, 4BB, 4BB/RE, 5BB
Jinko
Jinko modules with 35 and 40 mm frames
JKMYxxxZZ-aa
Where “Y” can either be blank or S; “ZZ” can be M, P, or PP; and “aa” can be blank, 60, 60B, 60H, 60L,
60BL, 60HL, 60HB, 60HBL, 6HBL-EP, 60-J4, 60B-J4, 60B-EP, 60(Plus), 60-V, 60-MX, 7RL3-V, 7RL3-TV, 72,
72B, 72-J4, 72B-J4, 72(Plus), 72-V, 72H-V, 72L-V, 72HL-V, 72-MX, 72H-BDVP, 72HL-TV, or 72HL-V-MX3
Kyocera
Kyocera Modules with 46mm frames
KYxxxZZ-AA
Where “Y” can be D or U; “ZZ” can be blank, GX, or SX; and “AA” can be LPU, LFU, UPU, LPS, LPB, LFB,
LFBS, LFB2, LPB2, 3AC, 3BC, 3FC, 4AC, 4BC, 4FC, 4UC, 5AC, 5BC, 5FC, 5UC, 6BC, 6FC, 8BC, 6MCA, or
6MPA
LG
LG modules with 35, 40, and 46 mm frames
LGxxxYaZ-bb
Where “Y” can be A, E, M, N, Q, S; “a” can be 1 or 2; “Z” can be C, K, T, or W; and “bb” can be A3, A5, B3,
G3, G4, J5, K4, L5, N5, or V5
Longi
Longi modules with 30, 35 and 40 mm frames
LRa-YYZZ-xxxM
Where “a” can be 4 or 6; “YY” can be blank, 60 or 72; and “ZZ” can be blank, BK, BP, HV, PB, PE, PH, HBD,
HPB, or HPH
Mission Solar
Mission Solar modules with 33 and 40 mm frames
MSEbbxxxZZaa
Where “bb” can be blank or 60A; “ZZ” can be blank, MM, SE, SO, SQ , SR, or TS; and “aa” can be blank, 1J,
4J, 4S, 5K, 5T, 60, 6J, 6S, 6W, 8K, 8T, or 9S
Mitsubishi
Mitsubishi modules with 46 mm frames
PV-MYYxxxZZ
Where “YY” can be LE or JE; and “ZZ” can be either HD, HD2, or FB
Moltech IM and XS series modules with 40, 45, and 50 mm frames
Neo Solar Power
Neo Solar Power modules with 35 mm frames
D6YxxxZZaa
Where “Y” can be M or P; “ZZ” can be B3A, B4A, E3A, E4A, H3A, H4A; and “aa” can be blank, (TF), ME or
ME (TF)
Panasonic (HIT)
Panasonic modules with 35 and 40 mm frames
VBHNxxxYYzzA
Where “YY” can be either KA, RA, SA or ZA; “zz” can be either 01, 02, 03, 04, 06, 06B, 11, 11B, 15, 15B, 16,
16B, 17, or 18; and “A” can be blank, E, G, or N
Panasonic (EverVolt)
Panasonic modules with 30 mm frames
EVPVxxxA
Where “A” can be blank or K
Peimar
Peimar modules with 40 mm frames
SbxxxYzz
Where “b” can be G, M or P; “Y” can be M or P; and “zz” can be blank, (BF) or (FB)
Philadelphia Solar
Philadelphia modules with 35 and 40 mm frames
PS-YzzAA-xxx
Where “Y” can be M or P; “zz” can be 60 or 72; and “AA” can be blank or (BF)

MODULE COMPATIBILITY
©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 14
Phono Solar
Phono Solar modules with 35, 40, and 45 mm frames
PSxxxY-ZZ/A
Where “Y” can be M, M1, MH, or M1H or P; “ZZ” can be 20 or 24; and “A” can be F, T, U, or TH
Recom
Recom modules with 35 and 40 mm frames
RCM-xxx-6yy
Where “yy” can be MA or MB
REC Solar
REC modules with 30, 38 and 45 mm frames
RECxxxYYZZ
Where “YY” can be AA, M, NP, PE, PE72, TP, TP2, TP2M, TP2SM, or TP2S; and “ZZ” can be blank, Black,
BLK, BLK2, SLV, or 72
Renesola
ReneSola modules with 35, 40 and 50 mm frames
AAxxxY-ZZ
Where "AA" can be SPM(SLP) or JC; "Y" can be blank, F, M or S; and "ZZ" can be blank, Ab, Ab-b, Abh,
Abh-b, Abv, Abv-b, Bb, Bb-b, Bbh, Bbh-b, Bbv, Bbv-b, Db, Db-b, or 24/Bb
Renogy
Renogy Modules with 40 and 50 mm frames
RNG-xxxY
Where “xxx” is the module power rating; and “Y” can be D or P
Risen
Risen Modules with 35 and 40 mm frames
RSMyy-6-xxxZZ
Where “yy” can be 60, 72, 120 or 144; and “ZZ” can be M or P
S-Energy
S-Energy modules with 35 and 40mm frames
SABB-CCYYY-xxxZ
Where “A” can be C, D, L or N; “BB” can be blank, 20, 25, 40 or 45; “CC” can be blank, 60 or 72; “YYY” can
be blank, BDE, MAE, MAI, MBE, MBI, MCE or MCI; and “Z” can be V, M-10, P-10 or P-15
Seraphim Energy
Group
Seraphim modules with 30, 35 and 40 mm frames
SEG-aYY-xxxZZ
Where “a” can be blank, 6 or B; “YY” can be blank, MA, MB, PA, or PB; and “ZZ” can be blank, BB, BG, BW,
HV, WB, WW, BMB, BMB-HV, BMA-HV, BMA-BG
Seraphim USA
Seraphim modules with 35 and 40 mm frames
SEG-aYY-xxxZZ
Where “a” can be blank, 6 or B; “YY” can be blank, MA, MB, PA, or PB; and “ZZ” can be blank, BB, BG, BW,
HV, WB, WW, BMB, BMB-HV
Sharp
Sharp modules with 35 and 40 mm frames
NUYYxxx
Where “YY” can be SA or SC
Silfab
Silfab Modules with 38 mm frames
SYY-Z-xxxAb
Where “YY” can be IL, SA, LA, SG or LG; “Z” can be blank, M, P, or X; “A” can be blank, B, H, M, or N; and
“b” can be A, L, G, or T
Solaria
Solaria modules with 40 mm frames
PowerXT xxxY-ZZ
Where “Y” can be R or C; and “ZZ” can be AC, BD, BX, BY, PD, PM, PM-AC, PX, PZ, WX or WZ
Solarcity (Tesla)
Solarcity modules with 40 mm frames
SCxxxYY
Where “YY” can be blank, B1 or B2
SolarTech
Solarcity modules with 40 mm frames
SCxxxYY
Where “YY” can be blank, B1 or B2
SolarWorld AG
SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or
clear; modules with 31, 33 or 46 mm frames
SW-xxx

MODULE COMPATIBILITY
©2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 15
VSUN
VSUN modules with 35 and 40 mm frames
VSUNxxx-YYz-aa
Where "YY" can be 60, 72, 120, or 144; "z" can be M, P, MH, PH, or BMH; and "aa" can be blank, BB, BW, or
DG
Winaico
Winaico modules with 35 and 40 mm frames
Wsy-xxxZa
Where "y" can be either P or T; "Z" can be either M, P, or MX; and "a" can be blank or 6
Yingli Panda, YGE, YGE-U, and YLM series modules with 35, 40, and 50 mm frames
SolarWorld Americas
SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or
clear; modules with 33 mm frames
SWA-xxx
Stion Stion Thin lm modules with 35 mm frames
STO-xxx or STO-xxxA
SunEdison
SunEdison Modules with 35, 40 & 50 mm frames
SE-YxxxZABCDE
Where "Y" can be B, F, H, P, R, or Z; "Z" can be 0 or 4; "A" can be B,C,D,E,H,I,J,K,L,M, or N ; "B" can be B or
W; "C" can be A or C; "D" can be 3, 7, 8, or 9; and "E" can be 0, 1 or 2
Suniva
Suniva modules with 35, 38, 40, 46, and 50 mm frames
OPTxxx-AA-B-YYY-Z
MVXxxx-AA-B-YYY-Z
Where "AA" is either 60 or 72; "B" is either 4 or 5; "YYY" is either 100,101,700,1B0, or 1B1; and "Z" is blank
or B
Sunpower
Sunpower standard (G3 or G4) or InvisiMount (G5) 40 and 46 mm frames
SPR-Zb-xxx-YY
Where "Z" is either A, E, P or X; “b” can be blank, 17, 18, 19, 20, 21, or 22; and “YY” can be blank, BLK,
COM, C-AC, D-AC, E-AC, BLK-E-AC, G-AC, BLK-C-AC, or BLK-D-AC
Sunspark
Sunspark modules with 40 mm frames
SYY-xxxZ-A
Where “YY” can be MX or ST; and “Z” can be M, MB, M3, M3B, P or W; and "A" can be 60 or 72
Suntech
Suntech Modules with 35, 40 and 50mm frames
STPxxxy-zz/aa
Where "y" is blank or S; and "zz" can be 20, 24, A60 or A72U; and "aa" can be Vd, Vem, Vfw, Vfh, Wdb, Wde,
Wd, or Wfhb
Talesun
Talesun modules with 30, 35 and 40mm frames
TA6yZZaaxxx-b
Where "A" can be D or P, "y" can be blank, F, G, H, or L; "ZZ" can be 60 or 72; "aa" can be M, M(H), or P;
and "b" can be blank, B, T, or (H)
Trina
Trina Modules with 30, 35, 40 and 46mm frames
TSM-xxxYYZZ
Where "YY" can be DD05, DD06, DD14, DE14, DE15, DEG15, PA05, PC05, PD05, PD06, PA14, PC14,
PD14, PE14, or PE15 ; and "ZZ" can be blank, .05, .08, .10, .18, .08D, .18D, 0.82, .002, .00S, 05S, 08S, A,
A.05, A.08, A.10, A.18, A(II), A.05(II), A.08(II), A.082(II), A.10(II), A.18(II), H, H(II), H.05(II), H.08(II), HC.20(II),
HC.20(II), or M
URE
URE modules with 35 mm frames
DyZxxxHaa
Where "y" can be 6 or 7; "Z" can be K or M; and "aa" can be H3A, H4A, or H8A
Vikram
Vikram solar modules with 40 mm frames
VSyy.ZZ.AAA.bb
Where "yy" can be M, P, MBB, MH, MS, MHBB, or PBB; "ZZ" can be 60 or 72; "AAA" is the module power
rating; and "bb" can be 03.04 or 05
