Irriland Silver Series User manual

USE AND MAINTAINCE MANUAL
“Version 0” – 2015-05-03
Silver series irrigation hose reel
IRRILAND SRL
Via Togliatti 4, z.i. San Giacomo, 42016 Guastalla, RE, Italia
Universal Sales
USA PNW Representative
www.universalsales.biz
(Universal Sales T2.3"/820' and T2.3"/1049' travelers)

2
INDEX
INTRODUCTION PAGE 3
ATTENTION PAGE 3
SYMBOLS ON THE MACHINES AND RELATIVE MEANING PAGE 4
IMPORTANT ADVICE PAGE 4
USE CONDITIONS PAGE 6
IDENTIFICATION DATA AND MACHINE CONTROLS PAGE 6
SILVER SERIES: CONTROLS AND DETAILS OF THE MACHINE PAGE 7
1. INFORMATION AND TECHNICAL DATA PAGE 13
1.1 DIMENSIONS AND WEIGHT PAGE 13
2 FREIGHT, DELIVERY AND ASSEMBLING OF THE MACHINE PAGE 13
3. MACHINE PREPARATION TO WORK ON THE FIELD PAGE 18
3.1 MACHINE SET UP ON THE FIELD PAGE 18
3.2 AUTOMATIC STOP OF THE MACHINE PAGE 21
3.3 CONTROLS TO BE DONE FOR THE SET UP PAGE 21
3.4 ADJUSTMENT OF THE AUTOMATIC SPEED COMPENSATOR PAGE 23
3.5 EMERGENCY PE HOSE REWINDING BY PTO PAGE 23
3.6 MACHINE USE AT NIGHT PAGE 24
4.0 MAINTAINANCE PAGE 24
5.0 MACHINE STORAGE AT THE END OF THE IRRIGATION SEASON PAGE 24
6.0 PROBLEMS AND SOLUTIONS PAGE 25
7.0 IMPORTANTS SUGGESTIONS PAGE 25
8.0 ADDITIONAL RISKS PAGE 26
9.0 SHIFTING OF MACHINES CONNECTED TO PRESSURISED
SYSTEMS PAGE 27

3
INTRODUCTION
Thanks to chose an IRRILAND machine. This manual is a fundamental part of the machine and has to
follow it in case you give/sell it to other users.
Before to do any operation the assembling person and the user have to read and follow up strictly the
indications given here following.
A T T E N T I O N
Don’t start using the machine if you haven’t carefully read this manual first. Don’t work with the
machine close to kids or close to not authorized personnel. Avoid that the kids go close to the machine.
Attention when you disconnect the flex supply hose.
If the machine is equipped with a closing (or shut off) valve the flex supply hose remains pressurized
at the end of the cycle so DO NOT DISCONNECT the flex supply hose before you release the
pressure
Attention to the sprinkler
The pressurized water of the sprinkler can cause severe injuries and damages to persons and things.
Precaution along the freight
The machine can’t circulate (move around) on public roads. Don’t exceed the towing speed of 10 km/h
on plain roads and 3 km/h on not leveled fields.
Never service the machine when it’s working
To do any maintenance pls stop the machine and disconnect it from the supply line. It’s necessary to
mount all the protections before the machine start to work again.
Precaution with the electric power lines
The throw of the water hasn’t to touch the electric power lines and/or any other item of electric power
supply at anytime.

4
SYMBOLS ON THE MACHINE AND RELATIVE MEANING
ATTENTION 1) This symbol means different risky situations:
1a) the operations and the part that can be risky for the user safety. When you see
this symbol, please read carefully the relative information as there’s an incident risk.
1b) Don’t open the couplings in case there’s pressure in the pipeline. Before you open
the couplings you have to be sure there’s no pressure in the pipeline.
1c) Electricity risk: you can never place the sprinkler near to any energy source. You
must be sure that the sprinkler water will not be in contact with any energy source,
house, or working place.
1d) Read carefully this manual before you use the machine.
1e) Before you start the machine and you do any service on it, pls stop it and disconnect
it from the feeding pipeline.
2) This symbol indicates the risk relative to moving parts. Don’t use the machine before
you mounted again the safety parts and guards. When you use a winch pls be sure it’s
allowed by the present norm.
3) This symbol means moving parts. Pls stay away from the machine when is working.
4) This symbol indicates the point to connect the lifting hooks. Don’t connect the hooks
in other points of the machine because it can be very dangerous.
5) This symbol indicates the points that need to be lubricated: look at the manual
carefully and follow up the instructions. A correct lubrication improve the machine
efficiency, reduce the risk to brake some parts and extend a lot the machine working
life.
IMPORTANT ADVICE
Read and follow up precisely the instructions labeled on the machines.
They don’t substitute the manual but focus the attention on some parts and info that are
important for the use, the maintenance and the safety.

5

6
USE CONDITIONS
This machine has been designed to be used with water for irrigation. In case of sand or other solids in
the water, the machine can function up to 12% solids with reduced efficiency and working life. With
more than 12% solids the functioning of the machine is not warranted. The machine can be used with
one to three sprinklers, multiple foliage nozzles, or with an irrigation boom. For all these uses please
look at the specific instructions.
IDENTIFICATION DATA AND MACHINE CONTROLS
Y. > production year
Mod. > machine model (OD in mm and length in m)
N°. > serial number composed by the corder confirmation number and the machine
structure (last three numbers / letters )
Kg. > dry machine weight / weight of the machine full of water
0,5 rad S-1 > max rotation speed of the sprinkler
PTO 540 n/1’ > max rpm of the power take off

7
SILVER SERIES: CONTROLS AND DETAILS OF THE MACHINE
1.Lever of the turbine by pass (half closed 4. Gear lever: positions 1, 2, 3
in working position) 5. Brake adjustment
2.Pressure regulation valve (optional) 6. Engagement / disengagement lever. Gear box
disengaged position
3. Safety instructions 7. Speed indicator
8. Joint between disengagement lever and
disengagement rod
30. lever of the 3 speeds gear box in position 2
31. Brake adjustment
32. Engagement / disengagement lever. Gear box
in engaged position
33. speed indicator
34. Hook hole to lift the machine
35. Pin to fix the anchoring leg

8
9. Automatic disengagement rod
connected with the automatic
lifting system (it works at the
end of the pull)
10. Pin in freight position
11. pivoting point of the sprinkler
cart automatic lifting system
18. Gear box disengagement rod
19. Pin position for any
operation except freight
12. Safety dog (non return tooth)
in working + freight position
13. Rotation run of the safety dog
17. Safety dog (non return tooth)
in position to drop off the
sprinkler cart and pull out the pe
hose.
14. Hand wheel for pto (power take off) shaft in transport
and irrigation position.
15. Pressure gauge to know the working pressure
16. Central elbow and drum water inlet (central seal
inside)
20. By-pass lever in “open” position. In this
position the turbine doesn’t work and the machine
can’t roll up the pe hose.

9
21. Anchoring jack
22. Crank of the anchoring jack
23. Pin to fix the anchoring leg with its jack
24. Hand wheel mounted on the pto (power take off)
shaft
25. Hole to fix the sprinkler cart coupling
26. Double lip seal
27. Quick coupling on the PE hose to connect the
sprinkler cart
28. Bolt to fix the sprinkler cart coupling
29. Quick coupling of the sprinkler cart.
Lubricate before inserting.

10
SPEE COMPENSATOR
(not included on machines
equipped with computer):
54. Speed compensator
55. Compensator lever on
sprinkler cart side
56. Compensator lever on
by-pass side
36. Axle of the machine tire
37. Bolt to fix the axle
40. tires 41. Sprinkler cart hook 42. Towing bar (on sprinkler cart)
43. Quick coupling on the PE hose 44. Sprinkler and sprinkler coupling
45. Cart safety chain 46. Cart legs with holes for height adjustment

11
Picture 17g: when assembling the cart
pay attention to the position of the flange
indicated by the yellow arrow.
The square pipe directly welded
on the flange has to be on top side.
This way the legs will be angled as shown
by the red arrows.
Optional ballast mounting:
39. Concrete ballast on cart
leg, pict. 17a
39. Concrete ballast on cart
hook, pict 17b
Picture 17d: tire’s axles/legs assembling
.
87. cart width adjustment
88. cart leg height adjustment
Pict.17f: cart safety chain
91. sprinkler ball coupling to
adjust the angle of the sprinkler

12
Machines equipped with computer (option):
Available computers :
76. Controller
Controller 2,3, plus, gsm
75. Galvanized box and solarpanel for computer (battery inside) 77. hose guide fork
78. roller bracket 79. speed reading roller (with two magnets) 80. speed sensor that send
two impulses every revolution to the computer 81. bypass valve for machines with Controller
82. Electric motor for bypass valve
Machines equipped with vacuum or shut off valve (option):
83. Low pressure diaphragm valve
(also called vacuum valve or
discharge valve)
84. Electric shut off valve (only
available with Controller 2, 3,
Plus and Gsm).
If the machine doesn’t have one
of the above listed Controllers,
the shut off valve will not be
electric

13
1. INFORMATION AND TECHNICAL DATA
1.1 DIMENTIONS AND WEIGHTS
ATTENTION: you have to carefully look at the weight and dimensions before any unloading and
assembling of the machine (See chart). The unloading operations have to be done by qualified
persons.
LOOK AT THE MACHINE STRUCTURE ON THE IDENFICATION DATA
STRUCTURE H1 H2 H3 L1 L2 L3 L4
14 2050
80.7” 1770 69.68” 1600 63” 2450 964.57” 1850 72.83£ 1600 63”
16 2150
84,64” 1880 74” 1720 67.72” 2450 964.57” 1850 72.83” 1600 63”
17 2300
90.55” 2030 79.92” 1860 73.23” 2450 964.57” 1850 72.83” 1600 63”
19 S 2510
98.82” 2280 89.76” 2080 81.89” 2450 967.57” 1872,85 50” 1600 50”
19 L 2510
98.82” 2280 89.76” 2080 81.89” 2450 967.57” 2050 80.71” 1800 70.87”
H1 Height with tires
H2 Height with no tires
H3 Height with no tires, chassis and turntable
L1 Length with no sprinkler cart and towing bar
L2 Max width
L3 Necessary space for machines loaded in series on flats with 2,45 m
width
L4 Towing bar size to be added to L3
WEIGHT: always look at the weight indicated in the identification plate on the machine !!
2 FREIGHT, DELIVERY AND ASSEMBLING OF THE MACHINE
Attention: always work with working gloves!!
To facilitate the freight and the loading/unloading some parts
can be dismantled: tires, drum and upper chassis, legs….can be
delivered dismantled.
The producer of the person in charge will fix the machine on the
loading flat paying attention to the instructions. To load and un-
load the machine it’s necessary to hang it on the 4 points indicated
with the symbol
For example as shown in the picture n. 15
If the machine has been delivered with the mounted chassis
Please hang the hooks the same way as above described: 4 points with the symbol indicated above
(example pict. 15).

14
The following instructions are relative to the machine with several dismantled parts. Follow up
carefully the relative instructions.
Controls to be made when you assemble the dismantled parts:

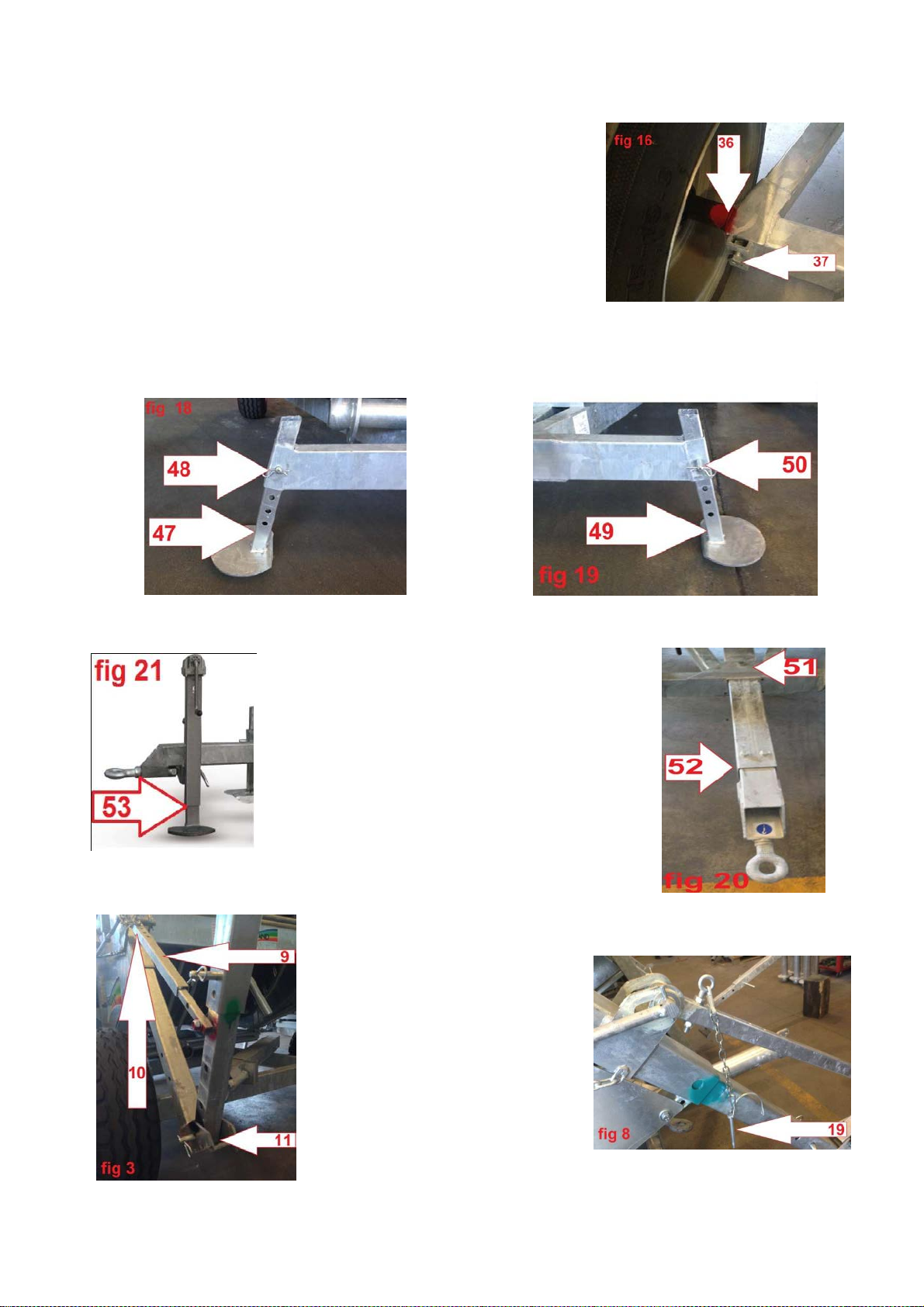

1) Mount the axles for the tires till the indicated point (pos 36
pict 16) and tight well the bolts to fix them (pos 37 pict. 16).
You can adjust the tire’s width but be sure the axle remains
at least 3 cm (1.2”) inside the bolt pos 36 pict. 16
2) Mount the front lateral legs and adjust the height with the pin pict 18 pos 47, 48 and pict 19 pos. 49,
50) to get the chassis horizontal.
3) Mount the towing bar (pict 20 pos. 52) in its
position and tight the bolt (pict 20 pos. 51).
The towing bar can be one piece only. In this case
you should only fix the bolt 51.
4) Mount the front jack (picture 21 POS 53)
5) Mount the automatic loading
system with the pin pos. 11 and the
disengagement pipes as you see
on pict. 3
Leave the pin outside its hole as you
see in pict. 8

15
6) Mount the rear anchoring legs (left
and right side) as you see in pict.10
Place the leg as in the picture and fix it
with the pin pos 35 pict 15 and fix the
jack with the pin 23 pict 10
7) Assemble the sprinkler cart as in all the pictures 17. When the cart is fully assembled control the
position of the bottom of the central pipe point 29 and the pe hose connection pipe: they have to be
close to the ground but don’t touch it. In case those parts touch the ground adjust the legs higher.
Picture 17g: when assembling the cart
pay attention to the position of the flange
indicated by the yellow arrow.
The square pipe directly welded
on the flange has to be on top side.
This way the legs will be angled as shown
by the red arrows.
39. Concrete ballast, if available,
on cart leg, pict. 17a
39. Concrete ballast, if available,
on cart central hook, pict. 17b

16
Picture 17d: mount the tire’s axles as shown in picture 17d.
When position the axle leave some clearance from the leg
(right side) and be sure both bolts can tighten it.
Picture 17c:
87. cart track adjustment on
horizontal pipe
88. cart height adjustment on
vertical legs
Pict.17f: cart safety chain: it
should be open along the pull in
and locked (with the chain around
the loading system pipe) during
the machine shifting.
91. sprinkler ball coupling
Towing bar
8) Mount the sprinkler: pos 44 pict 17

17
9) Place the hand wheel on the pto shaft pict 11 pos 24
10) Turn the hand wheel anti clock wise and move the safety dog (non return tooth) from pos 12 pict 4
to the pos 17 pict 6
11) Now hook a rope or a chain to the hole pos 25 pict 12 and pull
out 4 m(13’) pe hose.
12) Insert the cart male coupling pict 13 pos 29 in the female
coupling of pict 12. Put and tighten the bolt pos 28 pict 13.
13) Put the safety dog (non return tooth) in pos 12 pict 4
(above this page) and roll up the pe hose turning the hand
wheel clock wise.
When the sprinkler cart is hooked to the lifting system
you need a forklift or two persons to help pushing it up
while you continue turning the hand wheel till when the
disengagement lever pict 2 pos 6 is on the left side (turbine
side) of its run.
14) put the pin pos 10 pict 7 in its transport position

18
15) take the hand wheel off the pto shaft and place it in its non
working position pict 5 pos 14
3. PREPARATION OF THE MACHINE TO WORK ON THE FIELD
CONTROLS TO BE DONE:
1) Control the gear box oil level and, if needed, add the Sae 90 oil till the window level
2) Lubricate the machine using any
greasing point on the machine
(look at the symbol page 3) and also
the hole of the lever pos 6 pict 2 and
the hole of the disengagement pos 18
pict 7. It’s necessary to lubricate
every 50 working hours.
3) Check the machine tire pressure: 5 bar (70 psi)
3.1 MACHINE SET UP ON THE FIELD
Attention: always work with the working gloves!!
1) To hook the machine to the tractor, lift it a bit by turning the front jack handle. Then, lift up
the front laterla galvanized stabilizers as much as possible and lower the chassis till when the
complete weight is held by the tractor. Take the front jack off and shift the machine till the
working line (max transport speed is 10 km/h or 6 mph on flat roads).
2) Lift up the chassis a bit by turning the front jack handle and move a bit forward the tractor; adjust
the galvanized legs height to get the chassis horizontal and then lower the front jack by turning the
handle.

19
2) Take the pin of the rotation stop (pict 25 pos 57) off and put the drum in the proper direction
toward the irrigation strip in order to get it aligned with the pull out direction of the pe hose: go
on the back side of the drum and look along the side of the drum its alignment with the pulling
out direction (pict 26). Turn the machine on the turntable till when the drum is well aligned.
3) Put the pin of the rotation stop in its position to stop
the rotation.
4) Lower the anchoring legs pos 21 with the handle
pos 22 and fix them properly in the ground.
5) Take the pin pos 10 pict 7 off and leave it drop down. Put the hand wheel on the pto shaft: turn
the hand wheel anti clock wise and lower the safety dog (non return tooth) from pos 12 pict 4
till pos 17 pict 6.
7) Now turn the hand wheel in clock wise direction to drop down
the sprinkler cart. If the sprinkler cat tries to drop to fast you can
tight more the brake band on the gear box. (pict 14 pos 31)

20
8) Take the hand wheel off the pto shaft and put it in its non working
position (pos 14 pict 5)
9) Hook the towing bar of the sprinkler cart to the tractor and pull out the polyethylene hose on the
field with the max speed of 3 km/h (2 mph). Before you stop the pulling pls reduce the speed
smoothly. Check if the irrigation sector is ok and eventually adjust it. Disconnect the tractor and drive
back to the machine.
Important: always leave at least one polyethylene hose ring rolled on the drum and remember that
along the first use of the machine is necessary to pull out the complete polyethylene hose not leaving
more than one or two rings on the drum so you’ll roll it up with the pressure inside.
10) Place the safety dog (non return tooth) in its working position
as shown in picture 4 pos 12.
11) Connect the main line (hydrant head or pipeline outlet) to the machine by using the flexible hose
and open a bit the hydrant then wait the water comes out from the sprinkler. Then you can open the
hydrant completely.
12) When the sprinkler is irrigating and the pressure is stable you can adjust the speed.
a) turn the by pass lever 45° so the gears inside the gear box will
move: pos 1 pict 1
b) machines with Computer: set up the speed following the
computer instructions.
c) set the left side lever of the gear box , pict 14 pos 30,
as follows:
1 with pressure till 3 bar and speed till 15 m/h
2 with pressure between 3 and 5 bar and speed till 50 m/h
3 with more pressure and to reach higher speed
