Irtouch Systems Active Stylus X1 User manual

IRTouch Active Stylus X1
Instruction

Guangzhou huaxin Electronics Co., Ltd
No.72 Nanxiang 2nd Rd, Science City, Guangzhou, PRC
TABLE OF CONTENTS
1. Product Overview ..................................................................................................................1
2. Indicator Status Statement ....................................................................................................2
3. Factory Default ......................................................................................................................2
4. Pairing ...................................................................................................................................3
5. Charging ................................................................................................................................3
6. Normal Use............................................................................................................................4
7. Specification parameter.........................................................................................................4
8. FCC statements......................................................................................................................5
Document Revision History
Version Date Page Update Details
A0
All First release

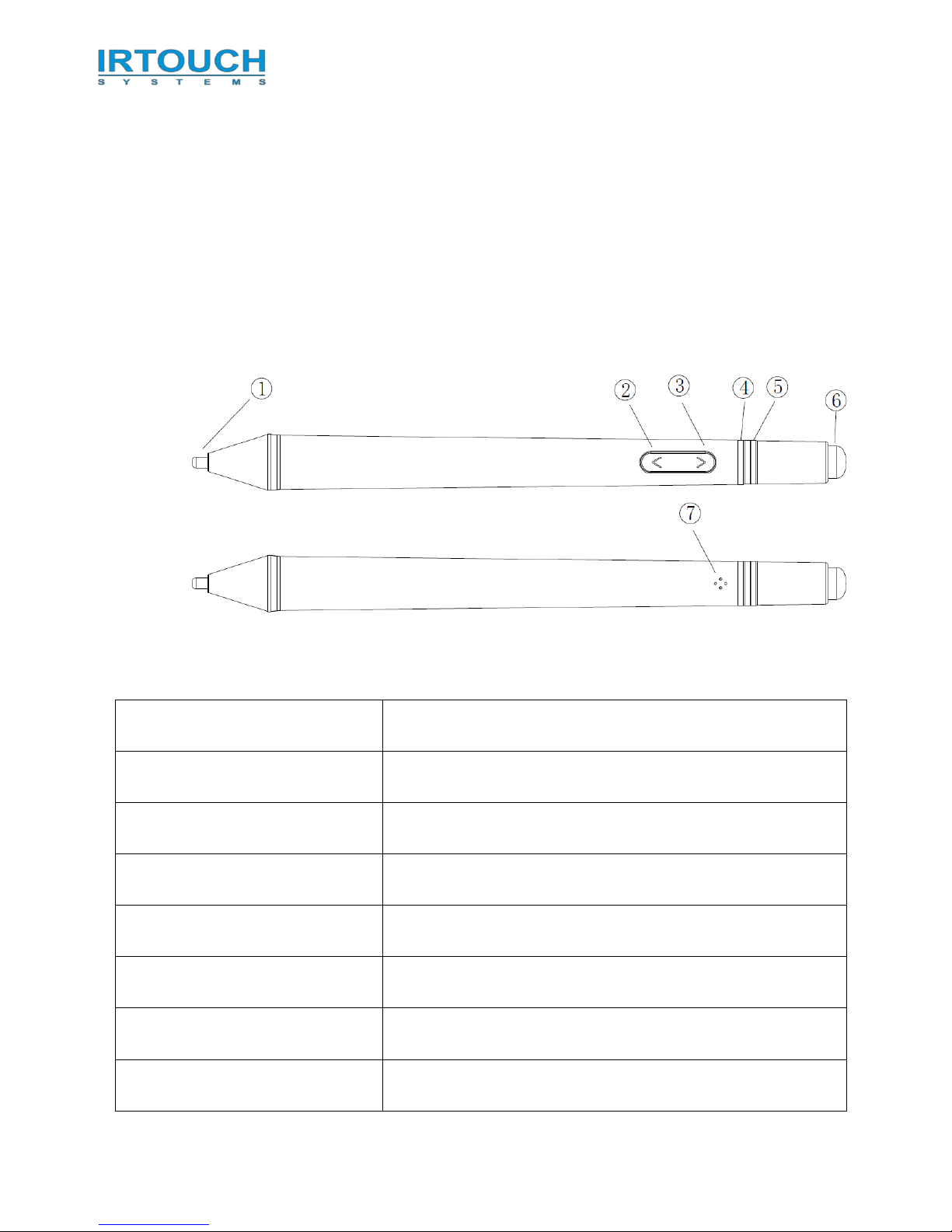

1. Product Overview
receiver supports plug in and play
This product should work with MD series, support pressure sensitivity, 2 colors
recognition, page up and down, palm rejection, 0 writing height and back side eraser
function. Tip is replaceable.
Stylus will enter sleep mode when it stands for 30s, move the stylus can wake it up.
Item Description
①Tip
②PageDown Button
③PageUp Button
④Charging Ring Anode(VCC)
⑤Charging Ring Cathode(GND)
⑥Eraser
⑦Indicator Light
Guangzhou huaxin Electronics Co., Ltd
No.72 Nanxiang 2nd Rd, Science City, Guangzhou, PRC
1

2. Indicator Status Statement
Indicator Status Statement
Blue Light Keeps On Successfully connect to USB Dongle, normal working condition
Blue Light Flicker with Slow Speed Unsuccessfully connect to USB Dongle
Red Light Keeps on Under Pairing
Red Light Flicker 1 second Successfully pair
Green Light Keeps On Charging
Red Light Flicker every 3 second Battery Capacity is Low
Purple Light Flicker with Slow Speed Factory Default
White Light Flicker with Slow Speed Under Upgrading
Light Off Sleep Mode
3. Factory Default
In order to save the power on delivery process, the stylus is set as factory default.
When the stylus under factory default condition, people press PageDown or PageUp
Button the indicator will show as Purple Light Flicker with Slow Speed and 30s will be
sleep mode again. The stylus will enter normal working condition after pairing.
If want to re-enter factory default, need to use software via PC.
Guangzhou huaxin Electronics Co., Ltd
No.72 Nanxiang 2nd Rd, Science City, Guangzhou, PRC
2

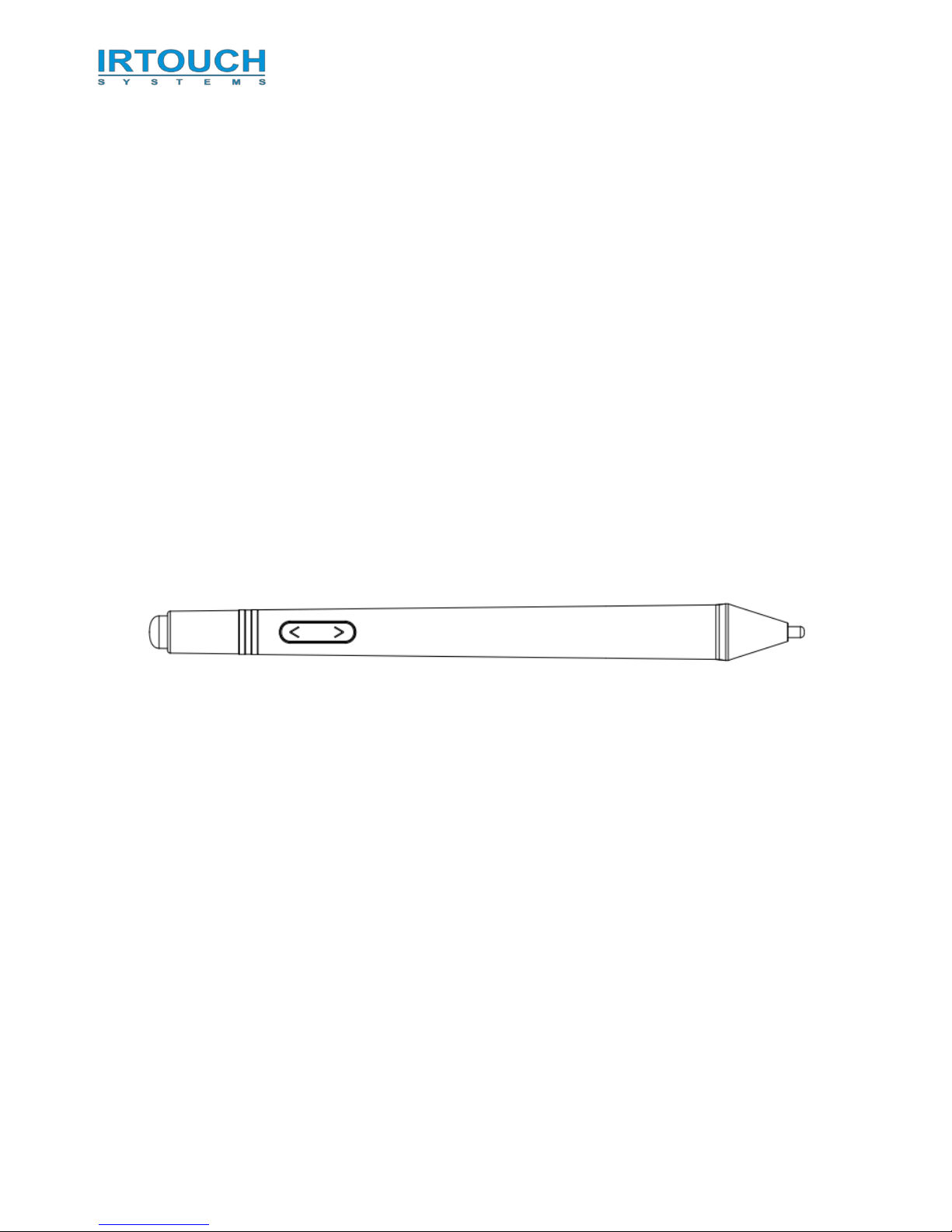

4. Pairing
Stylus need to pair then can work
Pairing process as below
①Connect USB Dongle to PC, the operating system will automatically install related driver.
②Press PageUp and PageDown button at the same time, the indicator will turn in red light keeps on
condition after 5s.
③Make the back side of stylus be close to Dongle, indicator will turn in red light flicker with fast
speed condition.
④Release the button and quit the pairing process.
5. Charging
Under normal use condition, indicator will turn in red light flicker every 3 second
condition if battery capacity is low.
The user needs to provide a 5 v power supply, and will power is the cathode of
receiving the corresponding charging ring is negative. When successfully connect
the stylus will enter to charging condition and indicator will turn in green light
keeps on condition.
Guangzhou huaxin Electronics Co., Ltd
No.72 Nanxiang 2nd Rd, Science City, Guangzhou, PRC
3

6. Normal Use
Stylus will enter sleep mode when it stands for 30s, move the stylus can wake it up.
Can press PageDown and PageUp buttons to fulfill page turning function.
Customers can fulfill the function that pressure sensitivity, 2 colors recognition, page up
and down, palm rejection,0 writing height and back side eraser basing on TouchSDK.
7. Specification parameter
Item Specification
Pen
Dimension 167.0*14.3*2.8mm
Weight 19.00g
Pressure Level 1024Level
Report Rate 200Hz
Power Supply Mode Lithium Battery
Continuous Working Hours > 8h
Stand-by Time > 5 days
Communication Mode 2.4G
Carrier Frequency 2402~2480MHz
RF Power <8 dBm
Communication distance Max transmission distance for pressure is 3m；
Max transmission distance for button is 10m
；
Battery Type Polymer li-ion battery
Battery capacity 210 mAh
Battery Nominal Voltage 3.7V
Charging Voltage 5V
Charge Current 300 mA
Working Temperature -20~45℃
Software Versioning V1.0.14
Dongle
Dimension 18.42*14.47*5.91mm
Weight 1.7g
Power Supply Mode USB
Operating Voltage 5V
Operating Current < 100 mA
RF Power <3 dBm
OS Support Driver free for Windows&Android OS
Software Versioning V1.0.7
Guangzhou huaxin Electronics Co., Ltd
No.72 Nanxiang 2nd Rd, Science City, Guangzhou, PRC
4

8. FCC statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. Changes or modifications not expressly approved by the part responsible for
compliance could void the user's authority to operate the equipment.
NOTE: "This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help."
