ISC challenge Xtreme CXHT 550 User manual

Hedge Trimmer
Artikel-Nr.:
Ident-Nr.:

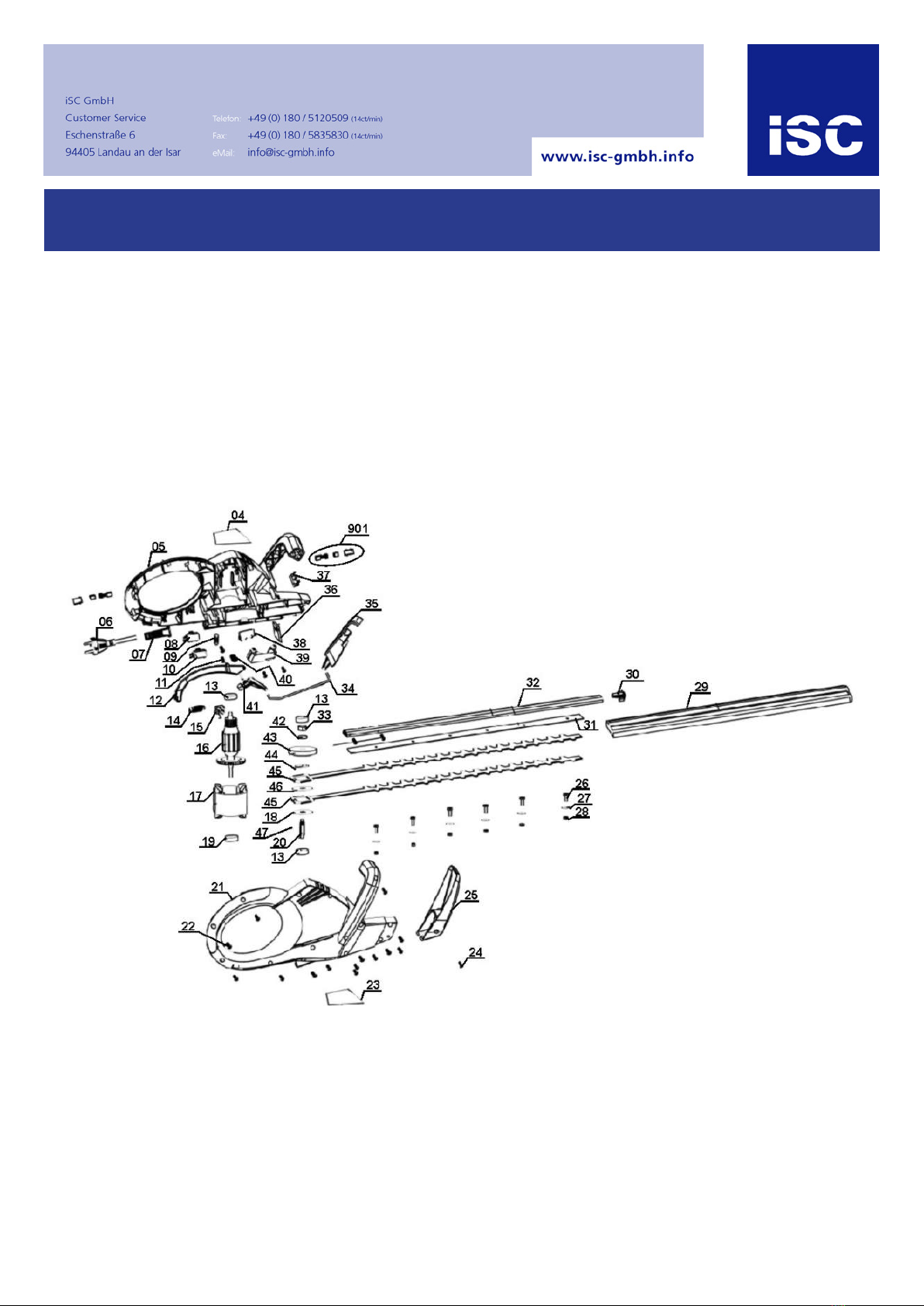

Komponenten / Ersatzteile
Position Artikel-Nr. Beschreibung
8 340344001008 Switch
10 340344001010 Switch
13 340344001013 Ball bearing
18 340344001018 Splint of nether blade
20 340344001020 Principal axis
25 340344001025 Safety cover
26 340344001026 Screw
27 340344001027 Little washer
28 340344001028 Locknut
29 340344001029 Balde sheath
32 340344001032 Slot bar
33 340344001033 Nut
40 340344001040 Spring
42 340344001042 Spring washer
43 340344001043 Gear
44 340344001044 Swing block
45 340344001045 blade
46 340344001046 Splint between blades
47 340344001047 Key
901 340344001901 carbon brush complete (pair)

CXHT 550
EH-Art.-No.: 34.034.42

Operating Instructions Hedge Trimmer
" WARNING! PLEASE READ THESE INSTRUCTIONS
BEFORE OPERATING THIS UNIT"
"KEEP THIS MANUAL FOR FUTURE REFERENCE”
쏾

2
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
Read and follow the operating instructions and safet
information before using for the first time.
Always wear PPE (Personal Protective Clothing).


Wear ear protection!
Ꮯ
Beware of electrical voltage
Ꮨ
Wear eye protection!


3
Helpline No: UK 0151 649 1500 / IRE 189 094 6244

Read the complete operating manual with due care
and keep it in a safe place. If you give the unit to any
other person, hand over this operating manual as well!
Table of contents page
1. General safety regulations 6

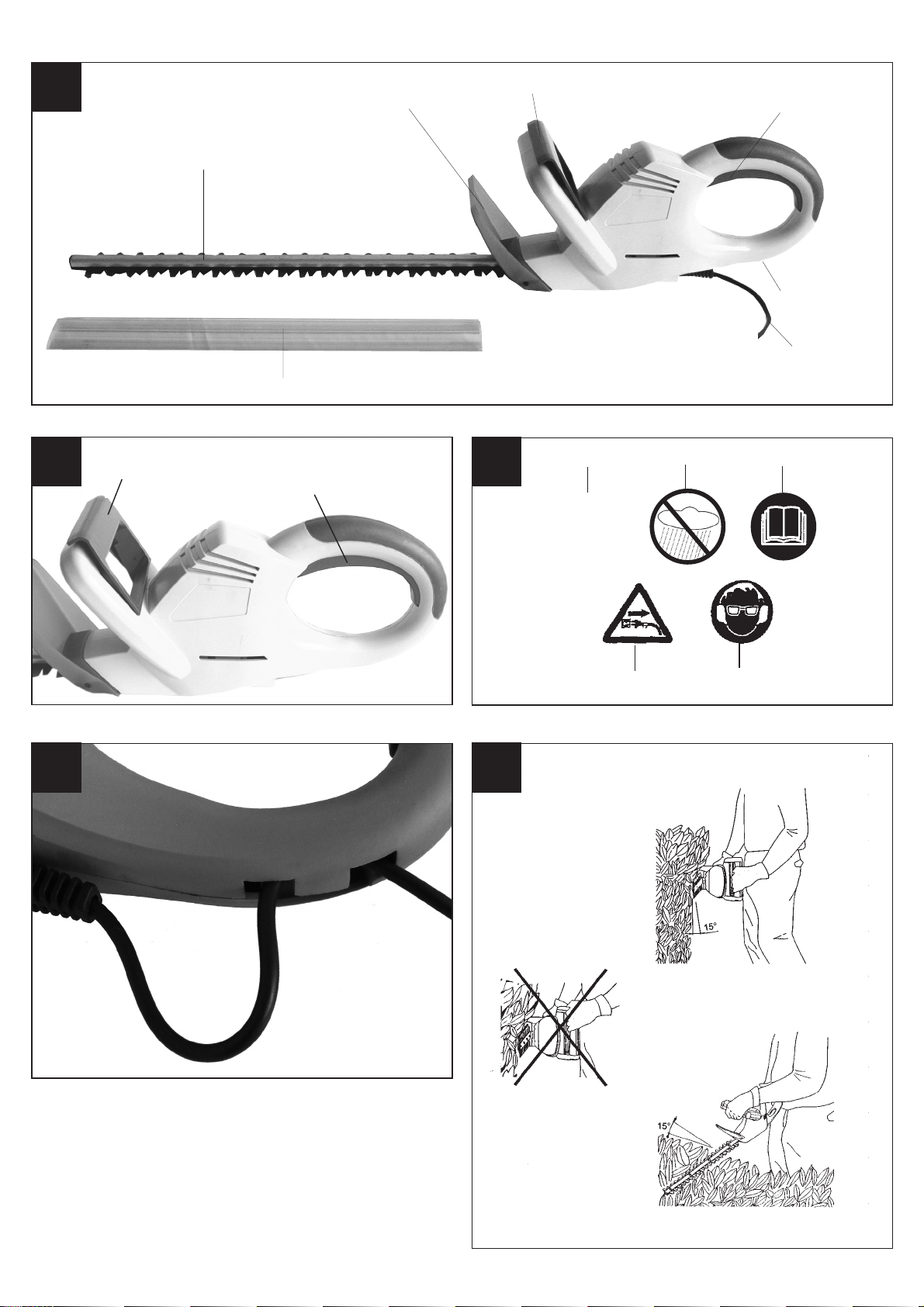

2. Layout 8
3. Explanation of the sign 8
4. Technical data 8
5. Mains connection 8
6. Start-up and operation 8

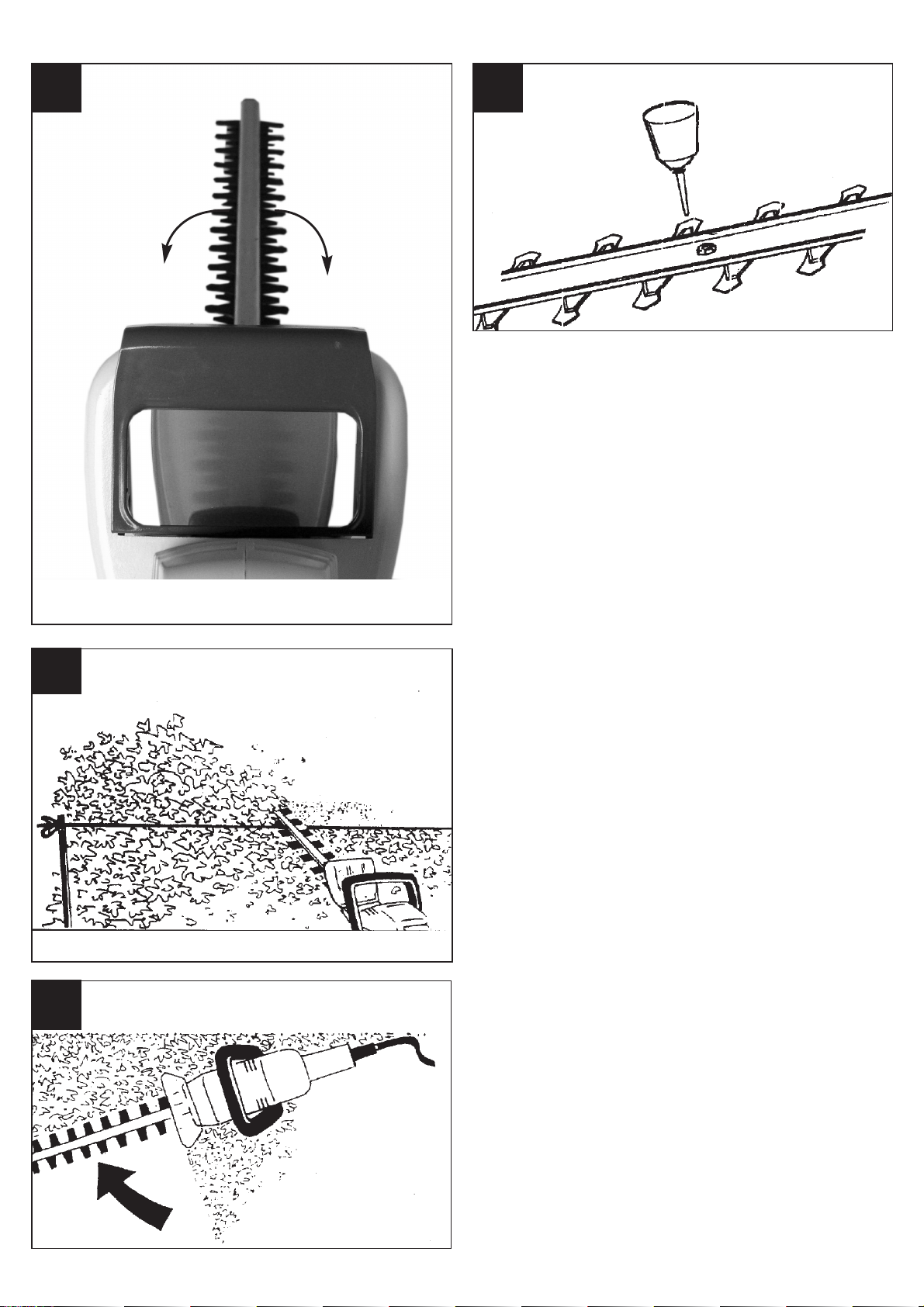

7. Notes on working practice 8
8. Maintenance, care and storage 9
9. Troubleshooting 9
10. Waste disposal 9
11. Ordering replacement parts 9

4
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
1
45
2
햸


햲


3

123
5
4


5
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
8
9
7
6

6
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
GB
General safety regulations for electric tools
CAUTION: Read all safety regulations and
instructions.
Any failures made in following the safety regulations
and instructions may result in an electric shock, fire
and/or serious injury.
Keep all safety regulations and instructions in a
safe place for future use.
The term “electric tool” used in the safety regulations
refers to electric tools operated from the mains power
supply (with a power cable) and to battery operated
electric tools (without a power cable).
1. Workplace safety
앬Keep your work area clean and well illuminat-
ed. Untidy or unlit work areas can result in acci-
dents.
앬Do not use this tool in a potentially explosive
environment containing combustible liquids,
gases or dust.
Electric tools generate sparks, which can in turn
ignite dust or vapors.
앬Keep children and other persons away from
the electric tool while it is being used.
Allowing yourself to get distracted can cause you
to lose control of the tool.
2. ELECTRICAL SAFETY
앬The toolʼs connector plug must be able to fit
into the socket outlet. Do not modify the plug
in any way! Do not use adapter plugs in
conjunction with electrically grounded tools.
Unmodified plugs and matching socket outlets
reduce the risk of an electric shock.
앬Avoid touching grounded surfaces, such as
those of pipes/tubes, heaters, cookers and
refrigerators.
There is an increased risk of getting an electric
shock if you are electrically grounded.
앬Keep the tool away from rain and moisture/wet
conditions.
Penetration of water into an electric tool increases
the risk of an electric shock.
앬Do not use the cable to carry the tool, hang it
up or pull the plug out of the socket. Keep the
cable away from sources of heat, oil, sharp
edges and moving tool parts.
Damaged or tangled cable increases the risk of an
electric shock.
앬If you intend to use an electric tool outdoors,
ensure that you only use extension cable that
is approved for outdoor applications.
Using extension cable that is approved for outdoor
applications reduces the risk of an electric shock.
앬If operation of the electric tool in a damp envi-
ronment can not be avoided, use a earth-leak-
age circuit-breaker. The earth-leakage circuit-
breaker reduces the risk of an electric shock.
3. PERSONAL SAFETY
앬Be alert, work conscientiously and exercise
appropriate caution when using the electric
tool. Do not use the tool if you are tired or are
under the influence of drugs/medication or
alcohol.
One moment of carelessness or lack of attention
when using the electric tool can cause serious
bodily injury!
앬Always wear personal protective equipment
(PPE), including safety goggles.
Wearing personal protective equipment such as a
dust mask, non-slip footwear, protective headgear
and ear muffs (depending upon the type of electric
tool and the particular application) reduces the risk
of sustaining injury.
앬Make sure that the tool cannot start up acci-
dentally. Ensure that the electric tool is
switched off before you connect the tool to the
power supply and/or insert the battery, or pick
up or carry the tool.
Physically touching the switch with your finger
when carrying the tool or connecting the tool to
the power supply switched on can lead to
accidents.
앬Remove adjusting tools/wrench(es) prior to
switching on the power tool.
A tool or wrench that is positioned inside a rotating
power tool part can cause injury.
앬Avoid abnormal working postures. Make sure
you stand squarely and keep your balance at
all times.
This way, you will be able to have better control
over the tool in unexpected situations.
앬Wear suitable clothes. Never wear loose fitting
clothes or jewelry. Keep hair, clothes and
gloves away from moving parts.
Loose clothing, dangling jewelry and long hair can
be caught by moving parts.
앬If dust extraction and dust collection devices
can be mounted, ensure that these are
connected and are properly used.
The use of a dust extraction system can reduce
the danger posed by dust.

7
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
GB
4. Using the treatment of electric tools
앬Do not overload your tool. Only use suitable
electric tools to perform your work.
Using the right electric tool allows you to work
better and safer within the toolʼs quoted capacity
range.
앬Do not use an electric tool whose switch is
defective.
An electric tool that no longer can be switched on
or off is dangerous and must be repaired.
앬Pull the plug out of the socket and/or remove
the battery before making any adjustments to
the tool, changing accessories or put the tool
down.
This precaution eliminates the possibility of
inadvertently starting the tool.
앬When not in use, store electric tools out of the
reach of children. Do not allow those persons
to use this tool who are unfamiliar with it or
who have not read these instructions.
Electric tools are dangerous when they are used
by inexperienced persons.
앬Take good care of your tool. Check that
moving parts properly function and do not jam,
that parts are not broken off or damaged in any
way and that the tool can be used to its full
capacity. Have damaged parts repaired prior to
using the tool.
The cause of many accidents can be traced back
to poorly maintained electric tools.
앬Keep your blades sharp and clean.
Properly maintained blades with sharp edges jam
less frequently and are easier to use.
앬Make sure to use electric tools, accessories,
attachments, etc. in accordance with these
instructions. Take the conditions in your work
area and the job in hand into account.
Using electric tools for applications other than
those intended can lead to dangerous situations.
5. SERVICE
앬Have your tool repaired only by authorized
specialists using original replacement parts.
This will ensure that your tool remains safe to use.
Safety instructions for hedge trimmers
Read the safety instructions and operating instruc-
tions carefully and follow them.
1. Before carrying out any work on the hedge trim-
mer, pull the mains plug, for example
- Damage to the cable
- Cleaning the blades
- Checking in the event of faults
- Cleaning and maintenance
- Putting down without supervision
2. This machine can cause serious injuries. Read
the operating instructions carefully for details of
the correct handling, preparation, maintenance,
starting and shutting down the machine. Make
yourself familiar with all the adjustable parts and
how to use the machine correctly.
3. The hedge trimmer must be held in both hands.
4. Check the connection cable for signs of damage
and ageing before use.
5. The hedge trimmer may only be used if the con-
nection cable is undamaged.
6. Check the cutter at regular intervals for signs of
damage and have any repair work to the cutting
tool carried out correctly and then ask your elec-
trician.
7. If the cutter blocks, for example due to thick
branches, etc. the hedge trimmer must be
stopped immediately – pull the plug and only
then may the cause of the blockage be removed.
8. Always place the cover over the cutter when
transporting and storing the machine.
9. Only use cables and plug equipment that is
approved for outdoor use.
- Connection cable HO7RN-F 2x1.0 with molded
plug.
- Extension cable HO7RN-F 3G1.5 with splash-
proof plug with earth contact and protective con-
tact coupling.
- We recommend that you use a leakage current
protection device or a residual current circuit
breaker with a maximum trip current of 30 mA
with electric tools. Ask your electrician.
10. Check and service the hedge trimmer properly at
regular intervals. Only replace damaged blades
in pairs. If the trimmer is damaged by dropping or
striking, you must have it checked by an expert.
11. Do not use the machine if it has a damaged or
excessively worn cutter.
12. Make yourself familiar with your surroundings
and watch for possible dangers that you may not
be able to hear due to the noise generated by the
machine.
13. Never try to work with an incomplete machine or
a machine with unapproved modifications.
14. Do not use the hedge trimmer when people are
nearby, particularly children or animals.
15. Children are not allowed to use the hedge trim-
mer.
16. Always ensure that all the handles and safety
equipment is fitted when the hedge trimmer is in
use.
17. Keep all body parts away from the blade.

8
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
GB
Never attempt to remove the cuttings with the
blades running or to hold material you wish
to cut. Always switch off the device before
attempting to remove any jammed cuttings. A
memory of inattentiveness when using the hedge
trimmer may result in serious injuries.
18. Hold the hedge trimmer by the handled when
the blades are at a standstill, always close the
safety cover when transporting or storing the
hedge trimmer. Handling the machine with care
will reduce the risk of injury from the blades.
19. Keep the cable away from the cutting area.
Whilst you are working the cable may be covered
in the branches which means that you might cut
through it by accident,
20. Look in the hedge for concealed objects, such as
wire fences, before starting work.
21. If the connection lead has to be replaced, this
work must be carried out by the manufacturer or
one of its agents to prevent safety risks.
2. Layout (see Fig. 1)
1. Cutter rail
2. Hand guard
3. Steady grip with button switch
4. Handle with button switch
5. Stress-relief clip
6. Power cable
7. Cutter guard
Important! You must never use the hedge trim-
mer without wearing gloves.
3. Explanation of the sign (see Fig. 3)
1. Warning
2. Keep out of the rain and protect from getting wet.
3. Read the operating instructions before using for
the first time.
4. Pull the plug from the power supply immediately
if the cable gets damaged or severed.
5. Wear goggles and ear muffs.
4. Technical data
Mains connection 230-240 V ~ 50 Hz
Power input 550 watts
Cutting length 465 mm
Blade length 540 mm
Tooth spacing 18 mm
Cuts/min 3200
Cutting thickness max. 14 mm
LWA sound power level 99 dB(A)
LPA sound pressure level 84.4 dB(A)
Vibration aw: 2.2 m/s2
Weight 3.0 kg
5. Mains connection
The machine may only be operated with single-phase
alternating current from a 230V AC 50Hz supply.
Before you use the machine, make sure that the
mains voltage complies with the specifications on the
rating plate.
6. Start-up and operation
Important! This hedge trimmer is suitable for cutting
hedges, bushes and shrubs. Any use which is not
expressly permitted in manual may result in damage
to the hedge trimmer and place the user in serious
danger.
The hedge trimmer is equipped with a two-handed
safety switch.
The machine works only when the switch on the
steady grip (Figure 2 / Item 1) is pressed with one
hand and the switch on the handle (Figure 2 / Item 2)
is pressed with the other hand.
If either switch is released, the cutters will stop mov-
ing.
Please watch out for the cutters as they slow
down to a standstill.
- Please check that the cutters work properly. The
twin-bladed cutters rotate in opposite directions,
thus guaranteeing high cutting performance and
smooth operation.
- Before use, fasten the extension cable in the
stress-relief clip (see Fig. 4).
- When working outdoors, use extension cables that
are approved for the purpose.
7. Notes on working practice
앬A hedge trimmer can be used to cut shrubs and
bushes as well as hedges.
앬To obtain the best cutting results, hold the hedge
trimmer so that the cutter teeth are at an angle of
approx. 15° in relation to the hedge (see Figure
5).
앬The twin-bladed cutters rotate in opposite direc-

9
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
GB
tions, thus enabling cutting in both directions (see
Figure 6).
앬It is recommended to tie a guide line of string or
the like along the hedge so that you cut the hedge
to a level height. Cut off all branches which protru
de beyond the guide line (see Figure 7).
앬Cut the sides of the hedge with curve-shaped
movements from the bottom up (see Figure 8).
8. Maintenance, care and storage
앬Before you clean the machine or put it away,
switch off and pull out the power plug.
앬The cutters should be cleaned and lubricated at
regular intervals in order to ensure best perfor
mance at all times. Remove deposits with a brush
and apply a thin film of oil (see Figure 9).
Please use biologically degradable oils.
앬Clean the plastic body with a mild household clea-
ning agent and a damp cloth. Do not use aggres-
sive agents or solvents.
앬Prevent water getting inside the device at all cost.
9. Troubleshooting
앬The machine does not work: Check that the power
cable is connected properly and check the mains
fuses. If the machine will not work in spite of the
voltage supply being OK, please contact the help-
line.
10. Waste disposal
Important!
The hedge trimmer and its accessories are made of
various types of material, such as metal and plastic.
Defective components must be disposed of as spe-
cial waste. Ask your dealer or your local council.
11. Ordering replacement parts
Please quote the following data when ordering repla-
cement parts:
앬Type of machine
앬Article number of the machine
앬Identification number of the machine
앬Replacement part number of the part required
Helpline Numbers:
UK: 0151 649 1500
IRE: 189 094 6244

10
Helpline No: UK 0151 649 1500 / IRE 189 094 6244
kerklärt folgende Konformität gemäß EU-Richtlinie
und Normen für Artikel
tdeclares conformity with the EU Directive
and standards marked below for the article
pdéclare la conformité suivante selon la
directive CE et les normes concernant lʼarticle
verklaart de volgende conformiteit in overeen-
stemming met de EU-richtlijn en normen voor
het artikel
mdeclara la siguiente conformidad a tenor de la
directiva y normas de la UE para el artículo
Odeclara a seguinte conformidade de acordo
com a directiva CE e normas para o artigo
Uförklarar följande överensstämmelse enl. EU-
direktiv och standarder för artikeln
qilmoittaa seuraavaa Euroopan unionin direkti-
ivien ja normien mukaista yhdenmukaisuutta
tuotteelle
erklærer herved følgende samsvar med EU-
direktiv og standarder for artikkel
Tзаявляет о соответствии товара
следующим директивам и нормам EC
Bizjavljuje sljedeću uskladjenost s odredbama i
normama EU za artikl.
Qdeclarå urmåtoarea conformitate cu linia direc-
toare CE μi normele valabile pentru articolul.
Zürün ile ilgili olarak AB Yönetmelikleri ve
Normlar∂ gere©ince aμa©∂daki uygunluk aç∂kla
mas∂n∂ sunar.
z‰ËÏÒÓÂÈ ÙËÓ ·ÎfiÏÔ˘ıË Û˘Ìʈӛ· Û‡Ìʈӷ ÌÂ
ÙËÓ √‰ËÁ›· ∂∂ Î·È Ù· ÚfiÙ˘Ô ÁÈ· ÙÔ ÚÔ˚fiÓ
Cdichiara la seguente conformità secondo la
direttiva UE e le norme per lʼarticolo
lattesterer følgende overensstemmelse i
henhold til EU-direktiv og standarder for produkt
jprohlašuje následující shodu podle směrnice
EU a norem pro výrobek.
Aa következő konformitást jelenti ki a termékek-
re vonatkozó EU-irányvonalak és normák szerint
Xpojasnjuje sledečo skladnost po smernici EU
in normah za artikel.
deklaruje zgodność wymienionego poniżej
artykułu z następującymi normami na
podstawie dyrektywy WE.
Wvydáva nasledujúce prehlásenie o zhode podľa
smernice EÚ a noriem pre výrobok.
eдеклаpиpа следното съответствие съгласно
диpективите и ноpмите на ЕС за пpодукта.
1заявляє про відповідність згідно з Директивою
ЄС та стандартами, чинними для даного товару
.deklareerib vastavuse järgnevatele EL direktiivi
dele ja normidele
Gdeklaruoja atitikti pagal ES direktyvas ir normas
straipsniui
4izjavljuje sledeçi konformitet u skladu s odred
bom EZ i normama za artikl
HAtbilstības sertifikāts apliecina zemāk minēto preču
atbilstību ES direktīvām un standartiem
ESamræmisyfirl‡sing sta›festir eftirfarandi samræmi
samkvæmt reglum Evfrópubandalagsins og stö›lum
fyrir vörur
Konformitätserklärung ISC-GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Hedge Trimmer CXHT 550
Art.-Nr.: 34.034.42 I.-Nr.: 01017 Archivierung: 3403440-07-4175500
Subject to change without notice
98/37/EC
73/23/EEC_93/68/EEC
97/23/EC
2004/108/EC
90/396/EEC
89/686/EEC
87/404/EEC
R&TTED 1999/5/EC
2000/14/EC_2005/88/EC:
95/54/EC:
97/68/EC:
X
X
X
X
EN 50144-1; EN 50144-2-15; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3;
KBV V
LWM = 95 dB; LWA = 99 dB
Landau/Isar, den 25.09.2007
Gottelt
Product-Management
Weichselgartner
General-Manager

11
Helpline No: UK 0151 649 1500 / IRE 189 094 6244

The reprinting or reproduction by any other means, in whole or in part,
of documentation and papers accompanying products is permitted only
with the express consent of ISC GmbH.  Technical changes subject to change

tFor EU countries only
Never place any electric tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its
implementation in national laws, old electric tools have to be separated from other waste and disposed of
in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the demand to return electrical devices:
As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the
device is properly recycled if ownership is relinquished. This can also be done by handing over the used
device to a returns center, which will dispose of it in accordance with national commercial and industrial
waste management legislation. This does not apply to the accessories and auxiliary equipment without
any electrical components which are included with the used device.
EH 09/2007
