ISEA BCIR15-435H User manual

Ceiling Type Radiant Heating Panel
Instructions for use
( Basic Type, Display Type )
ISEA Normal Model
ISEA Power Model
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

The product data and exterior design may be altered without prior notice to the user for enhanced quality.
1. Safety Precautions
2. Product Configuration ( Basic Type )
3. Product Configuration ( Display Type )
4.I nstallation Procedure
5. Circuit Diagram
6. Method of Use
7. Product Data ( Normal Type )
8. Product Data ( Power Type )
9. Maintenance
10. Warranty
.................................................................................................... 3 p
................................................................... 4 p
................................................................... 5 p
............................................................................................. 6 p
........................................................................................................... 7 p
........................................................................................................... 8 p
................................................................................... 9 p
................................................................................... 10 p
............................................................................................................. 11 p
............................................................................................................. 12 p
Table of Contents
02

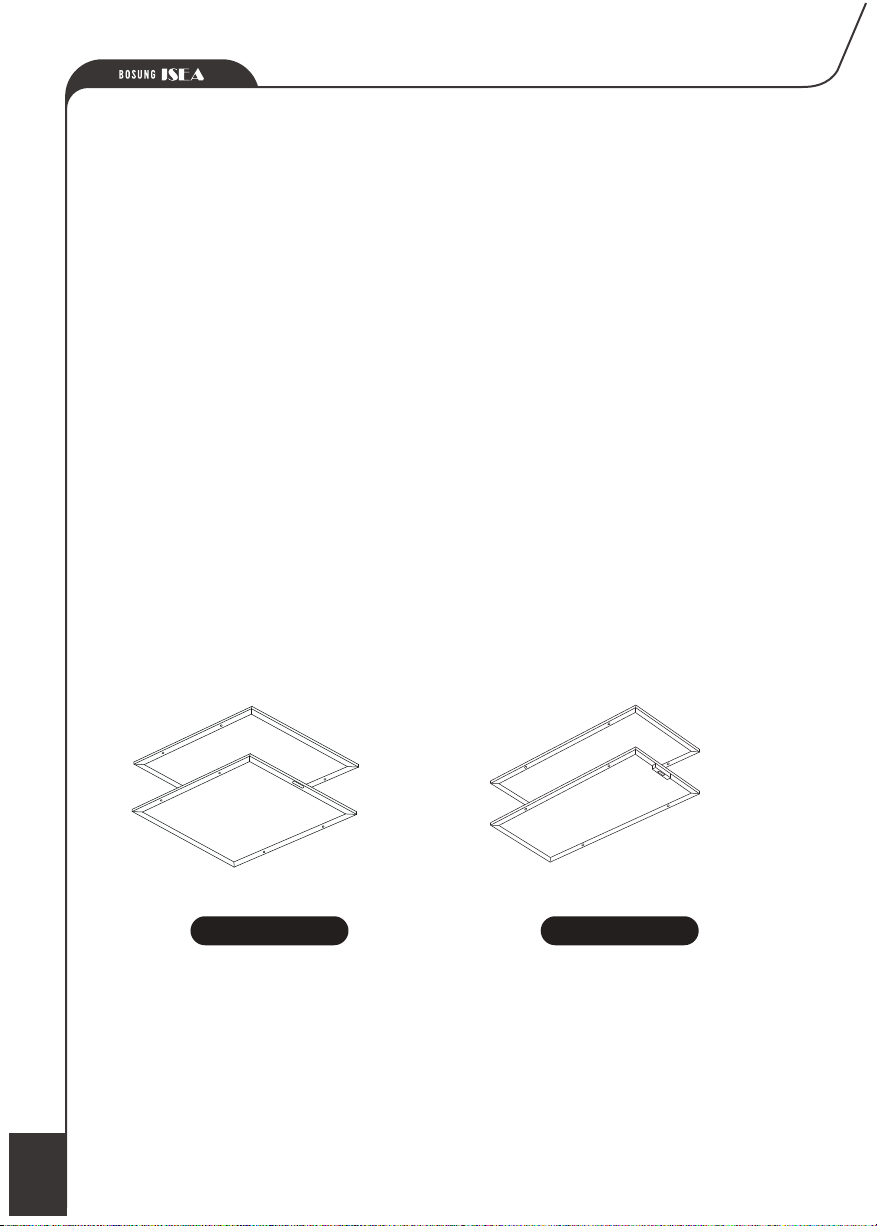

RADIENT HEATING PANEL
ISEA Power ModelISEA Normal Model
( Basic Type )
( Display Type)
( Basic Type )
( Display Type )
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

Do not remodel or tear the product apart.
By doing so, the product may be damaged, which may lead to damageof property.
Do not place flammable and combustible substances near the product.
Burns dueto fire accident and damage of property may occur.
Please pay attention that person (includingchildren) with lacking physical, sensory, mental ability or
experience and knowledge do not use this product without supervision or direction.
Please avoid especially children from playing with or touching this product.
If power cable is damaged, toavoid dangers, only manufacturer, authorized agent or qualified person
must change the switch.
For additionalprotection to the bathroom electric circuit, it is good to install a residual current
device(RCT) which does not exceed the rated residual current of 30mA.
When using a conduit, use of strong conduit (KS certified) or high strength flexible tube after zinc
platingis recommended.
Must use certified (KC or KS) verifiable temperature controller.
When using several electricity boards, the maximum power consumption for 1 temperature
controller is 3kW.
When connecting power, must connect to power source with earth leakage breaker installed and please
connect ground wire. Danger of damage, electric shock, fire.
Please use where not in direct contact with water.
Do not poke or hit the heating panel with a stick or pole, etc.
Please adhere to the installation directions. Donot use on floor as product is ceiling type.
When cleaningproduct,donot spray water or detergents.
It may lead to discoloration and stains.
When not in use,please unplug the power switch.
Do not touch the heating panel as it is very hot.Danger of burns ( Surface temperature Normal type
BCIR15-450H etc. : about 120~130°C / power type ENIRM-200 etc. : about 240~260°C )
This product must be installed by manufacturer, sales agent, or licensed professional.
03
RADIENT HEATING PANEL
Safety Precautions
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it
has been placed or installed in its intended normal operating position and they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or
perform user maintenance.
CAUTION ― Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.

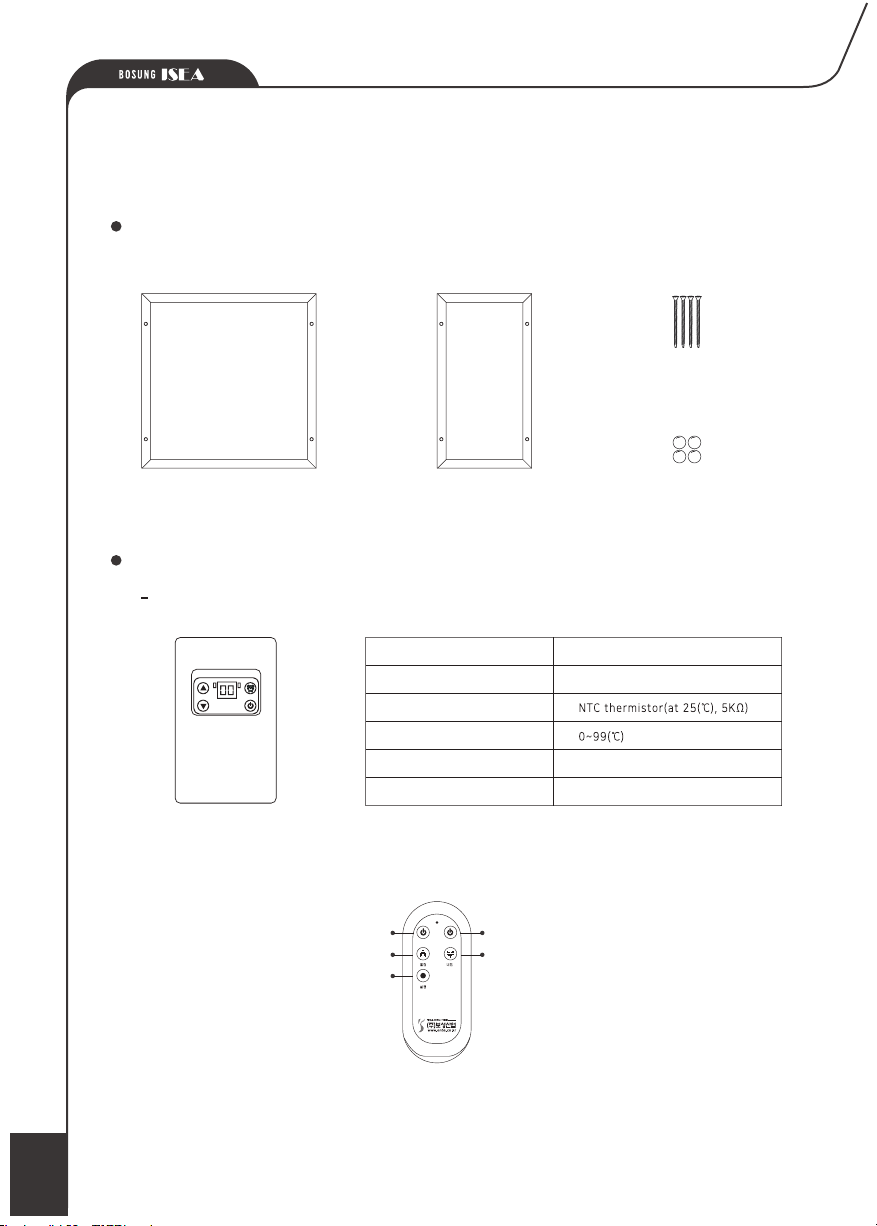

( Temperature Controller )
( Tightening Screws )
( Normal Basic Type ) ( Finishing Cap )
Basic Type( Normal, Power )
Sold Separately
04
RADIENT HEATING PANEL
Product Configuration ( Basic Type )
°C
Level
( Power Basic Type )
( Temperature Controller Data )
Power Requirements AC 220V, 60Hz
Maximum Burden AC 220V, 18A 4KW
Sensor Data
Temperature Setting Range
Exterior materialFlame Retardant ABS
Exterior Size (mm)70(W)*120(H)*28(D)
( Remote Controller )
Power On
 
Raise Temperature/ Time
Setting
Power Off
Lower Temperature/ Time
Temperature Controller + Remote Control
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

Product Configuration ( Display Type )
05
RADIENT HEATING PANEL
Digital Display Type ( Normal, Power )
( Temperature Controller )
( Tightening Screws )
( Normal Display Type ) ( Finishing Cap )
( Power Display Type )
Temperature Controller + Remote Control
Connect upon installation
Display is installed in product.
( Display type has temperature controller and remote controller separately packaged.
The product’s display signal connector and controller connector must be connected upon installation. )
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr
( Remote Controller )
Power On
 
Raise Temperature/ Time
Setting
Power Off
Lower Temperature/ Time

06
RADIENT HEATING PANEL
After signing
Product
Installation Procedure
Installation Procedure
Using the screws included, fix onto the M bar
or square lumber through the heater’s edge
frame holes, and apply the finishing caps.
2
Connect the 1st power “IN” to the controller,
and the panel side lines “OUT” to the controller.
(refer to the temperature controller user method)
4
Remove 1~2 more ceiling finishing materials
than the size heater on position of installation.
1
After confirming that it is stably fixed,
install the temperature controller where
comfortable and connect the heater and
connectors. (Must perform after blocking power)
3
After wiring, wire the temperature sensor
cable (red line with black ends) included with
the temperature controller’s “SEN” part and
install more than 50cm away from heater.
(refer to temperature controller user method)
5
In case of display type, connect the power
cables like basic type and connect the display
signal cable.
6
In case of display type, after connecting the
power cable and signal connector cable, place
it on the ceiling finishing material next to the
product and not on top.
7
The grounding of the power and product
must be connected.
8
If the ceiling is not appropriate for fixing
by screws (plaster board, etc.), reinforce the
products edges with silicon
9
2
1
7
6
Conclusion
Indoor
Inside the ceiling
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

Circuit Diagram
07
RADIENT HEATING PANEL
( Installation of 1 product ) ( Installation of 2 product )
Basic Type Circuit Diagram
Display Type Circuit Diagram
Platform
220V
Display connector
OutputInput
Ground
Ground
Farinfrared
Radient
Heating Panel
Farinfrared
Radient
Heating Panel
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr
Farinfrared
Radient
Heating Panel
Platform
220V
OutputInput
Ground
Ground
Farinfrared
Radient
Heating Panel
Platform
220V
OutputInput
Ground
Ground

08
RADIENT HEATING PANEL
Method of Use
Using the Temperature Controller
Precautions when using the Temperature Controller
· When using the product, keep the appropriate load.
· When wiring the In/Output, use the appropriate terminal.
· The current product is an electric heater dedicated temperature controller device, and negligence may cause fire
or accident. Please use with care.
· Manufacturer will not take responsibility for defects or fire caused by negligence use.
· Place the cables connected to the temperature controller and load into the cable protector tube.
· When connecting the temperature controller power cable and output cable, tie them tight.
· Choose place of usage where rain/ wind/ dust/ humidity is not found, and vibration/ shock-free.
· When user is not present, please OFF (disconnect) the circuit breaker ( power cable ).
· If product malfunctions, please inquire installation company for checkup. Please get safety diagnosis from a
professional 1 time a year.
1. Display will show the current temperature when power switch is “ON”.
2. Set the designated temperature with Raise / Lower buttons.
3. If electricity flows on load Output (red lamp) will display.
4. After achieving the set temperature Output (red lamp) will turn off and automatically maintain the set temperature.
5. Sensor cable may be used by cutting or extending as necessary.
6. The current Temperature Controller is an electric heating dedicated controller with maximum load of 4.0kw/220V.
( Recommended use within 3.0kw )
7. Temperature setting range is 0°C ~ 60°C.
8. For safety reasons, please install a residual leakage breaker prior to the temperature controller.
9. Where sensor is not installed or cable is cut or shorted during usage, will automatically divert to internal Timer,
operation will be as the Timer periodic chart.
Timer Periodic Chart Detailed drawing of Temperature Controller
Output (Heater)
OUT
INPUT : 110VAC or 220VAC, 18A
OUTPUT : 110VAC - Max, 2kw
220VAC - Max, 4kw
SensorInput
( Controller Front side )( If Controller cover removed )
°C
Level
°C
Level
Power/ Output / Sensor Wiring Method
IN
Time level ON time OFF time
118s162s
236s154s
354s136s
472s108s
590s90s
6108s72s
7136s54s
8154s36s
9162s18s
10 180s 6s
10 level (3 minute cycle)
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

( 220V Platform ), 60Hz
ISEA Normal Type
Model NameProduct Type
Power
Consumption
( W )
Basic Type Ⅰ
Basic Type Ⅱ
Basic Type Ⅲ
Display Type
Ⅰ
Display Type
Ⅱ
Display Type
Ⅲ
Product
Thickness
( mm )
Product
Height
( mm )
Product
Width
( mm )
Weight
( kg )
Product Data
RADIENT HEATING PANEL
09
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

Model NameProduct Type
Power
Consumption
( W )
Basic Type Ⅰ
Basic Type Ⅱ
Display Type
Ⅰ
Display Type
Ⅱ
Product
Thickness
( mm )
Product
Height
( mm )
Product
Width
( mm )
Weight
( kg )

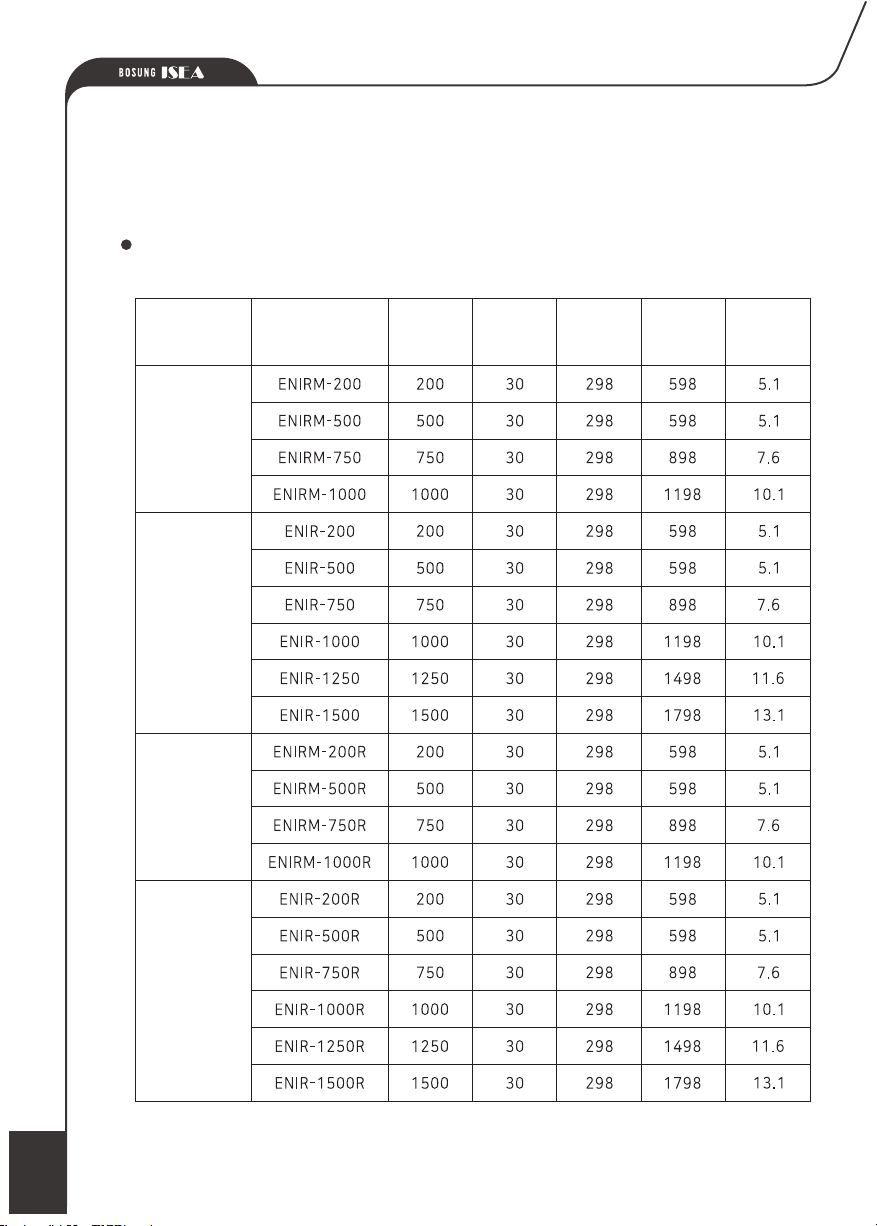

10
RADIENT HEATING PANEL
ISEA Power Type
Product Data
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr
( 220V Platform ), 60Hz

11
RADIENT HEATING PANEL
Maintenance
The product does not require special maintenance.
( When removing dust, use a soft cloth to wipe. )
When cleaning the product, please cut off the power.
In case of stain, use a wet cloth to wipe.
Do not use abrasive or metallic polish as it may damage the surface painting.
Periodically check whether moisture is in contact or found on product.
( Danger of electric shock. )
Drenched dust may lead to overheating or malfunction in safety system.
Install product where out of water’s reach.
If power cable is damaged, must use after replaced by a qualified technician.
Do not take the product apart.
If there is malfunction, please inquire to the manufacturer’s service center.
The product is an assistance heater and maybe used for freeze protection,
however please install an additional reserve heating system taking into
consideration abnormal conditions such as power failure,
malfunction of product, etc.
!
Ceiling Type Radiant Heating Panel ISEA / www.enbs.co.kr

The warranty for this product is limited to defect in production or naturally occurred breakdown.
You can receive a replacement or repair for free if you bringthe product warranty issued at the time ofpurchase
and contact theauthorized agent or head office.
Warranty period: 12 months after purchase or 18 months after production date
(1) Quality Assurance Regulations
(2) The followingcases will require payment even if within warranty period.
This warranty is only valid in the Republic of Korea, and is not reissued.
HeadOffice:136-15, Donggureung-ro 459beon-gil, Guri-si, Gyeonggi-do, Korea
Factory :564-9 Ipseok-ri, Sudong-myeon,Namyangjusi, Gyeonggi-do, Korea
Product name
Model Name
Place of Purchase
Date of Purchase
A/S Period
Contact Information
- Payment will be required if repair agent has madevisit due tocustomer’s request but no defect found.
- Defects occurred due tonot following the precautions of this user’s manual
- Defects(upside down installation,usingelectricity other than 220V, etc.) occurred during negligence usage
- Damage or defect caused by natural disaster
- Damage or defect from repair or remodeling by someone other than company’s designated repair agent
or authorized agent.
Damage Type
Major repair required due to defect that occurred
under normal usage within 10 days of purchase
Product replacement or refund
Product replacement
after payment
Major repair requireddue todefect that occurred under
normal usage within 1 month of purchase
Customer’s negligence
within warranty period
After warranty period
Product replacement or free repair
Defect that occurred under normal usage within warranty period
Free repair
Recurrence (4th) of identical defect repaired up to 3 times
Product replacement or refund
Recurrence(5th) of defects of various parts repaired up to 4 times
Product replacement or refund
Defect on replacement product requiringmajor repair within
1 month of exchange Refund
Damaged resulted due tonot having repair part within
parts retention period
Product replacement or refund
Defect during normal usage within warranty period
Refundafter including
10% ofdepreciation amount
Compensation
Warranty
