About this manual
Dear customer,
Your door is equipped with an electronic lock with a motor-driven bolt closing mechanism with built-
in digital control. ISEO research and experience have led to the development of a product that offers
the state of the art in terms of security and reliability. To find out all about this product and make
the best use of all it has to offer, read this booklet and keep it handy. It will come useful again
whenever you want to reprogram or check your lock, as well as for doing ordinary maintenance and
solving any problems.
For commercial documents, technical documents and certifications, refer to the ISEO Zero1 website
at the following link:
http://gamma.iseozero1.com/en/controllo-accessi/
Information icons
For an easy reading of the manual, take note of the following icons:
CAUTION: situations that could cause damage to your Device or other
equipment.
NOTE: notes, suggestions and additional information.
WARNING: situations that could cause injury to yourself or others.

4
How to use this manual
About This Manual
In the Table of Contents, click on
the argument or page number, to
directly go to the related paragraph
or chapter.
Go back to Table of Contents
clicking on the chapter small title.

5
Information on copyright
•No part of this guide may be reproduced, distributed, translated, or transmitted in any form or
by any means, electronic or mechanical, including photocopying, recording, or storing in any
information storage and retrieval system, without the prior written permission of ISEO.
•ISEO reserves the right to change the specifications of the hardware and software described in
this manual at any time and without prior notice.
•ISEO will not be held liable for any damages resulting from the use of this product.
Trademarks
•The Apple logo, Apple™, iPhone™, iPad™ and App Store™ are trademarks of APPLE Inc.
•The Android logo, Google™, YouTube™, Google Play™ Store are trademarks of Google Inc.
•Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide
•IOS is a trademark or registered trademark of Cisco in the U.S. and other countries.
•MIFARE® is a registered Trademark of NXP B. V.
•All other trademarks and copyrights are the property of their respective owners.
Keywords
•Access: passage or door which access is electronically controlled by the Access control device.
•Access control device: electronic and/or mechanical device that allows selective access through
a door.
•Actuator: device that act an opening or closing action, following an external control signal (i.e. a
remote opening command).
•Argo app: it is an app for smartphones, Bluetooth Smart ready, that allows to manage and
program the Access control device.
•Cable gland spring: it is a concealed lead cover, installed in the hinges side of the door, where
inside laying the cables to be connected to the lock (for example the external power supply
cables). The spring slides inside the door, so that it can be open and closed without damaging
the cables inside.
•Card/Tag: electronic card that can be read from the lock by an RFID reader connected to it,
simply bringing it closer to the same, without physical contact.
•Credential: device that allows to identify the user and authorize or non-authorize access through
a door. For example: Smartphone, Tablets, Mifare Cards or Mifare Tags.
•Door opening time: it is the time that allows user to open the door following an opening
command. If the door is not opened during this time, it will automatically lock.
•Door close delay time: it is the elapsing time between the door closing action and the bolts
physical movement starts.
About This Manual

6
Keywords
•Door sensor contact: electronic device made of 2 contacts and installed in the door frame, that
allows x1R Smart to know if door is ajar or open. It is possible to install it in the lock side or in
the hinges side of the door.
•Door status: it defines the “door condition”, open or closed, which can be as follows.
a. Door closed and safe: latch and bolts fully extended (shot-out).
b. Door closed but not safe: only latch inserted.
c. Door opening or tampering: when bolts are moving backwards.
d. Door fully open: latch and bolts fully backward (withdrawn).
•Door status relay: it is a relay, built-in into the x1R Smart electronic board, that allows to send
outside the Door status signal: open or close. It can be used for example in a home automation
system, to switch on the light when door opens, or to activate an alarm system when door closes.
It needs to operate the DC external power supply by Cable gland spring.
•External control module: it is an accessory connected by cable to the lock electronic board. It is
installed in the external side of the door. It embeds an RFID module, for Cards reading purpose,
and a Bluetooth module for the Argo app interface. It can be supplied with keyboard, to
memorize PIN as Credential to open the door.
•First Person In: function that, when enabled, allows the first user that enter a door, presenting
a valid credential, to activate the Scheduled Passage Mode.
•Free Mode: setting the Passage Mode in Free, the lock withdraws the bolts and holds back the
latch. In this mode the door is always opened for any user who wishes to gain access, without
the use of authorized credentials.
•Hidden External Reader: it’s a Bluetooth and RFID reader, like the External control module (with
no PIN option), that can be fit inside the door in order to have from the outside a clean door
surface solution (called in jargon "clean facade door"), so that, from outside, nothing is visible.
•Internal control module: it is an accessory connected by cable to the lock electronic board. It is
installed in the internal side of the door. By 2 buttons, allows the door opening and closing. It is
not required if x1R Single Action version.
•Light Mode: setting the Passage Mode in Light, the lock withdraws the bolts, and keeps closed
only by the latch. Opening with authorized credentials withdraws only the latch, allowing energy
saving and less mechanical wear.
•Master Card: Cards used to program and manage the Access Control Device.
•Master Card Level: it is related to the number printed on each Master Card, belonging to the
same System Code, that can be 1, 2 or 3.
•Master Card Set: set of three Master Cards numbered from 1 to 3, belonging to the same System
code. The Master Card of higher number disable the Master Card of lower number.
•Optoisolated input: it is an electrical input made by a component that transfers electrical signals
between two circuits, keeping them isolated between each other. In this way issues to one of
the circuit, such as electrostatic discharges, voltage spikes or short circuits, does not affect the
other one.
•Passage Mode: function that allows the door to be always open for any user who wishes to gain
access, without the use of authorized credentials. On x1R Smart this function can be set in Free
or Light Mode.
About This Manual

7
Keywords
•Programming mode: software condition, feasible by Master Card, that allows software
modification to the Access Control Device.
•Remote opening command: it is an opening command sent to the lock through an optoisolated
input. It can be, for example, an intercom push button or a button placed nearby the reception
desk.
•Scheduled Passage Mode: this function allows you to set 2 schedules, to automatically enable
and disable the Passage Mode function.
•Single Action: x1R Smart version, featuring an advanced and precise mechanical system that
allows the internal handle to retract latch and deadbolts in one unique and smooth movement
(also called anti-panic function).
•Smart series: Access control device which embeds a Bluetooth radio module, to communicate to
the compatible smartphones by the Argo app.
•Standard: x1R Smart version without the Single Action functionality. To open from the inside it
is necessary the Internal control module.
•System Code: unique number associated to a Master Card set.
•User Card: Card used to open one or more doors
•User List: list of users enabled to open an Access control device.
About This Manual

8
Table of Contents
About this manual 3
Information icons 3
How to use this manual 4
Information on copyright 5
Trademarks 5
Keywords 5
Safety and Environment 10
Safety information 10
Disposal and recycling 13
Certifications and compliance 13
Classification digits explanation: 14
Overview 16
What is x1R Smart 16
System components 17
Technical data 18
Dimensions 19
Options and versions 20
Electrical connections (standard) 24
Example of 8 poles Multifunction Cable wiring scheme 26
Getting Started 27
Package contents 27
Product identification 27
Product codification 28
Installing x1R Smart 29
First switch on 29
Device Initialization 29
Add credentials without Argo App 31
Add a PIN code without Argo app 32
Adding credential by Argo app 33
Adding a PIN code by Argo app 37

9
Basics 39
How to use x1R Smart 39
Door Info menu 41
Advanced 42
Versions 42
Advanced settings menu 43
x1R Smart Version 44
Passage Mode configuration 46
Reset 47
Door status relay 48
Remote opening command 50
Door sensor contact 52
x1R Smart as actuator 54
More advanced function about Argo app 57
Maintenance 58
Battery replacement 58
Notes on battery usage by x1R Smart 60
Cleaning 61
Appendix 62
Events log messages 62
Light and acoustic signal 64
Wiring specifications 65
Why some Functional Modes are no more present on Argo? 66
Troubleshooting 67
Argo app error messages 67
x1R Smart troubleshooting 67
Technical assistance 69

10
Safety and Environment
Safety information
To prevent damage to your product or injury to yourself or to others, read the following safety
precautions in their entirety before using this equipment. Keep this manual in a convenient place so
that you can refer to it when necessary.
•Please read carefully all the notices and the warnings of this document because they provide
important information about safety of installation, use and maintenance. Preserve this manual
as future reference.
•The installation of the device requires the intervention of qualified staff, adequately trained by
ISEO. The instructions should be carefully followed during installation. The installer must provide
the user with these instructions and / or any other maintenance document.
•The product can be destined only for the use for which it was expressly made and, therefore, as
an armored door lock for civil and industrial locations. Any other use is to be considered
improper and dangerous.
•Do not work on the door with the lock installed in order to prevent wood or metal residue getting
into the lock.
•Distance between striking plate and latch tip, completely in (from both motor or key), must be
between 2 and 3mm.
•Handle must not have any friction during the return phase.
•Connecting rods must have a play of at least 1 millimeters so that the deadbolt does not remain
subjected to traction in the rest position. This would compromise infact the latch to be correctly
relased when recalled by key.
•Connect the Remote opening command input to 8÷30Vdc/ac power supply source (optoisolated
input).
•To use the internal Door status relay (30Vdc/ac - 1A MAX), an external power supply source is
mandatory. Fit therefore a cable gland to allow the relay cable to pass through the hinges side
of the door.
•Electrical connections must be done according to the manufacturer’s istructions and in
compliance with the current regulations.
•When using a feeder as a direct power supply source (8÷30Vdc/ 30W MAX), fit a cable gland to
allow the cable to pass through the hinge side of the door.
•Do not connect the Device to power sources exceeding the indicated ones.
WARNINGS

11
•If the power supply has a rated power of more than 90W or is not protected against over
currents, an appropriate circuit breaker or a delayed fuse must be provided by the installer in
series of the lock power input, with a current threshold value that complies with the following
relationship:
Where: Vpwr = x1R Smart power supply / Ibrk = circuit breaker breaking current
•All the devices of the system must be intended for the use for which they were designed to. Any
other use has to be considered improper and therefore dangerous. The manufacturer can not
be held responsible for any damage resulting from improper, erroneous or unreasonable use.
•In case of failure and/or malfunction of the device, switch off the power supply. An authorized
technical support center must be contacted in order to repair the device. Failure to comply with
the above statement may compromise the safety of the device.
•Do not expose the device to dripping or splashing water.
•Single Action version allow to withdraws bolts and latch by handle at the same time. Standard
version allow to withdraws only the latch by handle.
•The x1R Smart lock works correctly when using cylinders with standardised profile cams of the
size indicated below:
Safety and Environment
WARNINGS
< Ibrk <
30W
Vpwr
90W
Vpwr
Examples:
Vpwr = 12V 2,5 < Ibrk < 7,5 => adequate: 5A
Vpwr = 24V 1,25 < Ibrk < 3,75 => adequate: 2,5A

12
•If x1R Smart is used with a cylinder with knob, make sure that after the cylinder has been turned
the cam does not remain engaged, which will cause the motor to rotate in neutral.
•Make sure that External control module is not subject to heavy rain.
•If the door is installed with the x1R Smart battery holder placed in the top side of the door, make
sure there is enough space from the ceiling to remove battery holder, in case of battery
replacement needs.
Safety and Environment
WARNINGS
Battery holder

13
Disposal and recycling
This product and battery are designated for separate collection at an appropriate collection point.
Do not dispose of it as household waste.
For more information, contact the retailer or the local authorities in charge of waste management.
Certifications and compliance
In compliance with the standard:
EN 14846:2008
With classification: 3X9E0P713
And with the standard (only Single Action version):
EN 179:2008
With classification: 377B1452AB
DoP & Declaration of conformity available on the web site http://www.iseoserrature.it
This symbol on the battery indicates that the battery has to be collected separately.
Dispose of batteries according to your local environmental laws and guidelines.
This symbol indicates to not dispose of the packaging with household waste, but
send it for recycling.
Safety and Environment

14
Classification digits explanation:
EN 14846:2008
Digits
1
2
3
4
5
6
7
8
9
x1R 696 - 699SA
3
X
9
E
0
P
7
1
3
Digits
Description
Classification
1
Category of Use (1-3)
3 = for use by people with a high incentive to
exercise care and with a small chance of
misuse, e.g. residential doors.
2
Durability (A-Y)
X = 200.000 test cycles - 120N load on latch
bolt.
3
Door Mass and closing force (1-9)
9 = above 200 kg door mass as specified by the
manufacturer –15N maximum closing force.
4
Suitability on use on fire/smoke doors (0-F)
E = suitable for use on smoke and fire door
assemblies. With a classification time of 90 min
(EI 90).
5
Safety (0)
0 = no safety requirements.
6
Corrosion resistance, temperature,
humidity (0-P)
P = no defined resistance.
7
Security and drill resistance (1-7)
7 = very high security with drill resistance.
8
Security - electrical function (0-1)
1 = status indication (audio or visual signal from
the lock that can be used as an indication that the
bolt is fully thrown and deadlocked).
9
Security - electrical manipulation (0-3)
3 = maximum resistance to all tests.
Safety and Environment

15
Classification digits explanation:
EN 179:2008
Digits
1
2
3
4
5
6
7
8
9
10
x1R 699SA
3
7
7
B
1
4
5
2
A
B
Digits
Description
Classification
1
Category of Use
3 = for use by the public where there is little
incentive to exercise care and where there is a
high chance of misuse.
2
Durability
7 = 200.000 test cycles - 120N load on latch bolt.
3
Door Mass
7 = above 200 kg door mass as specified by the
manufacturer.
4
Suitability on use on fire/smoke doors
B = suitable for use on smoke and fire door
assemblies.
5
Safety
1 = all panic exit devices have a critical safety
function, only the top grade is identified for the
purpose of EN179:08.
6
Corrosion resistance and temperature
4 = very high corrosion resistance (240h);
temperature requirement: from –10 °C to +60 °C
7
Security
5 = 5000 N
8
Projection of the operating element
2 = projection up to 100 mm (standard projection).
9
Type of operation
A = emergency exit device with "lever handle"
operation.
10
Field of door application
B = outwardly opening single exit door only.
Safety and Environment

16
Overview
What is x1R Smart
x1R Smart is the electronic motorized lock for armoured doors, developed and created by ISEO for
the electronic access control. x1R Smart embeds a Bluetooth Smart multistandard ISO 14443 A/B
reader, in order to work with Argo, the new application suitable for Android and iOS smartphone.
x1R Smart takes also advantage of the next main unique features:
Bluetooth Smart Technology: in order to work with Argo, the new application suitable for iOS
and Android smartphone.
Multistandard card/tag reader: 13,56Mhz RFID technology, ISO14443A/ ISO14443B (Mifare
Classic/Plus/DesFire).
Single Action version (anti-panic version): the internal handle retracts latch and deadbolts in
one unique and smooth movement. In this way the user can always open the door from the
inside simply pushing on the handle, even if the deadbolts are out.
DC external power supply: by cable gland spring, placed in the hinges side of the door, or by
door sensor contact.
Output relay built-in on lock:to get the door status signal.
Optoisolated input built-in on lock:to get the remote opening command.
x1R Smart

17
System components
Components
Description
Features
x1R electronic lock for
security doors and door
contacts sensor.
Application or rim/mortice version
Standard or Single Action version
Door sensor contact supplied with the
lock
Battery holder complete
with power supply cable and
set of batteries.
6 x 1,5V Alkaline Batteries “D” Type
DC Power supply unit
Power supply unit 8-30Vdc, P = 30W
Master Card
To configure and manage the system
(system’s initialization and plant code
assignment)
RFID credentials
Mifare cards/tags
ISEO cards/tags
Transponder with or without key
inside
Smartphone with Argo app
Bluetooth 4.0 ready
From iPhone 4s with iOS 7 and above
Android phones from ver. 5.0
External control modules:
with Keyboard and RFID
RFID only
Hidden RFID Reader
13,56Mhz RFID reader
Keyboard for PIN codes
Bluetooth 4.0 ready (low energy)
Internal control module with
open button.
Door opening button
Not necessary if Single Action
Additional button for future
developments
Faceplates for external and
internal control module
4 different finishes
Overview

18
Technical data
Features
Description
RFID Reader
Multistandard 13,56 Mhz
ISO14443A/ ISO14443B (Mifare Classic/Plus/DesFire).
Bluetooth 4.0 Module
2,4GHz Radio Board
Power Supply
Power supply unit 8-30Vdc, P = 30W
6 x 1,5V Alkaline Batteries “D” Type
Door sensor contact
Optoisolated input
8-30Vdc/ac
Output relay (contact resistive)
Contact rating (resistive): 30Vdc/ac, 1A MAX
Battery life (valid only for battery
powered version)
Up to 20.000 opening (*)
4 levels battery charge detection by the Argo App.
(*) Depending on usage, environment, options.
Software
Argo app available for Android and iOS.
Automatic software upgrade: when an update is available your
phone notifies you and the new software will be automatically
installed in the lock from your phone.
Version
Standard
Single Action
Mechanical dimensions
Handle follower: 8mm
Backset: 63mm
Centre distance: 85mm
Functional modes
2 functional modes to be set by the end user by the Argo App.
Opening commands
Bluetooth 4.0 by the Argo App
RFID reader
External keyboard
Internal control module
Remote opening command
Finishes (faceplates)
Inox
Polished Inox
Satin brass
Polished brass
Mechanical lock case compatibility
Euro profile cylinder hole (EN1303, DIN18252)
Environmental characteristics
Operating temperature: from -20°C to +70°C
Storage temperature: from -20°C to +70°C
H.R. Max. 95% without condensing.
Overview

19

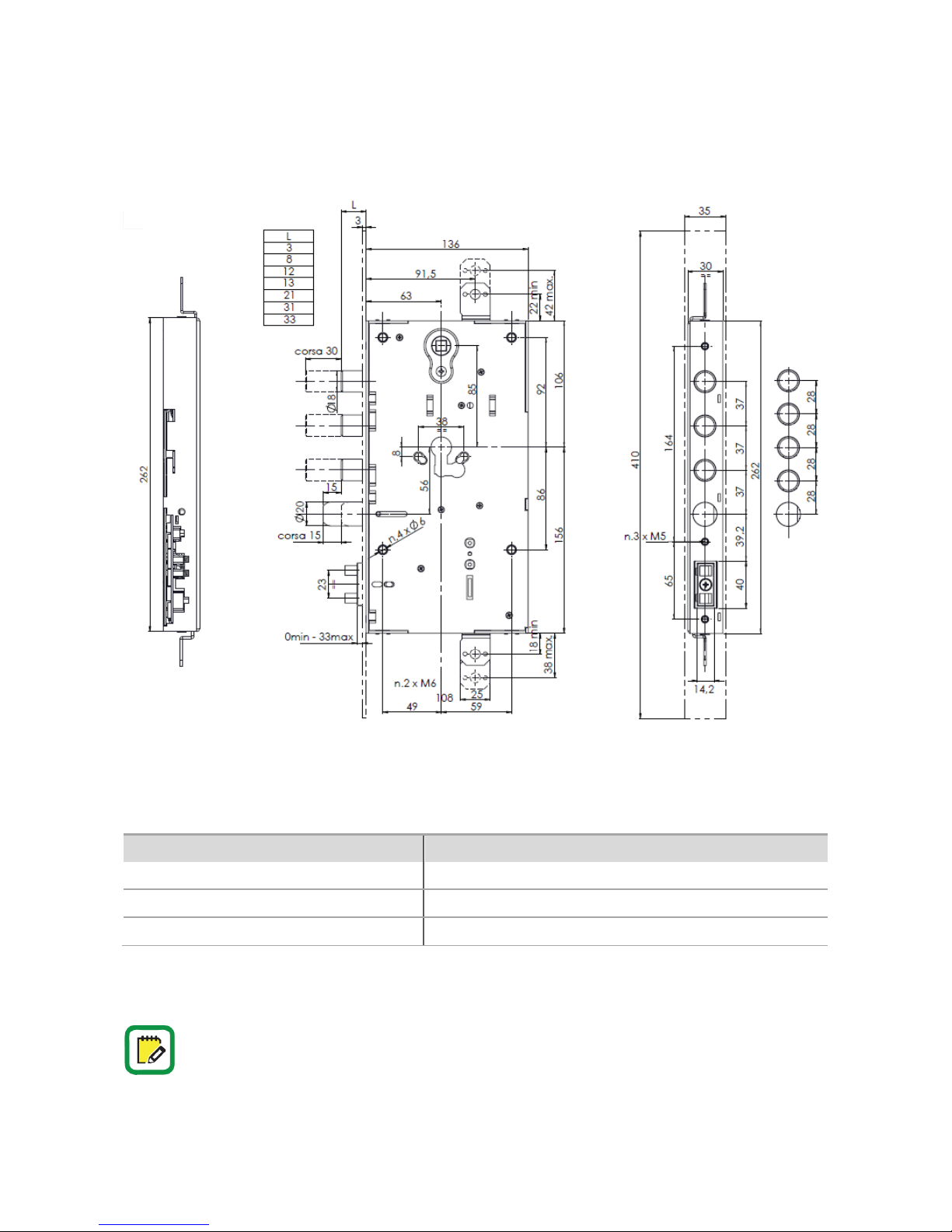

Dimensions
Feature
Dimensions
Handle follower
8mm
Backset
63mm
Centre distance
85mm
Overview
For detailed commercial information, please check x1RSmart catalogue and leaflet
available on the web site http://www.iseoserrature.it

20
Options and versions
There are several possible configurations and options available. Each configuration can be Standard
or Single Action version, with battery, DC power or both. DC power can be supply via concealed
cable gland spring or door sensor contacts. You can decide to install only an external RFID reader or
keyboard option too. You can add a remote opening button using the optoisolated input. Or you can
drive a motorized swing door operator, or interface to a home automation system, using the outputs
relay* built-in into the lock.
In the next examples you can find the 3 main configurations, named A, B and C:
A. Alkaline batteries powered.
B. DC power supply via cable gland spring plus alkaline batteries as back-up (facultative).
C. DC power supply via door sensor contacts plus alkaline batteries (mandatory).
Overview
Single Action version does not require the Internal control module.
*To use the built-in relay it is necessary to power the lock by external power supply
using a cable gland spring.
Other manuals for X1R Smart
3
Table of contents
Other Iseo Lock manuals
