ISITAN MRM-S User manual

USER`S MANUAL
MODEL MRM-S
ASSYMETRICAL 3 ROLLS
PLATE BENDING MACHINE
Hasanağa Organize Sanayi Bölgesi 8 .Cad. No: 1 Nilüfer / BURSA
Tel: [phone] ( pbx) Fax: [phone]
Web: www.isitan.com Email: [e-mail]

EC DECLARATION OF CONFORMITY
MANUFACTURER : ISITAN MAKİNA SAN. TİC. LTD. ŞTİ
ADDRESS : Hasanağa Organize Sanayi Bölgesi 8.Cad.
No: 1 Nilüfer - Bursa / TÜRKİYE
Name and address of the person : SERKAN ŞAHİN
authorized to compile the technical file :Hasanağa Organize Sanayi Bölgesi 8.Cad.
No: 1 Nilüfer - Bursa / TÜRKİYE
The undersigned Company certifies under its sole responsibility that the item of
equipment specified below satisfies the requirements of the Machinery Directive
2006/42/EC which is apply to it.
The item of equipment identified below has been subject to internal manufacturing
checks with monitoring of the final assessment by ISITAN
PRODUCT : ASSYMETRICAL 3 ROLLS PLATE BENDING MACHINES
MODEL / TYPE : MRM - S
SERIAL NO :
DIRECTIVES
MACHINERY DIRECTIVE 2006/42/EC
LOW VOLTAGE DIRECTIVE 2006/95/EC
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE 2004/108/EC
Regulations Applied acc. to HARMONIZE STANDARDS
EN ISO 13857–1: 2006, EN 982:1996, EN ISO 14121–1: 2007, EN ISO 12100–1:2003
EN ISO 12100–2:2003, EN 954:1996 EN 60204–1: 2006
Place and date of issue : Bursa ..... /..... /2016
Name and position of : Serkan ŞAHİN
authorized person: General Manager
Signature of authorized person :

GENERAL NOTES
1. Introduction
Thank you for choosing a Isıtan Machine. We are proud to have you in our long list of satisfied
customers all over the world.
This User’s Manual is absolutely for your safety and is essential for the machine to have a
long production life. As long as you keep up with our Manual you will be able to run your machine
smoothly and safely. Keep in mind that the machine is designed absolutely to perform maximum
safety and for efficient working.
In this Manual you can find instructions and information about:
Correct installations of the machine
Description of the functional parts of the machine
Set-up and start-up adjustments
Correct standard and scheduled maintenance
Simple safety regulations and accident prevention.
Therefore, as far as the user’s safety is concerned, in this handbook the possible risks con-
nected with machine operation are pointed out as follows:
Attention: Showing the risks of accident, if instructions are not followed.
Warring: Showing the probable damages to the machine or equipment, if the
instructions are not strictly followed.
Note: It gives useful information.
It is certainly necessary that the operator should read and understand all the Attention,
Warring, Note specified in this Manual before starting with operation of the machine and before any
lubrication or maintenance intervention
On all steps of installation, operation and maintenance safety must be your first concern for
the protection of yourself, other users and the service of the machine. In case of any failure please first
refer to this Manual, and then if a solution cannot be found contact first of all the distributor where you
purchased our product. Do not forget to refer to the drawings and the numbers for any spare part
needed or to define any problem. Make sure you have the serial number and production year of the
machine.
Our technical staff will make their best to help you in the most convenient way.
2. Transport
As soon as you receive the machine, check for any visible transport damages. Should there
be any visible damages; report it straight away to the transporter company and of course Isıtan
Makine San.Tic.Ltd.Şti.or your supplier.

Remove any protective crates around the machine and read the instructions on related chap-
ters of this Manual carefully to set up the machine. If the machine is damaged while transport, imme-
diately take some photographs for insurance claims.
Take precautions while loading / unloading or moving the machine to avoid any injuries. Refer
also to related chapter of this Manual for the best way of handling the machine.
3. Electrical Information
All necessary connection procedure can be found on this Manual. Do not try to connect the
machine before reading these procedures and fully understanding the drawings. For any unclear
matters get in touch with. Isıtan Makine San. Tic. Ltd. Şti. or any of the Isıtan distributors. Have the
machine connected by a qualified electric technician. For, as we made clear in the “general conditions
of guarantee”, under no circumstances installing mistakes, including electrical connection mistake, can
not be covered by guarantee agreement. Always turn off power before making any connections or
disconnecting the machine.
4. Maintenance
Your machine is designed and produced to work efficiently and smoothly. To achieve this you
should also take care while operating the machine. Regard Maintenance sections to have the longest
life from your machine. Try and use original spare parts where necessary and most importantly do not
overload the machine or do not make any unauthorized modifications.
5. Safety
Take all precautions possible to avoid any personal injury while using the machine. Keep in
mind to protect the third party people around the machine. Refer to safety directives.

GENERAL WARRANTY TERMS
Your machine is covered by manufacturer’s guarantee for a period of 12 months from the date of
purchase against manufacture defects. The warranty period does not exceed 18 months from the
date of delivery from the manufacturer’s factory.
Warranty covers only manufacture defective parts and / or components that are reported as
“defective” by a Isıtan Technician or the Agent Technician and must be reported to Isıtan in writing
by fax or email.
The manufacturer is responsible for the supply of free of charge spares only and cannot be held
responsible for loss of work.
Shipping and customs fees for the spare part must be paid by the end-user.
If a technician travel is necessary Isıtan will not charge for labor and workmanship costs but the
customer must pay traveling and accommodation charges.
A Warranty claim does not relieve the Customer from payment obligations.
The Customer can not ask or demand any reimbursement of damage nor the Customer will have
the right to extend or delay payment obligations nor the cancellation of order and the refunding of
damages as the guarantee is given for the defective parts of the machine and not for the job.
Note: All warranty claims must be applied with the Model, Serial Number and the
Manufacture Year of the machine.

TECHNICAL PROPERTIES
Two rolls powered by a single chain or belt driven worm type gearbox and gear system
SAE 1050 Quality certificated steel rolls with high tensile strength
Steel welded main frames
Mobile control panel
Conical bending device
Central lubrication
Precision bending with brake motor
Motorised adjustment of back roll
Worldwide available components used in production ( Telemecanique, Siemens for electric )
User manual book
Built according to EC safety directives( CE – Mark )
OPTIONAL ACCESSORIES
Digital read-out for rear roll
Induction hardened rolls
Extended roll shafts for profile and pipe bending
Profile and section bending rolls
Warning: Do not feed profiles having a higher thickness than specified for the capacity of
the machine. Do not feed more than one piece at a time. Do not use the machine for any other job the
one for which it has been designed.
TECHNICAL SPECIFICATIONS AND
STANDARD EQUIPMENTS
The MRM-S Model Mechanical Three Roll Benders have these specifications:

ODEL
Working
lenght
Prebending
capacity*
Bending
capacity
Roll
diameters
Ø
Min.
bending
dia Ø
Main
motor
power
Back
Roll
motor
Length
Width
Height
Weight
mm
mm
mm
mm
mm
kw
kw
mm
mm
mm
kg
MRM-S 1050x130
1050
6
7
130
195
2,2
1,1
2750
650
1020
1200
MRM-S 1050x150
1050
7
8
150
225
3
1,1
2750
680
1040
1450
MRM-S 1050x170
1050
8
9
170
255
4
1,1
2850
720
1050
1600
MRM-S 1050x190
1050
9
10
190
285
4
1,5
3200
950
1300
2450
MRM-S 1550x130
1550
5
6
130
195
2,2
1,1
3250
650
1020
1400
MRM-S 1550x150
1550
6
7
150
225
3
1,1
3250
680
1040
1650
MRM-S 1550x170
1550
7
8
170
255
4
1,1
3350
720
1050
1850
MRM-S 1550x190
1550
8
9
190
285
4
1,5
3700
950
1300
2750
MRM-S 2050x130
2050
3
4
130
195
2,2
1,1
3750
650
1020
1600
MRM-S 2050x150
2050
4
5
150
225
3
1,1
3750
680
1040
1885
MRM-S 2050x170
2050
5
6
170
255
4
1,1
3850
720
1050
2100
MRM-S 2050x190
2050
6
7
190
285
4
1,5
4200
950
1300
3100
MRM-S 2550x150
2550
3
4
150
225
3
1,1
4250
650
1020
2150
MRM-S 2550x180
2550
4
5
180
270
4
1,5
4350
950
1300
3050
MRM-S 2550x190
2550
5
6
190
285
4
1,5
4700
950
1300
3400
MRM-S 2550x220
2550
6
7
220
330
5,5
2,2
4700
1150
1400
5000
MRM-S 3050x160
3050
2
3
160
240
4
1,1
4850
720
1050
2650
MRM-S 3050x190
3050
3
4
190
285
4
1,5
5200
950
1300
3750
MRM-S 3050x200
3050
4
5
200
300
4
1,5
5200
950
1300
4000
MRM-S 3050x220
3050
5
6
220
330
5,5
2,2
5200
1150
1400
6000

TRANSPORT AND LIFTING OF THE MACHINE
Use necessary cranes and lift as shown. Please take extra care during lifting and moving. If
necessary consult with specialized companies for lifting.
OPENING THE PACKAGE
If any visible damage exist on the machine when you receive the machine immediately informs
the dealer or manufacturer. Also never forget to state the visible damage on transport documents.
The packing material is completely safe and do not consist any environmentally dangerous
articles. However they must be kept out reach of children as some nylon products in packing may
cause suffocation if used as a toy etc.
FALSE
FALSE
TRUE
TRUE

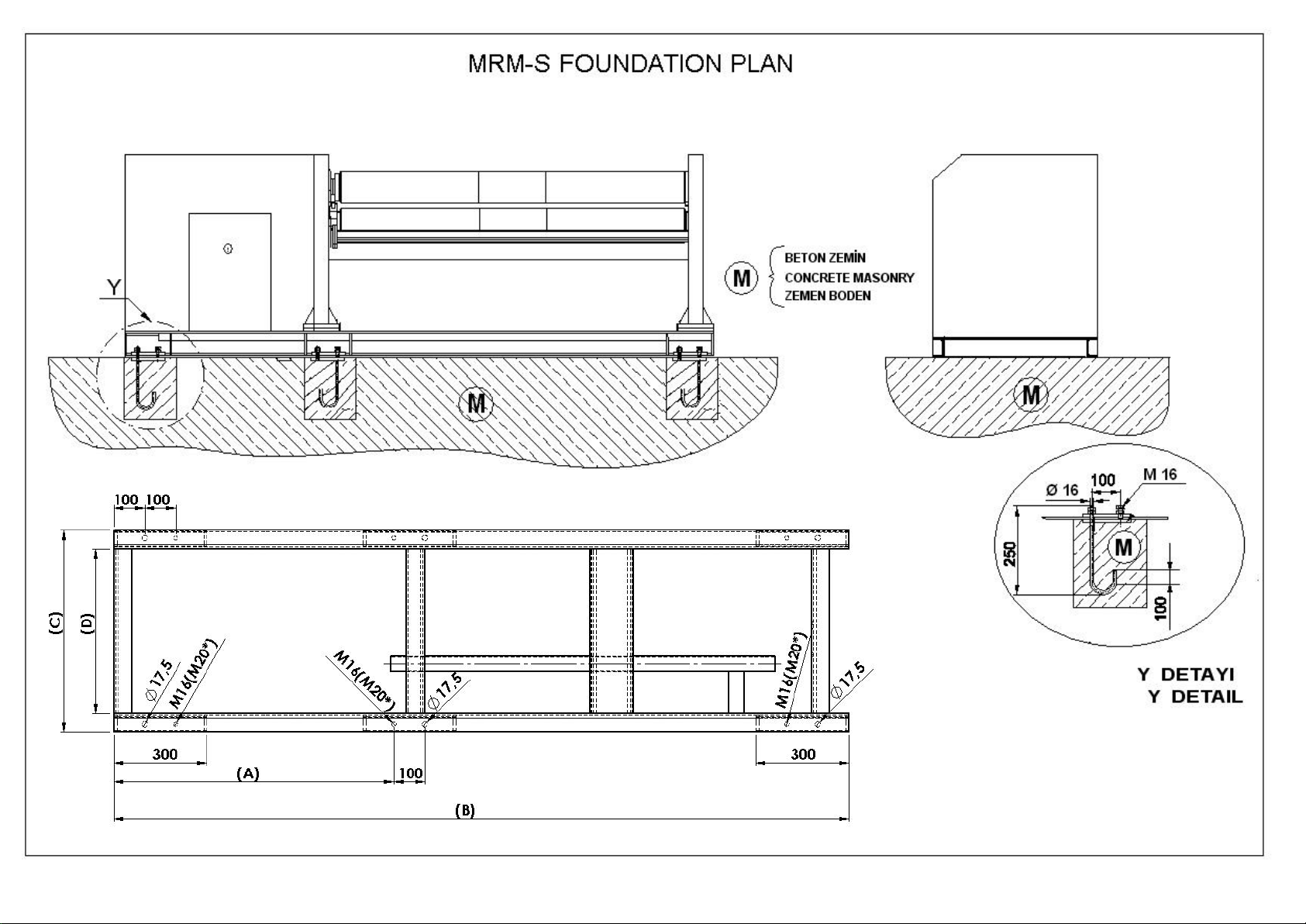

MAIN DIEMENSION OF THE MACHINE
*Check the next page for dimensions.

Model
Useful Length
A mm.
B mm.
C mm.
D mm.
MRM-S 1050x130
1050
2750
1020
650
757
MRM-S 1050x150
1050
2750
1040
680
750
MRM-S 1050x170
1050
2850
1050
720
713
MRM-S 1050x190
1050
3200
1300
950
899
MRM-S 1550x130
1550
3250
1020
650
757
MRM-S 1550x150
1550
3250
1040
680
750
MRM-S 1550x170
1550
3350
1050
720
713
MRM-S 1550x190
1550
3700
1300
950
899
MRM-S 2050x130
2050
3750
1020
650
757
MRM-S 2050x150
2050
3750
1040
680
750
MRM-S 2050x170
2050
3850
1050
720
713
MRM-S 2050x190
2050
4200
1300
950
899
MRM-S 2550x150
2050
4250
1020
650
750
MRM-S 2550x180
2550
4350
1300
950
904
MRM-S 2550x190
2550
4700
1300
950
899
MRM-S 2550x220
2550
4700
1400
1150
869
MRM-S 3050x160
3050
4850
1050
720
718
MRM-S 3050x190
3050
5200
1300
950
899
MRM-S 3050x200
3050
5200
1300
950
894
MRM-S 3050x220
3050
5200
1400
1150
869
*Machine dimensions are approximate.

*
*
*Check the next page for dimensions.
-7-
*: FOR MRM-S MODELS WITH
ROLL DİA. 180-190-200-220

Model
A mm.
B mm.
C mm.
D mm.
MRM-S 1050x130
904
2370
650
600
MRM-S 1050x150
904
2390
675
625
MRM-S 1050x170
975
2450
710
660
MRM-S 1050x190
1160
2750
915
865
MRM-S 1550x130
904
2870
650
600
MRM-S 1550x150
904
2890
675
625
MRM-S 1550x170
975
2950
710
660
MRM-S 1550x190
1160
3250
915
865
MRM-S 2050x130
904
3370
650
600
MRM-S 2050x150
904
3390
675
625
MRM-S 2050x170
975
3450
710
660
MRM-S 2050x190
1160
3750
915
865
MRM-S 2550x150
904
3890
675
625
MRM-S 2550x180
1160
4250
915
865
MRM-S 2550x190
1160
4250
915
865
MRM-S 2550x220
1160
4250
965
915
MRM-S 3050x160
975
4450
710
660
MRM-S 3050x190
1160
4750
915
865
MRM-S 3050x200
1160
4750
915
865
MRM-S 3050x220
1160
4750
965
915
*Machine dimensions are approximate.

8
SAFETY DIRECTIVES
Also abuses and misuses risk the following:
Serious injury of the user
Serious damage to the machine
All persons who is in of the machine should carefully read and fully understand this manual for
the of benefit themselves.
This is for your safety !
Attention:
Never try to bend very hard or fragile material on the machine (e.g. hard steel, glass)
Any modification on the machine without written confirmation from the manufacturer is
strictly forbidden as such changes in the machine can cause unintended damages and
injuries.
All orders and advises in this machine should be strictly obeyed for a safe working
environment.
DANGER ZONES
The below shown danger zones must be kept clear during operation
NOISE: The noise of the machine is about <70 dB.
The three-roll plate bending machine is supplied with necessary guards toprotect from
injuries by worm-type gearbox and other gears. The only other area which needs tocarefully
monitored during use is the rotational area of the rolls.

9
EXPLANATION FOR OPERATOR
Operator under age of 16 years to operate the machine is strictly forbidden (EC-Directive).
The operator of the machine should carefully read this manual and understand the danger he might be
in if he misuses or abuses the machine. If any part of this manual is unreadable or illegible please
contact to the dealer and manufacturer
The owner of the machine should be responsible for operating the machine with qualified
personnel.
PERSONAL PROTECTION
Gloves and safety glasses and safety cap are recommended during operator.
Attention:
No material should be fed if the machine is running.
All emergency stop must be easily accessible.
The user must be careful for third persons entering the operation area of the machine.
Note : If any labels are lost or unreadable contact the manufacturer for new supplies.
WORKING AREA OF THE MACHINE
Attention: Before the first use of the machine always check this list carefully
for a safe start.
1. Check the emergency stop button on the command panel
2. Make sure that the security wire around the machine is free
3. Check for visible oil leak
4. Control of the buttons on the command panel
ASDF
ASDF

SAFETY AND ACCIDENT PREVENTION INSTRUCTIONS
General Safety Instructions
Following instructions are meant for the operator of the machine and it is the End-User’s
responsibility to make sure the operator reads and understands the following and the User’s Manual
for safe operation.
Read the User’s manual before operating the machine.
Never touch rotating or moving parts.
Always inform electric faults to electric technicians.
Keep your working dress or long hair or necklace etc away from rotating parts.
Make sure you know the position of Emergency Stop Buttons on the machine.
Switch off the machine when NOT working.
Work with necessary safety clothes if necessary (safety shoes, glasses , earplugs etc).
Control the Safety features before working and ensure they are working properly.
See and understand Safety Labels on the machine.
Perform periodic maintenance.
DO NOT overload the machine.
If you see abnormal behavior of the machine, stop the machine and inform your supervisor
immediately.
Be careful of other people around the machine during operation.
Never modify electric unit.
Never remove any mechanic or electronic safety features from the machine.
Be extremely careful during transport or re-placement of the machine and follow transport
instructions in the manual to safety handle the machine.
MOTORISED BACKROLL SAFETY SWITCH
The motorized back roll has a safety switch. When the roll is at its
lowest point the switch will stop the motor.

EXPLANATION FOR SAFETY SWITCH

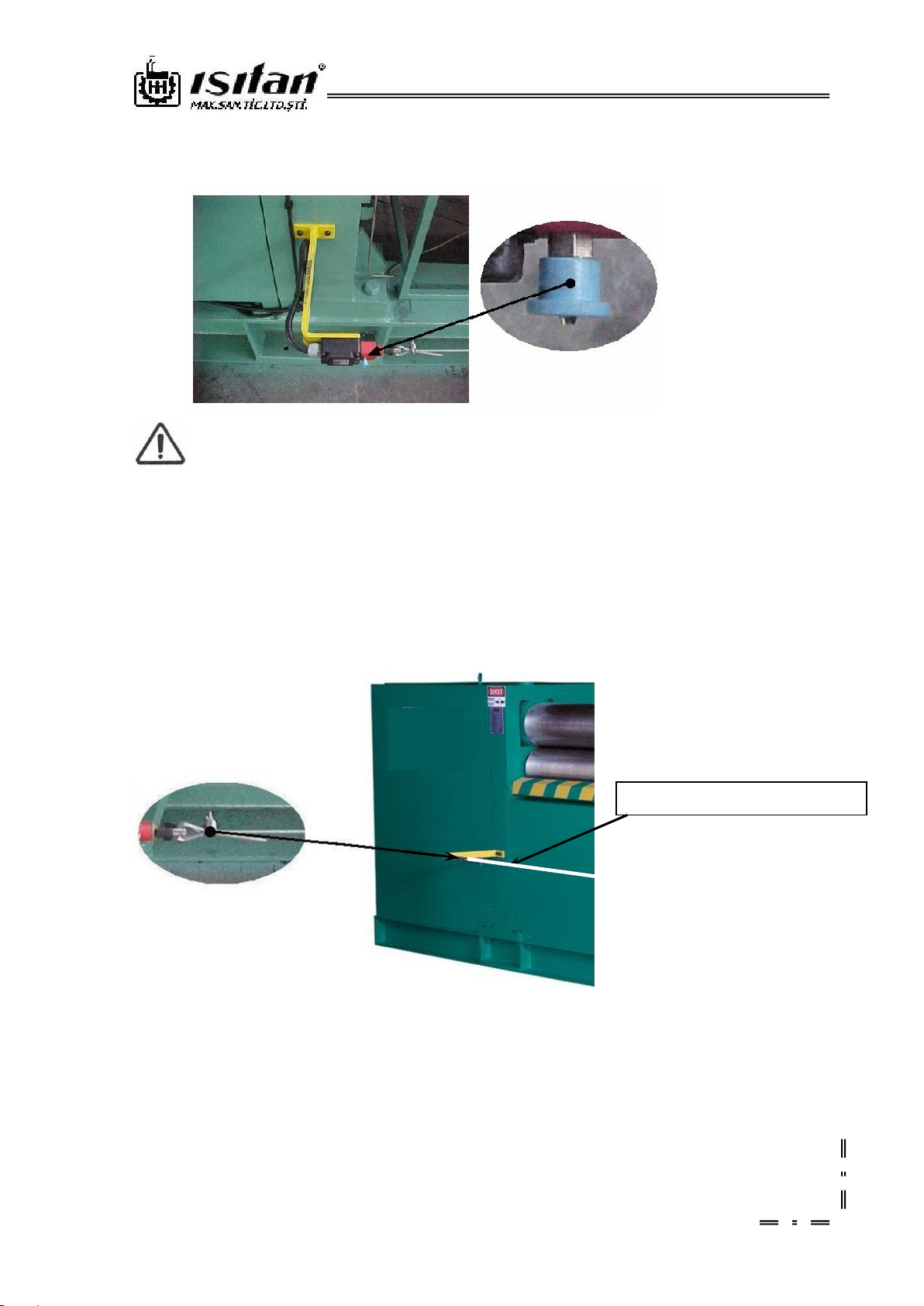

The machine has been equipped with a security switch and wire for the operators safety When
the safety wire is pushed it pulls the below shown ring this act as emergency stop and stops all
machine activity
To restart pull the blue knob (shown by  in fig.1) while pulling the safety wire when engaged you
should see green (shown by  in fig.2) line under the blue knob. Now you can restart the machine
from control panel
Safety switch’s on and off positions as given below.
Switch on
position
Switch off
position
OK
OK

Figure 1

Figure 2
Figure 3

The safety wire comes unassembled for packing reasons and must be assembled by the
customer as shown above to completely surround the machine
Attention:
The safety wire is an important safety measure and must never be removed while the
machine is setup. It should be only removed for transport purposes.
While assembling it is important to fit the wire to the safety switch lock securely as shown below.
Safety wire around the machine
Correct
Figure 5
Figure 4

ELECTRICAL CONNECTIONS
Warning :
All electrical connections must be performed and completed by a qualified electric
technician in order to minimize chance of personnel injury or damage caused by wrong connection.
The cable must be directly connected to the machine. No intermediates should be used. The
following pages contain the necessary diagram of electrical connections.
Ensure that the Electric Net is capable of loading up to V.Double-check the grounding for a
safe operation. ( look at electricity plan )
ROTATION OF MOTOR
After all the electrics have been completed, start the machine as below and check the
rotationary axis of the motor.
Bring Main Switch to Pos 1
Bring Key Switch to Pos 1
Push the foot pedal
Check the rotation direction axis of the motor
Reverse connect the electrics by qualified electric technician to achieve right rotation direction.
Note : When you push the button of up the roll on the commander control
panel, if rolls are moving up ( moving reverse position ) this means that motor is
moving the reverse position. We advise to change the electric cable connecting
points.
INSTALLATION FIGURE
Connection of operation plug to machine;

OPERATING INSTRUCTIONS
First Start-Up
When you see the Power On Indicator press the Start Button. The motor should start up and after
a few seconds you should hear the machine running
Test the movements of the machine by pressing rotation and up-down buttons
Normal Operation
Before starting to operate the machine, when you must to read electric panel’s explanation.
A diagram of the Operator’s Panel is given below;
1. Start button – To start main motor
2. Emergency stop
3. Back roll – Up & Down
4. Power on indicator – When on this indicates the machine Main Power Switch is on and ready to
start
5. Digital display ( optional )
6. Rolls rotation – Right
7. Rolls rotation – Left

BENDING OPERATIONS
3 ROLL BENDING PRINCIPLES
Because of the heavy materials involved in bending, it must be done by qualified personnel
who have experience on such machines. Each step of the bending and pre-bending or conical
bending must be done very carefully. Remember that you can always make the radius tighter by
bending a little more but once you bend it too much there is no way of turning back.
Note: Before operating the machine, be sure that this manual is thoroughly read and
understood by the personnel who will directly operate the machine and others concerned with it.
PRE-BENDING OPERATION
Pre-bending is the operation where the edges of the material is bent to the same radius of the
end radius. This is used to get best results in full circle bending ( i.e. pipe making )or in operations
where there must not be any flat edges. According to the final radius to make the finished material
very good.
The pre-bending process is also different compared to 3 roll bending machines. The following
steps must be taken to make a pre-bending.
Before operation:
1. Clean the material and the rolls from dust, or grease
2. Make sure there are no chips or flame cutting left-over on the edges of the material
3. Keep in mind that if the material is cut by flame that side will be harder than the other side
4. Check the surface of the material carefully make sure its flat
5. It’s a good idea to have template of the required radius when making a bend. To make a template
cut a hard cardboard or cartoon piece with the necessary radius

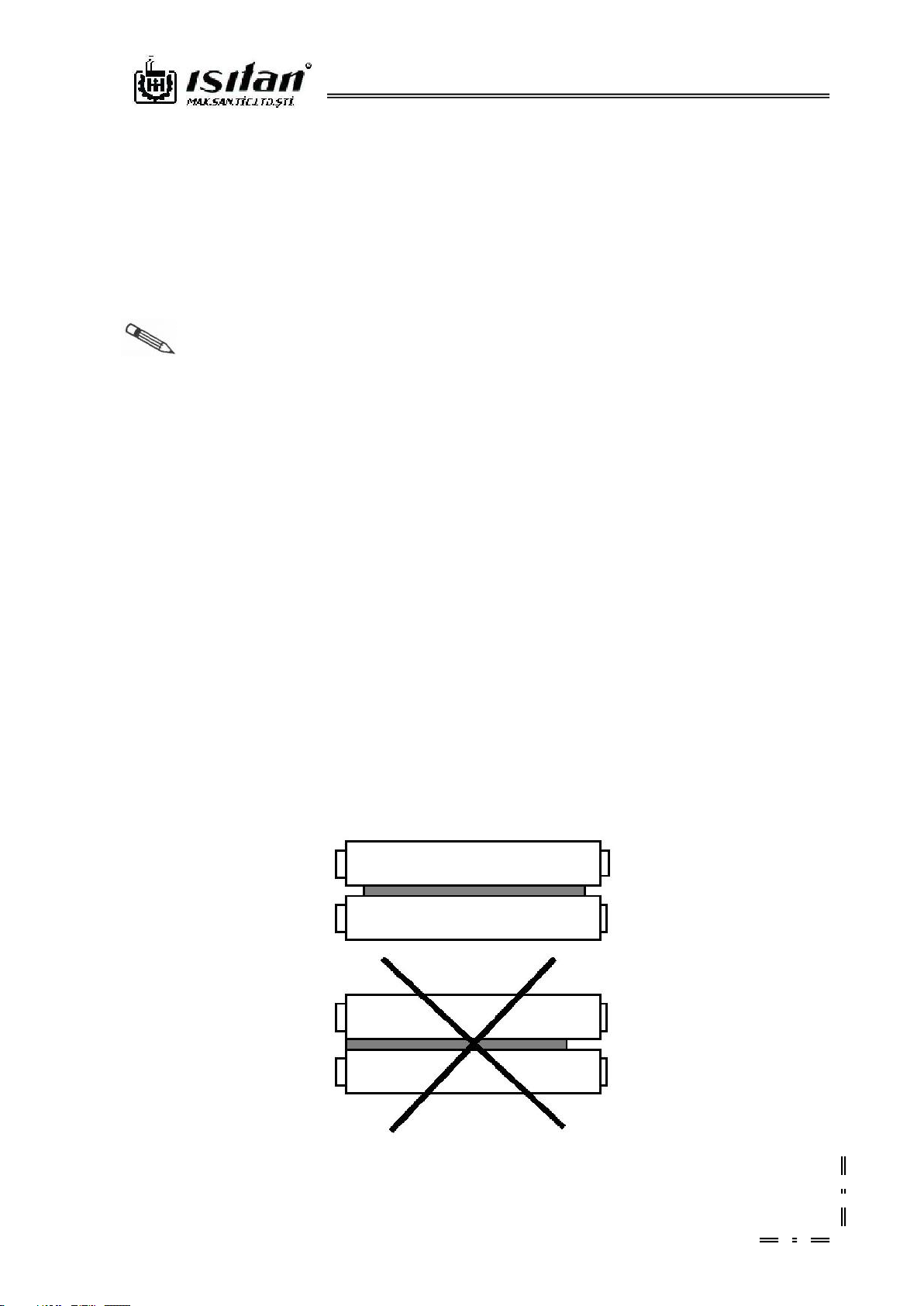

6. Always work in the center of the rolls as shown below.
