Iskra iHUB-L1 User manual

1
Communication gateway iHUB-L1
Communication gateway iHUB-L1
October 2018 • Version 1.00

ii
Communication gateway iHUB-L1
Communication gateway
iHUB-L1
User and Installation manual

Communication gateway iHUB-L1
iii
Security Advices and Warnings
Please read this chapter carefully and examine the equipment carefully for potential damages which
might arise during transport and to become familiar with it before continue to install, energize and
work with an iHUB-L1.
This chapter deals with important information and warnings that should be considered for safe
installation and handling with a device in order to assure its correct use and continuous operation.
Everyone using the product should become familiar with the contents of chapter »Security Advices
and Warnings«.
If equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
PLEASE NOTE
This booklet contains instructions for installation and use of iHUB-L1. Installation and use
of a device also includes handling with dangerous currents and voltages therefore should
be installed, operated, serviced and maintained by qualified personnel only. ISKRA
Company assumes no responsibility in connection with installation and use of the product.
If there is any doubt regarding installation and use of the system in which the device is
used for measuring or supervision, please contact a person who is responsible for
installation of such system.
Before switching the device ON
Check the following before switching on the device:
Nominal voltage.
Terminals integrity.
Protection fuse for voltage inputs (recommended maximal external fuse size is 10 A).
External switch or circuit breaker must be included in the installation for disconnection of
the devices’ aux. power supply. It must be suitably located and properly marked for
reliable disconnection of the device when needed.
Proper connection and voltage level of I/O module.

iv
Communication gateway iHUB-L1
Used symbols on devices’ housing and labels
SYMBOL
EXPLANATION
DANGER
Indicates proximity of hazardous high voltage, which might
result in serious injury or death if not handled with care.
WARNING
Indicates situations where careful reading of this manual is
required and following requested steps to avoid potential
injury is advised.
Compliance of the product with directive 2002/96/EC, as first
priority, the prevention of waste electrical and electronic
equipment (WEEE), and in addition, the reuse, recycling and
other forms of recovery of such wastes so as to reduce the
disposal of waste. It also seeks to improve the environmental
performance of all operators involved in the life cycle of
electrical and electronic equipment.
Compliance of the product with European CE directives.
Disposal
It is strongly recommended that electrical and electronic equipment (WEEE) is not deposit as
municipal waste. The manufacturer or provider shall take waste electrical and electronic
equipment free of charge. The complete procedure after lifetime should comply with the
Directive 2002/96/EC about restriction on the use of certain hazardous substances in electrical
and electronic equipment.

Communication gateway iHUB-L1
v
Table of contents
1BASIC DESCRIPTION AND OPERATION 1
DESCRIPTION OF THE DEVICE 2
IHUB-L1 APPLICATION 3
MAIN FEATURES 5
2CONNECTION 6
MOUNTING 7
ELECTRICAL CONNECTION 8
3FIRST STEPS 10
INTRODUCTION 11
IHUB-L1 IP ADDRESS 13
CONFIGURING IHUB-L1 WITH MIQEN CONFIGURATION SW 17
IHUB-L1 IOT 20
SELECTING DEVICE FOR PUBLISHING DATA 20
IHUB-L1 WEB INTERFACE 24
4TECHNICAL DATA 30
MECHANICAL CHARACTERISTICS OF INPUT 31
POWER SUPPLY INPUT 31
LED 31
WI-FI31
RS485 SERIAL COMMUNICATION 32
PULSE INPUT (OPTIONAL) 32
TEMPERATURE SENSOR (PT1000) INPUT 32
SAFETY AND AMBIENT CONDITIONS 32
EC DIRECTIVES CONFORMITY 33
DIMENSIONS 33
5ABBREVIATION/GLOSSARY 34

Communication gateway iHUB-L1
1
BASIC DESCRIPTION AND OPERATION
This chapter presents all relevant information about the iHUB-L1 required to understand its
purpose, applicability and basic features related to its operation.
In this chapter, you will find:
DESCRIPTION OF THE DEVICE 2
IHUB-L1 APPLICATION 3
MAIN FEATURES 5

2
Communication gateway iHUB-L1
Description of the device
The iHUB-L1 communication gateway is intended to connect various equipment into
communication network via Wi-Fi communication. The gateway has build-in two optical (IR)
communication ports and the RS485 serial communication with the MODBUS protocol. RS485
communication enables data transmission and thus connection of communication gateway into
the RS485 network and communication with various equipment, which is equipped with RS485
communication (e.g. energy meters, bi-stable switches, power monitoring devices, etc.), via TCP
MODBUS.
The iHUB-L1-IO is also equipped with pulse input and temperature sensor (Pt1000) input.
Appearance
1Power input and temperature
sensor (Pt1000) input (iHUB-L1-IO)
2RS485 communication
3IR communication port (one on
each side)
4DIN-rail fitting
5Reset and factory reset switch
6Multifunctional green LED
7Power supply
Figure 1: Appearance of communication gateway iHUB-L1.
A built-in green LED diode indicates different operation states of the iHUB-L1. A tactile switch is
built-in for reset and factory reset of a gateway. Short press resets the gateway, pressing button
for more than 5 seconds (LED diode starts blinking fast) will do a factory reset (meaning setting
iHUB-L1 to factory settings and turn into access point mode). Connecting terminals are built to
be fastened according to EN 60715 standard. The iHUB-L1 interface with corresponding
equipment enables setting and reading the instruments.

Communication gateway iHUB-L1
3
iHUB-L1 application
The iHUB-L1 can be used in a variety of applications including:
Single-phase single point metering and control.
Three-phase single point metering and control.
Connecting different devices via IR communication and RS485 communication.
Connecting different devices via Wi-Fi (e.g. Pt1000 temperature sensor).
Monitoring single or multiple devices.
Figure 2: Connection diagram for iHUB-L1. It is connected to an energy meter (on the
left side of the iHUB-L1) and to latching switch (on the right side of the iHUB-L1) by IR
communication. It is possible to read and control data with the computer or mobile
phone.

4
Communication gateway iHUB-L1

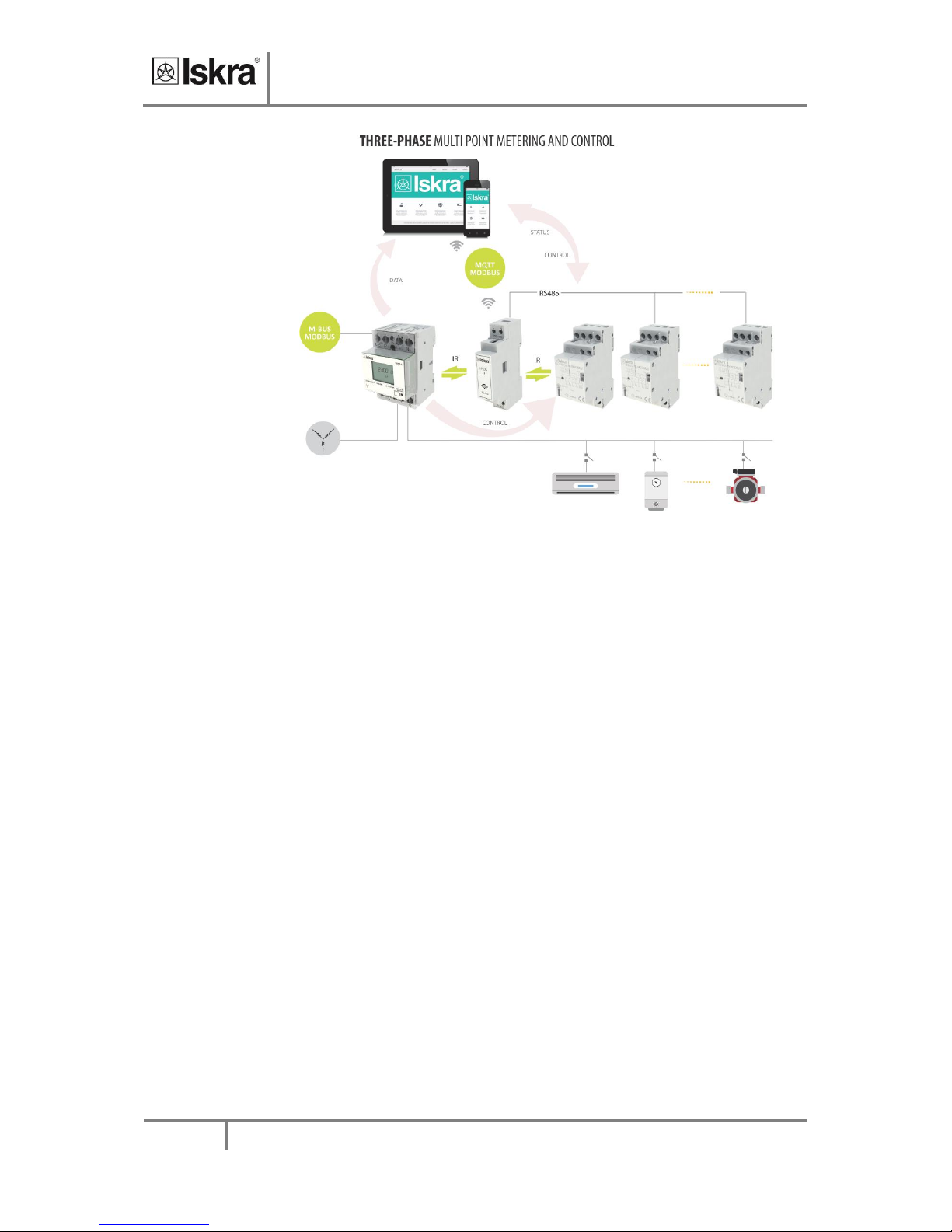

Figure 3: Connection diagram for iHUB-L1 for connection to three-phase energy meter.
It is connected to an energy meter (on the left side of the iHUB-L1); to one latching
switch (on the right side of the iHUB-L1) by IR communication and to two latching
switches by RS485 communication. It is possible to read and control data with the
computer or mobile phone.

Communication gateway iHUB-L1
5
Main features
AC mains power supply.
Nominal supply voltage (Un) from 85 V to 265 V.
Voltage operating range: - 20% to + 15%.
Nominal frequencies 50 Hz and 60 Hz.
Multifunctional front green LED.
RS485 serial communication.
IR serial communication (2 ports).
Wi-Fi communication.
1-DIN rail width mounting communication gateway according to EN 60715.

6
Communication gateway iHUB-L1
CONNECTION
This chapter deals with the instructions for iHUB-L1 connection. Both the use and connection of
the device includes handling with dangerous currents and voltages. Connection shall, therefore,
be performed ONLY a by a qualified person using an appropriate equipment. ISKRA, d.d. does
not take any responsibility regarding the use and connection. If any doubt occurs regarding
connection and use in the system which device is intended for, please contact a person who is
responsible for such installations.
In this chapter you will find:
MOUNTING 7
ELECTRICAL CONNECTION 8

Communication gateway iHUB-L1
7
Mounting
The iHUB-L1 is intended only for DIN-rail mounting. It should be mounted on a DIN-rail between
an energy meter and latching switch.
WARNING
Case is sealed. Do not open the device. No warranty if case is opened.
Figure 4: Dimensional drawing of iHUB-L1

8
Communication gateway iHUB-L1
Electrical connection
WARNING
Installation must be carried out and inspected by a specialist or under his supervision.
Wrong or incomplete connection of voltage or other terminals can cause non-operation
or damage to the device.
The iHUB-L1 should be connected to power supply voltage. Two IR communication ports are
assembled into the gateway, one on each side. The left one communicates with energy meter,
the right one is meant to connect to latching switch. The latching switch can be turned on/off
by energy meter with set limit values or by user via Wi-Fi network using dedicated software (e.g.
MiQen software).
Figure 5: IR and RS485 connection of iHUB-L1
Additionally, two devices (e.g. energy meters, bistable switches, power monitoring devices, etc.)
can be connected to the gateway via RS485 communication.
Up to 2 devices can be connected to the RS485 network allowing the iHUB-L1 to manage 4
devices altogether (1 energy meter and 1 latching switch via IR MODBUS communication,
additionally managing 2 devices via RS485 communication).
PLEASE NOTE
For proper operation of the IR communication, avoid a powerful external source of
light.

Communication gateway iHUB-L1
9
Table 1: Survey of
communication
connection
Communication connection
The complete iHUB-L1 system is assembled with three main units and two optionally units,
which are used for communication with outside world:
The power supply unit.
iHUB-L1 is supplied from AC power mains with nominal voltage 230 V. An isolated SMPS
power supply is used to supply main MCU as well as Wi-Fi module, communication units
and MCU peripherals.
The processing unit (MCU) with IR communication, RS485 communication, LED
indicator and Switch for reset/factory reset.
IR communication unit and RS485 unit are connected to MCU via UART interface. Various
equipment can be connected to iHUB-L1 communication gateway via IR communication or
via RS485 communication. Both IR communication modules using MODBUS protocol.
Wi-Fi module.
Wi-Fi module is equipped on each gateway and enables connection of iHUB-L1 to user's
Wi-Fi network using TCP MODBUS protocol. Furthermore, Wi-Fi module communicates
with main processing unit via UART interface.
Extension modules of iHUB-L1-IO (pulse input and temperature sensor (Pt1000)
input)
iHUB-L1-IO does not have any adjustable elements (e.g. potentiometers), which assures a
better long-term stability.
Terminals
Power supply
N
L
RS485 communication
A
B
Pulse input*
Pulse -
Pulse +
Temperature sensor*
Pt1000
Pt1000
*Only for the iHUB-L1-IO
PLEASE NOTE
Check labels on the side of the meter to check what modules are built in.

10
Communication gateway iHUB-L1
FIRST STEPS
Programming a iHUB-L1is very transparent and user friendly. Numerous settings are organized
in groups according to their functionality.
In this chapter you will find basic programming steps:
INTRODUCTION 11
IHUB-L1 IP ADDRESS 13
CONFIGURING IHUB-L1 WITH MIQEN CONFIGURATION SW 17
IHUB-L1 IOT 20
SELECTING DEVICE FOR PUBLISHING DATA 20
IHUB-L1 WEB INTERFACE 24

Communication gateway iHUB-L1
11
Introduction
Connecting iHUB-L1 is very transparent and user friendly. The flowchart below illustrates the
first few steps to more clearly understanding software settings.
Figure 6: Process flowchart
Connecting iHUB-L1 to Wi-Fi Network
After we mounted iHUB-L1 on a DIN-rail and supplied it with AC power (power-up the device),
we must connect iHUB-L1 to Wi-Fi network. At first, iHUB-L1 tries to connect to last successfully
added Wi-Fi network. If iHUB-L1 cannot connect to Wi-Fi in 60 seconds, it will start configuration
procedure. This mode is active for 3 minutes and after that, it cycles to connection mode again.

12
Communication gateway iHUB-L1
SETUP iHUB-L1 IN CONFIGURATION MODE
Search Wi-Fi networks with
your smartphone. Find Wi-Fi
network starting with IHL.
Figure 7: Selection of the
IHL Wi-Fi network
Some smartphones get pop-up
Sign to Wi-Fi network.
Figure 8: Pop-up sign
After connecting to IHL
network, configuration page
will appear.
If you do not get this page, you
can start a web browser on your
phone and go to IP address:
192.168.4.1.
Click on Configure Wi-Fi to get
available Wi-Fi
networks.
Figure 9:Wi-Fi configuration

Communication gateway iHUB-L1
13
Select Wi-Fi network then enter
the password and click on save.
If you have hidden Wi-Fi network, you can
manually enter SSID and password. Click
on save and wait.
PLEASE NOTE
iHUB-L1 will now enter connection
mode and connect to the selected Wi-
Fi network. You can switch your phone
back to your previous Wi-Fi network.
Figure 10: Sign in to network
iHUB-L1 IP address
If the previous step is completed, iHUB-L1 will connect to Wi-Fi network. In order to connect to
iHUB-L1, you must find its IP address. There are several ways to find it:
1. MiQen configuration SW (Browse Ethernet devices)
2. Adroid Fling application
3. Windows file explorer
4. Apple bonjour service
Find IP address with MiQen
MiQen software is a tool for complete programming and monitoring of ISKRA measuring
instruments. Remote operation is possible by means of serial (RS485/RS232), USB or TCP/IP
communication. A user-friendly interface consists of six segments (Connection, Settings,
Measurements, Analysis, My devices, and Upgrades). These segments are easily accessed by
means of six icons on the left side.
The latest version of MiQen software can be downloaded from ISKRA d.d. website
https://www.iskra.eu/.

14
Communication gateway iHUB-L1
PLEASE NOTE
MiQen has a very intuitive help system. All functions and settings are described in Info
window on the bottom of MiQen window. In MiQen Help file, detailed instructions
about software usage, connection, and communication with a different type of devices,
driver installation, etc. are described.
MiQen has a functionality to search for network devices. Your PC must be connected to the
same network as iHUB-L1! All settings can be programmed using MiQen software.
Figure 11: MiQen programming and monitoring software
Start MiQen application and click on Browse ethernet devices.
Figure 12: Browse ethernet devices selection
MiQen scans Wi-Fi network and displays results. You get a list of all detected devices on your
network. You can double click on your device and MiQen will establish a connection with it.
