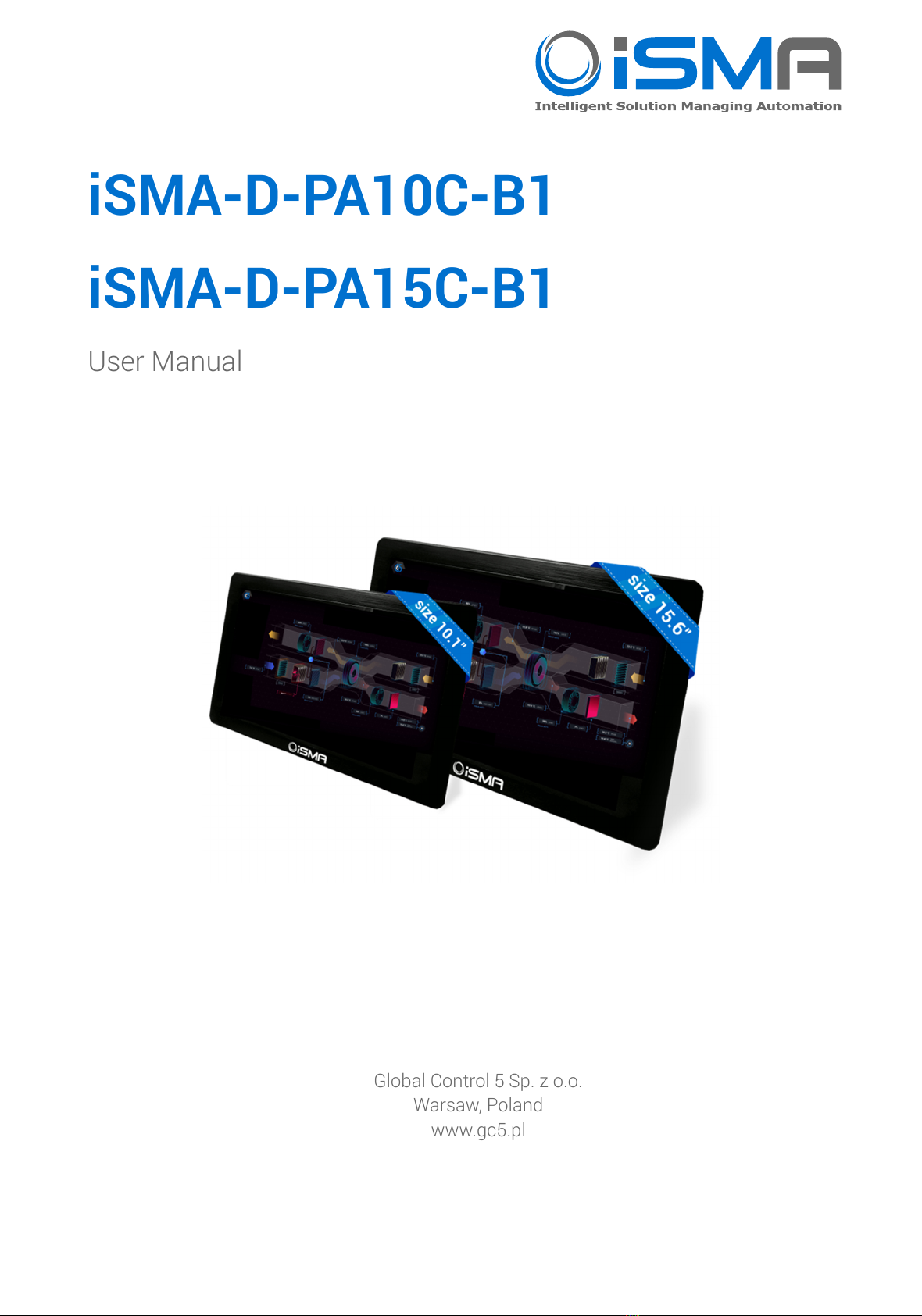

iSMA iSMA-D-PA15C-B1 User manual

iSMA-D-PA10C-B1
iSMA-D-PA15C-B1
User Manual
Global Control 5 Sp. z o.o.
Warsaw, Poland
www.gc5.pl
All manuals and user guides at all-guides.com

Table of contents
1 Introduction ......................................................................................................................................................... 3
1.1 evision history .................................................................................................................................................................. 3
1.2 Safety rules .......................................................................................................................................................................... 4
1.3 EN 55022:2010+AC:2011 ................................................................................................................................................. 5
1.4 EN 61000-3-2:2014 ............................................................................................................................................................ 5
1.5 EN 61000-3-3:2013 ............................................................................................................................................................ 5
1.6 EN 55024:2010 + A1:2015 ............................................................................................................................................... 5
1.7 EN 60950-1:2006 + A11:2002 + A1:2010 + A12:2011 + A2:2013 ............................................................................ 5
1.8 Technical specifications ................................................................................................................................................... 6
1.9 Dimensions .......................................................................................................................................................................... 7
1.10 Interface Details ................................................................................................................................................................. 8
1.11 Setting USB port to OTG Mode ........................................................................................................................................ 8
2 Operation Guide ............................................................................................................................................... 10
2.1 ear navigation buttons.................................................................................................................................................. 10
2.2 Setting static IP address ................................................................................................................................................. 11
3 Installation ......................................................................................................................................................... 13
3.1 Embed with snap joint Installation ............................................................................................................................... 13
3.2 Wall-mount Installation ................................................................................................................................................... 14
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 3 /14

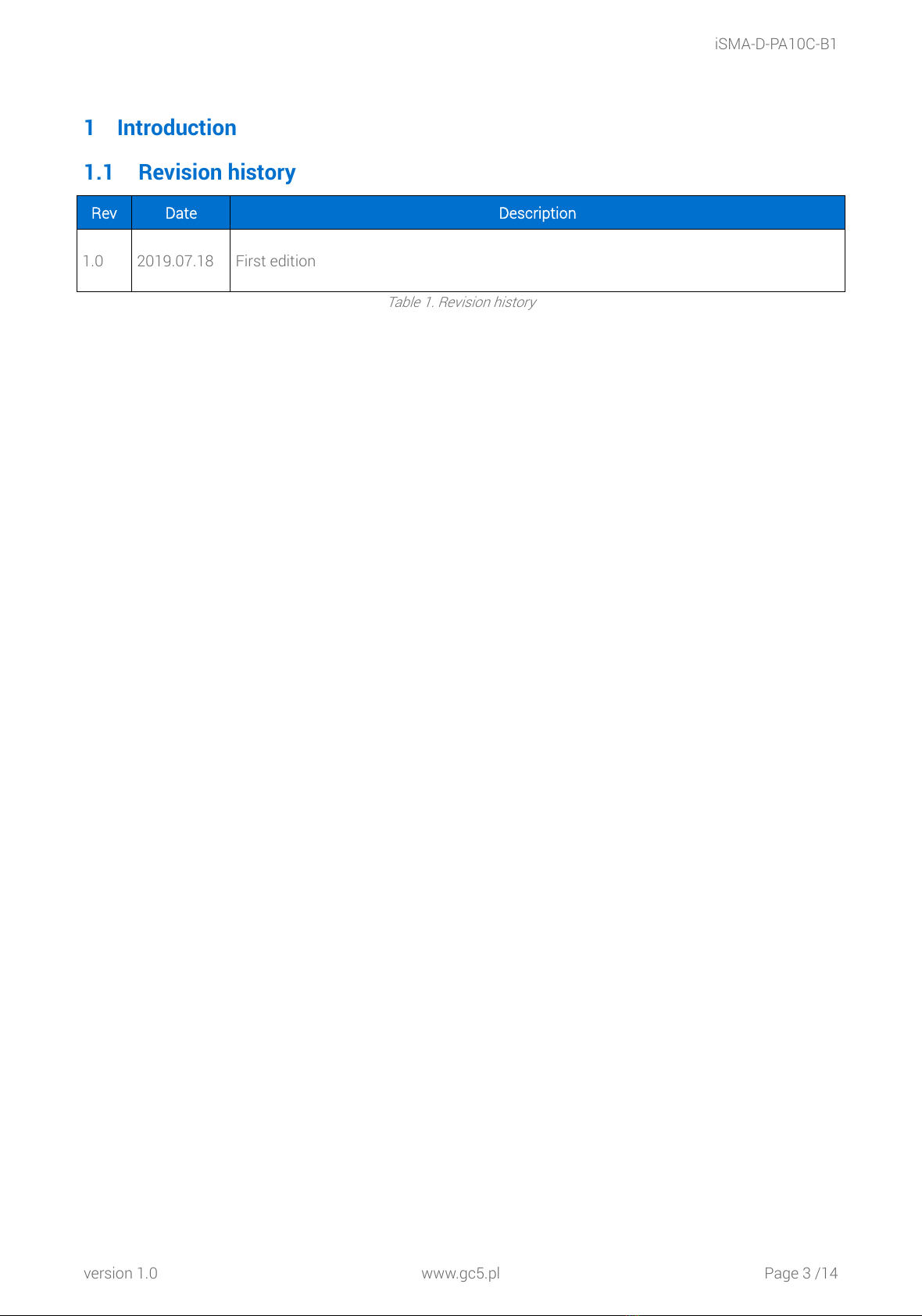

1 Introduction
1.1 Revision istory
ev Date Description
1.0 2019.07.18 First edition
Table 1. evision history
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 4 /14

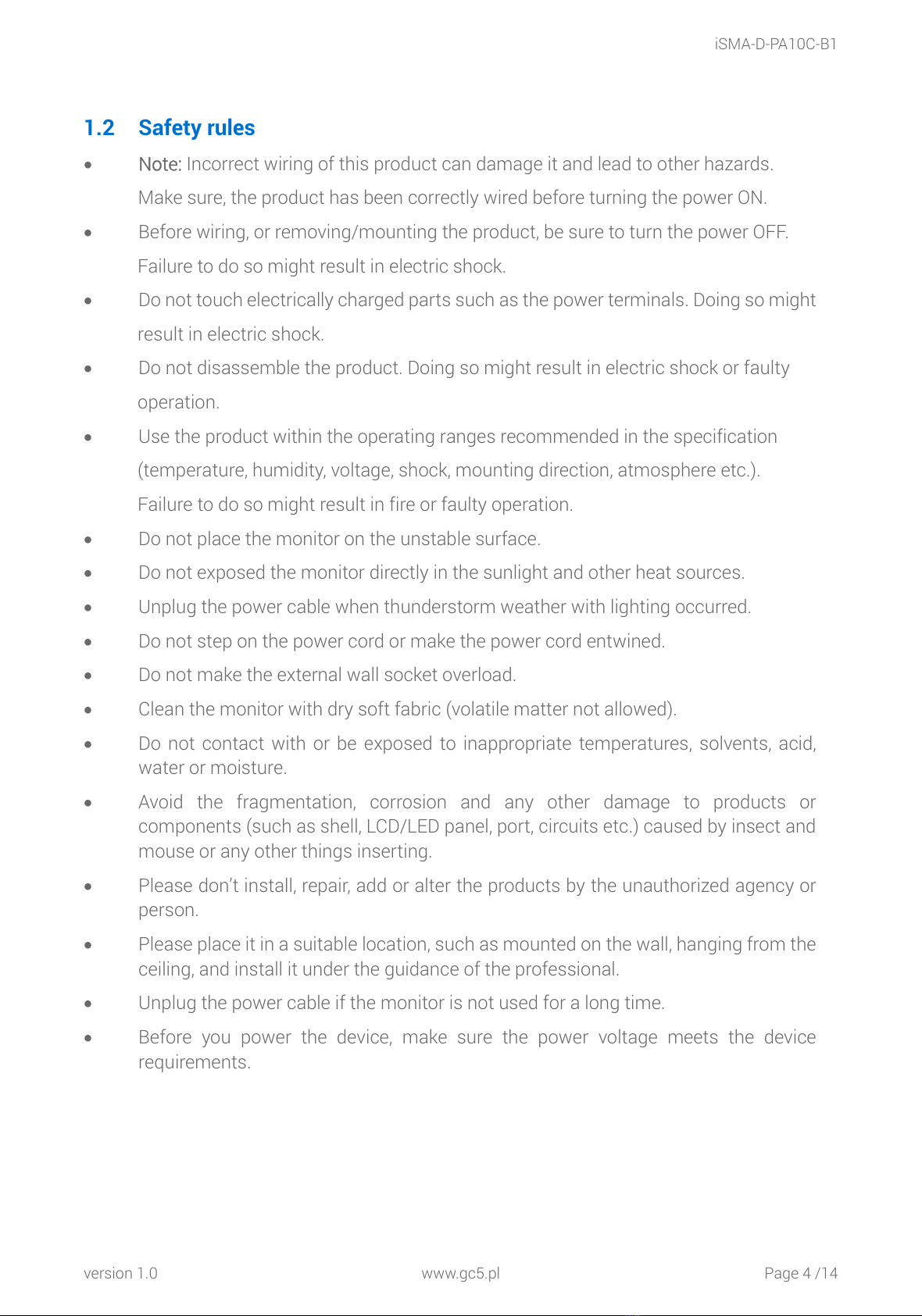

1.2 Safety rules
 Note: Incorrect wiring of this product can damage it and lead to other hazards.
Make sure, the product has been correctly wired before turning the power ON.
 Before wiring, or removing/mounting the product, be sure to turn the power OFF.
Failure to do so might result in electric shock.
 Do not touch electrically charged parts such as the power terminals. Doing so might
result in electric shock.
 Do not disassemble the product. Doing so might result in electric shock or faulty
operation.
 Use the product within the operating ranges recommended in the specification
(temperature, humidity, voltage, shock, mounting direction, atmosphere etc.).
Failure to do so might result in fire or faulty operation.
 Do not place the monitor on the unstable surface.
 Do not exposed the monitor directly in the sunlight and other heat sources.
 Unplug the power cable when thunderstorm weather with lighting occurred.
 Do not step on the power cord or make the power cord entwined.
 Do not make the external wall socket overload.
 Clean the monitor with dry soft fabric (volatile matter not allowed).
 Do not contact with or be exposed to inappropriate temperatures, solvents, acid,
water or moisture.
 Avoid the fragmentation, corrosion and any other damage to products or
components (such as shell, LCD/LED panel, port, circuits etc.) caused by insect and
mouse or any other things inserting.
 Please don’t install, repair, add or alter the products by the unauthorized agency or
person.
 Please place it in a suitable location, such as mounted on the wall, hanging from the
ceiling, and install it under the guidance of the professional.
 Unplug the power cable if the monitor is not used for a long time.
 Before you power the device, make sure the power voltage meets the device
requirements.
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 5 /14

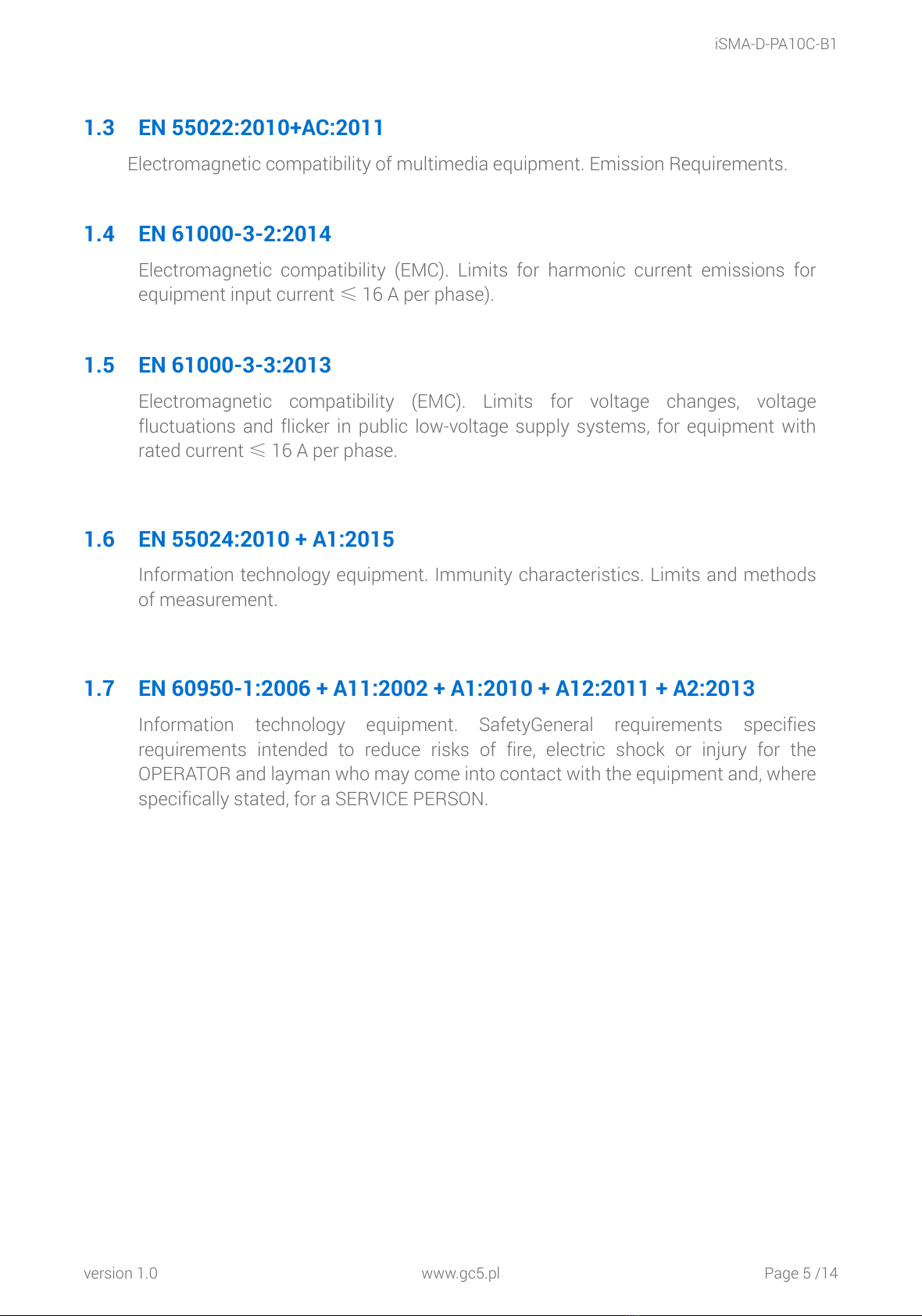

1.3 EN 55022:2010+AC:2011
Electromagnetic compatibility of multimedia equipment. Emission equirements.
1.4 EN 61000-3-2:2014
Electromagnetic compatibility (EMC). Limits for harmonic current emissions for
equipment input current ≤ 16 A per phase).
1.5 EN 61000-3-3:2013
Electromagnetic compatibility (EMC). Limits for voltage changes, voltage
fluctuations and flicker in public low-voltage supply systems, for equipment with
rated current ≤ 16 A per phase.
1.6 EN 55024:2010 + A1:2015
Information technology equipment. Immunity characteristics. Limits and methods
of measurement.
1.7 EN 60950-1:2006 + A11:2002 + A1:2010 + A12:2011 + A2:2013
Information technology equipment. SafetyGeneral requirements specifies
requirements intended to reduce risks of fire, electric shock or injury for the
OPE ATO and layman who may come into contact with the equipment and, where
specifically stated, for a SE VICE PE SON.
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 6 /14
1.8 Tec nical specifications
Panel type Industrial TFT LCD
Operating system Android 7.1
Screen type LED ; Backlight lifetime ≥50000h,
Size 10.1’’/15.6”
Aspect atio 16:9
esolution 1366x768
Luminance 300nit, up to 800nit/300nit, up to 1000nit
Contrast 800:1/1000:1
Active Area 222.7x125.2 mm / 344.2x193.6 mm
Display color 16.7M
Point distance
0.264mm
View angle 75/75/75/75 / 89/89/89/89
esponse time ≤5ms
Installation Compatible with VESA, For embedding, Wall Mount
Menu Languages English, French, German, Spanish, Chinese, Italian, ussian
Touch Type 10-point capacitive touch screen
Material Metal /Aluminum Alloy
Interface IP, S232, TF/SD Card, USB 3.0, USB 3.0/OTG USB
Power port DC12V- 24V
Anti-interference Anti-interference Electromagnetic Compatibility; Electromagnetic Interference
Anti-Vibration 5-19HZ/1.0mm Amplitude; 19-200HZ/1.0g Accelerated Speed
Temperature Operating temperature: -10°C to 60°C (14°F
to 140°F)
Storage temperature: -10°C to 60°C (14°F to
140°F)
Humidity Operation humidity: 10% to 80% Storage humidity: 10% to 90%
Anti-static 4KV-8KV; (customized MAX 16KV)
ated Voltage AC100V～240V to DC12V-24V
ated Frequency 50Hz/60Hz
Power supply AC 110-240V, 50/60Hz
Power supply adapter
EU, UK
or
US
Power Power consumption ≤30W Power standby ≤1.5W
Dimension 293,6x193,6x48,5 mm (11.560x7.622x1.909 in) / 420,0x269,0x70,0 mm
(16,535x10,591x2,756 in)
IP IP65 – for front panel
Table 2. Technical specifications
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 7 /14
1.9 Dimensions
Figure 1. Dimensions of 10.1”
Figure 2 Dimensions of 15.6
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 8 /14
1.10 Interface Details
The Monitor will recognize and select the signal automatically. An exception is USB in OTG
Mode, you need to set USB port to OTG Mode. Full instruction in point 1.11
Figure 2. DC power supply connection of 10.1”
Figure 2. DC power supply connection 15.6”
1.11 Setting USB port to OTG Mode
1. Go to the main menu Android Panel PC – a round, white icon with dots in the
center at the bottom of the screen
Figure 3 Main menu
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 9 /14
2. Go to settings
Figure 4 Settings
3. Go to developer options
Figure 5 Developer options
4. Set USB Mode to OTG Mode and turn on USB debugging
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 10 /14

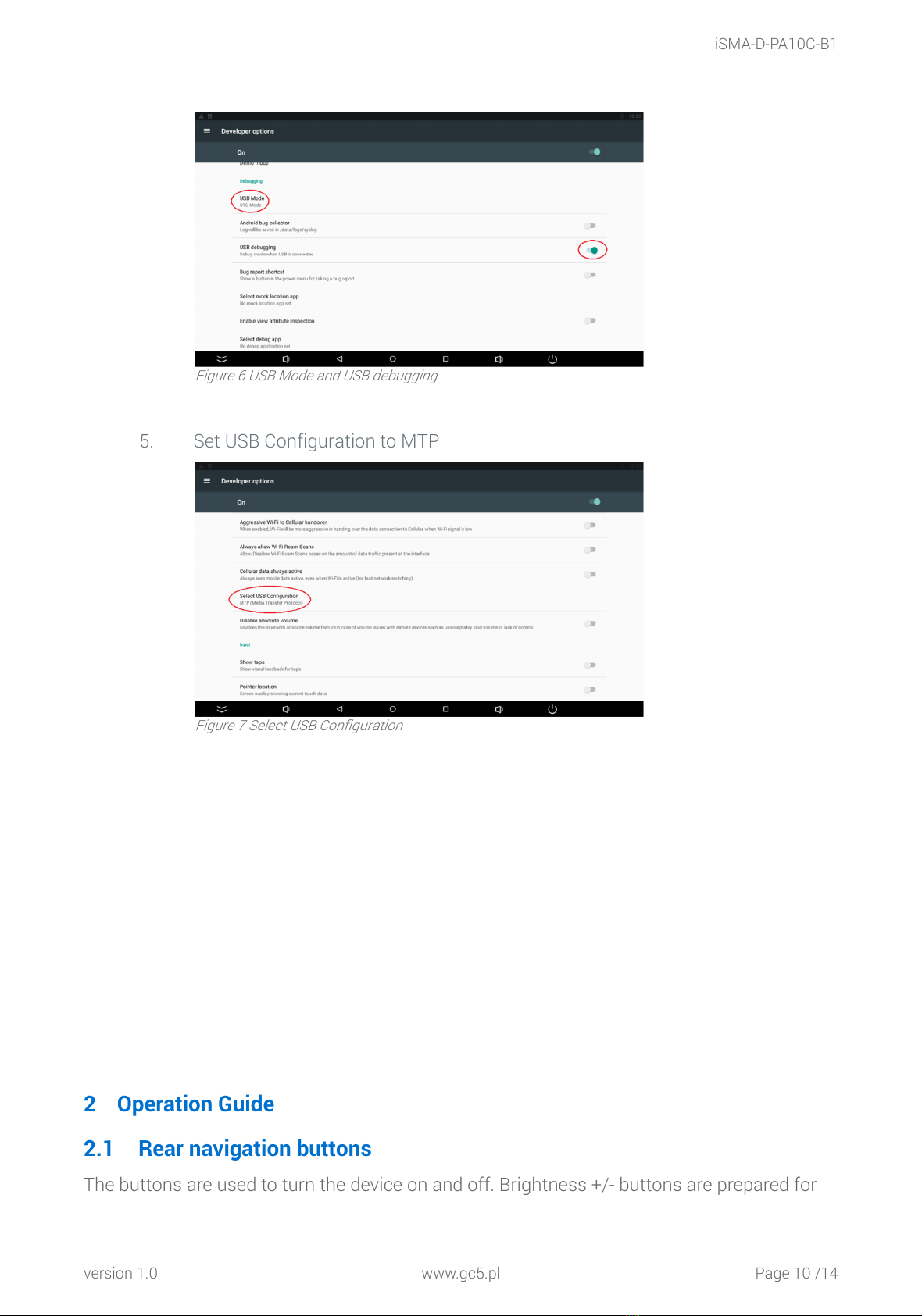

Figure 6 USB Mode and USB debugging
5. Set USB Configuration to MTP
Figure 7 Select USB Configuration
2 Operation Guide
2.1 Rear navigation buttons
The buttons are used to turn the device on and off. Brightness +/- buttons are prepared for
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 11 /14
future development

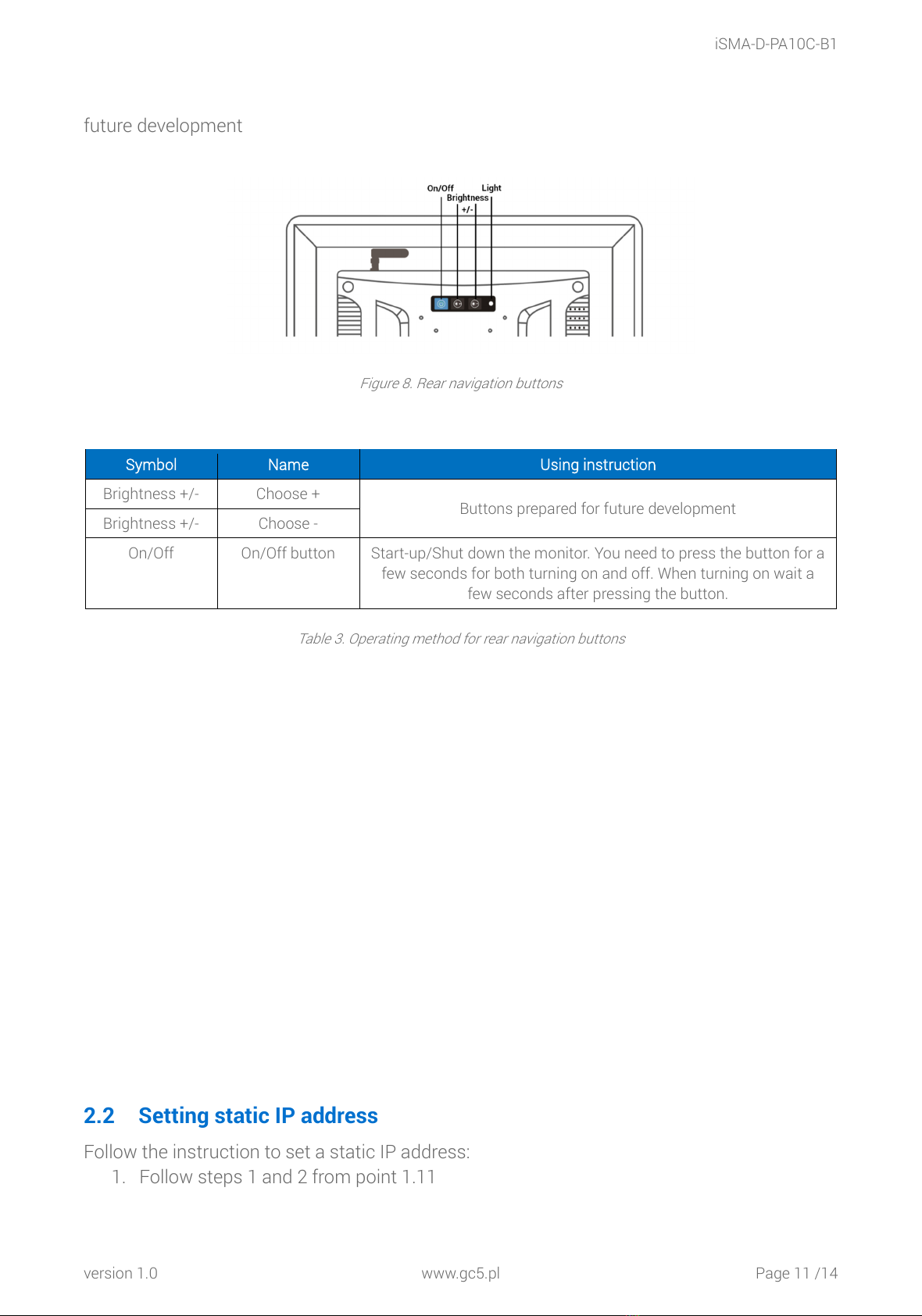

Figure 8. ear navigation buttons
Symbol Name Using instruction
Brightness +/- Choose + Buttons prepared for future development
Brightness +/
-
Choose
-
On/Off On/Off button Start-up/Shut down the monitor. You need to press the button for a
few seconds for both turning on and off. When turning on wait a
few seconds after pressing the button.
Table 3. Operating method for rear navigation buttons
2.2 Setting static IP address
Follow the instruction to set a static IP address:
1. Follow steps 1 and 2 from point 1.11
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 12 /14

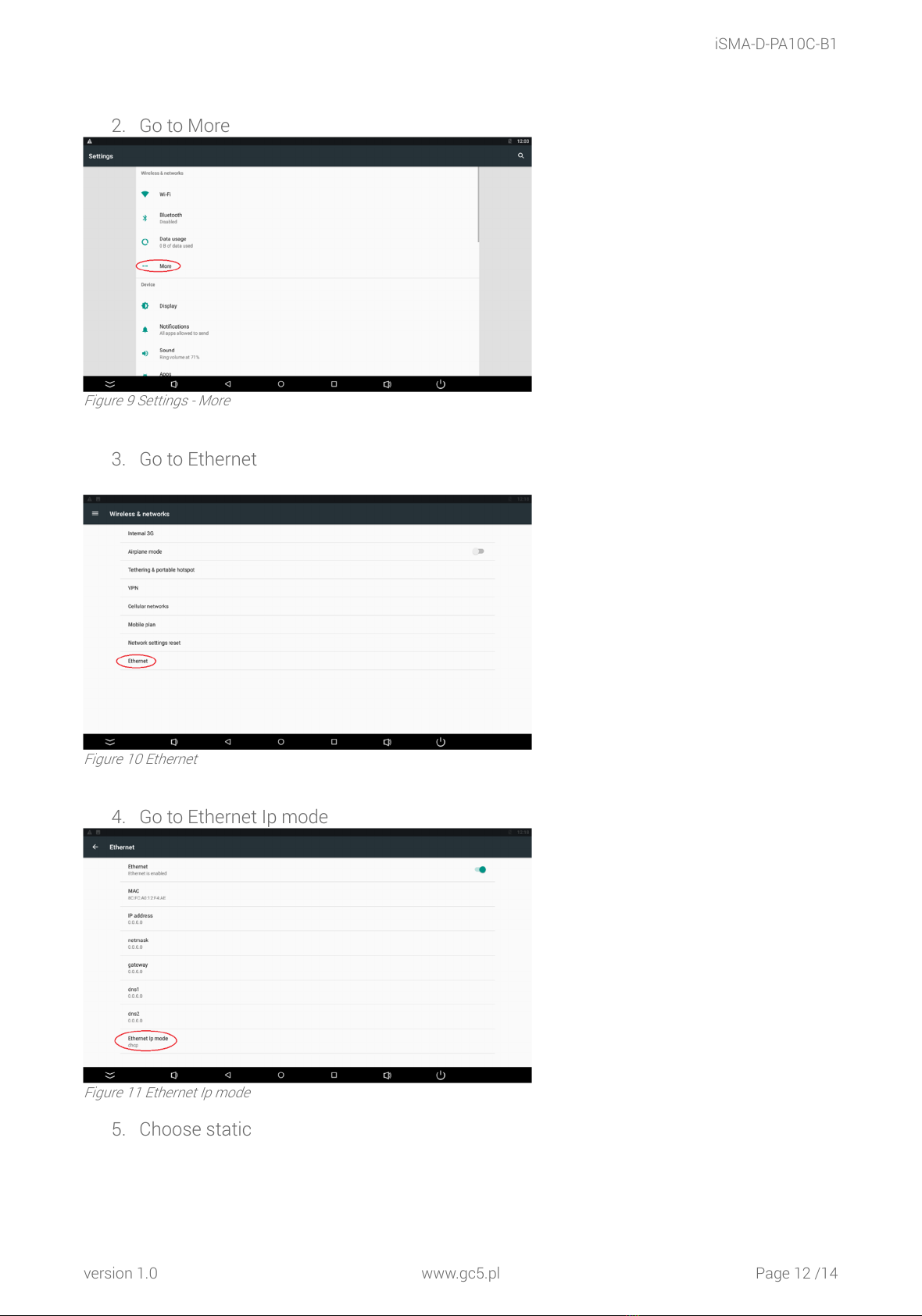

2. Go to More
Figure 9 Settings - More
3. Go to Ethernet
Figure 10 Ethernet
4. Go to Ethernet Ip mode
Figure 11 Ethernet Ip mode
5. Choose static
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 13 /14

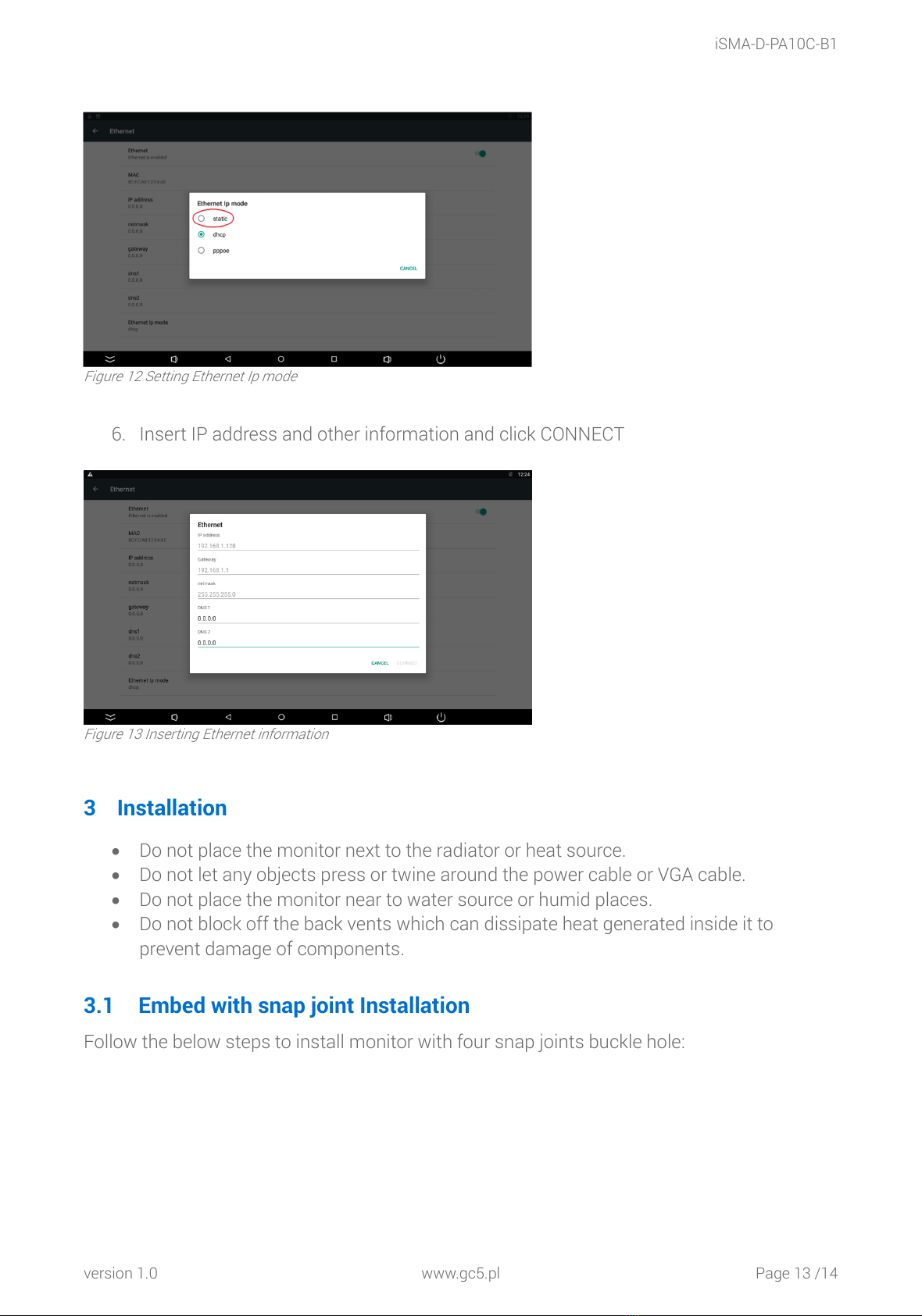

Figure 12 Setting Ethernet Ip mode
6. Insert IP address and other information and click CONNECT
Figure 13 Inserting Ethernet information
3 Installation
 Do not place the monitor next to the radiator or heat source.
 Do not let any objects press or twine around the power cable or VGA cable.
 Do not place the monitor near to water source or humid places.
 Do not block off the back vents which can dissipate heat generated inside it to
prevent damage of components.
3.1 Embed wit snap joint Installation
Follow the below steps to install monitor with four snap joints buckle hole:
All manuals and user guides at all-guides.com

iSMA-D-PA10C-B1
version 1.0 www.gc5.pl Page 14 /14

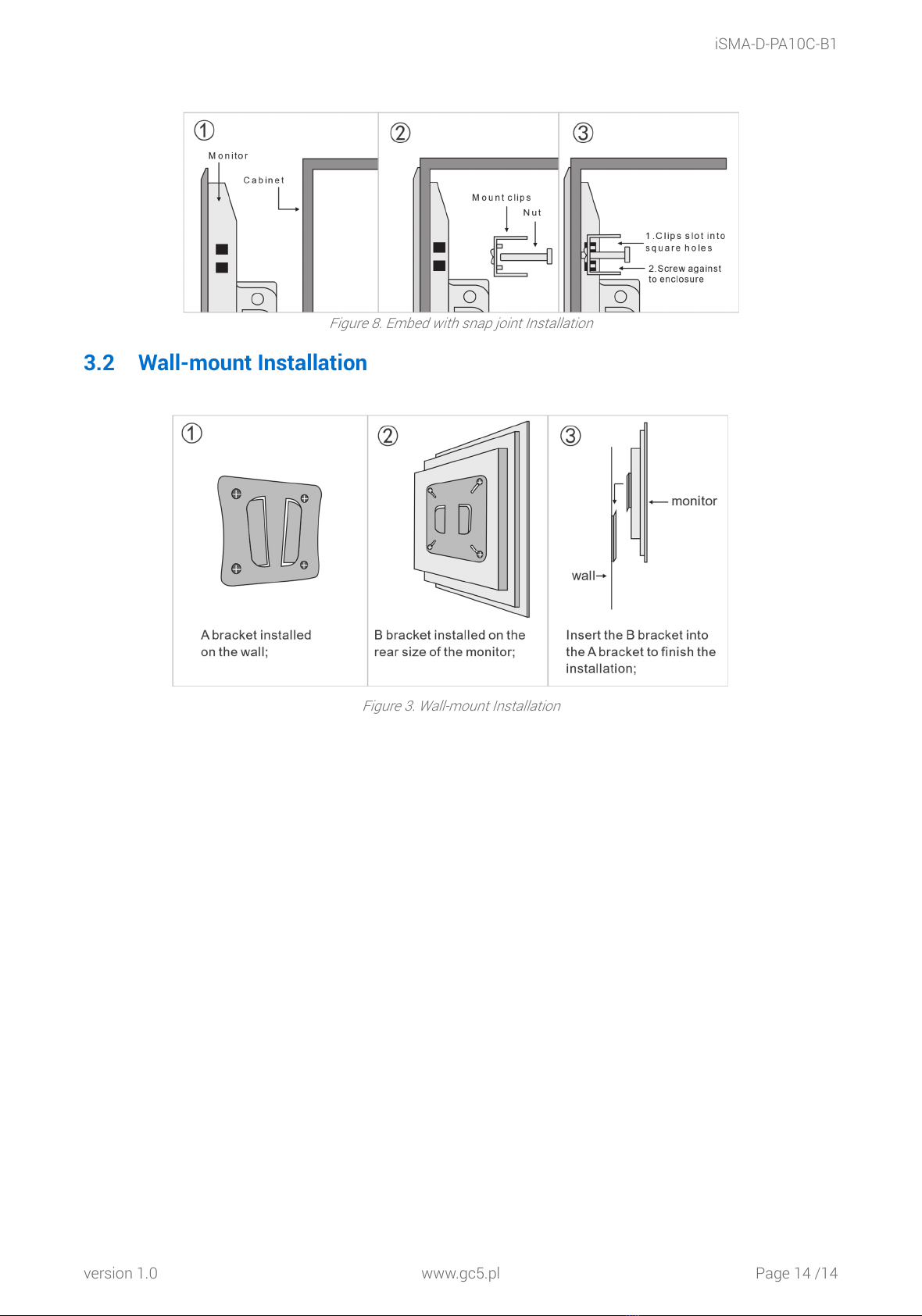

Figure 8. Embed with snap joint Installation
3.2 Wall-mount Installation
Figure 3. Wall-mount Installation
