“Congratulations for having purchased a product of iSmart.emobility!”
We convey our sincere gratitude for having purchased our product.

4
Table of contents
Precautions prior to use
Safety precautions p. 06
Composition and names of parts
Information on compositional parts p. 07
Names of external components p. 08-09
Fixate handle bar
Fixate the location of the handle bar p. 10
Battery
Detach/attach of additional battery pack p. 11
Charging battery p. 12
Techniques of using and managing lithium-ion battery p. 13
Precautions at the time of charging battery p. 14
Instrument panel
Names and explanation on the functions of instrument sections p. 15

5
Table of contents
Driving
Driving method p. 16
Cruise function
Setting / cancelling of cruise function p. 17
Folding
Folding method p. 18
Other convenient functions
Dismantling and repair p. 19
Product specications
Unfolded / Folded p. 20
Technical specications p. 21
Exchange / Refund / Guarantee period
Regulations on exchange, refund and guarantee period p. 22
Warranty period and cases of application of exemption and warranty p. 23

6
Precautions prior to use
Make sure to check the following items prior to reading the instruction manual.
1) Please use the product after having suciently familiarized with the instruction manual.
2) After having read the instruction manual, place it at location that can easily be seen at any time.
3) Among the contents of the instruction manual, the optional items and some of the devices and
functions may not be available or differ in accordance with the options.
4) Images used in the cover and contents of the instruction manual are the photographs of the
representative model and for the purpose of assisting with the understanding of the product. As such,
they may differ from the actual product.
5) The functions or performances of this product as well as the instruction manual may be changed
without prior announcement.
Warning / Safety precautions
Make sure to read the manual prior to use!
Make sure to read the entire manual and suciently familiarize with the methods of operation of the
product prior to using the product.
This product was manufactured for use by a single person. Do not have another person riding the product
with you.
Do not modify or remodel the structure of the product.
Never ride in environment with the risk of accidents.
Sharp turns, particularly on inclined surfaces, during riding is strictly prohibited as it is very dangerous.
Principles of safety prevention during riding
Make sure to suciently familiarize with the methods of the product control/use prior to use of the
product. As such, use the product once you have become familiar with the product.
Please refrain from dangerous behaviours during riding and always place both hands on the handle bar
while riding. You must ride with both feed on the footboard of the product.
Do not ride over humps with height of more than 3cm or in stairways.
Motorized product can be corroded or breakdown when it comes in contact with moisture. Make sure to
always use the product during clear days in considerations for the characteristics of the product.
For the prevention of safety accident
Make sure to ride the product only after having worn safety protection equipment (helmet, knee and elbow
guard, wrist guard, etc.)
Pay close attention to the topography and road surfaces. When riding over non-paved road, drive slowly at
low speed.
Please refrain from operation on road with heavy vehicle tracs.
Since the electronic control system of this product was developed with the foremost priority on the safety,
do not make changes to the electrical circuitry or attach other electrical devices onto the product.
If there is only one bar left on the battery gauge, stop operating the product and charge the battery before
using it again.
Check the status of the connection of the electrical cable and the connector on regular basis.
Refrain from riding the product in locations with dense population of people or presence of concerns for
the safety of the pedestrians.
Never use the product on slippery locations due to presence of water or on icy roads.
Never use the product on steepy inclined road of more than 15°.
Never use the product during rain (and snow).
Make sure to ride safely at low speed on inclined road.
Please ride safety at the speed of about 20 Km/h in order to ensure safety in riding.

7
Composition and names of parts
Informations on compositional components

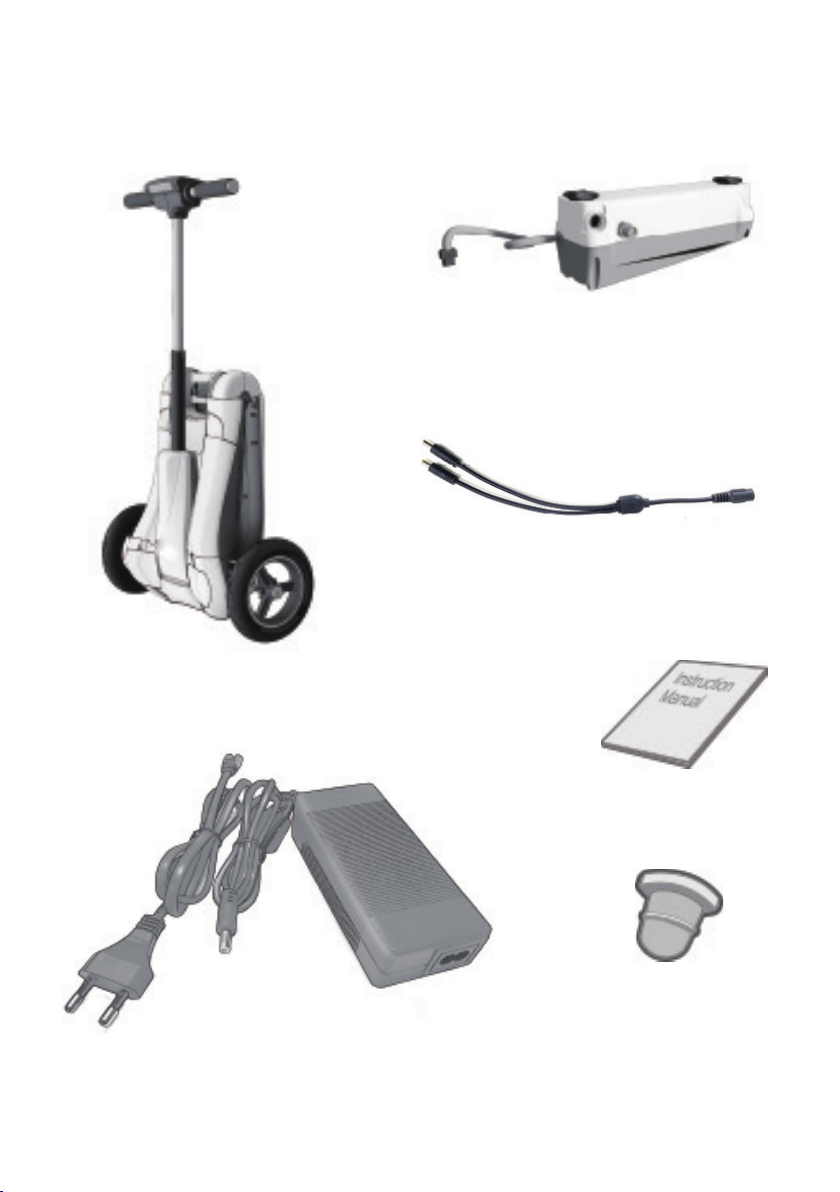

Main body of the iBoard
Adapter for charging battery
Additional battery
(item to be purchased separatly)
Charging gender
Instruction manual
Rubber cap
When the extra battery is detached
from iBoard, use this rubber cap to
cover the hole.

8
Composition and names of parts

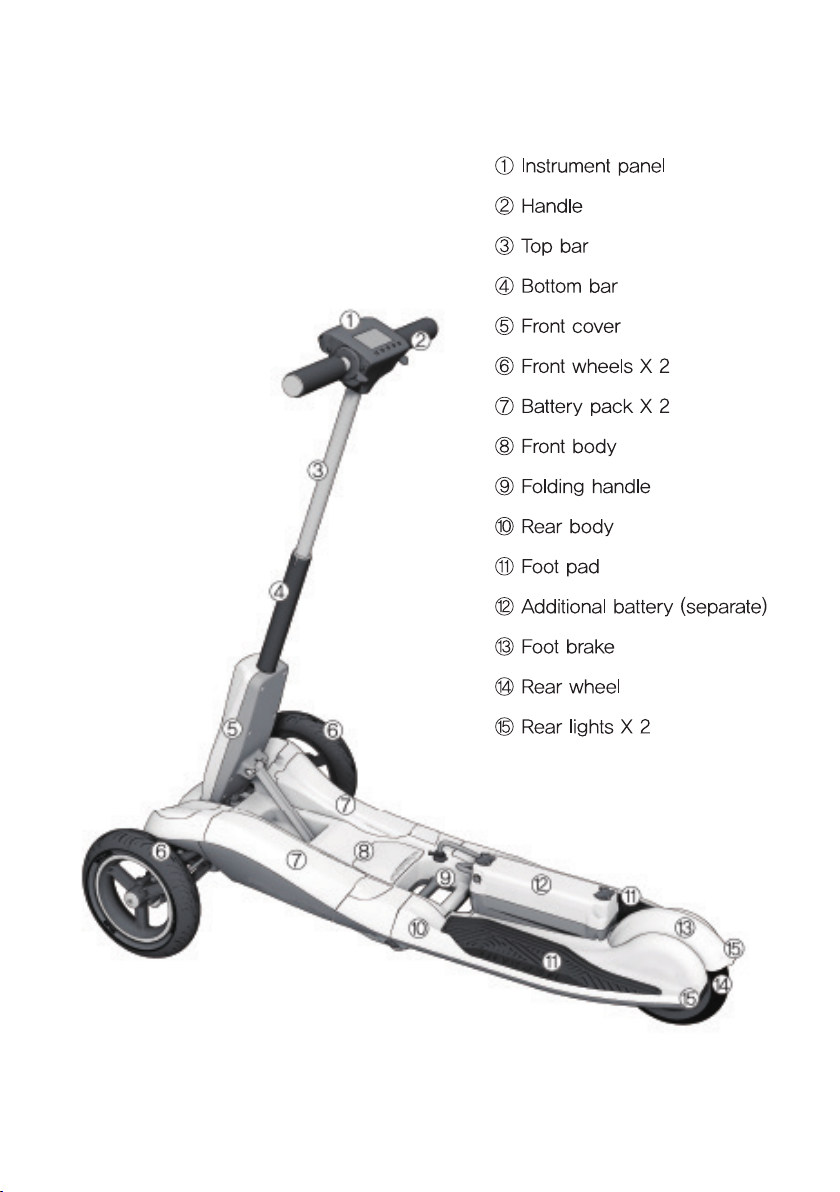

Names of external components

9
Composition and names of parts

10
Fixate handle bar
1 Adjust to appropriate height for the height
of the rider by pushing the xation pin
2 Fixate by tightening the level as illustrated in the Diagram

11
Battery
Detachment and attachment of additional battery pack

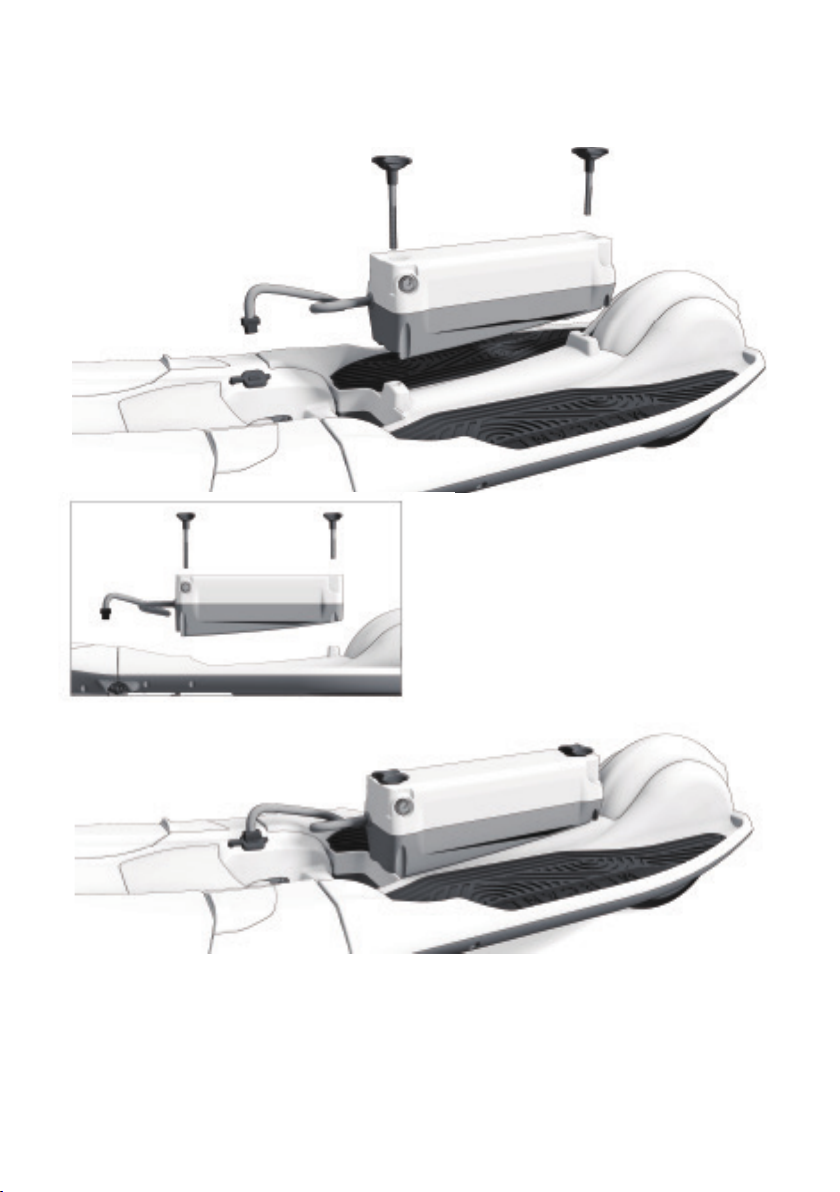

1 Fixate the knob at the top of the auxiliary
battery by rotating it as illustrated in the Diagram
by aligning it with the hole in the product.
# Fixate after having accurately checked the
location of the attachment of battery and the
lengths of each of the knobs as illustrated in the
Diagram on the left.
2 After having xated with the bottom section by fully rotating the bolt, connect the connector
cable with the main body.
# Detachment of the additional battery will be in the reverse order of xation procedure. After
having pulled out the connector cable that is connected with the main body, completely dismantle
the bolt and lift vertically to completly detach the additional battery.

12
Battery
Charging battery
1 It is possible to charge all the bateries connected to the main body when the cap of the charging
terminal situated on the bottom right of the product is separated and connected with the charging
adaptor.
2 in addition, it is possible to individually charge the batteries after having separated the battery
pack of the main body and the additional battery from the main body.
Charging method

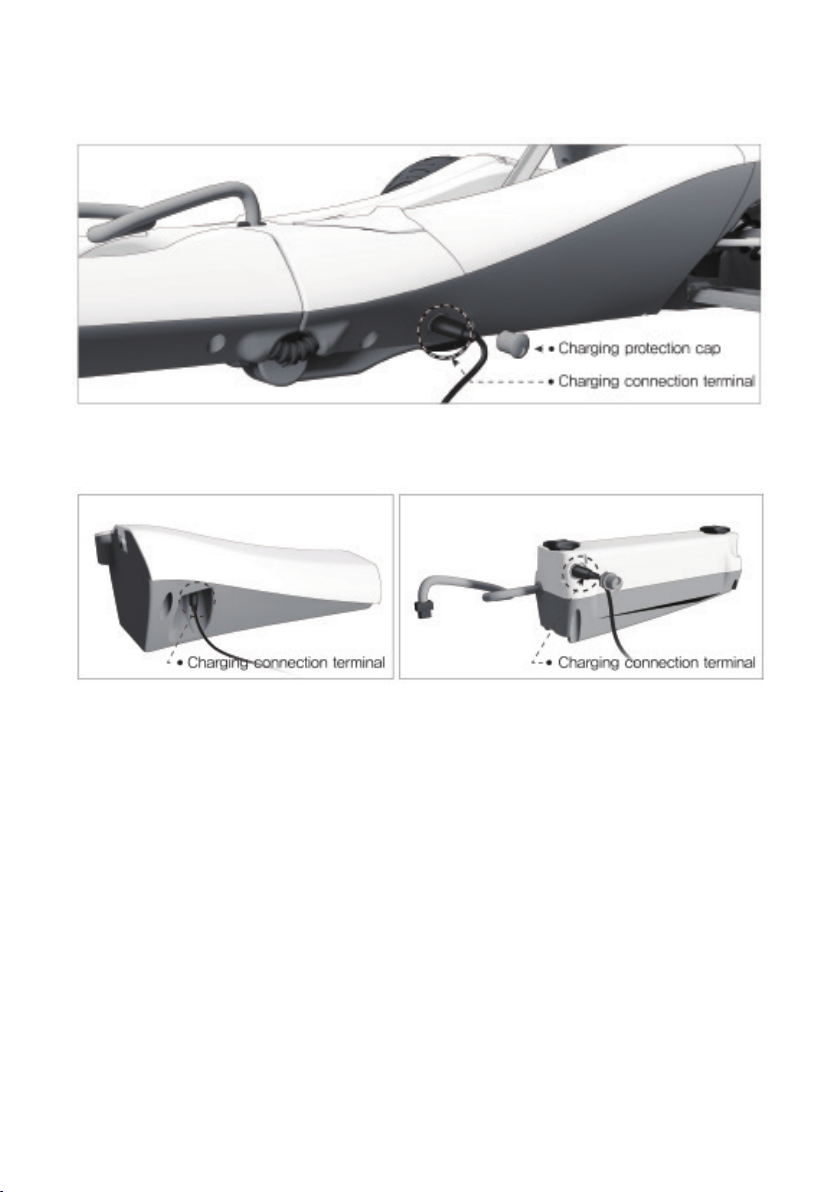

• The battery charging inlet is situated on the right side of the product.
• At the time of charging, use the product after having charged for about 6~7 hours and do not
charge for more than 10 hours in order to prevent the overheating of the charger.
• If the speed of the product drops during driving, please charge the battery.
• Connect the charger into the charging socket.
• While charging, red light in the charger will be turned on. It will change to green light once fully
charged.
• Make sure to charge in location with good ventilation if it is indoor.
• Battery is an expandable product and the useful lifespan will become gradually shortened as it
is used after the purchase, if the duration of use has decreased to less than half of that at the
time of purchase, it is recommended that you replace it with new battery.
• You cannot operate the product while charging the battery.

13
Battery
Techniques of using and managing lithium ion battery
Warning!
• Lithium ion battery must be changed by using the standard charger provided with the product at
the time of purchase. Precautions must be exerised when charging with non-standard charger
as it may become the cause of defect and re of the product.
• Lithium ion battery must be charged in the temperature range of 0°~40°C and must be used
in the temperature range of -20°C~60°C. Battery may be damaged if it is forcefully charged or
discharged at temperature outside these ranges.
• Lithium ion batery must be stored in locations without long exposure to direct sunlight or
environment with high temperature, and must be charged in safe location without inamable
substances around the product and charger.
• Lithium ion battery must be charged in location that is not completly sealed, has good ventilation
and dry. Moreover, it must be charged in safe location without inamable substances around
the product and charger.
• Since dew condensation can occur inside the product due to temperature change when it is
brought inside with warmth from cold outside during winter season, do not charge immediatly.
Wait until the temperature difference has been reduced prior to charging.
• If the protective circuitry of the lithium ion battery has been damaged, there will be generation
of leakage of liquid and odor from the battery. In such case, stop using the product immediatly
and seek technical support and services by contacting the place of purchase.
• Lithium ion battery must be managed carefully to ensure it is not exposed to children or pets.
• You must take precaution against short circuiting or connecting by reversing the polarity of the
terminals of the charging/-discharging section of the lithium ion battery. Moreover, precautions
are needed against excessive external impact or short circuiting since it may be damaged or
exploded.
• If excessive external impact is imparted onto the battery pack assembled with several units of
lithium ion battery and installed on the product, the possibility of ignition increases due to the
damages in the battery from separation and short circuiting of the electrode. Therefore, you
should not be forcibly operating on road with uneven surfaces or perform tricks such as jump or
falling while battery is installed onto the product. If impact has been imparted onto the battery
due to accident, you must inspect battery.
• If lithium ion battery has been submerged in water, stop using the product immediatly and
seek assistanc from the place of purchase. Never connect charger to battery after it has been
submerged in water as there is danger of electrocution.
• Lithium ion battery must never be dismantled arbitrarily and it is prohibited from being
incinerated at the time of disposal. It must be processed by categorizing it as industrial waste
and precautions must be taken to ensure there is no occurence in short circuiting in the terminal
section.
• Lithium ion battery has the characteristic of reduction of discharging performance by more
than 10% if it is charged and sicharged for more than 300 times. If the duration of use of the
battery has become too short due to prolonged use, the battery must be replaced through the
place of purchase.
• Since the energy density of lithium ion battery packs is very high, there is possibility of ignition
if the battery is charged for prolonged period of time while there is occurence of problem
within the battery pack including short circuit, leakage of battery uid and defectiveness etc.
Therefore, charging indoor for prolonged period of time when there is no one around or during
sleep in th night must be avoided. It is possible to prevent the risk of re only when charged
outdoor with someone being aware of the charging of the battery.

14
Battery
Precautions at the time of charging battery
Warnings!
For prevention of re and electric shock
• Make sure to use the charger and battery provided along with the product.
• Do not use the battery and charger of this product for other products as re and/or explosion
due to overheating may occur.
• Never remodel the electrical circuity. Arbitrary manipulation of the electrical circuitry can
become the cause of electrical shock, re, explosion and product damage.
• Do not charge in close vincity of heat or re. If charging indoor location, make sure there is good
ventilation.
• Do not lift battery by using the electrical cable or charger as it may cause damages to or re in
the battery. When lifting the batery, make sure to grab the battery case.
• Built in battery of the product may become the cause of re if subjected to strong impact or
high temperatures.
For prevention of re and electric shock
1. If it is not used for prolonged period of time, store the product by disconnecting the battery
cable from the main body.
2. If it is possible to use the battery for longer period if you recharge and manage the battery at
least once a month.
3. Battery is an expendable item and not subjected to free A/S. If it is completely discharged,
purchase new battery for use in the product.
4. Since operation of the product at sub-zero temperature can reduce the lifespan of the battery
substantially, refrain from using the product at temperatures below -50°C.
5. Make sure to use by familiarizing the characteristics of charging, discharging and using lithium
ion battery.
Dismantling or tuning the product without the assistance of the designated service center can
become the cause of the breakdown in the product.
• Do not dismantle or repair battery arbitrarily.
• Do not drop battery since it can induce permanent damages to the battery and become the
cause of serious injuries.
• Prior to charging the battery, check for the presence of damages in the battery, charger,
connection cable and connector etc. If there are damages in the battery, charger and relevant
components, stop charging.
• Do not completely discharge battery. After having used the battery, make sure to fully recharge
it and even if not using the product, regularly recharge the battery at least once a month.

15
Instrument panel

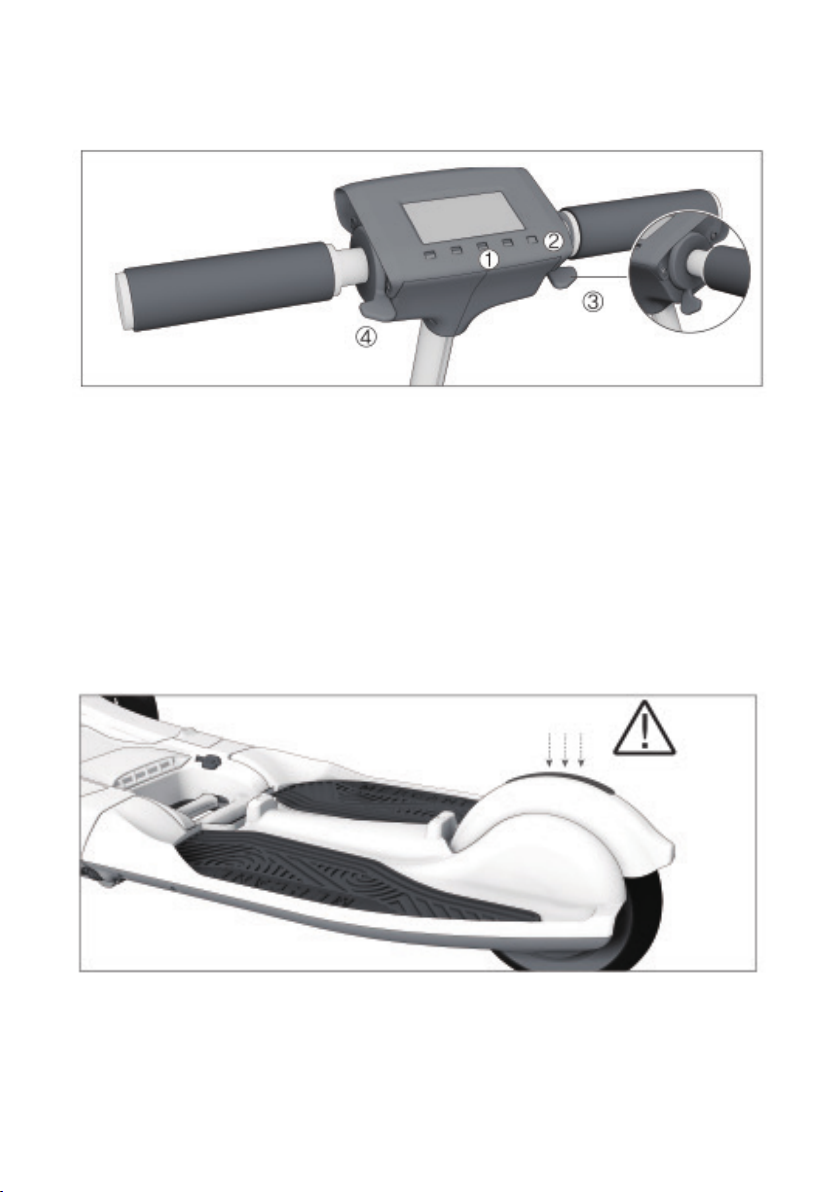

Name and explanations on the functions of instrumental sections
a) Brake level: It is possible to control deceleration on proportion to the receptivity and
speed of manipulation of the level.
b) Horn button: Can notify the situation by sounding electronic sounds.
c) Distance information button: Indicates the distance and time of travel as well as accumulated
distance in real time.
d) Power button: Power will be turned ON/OFF if the button is pressed for 2 seconds.
e) Headlight button: Can manipulate LED light for lighting of the areas in the front during driving
in the evening.
f) Speed control button: It is indicated in the stages of 1, 2 and 3, and higher the number of stage,
higher the speed of driving.
g) Aceleration level: It is possible to control acceleration in proportion to the receptivity of
manipulation of the level.

16
Driving
Driving method
① Turn on the power by pressing the Power button for 2 seconds (if the product is not beeing
driven for more than 3 minutes, the power will be turned off automatically).
② Set the maximum speed to the stages 1, 2 and 3 by clicking the speed control button.
③ Commence driving by manipulating the acceleration level with thumb in the direction indicated
in the Diagram.
④ Decelerate and stop by using the brake in the same method used for acceleration level.
[ -If the accelerator level is maintained at the same speed for more than 7 seconds, “Cruise mode”
will be set for enjoyment of more harmonious and comfortable riding when traveling over a long
distance.
- When accelerator or brake level is manipulated, the “Cruise mode” will be cancelled immediatly]
Driving method
# Speed can be reduced by using the food brake on the rear wheels.
! If braking is used continuously on declined road, there is risk if degradation of braking function
and ensuring accident. Accordingly, make sure to take full precaution in its use and always drive
safety at low speed.

17
Cruise function
Setting / cancelling of cruise function
• When the accelerator level is maintained at the same speed for more than 7 seconds, “Cruise
mode” of automatic operation at the same time will be set enable the user to enjoy more
harmonious and comfortable driving at the same time of traveling long distance.
• It is possible to immediatly cancel the “Cruise mode” if the accelerator or brake level is
manipulated.
# The cruise function is recommended to be used if there is no diculty in operating the product
or have become skilled in riding the product.
# At the time of the initial shipment of the product, the cruise function has been turned OFF.
Refer to the following to turn ON/OFF the cruise function.
1) Press the buttons A and B of the Diagram 1 for 3 seconds simultaneously.
2) When the screen is changed illustrated in the Diagram 2, press the button B 8 times to induce
conversion as illustrated in the Diagram 3.
3) Press the button D on the Diagram 3 to change 0 to 1 (setting cruise function) / 1 to 0 (cancelling
cruise function)
4) Press the button B for prolonged period of time after the change in the number to store the
setting.
# Number “1” at the bottom of screen in the Diagram 3 / Diagram 4 signies the setting of cruise
function while the number “0” signies that cruise function is being cancelled.
[- Following the completion of the setting, slightly lift up and xating the rear wheel to ensure it
does not move forward prior to driving. Operate the level for about 7 seconds to conrm whether
the cruise function has been set or cancelled accurately in order to drive the product safety]

18
Folding
Folding method

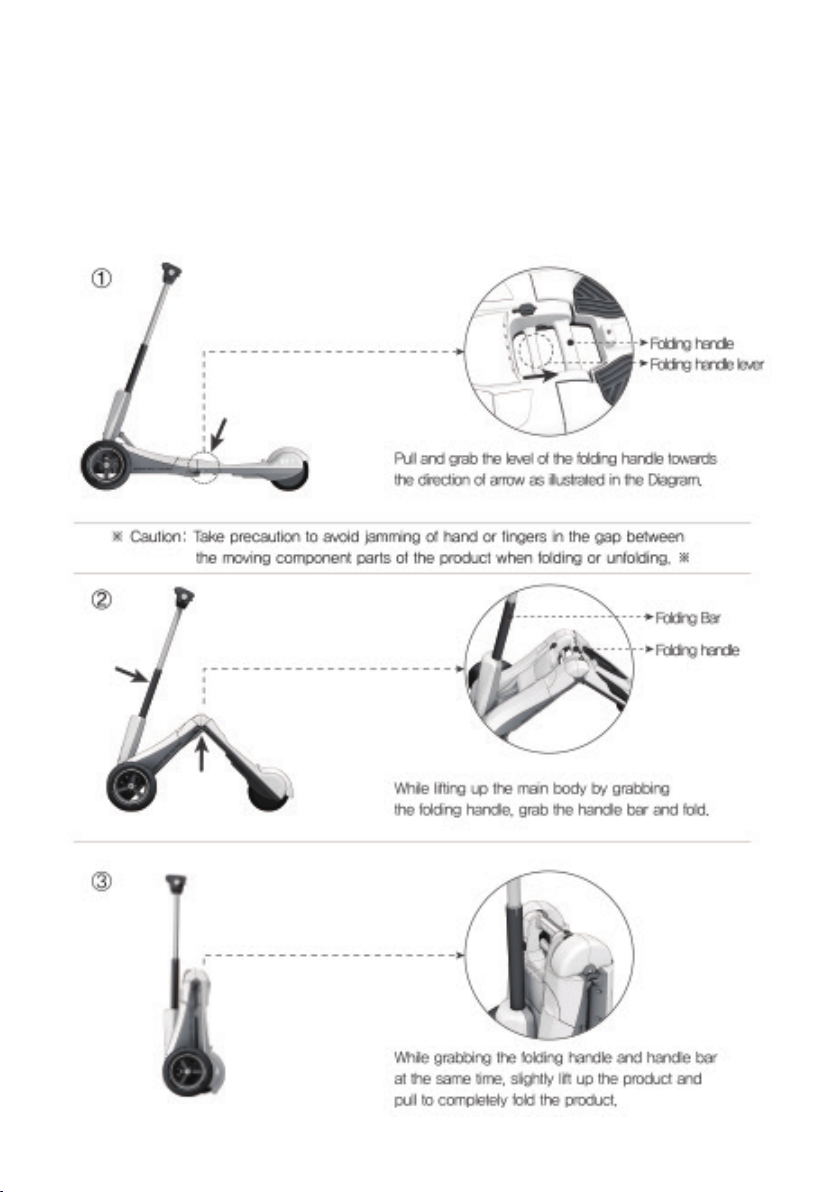

#Folding will be executed in the reverse order of the unfolding. While grabbing the foldng level
and handle at the same time, pull the folding level and push the handle bar towards the front of
the product to unfold.

19
Other convenient functions
Dismantling and repair
Cover can be detached for the repairing of the handle and the suspension sections.

20
Product specications
Unfolded
Folded
