Isoled 114446 User manual

114446 | Sys-Pro dynamic white 4 zones remote control with 3 scene
memories
RS1 RS2
Warranty
5 years
Warranty
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Ta: -30
O
C ~ +55
O
C
T c: +85
O
C
Model No.: RS1/RS2/RS6
Touch Wheel RF Remote Controller
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Radio Equipment(RED) EN300 328
Certification CE,EMC,LVD,RED
EN60950
Safety standard(LVD)
LVDRED
4 Zone Dimming 4 Zone CCT 4 Channel Dimming
RS6
●Apply to single color or dual color LED controller.
Ultra sensitive color adjustment touch wheel.●
●Each remote can match one or more receiver.
●AAAx2 battery powered.
●Operate with LED indicator light.
●Magnet on the back which can be easily stuck on back holder or any metal surfaces.
Technical Parameters
Input and Output
Features
Output signal RF 2.4GHz
( )
Working voltage 3VDC AAAx2( )
Working current ＜5mA
Standby current ＜10μA
Standby time 1 year
Remote distance 30m
RS6
RS1
RS2
User Manual Ver 1.0.2 www.iskydance.com Page 1

114446 | Sys-Pro dynamic white 4 zones remote control with 3
scene memories


●When turn on light, the indicator display blue. when turn off light, the indicator display red.
●When touch the color wheel,the indicator will display the same color.
●When press or touch operation is invalid (If the light is off), the indicator display red.
●To extend battery life,no touch or press key operation after a few seconds,
the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.


Match:
Short press match key, immediately press zone on
key of the remote.

Match:
Switch off the power, then switch on power again,
immediately short press zone on key 3 times on the remote.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power, then switch on power again,
immediately short press zone on key 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.
End user can choose the suitable match/delete ways. Two options are offered for selection:

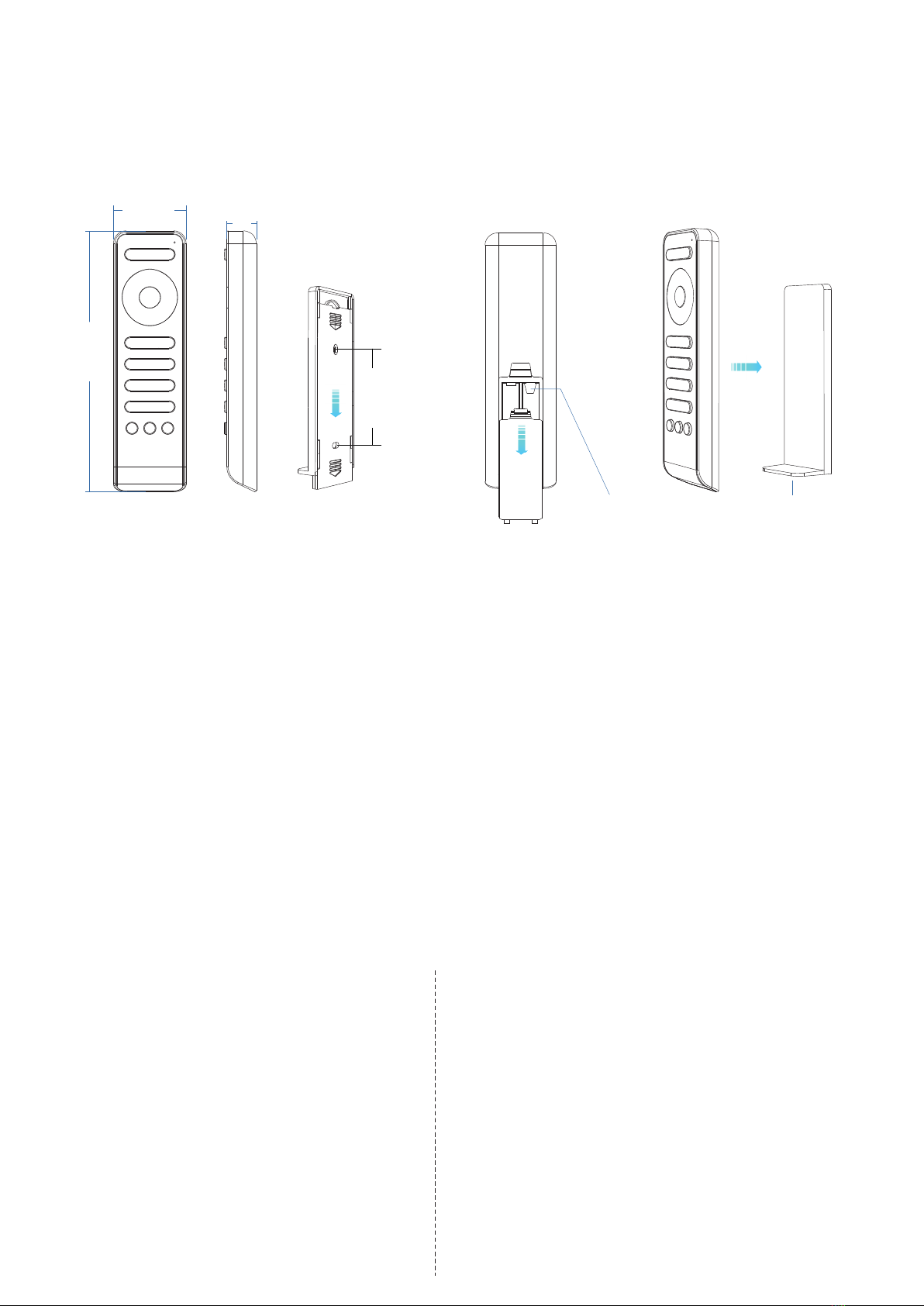

53.50 mm
Back holder with magnet

Option 1: stuck the remote on any metal surfaces directly.
Option 2: fix the remote' back holder on the wall with two screws.
Option 3: adhere the remote' back holder to the wall with paster.
43.00 mm
155.00 mm
17.50 mm
3VDC(AAAx2) Battery

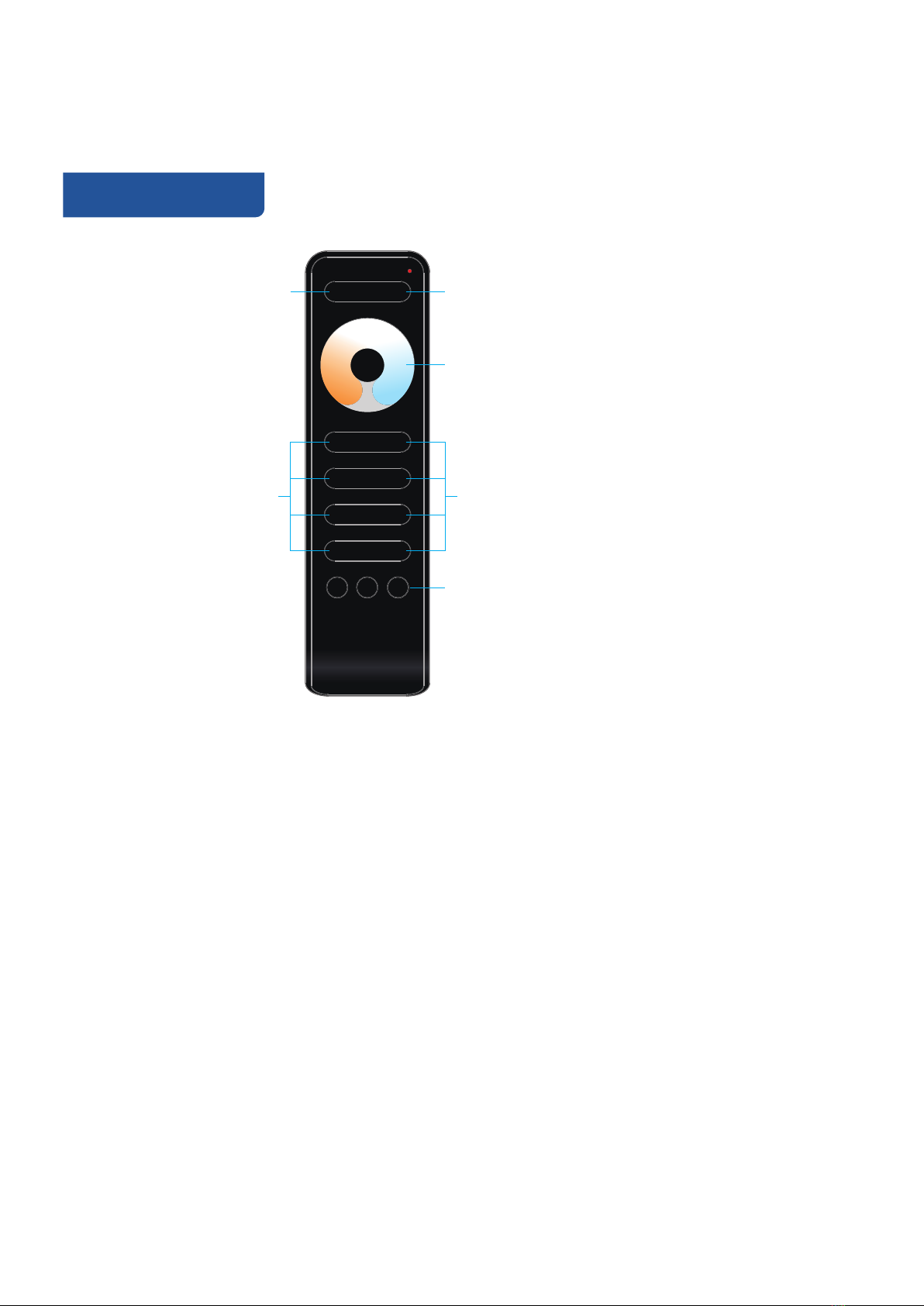

RS1,RS2,RS6 Touch Wheel RF Remote Controller
User Manual Ver 1.0.2 www.iskydance.com Page 2

114446 | Sys-Pro dynamic white 4 zones remote control with 3
scene memories
● RS1 4 zone dimmer remote
1
S1
2
3
4
All
I
O
I
O
I
O
I
O
I
O
S2S3
Turn off all 4 zone light.
Touch brightness wheel.
(Short press multiple zone on key fastly,
will select multiple zone,
then touch wheel to adjust brightness synchronously.)
Turn on all 4 zone light.
Turn off 1/2/3/4 zone light
3 scene memory,
short press recall the scene,
long press 2s save current color into S1/2/3.
4 zone recall or save synchronously.
(Long press zone on key
increase zone brightness.)
(Long press zone off key
decrease zone brightness.)
Turn on 1/2/3/4 zone light
I
I
I
I
I
S1
1
2
3
4
All O
O
O
O
O
S2S3
Turn off all 4 zone light.
Touch color temperature wheel.
(Short press multiple zone on key fastly,
will select multiple zone,then touch wheel
to adjust color temperature synchronously.)
Turn on all 4 zone light.
3 scene memory,
short press recall the scene,
long press 2s save current color into S1/2/3.
4 zone recall or save synchronously.
● RS2 4 zone color temperature remote
Turn off 1/2/3/4 zone light
(Long press zone on key
increase zone brightness.)
(Long press zone off key
decrease zone brightness.)
Turn on 1/2/3/4 zone light
Key function
RS1,RS2,RS6 Touch Wheel RF Remote Controller
User Manual Ver 1.0.2 www.iskydance.com Page 3
● RS1 4 zone dimmer remote
1
S1
2
3
4
All
I
O
I
O
I
O
I
O
I
O
S2S3
Turn off all 4 zone light.
Touch brightness wheel.
(Short press multiple zone on key fastly,
will select multiple zone,
then touch wheel to adjust brightness synchronously.)
Turn on all 4 zone light.
Turn off 1/2/3/4 zone light
3 scene memory,
short press recall the scene,
long press 2s save current color into S1/2/3.
4 zone recall or save synchronously.
(Long press zone on key
increase zone brightness.)
(Long press zone off key
decrease zone brightness.)
Turn on 1/2/3/4 zone light
I
I
I
I
I
S1
1
2
3
4
All O
O
O
O
O
S2S3
Turn off all 4 zone light.
Touch color temperature wheel.
(Short press multiple zone on key fastly,
will select multiple zone,then touch wheel
to adjust color temperature synchronously.)
Turn on all 4 zone light.
3 scene memory,
short press recall the scene,
long press 2s save current color into S1/2/3.
4 zone recall or save synchronously.
● RS2 4 zone color temperature remote
Turn off 1/2/3/4 zone light
(Long press zone on key
increase zone brightness.)
(Long press zone off key
decrease zone brightness.)
Turn on 1/2/3/4 zone light
Key function
RS1,RS2,RS6 Touch Wheel RF Remote Controller
User Manual Ver 1.0.2 www.iskydance.com Page 3
● RS6 4 channel dimming remote
S1
All
I
O
I
O
I
O
I
O
I
O
S2S3
CH1
CH2
CH3
CH4
Turn off all 4 channel light.
Turn on all 4 channel light.
Turn off 1/2/3/4 channel lightTurn on 1/2/3/4 channel light
3 scene memory,
short press recall the scene,
long press 2s save current color into S1/2/3.
4 channel recall or save synchronously.
Touch brightness wheel.
(Short press multiple channel on key fastly,
will select multiple channel,
then touch wheel to adjust brightness synchronously.)
Note:
RS6 match with 4 channel receiver only, such as V4, each channel connect with one single color LED strip.
(Long press channel on key
increase channel brightness.)
(Long press channel off key
decrease channel brightness.)
Safety information
1.Read all instructions carefully before you begin this installation.
2.When installing battery, pay attention to the battery positive and negative polarity.
A long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery.
3. If no response from the receiver, please re-match the remote.
4.Gently handle remote, beware of falling.
5. For indoor and dry location use only.
RS1,RS2,RS6 Touch Wheel RF Remote Controller
User Manual Ver 1.0.2 www.iskydance.com Page 4
