Isoled Sys-Pro 114453 User manual

14
1 453 | Sys-Pro RGB+W 1 Zones Remote Control Mini
● Apply to single color or dual color LED controller.
● Each remote can match one or more receiver.
● R bC 2032 attery powered.
● Operate with LED indicator light.
User Manual Ver 1.0.2
Technical Parameters
Input and Output
Warranty
5 years
Warranty
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Ta: -30
O
C ~ +55
O
C
Tc: +85
O
C
Model No.: RM1/RM2
Features
Page 1
1 zone dimming/6-key/Wireless remote 30m distance/CR2032 battery
6-Key RF Remote Controller
RM1 RM2
Output signal RF(2.4GHz)
Working voltage 3VDC(CR2032)
Working current <5mA
Standby current <2μA
Standby time 2 years
Remote distance 30m(Barrier-free space)
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Radio Equipment(RED) EN300 328
Certification CE,EMC,LVD,RED
EN60950
Safety standard(LVD)
Mechanical Structures and Installations
Match Remote Control (two match ways)
Use the controller’s Match key
Match:
Short press match key,
immediately press on/off key on the remote.
The LED indicator fast flash a few times
means match is successful.
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power, then switch on power again,
immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
End user can choose the suitable match/delete ways. Two options are offered for selection:
RM1,RM2 6-Key RF Remote Controller
LVDRED
1 Zone Dimming 1 Zone CCT
Note: Before the first use,
please remove the protective film on the battery.
CR2032 Battery

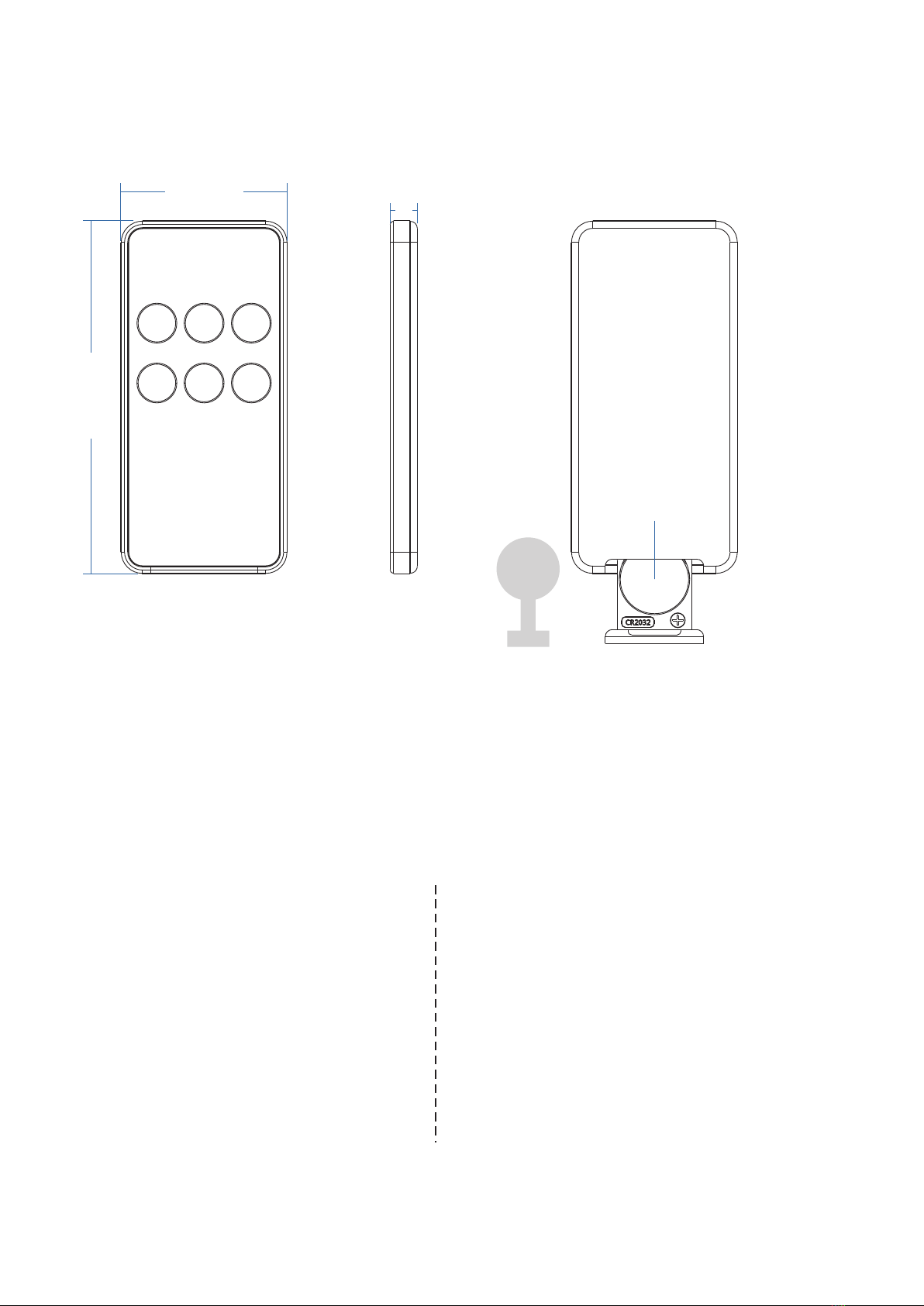

47.00 mm
100.00 mm
8.00 mm

● Apply to single color or dual color LED controller.
● Each remote can match one or more receiver.
● R bC 2032 attery powered.
● Operate with LED indicator light.
User Manual Ver 1.0.2
Technical Parameters
Input and Output
Warranty
5 years
Warranty
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Ta: -30
O
C ~ +55
O
C
Tc:
+85
O
C
Model No.: RM1/RM2
Features
Page 1
1 zone dimming/6-key/Wireless remote 30m distance/CR2032 battery
6-Key RF Remote Controller
RM1 RM2
Output signal RF 2.4GHz( )
Working voltage 3VDC CR2032( )
Working current ＜5mA
Standby current ＜2μA
Standby time 2 years
Remote distance 30m(Barrier-free space)
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Radio Equipment(RED) EN300 328
Certification CE,EMC,LVD,RED
EN60950
Safety standard(LVD)
Mechanical Structures and Installations
Use the controller’s Match key Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key 3 times on the
remote. The light blinks 3 times means match is
successful.
.
Delete:
Switch off the power, then switch on power again,
immediately short press on/off key 5 times on the
remote. The light blinks 5 times means all matched
remotes were deleted.
Match:
Short press match key,
immediately press on/off key on the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all
match, The LED indicator fast flash a few times
means all matched remotes were deleted.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
RM1,RM2 6-Key RF Remote Controller
LVDRED
1 Zone Dimming 1 Zone CCT
Note: Before the first use,
please remove the protective film on the
battery.
CR2032 Battery
47.00 mm
100.00 mm
8.00 mm
114453 | Sys-Pro RGB+W 1 Zones Remote Control Mini

Safety information
1. Read all instructions carefully before you begin this installation.
2. When installing battery, pay attention to the battery positive and negative polarity. A
long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery.
3. If no response from the receiver, please re-match the remote.
4. Gently handle remote, beware of falling.
5. For indoor and dry location use only.
User Manual Ver 1.0.2 Page 2
Color temperature+ -:/
Short press 11 levels, long press 1-6s for continuous 256 levels adjustment.
Brightness+/-:
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
Color temperature +
RM2 1 zone CCT remote●
10% brightness for small night light
Brightness+
50% brightness
On/Off
Brightness-
RM1 1 zone dimming remote●
Key function
30s
30s
30s
30s
Turn off light after 30s, long press 2s will turn off light after 60s.
Brightness+
On/Off
Brightness-
Turn off light after 30s, long press 2s will turn off light after 60s.
Color temperature -
Brightness+/-:
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
114453 | Sys-Pro RGB+W 1 Zones Remote Control Mini
