Isotra System Classic User manual

TECHNICAL MANUAL
INTERIOR BLINDS
EN

2222
Isotra System Classic 3
Basic Product Specication 4
Assembly 6
Isotra System HIT 7
Basic Product Specication 8
Assembly - HIT 10
Isotra System HIT II 11
Basic Product Specication 12
Assembly - HIT II 14
Isolite 15
Basic Product Specication 16
Assembly 20
Isolite Plus 21
Basic Product Specication 22
Assembly 26
Neoisolite 27
Basic Product Specication 28
Assembly 30
System 25 31
Basic Product Specication 32
Assembly 51
Isotra Energy 53
Basic Product Specication 54
Assembly 56
Cetta 35,50 Economy 57
Basic Product Specication 58
Assembly 62
Cetta 35 65
Basic Product Specication 66
Assembly 82
V-lite 89
Basic Product Specication 90
Assembly 93
Safety features according to the standards
EN 13120+A1; EN 16 433; EN 16 434 95
Table of Contents - Interior blinds
A brand symbolizing years of tradition, innumerable investments into research and development,
use of high-quality materials, technological advancement, reliable work of hundreds of employees
and many more parameters, which together form one whole - the nal product of the company ISOTRA.

2
3
INTERIOR BLINDS
22
HEAD PROFILE
BOTTOM PROFILE
▲Profiles made of extruded aluminum
▲Atypical designs for shaped and arched windows
▲Profile color design according to the RAL color scheme

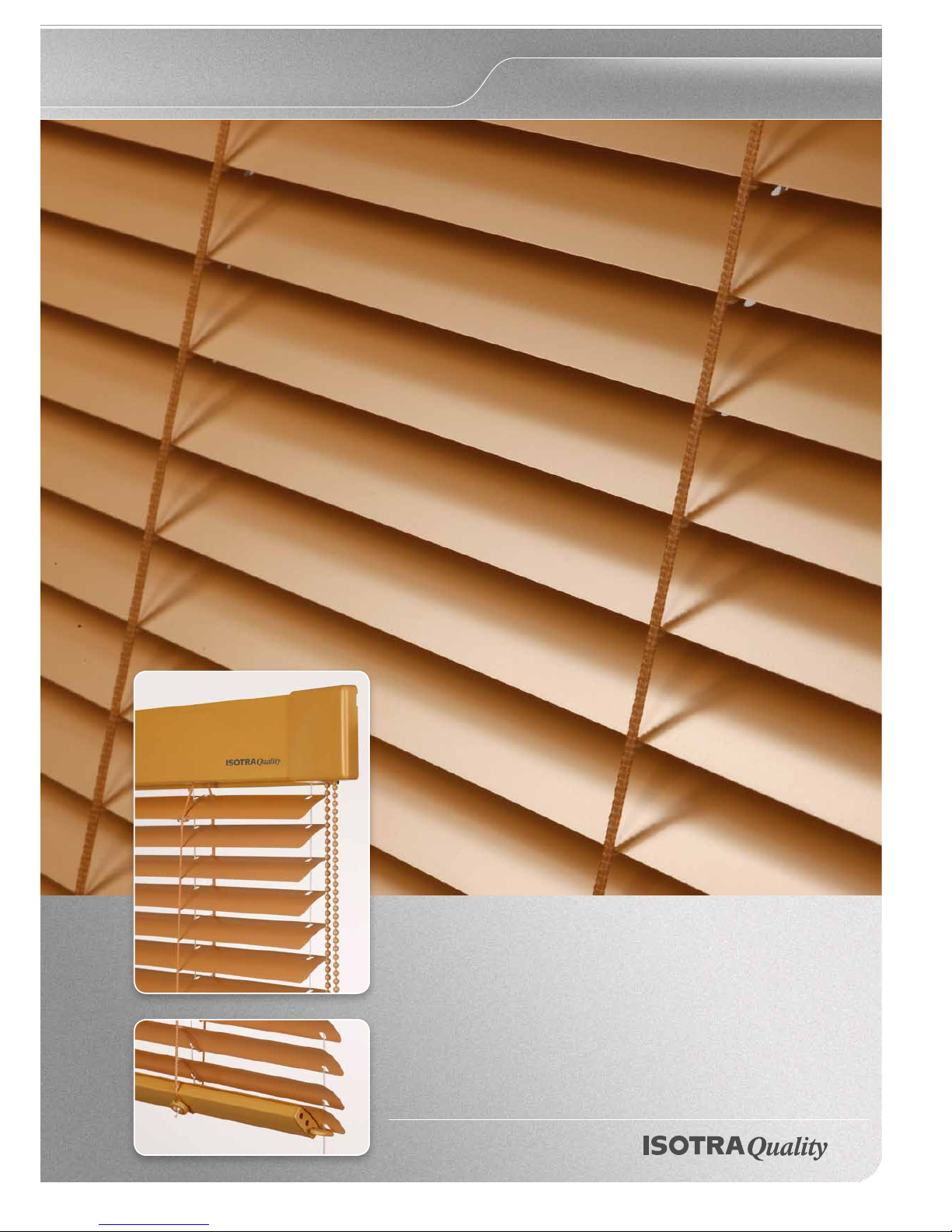

Isotra System Classic

4
Control
Chain – thick chain with diameter of 4.5 mm for pulling up, pulling down and tilting (color consistent with the prole color)
– thin chain with diameter of 3.2 mm for pulling up, pulling down and tilting (color consistent with the prole color)
Isotra System Classic
Basic Product Specication
Specication
Head
Prole
Bottom
Prole
Slat Side Guiding Assembly Brake
Design Width (mm) Thickness
Commercial Name
Dimension (mm)
Material
IS 08
27 x 48 x 1,2
Al
IS 16
20 x 8 x 0,9
Al
all-shading
standard
standard
25
25
16
0,21 / 0,18
0,21 / 0,18
0,21
nylon ø 0.8 mm in window wing needs to be
ordered
Color Standard:
RAL 8014 Brown
RAL 9010 White
Extra Charges:
RAL 1002 Beige
RAL 1015 Ivory
RAL 8004 Chestnut
RAL 9006 Silver
Other RAL, DECORAL
according to current color scheme nylon - clear
Plastic components in prole color.
Ladder in slat color, cord 1,4 mm in white and brown color.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
300 2000 2200 2,5 m2
We make atypical designs.
D
C
B
A
2
156
6
5
234
1
D
C
A
B
2-00161-XXXX-H
ISOTRA SYSTÉM - CLASSIC
10
20
30
40
50
60
70
80
90
110
120
140
151
160
170
171
180
181
190
210
220 230
240
240
260
270, 271
310
310
IS 08
IS 16
IS 14
IS 35
IS 01
IS 02
IS 05
IL 117
IL 116
A 35 22x28
A 35 21,5x28
A 35 12x18
A 35 18x28
IS 28/1
IS 18
IL 123
IS 29
IS 03/1
IS 03
IS 04/1
IS 04
IS 22
A 55/9
A 55/7
220
IS 19
IS 12/1
IL 124/1
IS 40
IS 32
IL 122
IS 06
IS 07
IS 24
IS 26
IS 27
IS 24

4
5
INTERIOR BLINDS
Isotra System Classic 2-00161-XXXX
Position Item name Business name Drawing number
10 Head rail Al IS 08 7-300032-xxxx
20 Bottom rail - Al IS 16 7-300051-xxxx
30 Tilt rod - triangular IS 14 7-300050-0000
40 Brake "Isotra" II (for triangular wire) IS 35 2-00130-0000
50 Device board , right - ISOTRA IS 01 3-00020-0000
60 Device board , left - ISOTRA IS 02 3-00021-0000
70 Wheel cover IS 05 3-00030-0000
80 Holder bed - Al prole IL 117 3-00073-0000
90 Bed IL 116 3-00072-xxxx
90 Flat cord bed IL 121/4 6-002270-xxxx
90 Nut IL 119 2-00011-0000
90 Cartridge IS 13 3-00037-0000
90 Flat cord IS 09 3-00034-0000
90 Flat cord roll (for triangular wire) IS 10 3-00035-0000
90 Ladder connector IS 19 6-000963-0000
90 Round cord 0,8 IS 20 3-00042-0000
90 Tube IS 11 3-00036-xxxx
90 Tube limiter IS 15 6-002275-xxxx
110 Ladder 12x18 A 35 22x28 6-000156-xxxx
110 Ladder 18x28 A 35 21,5x28 6-003764-5000
110 Ladder 21,5x28 A 35 12x18 6-000155-XXXX
110 Ladder 22x28 A 35 18x28 6-000154-XXXX
120 Chain connector IS 28/1 2-01039-xxxx
140 Endcap for Al bottom rail IS 18 3-00040-xxxx
150 Bottom rail plug IS 17 2-00008-xxxx
151 Flat cord plug IL 123 2-00012-0000
160 Tightening pin IS 29 3-00048-xxxx
170 Cover - right 90° IS 03/1 3-00028-xxxx
171 Cover - right 45° IS 03 3-00026-xxxx
180 Cover - left 90° IS 04/1 3-00029-xxxx
181 Cover - left 45° IS 04 3-00027-xxxx
190 Nylon 0.8mm IS 22 6-000964-0000
210 Spacer 25 UNI A 55/9 3-02092-0000
210 Spacer for slat 16mm (PVC) A 55/7 3-00861-0000
220 Ladder joint for at cord IL 122 3-00359-PU22
220 Clutch ladder IS 19 6-000963-0000
230 Operating ball chain IS 12/1 6-000962-xxxx
230 Chain - thin IL 124/1 6-000957-xxxx
240 Wheel IS 40 3-00049-0000
240 Wheel IS 06 3-00031-0000
240 Coupling IS 07 3-00022-0000
260 Screw 2,9x6,5,DIN 7982 IS 32 6-000968-0000
270-271 AL slat See Slat sampler
310 Distance pad IS 24 6-000965-0001
310 Screw 3,5x14 IS 26 3-00043-xxxx
310 Screw 3,5x20 IS 24/1 6-000967-0001
310 Chain holder IS 27 2-00004-xxxx

6
2
3
1
5
4
678
Isotra System Classic
Assembly
ø 3,2 mm (Plastic)
ø 3 mm (Wood)
The Blind is installed according
to norm EN 13120 about security
elements

6
7
INTERIOR BLINDS
7
HEAD PROFILE
BOTTOM PROFILE
▲Optimum quality – price ratio
▲Low operating force
▲Profile color design according to the RAL color scheme
Isotra System HIT

8
Isotra System HIT
Basic Product Specication
Specication
Head Prole Bottom Prole Slat Side Guiding Installation Brake
Design Width (mm) Thickness
Commercial Name
Dimension (mm)
Material
IS 08/1
25 x 45 x 0,4
Fe
IS 16/1
19 x 8 x 0,4
Fe
all-shading
standard
standard
25
25
16
0,21 / 0,18
0,21 / 0,18
0,21
nylon ø 0.8 mm in window
wing
needs to be
ordered
Color Standard:
RAL 8014 Brown
RAL 9010 White
according to current color scheme nylon - clear
Plastic components in prole color.
Colors of ladder and cords are consistent with prole color.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
300 2000 2200 2,5 m2 (4,4 m2)*
We do not make atypical designs.
* with Planet gearing box
Control
Chain – thin chain with diameter of 3.2 mm for pulling up, pulling down and tilting (color consistent with the prole color).
Extra charges:
RAL 1002 Beige
RAL 1015 Ivory
RAL 8003 Golden Oak
RAL 8004 Chestnut
RAL 9006 Silver
Isotra System Decoral -
according to actual sampler

8
9
INTERIOR BLINDS
Isotra HIT 2-00131-XXXX
Position Item name Business name Drawing number
10 Head rail - Fe IS 08/1 3-00033-xxxx
20 Bottom rail - Fe IS 16/1 3-00052-xxxx
30 Flat wire Fe/Zn A 27/1 6-000144-0000
40 Device board with cover - right IS 100/4 2-00031-0000
40 Device board complete - right IS 100/1 2-00029-0000
50 Device board with cover - left IS 100/2 2-00032-0000
50 Device board complete - left IS 100/3 2-00030-0000
60 Bed cover II (cuts H) SR 117 3-00345-0000
70 Flat cord roll II. (for at wire) IS 120 2-00001-0000
70 Flat cord IL 121/4 6-002270-xxxx
70 Narrow bed SR 116/1 3-01502-xxxx
80 Cover IS 103 3-00003-xxxx
90 Endcap for bottom rail IS 18/11 2-00006-0000
100 Brake II (for at wire) SR 15 2-00177-0000
100 Planet gearing box-at wire IS 110 2-01299-0000
120 Flat cord plug IL 123 2-00012-0000
140 Tightening pin IS 29 3-00048-xxxx
150 Chain connector set IS 28/1 2-01039-xxxx
160 Chain - thin IL 124/1 6-000957-xxxx
160 Endless Chain IL 124/51 6-013335-xxxx
180-181 Al slat See Slat sampler
190 Nylon 0.8mm IS 22 6-000964-0000
200 Ladder 22x28 A 35 22x28 6-000156-xxxx
200 Ladder 21,5x28 A 35 21,5x28 6-003764-5000
200 Ladder 12x18 A 35 12x18 6-000155-xxxx
200 Ladder 18x28 A 35 18x28 6-000154-xxxx
220 Spacer 25 UNI A 55/9 3-02092-0000
220 Spacer for slat 16mm (PVC) A 55/7 3-00861-0000
230 Ladder joint for at cord IL 122 3-00359-PU22
270 Accessories
130 Chain holder IS 27 2-00004-xxxx
170 Distance pad IS 26 3-00043-xxxx
240 Screw 3,5x14 IS 24 6-000965-0001
250 Screw 3,5x20mm IS 24/1 6-000967-0001

10
Isotra System HIT
Assembly
ø 3,2 mm (plastic)
ø 3 mm (wood)
The Blind is installed according
to norm EN 13120 about security
elements
