Isuzu Tilt Slide FYJ2000 User manual

This information fully identifies your vehicle. It will furnish all of the necessary
information in the event that warranty repairs are required. Be certain it is completely
and properly lled out and signed by your Selling Dealer.
Owner’s Name: ...........................................................................................................
Business Name: ..........................................................................................................
Address: ......................................................................................................................
City / Town: ..................................................................................................
State: ......................................................... Postcode: .............................
Business Phone: ........................................ Private Phone: ....................................
Mobile: ...................................... Email: ..............................................................
Registration Number: .................................
Isuzu Truck Model: ......................................................................................
Vehicle Indentication Number: ................................................................................ .
IAL Tag Number: ........................................
Engine Number: .........................................
Transmission Serial Number: ..................................
Differential Serial Number: ......................................
Selling Dealer’s Signature and Stamp:
Date: ...........................................
Owner and Vehicle Identification

It is requested that owner’s who change their address (or name) or subsequent owner’
s who purchase this vehicle, complete this form and return by mail, to the address
shown.
This notication is important even after the expiration of the original vehicle warranty
in order that you can be contacted if the need arises.
NOTICE OF NAME / ADDRESS / OWNERSHIP CHANGE
Owner’s Name: ..........................................................................................................
Business Name: .........................................................................................................
Address: .....................................................................................................................
City / Town: ..............................................................................................
State: ......................................................... Postcode: .........................
Business Phone: ........................................ Private Phone: ....................................
Mobile: ...................................... Email: ..............................................................
Registration Number: .................................
Isuzu Truck Model: .....................................................................................
Vehicle Indentication Number: .................................................................................
Sold To Date: .............................................
Mail this form to:
The Manager – Customer Care Department
Isuzu Australia Limited
GPO Box 107
Port Melbourne
Victoria 3207
Change of Ownership or Address

Change of Ownership or Address
It is requested that owner’s who change their address (or name) or subsequent owner’
s who purchase this vehicle, complete this form and return by mail, to the address
shown.
This notication is important even after the expiration of the original vehicle warranty
in order that you can be contacted if the need arises.
NOTICE OF NAME / ADDRESS / OWNERSHIP CHANGE
Owner’s Name: ..........................................................................................................
Business Name: .........................................................................................................
Address: .....................................................................................................................
City / Town: ..............................................................................................
State: ......................................................... Postcode: .........................
Business Phone: ........................................ Private Phone: ....................................
Mobile: ...................................... Email: ..............................................................
Registration Number: .................................
Isuzu Truck Model: .....................................................................................
Vehicle Indentication Number: .................................................................................
Sold To Date: .............................................
Mail this form to:
The Manager – Customer Care Department
Isuzu Australia Limited
GPO Box 107
Port Melbourne
Victoria 3207

The following symbols are also used in this manual.
•
V
: Market-/type-specific equipment (Your vehicle may not have the equipment
with this symbol.)
•
ISZ
: Vehicle equipped with Isuzu production transmission or axle
•
MER
: Vehicle equipped with Arvin Meritor production axle
•
ZF
: Vehicle equipped with ZF production transmission
•
FLR
: Vehicle equipped with EATON Fuller production transmission
Symbols Used in This Manual
DANGER
Failure to follow these instructions identified by this symbol could result in death or
serious injury to you and/or other people.
WARNING
Failure to follow these instructions identified by this symbol could result in a
fire inside your vehicle in addition to death or serious injury to you and/or other
people.
CAUTION
Failure to follow these instructions identified by this symbol could result in injuries
or an accident.
ADVICE
Failure to follow these instructions identified by this symbol could cause
malfunction or damage to your vehicle.
NOTE
This symbol identifies information that you need to know.
This symbol also identifies information that would be useful for operating the
vehicle.

Abbreviations
This manual uses the following abbreviations, as interpreted below.
Abbreviations Description
A/C Air Conditioner
ABS Antilock Brake System
ACEA Association des Constructeurs Europeens d'Automobiles
(Association of European Automobile Constructors)
ADR The Australian Design Rules
API American Petroleum Institute
ASTM American Society for Testing and Materials
BS British Standard
CAN Controller Area Network
DIN Deutsche Industrie Normen
EGR Exhaust Gas Recirculation
ELR Emergency Locking Retractor
ETRTO The European Tyre and Rim Technical Organisation
FMVSS Federal Motor Vehicle Safety Standards
JASO Japanese Automobile Standards Organization
JATMA The Japan Automobile Tyre Manufacturers Association
JIS Japanese Industrial Standards
MIL A United States Defense Standard (Military Standard)
M/T Manual Transmission
PCV Positive Crankcase Ventilation
PM Particulate Matter
PTO Power Take-Off
r/min revolutions per minute
SAE Society of Automotive Engineers
SRS Supplemental Restraint System
TRA The Tire and Rim Association
VIN Vehicle Identification Number

HOW TO USE THIS MANUAL AND
HOW TO FIND A SPECIFIC TOPIC
●HOW TO USE THIS MANUAL 0-2
●HOW TO FIND A SPECIFIC TOPIC 0-3
●CHAPTERS IN THIS MANUAL 0-5
●PICTORIAL INDEX 0-6
●WARNING/INDICATOR LIGHT INDEX 0-10
●WARNING/CAUTION LABELS 0-14
0

0-2
HOW TO USE THIS MANUAL
2-16 IMPORTANT INFORMATION
Before pulling away, perform a thorough safety check, making sure there are no
children or obstructions around the vehicle.
Driving
Check around the Vehicle before Starting the Engine
WARNING
Before starting the engine, make
sure there is no flammable material
under or around the vehicle. The
presence of any such material
could lead to a fire. If there is any
wood within 50 cm (20 in) from
the vehicle's heat source, it would
represent a severe hazard as the
wood could deform or discolor from
the heat it could catch fire.
•
Starting the Engine
→Refer to page 4-4
Be Careful about Exhaust Emissions
WARNING
Exhaust emissions contain carbon monoxide, which is colorless, odorless and
poisonous. If you inhale exhaust emissions, you may suffer carbon monoxide
poisoning.
Do not keep the engine running for any length of time in a place that is poorly
ventilated. It is particularly dangerous to run the engine in a garage or other
indoor place that could easily fill with exhaust gases because you could suffer
carbon monoxide poisoning.
Inspect the exhaust pipe from time to time. If you notice any abnormality (for
example, a damaged joint, or a hole or crack caused by corrosion), have checks
and maintenance performed by the nearest Isuzu Dealer. Continuing to use the
vehicle without having the defect repaired would be dangerous because exhaust
gases could get into the cab and cause carbon monoxide poisoning.
•
•
•
WARNING (Continued)
Symbols
See the preceding page for the meanings of these symbols.
Reference page
ADVICE
WARNING
NOTE
CAUTION
DANGER
Note: This page is shown only as an example. It is not intended to give you information on your particular vehicle.
Refers you to a page (or
pages) of this manual that
concerns the present topic
and that you should also
read concerning the topic
you are now reading.
All values in this manual are indicated primarily according to the International System of Units (or in SI units) with the
conventional metric values and American units system values indicated in parentheses.
Chapter/section titlesChapter index tab
Use this for quick access to
your desired chapter.
These titles are useful for getting the gist of
the content descriptions that follow at a glance.

0-3
HOW TO FIND A SPECIFIC TOPIC
Use chapter/section titles as keys
Page 0-5
Search for the page describing the specific
topic by using the general table of contents
under CHAPTERS IN THIS MANUAL,
the CHAPTER INDEX, and/or the TABLE
OF CONTENTS on the first page of each
chapter.
Use the pictorial indexes
Pages 0-6 to 0-9
PICTORIAL INDEX
If you don't know the name of the switch
or other device for which you need
information, locate the page describing it
by using the pictorial indexes.
Use device names as keys
Pages 10-1 to 10-4
INDEX
If you know the name of the switch or other
device for which you need information,
locate the page describing it by using the
Index at the end of this manual.
Use the Warning/Indicator
Light Index
Pages 0-10 to 0-13
WARNING/INDICATOR LIGHT INDEX
If a warning or indicator light is illuminated,
you can use the WARNING/INDICATOR
LIG HT IN DE X to f in d the page t hat
provides information on the light.
If you have a problem with
your vehicle
Pages 8-2 to 8-48
IN CASE OF EMERGENCY

0-4
HOW TO FIND A SPECIFIC TOPIC

0-5
CHAPTERS IN THIS MANUAL
VEHICLE INFORMATION···························· 1
IMPORTANT INFORMATION ······················ 2
Describes what you should know before you can operate the vehicle safely
and smoothly.
DOORS, WINDOWS AND SEATS··············· 3
Shows the proper way to open/close the doors, windows and fuel filler cap.
Also explains how to adjust the mirrors and seats including how to correctly
fasten the seat belts.
CONTROLS AND INSTRUMENTS·············· 4
Explains how to start and stop the engine; describes various controls and
instruments.
COMFORT AND CONVENIENCE ··············· 5
Contains information on the audio system, air conditioning system, and other
comfort and convenience features.
TIPS ON SAFE AND SMOOTH OPERATION·· 6
Describes the points you should be aware of to operate the vehicle safely
and smoothly under various conditions and in different seasons.
SERVICE AND MAINTENANCE·················· 7
Describes daily and periodic inspections and other vehicle care and
maintenance information necessary to keep your vehicle in good condition.
MAIN DATA·················································· 9
INDEX························································· 10
PICTORIAL INDEX ··································· 0-6
IN CASE OF EMERGENCY························· 8
Enumerates possible emergency situations and describes the actions you
should take to deal with any one of them.

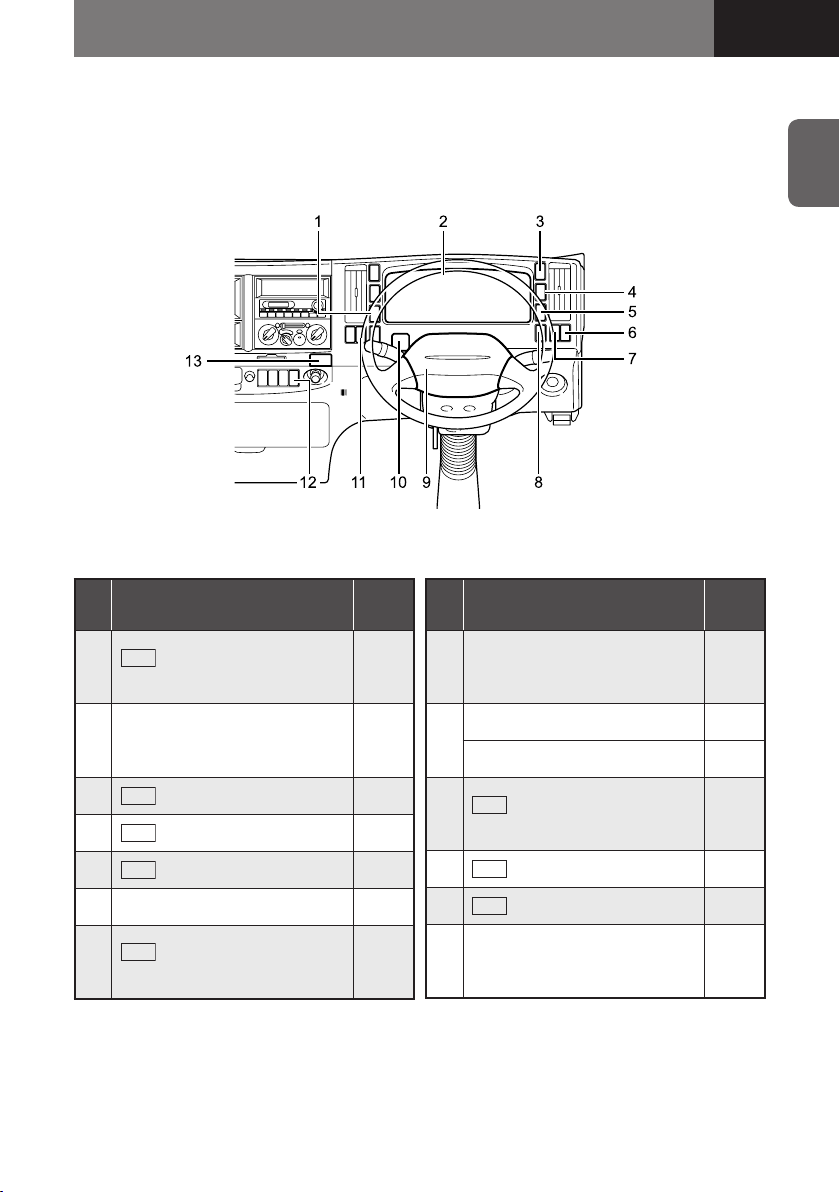

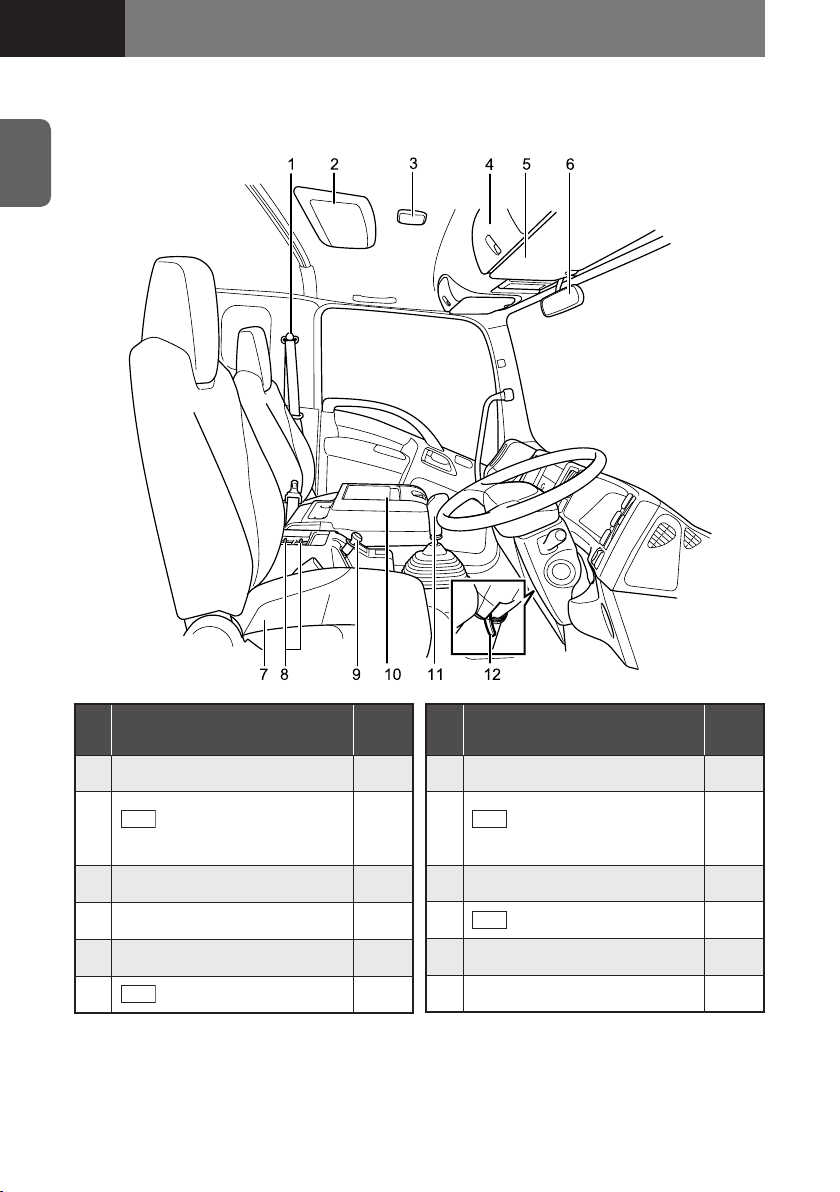

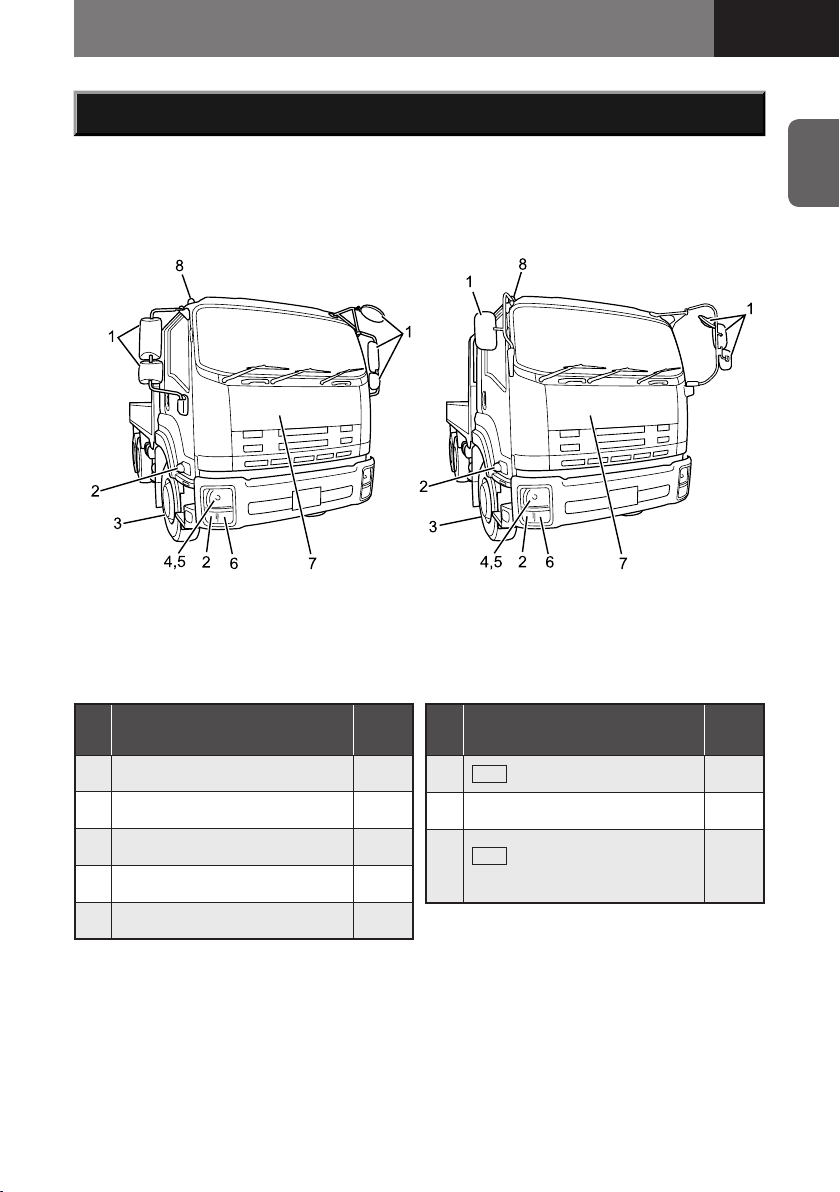

0-6 PICTORIAL INDEX
Interior
No. Equipment Page
1 Air flow direction control lever 5-3
2
V
Small article storage pocket 5-24
3
V
Heater/manual air
conditioner 5-4
V
Automatic air conditioner 5-12
4
V
AM Radio 5-31
V
AM/FM Radio 5-35
V
CD player (with AM/FM
radio) 5-42
5
Windshield wiper and
windshield washer switch 4-63
Exhaust brake switch 4-60
No. Equipment Page
6
Combination light control
switch 4-55
V
Cruise control SET/
RESUME/CANCEL
switch
4-90
4-91
4-92
7Front lid lever 7-8
8 Cigarette lighter 5-22
9Card holder 5-25
10 Hook 5-28
11 Cup holder 5-27
12 Relay box 8-36
13 Glove compartment 5-25

0-7
PICTORIAL INDEX
No. Equipment Page
1
V
Cruise control MAIN
switch 4-89
2Instruments, warning lights
and indicator lights
4-8
4-14
3
V
Interior light switch 5-21
4
V
Differential lock switch 4-61
5
V
Fog light switch 4-58
6 Idling control switch 4-54
7
V
Inter-differential lock
switch 4-62
No. Equipment Page
9
Horn button 4-65
Driver SRS airbag 4-105
10
V
Remote control mirror
switch 4-66
11
V
Mirror heater switch 4-67
12
V
PTO switch 4-103
13 Hazard warning flasher
switch 4-59

0-8 PICTORIAL INDEX
No. Equipment Page
1 Seat belts 3-29
2
V
Interior light (fluorescent
light) 5-21
3 Dome light 5-22
4Overhead shelf 5-27
5 Sun visor 5-22
6
V
Inside mirror 3-26
No. Equipment Page
7Seats 3-17
8
V
Remote control mirror
switch 4-66
9 Parking brake lever 4-71
10
V
Center console box 5-26
11 Gearshift lever 4-74
12 Fully adjustable steering 3-25

0-9
PICTORIAL INDEX
No. Equipment Page
1Outside mirrors 3-26
2 Turn signal light 8-24
3Wheels and tyres 7-60
4Headlight 8-24
5 Clearance light 8-24
No. Equipment Page
6
V
Fog light 8-24
7 Clutch fluid 7-101
8
V
Front end outline marker
light 8-24
Exterior

0-10 WARNING/INDICATOR LIGHT INDEX
Warning/Indicator Light Index
Message Display indication Color Page
Low fuel Amber 4-43
Water separator (fuel filter) Red 4-38
Engine overheat Red 4-33
Engine coolant level Red 4-34
Cab tilt Red 4-43
Meter failure Red 4-47
CAN system error Red 4-48
V
Over speed Red 4-38
Abnormal voltage Red 4-20
Multi-Information Display (MID)
Warning Lights
Indicator Lights
Message Display indication Color Page
V
PTO Red 4-46
Engine oil and filter Green 4-35

0-11
WARNING/INDICATOR LIGHT INDEX

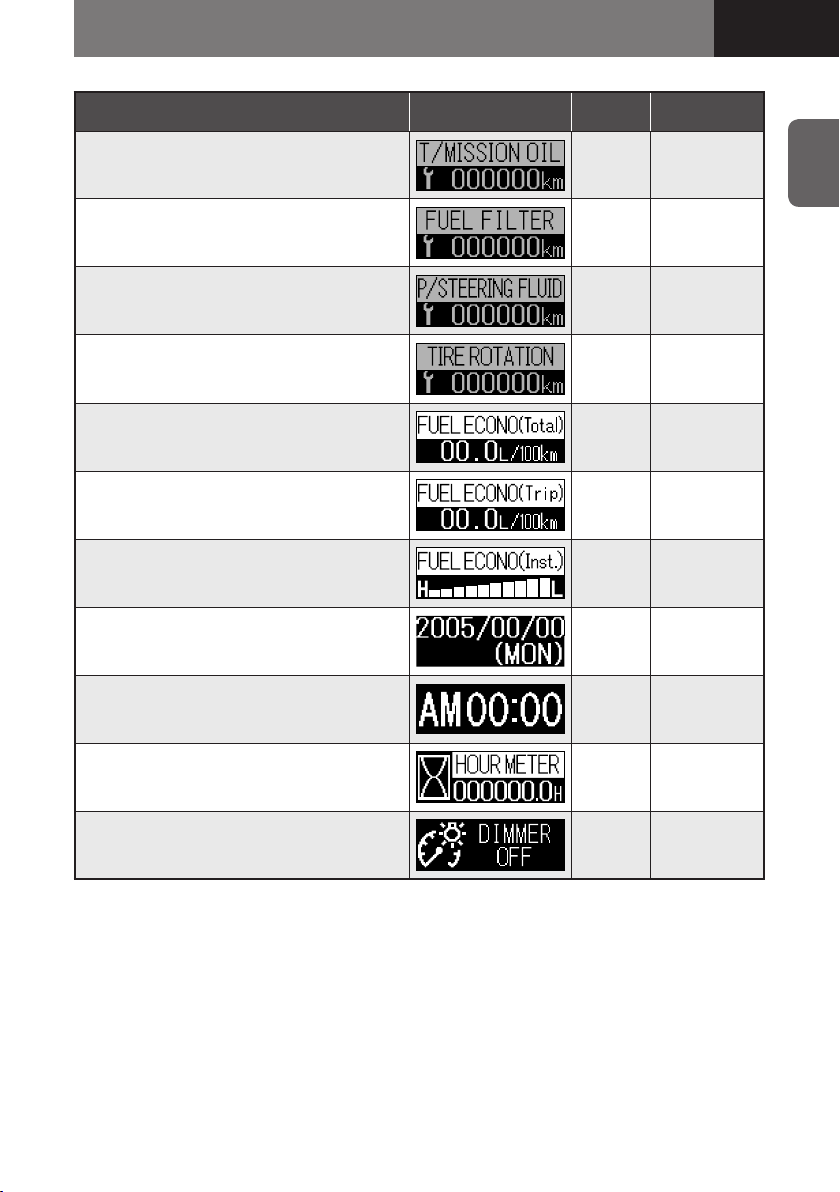

Message Display indication Color Page
Transmission oil Green 4-39
Fuel filter Green 4-40
Power steering fluid Green 4-41
Tyre rotation Green 4-42
Total fuel economy Green 4-19
Per trip fuel economy Green 4-19
Instantaneous fuel economy Green 4-19
Calendar Green 4-21
Clock Green 4-22
Hour meter Green 4-13
Nighttime dimmer Green 4-23

0-12 WARNING/INDICATOR LIGHT INDEX

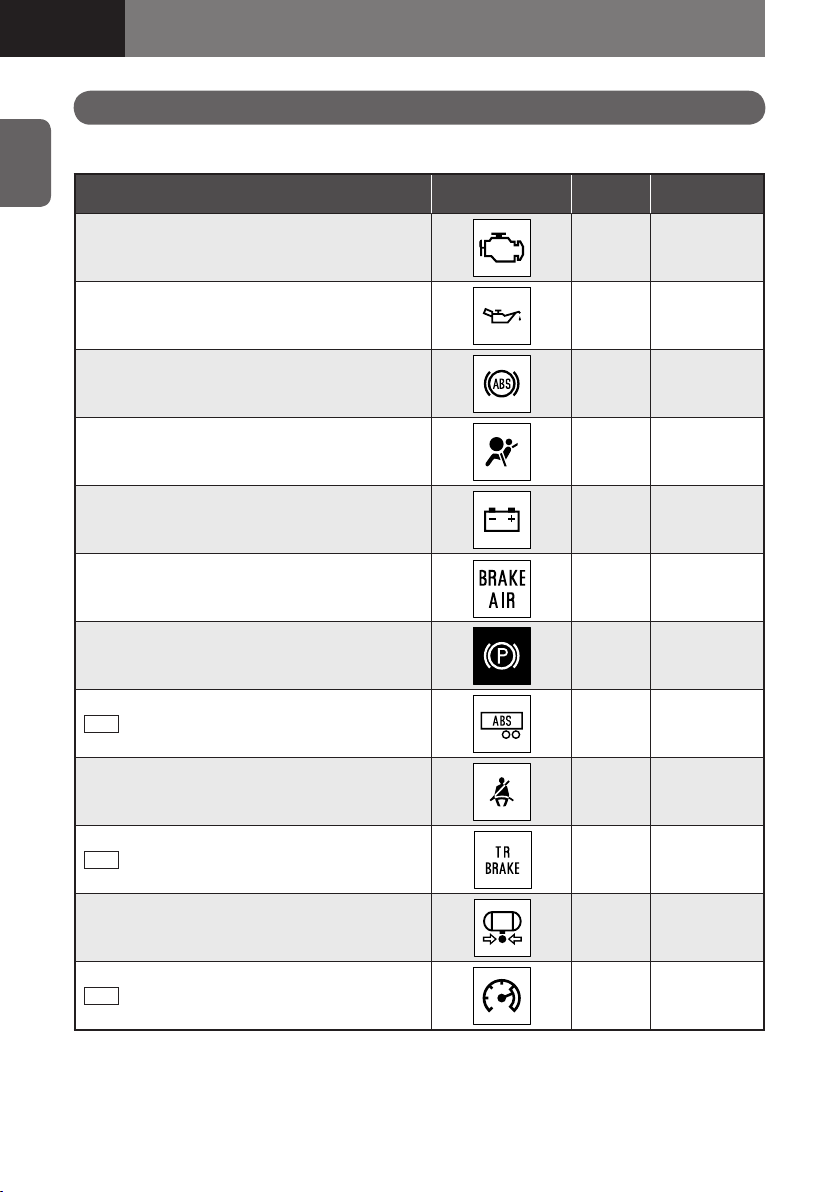

Instrument Panel
Name Symbol Color Page
Check engine warning light Amber 4-36
Engine oil pressure warning light Red 4-32
ABS warning light Amber 4-30
SRS airbag warning light Red 4-29
Alternator warning light Red 4-36
Air pressure warning light Red 4-30
Parking brake warning light Red 4-45
V
Trailer ABS warning light Amber 4-31
Seat belt warning light Red 4-29
V
Trailer brake warning light Red 4-45
Low accessory air pressure warning light Amber 4-47
V
Engine over run warning light Red 4-38
Warning Lights
