ISYGLT LS-07-PIR-WH Series User manual

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
1

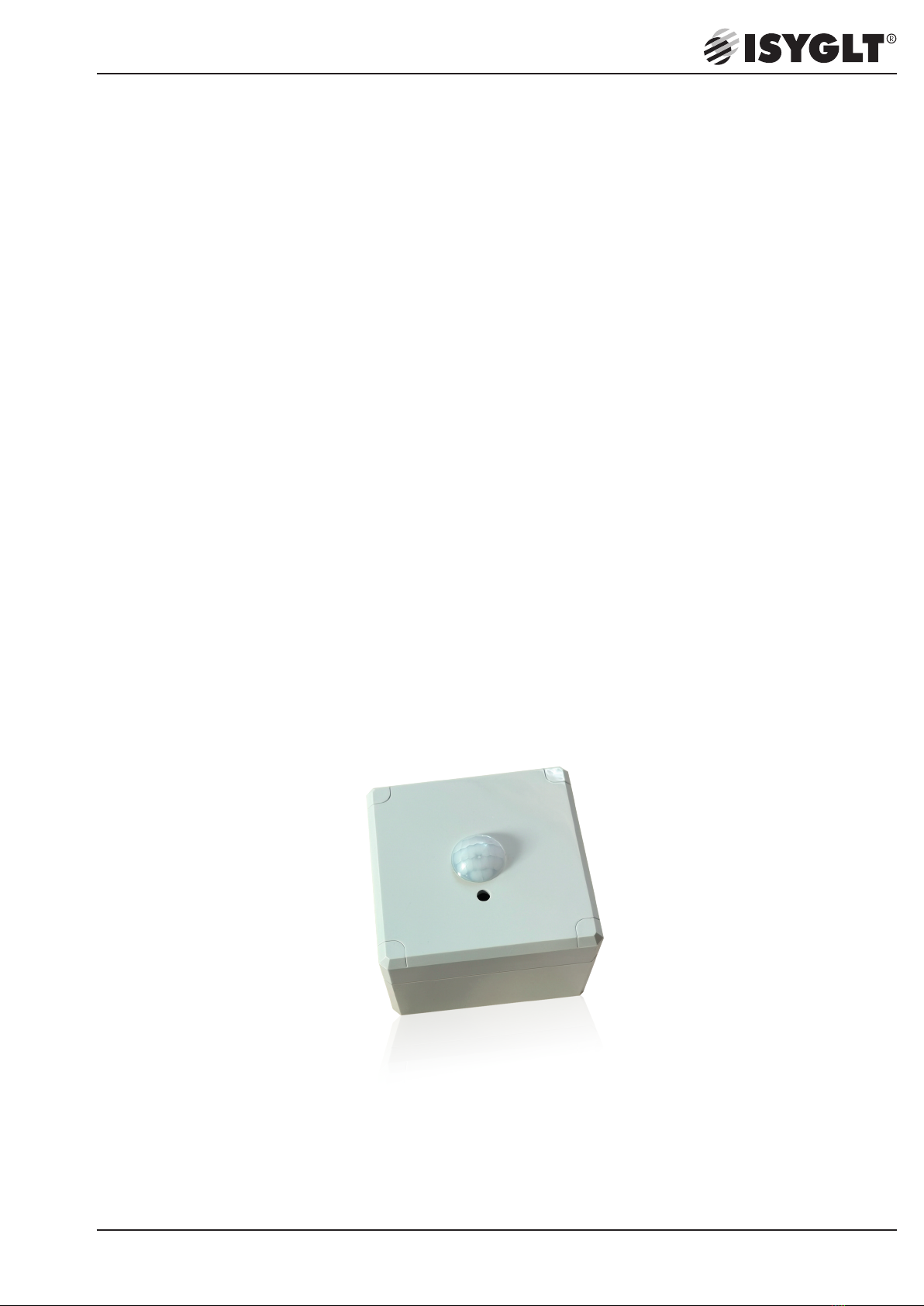

LS-07-PIR-xx-WH-xx
Article no. 8008508x-xx
Light and PIR Motion Sensor (passive infrared)
Technical Data / Instruction Manual

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
2
Directory of Content
1. Notes on documentation
1.1. Retention of documents
1.2. Symbols used
2. Safety instructions
2.1. Intended usage
2.2. Predictable mishandling
2.3. Safe handling
2.4. Qualification of staff
2.5. Changes to the product
2.6. Use of spare parts and additional equipment
2.7. Liability notes
3. Warranty
4. Declaration of Conformity
5. Service address
6. Maintenance / Care / Disposal
7. Storage
8. Assembly
9. Product description
10. Technical data
10.1. Pin assignment
10.2. Address setting
10.3. Function displays
10.4. View
11. Detection ranges PIR sensor types
12. Wiring diagram
1. Notes on documentation
These instructions are intended for qualified personnel who are
familiar with the assembly, installation and operation of the ISYGLT
system. It is essential that you read these operating instructions
through before commissioning and keep them accessible for further
use.
SEEBACHER cannot accept any liability for damage or malfunctions
resulting from failure to observe these instructions.
1.1. Retention of documents
These instructions and all other applicable documents are part
of the product. They must be handed over to the device operator.
The operator will store the documents so that they can be made
available if necessary.
1.2. Symbols used
Observe the following safety and other instructions in the manual:
Handling instruction
The hand indicates that you should carry out an act.
Danger!
Immediate danger to life!
Attention!
General notes, useful information and special features

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
3
The module is intended for installation on the ceiling or wall. Care
must be taken to ensure a useful detection direction of the light.
Extreme environmental conditions impair the function of the pro-
duct.
• Protect module from shocks
• Use module indoors only
• Protect module from humidity
In addition to these safety instructions, you must also observe
the special safety instructions listed in the individual chapters for
the individual acts.
2.4. Qualification of staff
Assembly, commissioning, operation, maintenance, decommis-
sioning and disposal may only be carried out by qualified staff.
Work on electrical parts may only be carried out by a trained
electrician in accordance with the applicable regulations and
directives. Other activities in connection with the ISYGLT module,
such as assembly and installation of system components with
tested standard plug connections, as well as operation and con-
figuration of the ISYGLT module may only be carried out by trai-
ned staff.
2.5. Changes to the product
Unauthorized modifications to the ISYGLT module which are not
described in this or the other applicable instructions can lead to
malfunctions and are prohibited for safety reasons.
2.6. Use of spare parts and additional equipment
The module may be damaged if unsuitable spare parts and addi-
tional equipment are used. Only use original spare parts and
additional equipment from the manufacturer.
2.7. Liability notes
SEEBACHER accepts no liability or warranty whatsoever for
damage and consequential damage caused by non-compliance
with the technical regulations, instructions and recommendati-
ons. SEEBACHER shall not be liable for any costs or damage
incurred by the user or third parties as a result of the use of this
equipment, in particular improper use of the equipment, misuse
or malfunction of the connection, malfunction of the equipment
or connected devices.
SEEBACHER accepts no liability for printing errors.
2. Safety instructions
Observe the following general safety instructions when installing
and commissioning the device:
Assembly and installation of the ISYGLT module may only be carried
out by a qualified electrician. Other activities in connection with the
ISYGLT module, such as assembly and installation of system com-
ponents with tested standard plug connections, as well as operation
and configuration of the ISYGLT module may only be carried out by
trained staff.
Observe the electrical installation regulations of the country in which
the device is installed and operated as well as its national accident
prevention regulations. In addition, observe internal company regu-
lations (work, operating and safety regulations).
Before working on the ISYGLT module system, it must be
disconnected from the power supply and secured against
being switched on again. After completion of the assembly,
installation and maintenance work, an electrical check must
be carried out! Check all protective conductor connections
and the voltages at all connection plugs as well as at each
individual module slot.
2.1. Intended usage
The module is exclusively suitable for regulation (control) in con-
junction with ISYGLT system components. Any other use is not
intended. The limit values stated in the technical data must not be
exceeded under any circumstances. This applies in particular to
the permissible ambient temperature range and the permissible
IP protection type. For applications with a higher required IP pro-
tection type, the ISYGLT module must be installed in a housing
or a cabinet with a higher IP protection type.
2.2. Predictable mishandling
The module must not be used in the following cases in particular:
•explosive area
When operating in explosive areas, sparking can lead to defla-
gration, fire or explosions.
2.3. Safe handling
This module corresponds to the state of the art and the recog-
nised safety regulations. Each device is tested for function and
safety before delivery.
Only operate this module in perfect condition in accordance with
the operating instructions, the applicable regulations and directi-
ves of the country in which the device is installed and operated,
and the applicable safety and accident prevention regulations.

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
4
6. Maintenance / Care / Disposal
The product is maintenance-free. It is sufficient from time to time to
remove any dust deposits. This may only be done in a power-free
state.
Disposal (European Union)
Do not dispose of product in household waste! Products with this
symbol
7. Storage
The product must be stored in a dry place, protected from dirt and
mechanical stress. After damp or dirty storage, the product may only
be operated after a condition check by an authorised electrician.
8. Assembly
(Only by certified electrician!)
Mount the product only when it is in a power-free state!
Switch off the power supply, check that there is no voltage, secure
against being switched on again!
Only use suitable equipment that meets the electrical requirements
of the device!
Check that there are no loose parts in the product. If this is the case
and the presence of such parts is not explicitly described, do not
install or commission the product.
Only use suitable cables and fixing screws.
Assembly site
• The product is intended for installation on the ceiling or wall.
Assembly steps
(Read completely before assembly!)
• Mount the device in a way that the light sensor looks into the area
to be measured. The sensor works with the reflection measure-
ment method, so direct light irradiation by the luminaire must be
avoided.
• Make the electrical connections according to the wiring diagram.
• Only after a complete connection and a visual test by a qualified
electrician, the system may be put under voltage.
Seebacher GmbH
Marktstrasse 57
83646 Bad Tölz
GERMANY
Phone: [phone] / 77 77 6
Fax: [phone] / 77 77 2
www.seebacher.de
[e-mail]
5. Service address
4. Declaration of Conformity
The valid declaration of conformity for the module can be requested
from us free of charge by stating type and article no. as follows:
By phone: [phone]
By fax: [phone]
By mail: [e-mail]
3. Warranty
We provide warranty within the framework of the statutory provisi-
ons. These are limited to the intended use of the module and refer
to the repair or replacement of the ISYGLT module. Please send the
device with an attached error description to our company address
given below.
must be disposed of according to the EU directive WEEE 2012/19/
EU on waste electrical and electronic equipment at the local collec-
tion points for waste electrical and electronic equipment!

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
5
9. Product description
The LS-07-PIR-xx-WH-xx is a digital light sensor with PIR motion
sensor for indoor applications. The sensor is connected directly to the
ISYGLT BUS. The Light Sensor provides a calibratable 16-bit bright-
ness value. Daylight controls, regulation and switching thresholds can
be realised with this light value. The measured spectrum corresponds
to the standardised V-lambda curve (λ). The PIR motion sensor is
equipped with different detection lenses depending on the type. Up to 4
separately parameterisable sensitivity setups are available for evalua-
Connections
• Mini plug Molex 51021-0400, 4-pole cable to RJ10 incl. terminal adapter
Design
• Surface-mounted or flush-mounted plastic housing
10. Technical data
Type designation Article no. Design Motion sensor Dimensions Weight
LS-07-PIR-01-WH 80085081 Loose printed circuit board
without housing
Long Distance Detection Type
Detection 108°x99°, 12m
Sensor EKMC2603111K
66 x 51.1 x 43mm 22g
LS-07-PIR-01-WH-AP 80085081-11
Sensor in surface-mounted
plastic housing halogen-
free grey
Long Distance Detection Type
Detection 108°x99°, 12m
Sensor EKMC2603111K
80 x 82 x 56mm 160g
LS-07-PIR-01-WH-APG 80085081-61 Sensor in surface-mounted
housing GIRA System 55
Long Distance Detection Type
Detection 108°x99°, 12m
Sensor EKMC2603111K
80 x 80 x 59mm 155g
LS-07-PIR-01-WH-UP 80085081-31
Sensor in flush-mounted
cover and frame GIRA
System 55 pure white shiny
Long Distance Detection Type
Detection 108°x99°, 12m
Sensor EKMC2603111K
80 x 80 x 11mm 70g
LS-07-PIR-02-WH 80085082 Loose printed circuit board
without housing
High Density Long Distance Detection Type
Detection 69°x69°, max. 14.5m
Sensor EKMC2606111K
66 x 51.1 x 43mm 22g
LS-07-PIR-02-WH-AP 80085082-11
Sensor in surface-mounted
plastic housing halogen-
free grey
High Density Long Distance Detection Type
Detection 69°x69°, max. 14.5m
Sensor EKMC2606111K
80 x 82 x 56mm 160g
LS-07-PIR-02-WH-APG 80085082-61 Sensor in surface-mounted
housing GIRA System 55
High Density Long Distance Detection Type
Detection 69°x69°, max. 14.5m
Sensor EKMC2606111K
80 x 80 x 59mm 155g
LS-07-PIR-02-WH-UP 80085082-31
Sensor in flush-mounted
cover and frame GIRA
System 55 pure white shiny
High Density Long Distance Detection Type
Detection 69°x69°, max. 14.5m
Sensor EKMC2606111K
80 x 80 x 11mm 70g
tion. Thus, adjustments to customer requirements and local conditions
are individually possible, such as activating the lighting only in the case
of large movement or maintaining the „ON“ state even in the case of
small movement detections.

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
6
10.2. Address setting
DIP switch 8-pole (is located on the circuit board of the module)
• S1 = Reserve (must be set to OFF)
• S2 to S8 = Module address ISYGLT
10.3. Function displays
Meaning / Function
LED red Function can be freely parameterised via the ProgramDesigner.
Connector Designation
+ Operating voltage
- Operating voltage
A Subnet BUS A
B Subnet BUS B
10.1. Pin assignment
Operating voltage 12-24V DC (max. 30V DC)
Current consumption max. 10mA
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Measuring range
illuminance 0 to 4500 lx (depending on mounting)
Connection push-in terminals
Operating temperature ta -20°C to +45°C
Storage temperature -25°C to +70°C
Humidity 0-90% r. h. non-condensing
Protection class without housing IP00, with housing >IP20
CE mark yes

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
7
10.4. View
LS-07-PIR-01-WH-AP LS-07-PIR-01-WH-APG LS-07-PIR-01-WH-UP
LS-07-PIR-02-WH-AP LS-07-PIR-02-WH-APG LS-07-PIR-02-WH-UP

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
8
LS-07-PIR-01-WH
Long Distance Detection Type
108°x99°, 12m
11. Detection ranges PIR sensor types

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
9
LS-07-PIR-02-WH
High Density Long Distance Detection Type
69°x69°, max. 14.5m

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
10
12. Wiring diagram
LS-07-PIR-xx-xx
Art. no.: 8008508x
Light / PIR motion sensor
BUS address
001
B A
0V Ub
R
BUS-B
BUS-A
0V=
+24V
BUS-B
BUS-A
0V=
+24V
Misprints and technical changes reserved.
