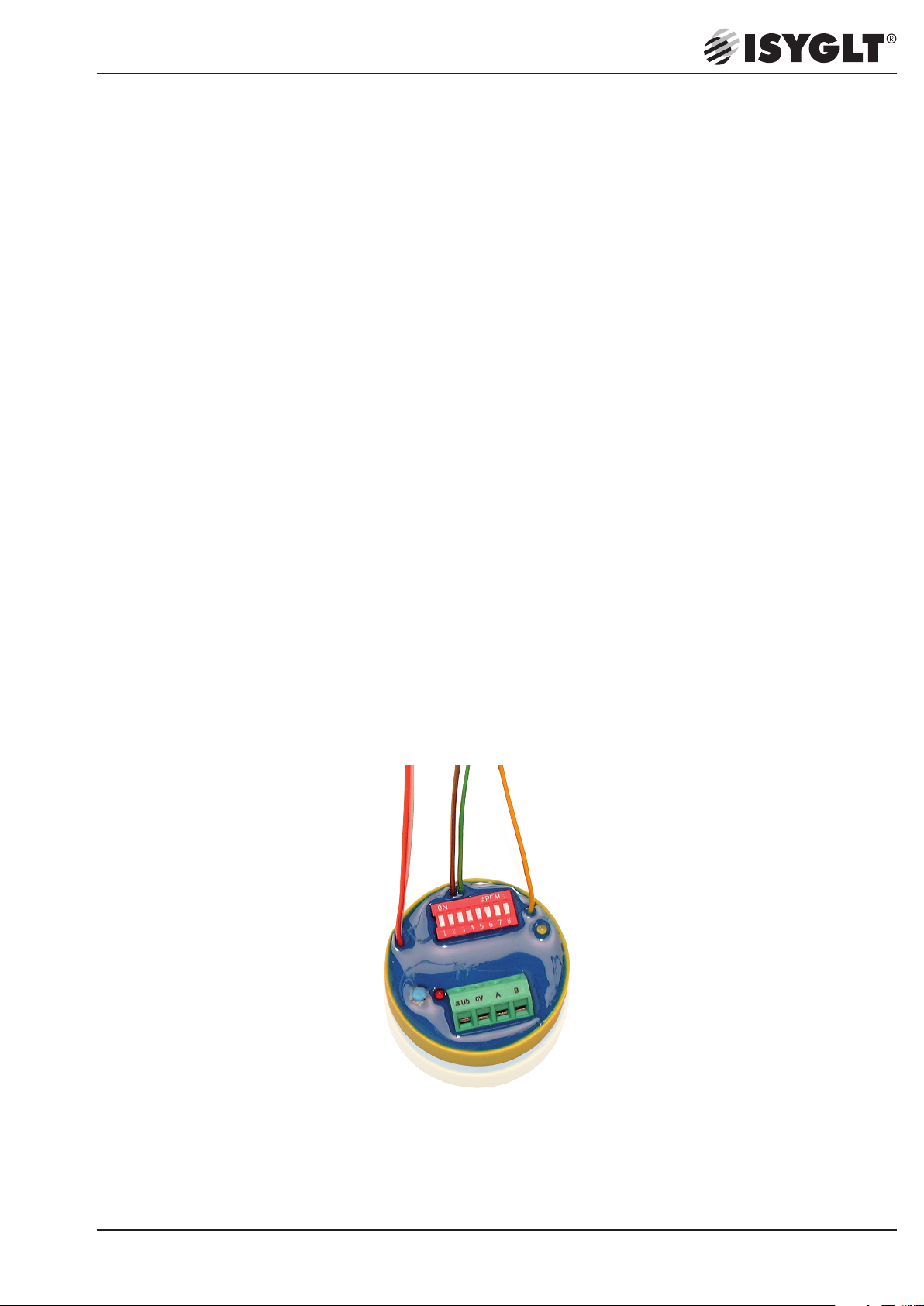

IN-04U
Article no. 80024040
Flush-mounted Transmitter Module
Technical Data / Instruction Manual

2
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
1. Notes on documentation
These instructions are intended for qualified personnel who are
familiar with the assembly, installation and operation of the ISYGLT
system. It is essential that you read these operating instructions
through before commissioning and keep them accessible for further
use.
SEEBACHER cannot accept any liability for damage or malfunctions
resulting from failure to observe these instructions.
1.1. Retention of documents
These instructions and all other applicable documents are part
of the product. They must be handed over to the device operator.
The operator will store the documents so that they can be made
available if necessary.
1.2. Symbols used
Observe the following safety and other instructions in the manual:
Handling instruction
The hand indicates that you should carry out an act.
Danger!
Immediate danger to life!
Attention!
General notes, useful information and special features
Directory of Content
1. Notes on documentation
1.1. Retention of documents
1.2. Symbols used
2. Safety instructions
2.1. Intended usage
2.2. Predictable mishandling
2.3. Safe handling
2.4. Qualification of staff
2.5. Changes to the product
2.6. Use of spare parts and additional equipment
2.7. Liability notes
3. Warranty
4. Declaration of Conformity
5. Service address
6. Maintenance / Care / Disposal
7. Storage
8. Assembly
9. Product description
10. Technical Data
10.1. Pin assignment
11. Wiring diagram

3
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
The module is designed for mounting in a flush-mounted box
according to DIN 49073. Extreme environmental conditions
impair the function of the product.
• Protect module from shocks
• Use module indoors only
• Protect module from humidity
In addition to these safety instructions, you must also observe
the special safety instructions listed in the individual chapters for
the individual acts.
2.4. Qualification of staff
Assembly, commissioning, operation, maintenance, decommis-
sioning and disposal may only be carried out by qualified staff.
Work on electrical parts may only be carried out by a trained
electrician in accordance with the applicable regulations and
directives. Other activities in connection with the ISYGLT module,
such as assembly and installation of system components with
tested standard plug connections, as well as operation and con-
figuration of the ISYGLT module may only be carried out by trai-
ned staff.
2.5. Changes to the product
Unauthorized modifications to the ISYGLT module which are not
described in this or the other applicable instructions can lead to
malfunctions and are prohibited for safety reasons.
2.6. Use of spare parts and additional equipment
The module may be damaged if unsuitable spare parts and addi-
tional equipment are used. Only use original spare parts and
additional equipment from the manufacturer.
2.7. Liability notes
SEEBACHER accepts no liability or warranty whatsoever for
damage and consequential damage caused by non-compliance
with the technical regulations, instructions and recommendati-
ons. SEEBACHER shall not be liable for any costs or damage
incurred by the user or third parties as a result of the use of this
equipment, in particular improper use of the equipment, misuse
or malfunction of the connection, malfunction of the equipment
or connected devices.
SEEBACHER accepts no liability for printing errors.
2. Safety instructions
Observe the following general safety instructions when installing
and commissioning the device:
Assembly and installation of the ISYGLT module may only be carried
out by a qualified electrician. Other activities in connection with the
ISYGLT module, such as assembly and installation of system com-
ponents with tested standard plug connections, as well as operation
and configuration of the ISYGLT module may only be carried out by
trained staff.
Observe the electrical installation regulations of the country in which
the device is installed and operated as well as its national accident
prevention regulations. In addition, observe internal company regu-
lations (work, operating and safety regulations).
Before working on the ISYGLT module system, it must be
disconnected from the power supply and secured against
being switched on again. After completion of the assembly,
installation and maintenance work, an electrical check must
be carried out! Check all protective conductor connections
and the voltages at all connection plugs as well as at each
individual module slot.
2.1. Intended usage
The module is only suitable as a BUS coupler for the input and
output of commands and signals in conjunction with ISYGLT
system components. Any other use is not intended. The limit
values stated in the technical data must not be exceeded under
any circumstances. This applies in particular to the permissible
ambient temperature range and the permissible IP protection
type. For applications with a higher required IP protection type,
the ISYGLT module must be installed in a housing or a cabinet
with a higher IP protection type.
2.2. Predictable mishandling
The module must not be used in the following cases in particular:
•explosive area
When operating in explosive areas, sparking can lead to defla-
gration, fire or explosions.
2.3. Safe handling
This module corresponds to the state of the art and the recog-
nised safety regulations. Each device is tested for function and
safety before delivery.
Only operate this module in perfect condition in accordance with
the operating instructions, the applicable regulations and directi-
ves of the country in which the device is installed and operated,
and the applicable safety and accident prevention regulations.

4
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
6. Maintenance / Care / Disposal
The product is maintenance-free. It is sufficient from time to time to
remove any dust deposits. This may only be done in a power-free
state.
Disposal (European Union)
Do not dispose of product in household waste! Products with this
symbol
7. Storage
The product must be stored in a dry place, protected from dirt and
mechanical stress. After damp or dirty storage, the product may only
be operated after a condition check by an authorised electrician.
8. Assembly
(Only by certified electrician!)
Mount the product only when it is in a power-free state!
Switch off the power supply, check that there is no voltage, secure
against being switched on again!
The device may only be operated at voltages according to the tech-
nical data and loaded with the currents defined therein. Only use
suitable equipment (system modules).
Check that there are no loose parts in the product. If this is the case
and the presence of such parts is not explicitly described, do not
install or commission the product.
Only use suitable cables and fixing screws.
Assembly site
• The product can be installed in any position in a casing to be deter-
mined by the electrician (box, lamp, switch cabinet). Observe maxi-
mum ambient temperature!
Assembly steps
(Read completely before assembly!)
• Mount the device in a suitable casing.
• Make the electrical connections according to the wiring diagram.
• Congure the DIP switches according to your requirements.
• Only after a complete connection and a visual test by a qualied
electrician, the system may be put under voltage.
Seebacher GmbH
Marktstrasse 57
83646 Bad Tölz
GERMANY
Phone: [phone] / 77 77 6
Fax: [phone] / 77 77 2
www.seebacher.de
[e-mail]
5. Service address
4. Declaration of Conformity
The valid declaration of conformity for the module can be requested
from us free of charge by stating type and article no. as follows:
By phone: [phone]
By fax: [phone]
By mail: [e-mail]
3. Warranty
We provide warranty within the framework of the statutory provisi-
ons. These are limited to the intended use of the module and refer
to the repair or replacement of the ISYGLT module. Please send the
device with an attached error description to our company address
given below.
must be disposed of according to the EU directive WEEE 2012/19/
EU on waste electrical and electronic equipment at the local collec-
tion points for waste electrical and electronic equipment!

5
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
9. Product description
The flush-mounted IN module is used to connect conventional push
buttons and switches to the subnet. With the module 4 commands
can be transferred to the BUS system. The buttons/switches are
connected by means of wires.
Inputs / Outputs
• 4 optocoupler inputs
Function displays
• 1 red LED indicates the operating voltage
• 1 ashing yellow LED indicates the communication with the master via the subnet
Connections
• 1 connection for the Subnet (BUS A and B, RS-485)
• 1 connection for the operating voltage (Ub, 0V)
• 4 inputs
Design
• Encapsulated in yellow plastic cap for installation in standard ush-mounted boxes or external devices
Special function DIP switch 1
• Baud rate
- Switch OFF = data transmission rate 38400 baud
- Switch ON = data transmission rate 9600 baud

6
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
10. Technical data
10.1. Pin assignment
View
Type designation IN-04U
Article no. 80024040
Operating voltage 12-27V DC
Current consumption 20mA
Inputs 12-30V DC 5mA (potential-free contact) via optocoupler (4.7 kOhm)
Subnet (RS-485) max. 5.6V limited by Z-diodes
Dimensions DxH 50x18mm
Weight approx. 90g
Connection screw terminals 2.5mm² for BUS, solid wires 0.8mm for inputs
Operating temperature -10°C to +50°C
Storage temperature -25°C to +70°C
Humidity 0-85% r. h. non condensing
Protection class IP 20
CE mark yes
≅Ub Operating voltage
0V Operating voltage
A Subnet (BUS A, RS-485)
B Subnet (BUS A, RS-485)
Wire colour Designation
White Input 1
Brown Input 2
Green Input 3
Yellow Input 4
Red COM.A (+Ub -1V)
E4 (yellow)
E2 (brown) E3 (green)
E1 (white)
COM.A+ (red)
Depth with terminals 18mm

7
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
11. Wiring diagram
+24V
0V=
BUS-A
BUS-B
E1 E2 E3 E4
COM.A(+)
2 3 4 5 6 7 81
Art. no.: 80024040
ISYGLT-IN-04U
Address
wh bn gn ye rd
+U 0V
A B
Misprints and technical changes reserved.
